Product Type	Ultrasonic Aroma Diffuser
Brand	Medisana
Model	AD 635
Dimensions (approx.)	150 mm x 171 mm (Diameter x Height)
Weight	Approx. 600 g
Power Supply	24V DC, 0.5 A power adapter (model LQ240050U)
Power Adapter Input	100-240 V ~ 50/60 Hz, 0.35 A
Power Consumption	12 W
Water Tank Capacity	100 ml maximum
Diffusion Technology	Ultrasonic
LED Lighting Function	Yes, with automatic color change or fixed color
Control	Push button under the dome (press on top)
Operating Modes	Activation -> automatic color change -> monochrome -> LED off -> deactivation
Intended Use	Aroma diffusion in enclosed rooms, household use
Maintenance	Empty and wipe after each use; descale every 14 days or after 5-6 uses
Descaling Method	Citric acid (3 teaspoons in 100 ml water, let sit for 15 min)
Safety Instructions	Do not use in a bathroom or sauna; do not cover; unplug before maintenance
Materials	Not specified in the manual (estimated: plastic)
Warranty	3 years from date of purchase
Box Contents	Diffuser, power adapter, instruction manual

Frequently Asked Questions - AD 635 MEDISANA

How do I turn the Medisana AD 635 diffuser on and off?

Press the dome of the device with your hand. Each press cycles through the modes: activation -> automatic color change -> monochrome (current color held) -> LED off -> deactivation.

How much water can I put in the tank?

The maximum capacity is 100 ml. Do not fill above.

Can I use pure essential oils?

Yes, you can add a few drops of essential oil to the water. However, only use water as the base liquid; never pour oil directly into the tank without water.

How do I clean the diffuser after use?

Unplug the device, empty the remaining water, and wipe the tank with a cloth. To change scents, rinse the tank with clean water. Clean the exterior with a soft, slightly damp cloth, then dry.

How often should I descale the device?

It is recommended to descale after 5 to 6 uses or every 14 days, whichever comes first. Use citric acid (3 teaspoons in 100 ml water, let sit for 15 minutes).

Can I use the diffuser in a bathroom?

No, the device should not be used in humid rooms such as a bathroom or sauna, as this could damage the device and pose a fire risk.

What should I do if the diffuser does not turn on?

Check that the power adapter is properly plugged in and that the tank contains enough water (the device only activates when the tank is filled). If the problem persists, contact customer service.

How do I change the LED color?

Press the dome to switch to automatic color change mode (colors cycle). Another press freezes the current color (monochrome). Another press turns off the LEDs.

What type of water should I use?

Use tap water or demineralized water. Avoid distilled water as it may reduce diffusion efficiency. Water should be cold or at room temperature.

Can I leave the device on all night?

Yes, the diffuser is designed for prolonged use. However, ensure there is enough water and place it on a stable surface, away from electronic devices and heat sources.

USER MANUAL AD 635 MEDISANA

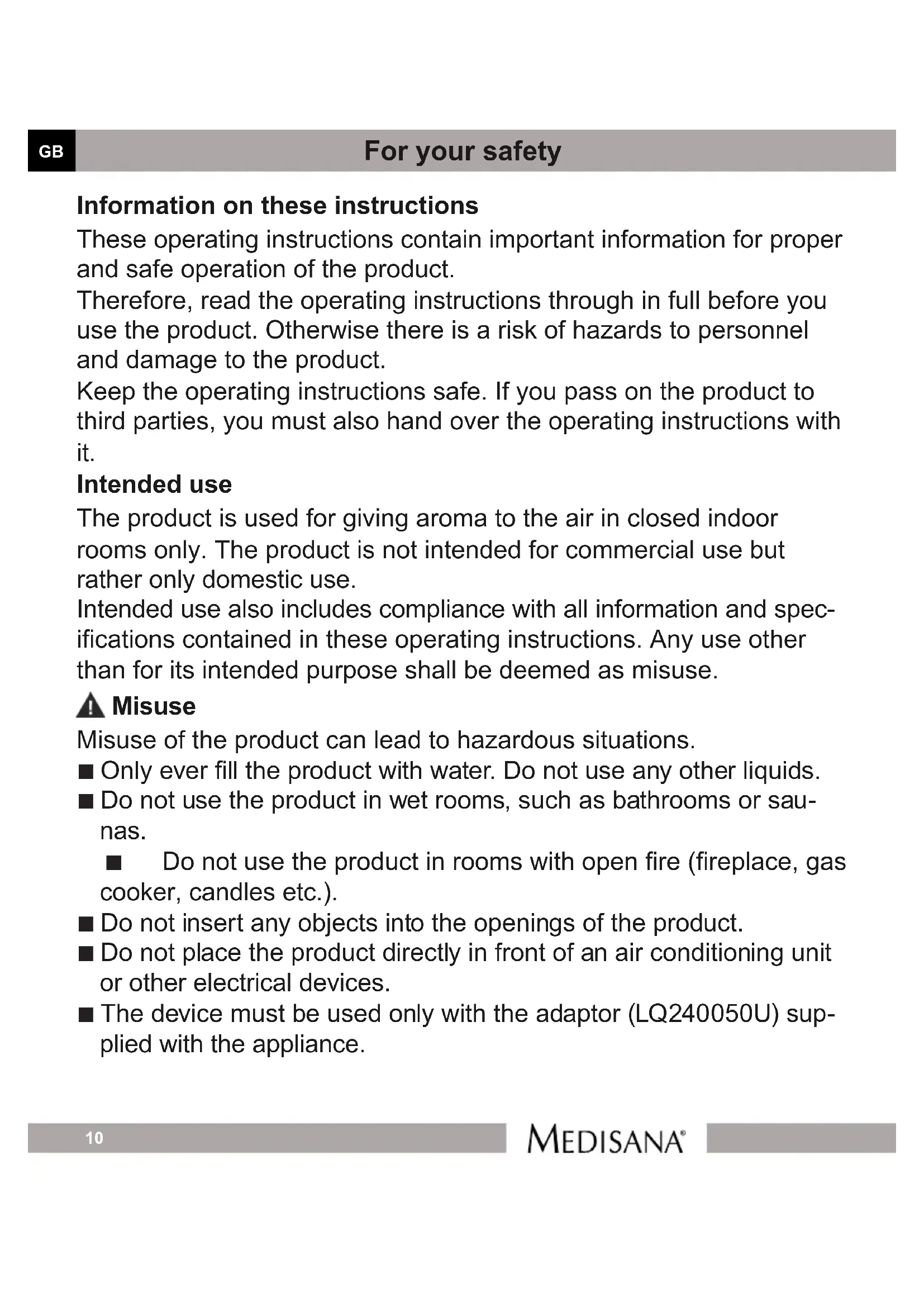

Operating Instructions Page 10

Information on these instructions

These operating instructions contain important information for proper and safe operation of the product.

Therefore, read the operating instructions through in full before you use the product. Otherwise there is a risk of hazards to personnel and damage to the product.

Keep the operating instructions safe. If you pass on the product to third parties, you must also hand over the operating instructions with it.

Intended use

The product is used for giving aroma to the air in closed indoor rooms only. The product is not intended for commercial use but rather only domestic use.

Intended use also includes compliance with all information and specifications contained in these operating instructions. Any use other than for its intended purpose shall be deemed as misuse.

Misuse

Misuse of the product can lead to hazardous situations.

Only ever fill the product with water. Do not use any other liquids.
- Do not use the product in wet rooms, such as bathrooms or saunas.

• Do not use the product in rooms with open fire (fireplace, gas cooker, candles etc.).

• Do not insert any objects into the openings of the product.

• Do not place the product directly in front of an air conditioning unit or other electrical devices.
  The device must be used only with the adaptor (LQ240050U) supplied with the appliance.

Children

This device can be used by children of 8 years of age and above and by persons with restricted physical, sensory or mental capacity or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the device and understand the resultant hazards.

■ Make sure that the product is set up out of the reach of children.
■ Make sure that children are not allowed to play with the product at any time.
- Cleaning and user maintenance must not be performed by children without supervision.
- Do not leave packaging material lying around unattended. There is a risk of asphyxiation.

Improper handling

Improper handling of the product can cause injuries.

Make sure that the product is connected properly. In the process, adhere to these operating instructions.
■ Make sure that the product is used properly. Never cover it.
■ Be aware that unauthorised conversion and / or modification of the product is prohibited. In case of unauthorised conversion and / or modification the warranty cover will be rendered null and void.

Never open the water tank during operation.

Before filling or emptying the product, always pull the mains plug from the socket.
Before installation, cleaning or a period in which the product is not used, pull the mains from the socket.
- Empty the water tank before a period in which the product is not used.

• Contact the manufacturer or a specialist if you have any doubts regarding the way the product works, its safety or how to connect the product.
• You must not continue to use the unit if the lead or the mains adaptor are damaged. For safety reasons, these parts may only be replaced by authorized service personnel. In order to prevent hazards, always send the unit in to the service centre.
  ■ Ensure that the cable will not cause tripping. The cable must not be kinked, trapped or twisted.

Setting up

If liquids, damp air or fire come into contact with the product, there is a risk of injuries.

• Do not set up the product in rooms with high air humidity, such as bathrooms or saunas.
  ■ Make sure that no liquids enter into the inside of the housing. This will not only destroy the product but there is also a risk of fire.
• Protect the product from the effects of the elements. Do not set it up outdoors.

Only ever place the product on flat surfaces. If placed on an inclined surface, water from the water tank may enter into the housing.

• Make sure that the air inlet openings on the base of the product are not covered or sealed.

Functions

The aroma diffuser is a modern fragrance diffuser which uses ultrasound technology to generate a fine mist and thus distribute the fragrance throughout the whole room. The aroma diffuser has the following additional function:

■ LED: LEDs are integrated into the aroma diffuser which either light up in the selected colour or change colour automatically.

Device and controls

Marking for maximum filling quantity (100ml) [fig. C]
Operating button [fig. F/G]

Adaptor [fig. F]

The aroma diffuser is controlled using the operating button 2 on the bottom side of the device (figure F). With this button you can switch the aroma diffuser on and off and you can control the LED lighting. Therefore press one hand onto the top of the device (figure G).

The following setting are available: Device on automatic colour change single colour (current colour is kept) LED off device off. You can only switch on the device when the water tank is filled sufficiently (max. filling quantity 100ml 1).

Filling the water tank with water and aroma essence

Fill the water tank with max. 100ml fresh drinking water and add some drops of the aroma essence (depending on the desired intensity) to the water.

ATTENTION! Make sure that the device is operated on a surface which is resistant to water, and that it cannot tip over. In particular, when operated with mineralised water, condensation / residues may be produced. Make sure that the mist being issued is not directed towards electronic appliances, furniture or walls.

Cleaning and servicing

Before cleaning, pull the mains plug.
Empty the device after each use and dry the water tank with a cloth.
- Wash the water tank with clear water when you wish to change the aroma. This prevents mixing different aromas.
Only clean the outside of the device with a soft, slightly damp cloth. Then rub it dry with a soft, dry cloth.
- Do not under any circumstances us brushes, sharp cleaning implements, benzene, thinners or alcohol.

Dscaling

Descale the device after five or six uses or every 14 days, depending on what is arriving first. To do so, proceed as follows:

1. Disconnect the device from the power supply.
2. Fill the water tank with a maximum of 100ml of water and add three tablespoons of citric acid.
3. Allow the liquid to take effect for at least fifteen minutes.
4. Empty out the liquid.
5. Wipe out the water tank with a dry cloth.

However, if you have any questions, please contact our service department. The service department address is included on the separate supplementary sheet.

Disposal

Electrical and electronic components must not be disposed of with the domestic waste. Once the product reaches the end of its service life, dispose of it and its components separately in accordance with the local valid regulations for disposal.

Technical data

AC adaptor (LQ240050U)

Input: 100 - 240V 50 / 60~Hz 0.35A

Output:

Voltage: DC 24 V

Current: 0.5 A

Device

Voltage: DC 24 V

Current: 0.5 A

Power: 12 W

Water tank capacity: 100 ml

Dimensions: approx. 150mm× H171mm

Weight: approx. 600 g

We reserve the right to make technical and design changes in the interest of constant product improvements.

The current version of these operating instructions can be found at http://www.medisana.com.

Warranty and repair terms

Please contact your dealer or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of pur chase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be removed free of charge within the warranty period.
3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.
4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.
