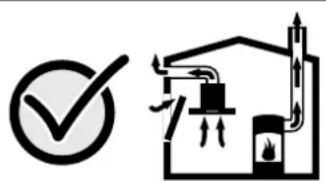

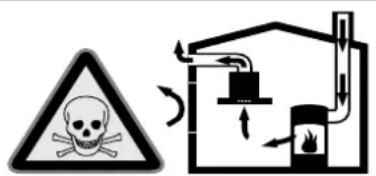

Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau.com/zz/store13 m Important safety information Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners. The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location. This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. This appliance is not intended for operation with an external clock timer or a remote control. Danger of suffocation! Packaging material is dangerous to children. Never allow children to play with packaging material. Danger of death! Risk of poisoning from flue gases that are drawn back in. Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated. Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space. ▯ Adequate incoming air must therefore always be ensured. ▯ An incoming/exhaust air wall box alone will not ensure compliance with the limit. Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means.14 In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode. Risk of fire! ▯ Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. Risk of fire! ▯ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks. Risk of fire! ▯ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. Risk of fire! ▯ When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them. Risk of fire! ▯ Operating several gas burners at the same time gives rise to a great deal of heat. The ventilation appliance may become damaged or catch fire. The ventilation appliance must only be combined with gas burners that do not exceed the maximum total output of 18 kW. If the total output exceeds 12 kW, the local regulations regarding room ventilation, room size and the combination of ventilation appliances with recirculation or circulated air mode must be observed. Risk of burns! The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance. Risk of injury! ▯ Components inside the appliance may have sharp edges. Wear protective gloves. Risk of injury! ▯ Items placed on the appliance may fall down. Do not place any objects on the appliance. Risk of injury! ▯ The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds. Risk of electric shock! ▯ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock! ▯ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after- sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock! ▯ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. Causes of damage Caution! Risk of damage due to corrosion. Always switch on the appliance while cooking to avoid condensation. Condensate can produce corrosion damage. Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth. Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls. Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents. Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).15 Environmental protection Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly. Saving energy ▯ During cooking, ensure that there is a sufficient supply of air to enable the extractor hood to work efficiently and with a low level of operating noise. ▯ Adjust the fan speed to the amount of steam produced during cooking. Only use intensive mode when required. The lower the fan speed, the less energy is consumed. ▯ If cooking produces large amounts of steam, select a higher fan speed in good time. If the cooking steam has already spread around the kitchen, the extractor hood will need to be operated for longer. ▯ Switch off the extractor hood if you no longer require it. ▯ Switch off the lighting if you no longer require it. ▯ Clean and (if required) replace the filter at regular intervals in order to increase the effectiveness of the ventilation system and to prevent the risk of fire. ▯ Put the lid on to reduce cooking steam and condensation. Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Operating modes This appliance can be used in exhaust-air mode or circulating-air mode. Exhaust air mode Note: The exhaust air must not be conveyed into a functioning smoke or exhaust gas flue or into a shaft which is used to ventilate installation rooms which contain heat-producing appliances. ▯ Before conveying the exhaust air into a non- functioning smoke or exhaust gas flue, obtain the consent of the heating engineer responsible. ▯ If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used. Circulating-air mode Note: To bind odours in circulating-air mode, you must install an activated carbon filter. The different options for operating the appliance in circulating-air mode can be found in the brochure. Alternatively, ask your dealer. The required accessories are available from specialist outlets, from customer service or from the Online Shop. The accessory numbers can be found at the end of the instructions for use. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system. The air which is drawn in is cleaned by the grease filters and an activated carbon filter and conveyed back into the kitchen.16 Operating the appliance Note: Switch on the extractor hood when you start cooking and switch it off again several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes. Control panel Operating buttons Setting the fan Switching on Press button 1œ, 2ž, 3μ or Ž. Switching off Press button 1œ. Note: If the fan is running at setting 2 or 3, press button 1œ twice. Intensive setting You can use the intensive setting if there is a large build- up of odours and fumes/vapours. Press the Ž button. This activates intensive mode. Notes ‒ The intensive mode run time is limited to 6 minutes. ‒ After 6 minutes, the appliance will switch back to the fan setting that was previously selected. ‒ Intensive mode can be activated when the appliance is off; after 6 minutes, the appliance will switch itself off again. Fan run-on With the fan run-on, the appliance continues to run at the level that was previously set and switches off automatically after 30 minutes. 1 Select the fan setting. 2 Press and hold button 2ž. This activates fan run-on mode. The button for the selected setting will flash green. Interval ventilation With interval ventilation, the ventilation system switches on automatically at the lowest level for 6 minutes every hour. The interval ventilation switches off after 24 hours. Switching on Press and hold button 3μ. This activates intermittent ventilation. Button 1œ will flash. Switching off Press and hold button 3μ or press button 1œ. Lighting The lighting can be switched on and off independently of the ventilation system. Press the ž button. This switches on the lighting. Setting the brightness Press and hold the ž button until the required brightness is reached. Saturation indicator The saturation indicator will be lit continuously when the metal grease filters fitted in the appliance are saturated. For instructions on how to clean metal grease filters, refer to the section entitled Cleaning and maintenance. Resetting the saturation indicator 1 Switch off the appliance. 2 Press and hold button 1œ for 3 seconds. This resets the saturation indicator and it will go out.

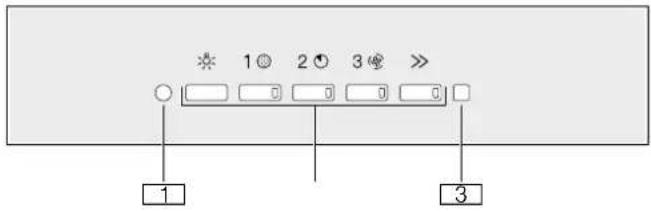

Cleaning and maintenance

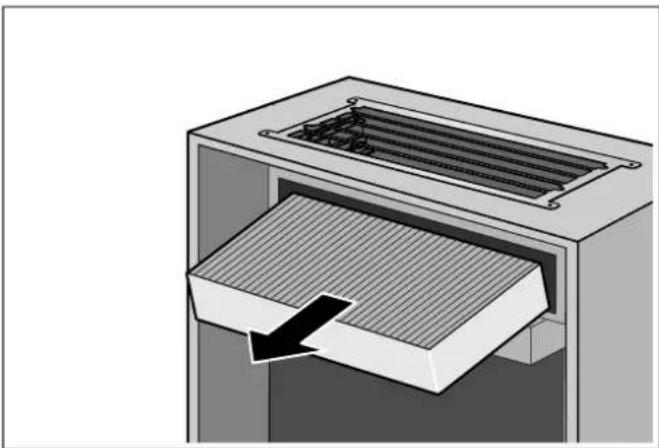

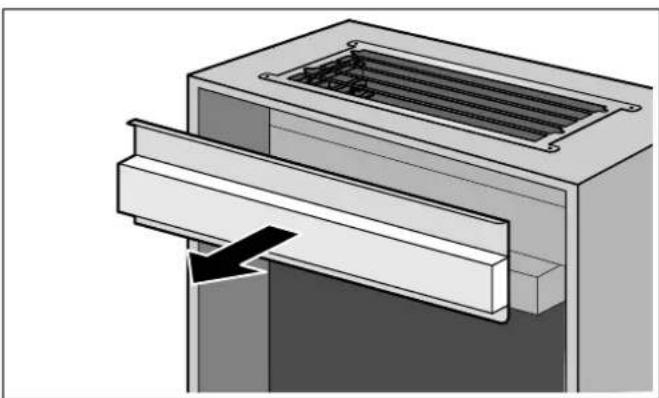

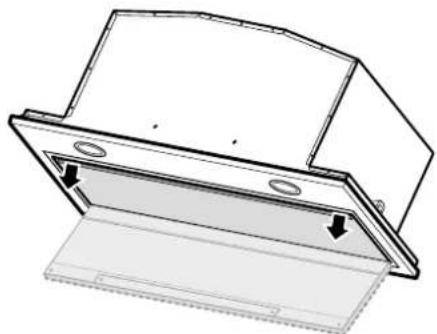

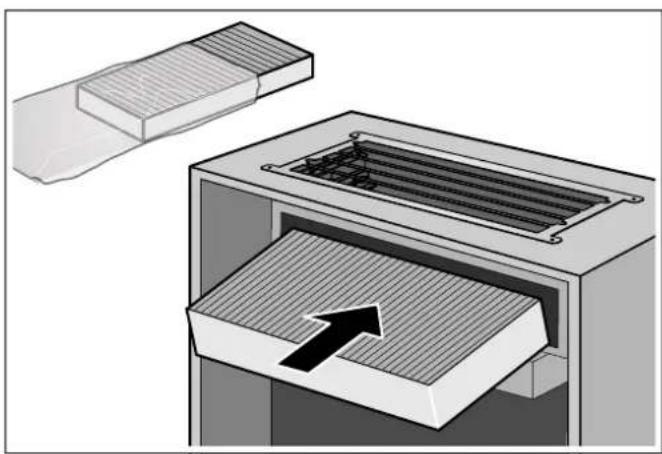

Risk of burns! The appliance will become hot during operation, especially near the bulbs. Allow the appliance to cool down before cleaning. m Risk of electric shock! Penetrating moisture may result in an electric shock. Clean the appliance using a damp cloth only. Before cleaning, pull out the mains plug or switch off the circuit breaker in the fuse box. m Risk of electric shock! Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. m Risk of injury! Components inside the appliance may have sharp edges. Wear protective gloves. Cleaning agents To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following: ▯ Harsh or abrasive cleaning agents, ▯ Cleaning agents with a high alcohol content, ▯ Hard scouring pads or cleaning sponges, ▯ High-pressure cleaners or steam cleaners. Wash new sponge cloths thoroughly before use. Follow all instructions and warnings included with the cleaning agents. Removing metal grease filter 1 Open the filter cover. Note: Grasp the front corners of the filter cover and pull it down in a single, swift motion. 2 Open the lock and fold down the metal grease filter. Note: To avoid causing damage, do not bend the metal grease filter. 3 Take the metal grease filter out of the holder. Note: Fat may accumulate in the bottom of the metal grease filter. Hold the metal grease filter level to prevent fat from dripping out. 4 Clean the appliance from the inside. 5 Clean the metal grease filter and let it dry before re- fitting. Area Cleaning agent Stainless steel Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Clean stainless steel surfaces in the grind direction only. Special stainless steel cleaning prod- ucts are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth. Painted surfaces Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth/towel. Do not use any stainless steel cleaners. Aluminium and plas- tic Glass cleaner: Clean with a soft cloth. Glass Glass cleaner: Clean with a soft cloth. Do not use a glass scraper. Controls Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth/towel. Risk of electric shock caused by pene- trating moisture. Risk of damage to the electronics from penetrating moisture. Never clean operating controls with a wet cloth. Do not use any stainless steel cleaners. Area Cleaning agent18 Cleaning the metal mesh grease filters These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance. m Risk of fire! Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. Notes ‒ Do not use any aggressive, acidic or alkaline cleaning agents. ‒ When cleaning the metal mesh grease filters, also clean the holder for the metal mesh grease filters in the appliance using a damp cloth. ‒ The metal mesh grease filters can be cleaned in the dishwasher or by hand. By hand: Note: You can use a special grease solvent for stubborn dirt. It can be ordered via the Online Shop. ▯ Soak the metal mesh grease filters in a hot soapy solution. ▯ Clean the filters with a brush and then rinse them thoroughly. ▯ Leave the metal mesh grease filters to drain. In the dishwasher: Note: If the metal mesh grease filters are cleaned in the dishwasher, slight discolouration may occur. This has no effect on the function of the metal mesh grease filters. ▯ Do not clean heavily soiled metal mesh grease filters together with utensils. ▯ Place the metal mesh grease filters loosely in the dishwasher. The metal mesh grease filters must not be wedged in. Installing the metal mesh grease filter 1 Insert the metal mesh grease filter. While doing this, place the other hand under the metal mesh grease filter. 2 Fold the metal mesh grease filter upwards, locking it in place. Removing the activated charcoal filter (only in circulating-air mode) In order to ensure adequate odour removal, you must replace the activated charcoal filter regularly. With normal levels of use (1 to 2 hours a day), the activated charcoal filter must be replaced at least every 12 months. Notes ‒ The activated charcoal filter is not included with the appliance.The activated charcoal filter is available from specialist retailers, from our after-sales service or from our online shop. ‒ The activated charcoal filter cannot be cleaned or reactivated. ‒ Activated charcoal filters do not contain any harmful substances and can be disposed of with your normal household waste. 1 Remove the magnetic panel. 2 Take out the activated charcoal filter.19 Fitting the activated charcoal filter (only in circulating-air mode) 1 Take the new activated charcoal filter out of its packaging and insert it in the air recirculation module. 2 Fit the panel such that it is held firmly in place by the magnets.20 Trouble shooting Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service. m Risk of electric shock! Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after- sales service. LED lights Defective LED lights must only be replaced by the manufacturer, their customer service department or a licensed technician (electrician). Malfunction table

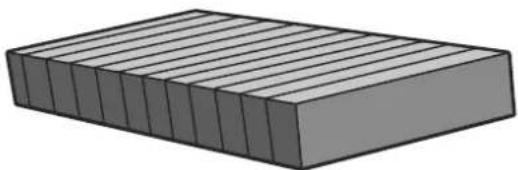

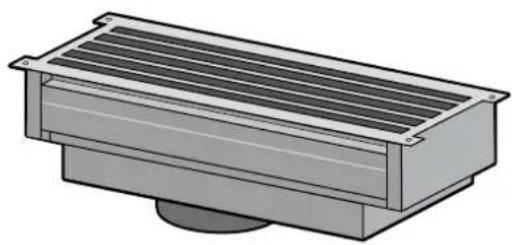

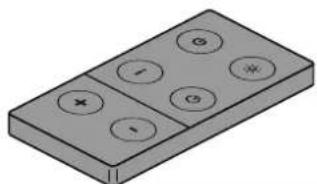

Fault Possible cause Solution The appliance does not work The plug is not plugged into the mains Connect the appliance to the power supply Power cut Check whether other kitchen appliances are working The fuse is faulty Check in the fuse box to make sure that the fuse for the appliance is in working order The lighting is not working The LED lights are defective Call the after-sales service The saturation indicator is lit continu- ously The metal grease filter is saturated For instructions on how to reset the satu- ration indicator, refer to the section enti- tled "Operating the appliance"21 After-sales service Our after-sales service is there for you if your appliance needs to be repaired. We will always find the right solution in order to avoid unnecessary visits from a service technician. When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter to gain access). You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required. Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance. Accessories (not included in the scope of delivery) E no. FD no. After-sales service
