Brand	Neff
Model	T68TF6TN0
Product type	Cooker
Power source	Electric (induction)
Number of cooking zones	4
Oven type	Multifunction
Wireless temperature sensor	Yes, Bluetooth
Cooking assistance functions	Yes
Silicone patch (ref. 00577921)	5 patches
Sensor and patch (ref. Z31PX10X0)	1 sensor + 5 patches
Sensor battery	CR2032
Dishwasher compatibility (patch)	Yes
Sensor cleaning	Damp cloth, do not immerse
Safety distance (implants)	10 cm minimum
Use by children	From 8 years under supervision
Ecological disposal	Conforms to WEEE directive 2012/19/EU
Languages of the manual	FR, BG, CS, DA, DE, EL, EN, ES, FI, HU, IT, MK, NL, NO, PL, PT, RO, RU, SK, SL, SQ, SV, TR, UK

Frequently Asked Questions - T68TF6TN0 NEFF

How to use the wireless temperature sensor?

Attach the sensor to the silicone patch stuck on the pan. Make sure the patch is dry. Point the sensor outward from the pan and avoid directing it towards another heat source.

How to replace the temperature sensor battery?

Remove the silicone cover, unscrew the screws, open the housing, remove the used battery and insert a new CR2032 battery respecting polarity. Close carefully.

Can I wash the temperature sensor in the dishwasher?

No, never clean the sensor in the dishwasher. Clean it with a damp cloth. Do not immerse it in water.

Is the silicone patch dishwasher safe?

Yes, the silicone patch is dishwasher safe. However, do not leave the pan with the patch too long in the cleaning product.

What are the safety precautions for wearers of electronic implants?

The sensor is magnetic. Wearers of pacemakers or other implants must maintain a distance of at least 10 cm from the sensor.

How to stick the silicone patch on the pan?

Clean and degrease the area with alcohol. Remove the protective film from the patch, place it using the supplied stencil, press firmly. Let it cure for 1 hour before using the pan.

Where can I buy spare parts like the sensor or patches?

You can order them from specialty stores or from Neff customer service. References: patch alone 00577921, sensor + patches Z31PX10X0.

How to clean the temperature sensor window?

Use a soft cloth or cotton swab with glass cleaner. Do not use abrasive sponges or scouring products. Avoid touching the window with your fingers.

Can the appliance be used by children?

Yes, from 8 years and under the supervision of a responsible adult. Children must not play with the appliance. Cleaning by the user is not allowed for children under 8 without supervision.

How to dispose of the appliance at the end of its life?

It is marked according to directive 2012/19/EU (WEEE). Do not dispose of it with household waste. Take it to a collection point for recycling. The sensor battery must be removed and disposed of separately.

USER MANUAL T68TF6TN0 NEFF

Wireless Temperature Sensor

Z31PX10X0

de Gebrauchsanleitung. 3 en Instruction manual 9 fr Mode d'emploi. 14 it Istruzioni per l'uso 19 nl Gebruiksaanwijzing 24 da Brugsanvisning. 29 noBruksveiledning. 34 svBruksanvisning. 39 fi Kayttoohje 44 es Instrucciones de uso 49 pt Instruções deServiço. 55 el Oobnyiecs xpnoc 60 tr Kullanma kilavuzu 66 cs Navod k pouziti 71 sk Navod na použivanie 76 hu Hasznalati utasitas .81 pl Instrukcja obstugi. 86 ro Instruetiuni deutilizare 92 bg PbKOBOdCTBO 97 ru PpaBnla noIb3OBaHnra. 102 uk Ihctpykci3 BnKOpncTaHHa..108 sr Uputstva za upotrebu. 114 hr Upute za uporabu 119 sl Navodila za uporabo. 124 sq Udhezim per perdorim 129 mk ynaTcTBO 3a ynoTpe6a.134

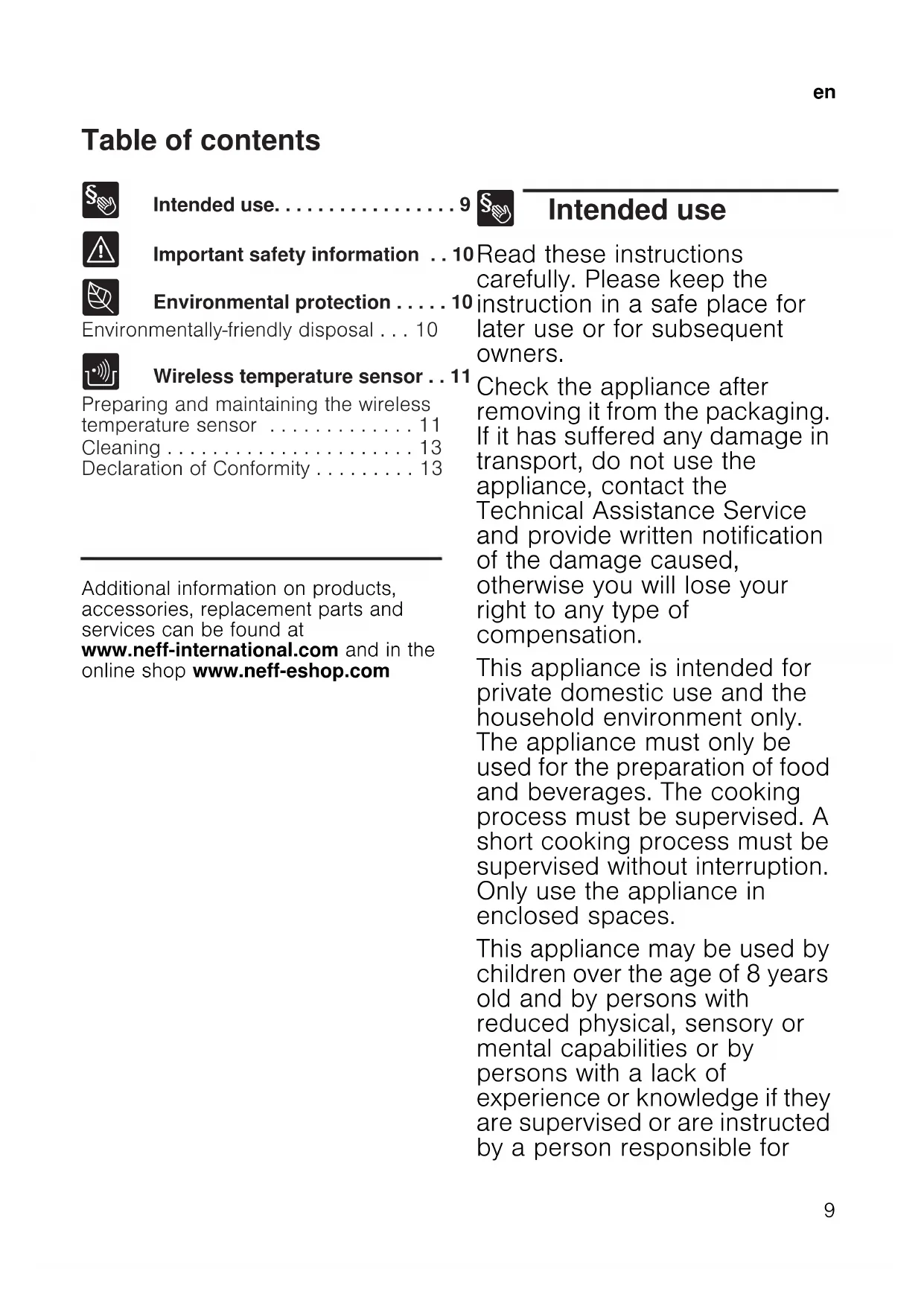

Table of Contents

Online shop: www.neff-eshop.com

For

Product information

and

applications

089-12474474

Read these instructions carefully. Please keep the instruction in a safe place for later use or for subsequent owners.

Read these instructions carefully. Please keep the instruction in a safe place for later use or for subsequent owners.

Environmentally-friendly disposal . . . 10

Wireless temperature sensor . . 11

Wireless temperature sensor . . 11

Preparing and maintaining the wireless temperature sensor 11 Cleaning. 13 Declaration of Conformity. 13

Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com

Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not use the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will lose your right to any type of compensation.

This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for

their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance.

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

When using the cooking functions, set the hotplate on which you have placed the saucepan with the temperature sensor.

Important safety information

Warning

Hazard due to magnetism!

The wireless temperature sensor is magnetic. The magnetic elements in it may damage electronic implants, e.g. pacemakers or insulin pumps. People fitted with electronic implants should therefore not carry the temperature sensor in their pockets and always keep it at least 10 cm away from their pacemaker or similar medical device.

Warning

Risk of injury!

The battery in the wireless temperature sensor may become damaged or explode if it gets too hot. Remove the sensor from the hob after cooking and do not store it near sources of heat. The temperature sensor may be very hot when removing it from the saucepan. Wear oven gloves or use a tea towel to remove it.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

The wireless temperature sensor is battery-powered. Dispose of used batteries in an environmentally responsible manner.

Wireless temperature sensor

Additional information can be found in the detailed instruction manual for the hob in chapter "Cooking Assist Functions". Read it through carefully.

Preparing and maintaining the wireless temperature sensor

In this section, you will find the following information:

Adhering the silicone patch Using the wireless temperature sensor Changing the battery

You can obtain a temperature sensor and silicone patches from specialist retailers or through our technical after-sales service. Always quote the relevant reference number.

00577921 Set of 5 silicone patches

Z31PX10X0 Temperature sensor and set of 5 silicone patches

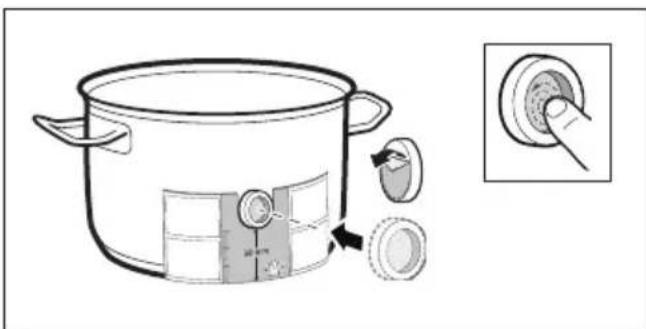

Adhering the silicone patch

The silicone patch attaches the temperature sensor to the cookware.

A silicone patch must be adhered when using a saucepan with the cooking functions for the first time.

Proceed as follows:

1. The adhesion point on the saucepan must be free of grease. Clean the saucepan, dry it thoroughly and wipe the adhesion point with a degreasing agent such as spirit.
2. Remove the protective film from the silicone patch. Adhere the silicone patch to the saucepan in the correct place using the enclosed template as a guide.

1. Press the silicone patch down, including its inside surface.

The adhesive requires 1 hour to fully harden. The cookware must not be used or cleaned during this time.

Notes

Cookware with the silicone patch must not be left to soak for long periods in soapy water. If the silicone patch comes off, attach a new one.

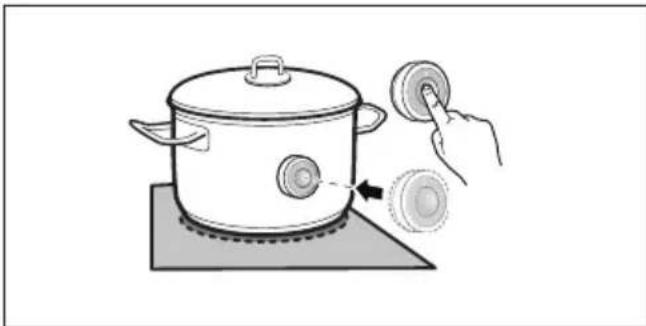

Using the wireless temperature sensor

Attach the temperature sensor to the silicone patch and align it correctly.

Notes

Make sure that the silicone path is completely dry before attaching the temperature sensor. Position the cookware in such a way that the temperature sensor is pointing towards the outer side of the hob.

en

To prevent overheating, the temperature sensor must not be pointed towards another item of cookware that is hot. Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place away from sources of heat.

Changing the battery

If you press the wireless temperature sensor symbol and the LED does not light up, the battery is flat.

Changing the battery:

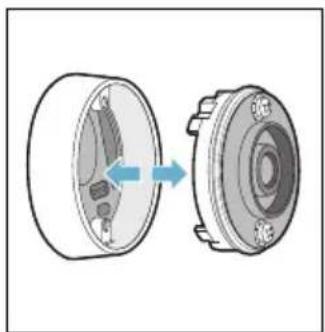

1. Remove the silicone cover from the lower section of the casing. Unscrew the screws with a screwdriver.

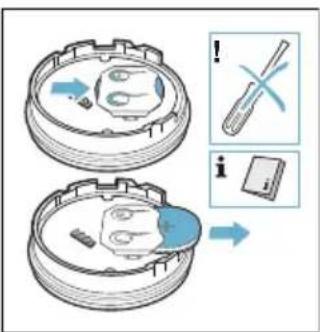

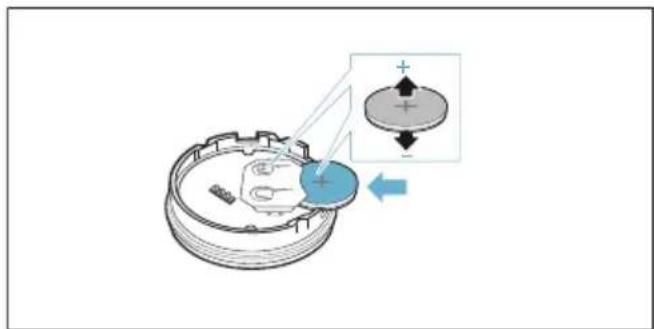

1. Remove the upper section of the casing. Take the old batteries out. Put the new batteries in. Make sure that the polarity is correct.

Caution!

Do not use metal objects to remove the battery. Do not touch the contacts.

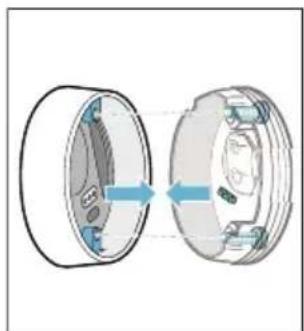

1. Put the upper and lower sections of the casing back together. Make sure that the contact pins are aligned correctly.

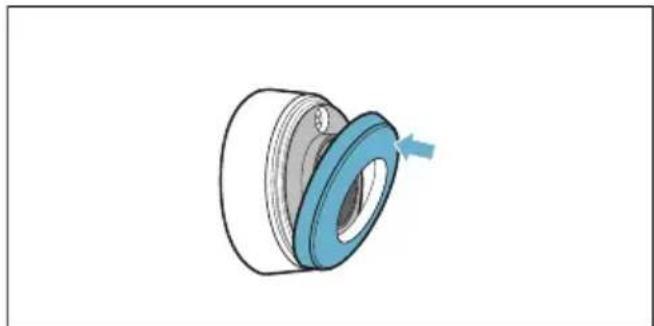

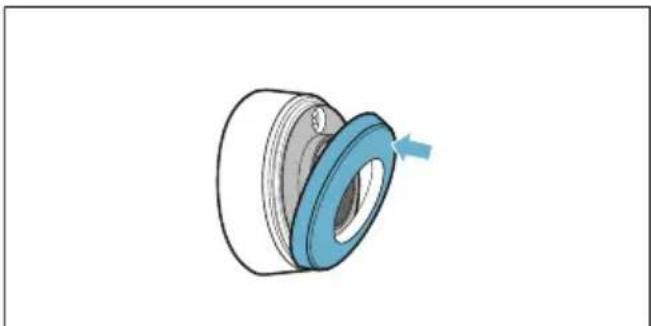

1. Put the silicone cover back on the lower section of the temperature sensor casing.

Note: Only use premium-quality CR2032 batteries. These have an especially long service life.

Cleaning

Temperature sensor

Clean the temperature sensor with a damp cloth. Never clean it in the dishwasher. Do not immerse it in water or clean it under running water.

Remove the temperature sensor from the saucepan after cooking. Store it in a clean, safe place (such as in its packaging) away from sources of heat.

Silicone patch

Clean and dry before attaching to the temperature sensor. Dishwasher safe.

Note: Cookware with the silicone patch must not be left to soak for long periods in soapy water.

Temperature sensor window

The sensor window must always be clean and dry. Proceed as follows:

Remove dirt and oil splatters regularly. Use a soft cloth or cotton buds and window cleaner for cleaning.

Notes

• Do not use abrasive cleaning agents such as scouring pads, scrubbing brushes or cream cleaners.
• Do not touch the sensor window with your fingers. This may make it dirty or scratch it.

Declaration of Conformity

Constructa-Neff Vertriebs-GmbH hereby declares that the appliance with wireless temperature sensor function meets the basic requirements and other relevant provisions of the Directive 1999/5/EG.

A detailed R&TTE Declaration of Conformity can be found online at www.neff-international.com on the product page for your appliance under "Additional documents".

The logos and the Bluetooth® brand are registered trademarks and property of Bluetooth SIG, Inc. These trademarks are used by Constructa-Neff Vertriebs-GmbH under licence. All other trademarks and brand names are owned by the respective companies.

Table of contents

www.neff-international.com en in de online-shop: www.neff-eshop.com

Online: www.neff-eshop.com

www.neff-international.com

www.neff-international-home.com

and in the online shop:

www.neff-eshop.com

Intended use

purpose

Dispose of the packaging in an environmentally friendly manner.

When inserting the batteries, do not use metal objects. Do not touch the contacts.

1. Then close the upper and lower part of the housing. When doing so, ensure that the contacts are correctly aligned.

1. Place the supplied cover cap on the lower part of the housing of the temperature sensor.

Warning: Use only high-quality batteries of type CR2032. They are particularly long-lasting.

Cleaning

Temperature sensor

Use the temperature sensor with a damp cloth. Never use a dishwasher. Do not immerse in water and do not use under running water.

Remove the temperature sensor from the cooking compartment after cooking. Store it in a clean, safe place, for example in its packaging, and not near heat sources.

Silicone pad

Before placing the temperature sensor, clean and dry it. Suitable for dishwasher.

Note: The silicone pad should not be left in the cleaning solution for a longer period.

www.neff-international.com in specialist retailers www.neff-eshop.com

Protection of the environment

Disposal in accordance with environmental regulations

Dispose of the appliance in accordance with environmental regulations.

This appliance is labelled in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The directive provides the framework for the return and recycling of old appliances, valid throughout the EU.

The wireless temperature sensor is equipped with a battery. Dispose of the used battery in an environmentally friendly way.

Wireless temperature sensor

For more detailed information, see the chapter "Functions for cooking" in the user manual for the cooking function. Read the chapter.

Preparation and care of the wireless temperature sensor

The appliance is supplied with the following information:

Replacing the appliance fuse: Use a suitable temperature sensor for the battery

The temperature sensor and the appliance fuse can be purchased from the specialized dealer or the manufacturer's technical customer service. Please observe the corresponding reference number.

Declaration of Conformity

Constructa-Neff Vertriebs-GmbH hereby declares that this appliance with temperature sensor complies with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The detailed R&TTE Declaration of Conformity can be found on the Internet at www.neff-international.com on the product page for your appliance, under additional documents.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Constructa-Neff Vertriebs-GmbH is under license. Other trademarks and trade names are those of their respective owners.
