USER MANUAL HFSA14140GC PANASONIC

Operating Instructions

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

Model No. H-FSA14140

LUMIX

Illustration of a black-framed professional lens with visible scroll and aperture (no text or symbols)

Please read these instructions carefully before using this product, and save this manual for future use.

E GC

DVQX1827ZA F0319AR0

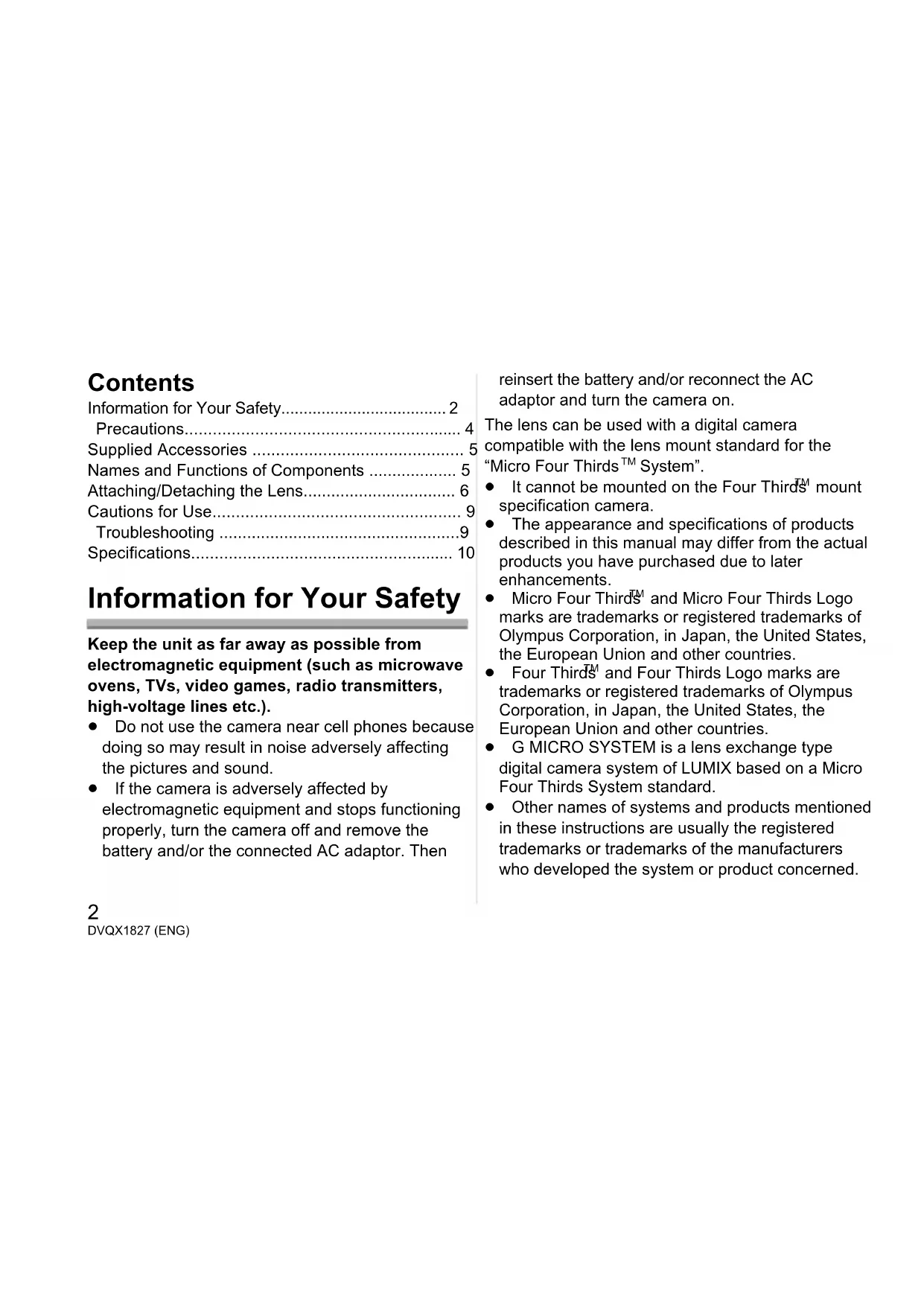

Contents

Information for Your Safety....2

Precautions....4

Supplied Accessories .... 5

Names and Functions of Components .... 5

Attaching/Detaching the Lens.... 6

Cautions for Use....9

Troubleshooting 9

Specifications.... 10

Information for Your Safety

Keep the unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games, radio transmitters, high-voltage lines etc.).

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery and/or the connected AC adaptor. Then

reinsert the battery and/or reconnect the AC adaptor and turn the camera on.

The lens can be used with a digital camera compatible with the lens mount standard for the "Micro Four Thirds™ System".

• It cannot be mounted on the Four Thirds ^TM mount specification camera.
• The appearance and specifications of products described in this manual may differ from the actual products you have purchased due to later enhancements.
• Micro Four Thirds™ and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Corporation, in Japan, the United States, the European Union and other countries.
• Four Thirds™ and Four Thirds Logo marks are trademarks or registered trademarks of Olympus Corporation, in Japan, the United States, the European Union and other countries.
• G MICRO SYSTEM is a lens exchange type digital camera system of LUMIX based on a Micro Four Thirds System standard.
• Other names of systems and products mentioned in these instructions are usually the registered trademarks or trademarks of the manufacturers who developed the system or product concerned.

-If you see this symbol-

ENGLISH

Disposal of Old Equipment

Only for European Union and countries with recycling systems

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Precautions

Lens Care

• Do not press the lens with excessive force.
• When there is dirt (water, oil, and fingerprints, etc.) on the surface of the lens, the picture may be affected. Lightly wipe the surface of the lens with a soft, dry cloth before and after taking pictures.
• When the lens is not in use, be sure to attach the lens cap and lens rear cap to prevent dust and other particles from accumulating on or entering the lens.

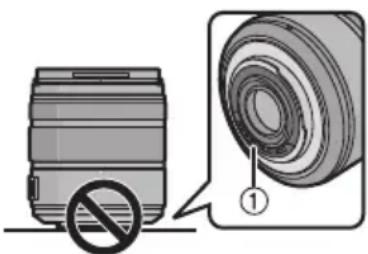

• To protect the lens contact points ①, do not place the lens with its mount surface facing down. In addition, do not allow the lens contact points to become dirty.

Diagram showing a device with a prohibition symbol and its magnified view, labeled with number ①

■ Dust and splash resistant

- The dust and splash resistant of the camera will not prevent the entry of dust or water droplets completely. Take the following precautions to provide satisfactory dust and splash resistant performance. If the lens is not

working properly, consult the dealer or your nearest Service Centre.

• Attach to a digital camera that is dust and splash resistant.
• When attaching or removing the lens, be careful so that foreign objects such as sand, dust, and water droplets do not adhere to or enter the lens mount rubber, contact points, digital camera and lens.

• If the lens is exposed to water droplets or other liquids, wipe them off with a soft, dry cloth.

• To improve the dust and splash resistant performance of the lens, a lens mount rubber is used in the mount.

• The lens mount rubber will leave scuff marks on the digital camera mount, but this does not impact performance.
• For information on changing the lens mount rubber, contact your nearest Service Centre.

■ About Condensation (Fogging of the Lens)

• Condensation occurs when the ambient temperature or humidity changes. Please be careful, as it may cause lens stains, mould and malfunction.
• If condensation occurs, turn off the digital camera and leave it for approx. 2 hours. The fog will disappear naturally when the temperature of the digital camera becomes close to the ambient temperature.

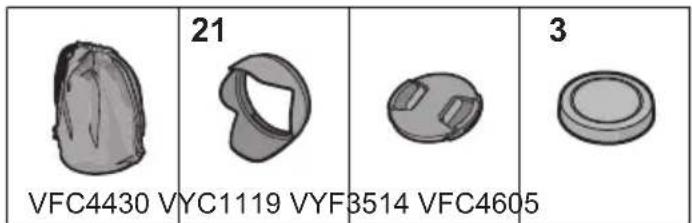

Supplied Accessories

Product numbers correct as of March 2019. These may be subject to change.

21 VFC4430 V YC1119 VYF 3514 VFC4605 3

1 Lens Pouch
2 Lens Hood
3 Lens Cap
4 Lens Rear Cap (The lens rear cap and lens cap are attached to the interchangeable lens at the time of purchase.)

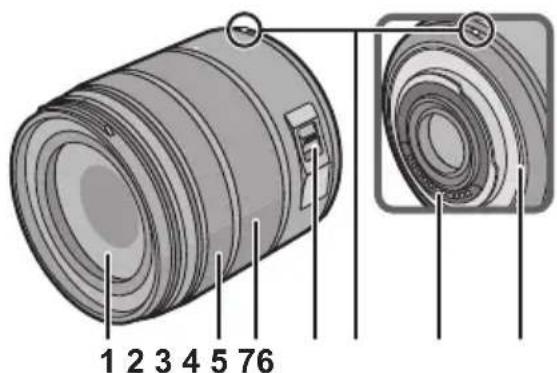

Names and Functions of Components

1 2 3 4 5 76

1 Lens surface
2 Focus ring

Rotates the focus ring to focus when set to MF (manual focus).

3 Zoom ring

Rotate the zoom ring when you wish to take large (tele) or wide (wide angle) pictures.

4 O.I.S. switch

When the lens is attached to the camera, the image stabiliser function is set to activate if the O.I.S. switch is set to [ON].

• We recommend setting the O.I.S. switch to [OFF] when using a tripod.
  5 Lens fitting mark
  6 Contact points
  7 Lens mount rubber

Note

• There may be differences in focus when you use zoom after focusing. Focus again.

• If the sounds of AF (auto focus) operation and image stabiliser operation bother you during video recording, it is recommended to record as follows:

• Set to MF (manual focus) to record.

• Set the O.I.S. switch to [OFF] and use a tripod to record.

Attaching/Detaching the Lens

• Refer also to the camera's operating instructions for attaching and detaching the lens.
• Check that the camera is turned off.
• Remove the lens rear cap from the lens.

■ Attaching the Lens

Align the lens fitting marks Ⓐ on the camera body and the lens and then rotate the lens in the direction of the arrow until it clicks.

Technical diagram of a mechanical component with labeled parts A, B, and P, showing directional arrows and features.

• Do not press the lens release button Ⓑ when you attach a lens.
• Do not try to attach the lens when holding it at an angle to the camera body as the lens mount may get scratched.
• Check that the lens is attached correctly.
• Be sure to remove the lens cap when recording.

Detaching the Lens

While pressing on the lens release button Ⓑ, rotate the lens toward the arrow until it stops and then remove.

Diagram of a camera lens with numbered parts and directional arrows indicating motion or positioning

• Attach the lens rear cap so that the lens contact point does not get scratched.
• Be sure to attach the body cap to the digital camera to prevent dirt and dust from getting inside the camera body.

■ Attaching the Lens Hood (Supplied Accessory)

Hold the lens hood with your fingers placed as shown in the picture.

- Do not hold the lens hood in a way that twists or bends it.

1 Align the fitting mark © on the shorter petal of the lens hood with the mark on the tip of the lens.

Technical diagram showing a mechanical component with labeled parts and directional arrow

2 Rotate the lens hood in the direction of the arrow until it clicks and then align the stop mark Ⓓ on the longer petal of the lens hood with the mark on the tip of the lens.

Diagram showing a mechanical or electrical component with labeled point D and directional arrows indicating flow or movement.

■ Temporarily Storing the Lens Hood

1 Turn the lens hood in the direction of the arrow to detach it.

2 Reverse the lens hood and then attach it in the same way as shown previously.

Note

• When taking pictures with the flash with the lens hood attached, the lower portion of the screen may turn dark and the control of the flash may be disabled because the photo flash may be obscured by the lens hood. We recommend detaching the lens hood.
• When using the AF assist lamp in the dark, detach the lens hood.
• To prevent dropping of the lens, you should never carry the lens by just holding the lens hood.

■ Notes on Filter Use

• It is possible to attach the lens cap or the lens hood with the filter already attached.
• If you use two or more filters at the same time, part of a recorded image may darken.
• It is not possible to attach any items other than filters such as a conversion lens or adaptor to the front of the lens and use it in combination with this lens. Lens damage may result if such items are attached.

Cautions for Use

Take care not to drop or knock the lens. Also take care not to put a lot of pressure on the lens.

- Take care not to drop the bag that you inserted the lens in as it may strongly shock the lens. The camera may stop operating normally and pictures may no longer be recorded. Also, the lens may be damaged.

When using pesticides and other volatile substances around the camera make sure that they do not get onto the lens.

- If such substances get onto the lens they can damage the exterior case or cause the paint to peel.

Do not carry by the lens when the lens is attached to the digital camera.

Do not point the lens at the sun or other strong light sources.

• This could cause the lens to collect an excessive amount of light, resulting in fire and malfunction.
• Under no circumstances should the unit be stored in any of the following locations since doing so may cause problems in operation or malfunctioning.
  – In direct sunlight or on a beach in summer
  – In locations with high temperatures and humidity levels or where the changes in temperature and humidity are acute
  – In locations with high concentrations of sand, dust or dirt
• Where there is fire

– Near heaters, air conditioners or humidifiers
- Where water may make the unit wet
– Where there is vibration
- Inside a vehicle
- Refer also to the operating instructions of the digital camera.
- When the unit is not going to be used for a prolonged period, we recommend storing with a desiccant (silica gel). Failure to do so may result in performance failure caused by mould, etc. It is recommended that you check the unit's operation prior to use.
- Do not leave the lens in contact with rubber or plastic products for extended periods of time.
- Do not touch the lens contact point. Doing so can cause failure of the unit.
- Do not disassemble or alter the unit.

Do not use benzine, thinner, alcohol or other similar cleaning agents to clean the lens glass or exterior cabinet.

• Using solvents can damage the lens or cause the paint to peel.
  ● Wipe off any dust or fingerprints with a soft, dry cloth.
• Use a dry, dust-free cloth to remove dirt and dust on the lens mount rubber, zoom ring, or focus ring.
• Do not use a household detergent or a chemically treated cloth.

Troubleshooting

A rattling sound, etc. is heard when the digital camera is turned on or off or the lens is shaken.

- This is the sound of the lens moving and aperture operation. It is not a malfunction.

(ENG) DVQX1827

Specifications

Specifications are subject to change without notice.

INTERCHANGEABLE LENS FOR DIGITAL CAMERA

"LUMIX G VARIO 14–140 mm/F3.5–5.6 II ASPH./POWER O.I.S."

Mount Micro Four Thirds mount
Focal length f=14 mm to 140 mm	(35 mm film camera equivalent: 28 mm to 280 mm)
Lens construction	14 elements in 12 groups (3 aspherical lenses, 2 ED lenses)
Aperture type 7 diaphragm blades/circular aperture diaphragm
Maximum aperture F3.5 (Wide) to F5.6 (Tele)
Minimum aperture value F22
Angle of view	75° (Wide) to 8.8° (Tele)
In focus distance	0.30 m to ∞ [from the focus distance reference line](focal length 14 mm to 21 mm),0.50 m to ∞ [from the focus distance reference line](focal length 22 mm to 140 mm)
Maximum image magnification	0.25× (35 mm film camera equivalent: 0.5×)
Optical image stabiliser Yes
Filter diameter	58 mm
Maximum diameter	∅ 67 mm
Overall length	Approx. 75 mm(from the tip of the lens to the base side of the lens mount)
Mass	Approx. 265 g
Dust and splash resistant	Yes
Recommended operating temperature	0 °C to 40 °C
Permissible relative humidity	10%RH to 80%RH

Panasonic Warranty

1. Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the product, without charge for parts or labour, if in the opinion of Panasonic the product is found to have a manufacturing defect within one (1) year or (12 months) (the "warranty period") from the date of purchase appearing on your purchase receipt.

2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia, it's Authorised Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty cover only applies to the services that are carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when the warranty service is requested.

3. This warranty only applies if the product has been installed and/or used in accordance with the manufacturer's recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), exposure to abnormally corrosive conditions, or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(a) Consumable parts (b) Cosmatic

(b) Cosmetic parts (c) Worn or damaged parts

(d) Information stored on Hard Disk Drives, Optical Discs, USB Devices, SD Cards, Tapes (e) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)

1. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover:

(a) Internet and or DLNA connection / setup related problems

(b) Access fees and or charges incurred for internet connection (c). Incompatible software or software not specifically stipulate

(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to

the internet or any other device.

1. To claim warranty service, when required, you should:

- Contact Panasonic's Customer Care Centre on 132 600 for Service Centre information. - Confirm the opening and acceptance times with the Authorised Service centre that you choose

- Confirm the opening and acceptance times with the Authorised Service Center that you choose. - Then send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase

receipt. Any freight and insurance costs associated with the transport of the product to and/or from

- Any freight and insurance costs associated with the transport of the product to and/or from Authorised Service Centre must be arranged and paid for by you.

[Non-Text]

The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-

installation or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any

screen, (and any other ancillary activities), delivery, handling, freighting, transportation or insurance of the product of any part thereof or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator. In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMULAR PROOF OF PURCHASE)

THIS WARRANTY CARD AND THE PURCHASE BOOKET (ON SIMILIAN ROOT OF PURETHA SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic

Australia website www.panasonic.com.au or contact by phone on 132 600

If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187

n Road, Macquarie Park www.panasonic.com.au

PRO-031-F11 Issue: 5.0

(ENG) DVQX1827

Inhalt

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Diagram showing a cylindrical device with a prohibition symbol and its magnified view, labeled with number ①.

DVQX1827 (GER)

Technical diagram of a mechanical assembly with labeled parts A, B, and M

Diagram of a camera lens with numbered parts and directional arrows indicating motion or movement

Technical diagram showing a mechanical or electrical component with labeled section 'C' and directional arrow

Technical diagram showing a mechanical or electrical component with labeled point D and directional arrows

"LUMIX G VARIO 14–140 mm/F3.5–5.6II ASPH./POWER O.I.S."

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Diagram showing a device with a prohibition symbol and a magnified view of its circular component, labeled with number ①.

Technical diagram of a mechanical assembly with labeled parts A, B, and P

Diagram of a camera lens with numbered parts and directional arrows indicating motion or movement

Pure mechanical diagram showing a shaft and housing with no text or symbols

Technical diagram showing a mechanical or electrical component with labeled point D and directional arrows indicating flow or movement.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Diagram showing a cylindrical device with a prohibition symbol and its magnified view, labeled with number ①.

4 Interruptor O.I.S.

Technical diagram of a mechanical assembly with labeled parts A, B, and P1

Diagram of a camera lens with numbered parts and directional arrows indicating motion or positioning

Technical diagram showing a mechanical or fluidic component with directional arrow and labeled point C

Diagram showing a mechanical or electrical component with labeled point D and directional arrows indicating motion or flow.

"LUMIX G VARIO 14–140 mm/F3.5–5.6 II ASPH./POWER O.I.S."

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Diagram showing a cylindrical device with a prohibition symbol and its magnified view, labeled with number ①.

Technical diagram of a mechanical assembly with labeled parts A, B, and P, showing directional arrows and components.

Diagram of a camera lens with numbered parts and directional arrows indicating motion or movement

Technical diagram showing a mechanical or fluidic component with labeled parts and directional arrow

Technical diagram showing a mechanical or fluid system with labeled component D and directional arrows

"LUMIX G VARIO 14–140 mm/F3.5–5.6 II ASPH./POWER O.I.S."

Diagram showing a cylindrical device with a prohibition symbol and its magnified view, labeled with number ①.

■ 防塵防濺

Technical diagram of a mechanical component with labeled parts A, B, and P, showing internal structure and directional arrows.

Diagram of a camera lens with numbered parts and directional arrows indicating motion or positioning

Technical diagram showing a mechanical component with labeled parts and directional arrow

Diagram showing a mechanical or electrical component with labeled point D and directional arrows indicating flow or movement.

■ 暫時存放鏡頭遮光罩

1 朝著箭頭方向轉動鏡頭遮光罩以卸下。

Diagram showing a camera with a prohibition symbol and a magnified view of the lens with a numbered label.

Technical diagram of a mechanical assembly with labeled parts A, B, and P

Diagram of a camera lens with numbered parts and directional arrows indicating motion or positioning

Technical diagram showing a mechanical or fluidic component with labeled point C and directional arrow

Diagram showing a mechanical or electrical component with labeled point D and directional arrows indicating flow or movement.

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://www.panasonic.com

© Panasonic Corporation 2019
