USER MANUAL The BBQ Grill 800GR SAGE

we are very safety conscious. We design and manufacture appliances with your safety foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. IMPORTANT SAFEGUARDS

• A downloadable version of this document is also available at sageappliances.com

• Before using the rst time ensure your electricity supply is the same as shown on the label on the underside of the appliance.

• Remove and safely discard any packaging materials before rst use.

• The appliance is for household use only. Do not use the appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• Fully unwind the power cord before operating.

• Position the appliance on a stable, heat resistant, level, dry surface away from the edge and do not operate on or near a heat source such as a hot plate, oven or gas hob.

• Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.

• Position the appliance at least 20cm from walls or heat/steam sensitive materials and provide adequate space above and on all sides for air circulation.

• Ensure the power cord does not become trapped between the upper and lower hot plates of the appliance during use or storage.

• Do not leave the appliance unattended when in use.

• The appliance is not intended to be operated by the means of an external timer or separate remote control system

• Do not place anything on top of the grill when lid is closed, when in use and when stored. 2 Sage Recommends Safety First4 Getting To Know Your New Appliance5 Operating Your New Appliance8 Care & Cleaning9 Guarantee3

The appliance is marked with a HOT surface symbol. The lid and other surfaces will be hot when the appliance is operating and for some time after use. To prevent burns always use insulated oven mitts or use handles or knobs where appropriate.

• Always ensure the appliance is turned OFF, unplugged at the power outlet and has been allowed to cool before cleaning, moving or storing.

• Do not use the appliance if the power cord, plug, or appliance becomes damaged in any way. If damaged or maintenance other than cleaning is required, please contact Sage Customer Service or go to sageappliances.com

• Any maintenance other than cleaning should be performed by an authorised Sage

• Children shall not play with the appliance.

• The appliance can be used by children aged 8 or older and persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning of the appliance should not be carried out by children unless they are 8 years or older and supervised.

• The appliance and its cord should be kept out of reach of children aged 8 years and younger.

• The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. Safety switches with a rated operating current not more than 30mA are recommended. Consult an electrician for professional advice. The symbol shown indicates that this appliance should not be disposed of in normal household waste. It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council oce. To protect against electric shock, do not immerse the power plug, cord or appliance in water or any liquid.

SAVE THESE INSTRUCTIONS4

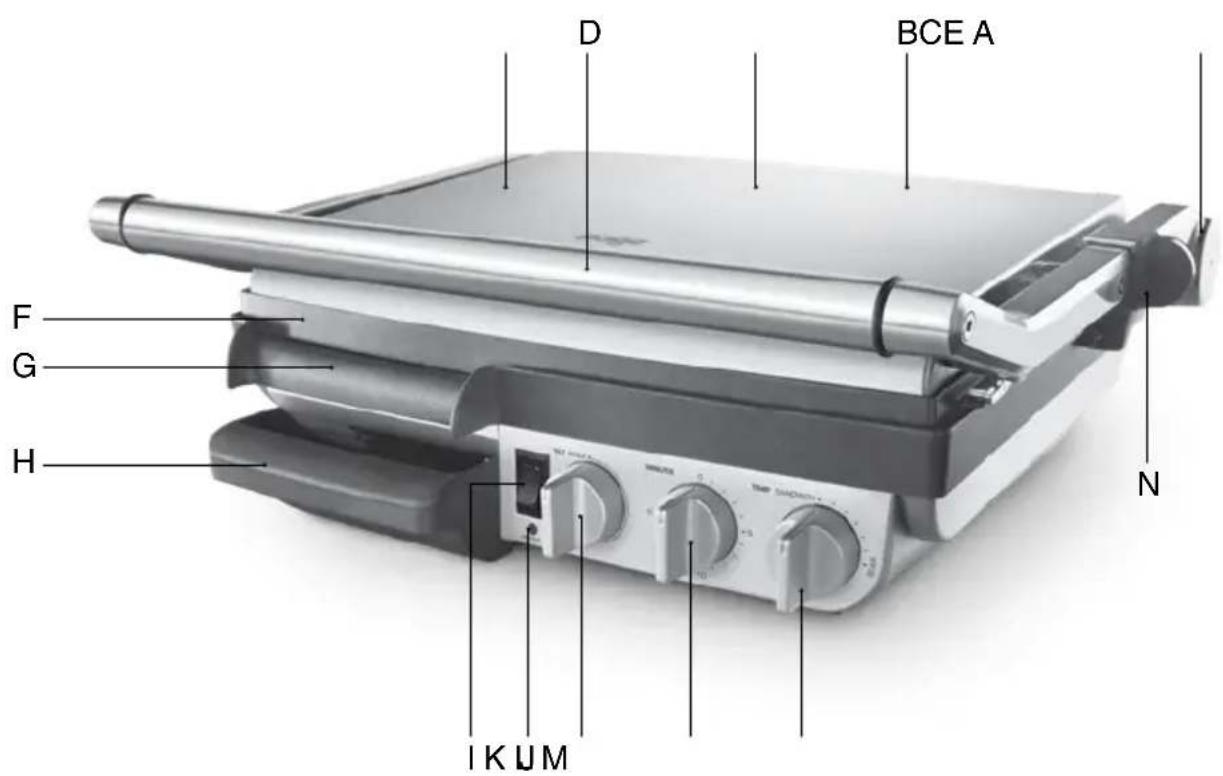

A. Grill lock dial B. Stainless steel body C. 2400 watts of power D. Levelling handle E. Unique oating hinged top plate F. Quantanium™ non-stick ribbed top plate G. Quantanium™ non-stick at bottom plate H. Removable drip tray

J. Red heating light K. Bottom plate tilt dial L. 15 minute timer dial M. Variable temperature control dial N. Adjustable grilling height BCE A

GETTING TO KNOW YOUR NEW APPLIANCE

Remove and safely discard any promotional materials and packaging materials before use. Check that the cooking plates are clean and free of dust. If necessary, wipe over with a damp cloth. When using the grill for the rst time you may notice a ne smoke haze This is caused by the rst heating of some of the components. There is no need for concern.

TO USE AS AN OPEN GRILL

1. Insert the plug into a 220–240V power

outlet and switch the power ON Switch the ON/OFF button to ON. The red heating light will illuminate.

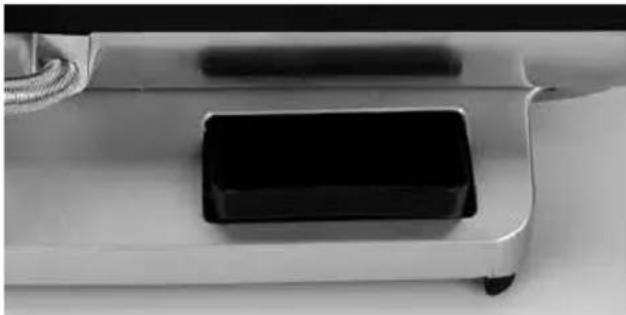

2. Ensure the removable drip tray is

correctly inserted and positioned back into the appliance.

3. Ensure the top plate is in the closed position

for more ecient preheating.

4. Turn the base plate tilt dial to the FLAT

5. Turn the variable temperature control dial

to SEAR for fast preheating.

6. Allow the grill to preheat until the red heating

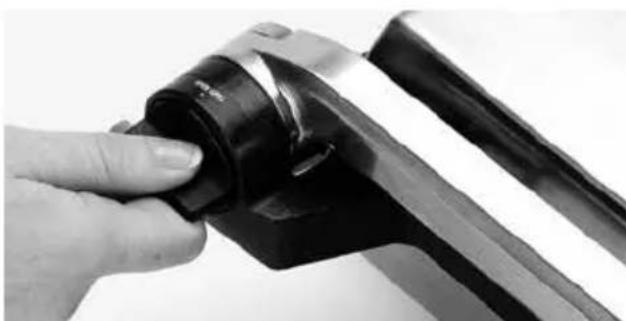

7. The grill must be closed to release the lock.

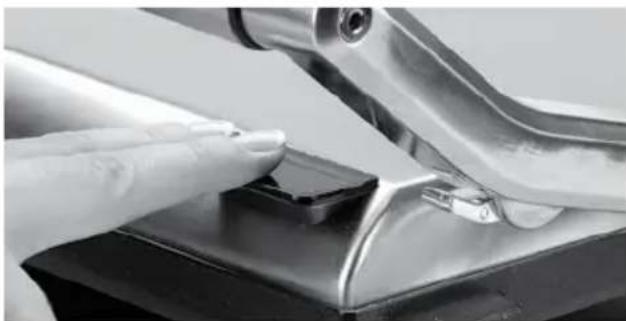

Turn the grill lock dial on the side of the grill to horizontal position and use the handle to pull the top plate into the open position. NOTE Grill lock will automatically reset when returned to the CLOSED position.

8. Place meat or foods to be cooked on either

or both of the cooking plates.

9. When the food is cooked, remove using

1. Insert the plug into a 220–240V power

outlet and switch the power ON. Switch the ON/OFF button to ON. The red heating light will illuminate.

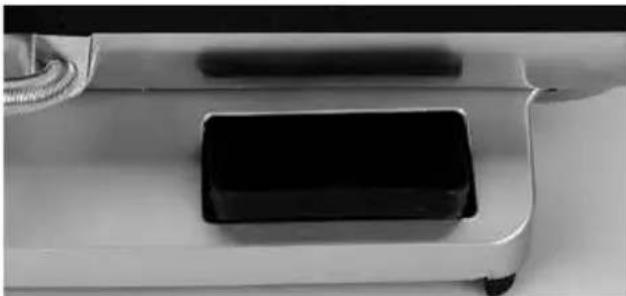

2. Ensure the removable drip tray is

correctly inserted and positioned back into the appliance.

3. Ensure the top plate is in the closed position

for more ecient preheating.

4. Turn the base plate tilt dial to the ANGLE

5. Turn the variable temperature control dial

to SEAR for fast preheating.

6. Allow the grill to preheat until the red

heating light goes out.

7. Use the handle to pull the top plate into

8. Place meat or foods to be cooked on the

Use the handle to close the top plate. The top plate has a oating hinge system that is designed to press down evenly on the food. The grilling height control on the right hand side of the top plate is used to adjust for the thickness of the food. The levelling handle on the right hand side of the top of the grill may be used to even out the top plate. The top plate must be fully lowered to achieve grill marks onto the food. NOTE The red heating light will cycle on and o during the cooking process indicating that the correct temperature is being maintained.

TO USE AS A SANDWICH PRESS

1. Insert the plug into a 220–240V power

outlet and switch the power on. Switch the ON/OFF button to ON. The red heating light will illuminate.

2. Ensure the removable drip tray is

correctly inserted and positioned back into the appliance.

3. Ensure the top plate is in the closed position

for more ecient preheating.

4. Turn the base plate tilt dial to the

5. Turn the variable temperature dial to the

6. Allow the grill to preheat until the red

heating light goes out.

7. During this time, prepare the sandwich

and place it onto the base plate. Always place sandwiches towards the rear of the base plate.

8. Use the handle to close the top plate.

The top plate has a oating hinge system that is designed to press down evenly on the sandwich. The grilling height control on the right hand side of the top plate is used to adjust for the thickness of the sandwich. The levelling handle on the right hand side of the top of the grill may be used to even out the top plate. NOTE Always allow the grill to preheat until the red heating light goes out.

9. Toasting should take approximately 5–8

minutes. Exact toasting time will be a matter of preference. It will also depend on the type of bread and lling used.

10. When the sandwich is cooked, use the

handle to open the top plate. Remove the sandwich using a plastic spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cooking plates.

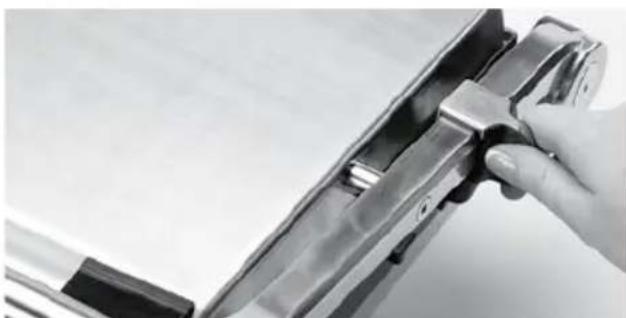

USING THE ADJUSTABLE

GRILLING HEIGHT CONTROL FEATURE This allows your grill to be used for toasting open sandwich style ‘melts.’ It can also be used to grill delicate ingredients such as sh and hamburger buns without squashing.

1. Allow the grill to preheat until the red heating

2. Place the food to be grilled on the base plate.

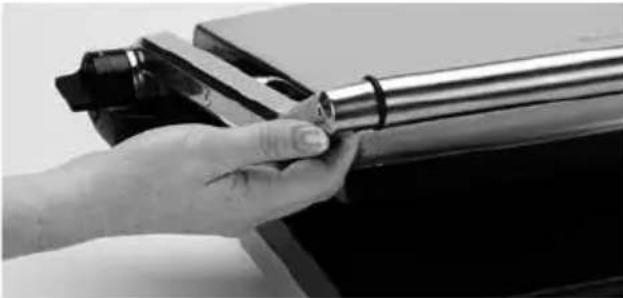

3. Move the adjustable grill control clip on the

right hand side of the grill to the desired height.

handle on the top right-hand side of the plate, until it rests in the appropriate position above the food.

5. The top plate will radiate the desired

heat to melt ingredients such as cheese or lightly grill foods. NOTE The adjustable grill height control can be moved to accommodate thick or thin foods by sliding the clip forwards or backwards along the arm.

BASE PLATE TILT DIAL

1. To place the base plate into the sloped

position, simply turn the base plate tilt dial anti-clockwise until the dial reaches the ANGLE position. This position is suitable for achieving the maximum fat drainage when using the grill as a closed grill.

2. To place the base plate into the at position,

turn the base plate tilt dial clockwise until the dial reaches the FLAT position. VARIABLE TEMPERATURE CONTROL DIAL The grill features a variable temperature control dial. Just select a temperature suited to the foods which are being cooked. With the dial set on SEAR the temperature is correctly suited to grill meats or other foods. With the dial set on SANDWICH the temperature is correctly suited to toasting sandwiches.

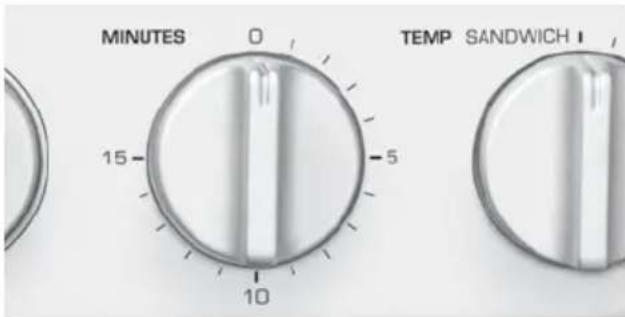

grill features a 15 minute timer which allows you to monitor the time elapsed during preheating or cooking. To set the timer, simply turn the dial clockwise completely to the 15 position and then anti-clockwise to select the desired minutes. The timer will ring once when the desired time has elapsed. The grill will not turn o, it will remain heating.

OPERATING YOUR NEW APPLIANCE8

Before cleaning, switch the grill o at the ON/OFF button, switch o at the power outlet and unplug. Allow your grill to cool before cleaning. The appliance is easier to clean when slightly warm. Always clean your grill after each use to prevent a build up of baked-on foods. Wipe cooking plates with a soft cloth to remove food residue. For baked on food residue squeeze some warm water mixed with detergent over the food residue then clean with a non abrasive plastic scouring pad.

CLEANING THE DRIP TRAY

Remove and empty the drip tray after each use and wash the tray in warm, soapy water. Avoid the use of scouring pads or harsh detergents as they may damage the surface. Rinse and dry thoroughly with a clean, soft cloth and replace. QUANTANIUM SCRATCH RESISTANT COATING Your grill features a special scratch resistant non-stick coating that makes it safe to use metal utensils when cooking. Regardless of this fact, Sage

recommends that care is taken with the non-stick coating particularly when using metal utensils. Do not use sharp objects or cut food inside the grill. Sage

will not be liable for damage to the non-stick coating where metal utensils have been misused. Cooking on a non-stick surface minimises the need for oil, food does not stick and cleaning is easier. Any discolouration that may occur will only detract from the appearance of grill and will not aect the cooking performance. When cleaning the non-stick coating, do not use metal (or other abrasive) scourers. Wash in hot soapy water. Remove stubborn residue with a non abrasive plastic scouring pad or nylon washing brush. WARNING Do not immerse any part of the grill in water or any other liquid. STORAGE To store your grill:

1. Switch o the appliance at the ON/OFF

button, switch o at the power outlet and unplug.

2. Allow the grill to fully cool.

3. Slide the storage clip towards the front

handle to the LOCK position so that the top and bottom cooking plates are locked together.

4. Slide the removable drip tray into place.

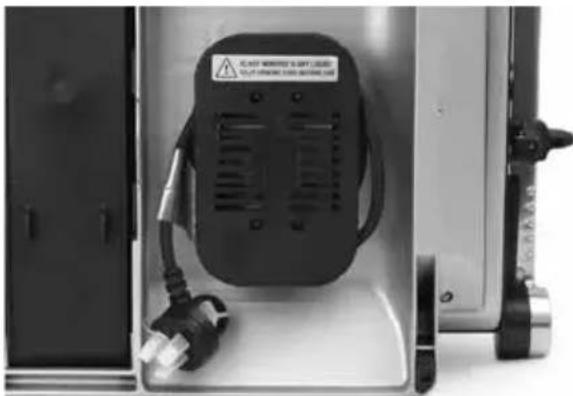

5. Wrap the cord in the cord storage area

below the appliance.

6. Store on a at, dry, level surface.

NOTE For added convenience the grill may be stored standing up in a vertical position. CARE & CLEANING9

Sage Appliances guarantees this product for domestic use in specied territories for 2 years from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances). All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com.10 INHALTE SAGE

• Due to continued product improvement, the products illustrated or photographed in this document may vary slightly from the actual product.
