Product Type	Zoom lens for Micro Four Thirds cameras
Brand	Olympus
Model	M.Zuiko Digital ED 12-200mm f3.5-6.3
Focal Length	12-200 mm (35mm equivalent: 24-400 mm)
Maximum Aperture	f3.5 (at 12mm) - f6.3 (at 200mm)
Angle of View	84° - 6.2°
Optical Construction	11 groups, 16 elements (includes ED elements)
Aperture Range	f3.5 - f22
Minimum Focusing Distance	0.22 m (at 12mm) / 0.7 m (at 200mm)
Focus Adjustment	AF/MF switch (manual/auto focus)
Mount	Micro Four Thirds
Filter Diameter	72 mm
Lens Hood Attachment	Bayonet
Dimensions (Diameter x Length)	∅77.5 mm × 99.7 mm
Weight (without accessories)	455 g
Power	Powered by camera via contacts (no internal battery)
Maintenance and Cleaning	Blow off dust with a blower; gently wipe with lens cleaning paper
Safety	Do not look at the sun through the lens; do not leave the lens without a cap in sunlight; do not point the lens at the sun when mounted
Spare Parts and Repairability	Contact Olympus support or an authorized dealer for repairs and parts
General Information	Weather sealing not specified; compatible with Olympus OM-D and PEN series

Frequently Asked Questions - M.Zuiko Digital ED 12200mm f3.56.3 OLYMPUS

How to attach the lens hood to the lens?

Align the mounting mark of the hood with the mark on the lens, then turn the hood clockwise until it clicks. The hood attaches via bayonet.

What is the filter diameter for this lens?

The filter thread diameter is 72 mm.

How to clean the lens elements?

Use a blower to remove dust, then gently wipe with lens cleaning paper.

Is this lens compatible with image stabilization?

The lens does not have built-in stabilization, but it is compatible with the in-body image stabilization (IBIS) of Olympus cameras.

What is the minimum focusing distance?

At 12mm focal length, the minimum distance is 0.22 m. At 200mm, it is 0.7 m.

How to switch from autofocus (AF) to manual focus (MF)?

Use the AF/MF switch located on the side of the lens to toggle between modes.

What accessories are included with the lens?

The lens comes with a front cap, a rear cap, and a lens hood.

Can I use multiple filters at the same time?

It is not recommended to stack multiple filters as it may cause vignetting (dark corners) in images.

What are the important safety precautions?

Never look directly at the sun through the lens. Do not leave the lens without a cap in sunlight to avoid fire hazard due to focused rays.

Where can I find technical support for this lens?

For Europe, call 00800 - 67 10 83 00 (toll-free) or visit http://www.olympus-europa.com.

USER MANUAL M.Zuiko Digital ED 12200mm f3.56.3 OLYMPUS

date of issue 2018.12

WD429400

Printed in Japan

OLYMPUS

44

MICRO FOURTHIRDS

M.ZUKO DIGITAL

ED 12-200mm f3.5-6.3

Model No.:IM014

04 - JP 取扱説明書
07 - EN INSTRUCTIONS
11 - ES INSTRUCCIONES
14 - FR MODE D'EMPLOI
17 - ВС ИНСТРУКЦИИ
20 - CS NÁVOD K POUŽITI
23 - DA BETJENINGSVEJLEDNING
26 - DE BEDIENUNGSANLEITUNG
29 - ΕΟΔΗΓΙΕΣ
32 - ET JUHISED
35 - F KÄYTTÖOHJEET
38. HR UPDATE
41 - HASZNÁLATI ÚTMUTATÓ
44 - ISTRUZIONI
47. INSTRUKCLIA
50 - IV NORADILIUMI
52. AANWUZINGEN
55 - NC AANWJELINGEN 56 - NC INSTRUKS JONEF

59 - PL INSTRUKCJA
62 - PT INSTRUÇÕES
65 - RC INSTRUCTIUNI
68 - RU ИНСТРУКЦИЯ
71 - SK NÁVOD NA POUŽITIE
74. SI NAVODI A
77 - SR UPUTSTVO ZA UPOTREBU
80 - SW BRUKSANVISNING
83 - TR TALMATLAR
86 - Ⅲ ИНСТРУКИЯ
91 - AS
92. 四 100
02. 田中書
使用説明書
96. 田
99 - W CAC HƯƠNG DAN

取扱説明書

The following incoiter description applies to products imported from the EUROPE 32 by OLYMPUS EUROPA SE & CO. K5 only, OLYMPUS EUROPA SE & Co. KG Wardersboro 11-15, 20067 Hamburg, Germany Manufactured by OLYMPUS CORPORATION 2451 Martinica-mech, Frankfurt, Tokyo 192-6507, Japan

お手入れ

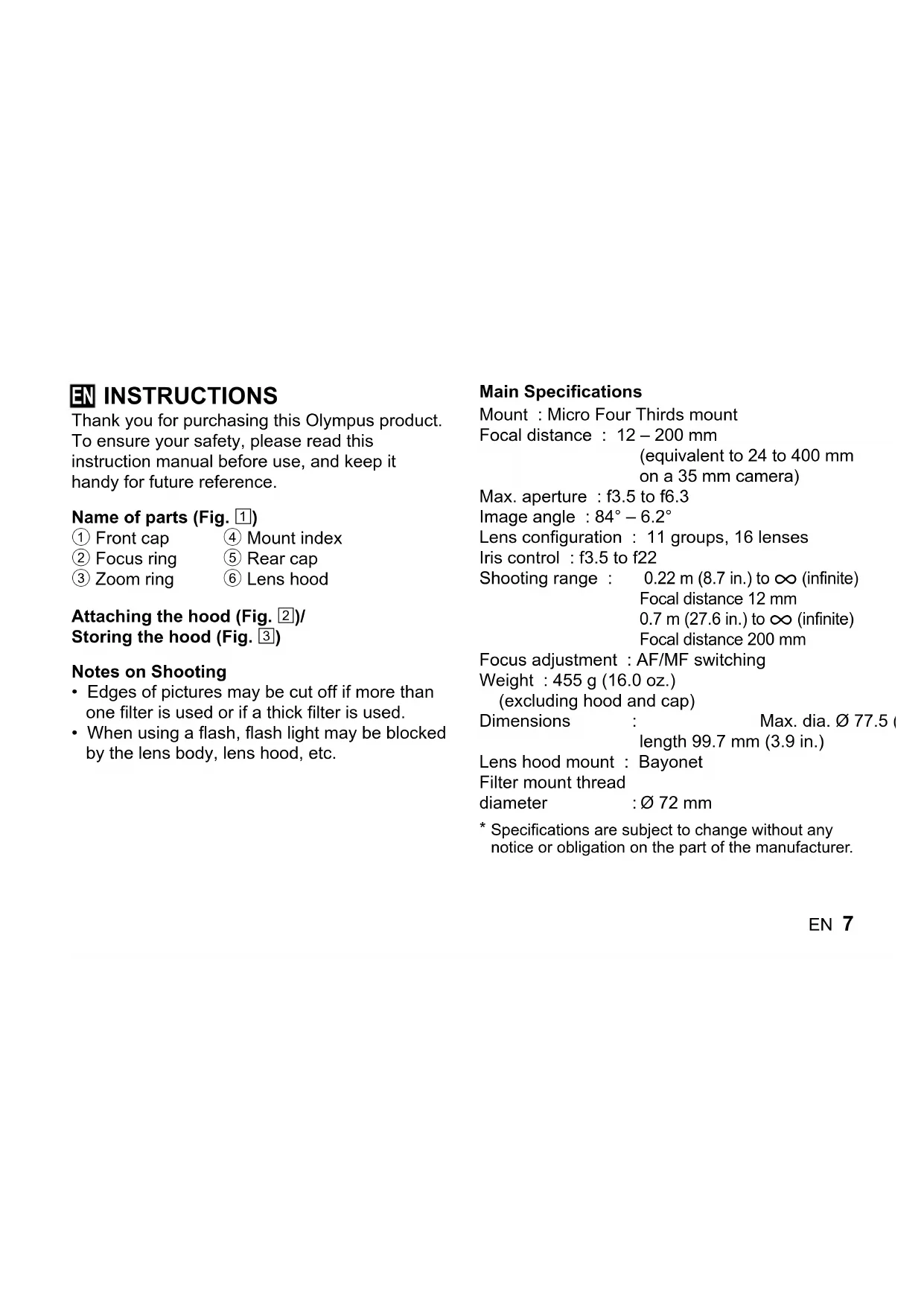

Thank you for purchasing this Olympus product. To ensure your safety, please read this instruction manual before use, and keep it handy for future reference.

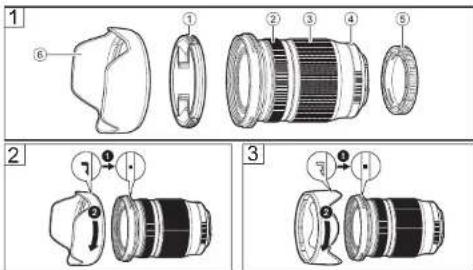

Name of parts (Fig. 1)

① Front cap

④ Mount index

② Focus ring

⑤ Rear cap

③ Zoom ring

⑥ Lens hood

Attaching the hood (Fig. 2)/Storing the hood (Fig. 3)

Notes on Shooting

• Edges of pictures may be cut off if more than one filter is used or if a thick filter is used.
• When using a flash, flash light may be blocked by the lens body, lens hood, etc.

Main Specifications

Mount : Micro Four Thirds mount

Focal distance : 12 – 200 mm (equivalent to 24 to 400 mm on a 35 mm camera)

Max. aperture : f3.5 to f6.3

Image angle : 84^-6.2^

Lens configuration : 11 groups, 16 lenses

Iris control : f3.5 to f22

Shooting range : 0.22 m (8.7 in.) to ∞ (infinite) Focal distance 12 mm 0.7 m (27.6 in.) to ∞ (infinite) Focal distance 200 mm

Focus adjustment : AF/MF switching

Weight : 455 g (16.0 oz.) (excluding hood and cap)

Dimensions : Max. dia. ∅ 77.5 (length 99.7 mm (3.9 in.)

Lens hood mount : Bayonet

Filter mount thread

diameter : ∅ 72 mm

* Specifications are subject to change without any notice or obligation on the part of the manufacturer.

Maintenance

Blow dust off the lens with a commercially available blower. For the lens, wipe gently with a lens cleaning paper.

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not view the sun through the lens. It may cause blindness or vision impairment.
• Do not leave the lens without the cap. If solar light is converged through the lens, a fire may result.
• Do not point the camera lens at the sun. Sunlight will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.

Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS CORPORATION.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers.

FCC Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For customers in North America, Central America, South America and the Caribbean

Declaration of Conformity

Model Number : IM014

Trade Name : OLYMPUS

Responsible Party : OLYMPUS AMERICA INC.

Address : 3500 Corporate Parkway, P. O. Box 610, Center Valley, PA 18034-0610, USA

Telephone Number : 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-3(B)/NMB-3(B)

• Technical Support (U.S.A. / Canada)

24/7 online automated help : http://www.olympusamerica.com/support Phone customer support : Tel.[phone] (Toll-free) Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET E-Mail : [e-mail]

For customers in Europe

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

• European Technical Customer Support

Please visit our homepage http://www.olympus-europa.com or call: Tel. 00800 - 67 10 83 00 (Toll-free) +49 40 - 237 73 899 (Charged)

The software in this lens may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored at http://www.olympus.co.jp/en/support/img/digicamera/download/notice/notice.cfm

This product uses T-Kernel source code under the terms of the TRON Forum (www.tron.org) T-License.
