Pro Express Ultimate+ - Iron CALOR - Free user manual and instructions

Product Type	Steam Generator Iron
Brand	Calor
Model	Pro Express Ultimate+
Power Supply	220-240 V, 50/60 Hz
Power	2400 W
Steam Pressure	Up to 6 bars
Continuous Steam Flow	Up to 120 g/min
Water Tank Capacity	1.5 L
Soleplate	Autoclean Ceramic
Functions	Vertical Steaming, Spray, Anti-drip, Anti-scale System, Auto-off (30 min)
Safety	Pressure Relief Valve, Thermal Fuse, Iron Lock
Maintenance	Boiler Rinsing, Regular Soleplate Cleaning
Recommended Water Type	Tap water (or 50% demineralized mix if hard water)
Included Accessories	Iron Rest, Drain Cap, Scale Collector
Repairability	Spare parts available at Authorized Service Centers
Dimensions (L x W x H)	Not provided
Weight	Not provided

Frequently Asked Questions - Pro Express Ultimate+ CALOR

Why does water leak through the holes in the soleplate?

This can happen if you use steam for the first time or after a period of inactivity. Press the steam button away from the ironing board until steam comes out. Also make sure the soleplate is hot enough (set to the steam zone).

What should I do if white streaks come out of the soleplate?

This is a sign of scale in the boiler. Rinse the boiler as indicated in the user guide, and ensure you use appropriate water (tap water or a mix with demineralized water).

How do I rinse the boiler?

Unplug the appliance and let it cool completely (more than 2 hours). Open the drain cap or collector (depending on model) and empty the water. Use tap water to rinse, without adding descaling product, then close. Refer to the complete manual for precise steps.

What water should I use in the steam generator?

Use tap water. If it is very hard, mix 50% tap water with 50% demineralized water. In coastal areas with high salt content, use exclusively demineralized water. Never use rainwater or water containing additives (starch, perfume).

What should I do if the WATER light flashes?

Press the 'OK' restart button on the control panel until the light goes off. If the problem persists, check that the appliance was stored at room temperature (above 10°C).

How do I clean the iron's soleplate?

Wait for the soleplate to cool down. Clean it with a non-metallic damp cloth. For brown stains, use a special soleplate cleaner or diluted white vinegar, then rinse. Avoid abrasive products.

Why won't the steam generator turn on?

Check the power outlet and cord. If the appliance was in standby, the 'auto-off' system activated after 30 minutes. Press the 'ON-OFF' button to restart. If nothing happens, unplug and wait 3 hours at room temperature before trying again.

How do I use vertical steaming?

Hang the garment on a hanger. Set the iron to steam temperature. Hold the iron at a distance (without touching the fabric) and press the steam button in bursts. Caution: never direct steam towards a person or animal.

Where can I find spare parts for this model?

Spare parts must be purchased exclusively from an Authorized Calor Service Center. Visit the official website or contact customer service to find the nearest center.

What should I do if brown stains appear on laundry?

This is due to the use of chemical descaling products or additives in the water. Never add any products to the boiler. Clean the soleplate and rinse the boiler thoroughly with clean water. Use only recommended water.

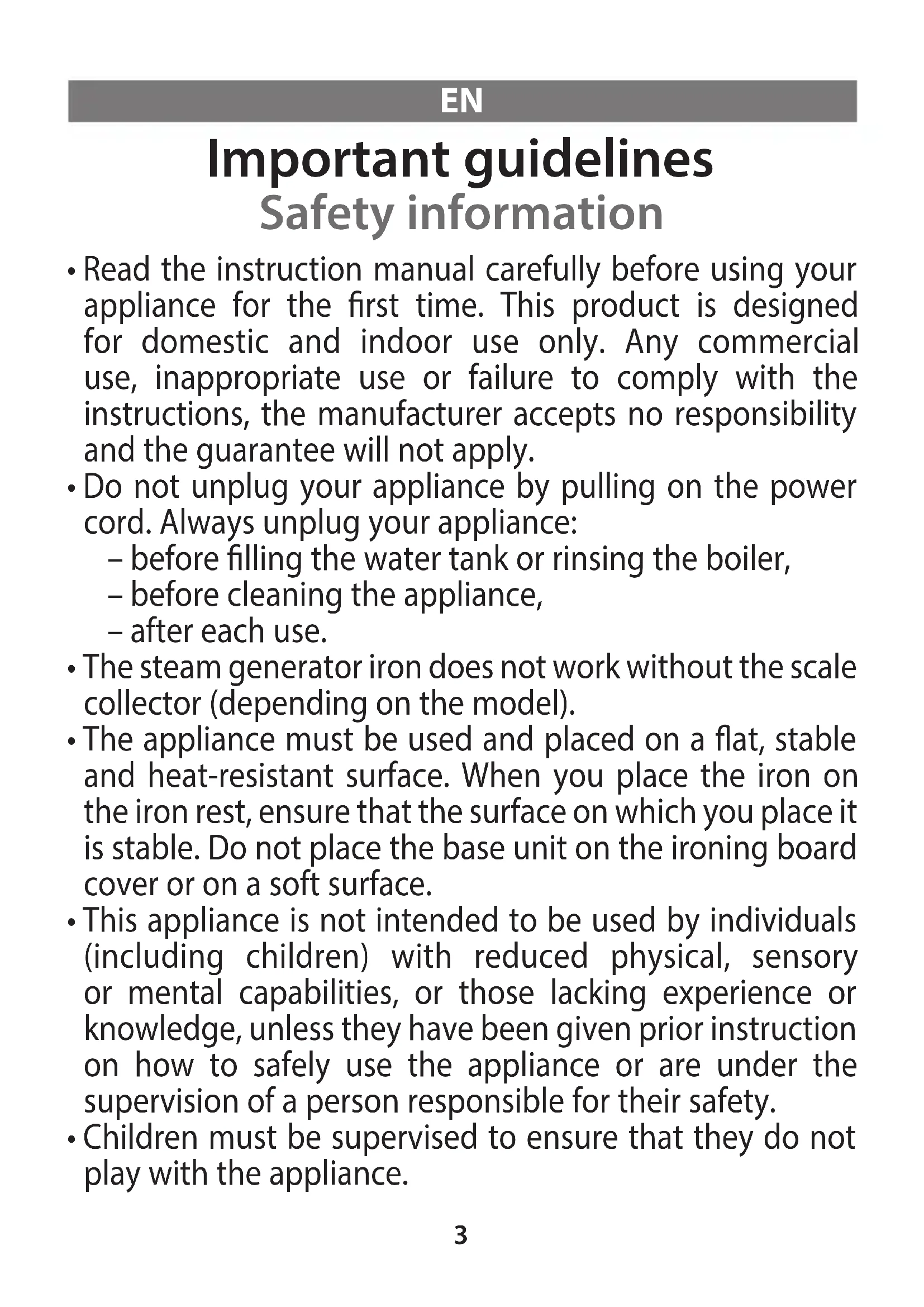

USER MANUAL Pro Express Ultimate+ CALOR

EN•Safetyanduseinstructions

• Read the instruction manual carefully before using your appliance for the first time. This product is designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Do not unplug your appliance by pulling on the power cord. Always unplug your appliance:

– before filling the water tank or rinsing the boiler,
– before cleaning the appliance,
- after each use.

• The steam generator iron does not work without the scale collector (depending on the model).
• The appliance must be used and placed on a flat, stable and heat-resistant surface. When you place the iron on the iron rest, ensure that the surface on which you place it is stable. Do not place the base unit on the ironing board cover or on a soft surface.
• This appliance is not intended to be used by individuals (including children) with reduced physical, sensory or mental capabilities, or those lacking experience or knowledge, unless they have been given prior instruction on how to safely use the appliance or are under the supervision of a person responsible for their safety.
• Children must be supervised to ensure that they do not play with the appliance.

- This appliance may be used by children aged 8 years and older and by individuals lacking experience or knowledge or with reduced physical, sensory or mental capabilities, provided that they have been thoroughly instructed regarding the use of the appliance, are supervised, and understand the risks involved. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the iron and its power cord out of reach of children under 8 years of age when it is in use or cooling down.

- The surfaces of your appliance can reach very high temperatures when functioning, which may cause burns. Do not touch the hot surfaces of the appliance (accessible metal parts and plastic parts adjacent to the metallic parts).

- Never leave the appliance unsupervised while it is connected to the mains. Before storing the appliance, once it is unplugged, please wait until it has cooled down completely (around 1 hour).

- It is very important not to use descaling products (vinegar, industrial descalers, etc.) to rinse the boiler, as they may damage it.

- Before emptying the boiler/rinsing the collector (depending on the model), always wait until the appliance has cooled down and has been unplugged for over 2 hours before loosening the drainage/collector cap.

- Caution: If the cap or drainage cap (depending on the model) is damaged, have it replaced by an approved service centre.

- Never fill the appliance directly from the tap.

- The filling, descaling, rinsing and inspection apertures,

which are under pressure, must not be opened during use.

- The appliance must not be used if it has been dropped, if it appears to be damaged, if it is leaking or is not working correctly. Do not attempt to dismantle your appliance: take it to an approved service centre to avoid any danger. - If the power cord or steam cord of your appliance is damaged, it must be replaced by an approved service centre in order to avoid any danger.

• All accessories, consumables and removable parts must be bought only from an approved service centre.
• For your safety, this appliance conforms to all applicable regulations (Low Voltage, Electromagnetic Compatibility and Environment Directives, etc.).
• Your steam generator iron is an electrical appliance: it must be used under normal conditions of use.
  • It is equipped with 2 safety systems:

- a valve to prevent the build-up of pressure, which allows excess steam to escape in the event of the appliance malfunctioning,

- a thermal fuse to prevent overheating.

• Always plug your appliance:

• into a mains circuit with voltage between 220V and 240V (Alternating current only),
• into a socket outlet with an earth connection.

Faulty connection can cause irreparable damage to the appliance and will invalidate your guarantee. If you are using an extension cord, ensure that it is correctly rated (16A) with an earth connection, and is fully extended.

• Unwind the power cord fully before plugging it into an earthed plug socket.
• Never touch the power cord or steam cord with the soleplate of the iron. Do not leave the power or water connection cords close to or in contact with sources of heat or sharp edges.
• The water in the appliance may still be hot and cause burns even after 2 hours of cooling down. Handle the appliance with care when the cap/collector is removed, particularly when you are emptying it.

• Your appliance emits steam that may cause burns.

• Handle the iron with care, particularly when using the vertical steam function.

• Never steam clothing when it is worn by a person, always steam it on a hanger.

• Never iron in a seated position with your legs below the ironing board.
  – Never direct the steam towards people or animals.

• The first time the appliance is used, there may be some fumes and smell but this is not harmful.

• Never immerse your steam generator iron in water or any other liquid. Never place it under tap water.

What water should I use?

- This appliance has been designed to be used with untreated tap water. If your water is very hard, use a mixture of 50% tap water and 50% distilled water. You should not use water from clothes dryers, scented or softened water, water from refrigerators, batteries, air conditioners, rain water, boiled, filtered or bottled water. Do not use pure distilled nor pure demineralised water.

PLEASE RETAIN THIS INSTRUCTION MANUAL

Help protect the environment!

① Your appliance contains a number of recoverable or recyclable materials.
Take these to a collection centre, or to an approved service centre for processing.

Troubleshooting problems with your steam generator iron

PROBLEMS CAUSES SOLUTIONS
Water is dripping from the holes in the soleplate	The water has condensed in the tubes because you are using the steamer for the first time or have not used it for a while.	Press the steam button away from your ironing board until the iron emits steam.
	The soleplate is not hot enough to produce steam.	Set the iron to the steam zone* (see user manual).
Traces of water appear on the laundry	Your ironing board cover is saturated with water as it is not suitable for the power of a steam generator.	Ensure you use a suitable ironing board (a mesh ironing board which prevents condensation).
White streaks are dripping from the holes in the soleplate	Your boiler is emitting limescale as it is not rinsed regularly.	Rinse the boiler as instructed in the user manual.
Brown streaks are dripping from the holes in the soleplate and staining the laundry	You are using chemical descaling agents or additives in the water.	Never add any product to the boiler (see the section “What water should I use?”)
The soleplate is dirty or brown and may mark the laundry	The iron is being used on too high a temperature.	Clean the soleplate as instructed in the user manual. Use a lower temperature.
The soleplate is scratched or damaged	You have placed your iron flat down on the metal iron rest.	Always place your iron on its heel or on the steam generator base.
The red “WATER” indicator light is flashing*	You have not pressed the “OK” button. Press the “OK” button located on the control panel until the indicator light goes off.
The “anti-scale” indicator light is flashing*	You have not pressed the “OK” button. Press the “OK” button located on the control panel until the indicator light goes off.
The steam generator iron will not turn on or the iron indicator light and the “ON-OFF” indicator light will not turn on.*	The “auto-off” system is activated after 30 minutes of non-use and has turned off your steam generator iron.	Press the “ON-OFF” restart button located on the control panel.
The red “WATER” indicator light is flashing and the “ON-OFF” button is not working.*	The appliance has been stored in a cold area (around <10C°)	Unplug the appliance. Leave the appliance for 3 hours until it reaches ambient temperature.

* Depending on the model
If you cannot determine the cause of the problem, consult an approved after sales care service.
