USER MANUAL Multigrill MG630 INVENTUM

Black and white portable grill with a black handle, red and green buttons on the front panel (no text or symbols visible)

1. safety instructions page 10
2. appliance description page 12
3. before the first use
4. general use
5. making waffles
6. making toasted sandwiches
7. grilling food
8. cleaning and maintenance
   general terms and conditions of service and warranty
   page 10
   page 12
   page 12
   page 13
   page 13
   page 14
   page 14
   page 28

Deutsch

Three black plastic components with textured surfaces, no visible text or symbols

1 2 3 4

5 6 7 7

Black and silver plastic case with handle (no text or symbols visible)

1 safety instructions

• Carefully and fully read the user manual prior to using the appliance and carefully store the manual for future reference.
• Only use this appliance for the purposes described in the instruction.
• Caution! Avoid contact with the hot surfaces.
• Allow the appliance and grill plates to cool down fully, before cleaning or storing the appliance.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Never bend the power cord sharply or allow it to run across hot parts.
• Fully unwind the cord to prevent it from overheating.
• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other object that could catch flame, such as curtains, towels (cotton or paper, etc.).
• Place the appliance on a sturdy, flat surface and make sure there is enough space around it for sufficient ventilation. A minimum space of 10 cm is required between the appliance and the walls. Place nothing on top of the appliance.
• Only use the appliance indoors.
• Do not leave the appliance unsupervised if the appliance is operational.
• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service.
• If the cord of the appliance is damaged, it should be replaced by the manufacturer, his customer service or a similar qualified person in order to prevent hazardous situations.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.
• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations.

- Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

- The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.

• Children are not allowed to play with the appliance.

- The appliance may not be cleaned or maintained by children, unless this is done under supervision.

- If the appliance is not being used or is being cleaned, switch off the appliance and remove the plug from the socket.

- If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group can be overloaded or an earth leakage current may have occurred.

- In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.

- Never submerge the appliance, cord or plug in water.

- Only the plates can be washed in a dishwasher. Do not place the appliance in the dishwasher.

- This appliance is intended for household and similar use, such as:

- in staff kitchens, shops, offices and other work environments;

- by guests of hotels, motels and other residential environments;

- in Bed&Breakfast type environments;

- farms.

- If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

- If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Small household appliances do not belong in the dustbin. Take the appliance to the waste processing department concerned of your municipality.

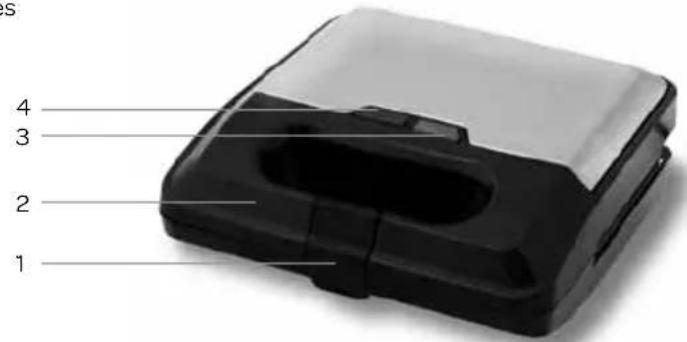

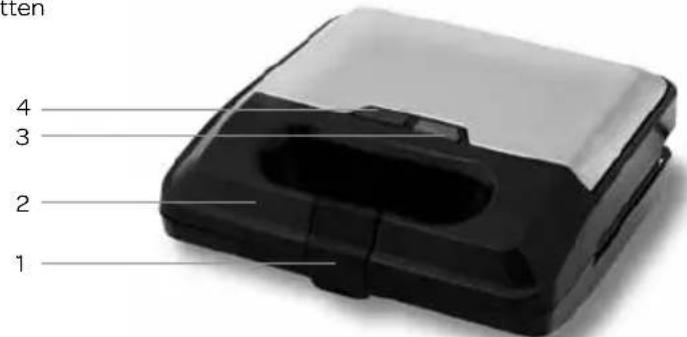

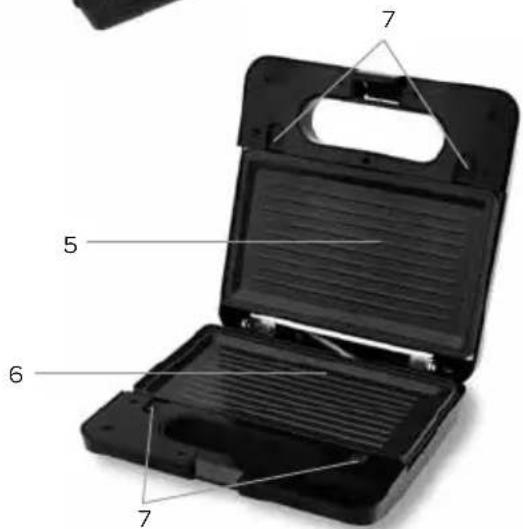

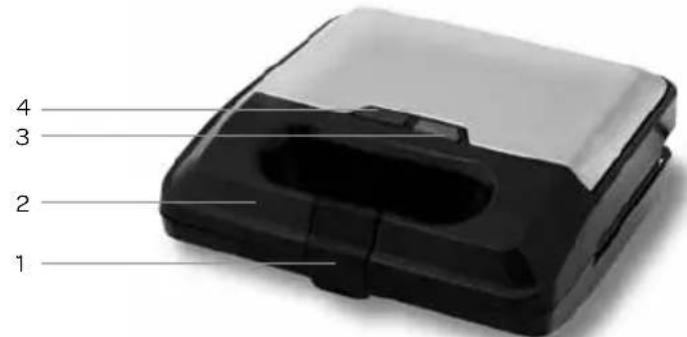

2 appliance description

1. Locking mechanism
2. Handle
3. Indicator led - temperature
4. Indicator led - mains voltage
5. Grill plate - top
6. Grill plate - bottom
7. Release buttons

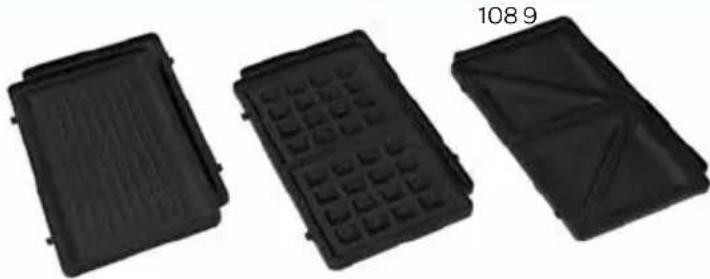

8. Grill plates
9. Waffle plates
   10.Toaster plates

Three black plastic components with textured surfaces, no visible text or symbols

S 4 3 2 1

5 6 7 7

3 before the first use

Before using the multigrill for the first time, please proceed as follows: carefully unpack the appliance and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport.

Place the multigrill on a flat, stable surface. Clean the exterior of the multigrill using a slightly damp cloth and then wipe it with a dry cloth. Clean the plates with a soft sponge and hot water containing a mild washing-up liquid. Tip: the plates may also be cleaned in the dishwasher.

Place the multigrill on a flat, heat resistant surface. Fully unwind the cord and insert the plug in the wall socket. When used for the first time, a little smoke could come off the multigrill. This is normal and is caused by burning greases and oils that were used during the manufacture of the appliance.

4 general use

The multigrill is suitable for making waffles and toasted sandwiches and for grilling food.

CHANGING THE PLATES

• Press the release buttons to release the plates from the appliance.
• Select the plates that you wish to use and place them in the multigrill.
• Check that the plates are pressed tight firmly.

GRILLING

Place the multigrill on a flat, heat resistant surface.

Select the plates that you wish to use and place them in the multigrill.

Fully unwind the cord and insert the plug in the wall socket.

Both indicator leds light up.

Allow the appliance to heat up while preparing the food.

Heating up the multigrill takes approximately four minutes.

The multigrill is provided with a thermostat that controls the temperature of the appliance. When the multigrill is at the correct temperature, the green indicator led switches off.

The multigrill is now ready for use.

Caution: do not touch the metal parts and grill plates, as they get extremely hot.

12 • English

Open the multigrill and place the food, sandwich, meat or other product to be prepared on the bottom plate.

Close the multigrill and close the locking mechanism.

Grilling takes approximately three to eight minutes, depending on the type of food and your personal taste.

Remove the food with a wooden or plastic spatula, in order to protect the non-stick coating. Do not use metal or sharp objects.

Warning the fillings of toasted sandwiches get very hot. So do be careful, particularly in the case of children.

After use, always remove the plug from the socket.

5 making waffles

First prepare the batter, so it can rest for a while.

1. Place the multigrill on a flat, heat resistant surface.

2. Place the waffle plates in the multigrill and close the lid. Close the locking mechanism.

3. Fully unwind the cord and insert the plug in the wall socket. The appliance is on.

4. Allow the appliance to heat up. When the green indicator led is off, the appliance is ready for use.

5. Open the lid and grease the plates with a little butter or oil.

6. Evenly spread the batter for the waffles over the bottom plate. Make sure you do not apply too much batter.

7. Close the lid and close the locking mechanism.

8. Open the lid after 2 minutes to check the colour of the waffles.

9. A minimum baking time of 4-5 minutes is recommended. Bake the waffles until they have the required colour. Vary the baking time to get a different colour, from golden brown to crispy brown.

10. The ideal baking time depends on your taste and the batter used. Batter with a lot of sugar colours more quickly. Do not open the lid too quickly during baking, as the waffles could remain stuck to the top plate.

11. When the waffles are ready, they can be removed from the appliance with a wooden or plastic spatula.

12. Close the lid after the waffles have been removed and allow the appliance to heat up again. Wait for the green indicator led to turn off again and refill the bottom plate with batter.

13. Remove the plug from the socket when you have finished baking and open the appliance to allow it to cool down.

6 making toasted sandwiches

1. Place the multigrill on a flat, heat resistant surface.

2. Place the sandwich plates in the multigrill and close the lid. Close the locking mechanism.

3. Fully unwind the cord and insert the plug in the wall socket. The appliance is on.

4. Allow the appliance to heat up and prepare the sandwiches in the meantime.

5. When the green indicator led is off, the appliance is ready for use.

6. Open the lid and grease the plates with a little butter or oil.

7. Place the sandwiches on the bottom plate. Make sure the filling of the sandwiches is not too thick.

8. Close the lid and close the locking mechanism.

9. Open the lid after 2 minutes to check the colour of the sandwiches.

10. A minimum baking time of 4-5 minutes is recommended. Bake the sandwiches until they have the required colour. Vary the baking time to get a different colour, from golden brown to crispy brown.

11. When the toasted sandwiches are ready, they can be removed from the appliance with a wooden or plastic spatula.

12. Close the lid after the sandwiches have been removed and allow the appliance to heat up again. Wait for the green indicator led to turn off again and place new sandwiches on the bottom plate.

13. Remove the plug from the socket when you have finished baking and open the appliance to allow it to cool down.

7 grilling food

1. Place the multigrill on a flat, heat resistant surface.
2. Place the grill plates in the multigrill and close the lid. Close the locking mechanism.
3. Fully unwind the cord and insert the plug in the wall socket. The appliance is on.
4. Allow the appliance to heat up. When the green indicator led is off, the appliance is ready for use.
5. Open the lid and grease the plates with a little butter or oil.
6. Place the prepared food on the bottom plate. Do not place too much food in one go.
7. Close the lid and close the locking mechanism.
8. Open the lid after 2 minutes to check that the food is cooked. If necessary, the food can be turned for further cooking.
9. When the food is cooked according to your requirements, it can be removed from the appliance with a wooden or plastic spatula.
10. Close the lid after the food have been removed and allow the appliance to heat up again. Wait for the green indicator led to turn off again and refill the bottom plate with food.
11. Remove the plug from the socket when you have finished baking and open the appliance to allow it to cool down.

8 cleaning and maintenance

Always remove the plug from the socket before cleaning the appliance. Allow the multigrill to cool down completely. This will go faster if you leave the multigrill open.

• After every use, remove any food residues from the inside of the multigrill, such as spilled batter and oil.
- Remove the plates from the appliance and hand-wash them using hot water containing a little washing-up liquid or clean them in the dishwasher.
- Clean the outside of the appliance with a damp cloth or soft sponge with a little washing-up liquid.
- Dry the inside and outside of the appliance.
- Only place the plates back in the appliance once they are fully dry.
- Do not use aggressive or abrasive cleaning agents for cleaning the appliance or the plates.
- Never submerge the multigrill in water or any other liquid.

For the purpose of compact storage, you can place the multigrill vertically in the cabinet.

Black and silver briefcase with handle (no text or symbols visible)

Three black plastic components with textured surfaces, no visible text or symbols

4 3 2 1

5 6 7 7

Black and silver briefcase with handle (no text or symbols visible)

Three black plastic components with textured surfaces, no visible text or symbols

bouque-monsieur 4 3 2 1

5 6 7 7

Black and silver briefcase with handle (no text or symbols visible)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
