GR803B - Grill plate INVENTUM - Free user manual and instructions

USER MANUAL GR803B INVENTUM

Black grating or flat-coated appliance with slatted top and side handles, no visible text or symbols

1. safety instructions page 7
2. appliance description page 9
3. before first use page 9
4. preheat page 9
5. grill & raclette page 10
6. cleaning & maintenance page 10
   Guarantee & after sales Service page 20

Deutsch

Black plastic object with labeled parts (4, 5, 6), no text or symbols on the object itself

1 safety instructions

- Please read these instructions before operating the appliance and retain for future use.

- The appliance is intended solely for domestic use within the home.

- Attention! Hot surfaces.

- Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.

- Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.

- Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.

• Always use the appliance on a secure, dry, level surface.

- Never leave the appliance unattended when in use.

- Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.

- For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.

- Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.

- Never unplug it from the socket by pulling on the cable.

- Always ensure that your hands are dry before handling the plug, switch or power cord.

- The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

- This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and maintenance shall not be made by children.

• Children must not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- This appliance is only intended to be used in household and not in:
- staff kitchen areas, in shops, offices and other working environments;
- by clients in hotels, motels and other residential type environments;
- Bed and Breakfast type environments
-farm houses.
- Unplug the appliance as soon as you have finished using it and when you are cleaning it.
- If an extension cord is used, check the marked electrical rating of the extension cord to the electrical rating on the appliance. Make sure that it can not be pulled on by children or tripped over unintentionally.
- Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
- Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
- Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
- If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.
equipment must be collected for reuse and recycling.
Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

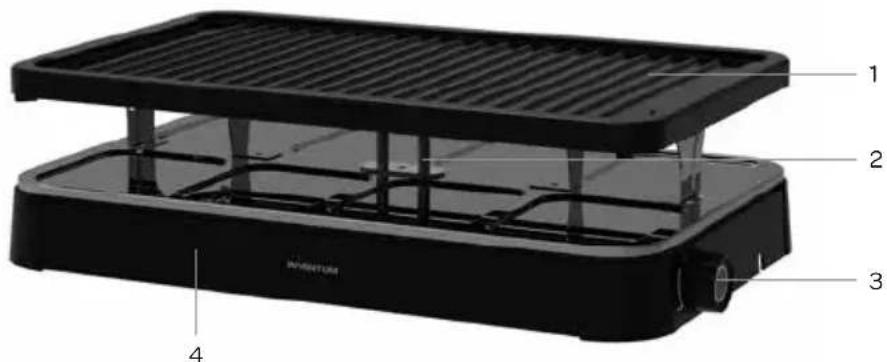

2 appliance description

1. Grill plate
2. Heating element
3. Thermostat button/ Control light
4. Base
5. Pan with non-stick coating - 8 pieces
6. Spatulas - 8 pieces

1 2 3 4

Black plastic object with labeled parts (4, 5, 6), no text or symbols on the object itself

3 before the first use

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and the separate parts, such as the grill plate (1) and the pans (8 pieces) (5) and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation.

Place the appliance on a heat resistant flat and stable surface.

Clean the base (4) of the appliance with only a damp cloth and dry it with a dry cloth. Clean the grill plate (1) and pans (5) with soapy water. Rinse the parts and dry thoroughly. The grill plate (1) and the pans (5) are dishwasher safe.

Place the grill plate (1) on the supports of the heating element (2).

Place the pans (5) under the grill plate (1) on the appliance. Lightly grease the grill plate (1) and the pans (5) with a bit of oil for the first use and remove the excess oil with a piece of kitchen towel.

4 preheat

Before plugging into a socket, check that the voltage in your home corresponds with voltage printed on the appliance. Make sure no one can trip over the power cord or the extension cord.

Turn the thermostat button (3) to the desired setting. The control light (3) will light up. Preheat the appliance during 5 minutes. After preheating the appliance is ready to use.

The minimum temperature is 100°C and the maximum temperature is 220°C.

grill & raclette

Place the ingredients directly on to the grill plate (1) or in one of the pans (5).

You can grill meat, fish etc. on the grill plate (1). This also goes for vegetables, champignons, bacon and such.

In the pans (5) beneath the grill plate you can also grill a slice of raclette cheese or an other fast melting cheese. You can also prepare small pancakes or an omelette.

To ensure the non-stick coating of the grill plate (1) and the pans (5) is not damaged, always use plastic or wooden spatulas (6). Do not use forks or any other metal objects.

During the first use a small amount of smoke and an odeur may be noticeable. This will disappear after a short while.

Avoid touching the hot surfaces during use.

First grill the meat on the grill plate (1) before you place it in a pan(5). Season the dish with salt and pepper or other spices.

Frozen food should always be properly thawed before it is grilled.

When you are finished, turn the thermostat button (3) to turn the appliance off and unplug it.

cleaning & maintenance

When you are finished cooking switch the appliance of by pressing the on/off button (3). Unplug the cord from the outlet. Allow to cool before cleaning or removing the grill plate (1) or the pans (5).

Always remove the plug from the wall outlet before cleaning or storing the appliance. Always allow the appliance to cool fully before removing the grill plate (1) and the pans (5).

Clean the base (4) of the appliance with a damp cloth with some washing up liquid added.

The grill plate (1) and the pans (5) can be cleaned with soapy water. The grill plate (1) and the pans (5) are dish washer safe.

Never use any abrasives for cleaning the appliance or the separate parts.

Never immerse the base, power cord or plug in water or any other liquid to protect against electrical hazards.

Metal utensils will damage the non-stick coating. Use only plastic or wooden spatulas (6). We advise to store the appliance in the original box.

Black plastic object with labeled parts (4, 5, 6), no text or symbols on the object itself

Black plastic object with labeled parts (4, 5, 6), no text or symbols on the object itself

general terms and conditions of service and warranty

5-year Inventum warranty!

1. Customers enjoy a 5-year full manufacturer's warranty on all Inventum products.
2. Within this period, a defective product or part, which makes normal functioning of the product or part impossible, will always be repaired free of charge or, if repair is not possible and/or does not provide a solution, replaced (by the same or equivalent product). The assessment of this lies with Inventum.
3. In order to make a claim under the 5-year Inventum warranty you must, within two months after discovering the fault or defect, either return the product to the shop where you bought it, or contact the Inventum customer service department by using the form at www.inventum.eu/service.
4. The warranty period starts from the date stated on the product's original sales receipt.
5. To invoke the warranty, you must always send a copy of the original proof of purchase with the service request and present the original proof of purchase to the service technician.
6. The 5-year warranty applies only to normal domestic use of Inventum products within the Netherlands.

Warranty exclusions

1. The 5-year Inventum guarantee does not apply in case of: normal wear and tear, consumables, improper use, insufficient or incorrect maintenance, incorrect and/or inexpert assembly and installation of the appliance, repairs by unauthorised third parties, business or commercial use, missing serial number, damage caused by an external cause. This enumeration is not exhaustive.
2. B-choice products and products that have been built-in in a showroom are not covered by the 5-year Inventum warranty. All optical damage such as dents, scratches and slight traces of use are excluded from any warranty.

Reporting malfunctions on Inventum products

1. Faults or defects on Inventum products can be reported by using the service request form on the website www.inventum.eu/service or through the seller of the product.
2. A copy of the original proof of purchase must be included with the request.
3. Inventum's service department determines whether the product will be repaired or replaced, based on the request and the sales receipt.

Important to know

• Products sent without prior notification will not be accepted. Further to the notification you will be informed by Inventum whether a warranty applies and whether you must return the product.
• The replacement or repair of a defective product, or a part thereof, does not lead to an extension of the original warranty period.
• Products eligible for replacement or repair must be emptied and clean.

For a detailed explanation of the warranty conditions and items excluded from them, please visit Inventum's website www.inventum.eu/algemene-voorwaarden

These general warranty and service conditions apply to Inventum brand products purchased after 27 April 2022 and intended for use within the Netherlands.

For Inventum products used outside the Netherlands, but within a EU Member State, the warranty rules of that country apply. Inventum provides warranty and service by a white goods technician only in the Netherlands.

As a consumer, you are entitled by law to a properly working product. Does the product break down sooner than you might expect? This means that the product is not in conformity. In that case, the law offers you, the buyer, with a number of legal remedies for your protection. This legal protection is not affected by the above commercial warranty given by Inventum on Inventum products used within the Netherlands.
