USER MANUAL GP450B INVENTUM

1. safety instructions page 9

5. cleaning and maintenance page 13

general terms and conditions of service and warranty page 25

• Only use this appliance for the purposes described in the instruction manual.

• Do not use accessories that are not recommended by the manufacturer. Caution! Avoid contact with the hot surfaces.

• Be careful when moving the appliance while the drip tray is full. It could contain hot oil or other hot liquids.

• Allow the appliance to cool down fully before cleaning or storing the appliance.

• The appliance must be connected to an alternating current supply, via an earthed wall socket, with a mains voltage that matches theinformation given on the information plate of the appliance.

• Only use the original thermostat unit.

• Never bend the power cord sharply or allow it to run across hot parts.

• Fully unwind the cord to prevent it from overheating.

• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that may catch fire, such as curtains, towels (cotton or paper, etc.).

• Place the appliance on a sturdy, flat surface and make sure there is enough space around it for sufficient ventilation. A minimum space of 15 cm is required between the appliance and the walls. Place nothing on top of the appliance.

• Only use the appliance indoors.

• Do not leave the appliance unattended when it is in operation.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance is no longer functioning properly, or has been dropped or damaged in any other way. If this is the case, consult the retailer or our maintenance service. English safety instructions

English • 9• If the connection cord of this appliance becomes damaged, it must be replaced by the manufacturer, its customer service or a similarly qualified person in order to prevent hazardous situations.

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.

• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations.

• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.

• Children must not play with the appliance.

• The appliance must not be cleaned or maintained by children, unless this is done under supervision.

• If the appliance is not being used or is being cleaned, switch off the appliance and remove the plug from the socket.

• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group may be overloaded or an earth leakage current may have occurred.

• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.

• Never submerge the appliance, cord or plug in water. 10 • English• This appliance is intended for household and similar use, such as: - in staff kitchens, shops, offices and other work environments; - by guests of hotels, motels and other residential environments; - in Bed&Breakfast type environments; - farms.

• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated. If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Take the appliance to the waste processing department concerned of your municipality. English • 11appliance description

Before using the appliance for the first time, proceed as follows: carefully unpack the appliance and loose components, such as fat drip tray and thermostat unit, and remove all packaging material. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the appliance on a flat and stable underground that is resistant to heat and ensure a free space of 15 cm around the appliance. Clean the grill surface with a damp cloth to which washing-up liquid has been added, if necessary. Thoroughly rinse the fat drip tray and dry it properly. The appliance may not be cleaned in the dishwasher. The appliance is provided with a protective layer that must be removed prior to first use. This is done by heating the appliance for approximately 10 minutes (position 3-4) without food. Carefully insert the thermostat unit firmly in the connection point. Make sure the thermostat knob is on 0 (off). Before inserting the plug in an earthed wall socket, check that the voltage corresponds with the information given on the information plate of the appliance. Light smoke may form due to the protective layer burning off the appliance. Therefore, ensure proper ventilation in the room. After removing the protective layer you can switch off the appliance or start using it.

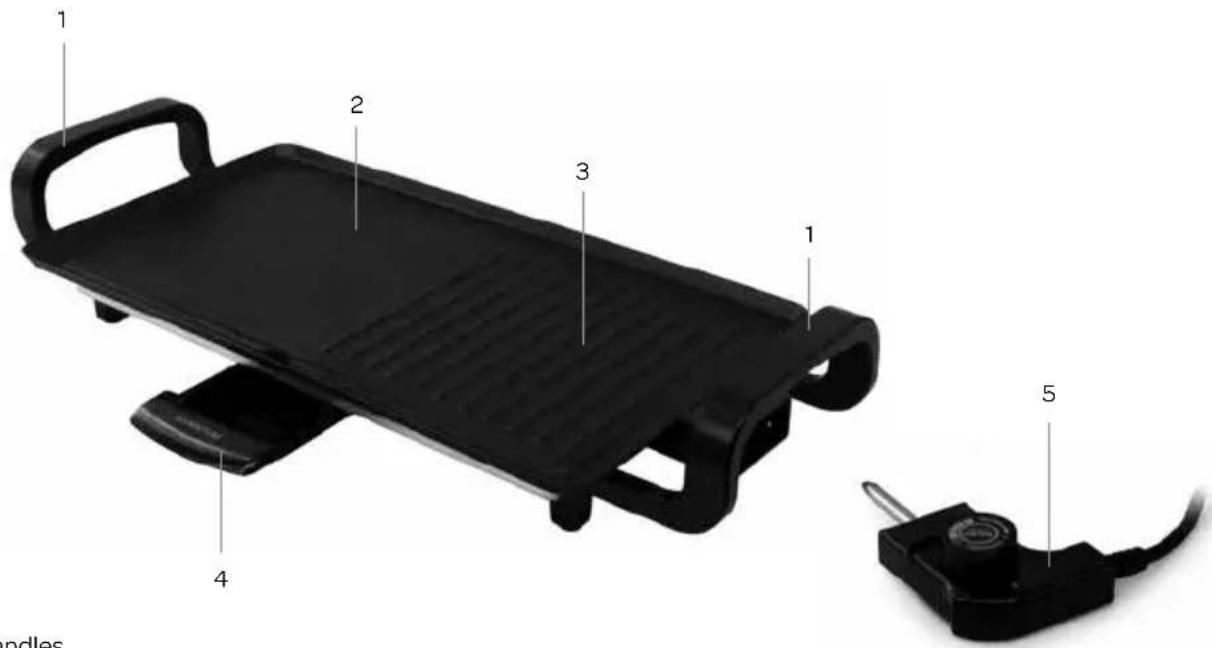

3. Grill surface - ribbed

5. Thermostat unit with indicator led

Carefully insert the thermostat unit firmly in the connection point. Make sure the thermostat knob is on «0» (off). Slide the fat drip tray under the appliance. Before inserting the plug in an earthed wall socket, check that the voltage corresponds with the information given on the information plate of the appliance. Make sure that nobody can trip over the cord or possible extension cord. Turn the thermostat knob to the required position 1-2-3-4-5. Once the appliance has reached the required temperature, the indicator led switches off. Attention: When the temperature drops, the thermostat switches on again automatically. Allow the appliance to preheat for approximately 10 minutes. After preheating the appliance is ready for use. Place the food to be prepared on the table grill. Use a low position for slowly grilling delicate dishes such as fish fillets and a higher position for searing meat, grilling vegetables and whole fish. A temperature that is too high could result in discolouration and seriously shorten the life span of the non-stick coating. If a higher temperature is required, we recommend preheating the appliance at a medium temperature before turning the appliance to the maximum position. The minimum temperature is 100°C at position 1 and the maximum temperature is 250°C at position 5.

• Avoid contact with the hot surfaces while grilling.

• First allow food to defrost before you start grilling.

• Only use plastic or wooden spatulas on the grill surface to avoid damage to the non-stick coating.

• Do not cut food on the grill surface. The table grill has been provided with a non-stick coating. This allows you to prepare food in a healthy way, without butter or oil. When you are ready preparing food, turn the thermostat knob to «0» and remove the plug from the socket. cleaning and maintenance

Clean the table grill after every use to prevent remaining food residues. Prior to cleaning the appliance, switch off the appliance, remove the plug from the socket and remove the thermostat unit from the appliance. Do remember that the appliance requires some time to cool down after having been switched off. It is easier to clean the appliance when it is still a little warm. Wipe the appliance clean with a soft cloth or kitchen towel. For removing caked food residues you must use a soft sponge with warm water and a little washing-up liquid. The fat drip tray can be cleaned with warm water to which washing-up liquid has been added. Thoroughly rinse the fat drip tray and dry it properly. The fat drip dray can be cleaned in the dishwasher. Do not use abrasives or other aggressive cleaning agents. Never submerge the appliance in water and/or other liquids. Discolouration of the table grill is only detrimental to the appearance of the appliance and does not have an effect on its operation. Make sure the appliance is clean and dry before storing it. Preferably store the appliance in the original box. Do not place anything on top of the appliance to prevent damage to the non-stick coating. English • 13• Lesen Sie die Gebrauchsanleitung vor der ersten Verwendung des Geräts vollständig und aufmerksam durch und bewahren Sie diese sorgfältig auf, damit Sie sie später zurate ziehen können.

berecht door de bevoegde Nederlandse rechter. algemene service- en garantievoorwaardenWe do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to asolution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs. 2-year full manufacturer’s warranty

Customers enjoy a 2-year full manufacturer’s warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer’s warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.

2. The 2-year warranty period starts from the date the product is bought.

3. In order to claim under the warranty, you must produce a copy of the original receipt.

4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period 1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.

2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will

be at your expense. 3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance. 4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour. 5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, thecosts of the repair must be settled with the engineer onsite, preferably by means of PIN payment. Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;

• failure to comply with the operating and maintenance instructions;

• unprofessional installation or repairs by third parties or the customer himself;

• non-original parts used by the customer;

• use for commercial or business purposes;

• removal of the serial number and/or rating label.

2. In addition, the warranty does not apply to normal consumer goods, such as:

• external connection cables;

• glass accessories and glass parts such as oven doors;

• and similar items. 3. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect. 4. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance. Important to know 1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.

2. If a complaint is unfounded, all costs arising from it will be at the customer’s expense.

3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.

4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory
