USER MANUAL CG616 INVENTUM

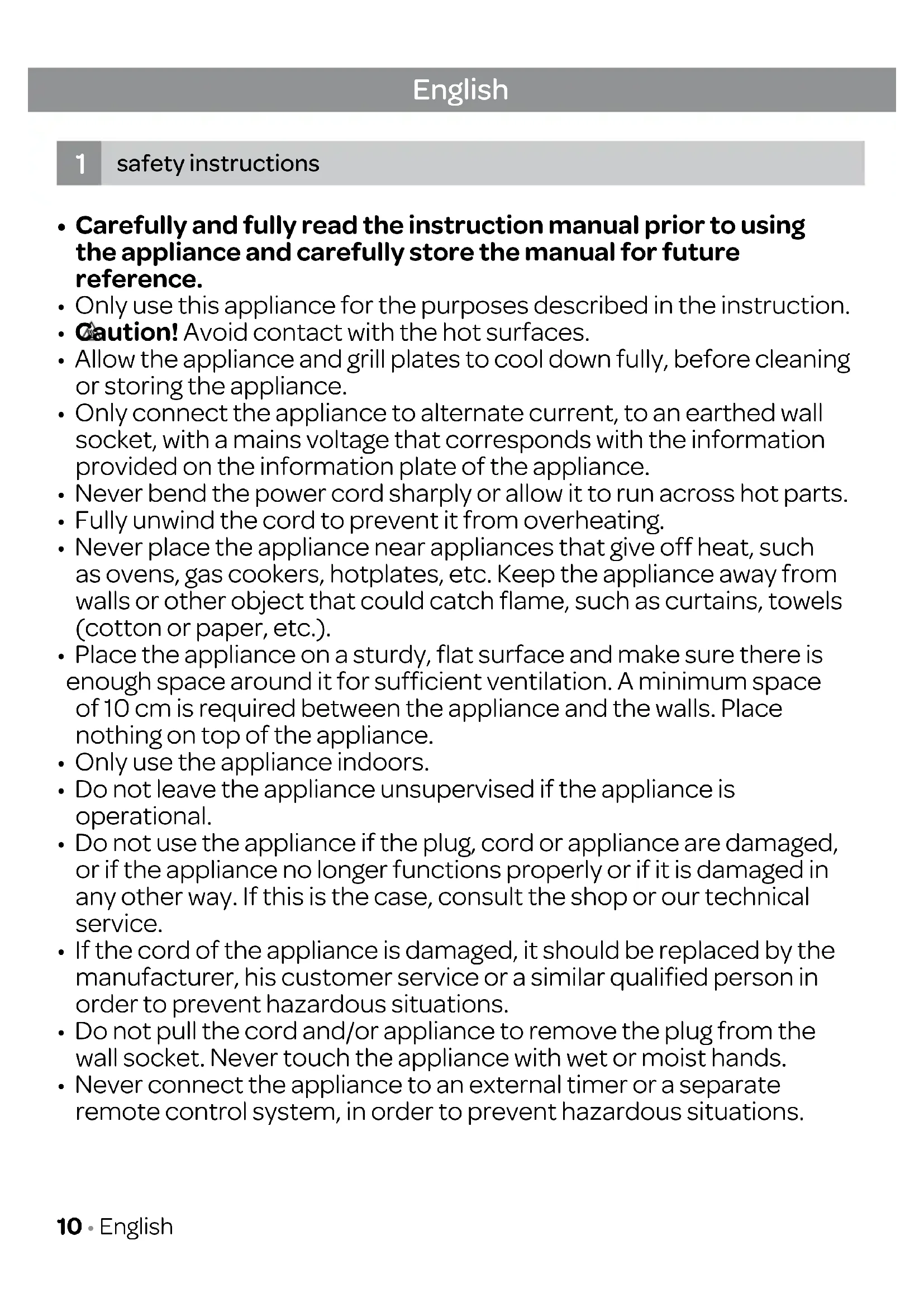

1. safety instructions page 10

5. using the contact grill as a table grill page 13

6. cleaning and maintenance page 13

general terms and conditions of service and warranty page 28

• Only use this appliance for the purposes described in the instruction.

• Caution! Avoid contact with the hot surfaces.

• Allow the appliance and grill plates to cool down fully, before cleaning or storing the appliance.

• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.

• Never bend the power cord sharply or allow it to run across hot parts.

• Fully unwind the cord to prevent it from overheating.

• Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other object that could catch flame, such as curtains, towels (cotton or paper, etc.).

• Place the appliance on a sturdy, flat surface and make sure there is enough space around it for sufficient ventilation. A minimum space of 10 cm is required between the appliance and the walls. Place nothing on top of the appliance.

• Only use the appliance indoors.

• Do not leave the appliance unsupervised if the appliance is operational.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service.

• If the cord of the appliance is damaged, it should be replaced by the manufacturer, his customer service or a similar qualified person in order to prevent hazardous situations.

• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.

• Never connect the appliance to an external timer or a separate remote control system, in order to prevent hazardous situations. English safety instructions

• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.

• Children are not allowed to play with the appliance.

• The appliance may not be cleaned or maintained by children, unless this is done under supervision.

• If the appliance is not being used or is being cleaned, switch off the appliance and remove the plug from the socket.

• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group can be overloaded or an earth leakage current may have occurred.

• In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.

• Never submerge the appliance, cord or plug in water.

• This appliance is intended for household and similar use, such as: - in staff kitchens, shops, offices and other work environments; - by guests of hotels, motels and other residential environments; - in Bed&Breakfast type environments; - farms.

• If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

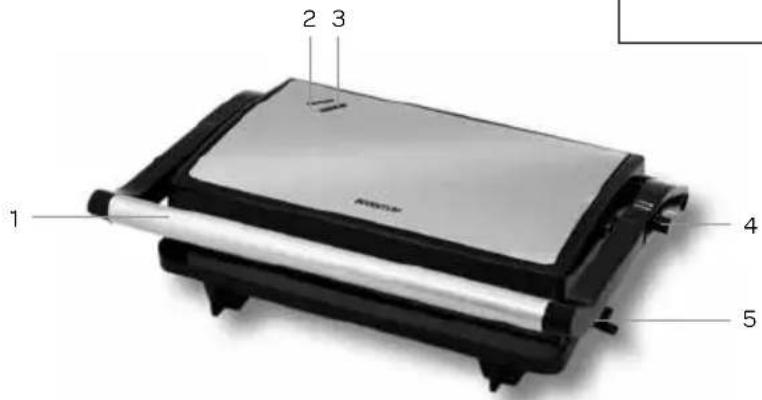

• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Small household appliances do not belong in the dustbin. Take the appliance to the waste processing department concerned of your municipality.appliance description

2. Indicator led - red

3. Indicator led - green

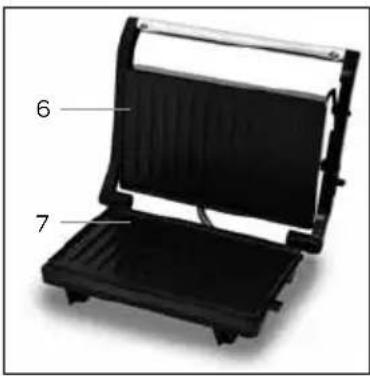

Before using the contact grill for the first time, please proceed as follows: carefully unpack the appliance and remove all packaging material and any promotional stickers. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Place the contact grill on a flat, stable surface. Clean the exterior of the contact grill and the grill plates using a slightly damp cloth and then wipe it with a dry cloth. Place the contact grill on a flat, heat resistant surface. Fully unwind the cord and insert the plug in the wall socket. When used for the first time, a little smoke could come off the contact grill. This is normal and is caused by burning greases and oils that were used during the manufacture of the appliance. Ensure sufficient ventilation. 1. Place the contact grill on a flat, heat resistant surface. Fully unwind the cord and insert the plug in the wall socket. Both indicator leds light up.

2. Release the transport lock.

3. Allow the appliance to heat up while preparing the food.

4. The contact grill is provided with a thermostat that controls the temperature of the appliance. When the contact grill is at the correct temperature, the green indicator led switches off. The contact grill is now ready for use.

5. Open the contact grill. Caution: do not touch the metal parts and grill plates, as they get extremely hot.

6. Place the food, panini rolls, meat or other products to be prepared on the bottom grill plate.

7. Close the lid to exert light pressure on the food and create a regular grilling pattern.

If it is difficult to close the lid, it may be that the food is too thick or that too many ingredients have been used.

8. It takes approximately three to eight minutes, depending on the type of food and your personal taste.

9. Open the lid when the food is ready and remove it with tongs or a spatula, in order to protect the non-stick coating. Do not use metal or sharp objects. Warning the fillings of panini rolls get very hot. So do be careful, particularly in the case of children. 10. Remove the plug from the socket when you have finished baking and open the appliance to allow it to cool down more quickly. before the first use

Lemon Garlic Pork Chops, boneless (serves 2) 2 pork chops ½ shallot, finely chopped 1 teaspoon Dijon mustard 1 teaspoon vinegar 1 clove garlic, finely chopped 1 teaspoon black pepper, coarsely ground 2 teaspoons olive oil zest of ½ a lemon juice of ½ a lemon Place all the ingredients, with the exception of the olive oil, in a large dish and add the pork chops. Make sure the pork chops are sufficiently covered by the marinade. Allow the pork chops to marinate in the refrigerator for four hours or leave overnight. Remove the dish from the refrigerator at least one hour prior to grilling. Preheat the contact grill until the green indicator led switches off. Grease the grill plates with a little olive oil, place the pork chops on the bottom grill plate and close the lid. Grill the pork chops for 5 to 10 minutes.

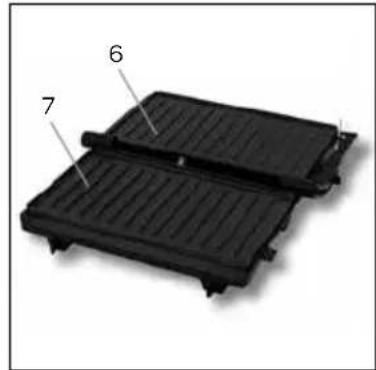

1. Place the contact grill on a flat, heat resistant surface.

2. Open the lid and slide the release button to the [ OPEN ] position. Hold the release button. Now you are able to fold open the lid and use the contact grill as a table grill. When closing the appliance, the button locks automatically so that the lid can no longer be fully folded open.

3. Fully unwind the cord and insert the plug in the wall socket. Both indicator leds light up.

4. Allow the appliance to heat up. When the green indicator led is off, the appliance is ready for use.

5. Place the food to be prepared on both grill plates.

6. After approximately 2 minutes, check to what extent the food is cooked and turn it around using tongs or a spatula. Do not use metal or sharp objects.

7. When the food is cooked according to your requirements, it can be removed from the appliance with tongs or a spatula.

8. If required, place new food on the grill plates in order to cook it.

9. Remove the plug from the socket when you have finished baking and leave the appliance open to allow it to cool down.

Caution: do not touch the metal parts and grill plates, as they get extremely hot. cleaning and maintenance

Always remove the plug from the socket before cleaning the appliance. Allow the contact grill to cool down completely. This will go faster if you leave the contact grill open.

• Clean the outside of the appliance and the grill plates with kitchen roll or a damp cloth.

• Do not use aggressive or abrasive cleaning agents for cleaning the appliance or the grill plates.

• Dry the inside and outside of the appliance.

• Never submerge the contact grill in water or any other liquid.

• Close the transport lock in order to store the contact grill in a compact way. The contact grill can be placed in the cabinet vertically. using the contact grill as a table grill 5Tips for grilling panini rolls/toasted sandwiches

• Use a combination of ingredients, but make sure you do not overfill. Three to four ingredients are ideal for getting the most out of all the flavours.

• Always use one ingredient that holds all the ingredients together. Cheese would be a good choice, because it melts. Garlic, mayonnaise, olive paste or barbecue sauce have the same effect.

• Make sure there is not too much filling in the panini roll. Protruding ingredients are grilled more quickly than the inside.

• When the panini roll is ready to be grilled, lightly grease both sides with olive oil.

• Preheat the contact grill until the green indicator led switches off.

aansprakelijkheid voortvloeit uit dwingendrechtelijke bepalingen. 5. Op deze garantie- en servicevoorwaarden is Nederlands recht van toepassing. Geschillen zullen uitsluitend worden berecht door de bevoegde Nederlandse rechter. algemene service- en garantievoorwaardenWe do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs. 2-year full manufacturer’s warranty 1. Customers enjoy a 2-year full manufacturer’s warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer’s warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www. inventum.eu/service-aanvraag.

2. The 2-year warranty period starts from the date the product is bought.

3. In order to claim under the warranty, you must produce a copy of the original receipt.

4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period 1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department. 2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense. 3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance. 4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour. 5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment. Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;

• failure to comply with the operating and maintenance instructions;

• unprofessional installation or repairs by third parties or the customer himself;

• non-original parts used by the customer;

• use for commercial or business purposes;

• removal of the serial number and/or rating label.

2. In addition, the warranty does not apply to normal consumer goods, such as:

• external connection cables;

• glass accessories and glass parts such as oven doors;

• and similar items. 3. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect. 4. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance. Important to know 1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.

2. If a complaint is unfounded, all costs arising from it will be at the customer’s expense.
