TEDW 180 - Sander EINHELL - Free user manual and instructions

Product type	Wall treatment system (sander)
Brand	Einhell
Model	TEDW 180
Power consumption	1300 W
Supply voltage	230-240 V ~ 50 Hz
No-load speed	800-1750 rpm (electronically adjustable)
Sanding surface	∅ 180 mm
Spindle thread	M14
Protection class	II (double insulation)
Weight	3.0 kg
Sound pressure level (LpA)	97 dB(A), uncertainty K=3 dB
Sound power level (LWA)	108 dB(A), uncertainty K=3 dB
Vibration (handle)	a_h = 13.32 m/s², K=1.5 m/s²
Electronic speed variator	Yes, maintains speed under load
Restart protection	Yes
Spindle lock	Yes, for tool change
Dust extraction connection	Vacuum cleaner adapter (∅ 35 mm)
Auxiliary handle	Yes, adjustable
Removable side piece	Yes, for edge work
Included accessories	Sanding pad, abrasive paper, wire brush, diamond cup wheel, vacuum adapter, pin wrench
Consumables (wear parts)	Abrasive paper, brush units, diamond cup wheel, carbon brushes, sanding pad
Warranty	24 months (non-professional use)

Frequently Asked Questions - TEDW 180 EINHELL

How to adjust the rotation speed?

The speed is adjustable via the regulator (3) on the handle. Turn in the + direction to increase, - to decrease. A range of 800 to 1750 rpm is available.

Can I use a vacuum cleaner with this device?

Yes, the device comes with a vacuum cleaner adapter (13). Attach it to the connection, then connect a suitable vacuum cleaner. For work without extraction, open the valve (7) to avoid suction effect.

How to change the sanding pad or tool?

Unplug the device. Press the spindle lock (8) and hold it. Turn the tool until it engages. Loosen the flange nut with the pin wrench (14), remove the tool, place the new one, and tighten firmly.

What is the intended use of the TEDW 180 sander?

It is designed for sanding drywall, ceilings, interior walls, removing wallpaper, paint residues, glue, plaster, as well as for milling concrete and sanding wood and floor.

What type of abrasive paper to use and how to attach it?

Use self-adhesive abrasive paper of 180 mm diameter. Position it on the pad aligning the suction holes. The self-adhesive system allows easy replacement.

How to replace wire brushes or brush units?

Unplug the device. Remove the retaining ring at the back of the brush. Push the brush unit towards the center and remove it upwards. Install the new one in reverse order. Wear protective gloves.

What safety equipment is recommended?

Wear safety glasses, a dust mask, and hearing protection. The device generates vibrations and noise (97 dB). Use gloves for tool change.

How to clean and maintain the device?

Unplug the device. Clean the air vents and housing with a damp cloth and a little soap. Do not use aggressive products. Carbon brushes must be checked by a specialist if they spark excessively.

What to do in case of malfunction or defect?

Register the defect at www.isc-gmbh.info with a precise description and proof of purchase. If the defect is covered by the 24-month warranty, you will receive a repaired or exchanged device. Wear parts are not covered.

How to store the device?

Store it in a dark, dry, frost-free place, out of reach of children. The ideal temperature is 5 to 30 °C. Preferably keep it in the original packaging.

USER MANUAL TEDW 180 EINHELL

GB Original operating instructions Wall Processing System

Labeled diagram of a power tool with numbered parts and corresponding close-up views of internal components.

2 1. 2. a 13

3 13 7

-2-

Close-up of mechanical components with numbered annotation '8' pointing to a cylindrical part (no readable text or symbols beyond label)

5 14 a 9 11 12 a > 5 mm > 5 mm < 5 mm

6 9 10

7 11 a 2. 1. a b

8 4 5 5

9 3 + - 2 1 2

10 11 a 6 6

Close-up of a mechanical device with a cylindrical component inserted into a concrete block (no visible text or symbols)

D

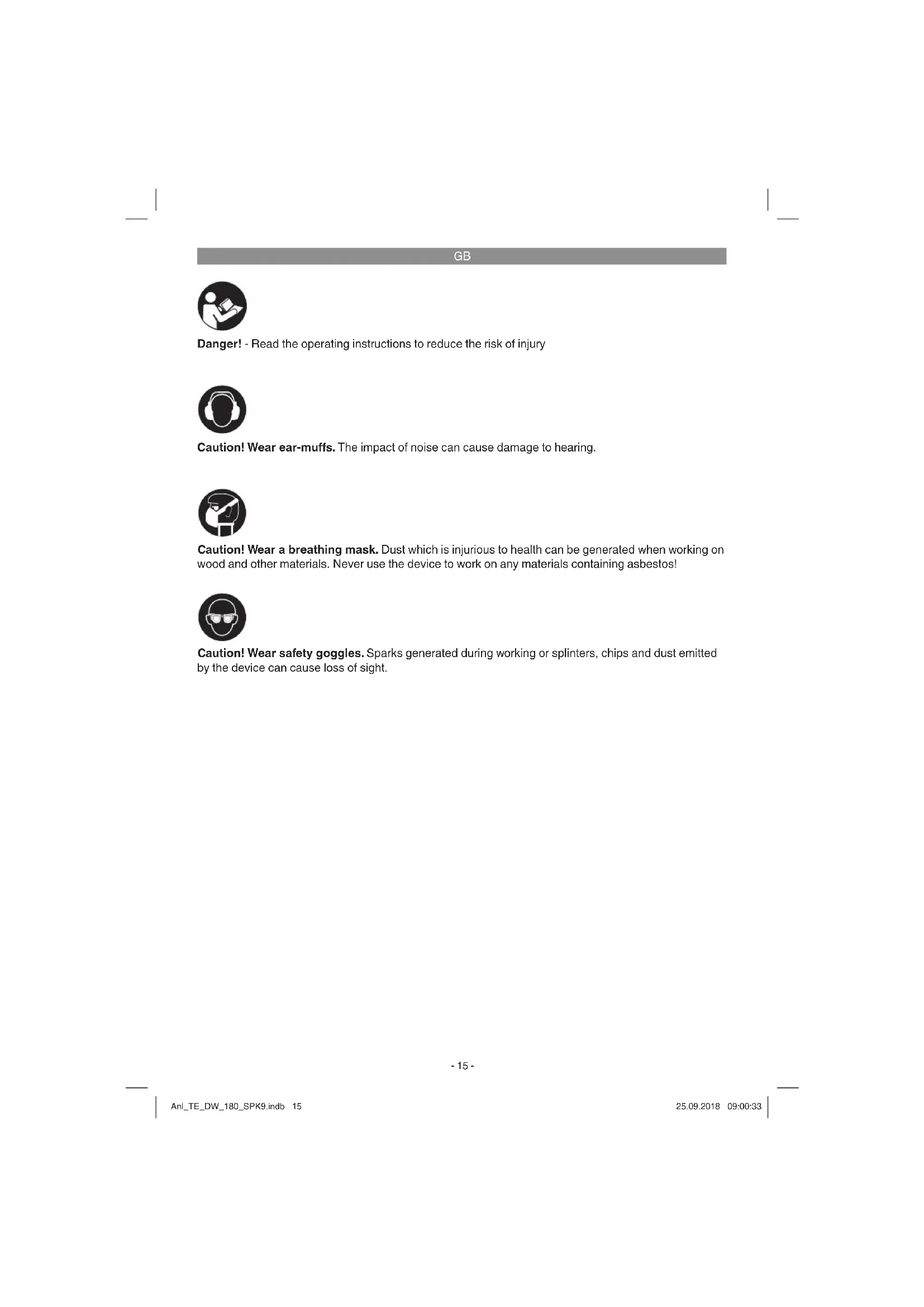

Danger! - Read the operating instructions to reduce the risk of injury

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1)

1. On/Off switch
2. Release/locking button
3. Speed
4. Additional handle
5. Fastening screw for additional handle
6. Detachable side part for working close to edges
7. Valve
8. Spindle lock
9. Sanding disk
10. Abrasive paper
11. Wire brush
12. Diamond grinding cup
13. Vacuum extraction adapter
14. Face spanner

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in

the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Wall Processing System
- Sanding disk
- Abrasive paper
- Wire brush
• Diamond grinding cup
• Vacuum extraction adapter
Face spanner
• Original Operating Instructions
• Safety information

3. Proper use

The Wall Processing System is intended for sanding off plaster-finished drywalls, ceilings and interior masonry, and for removing wallpaper and wallpaper residue, paint, coverings, adhesive residue and loose plaster. The unit can also be used for cutting concrete, sanding wooden surfaces and for sanding down the floor.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

GB

4. Technical data

Voltage 230-240 V \~ 50 Hz

Power draw 1300 W

Sanding surface ∅ 180 mm

Idling speed 800-1750 min ^-1

Mounting spindle thread M14

Protection class:

Weight: 3.0 kg

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 60745.

L_pA sound pressure level 97 dB(A)

K_dA uncertainty 3 dB

L_WA sound power level 108 dB(A)

K_WA uncertainty ....3 dB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 60745.

Handle

Vibration emission value a_h=13.32 m/s^2

K uncertainty = 1.5 m/s ^4

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.

• Have the appliance serviced whenever necessary.

• Switch the appliance off when it is not in use.
  • Wear protective gloves.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

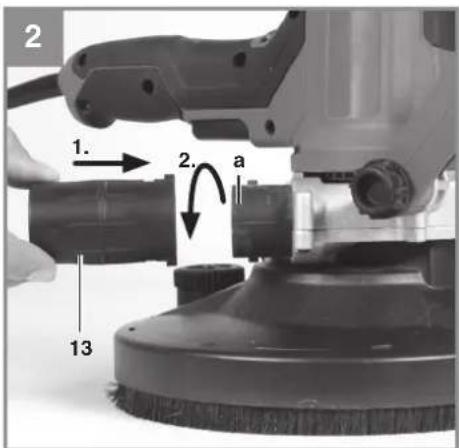

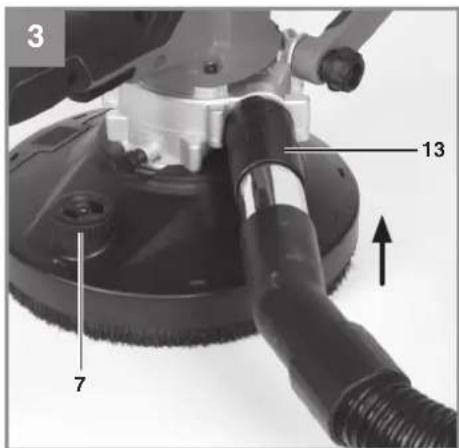

5.1 Dust extraction (Fig. 2-3 / item 13)

Note:

Connect your tool to an extraction unit or vacuum cleaner. This will provide optimum extraction of chips and dust.

Caution:

For health safety reasons it is imperative that you use a dust extractor.

• Connect the vacuum extraction adapter (13) to the connection (a) and twist it counterclockwise to lock it. (See Fig. 2)
• Connect a suitable vacuum cleaner (not supplied) to the vacuum extraction adapter (13). (See Fig. 3)
• Open the valve (7) if the unit sucks itself too hard onto the surface you are working on.

Caution:

For health safety reasons it is imperative that you use a dust extractor.

GB

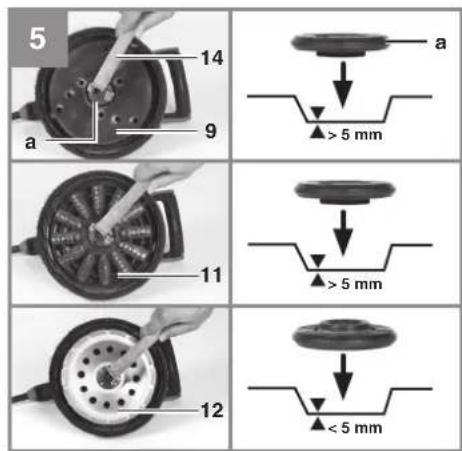

5.2 Tool change (Fig. 4 - 5)

Warning: Disconnect the power plug.

You will need the enclosed face spanner (14) for the tool change.

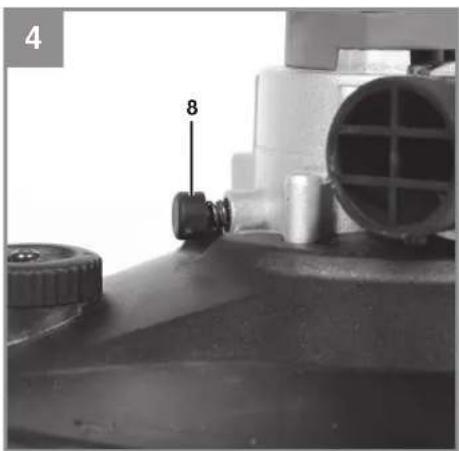

• Press and hold the spindle lock (8). (See Fig. 4)
• Twist the still attached tool until it locks in place.
• Open the flange nut (a) with the face spanner (14) and remove it. (See Fig. 5)
• Remove the tool and insert a different one instead.
  • Fit the flange nut and tighten it back up again.

Note: On tools that have a mounting up to a thickness of approx. 5 mm, the fl ange nut must be screwed on with the fl at side facing the tool. Refer also to Fig. 5.

Warning: Only press the spindle lock when both the motor and spindle are at a standstill. The spindle lock must remain pressed throughout the tool change.

Note: Wear gloves to protect yourself against injury.

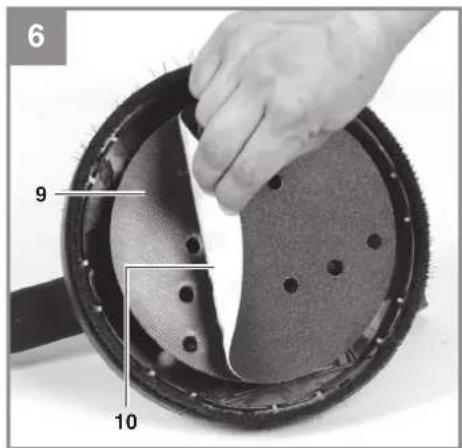

5.3 Attaching the abrasive paper (Fig. 6)

The hook-and-loop fastener enables easy changing of the abrasive paper. Make sure that the vacuum extraction holes on the abrasive paper and the sanding disk are aligned.

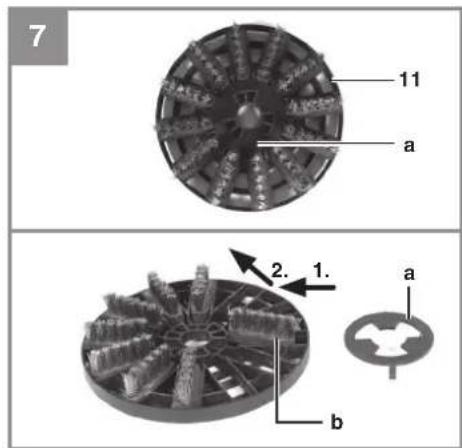

5.4 Changing the brush units (Fig. 7 / item 11)

You can remove the brush units of the steel brush (11) in order to change them or for cleaning purposes.

• To do this, remove the fixing ring (a). This is fastened on the back with retaining lugs.

- Now you can remove the brush unit (b) by: 1. pushing it to the middle and 2. lifting it up and away at the front edge.

• To assemble, proceed in the reverse order.

Note: Wear gloves to protect yourself against injury.

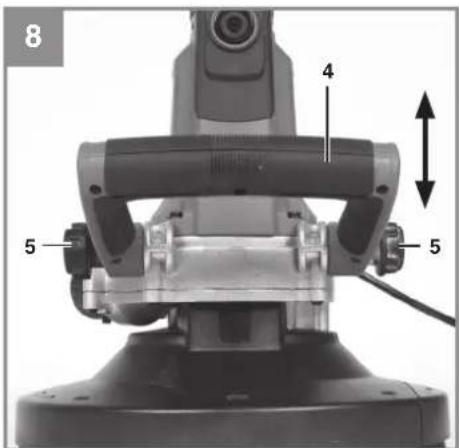

5.5 Adjusting the additional handle (Fig. 8 / item 4)

You can turn the additional handle (4) into the most comfortable position for you.

• Undo the two fastening screws for the additional handle (5).
  • Adjust the additional handle (4).
• Re-tighten the two fastening screws for the additional handle (5).

6. Operation

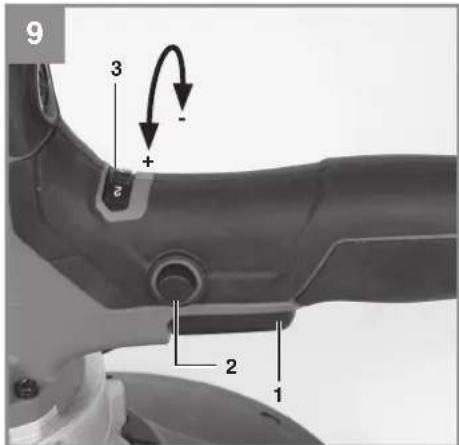

6.1 On/Off switch (Fig. 9 / item 1)

Switching on:

Press the release/locking button (2) and the On/Off switch (1) at the same time.

Locking:

Release the On/Off switch (1) while pressing the release/locking button (2).

Switching off :

Press the On/Off switch (1) briefly and then release it.

Restart safeguard

If the mains power supply is interrupted when the switch is locked in the On position, the electric tool will not run after the power supply is restored. For the equipment to run, the switch must first be turned off and then on again.

Constant electronics

This tool is equipped with constant electronics. With constant electronics, the set speed is kept constant even when the tool is working under load.

6.2 Speed controller (Fig. 9/ item 3)

You can select the speed by turning the speed controller (3).

Plus direction: Higher speed

Minus direction: Lower speed

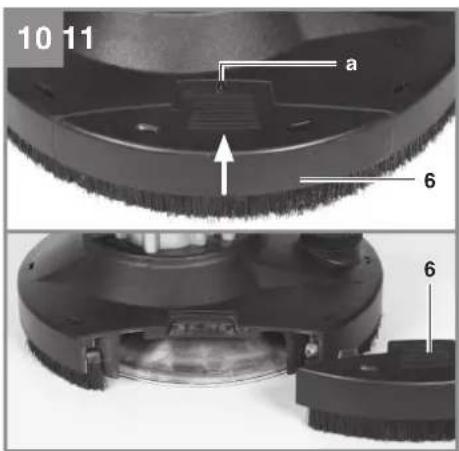

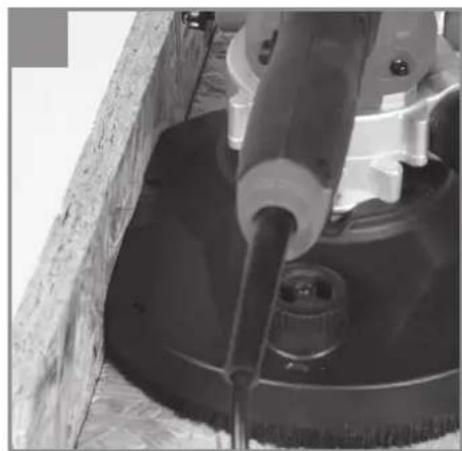

6.3 Working close to edges

(Fig. 10-11 / item 6)

To work close to edges, loosen the screw (a) and remove the side part (6) as shown in Fig. 10.

Now you can run the tool straight along the edge of a wall. (See Fig. 11)

GB

6.4 Working with the wall processing system
- Place the whole surface area of the grinding/sanding disk, steel brush or concrete cutter on the wall.
- Switch on the machine and perform circular, vertical, horizontal or diagonal movements with moderate pressure over the material you wish to work on.
- Use a coarse grit for coarse sanding and a finer grit for finish sanding. You can find the best grit size for the job by carrying out sanding tests.

Removing wallpaper and wallpaper residue

Speed: 3-5

Tool: Abrasive paper, steel brush

Sanding wood

Speed: 4-5

Tool: Abrasive paper

Smoothing fi lling material on plasterboard

Speed: 4-5

Tool: Abrasive paper

Removing and smoothing plaster surfaces

Speed: 4-6

Tool: Abrasive paper / steel brush

Removing carpet adhesive residue

Speed: 4-6

Tool: Abrasive paper / steel brush / diamond grinding cup

Removing tile adhesive residue

Speed: 4-6

Tool: Abrasive paper / diamond grinding cup

Cutting concrete

Speed: 6

Tool: Diamond grinding cup

Caution:

The dusts that are generated while the equipment is being used can pose a health hazard:

• Always wear safety goggles and a dust mask during sanding work.
- All persons who work with the equipment or enter the workplace must wear a protective dust mask.
- Eating, drinking and smoking are prohibited at the workplace.
- Never use this tool to work on paints that contain lead!

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

8.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician.

Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

8.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

GB

8.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

Tip! For good results we recommend high-quality accessories from !kwb www.kwb.eu [e-mail]

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Carbon brushes, grinding/sanding disk
Consumables* Abrasive paper, brush units, diamond cup	grinding cup
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Subject to change without notice

Archive-File/Record: NAPR014590

Documents registrar: Georg Riedel

Wiesenweg 22, D-94405 Landau/Isar

EH 09/2018 (01)
