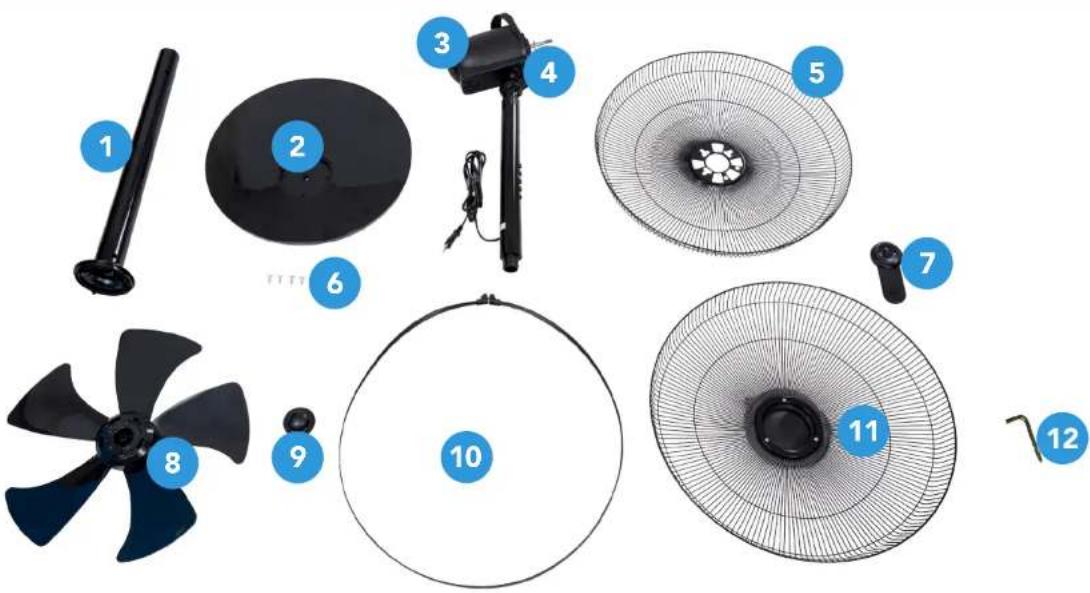

PEDESTAL FAN ASSEMBLY. Stay cool. 10 minutes 2 people 4 beads of sweatPush the fan blades

onto the motor axle of the fan motor

as far as you can.Make sure that the 2 pins of the motor axle fit into the grooves of the fan blades

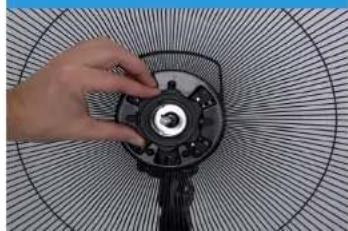

Remove the grille attachment

from the motor axle by rotating it counter-clockwise.Attach the fan blades

with the fan fastener

can rotate freely by rotating them manually.Open the grille closure ring

by 3mm.Place the grille closure ring

around the rear grille

Put the front grille

and fasten the closure ring

Place the rear grille

on the designated pins on the fan motor

Attach it with the grille attachment

rotating it clockwise. Place the extension piece

and attach it to the bottom with the 4 screws

Make sure the cutouts on the stand

and the extension piece

clockwise to attach it to the extension piece

Need help? Call 010 798 89 99 Coolblue.nl/en/customer-serviceFollow all instructions as described here and only use the included parts. Always let experts handle repairs, or the warranty will be voided and we won’t be liable. at would be a waste of your purchase. Coolblue isn’t liable for any injury, damage, or bad hair days as a result of incorrect installation. Tip: Don’t throw out the box containing the fan, but use it to store the fan at the end of the season.Make sure the connector isn’t plugged into the socket. CHECKLIST. You’re 50% there.Dans la boîte

Pedestal Fan CBL1175/CBL11762. CONTENTS. Table shaped. Technical information 3. Safety instructions 4. How it works 6. Constant ventilation 6. Natural ventilation 7. Setting a timer 8. Oscillation 8. Sleep mode 8. Maintenance 10. Occasional cleaning 10. End-of-season cleaning 11. Troubleshooting 12.3. TECHNICAL INFORMATION. T3(N[CA|_. Model Connection voltage 220-240V/50Hz Required power 82W Fan blades Ø 18 inches/45cm Weight (kg) 6.5 Dimensions (cm) 53x53x134 BlueBuilt SV18104. SAFETY INSTRUCTIONS. Better safe than sorry.

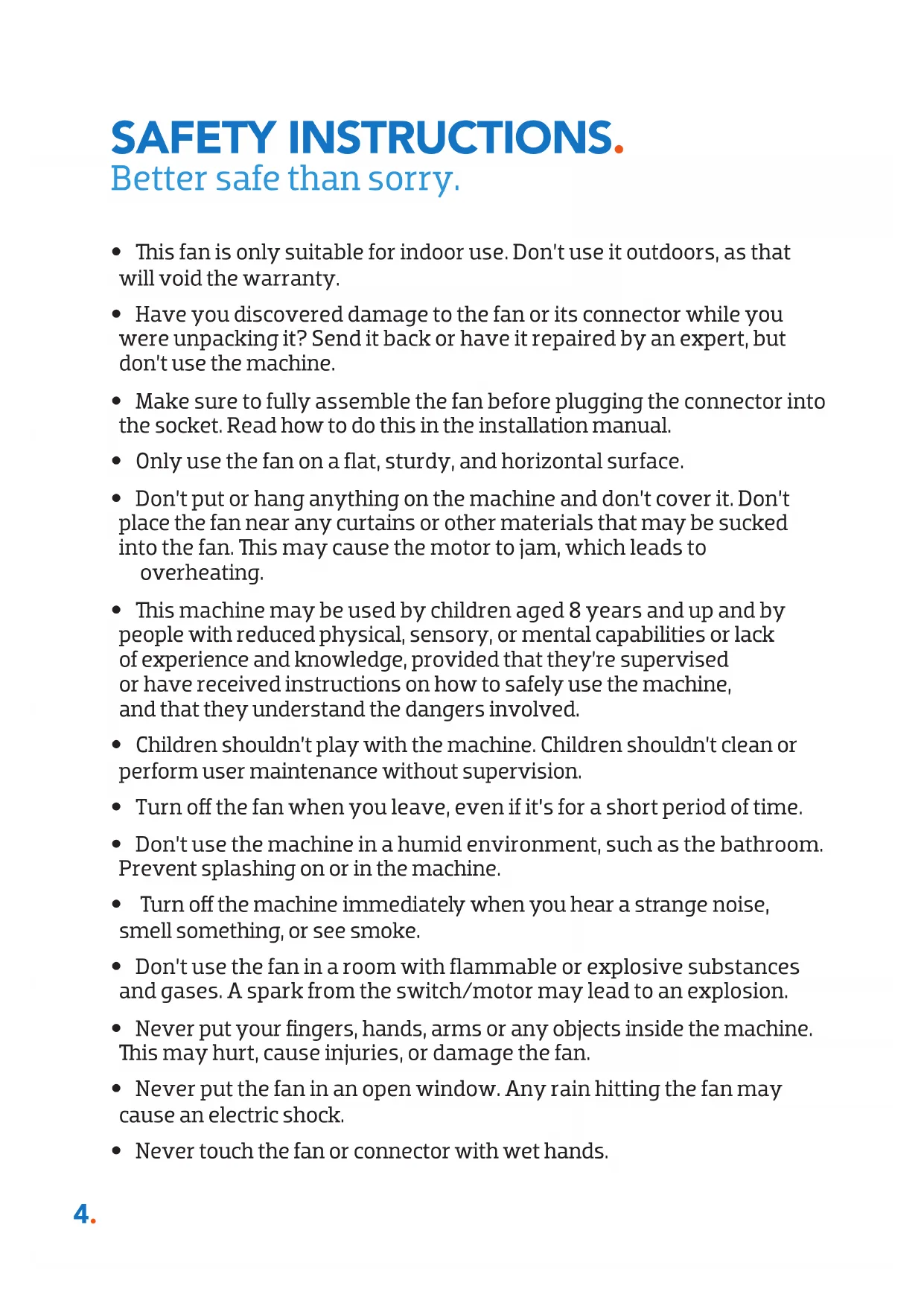

• is fan is only suitable for indoor use. Don’t use it outdoors, as that will void the warranty.

• Have you discovered damage to the fan or its connector while you were unpacking it? Send it back or have it repaired by an expert, but don’t use the machine.

• Make sure to fully assemble the fan before plugging the connector into the socket. Read how to do this in the installation manual.

• Only use the fan on a flat, sturdy, and horizontal surface.

• Don’t put or hang anything on the machine and don’t cover it. Don’t place the fan near any curtains or other materials that may be sucked into the fan. is may cause the motor to jam, which leads to overheating.

• is machine may be used by children aged 8 years and up and by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, provided that they’re supervised or have received instructions on how to safely use the machine, and that they understand the dangers involved.

• Children shouldn’t play with the machine. Children shouldn’t clean or perform user maintenance without supervision.

• Turn off the fan when you leave, even if it’s for a short period of time.

• Don’t use the machine in a humid environment, such as the bathroom. Prevent splashing on or in the machine.

• Turn off the machine immediately when you hear a strange noise, smell something, or see smoke.

• Don’t use the fan in a room with flammable or explosive substances and gases. A spark from the switch/motor may lead to an explosion.

• Never put your fingers, hands, arms or any objects inside the machine. is may hurt, cause injuries, or damage the fan.

• Never put the fan in an open window. Any rain hitting the fan may cause an electric shock.

• Never pull the cord or the connector.

• Don’t roll up the cord too tightly.

• Never repair the machine or the connector yourself. Always let an expert handle repairs.

• Always turn off the fan and remove the connector from the socket before cleaning or moving it.

• Don’t let the fan continuously blow on small children, patients, or people who have difficulty walking. eir joints may stiffen or they may experience other physical complaints.

• Never use the fan in a room that’s warmer than 40°C.6. HOW IT WORKS. Go for it. e fan has various settings to ventilate the room. Use the buttons on the top part of the stand to switch between settings. Constant ventilation With constant ventilation, the fan blows the air through the room at a constant speed. e fan has 3 different settings: I - regular, II - strong, III - extra strong.

1. Press the button to turn on the fan.

2. Press the button to choose the fan setting.

3. e fan starts off in the regular setting (I). Press once for the strong setting (II)

and twice for the extra strong setting (III).7. Natural ventilation With natural ventilation, the fan adjusts its speed several times. is produces the most natural airflow possible.

1. Press the button to turn on natural ventilation.

2. Press the button once, twice, or three times to select 1 of the following

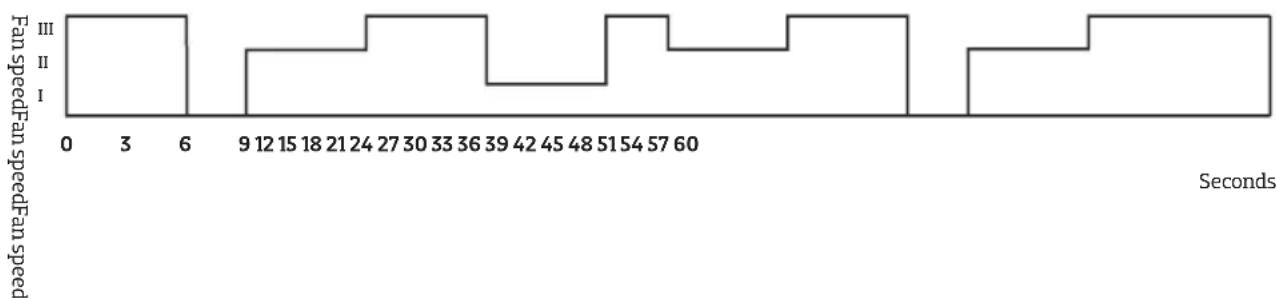

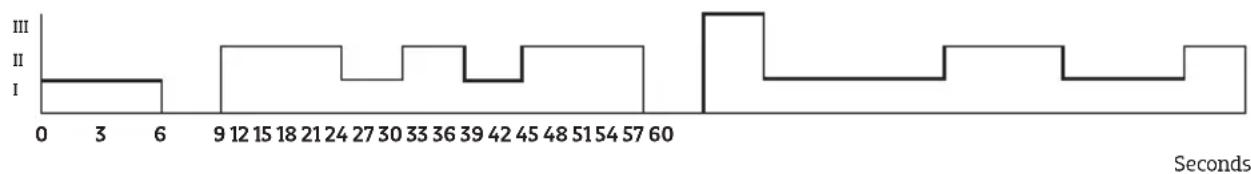

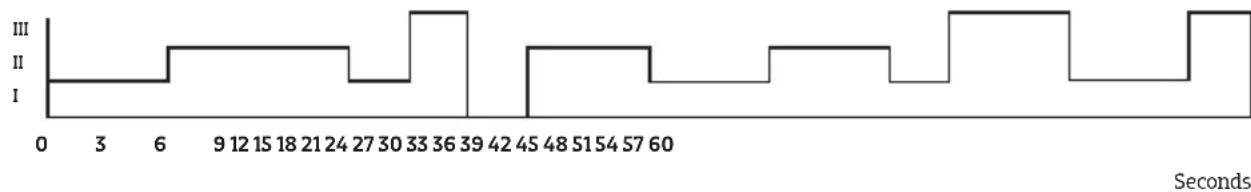

natural ventilation programs. e overview below shows the various natural ventilation settings. is way, you can see exactly how each setting changes. Natural - I - Regular Natural - II - Strong SecondsSecondsSeconds Natural - III - Extra strong Fan speedFan speedFan speed

III8. Setting a timer With a timer, you can set the fan to automatically turn off after a couple of hours.

1. Turn on the machine and set the desired setting.

2. Press the button.

3. Set the desired start time up to 7 hours by pressing the button multiple times.

1 press equals 1 hour, 2 presses equals 2 hours, et cetera.

4. Press the button 8 times to turn off the timer.

Oscillation Oscillation means that there’s movement in the airflow. e fan will swivel at a 75-degree angle.

1. Press the button to let the fan swivel.

2. Press the button again to stop the fan from swiveling.

Sleep mode Are you going to use the fan in the bedroom? If so, switch on the sleep mode at night. e machine reduces its airflow every 30 minutes until it’s reached the lowest setting.

1. Press the button twice to turn on sleep mode.

Depending on the setting of the fan, the airflow will be reduced. Was the fan already in the 1st setting? If so, it’ll stay this way.

2. Don’t forget to turn off the fan when you go to work in the morning. It doesn’t

turn itself off automatically.9. If you turn on the sleep mode in the third setting, this is the pattern:

• Setting III for 30 minutes.

• Setting II after 30 minutes.

• Setting I after 30 more minutes. If you turn on the sleep mode in the second setting, this is the pattern:

• Setting II for 30 minutes.

• Setting I after 30 minutes. Sleep mode

III 1 hour10. MAINTENANCE. Neatly done. Always turn off the machine and remove the connector from the socket before cleaning or doing maintenance on the machine. Occasional cleaning e fan doesn’t need a lot of maintenance, but you don’t want it to spread dust around the house either. To prevent this, it’s important to clean the fan every so often.• Clean the fan with a soft cloth or a feather duster on a regular basis, otherwise the fan will spread dust around the room.• Are the grilles dirty? Open the front grille and clean it with a damp cloth. Clean the fan blades too, now that the grille is off.• Make sure that no water enters the machine. Always dry the fan with a soft, dry cloth before turning it on again.• Never use aggressive cleaners, gasoline, detergents, chemically impregnated cleaning cloths, or other cleaning solutions. ey may cause discoloration or deformation of the fan.11. End-of-season cleaning Is the sun setting earlier again and is the temperature no longer causing you to sweat? If so, you probably no longer need the fan. To make sure you can use the fan again without any problems next summer, the way you store the fan is very important.

• Turn off the fan, remove the connector from the socket, and clean it.

• Apply some lubricant to the motor axle to prevent rust. An example of a lubricant is silicone spray.

• Store the fan in its original packaging or in a plastic bag. Store it in a safe and dry place.

• Don’t put any objects on top of the machine. e grilles may bend and damage the fan.12. TROUBLESHOOTING. Need a Band-Aid. Problem Check the following e fan blade doesn’t rotate while the fan is turned on. e fan produces a strange noise when you turn it on. e machine won’t start when I press the ON/OFF button.

• Is the connector properly plugged into the socket?

• Is the socket connected to power?

• Is the blade blocked somewhere, for example due to damage, deformation of the protective grille, or a strange object?

• Have the fan blades been placed on the motor axle as far as possible? Take a look at the installation manual to see whether you’ve properly assembled the machine.

• Is the fan deformed, causing the fan blades to touch the protective grille?

• Did you properly lubricate the motor axle before storing the machine?

• Is the connector plugged into the socket?

• Is the ground fault circuit interrupter on?

• Is there a power outage in the neighborhood?

• Is something blocking the fan blade? Need help? Call 010 798 89 99 or visit Coolblue.nl/en/customerservice13. Disposal In the EU, this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials that can and should be recycled to prevent any adverse effects to health and the environment caused by unregulated waste collection. Make sure to bring old equipment to a designated collection point or contact the company where you bought the machine. ey can make sure that as many of the components as possible can be recycled. CE Declaration Coolblue BV, Weena 664, 3012 CN Rotterdam hereby declares that the following products: BlueBuilt Pedestal Fan known under the brand BlueBuilt, type SV1810 meet the requirements of the standards below: LVD 2014/35/EU: EMC 2014/30/EU: EN 60335-1:2012 + A11:2014 EN 55014-1:2006 + A1:2009 + A2:2011 EN 60335-2-80:2003 + A1:2004 EN 55014-2:1997 + A1:2001 + A2:2008 + A2:2009 EN 61000-3-2:2014 EN 62233:2008 EN 61000-3-3:2013NOTES. Sensible scribbles.BACKSIDE. Stop staring.Ventilateur de table - BlueBuilt SV1810 CBL1175/CBL1176 On vous dit tout.
