USER MANUAL DO8127 DOMO

Exterior view of a tall, modern office building (no signage)

DO8127

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Technical diagram of a vertical-mounted air conditioner with labeled components including a control panel and fan base.

MONTAGE

Technical line drawing of a cylindrical device with internal components and external assembly (no text or symbols)

Afstandsbediening

Technical line drawing of a vertical cylindrical device and its side panel (no text or symbols)

REINIGING EN ONDERHOUD

Prohibition sign with crossed-out trash bin and no text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a cylindrical device with internal components and external fan assembly (no text or symbols)

Télécommande

Technical line drawing of a vertical cylindrical device with a black internal structure, shown from two different angles (no text or symbols)

NETTOYAGE ET ENTRETIEN

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a multi-tube cylindrical device with internal components and external fan assembly (no text or symbols)

Fernbedienung

4 L 1 2 5 M 3

1 PO WE R 2 SP EE D OSC 4 L TI ME R MO DE 5

1. POWER

Two technical line drawings of a vertical cylindrical device with a black internal component, shown from different angles (no text or symbols)

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

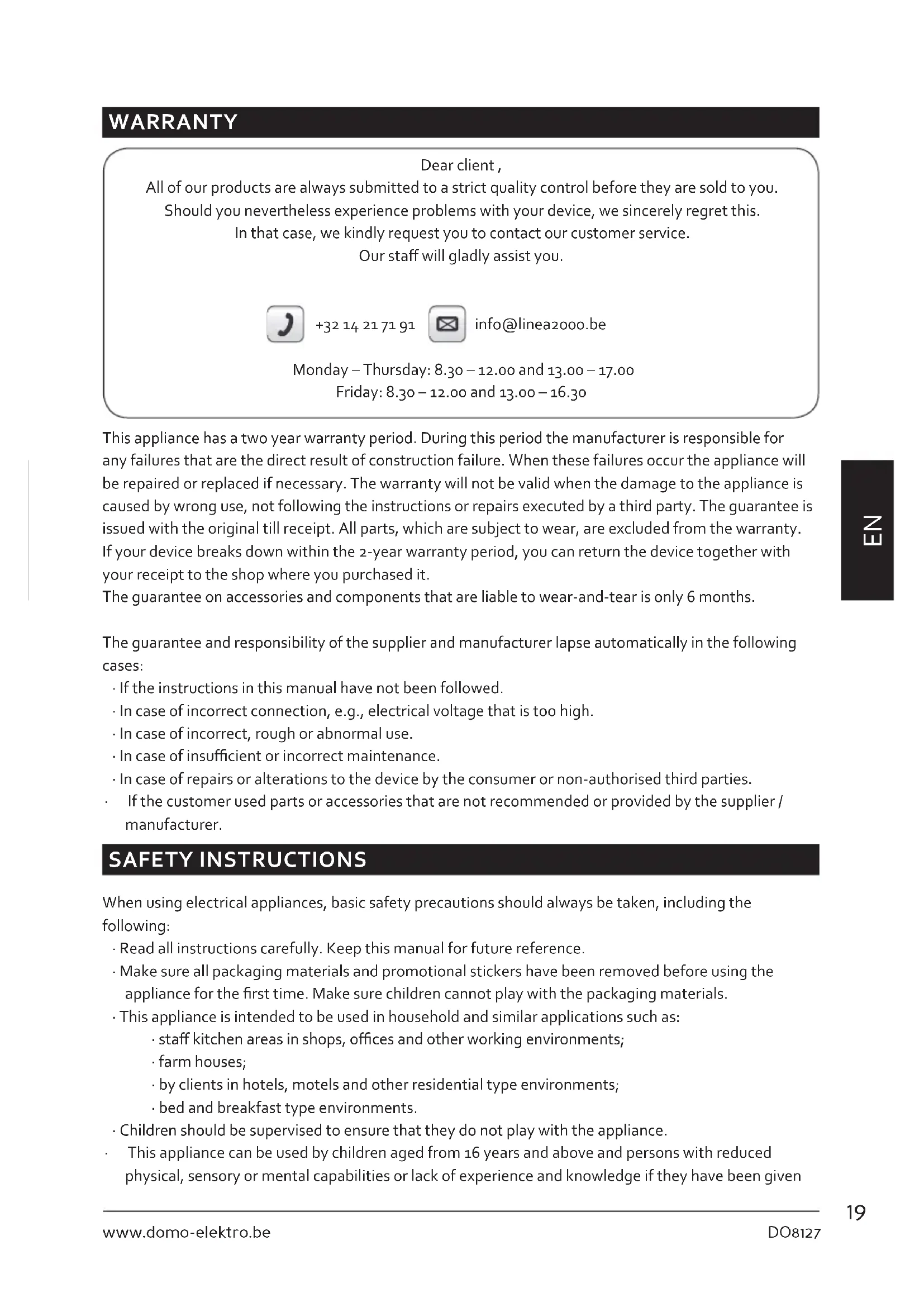

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · Attention: This appliance cannot be used with an external timer or a separate remote control.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  · All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
  · Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
  · Before use, remove all packaging materials and any promotional stickers.

- Do not insert any objects into the fan, as this may cause electric shock, injuries or damage to the appliance. Do not block or tamper with the fan when it is operating.

- Do not use this fan in any wet or humid areas. Do not place the fan too close to a bath tub or any other water container.

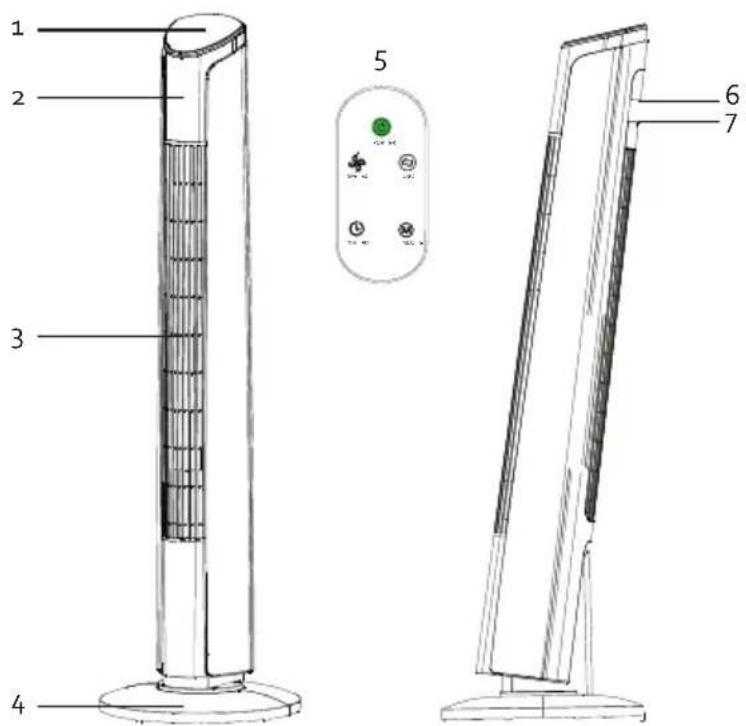

PARTS

1. Control panel
2. LED display
3. Air outlet
4. Base
5. Remote control
6. Handle
7. Storage for remote control

1 2 3 4 5 6 7

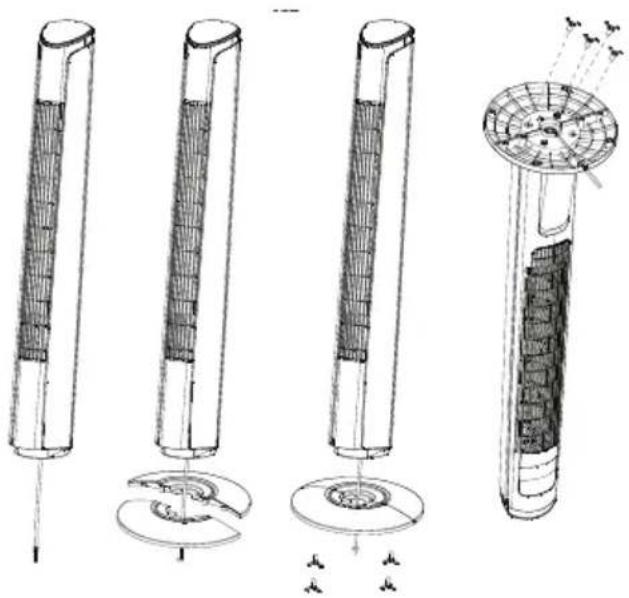

ASSEMBLY

1. Turn the fan upside down and put it on a soft surface, so that the control panel can not get damaged.
2. Click the 2 parts of the base together.
3. Make sure that the part of the base with the cord guide is situated at the back of the fan. Lead the cord through the cord guide.
4. Place the base on the bottom of the fan. Mount the fan with the 4 wing nuts.
5. Turn the fan upside down again. The appliance is now ready for use.

Technical line drawing of a multi-tube heat exchanger with internal components and fan assembly (no text or labels)

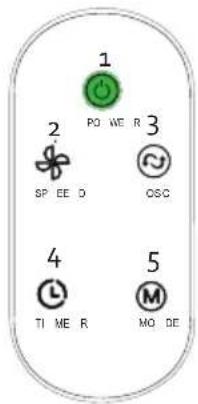

Remote control

Place 1 button cell battery in the battery compartment in the back of the remote control.

USE

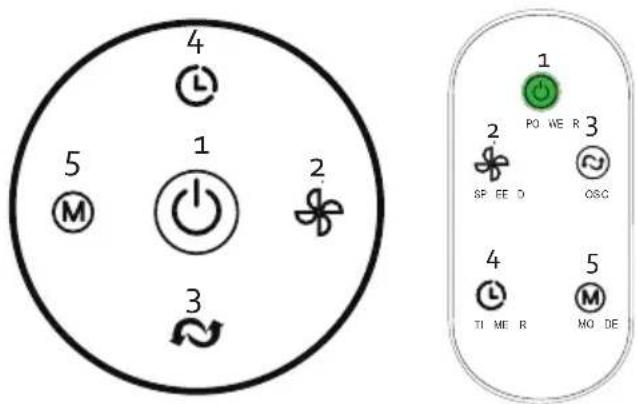

You can control the fan with the buttons on the control panel as well as with the buttons on the remote control.

Place the fan on a flat, stable surface. Plug it in. The display will show the current room temperature.

4 5 1 2 M M 3 1 2 3 SP EE D OSC 4 5 TI ME R MO DE

1. POWER

Switch on the fan by pressing the POWER button. Switch off the fan by pressing the POWER button for a second time.

2. SPEED

Select the desired air speed by pressing the SPEED button. The selected speed will be indicated on the LED display:

: low speed
· : medium speed
. :high speed

3. OSC

With this button you can switch the oscillation function on and off. When it is switched on, it will alternately turn to left and right to better spread the air.

4. TIMER

You can set the timer from 1 hour upto 12 hours with the TIMER button. The set time is indicated on the LED display. The fan will automatically switch off when the set time has passed.

5. MODE

There are 4 different modes, which you can select by pressing the MODE button. The selected mode will be indicated on the LED display:

Normal: the fan will operate at a constant speed, namely the speed that you have selected.
Nature: the fan simulates a natural, cool breeze. The different speeds are alternated every 15 seconds. The order of speeds is as follows: 15 seconds high speed, 15 seconds medium speed and 15 seconds low speed.

Sleep: the fan will decrease its maximum speed every half hour, and finally remain operating at low speed.
Child mode: the fan will decrease its maximum speed every quarter of an hour, and finally remain operating at low speed. The timer is automatically set at 3 hours. Oscillation is turned on in this mode, but can also be switched off manually.

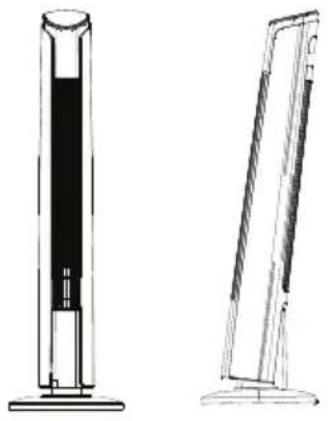

DIRECTING THE AIR FLOW

The air flow can be changed by tilting the fan 15°. Push the fan backwards so that it clicks into position.

Technical line drawing of a vertical cylindrical device with a black internal component, shown from two different angles (no text or symbols)

CLEANING AND MAINTENANCE

• Maintenance of this appliance may only be carried out by a qualified service or person.
• If it is necessary to clean the outside of the appliance, then make sure that the appliance is switched off and unplugged. Use a soft cloth to clean the outside of the appliance. To remove persistent dirt or stains, you can dampen the cloth a bit with warm soapy water.
  · Do not use any solvents, like thinners, as they may damage the appliance.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Technical line drawing of a cylindrical device with internal components and external assembly (no text or symbols)

Mando a distancia

4 L 5 M 1 2 3 PO WE R 2 SP EE D OSC 4 L TIME R 5 M MO DE

1. POWER

Technical line drawing of a vertical cylindrical device with a black internal component, shown from two different angles (no text or symbols)

LIMPIEZAY MANTENIMIENTO

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a multi-tube cylindrical device with internal components and external wiring (no text or symbols)

Telecomando

Two technical line drawings of a graduated cylinder, one upright and one tilted (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Technical line drawing of a cylindrical device with internal components and external assembly (no text or symbols)

Dálkové ovládání

Technical line drawing of a vertical cylindrical device with a base, shown from two different angles (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a cylindrical device with internal components and external assembly (no text or symbols)

Dialkové ovládanie

Technical line drawing of a vertical cylindrical device with a black internal component, shown from two different angles (no text or symbols)

ČISTENIE A ÚDRŽBA

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
