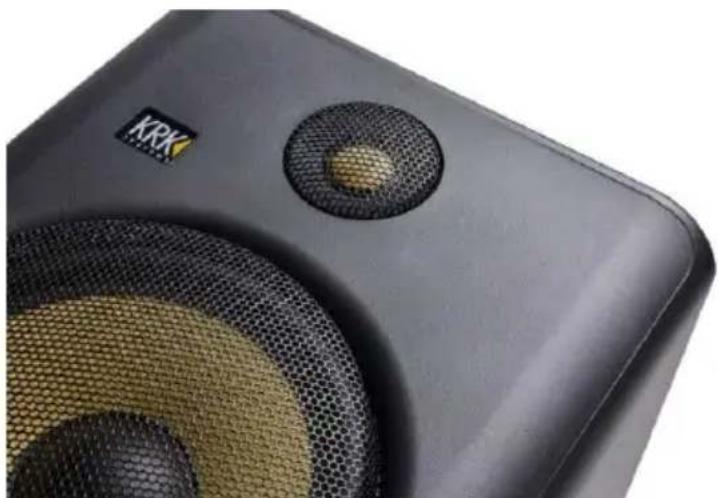

USER MANUAL Rokit RP7 G4 KRK

KRK KNS Headphones When you need portability, sound isolation and freedom from your environment's acoustic limitations, KRK KNS Series Headphones provide a precise listening experience that takes you from personal studio to commercial studio to on-the-go track evaluations. Give the lightweight, comfortable KNS Headphones a listen. Like our studio monitors, you will find a balanced natural sound and superior imaging.

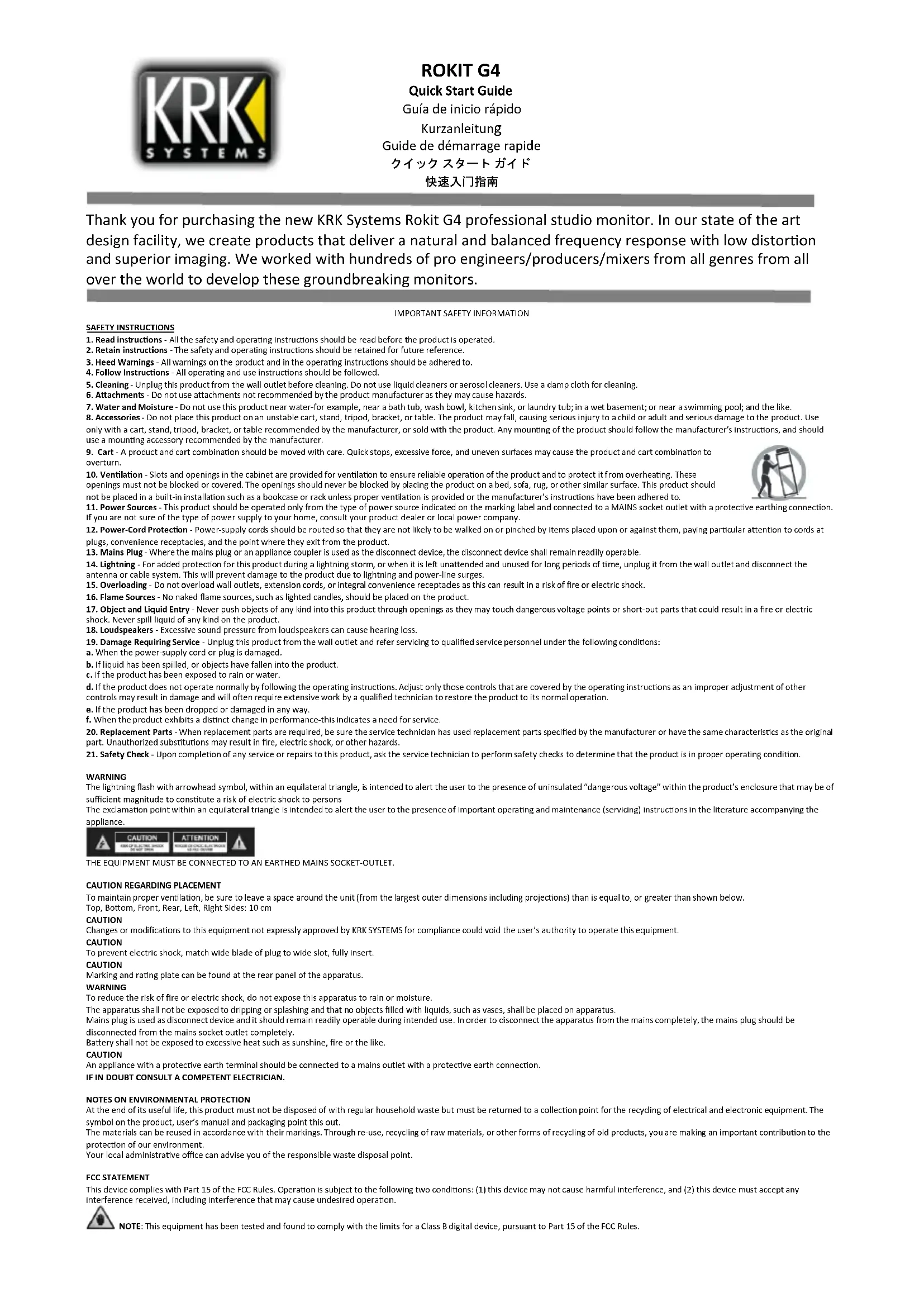

Thank you for purchasing the new KRK Systems Rokit G4 professional studio monitor. In our state of the art design facility, we create products that deliver a natural and balanced frequency response with low distortion and superior imaging. We worked with hundreds of pro engineers/producers/mixers from all genres from all over the world to develop these groundbreaking monitors.

1. Read instructions - All the safety and operating instructions should be read before the product is operated.

2. Retain instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. 9. Cart - A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10. Ventilation - Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 11. Power Sources - This product should be operated only from the type of power source indicated on the marking label and connected to a MAINS socket outlet with a protective earthing connection. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. 12. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 13. Mains Plug - Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 14. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 15. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Flame Sources - No naked flame sources, such as lighted candles, should be placed on the product.

17. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18. Loudspeakers - Excessive sound pressure from loudspeakers can cause hearing loss.

19. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e. If the product has been dropped or damaged in any way. f. When the product exhibits a distinct change in performance-this indicates a need for service. 20. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 21. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. WARNING The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. THE EQUIPMENT MUST BE CONNECTED TO AN EARTHED MAINS SOCKET-OUTLET.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) than is equal to, or greater than shown below. Top, Bottom, Front, Rear, Left, Right Sides: 10 cm CAUTION Changes or modifications to this equipment not expressly approved by KRK SYSTEMS for compliance could void the user’s authority to operate this equipment. CAUTION To prevent electric shock, match wide blade of plug to wide slot, fully insert. CAUTION Marking and rating plate can be found at the rear panel of the apparatus. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus. Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION An appliance with a protective earth terminal should be connected to a mains outlet with a protective earth connection. IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN.

NOTES ON ENVIRONMENTAL PROTECTION

At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s manual and packaging point this out. The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you of the responsible waste disposal point. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.Quick Start Guide It IS ROKIT science. For more in-depth information about your ROKIT G4 monitors go to www.krksys.com and download the full manual and spec sheets. There you’ll find all the information needed to help you make the most of your new monitors now and in all your future projects.

What’s in the box? (1) Monitor and (1) Power-Cable For Rokit 10-3 owners. (1) EVA foam pad for horizonal use. (The KRK APP is available for download to your smartphone) IMPORTANT: Before powering up the monitors, be sure all connections have been made. All faders and controls should be set at their minimum levels, and all other equipment should be turned on prior to powering up your KRK monitors.

Note: Your Rokit G4 monitors have friction lock, Neutrik combo connectors for the input. Use an XLR cable or TRS (tip, ring, sleave) 1/4” balanced cables to connect to your interface, mixing board or monitor controller. You can use an 1/8” to Stereo 1/4” unbalanced (mono) to hook up directly to a phone, computer or music player. (CAUTION: Be sure the volume on your device is set to minimum and then adjust to taste.)

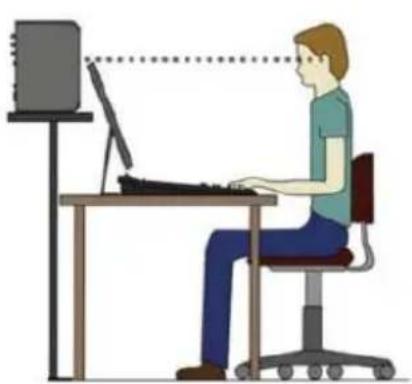

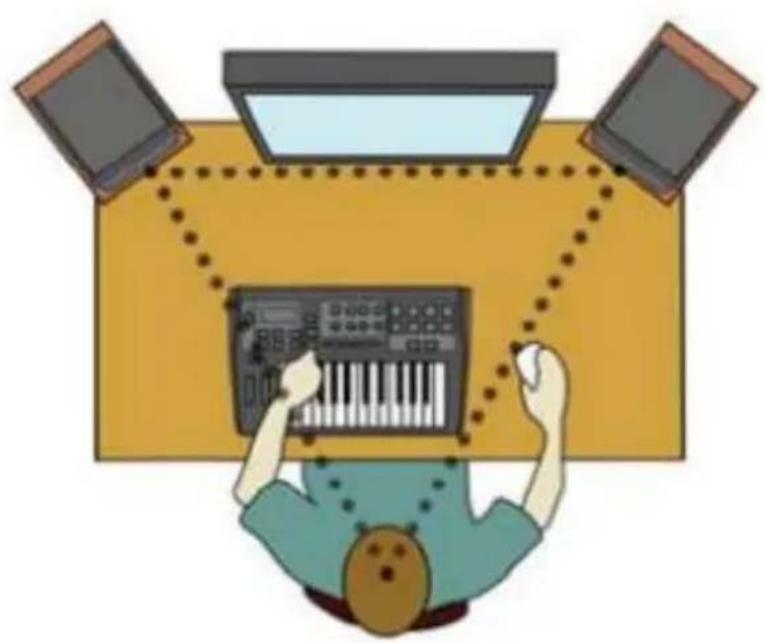

With the DSP ROOM TUNING eqs, we have given you 25 different combinations of EQ voicings to help you correct for your studio’s acoustics to deliver more accurate monitoring. See below for an explanation of the EQ choices we are giving you. Start with both the LOW EQ and HIGH EQ settings set to 3: FLAT. Set your monitors up in your room according to the diagram below. Listen to some of your favorite songs and mixes. Try different positions in your room and placement before making EQ adjustments and then adjust the EQ to give you your best listening and monitoring experience. Tip: See the full manual online for more advice on speaker placement and room management.The HOME SCREEN is what you see when you power up your monitor. It gives you instant feedback for volume and EQ settings. From here you can press the VOLUME knob to access EQ, SETUP and more. VOLUME is set at the factory to 0 dB or proffesionally known as +4 dBu input sensitivity. Increase/decrease this equally on both monitors in .1 dB steps to set the volume to your desired level or to level match these to other monitors in your studio. From the MENU screen select EQ to access the EQ settings.

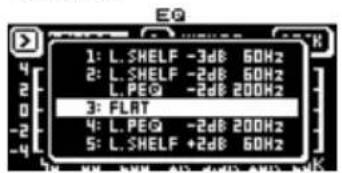

LOW EQ L. SHELF Cut (minus) settings are wall-coupling filters. These EQ settings roll off the low-end that can build up the closer you get to walls. L. SHELF Boost (plus) setting will add low-end if you need more thump, set these to your taste. L.PEQ is a parametric EQ with a wide Q. It does not cut your low-end as it cuts low mid-frequencies. It is called a desk filter and it helps you if you have a large mixing board aka “desk” or an actual large desk, you can get a buildup in the low-mids that can cause muddiness. Note: one setting utilizes both the wall coupling filter and the desk filter. HIGH EQ H. SHELF and H. PEQ EQs are all for you to set to your mixing taste. If you feel you need more, or less high-mids or highs, adjust these until you are happy. Some studios are bright and need less highs, while some studios are dark and need more highs. From the MENU screen select SETUP to adjust overall system preferences.

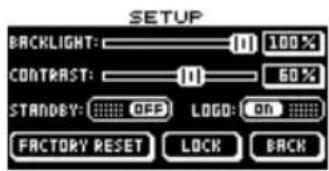

BACKLIGHT In a dim studio, a darker backlight is easier on the eyes. To adjust your backlight to the lighting in the room, turn it down until it's too dim, and then slowly bring it up until it feels comfortable to look at. CONTRAST Once your monitors are in place, set for maximum image focus based on your viewing angle. STANDBY Use this to engage or disengage the standby. If standby is engaged the unit will go into sleep mode 30 minutes after no signal is detected. The monitors will wake up once you send signal to them again. LOGO Selects the front KRK logo; ON, DIM or OFF. Set it to your desired setting according to the ambient light in your studio. FACTORY RESET Use this to restore to default monitor settings. LOCK Settings can’t be changed until you unlock.WARRANTY INFORMATION To Register Merchandise Purchased from an Authorized Gibson Pro Audio Dealer, go to www.gibson.com and register online. If you have any questions you may contact customer service at: 1-800-4GIBSON (1-800-444-2766) or service@gibson.com FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED GIBSON PRO AUDIO DISTRIBUTOR OUTSIDE OF THE US, PLEASE CONTACT THE DISTRIBUTOR FROM WHOM YOU PURCHASED YOUR MERCHANDISE FOR TO REGISTER YOUR WARRANTY AND FOR HANDLING AND RESOLUTION OF ALL WARRANTY-RELATED ISSUES. Gibson Pro Audio Warranty – KRK Systems Three (3) years for all studio monitors. One (1) year all headphones, computer audio devices, including room correction devices. Gibson will warrant all replacement parts and repairs for ninety (90) days from the date of original shipment. In the unlikely event that your merchandise is destroyed, lost or damaged beyond repair while in the possession of Gibson or one of Gibson Pro Audio’s Authorized Service Centers for repair, Gibson will replace that merchandise with one of the same or most similar style of a value not in excess of the original purchase price of your merchandise. Any insurance covering the merchandise, including but not limited to collector's value insurance, must be carried by owner at owner's expense.

1. Any merchandise that has been altered or modified in any way or upon which the serial number has been tampered with or altered.

2. Any merchandise whose warranty card has been altered or upon which false information has been given.

3. Any merchandise that has been damaged due to misuse, negligence, or improper operation.

4. Any merchandise that has been damaged by accident, flood, fire, lightening, or other acts of God.

5. Shipping damage of any kind.

6. Any merchandise that has been subjected to extremes of humidity or temperature.

7. Any merchandise that has been purchased from an unauthorized dealer, or upon which unauthorized repair or service has been performed. GIBSON MAKES NO OTHER EXPRESS WARRANTY OF ANY KIND WHATSOEVER. ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, EXCEEDING THE SPECIFIC PROVISIONS OF THIS WARRANTY ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS WARRANTY. SOME STATES AND/OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IMPLIED WARRANTIES SO THAT THE ABOVE MAY NOT APPLY TO YOU. GIBSON SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT CONSEQUENTIAL, INCIDENTAL OR OTHER SIMILAR DAMAGES SUFFERED BY THE PURCHASER OR ANY THIRD PARTY, INCLUDING WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS OR BUSINESS OR DAMAGES RESULTING FROM USE OR PERFORMANCE OF THE MERCHANDISE, WHETHER IN CONTRACT OR IN TORT, EVEN IF GIBSON OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND GIBSON SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING. FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED GIBSON PRO AUDIO DISTRIBUTOR OUTSIDE OF THE US, PLEASE CONTACT THE DISTRIBUTOR FROM WHOM YOU PURCHASED YOUR MERCHANDISE FOR THE HANDLING AND RESOLUTION OF ALL WARRANTY ISSUES. FOR THESE PURCHASES, THE ABOVE-DESCRIBED WARRANTY IS NOT APPLICABLE. Warranty Service for Merchandise Purchased from an Authorized Gibson Pro Audio Dealer in the U.S: In the event of malfunction of your Gibson Pro Audio merchandise, the Dealer or Owner must call Customer Service @ 1-800-4GIBSON (1-800-444-2766) and obtain a Return Authorization number from the customer service agent. No merchandise may be returned to Gibson without such prior Return Authorization, and the Return Authorization number must be written on the outside of the shipping package. The Customer Service agent will provide the address and additional shipping instructions. Owner must ship the merchandise, freight, and insurance pre-paid to the address provided by the customer service representative. Only Authorized Gibson Pro Audio Service Centers may perform warranty service and any service performed by unauthorized persons will void this warranty. Gibson disclaims liability for defects or damage caused by services performed by unauthorized persons or non-warranty service not performed by Gibson or an Authorized Gibson Pro Audio Service Center. When contacting Gibson, you must include a complete written description of the malfunction of the merchandise. If non-warranty work is required or recommended, a quotation will be issued and must be approved by you before any non-warranty work is commenced. You should consider quotations obtained for non-warranty work immediately and advise the Authorized Gibson Pro Audio Service Center or Gibson of your wishes. You are not required to purchase non-warranty work in order to obtain service on materials covered by this warranty. Following its inspection of merchandise upon its arrival, Gibson or the Authorized Gibson Pro Audio Service Center will advise you or your dealer of the approximate date of completion. The repaired merchandise or part will be returned to you or your dealer, freight collect insured. No representative or other person is authorized to assume for Gibson any liability except as stated in this warranty. This warranty gives you specific rights which vary from state to state or from country to country. Warranty Service outside the United States: To initiate a warranty repair, please contact the Authorized Gibson Pro Audio distributor from whom you purchased your merchandise and follow the distributor’s return/warranty policy.Gracias por comprar el monitor de estudio profesional ROKIT G4 de KRK Systems. En nuestro novedoso complejo de diseño, creamos productos que ofrecen una respuesta espectral natural y equilibrada con una baja distorsión y una imagen superior. Hemos trabajado con centenares de ingenieros/productores/mezcladores de todos los géneros procedentes de todo el mundo para desarrollar estos monitores innovadores.
