USER MANUAL KS 180 Güde

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document with placeholder text and a 'OK' button, likely a software interface or report.

58406

4

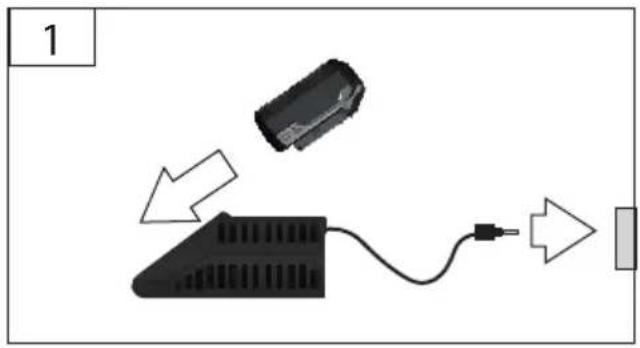

Black cylindrical battery with charging grille and terminal plug, isolated on white background (no text or symbols visible)

Blue handheld device with black handle and red circular lens (no text or symbols visible)

6

3

5

Simple oval shape with a jagged border, no text or symbols present

58407

Illustration of a blue handheld device with black handle and red circular lens (no text or symbols)

6

3

5

Simple oval shape with a jagged border, no text or symbols present

Deutsch

Technical Data / Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service 26

Français

Circular icon with a padlock symbol, arrow, and partial circular design (no text or symbols)

Circular icon with a padlock symbol inside, featuring an arrow and curved arrows indicating refresh or update (no text or symbols)

Blue-handled cleaning brush with a camera and mechanical component, showing a close-up of the brush's handle (no text or symbols visible)

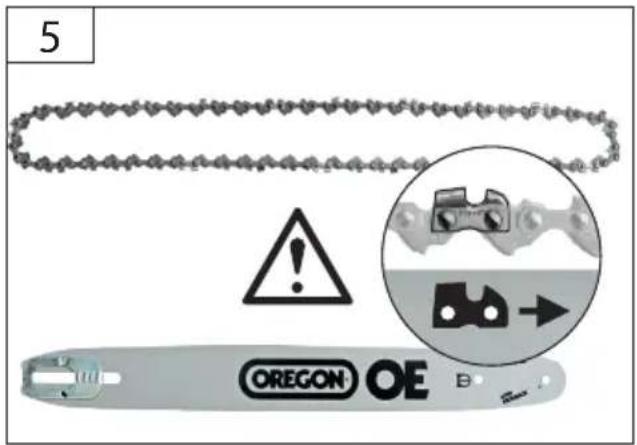

5 OREGON OE B

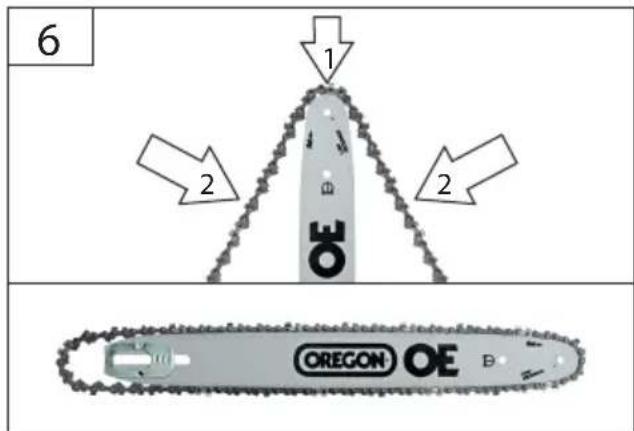

6 1 2 2 OREGON OE B

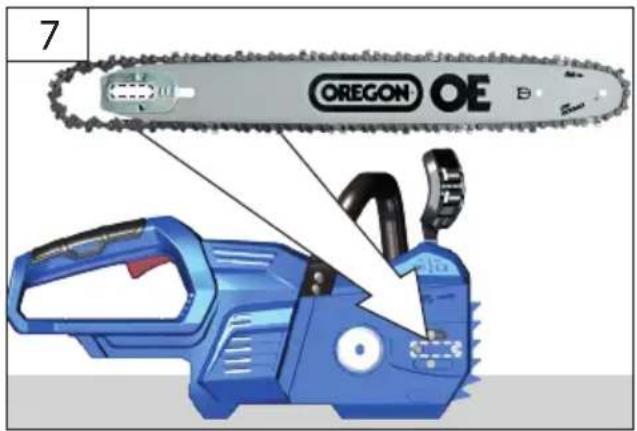

7 OREGON OE B

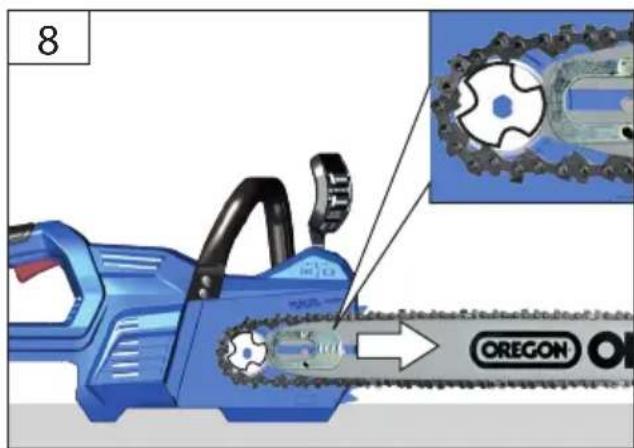

8 OREGON

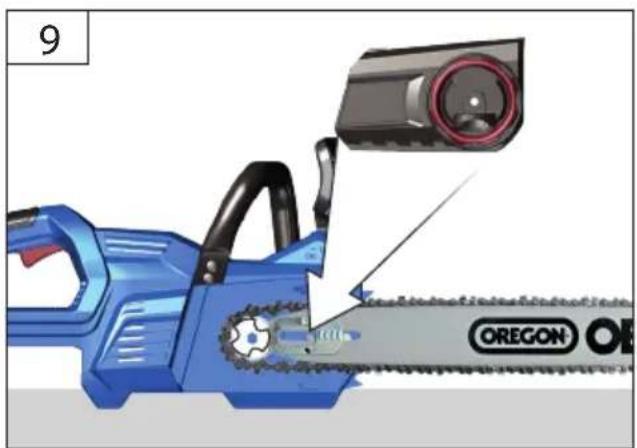

9 OREGON

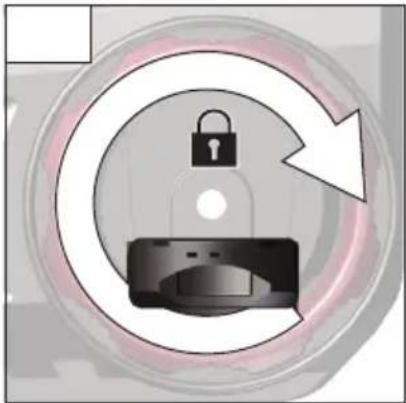

Circular icon with a lock inside a red ring, featuring a white arrow and circular design (no text or symbols)

Circular icon with a lock and printer symbol, no text or symbols present

Mechanical assembly diagram showing a gear and lock mechanism (no text or symbols)

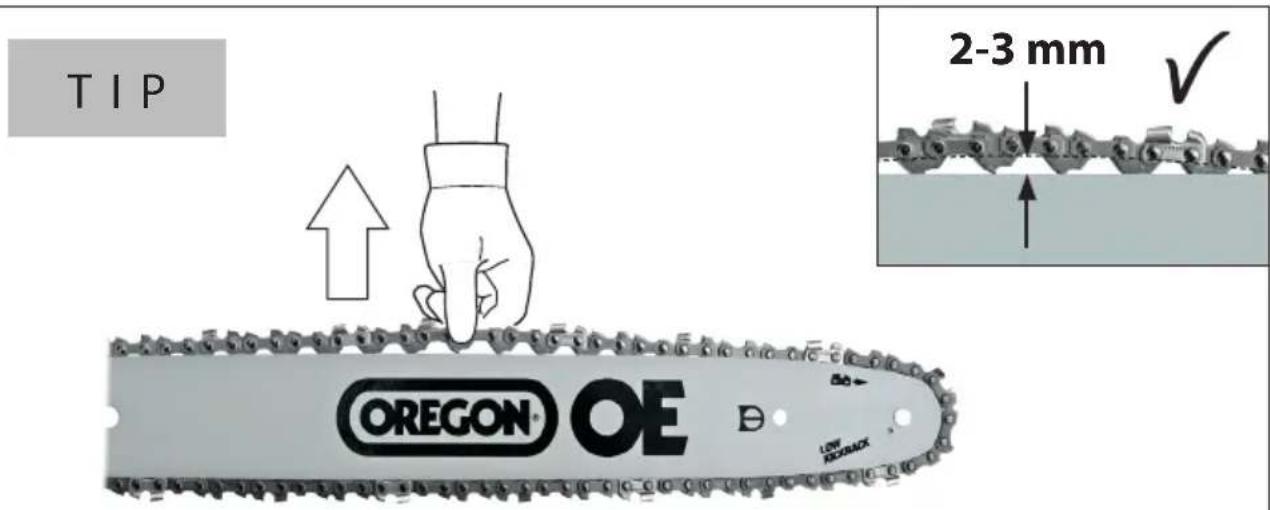

TIP OREGON OE 2-3 mm √ LOW BACKLOG

EN Repeat tensioning of new chain after approx. 5 cuts. Check chain tensioning regularly during operation

Circular icon with a lock inside a shield and a stylized clock, symbolizing security or security (no text or symbols)

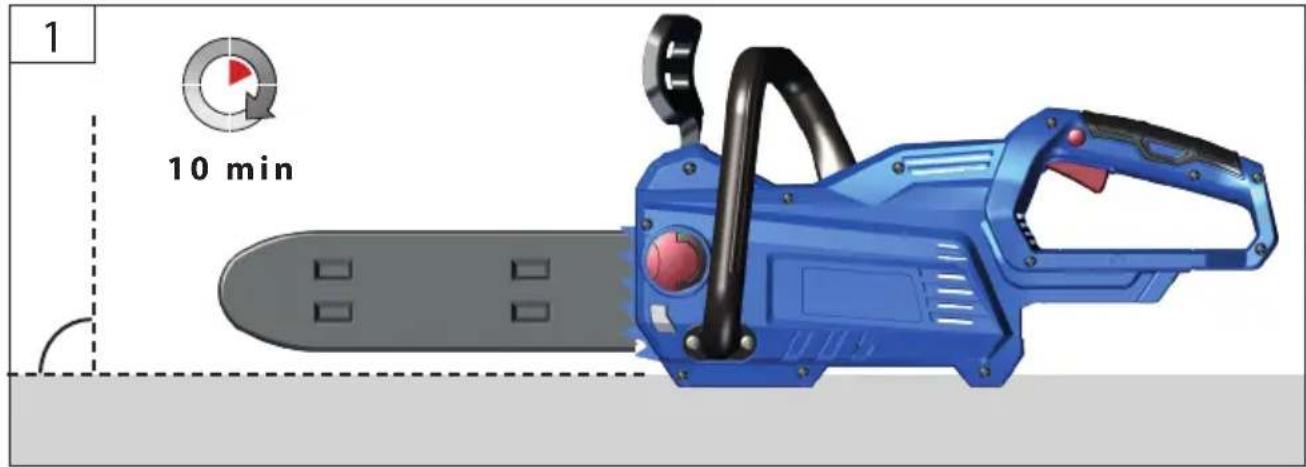

1 10 min

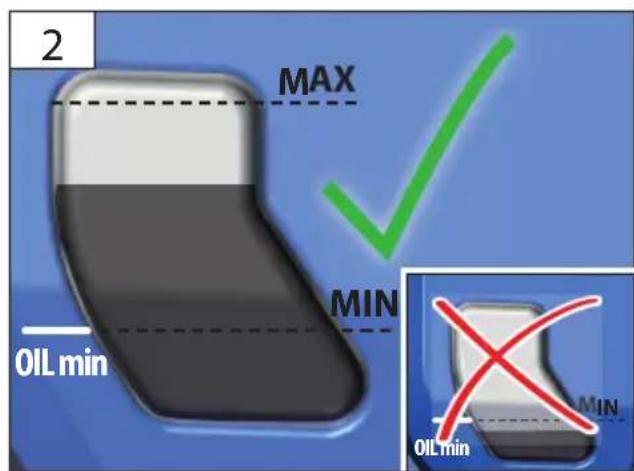

2 MAX MIN OIL min OILmin MIN

3

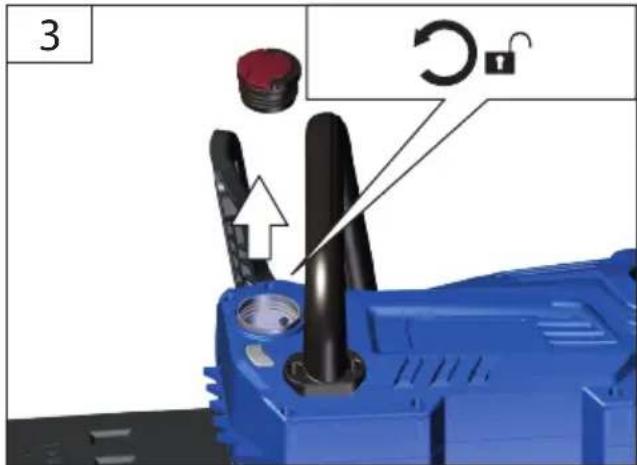

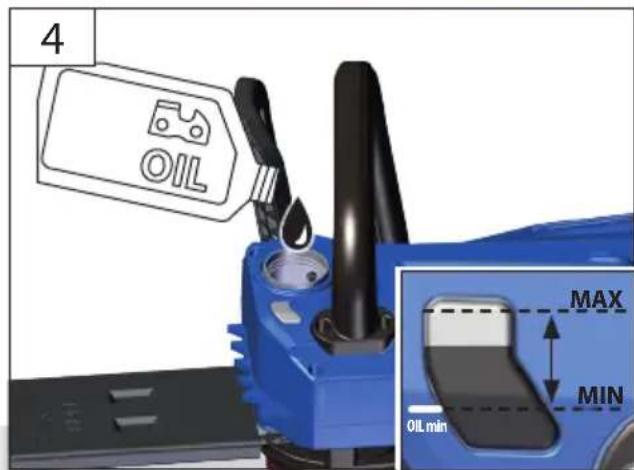

4 OIL MAX MIN OIL min

5 C

1 2

Diagram showing a blue saw blade rolling down a circular tire, with an arrow indicating downward motion (no text or symbols)

Diagram showing a blue tool interacting with a black curved line and a circular object, no text or symbols present.

Illustration of a blue-handled saw cutting through water with a circular cutter, showing blade damage and impact (no text or symbols)

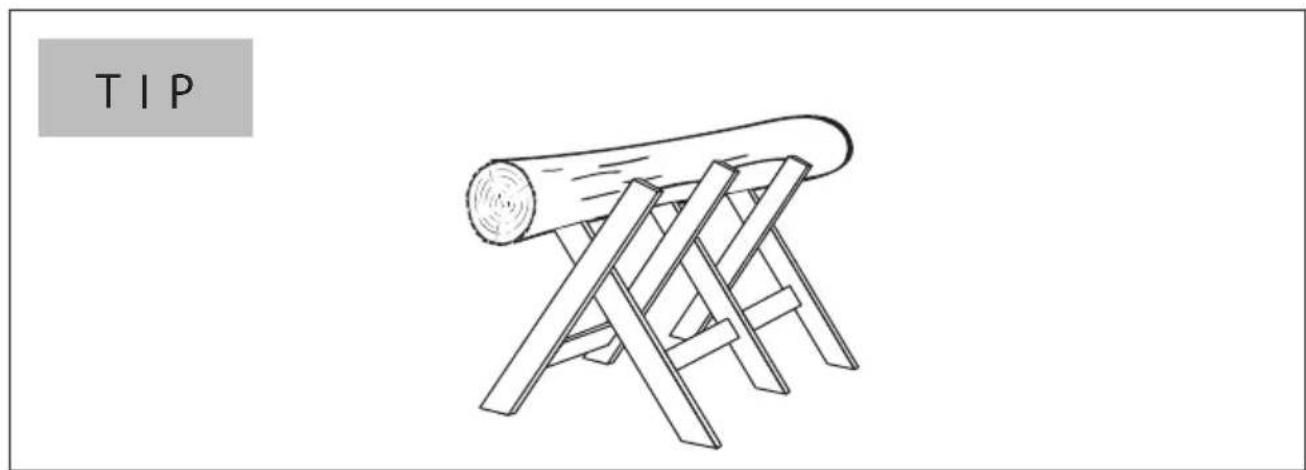

Line drawing of a wooden log supported by a ladder, labeled 'TIP' in the top-left corner (no other text or symbols)

Safety warning sign with hazard symbol, warning triangle, and broken ring diagram showing hazard and collision

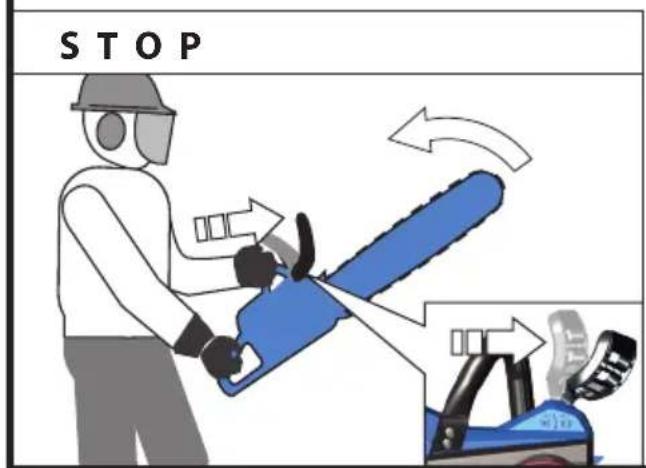

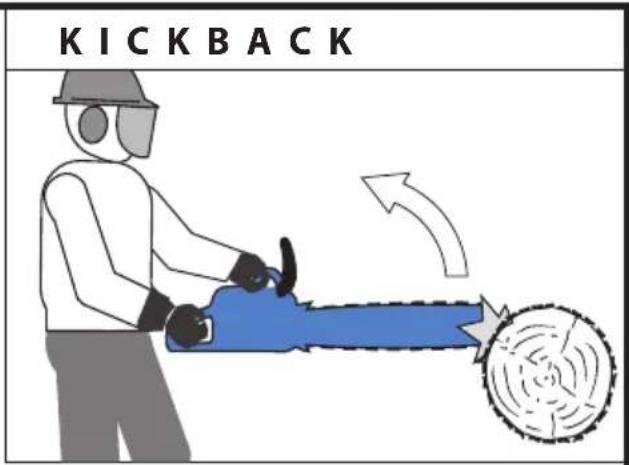

KICKBACK

STOP

Illustration of a person using a blue tool to cut a saw, with a starburst symbol above (no text or symbols present)

Illustration of a blue saw blade pulling a black curved ramp with a downward arrow, no text or symbols present

Diagram showing a blue chainsaw crossing over a circular object with a star arrow, set against a grassy background (no text or symbols)

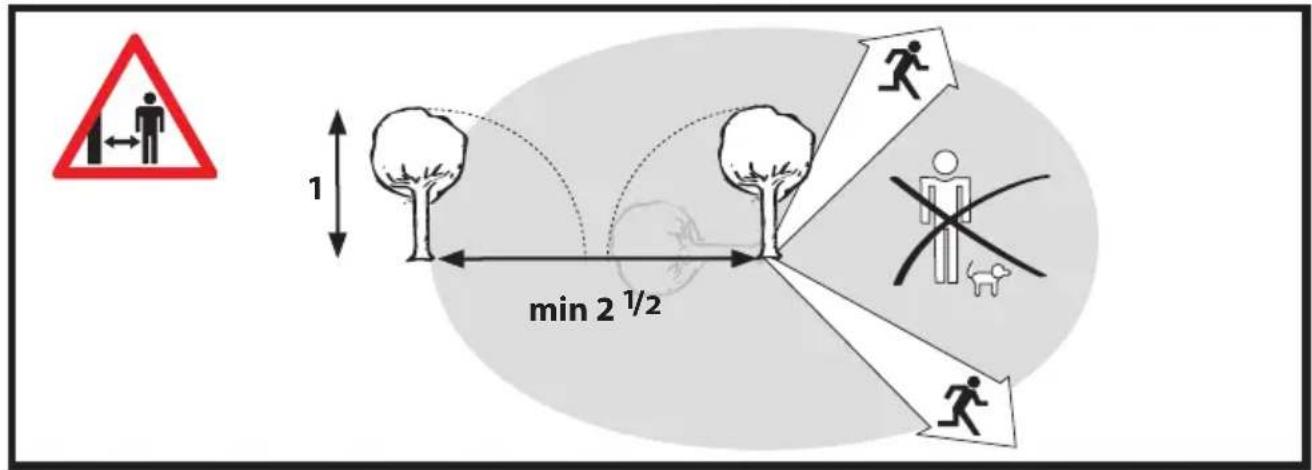

1 min 2 ½

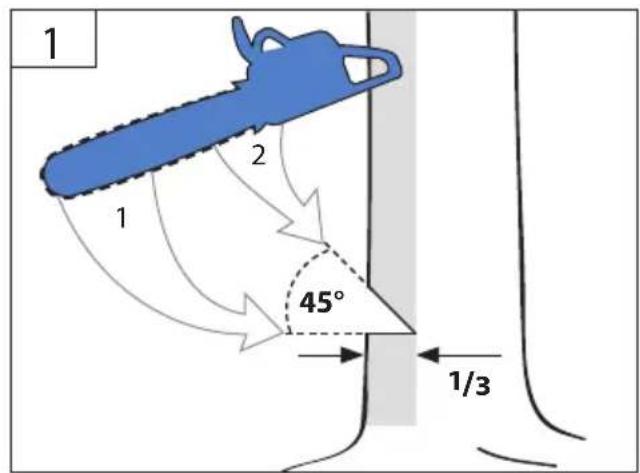

1 2 1 45° 1/3

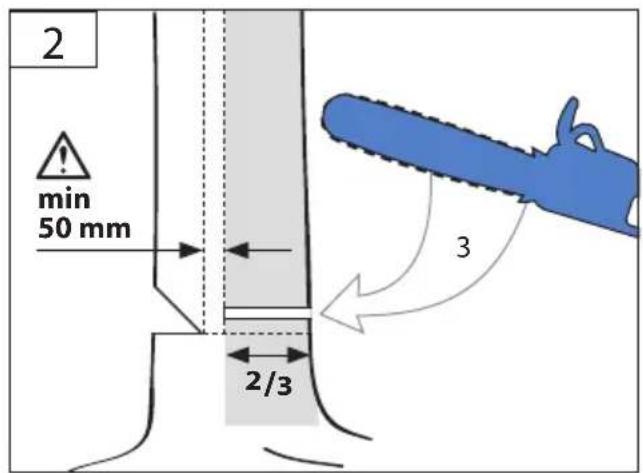

2 min 50 mm 2/3 3

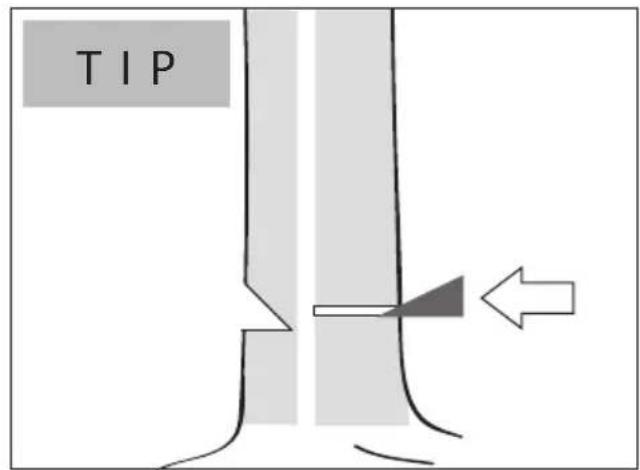

TIP

3

Diagram illustrating a chainocling process with three stages: cutting, tree bending, and retraction, labeled with arrows and numbered components.

Illustration of a blue chainsaw crossing over water with motion arrows indicating wind direction (no text or symbols)

Illustration of a blue-handled tool cutting through water with a black cross, showing fluid flow (no text or symbols)

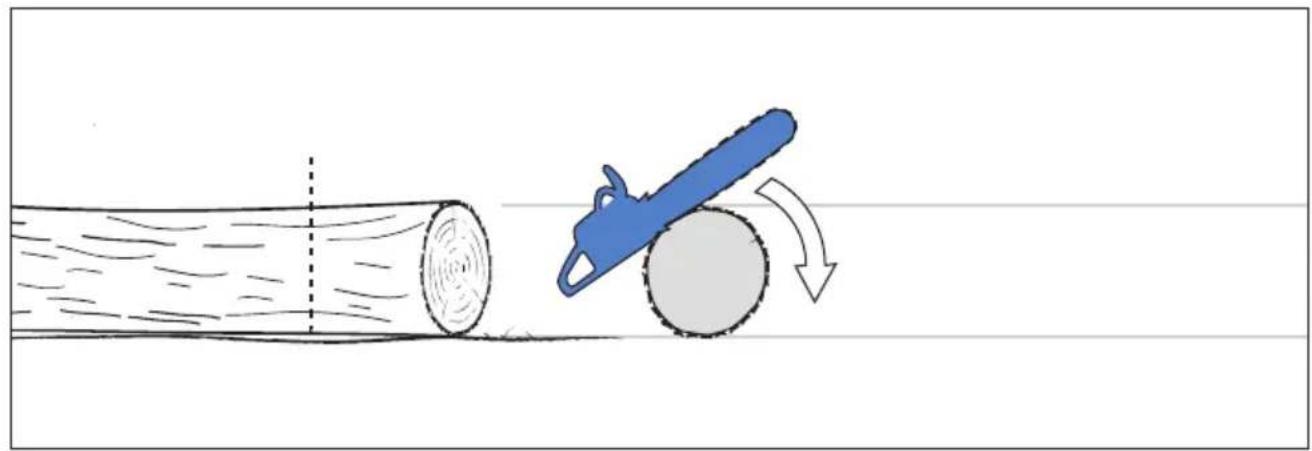

Illustration of a wooden log rolling down with a chainsaw and moving a ball, showing motion direction (no text or symbols)

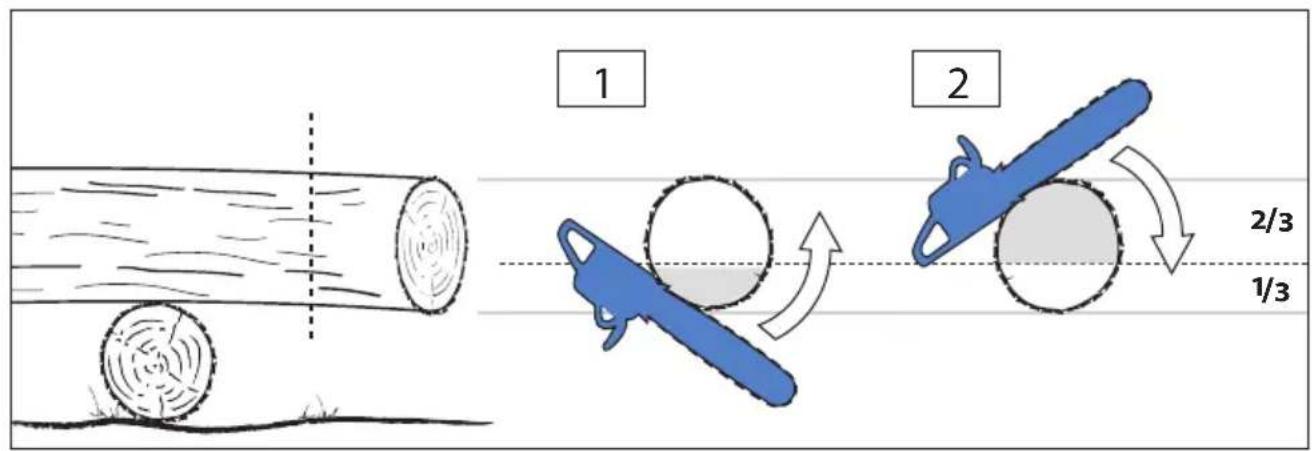

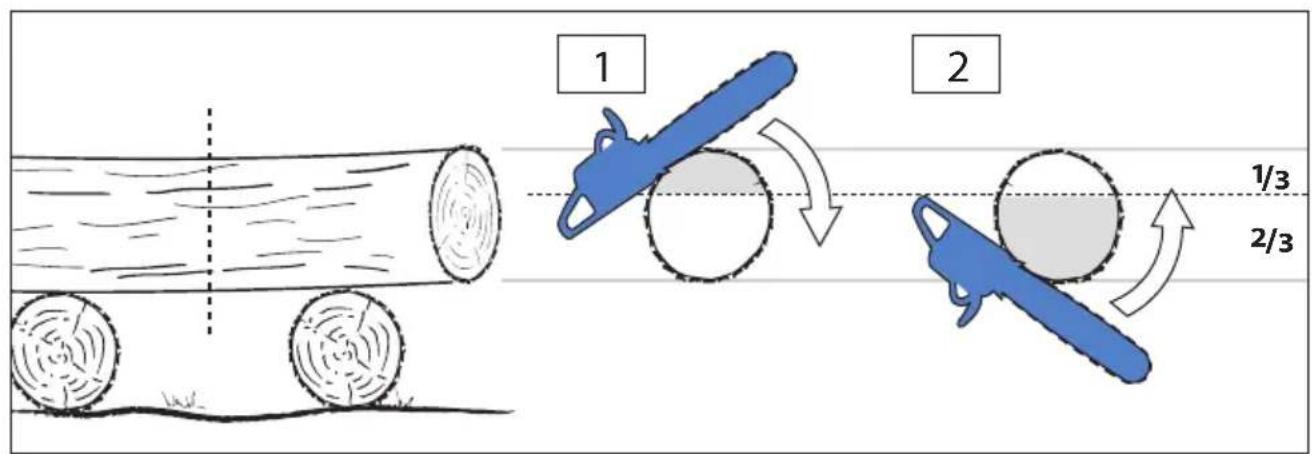

1 2 1/3 2/3

1 2 2/3 1/3

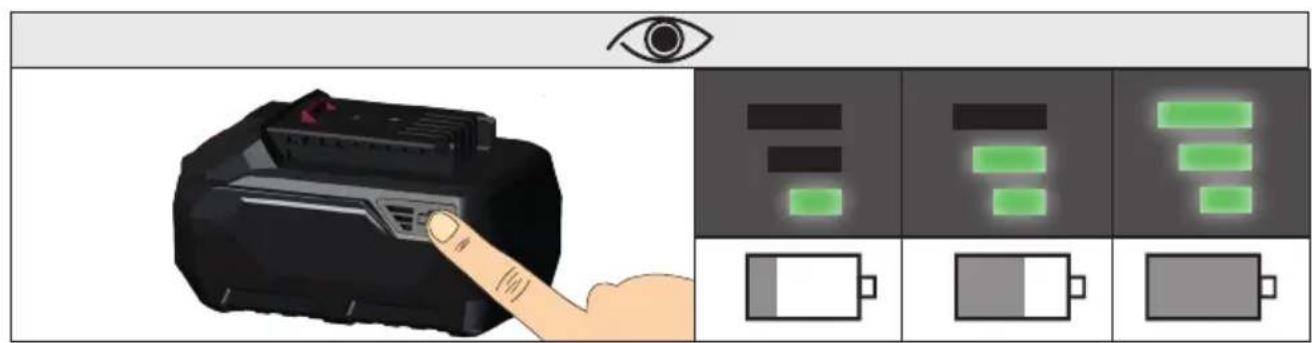

Diagram illustrating a device interacting with an eye, alongside a grid of battery cells showing charge distribution.

1

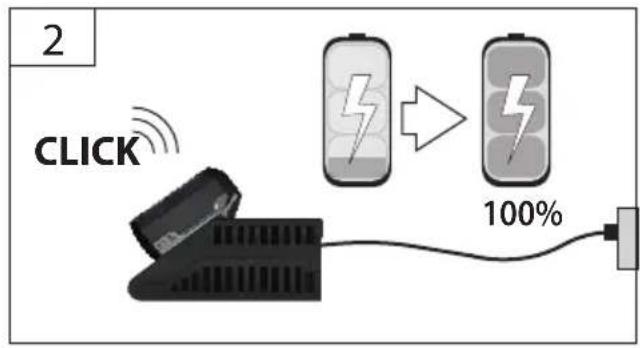

2 CLICK 100%

Blue handheld device with a black printer attached, showing a directional arrow (no text or symbols)

Diagram of a chain-linker with a gear and arrow indicating direction (no text or symbols)

Illustration of a blue chain-linking tool with a gear and blade, showing a cutaway view (no text or symbols)

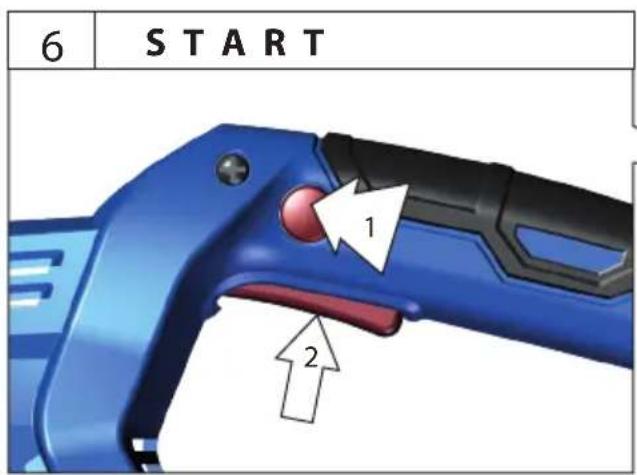

6 | START 1 2

Blue-handled electric tool with attached black casing and handle, shown in side profile (no text or symbols visible)

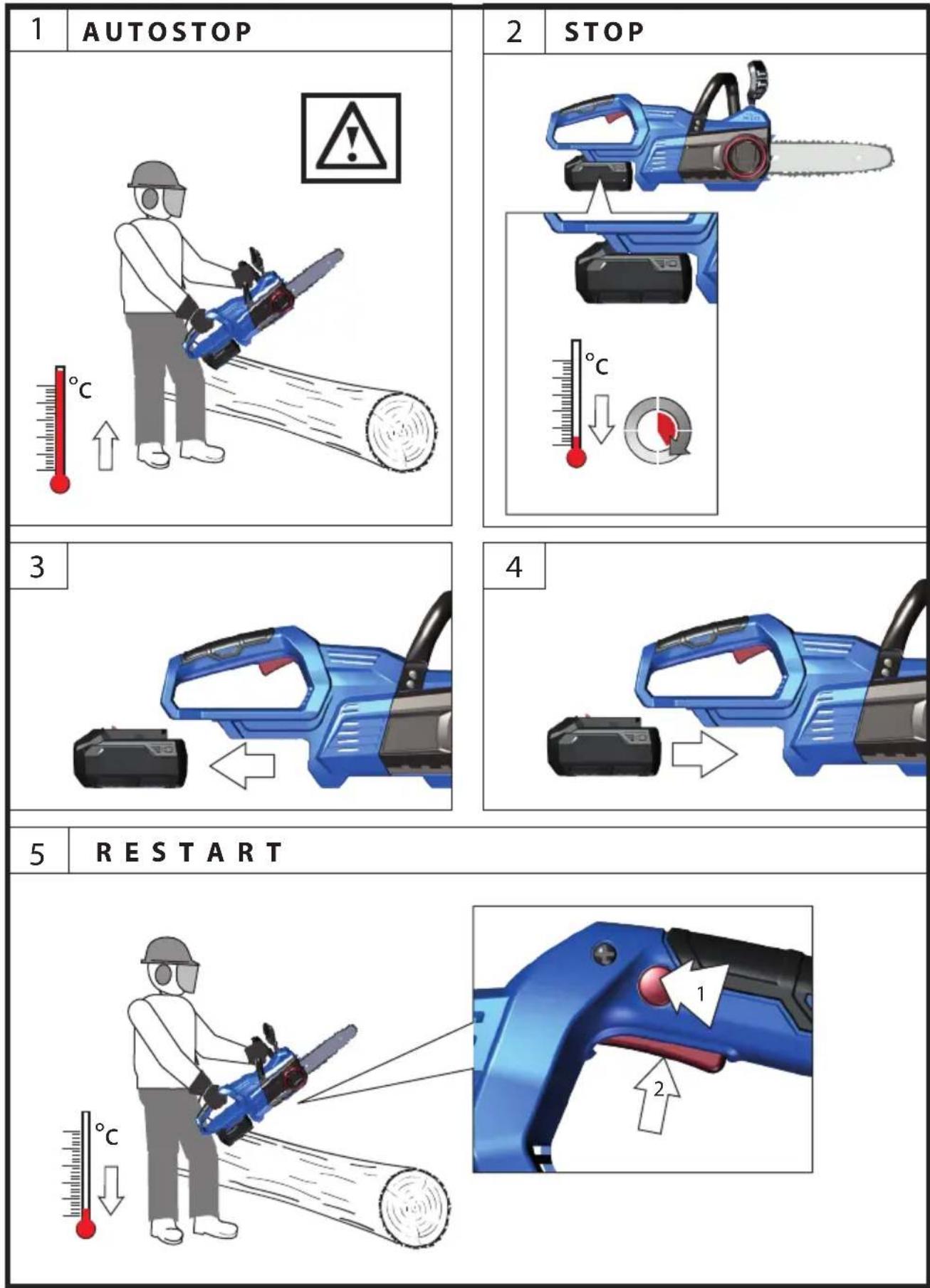

1 AUTOSTOP 2 STOP 3 4 5 RESTART 1 2

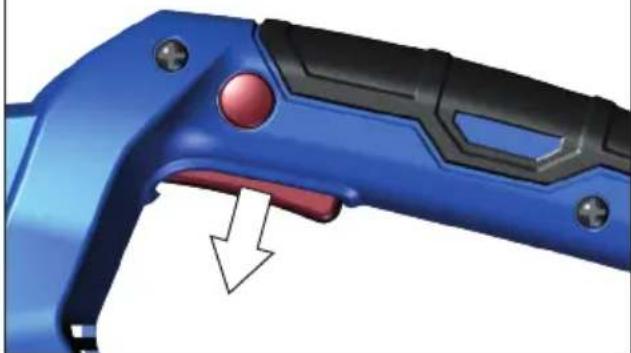

1 | STOP

Close-up of a blue and black handheld device with a red button and arrow indicator (no text or symbols)

2

Illustration of a blue chain-linking tool with a gear and blade, showing blade motion (no text or symbols)

3

Illustration of a blue and gray chainsaw with a white arrow indicating direction (no text or symbols)

OREGON OE B

EN Chain runs out briefly after switching off!

3D rendering of a blue chain-link robotic device with attached black handle and gray handle (no text or symbols visible)

Diagram showing a mechanical component with a close-up view of its lock and pin, no text or symbols present.

2

Gray elongated object with a slot and two small holes, resembling a stylized blade or tool (no text or symbols)

3

Two gray elongated objects with cutouts and holes, connected by a double-headed arrow indicating rotation or transformation (no text or symbols)

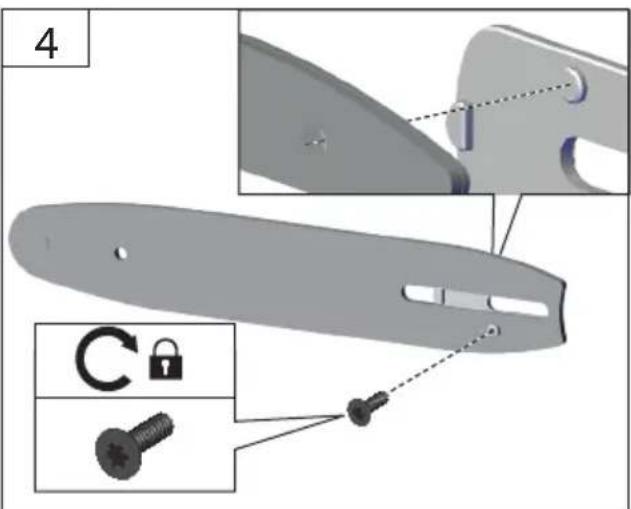

4

4 C

3D rendered image of a gray mechanical part with a green checkmark indicating selection (no text or symbols)

1

Illustration of a blue chain-linking tool with a black handle and red ring, next to a small battery (no text or symbols)

2

Diagram illustrating the process of using a chain mill to cut oil, with labeled components and inspection notes.

3

Technische Daten

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

^1) Measured according to 2000/14/EG + E_2005/88/EC, Uncertainty K=3 dB (A)
^2) Measured according to EN 60745, Uncertainty K=1.5 m/s ^2

The stated total vibration value and the stated noise emission value have been measured according to a standardised test procedure and can be used to compare one power tool with another. The stated total vibration value and

the stated noise emission value can also be used for a preliminary assessment of the load. Warning: The vibration and noise emissions during actual use of the power tool may deviate from the specified values depending on the way in which the power tool is used, in particular the type of workpiece being machined. Warning It is necessary to establish safety measures to protect the operator based on an estimation of the vibration exposure during the actual conditions of use (taking into account all parts of the operating cycle, such as times when the power tool is switched off and times when it is switched on but not under load).

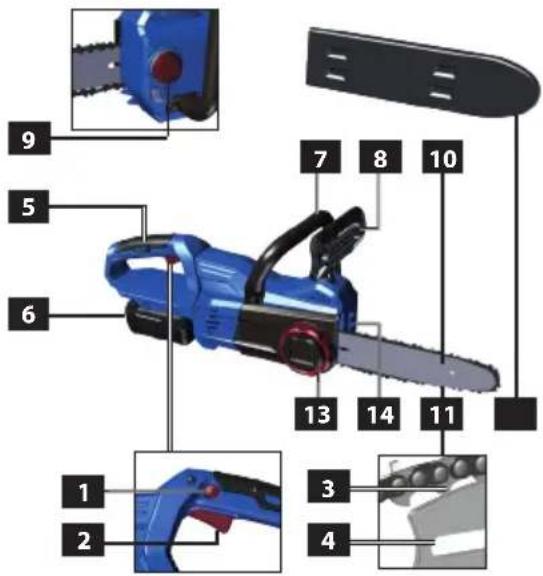

Device description

9 5 6 1 2 7 8 10 13 14 11 3 4

1 Trigger Release
2 On/off Button
3 Chain Drive
4 Bar Groove
5 Rear Handle
6 Battery
7 Front handle
8 Front Hand Guard / Chain brake lever
9 Chain Lubricant Cap
10 Guide Bar
11 Saw Chain
12 Guide Bar Cover
13 Chain tensioner wheel
14 Chain Catcher

Read and understand the operating instructions before using the appliance. Familiarise with the control

elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties. Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

The operating personnel must have received sufficient training in use, setup and maintenance.

Specified Conditions of Use

The battery chain saw may be used only for cutting wood – always across the grain. Respecting technical data and safety precautions.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Observe to keep out of dangerous zone

Residual Risk

Risk of injury

Contact with the saw chain can cause casualties. Never touch moving chain by hands.

Danger of kickback!

Kickback can lead to casualties.

Danger of burns!

Chain and guiding groove warm up in operation.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Please read the instructions carefully before starting the machine.

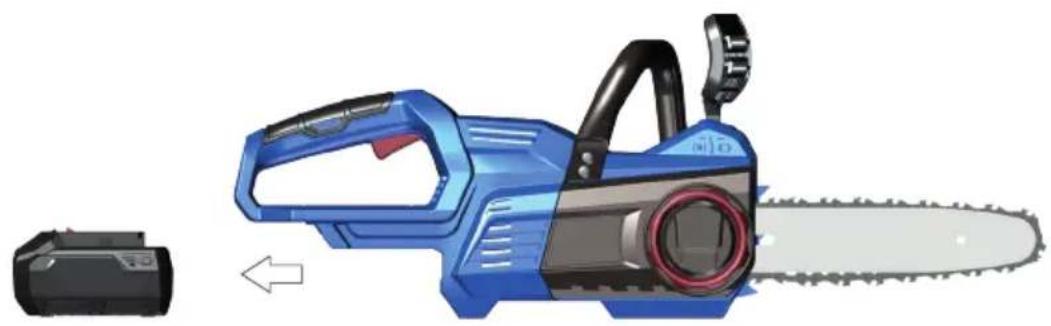

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Warning against dangerous kickback

Keep distance of persons Observe to keep out of dangerous zone

Always use chain saw two-handed

Not use one-handed

Keep dry at all times. Never expose tool to rain.

Keep the machine out of reach of children.

Fire, sparks, naked flames and smoking are forbidden.

Chain lubrication

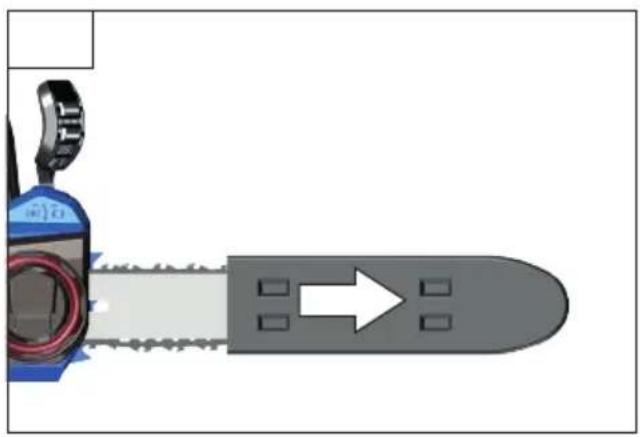

Chain running direction

Weare a protective helmet.

Wear goggles. Wear ear protectors.

Wear protective gloves.

Wear safety cut through resistant shoes with safety sole and steel toe

Wear protective clothing with cut through resistant ply!

Guaranteed sound power level

Class III tool.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

European Conformity Mark

Battery, Battery Charger

Charger to be used in closed spaces only.

Protect the battery against heat and fire.

Protect the battery against water and moisture.

Protect the battery against temperatures above 40°C.

Do not throw the batteries in household waste.

Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

European Conformity Mark

General Power Tool Safety Warnings

Warning

1) Read all safety information, instructions, illustrations and technical data provided with this power tool. Failure

to comply with the following instructions may result in electric shock, fire and/or serious injury. Keep all safety information and instructions for future reference. The term „power tool“ used in the safety instructions refers to mains-powered power tools (with mains cable) or battery-powered power tools (without mains cable).

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not be lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless behaviour can lead to serious injuries within fractions of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and gripping surfaces dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow safe operation and control of the power tool in unforeseen situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used

with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a damaged or modified battery. Damaged or modified batteries can behave unpredictably and lead to fire, explosion or risk of injury.

f) Do not expose a battery to fire or excessive temperatures. Fire or temperatures above 130 °C can cause an explosion.

g) Follow all charging instructions and never charge the battery or battery tool outside the temperature range specified in the operating instructions. Incorrect charging or charging outside the authorised temperature range can destroy the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged batteries. All battery maintenance should only be carried out by the manufacturer or authorised service centres.

Chain saw safety warnings

• Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
• Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
• Only hold the chainsaw by the insulated grip surfaces, as the saw chain can hit concealed power lines. Contact between the saw chain and a live wire can also energise metal parts of the appliance and cause an electric shock..
• Wear protective glasses and ear protectors. Further, wearing head, hand and leg protection equipment is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.
• Do not work with the chainsaw on a tree, a ladder, from a roof or an unstable surface. There is a serious risk of injury if operated in this way.
  • Always keep proper footing and operate the chain

saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.

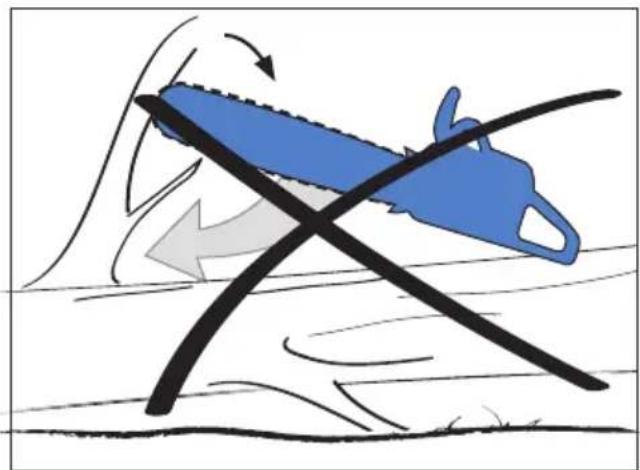

• When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
• Use extreme caution when cutting brush and sap - lings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
• Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw, always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
• Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.
• Do not attempt to fell a tree until you have a clear understanding of the risks and how to avoid them. The user or other persons can be seriously injured by a falling tree.

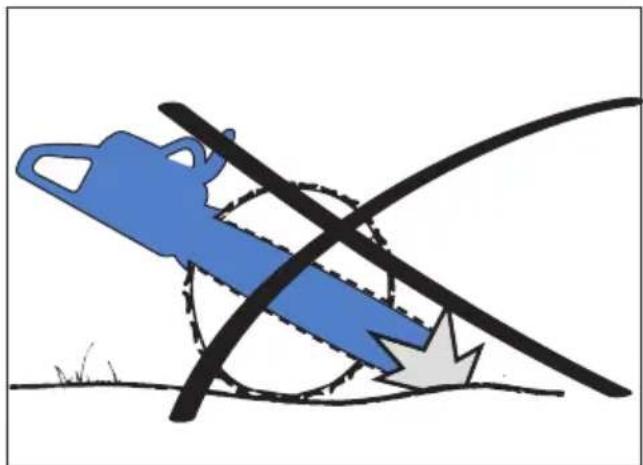

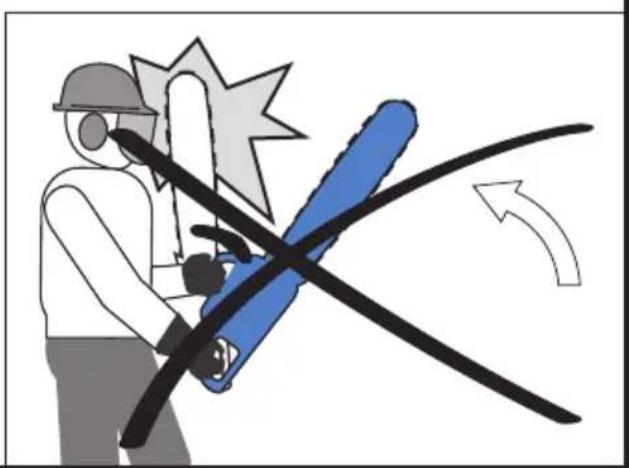

Causes and operator prevention of kickback:

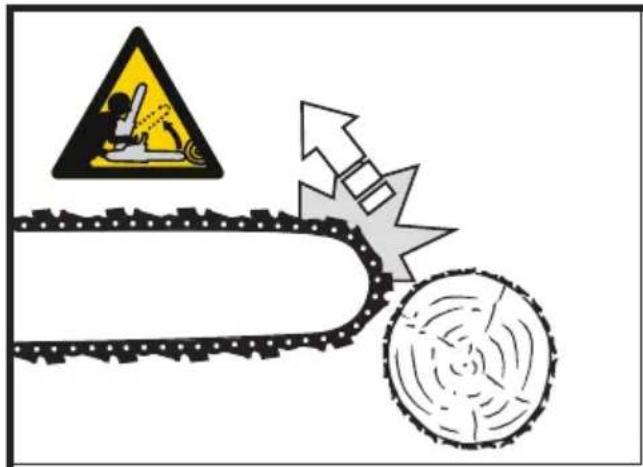

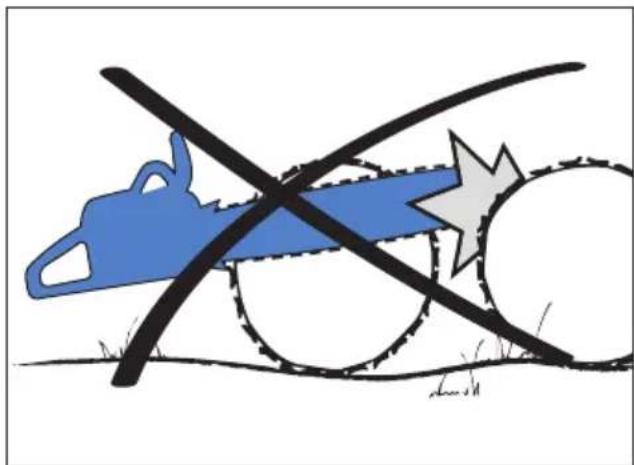

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

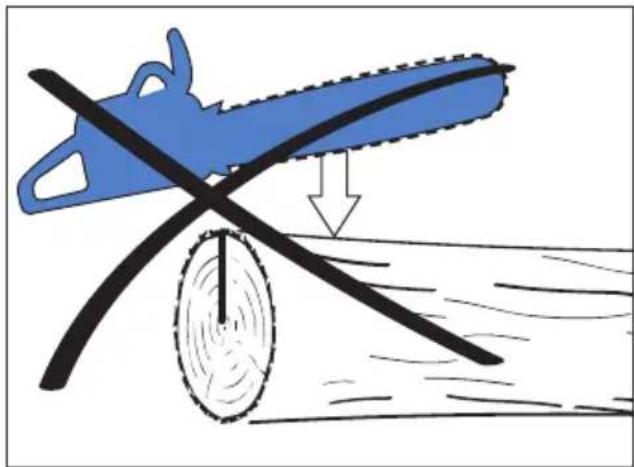

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely solely on the safety devices with which the chain saw is equipped. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.

• Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement bars and chains specified by the manufacturer. Incorrect replacement guide bars and chains may cause chain breakage and/or kickback.

• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

A first-time user is advised at the least to practice cutting logs on a sawhorse or frame.

When sawing on a slope, always stand above the tree trunk. To maintain full control at the moment of „sawing through“, nearing the end of the cut reduce the contact pressure without loosening your grip on the chain-saw handles. Make sure that the saw-chain does not touch the ground. After finishing the cut, wait for the saw-chain to stop moving before extracting the chainsaw from the cut. Always switch off the chain saw motor before moving to the next tree.

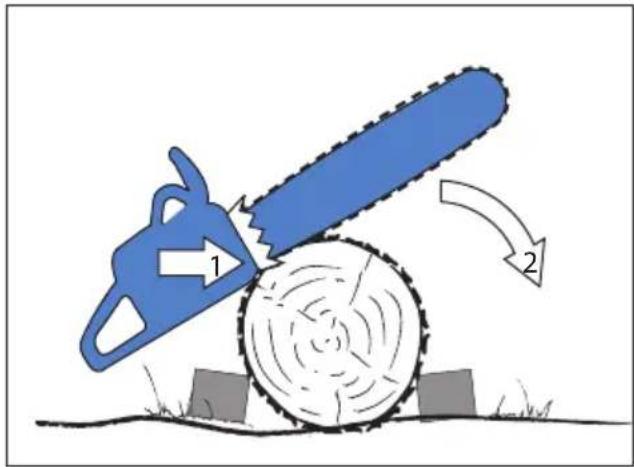

Spiked Bumper

When sawing, press the chain saw forward so that the „claw“ bites into the bark. Lifting the rear handle up or down in the direction of the cut reduces the physical strain during sawing. When making a cut, the claw stop can also be used as a pivot point and is very useful in keeping the body of the chainsaw stable during cutting.

Chain Brake

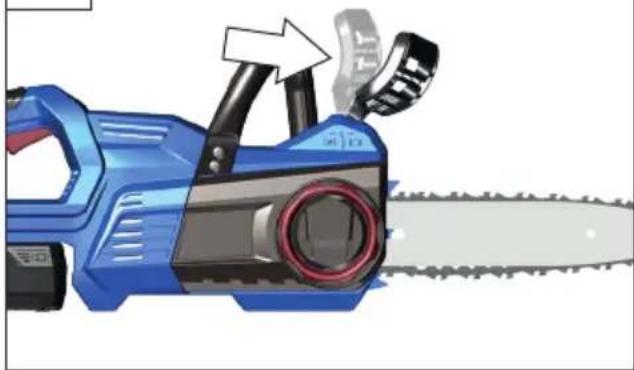

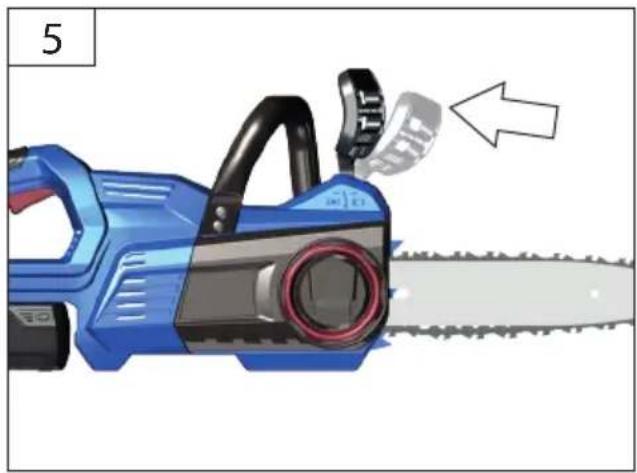

To reduce the risk of injury, the chain must stop immediately once the chain brake lever is pressed towards the hand, as shown in the images. This can not, however, prevent a rebound. The proper function of the chain brake must be checked each time before the chain saw is used.

Chain Catcher

This prevents the chain from being flung towards the user if it comes loose or breaks.

Battery

Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground. Never charge the battery in an environment with acids and easily flammable materials. Protect the battery against heat and fire. Battery to be used at the ambient temperatures between 10°C and +40°C only. Never put the battery on heaters and do not expose it to strong sunlight for a long time. After being subject to heavy load, let the battery cool down first. Short circuit - do not bridge the accumulator contacts with metal parts. The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

The Güde charger to be used only to charge the battery. There can be malfunction or fire if different chargers are used. Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air

and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.

Working Instructions

Accumulators are supplied partially charged and must therefore be fully charged before being used for the first time.

• Charge the accumulator when the appliance is running slowly or stops.
• A li-ion battery may be charged at any time without any shortening of its life. Charging process interruption will not damage the accumulator.
• A li-ion battery is protected by the Electronic Cell Protection against deep discharge.
• A significantly shorter operating time of a charged battery means the battery life is over and the battery must be replaced.

Dispose of the batteries in an environmentally friendly manner.

Li-ion batteries are subject to the special disposal obligation. Have any defective batteries disposed of by a specialised shop. The battery must be taken out before the appliance is scrapped. Damaged batteries may harm the environment and your health if toxic vapours or liquids leak out of such batteries. Therefore, never send a defective battery by post, etc. Please contact your local recycling centre. Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery

Maintenance

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Carry out a visual inspection before switching the appliance on.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts. Components for which there are no instructions for exchanging should be replaced by the manufacturer only.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Disposal

Waste batteries and waste electrical and electronic equipment must not be disposed of together with household waste. Waste batteries and waste electrical and electronic equipment must be collected and disposed of separately. Remove used batteries, accumulators and lamps from the devices before disposing of them. Ask the local authorities or your retailer about recycling centres and collection points. Depending on local regulations, retailers may be obliged to take back used batteries and waste electrical and electronic equipment free of charge. Help reduce the demand for raw materials by reusing and recycling your used batteries and waste electrical and electronic equipment. Waste batteries (especially lithium-ion batteries) and waste electrical and electronic equipment contain valuable, recyclable materials that can have a negative impact on the environment and your health if not disposed of in an environmentally friendly manner. Delete any personal data on your old device before disposing of it.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. To always have these data at hand, please enter them below.

Serial No.:

Art. No:

Year of production:

Inspection and maintenance plan

Generally Complete saw		Regularly clean the outer partLet regularly checked by authorized workshop
	Plastic bodySaw ChainChain saw barChain saw wheelChain Brake	Check for cracks and fissuresLet regularly sharpenClean regularlyClean regularlyRegular functional test
Before any start-up Saw Chain		Check for damages and sharpness
	Chain saw barChain lubricationChain BrakeFollow-up brakeOn/off ButtonOil tank cap	Check the chain tensionFunctional testFunctional testFunctional testFunctional testCheck for tightnessLet regularly checked by authorized workshop
After every take out of service	Chain saw barBar fixture	Clean the oil top-up openingClean above all guiding oil groove

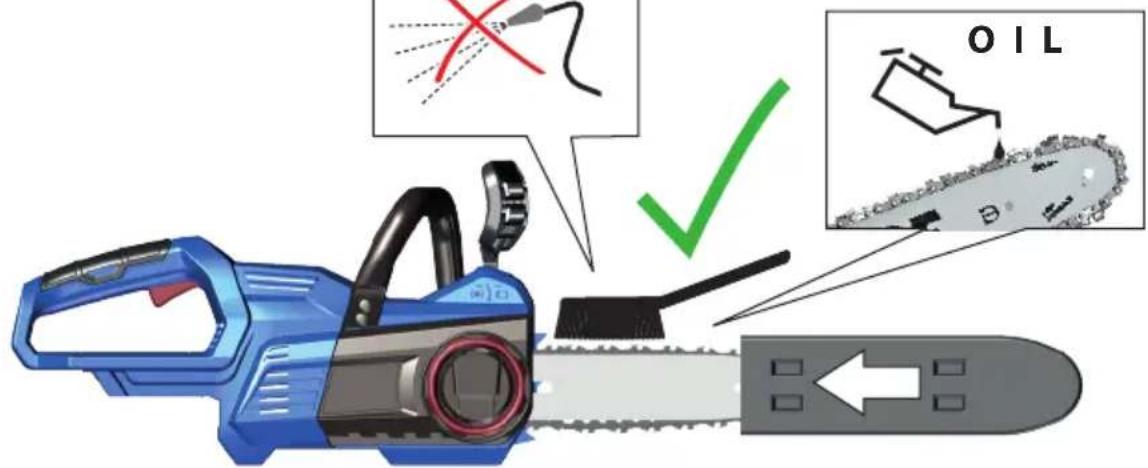

Storage Chain oil tank	Saw Chain / Chain saw barComplete saw	DrainDismount, clean and lubricate slightly by oil Clean the saw guiding grooveStore safely in dry room Have the battery chain saw checked by an authorized workshop after long term storage (remaining oil can be resinous and clog the oil pump valve)

Defects searching

Failures Tracing Causes Removal
The saw does not work Electric motor does not run or stops.		Voltage missing Reinsert battery
		Battery is defective	Insert new battery
		Battery compartment defective	Akkuschacht durch Fachwerkstatt oder Güde-Service erneuern lassen
		Chain brake activated Release chain brake (see chapter „Operation“) Activated power breaker Check supply line, consult specialist workshop.
Not sufficient output Low dilatability Worn-down carbon brushes Have the carbon brushes			replaced by a specialist workshop.
Missing chain lubrication Chain is not lubricated Empty oil tank, Dirty guiding oil groove			Fill up the oil tank. Clean the oil guide groove on the chain blade.
Chain Brake	Chain does not stop quickly	Braking system worn.	Consult a specialist workshop immediately.
Follow-up brake	Saw chain runs out	Worn-down carbon brushes	Have the carbon brushes replaced by a specialist workshop.

Labeled diagram of a chain saw with numbered parts for identification

Akumulator, Ładowarka
