U289CH1 - Kettle ROTEL - Free user manual and instructions

Brand	Rotel
Model	U289CH1
Product type	Cordless electric kettle
Power supply	220-240 V ~ 50/60 Hz
Rated power	1850-2200 W
Capacity	Approximately 1.7 L (estimated based on typical dimensions)
Material	Food-safe plastic (body) and stainless steel (heating element)
Main functions	Automatic shut-off at boiling, overheat and dry-boil protection, power indicator light
Water level indicator	Transparent level indicator with Max mark
Base	360° rotating base with connector
Lid opening	Push-button
Safety	Temperature limit safety device (dry shut-off)
Care and cleaning	Regular descaling with Rotel special tablets; rinse with clean water; clean exterior with a damp cloth
Spare parts and repairability	Repairs reserved to an authorized professional; no spare parts listed
Warranty	Manufacturer's warranty (refer to manual for conditions)
Cable length	Approximately 0.75 m (estimated)
Weight	Approximately 0.8 kg (estimated)

Frequently Asked Questions - U289CH1 ROTEL

What is the capacity of the Rotel U289CH1 kettle?

The exact capacity is not stated in the manual, but this is a standard size kettle, typically around 1.7 litres. Do not fill beyond the Max mark.

How to descale the Rotel U289CH1 kettle?

Use Rotel special descaling tablets: pour about 0.5 L of hot non-boiling water, add 2 to 4 tablets depending on scale level, let it sit for up to 30 minutes without boiling, then rinse thoroughly with clean water.

What to do if the kettle does not turn on?

First check that the base is plugged in and the switch is in the on position. Make sure the lid is properly closed. If the indicator does not light, the appliance may have triggered its overheat protection: let it cool down for 10 minutes before reusing.

Can I heat milk or other liquids in the kettle?

No, the kettle is designed only for pure water. Never pour milk, coffee, tea or other liquids as this would damage the appliance.

How to clean the exterior of the kettle?

Unplug the appliance and clean the exterior with a damp cloth. Do not use abrasive products or rough pads. Never immerse the kettle or base in water.

Why does the kettle stop before the water boils?

This may be due to a poorly closed lid or excessive limescale. Check the lid and descale the kettle. If the problem persists, the heating element may be faulty.

Is the kettle suitable for people with reduced mobility?

Yes, the manual states that it can be used by persons with reduced capabilities if supervised or instructed. The 360° rotating base facilitates handling.

How to dispose of the kettle at end of life?

In accordance with the WEEE directive (2012/19/EU), do not discard the appliance with household waste. Take it back to a retailer, collection point, or Rotel SA for proper recycling.

Can I use the kettle without the base?

No, the kettle must be placed on its original base to operate. Never use another base.

What to do if water overflows during boiling?

This can happen if the water level exceeds the Max mark or if the lid is open. Always fill to Max and close the lid properly before switching on.

USER MANUAL U289CH1 ROTEL

Exterior view of a modern stainless steel rotary kettle with a digital thermometer and black handle (no visible text or symbols)

• GEBRAUCHSANWEISUNG
• MODE D'EMPLOI
• ISTRUZIONI PER L'USO
• INSTRUCTIONS FOR USE

CE RoHS

SENS eRecycling

Deutsch

1. Spout
2. Base
3. Lid handle
4. Handle
5. Level indicator
6. On/Off switch with indicator light
7. Temperature indicator light

TECHNISCHE DATEN

• Safety instructions.... 20
  • Before starting the appliance.... 23
• Descaling 23
• Cleaning and care 23
• Disposal 24

D/F/I/E 25

• Garantie / Garantie / Garanzia / Warranty 25

Deutsch

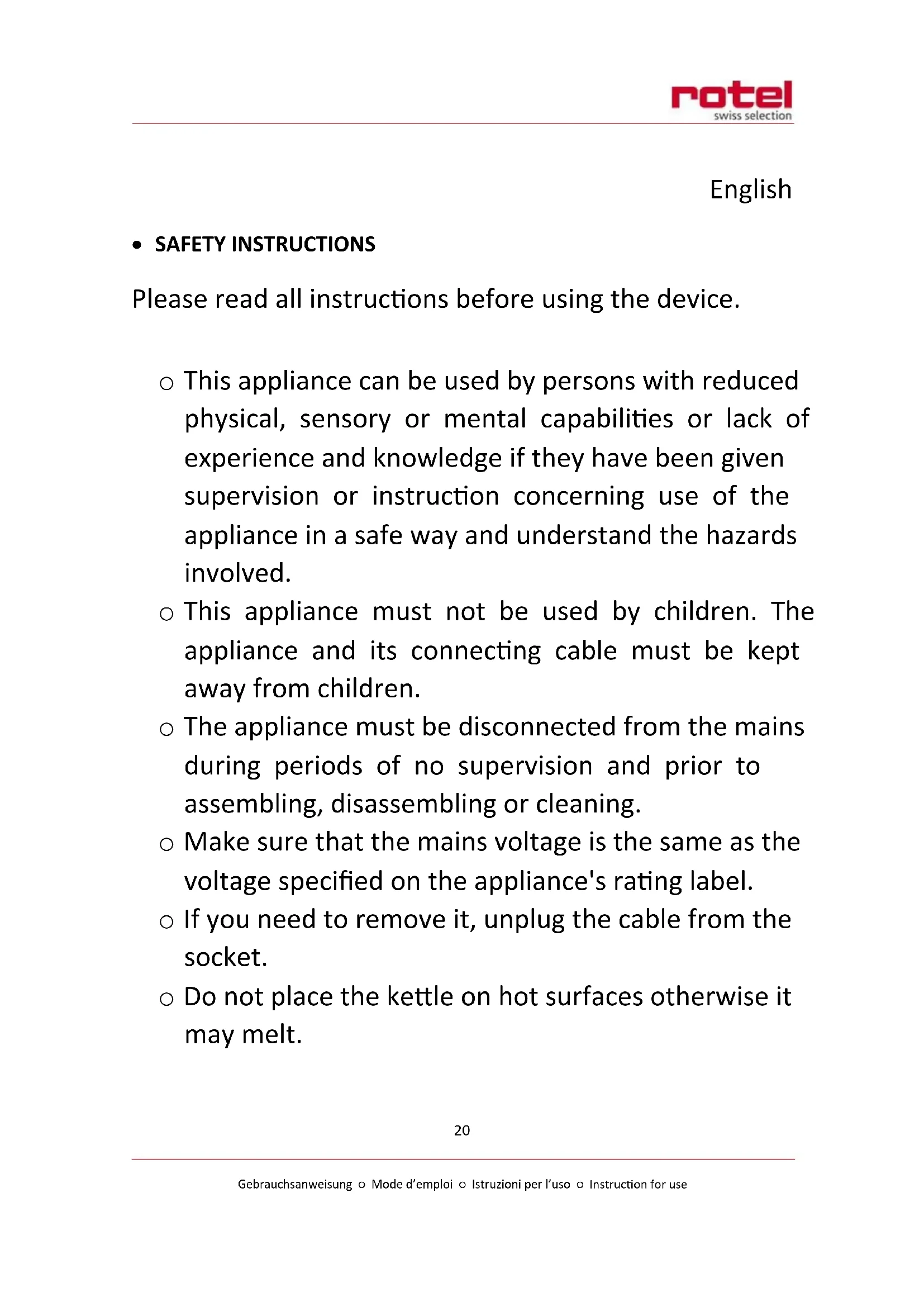

Please read all instructions before using the device.

○ This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

○ This appliance must not be used by children. The appliance and its connecting cable must be kept away from children.

- The appliance must be disconnected from the mains during periods of no supervision and prior to assembling, disassembling or cleaning.

○ Make sure that the mains voltage is the same as the voltage specified on the appliance's rating label.

○ If you need to remove it, unplug the cable from the socket.

- Do not place the kettle on hot surfaces otherwise it may melt.

○ Only use the kettle with the corresponding base supplied.

○ Remove the kettle from the base to fill it up. Only fill it with water, not milk, coffee or similar drinks or liquids.

○ If you overfill or if it you use it when the lid is not on properly, the boiling water can spray out.

○ Only use the kettle on a stable surface and never immerse it in water.

- The kettle has a safety temperature limiter, which switches the kettle off automatically if it is used without any water in it. If this should happen, unplug the kettle from the mains and let the kettle cool down before filling it with water.

Before using the kettle for the first time, fill it with water and let it boil. You should then pour this water away.

Before removing the kettle from its base make sure that it has turned itself off automatically. If this does not happen, turn it off by hand.

- Do not use the appliance if the cable, switch or other components are damaged. Only qualified specialists should carry out any repairs on electrical parts.

- We cannot assume any liability for damages caused by any use not provided for in this manual.

○ Caution: The appliance will become hot when in use. You must only grip the kettle on the handle provided.

- BEFORE STARTING THE APPLIANCE

• You can fill up the kettle when the lid open or closed. After you have filled the kettle do not forget to close the lid, otherwise the kettle will not turn off automatically after boiling. The amount of water in the kettle must always be under the "Max" level.
  Place the kettle on the base and turn it on. The indicator light will be illuminated for as long as the water is warming up.
• As soon as the water has boiled, the kettle will turn off automatically. But you can turn the appliance off by hand at any time.
  Once the kettle has switched off automatically, the boiled water must be poured out in order to be able to use the kettle to boil some more water after around 10 minutes.

- DESCALING

The kettle should be descaled on a regular basis depending on how hard the water supply is. To do this, use the special descaling tablets from Rotel. First of all fill the kettle with around 0.5 litres of warm water and then put in 2-4 tablets depending on how bad the build of lime-scale is. Never heat up the solution, otherwise it will foam over. Leave the solution for up to half an hour depending on how bad the build up is.
○ After descaling rinse the kettle out thoroughly with clean water.

- CLEANING AND CARE

○ Pull out the plug before cleaning. Never immerse the kettle and its base in water. Rinse the kettle out from time to time. Only wipe the outside of the kettle with a damp cloth. Do not use any sharp and abrasive cleaning agents

- DISPOSAL

• For proper disposal, please return device to a retailer, a service agent or Rotel AG.
  European Directive 2012/19/EC concerning Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling materials comprising the machine, while preventing potential damage to public health and the environment. The crossed-out wheeled bin symbol appears on all products to remind owners of the obligations regarding separate waste collection. Owners should contact their local authorities or appliance dealers for further information concerning the correct disposal of household appliances.

This appliance conforms to the following EU directives:

CE

2014/35/EU (Low Voltage Directive) 2014/30/EU (Electromagnetic Compatibility Directive)

D/F/I/E

• GARANTIE / GARANTIE / GARANZIA / WARRANTY

• 2 JAHRE GARANTIE
• 2 ANS DE GARANTIE
• 2 ANNI DI GARANZIA
• 2 YEARS WARRANTY

○ Warranty commitment

We commit ourselves to repair this device free of charge, should a failure occur within the period of warranty despite proper handling. We repair all defects caused by material or manufacturing faults. The guarantee will be fulfilled either by repairing the device or replacing the defective parts, according to our judgement. A warranty does not cover damages due to wearing parts, damages and defects caused by improper handling or maintenance (such as limescale and commercial use). It will only be granted if either the warranty card stating date of purchase, dealer's stamp and signature, or the purchase receipt is sent with the device to the relevant after-sales service (see address below). Devices shall be returned in their original packaging. Transport costs are to be borne by the purchaser. Remember to specify your address to your sending, as well as a short declaration about the failure, shall the defect not be obvious.

Servicestation:

Service après-vente: Rotel AG
