USER MANUAL DigitRadio 2 S TECHNISAT

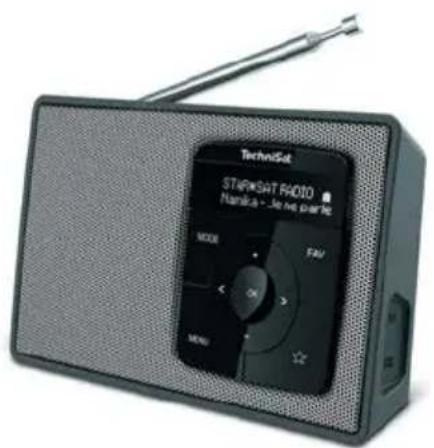

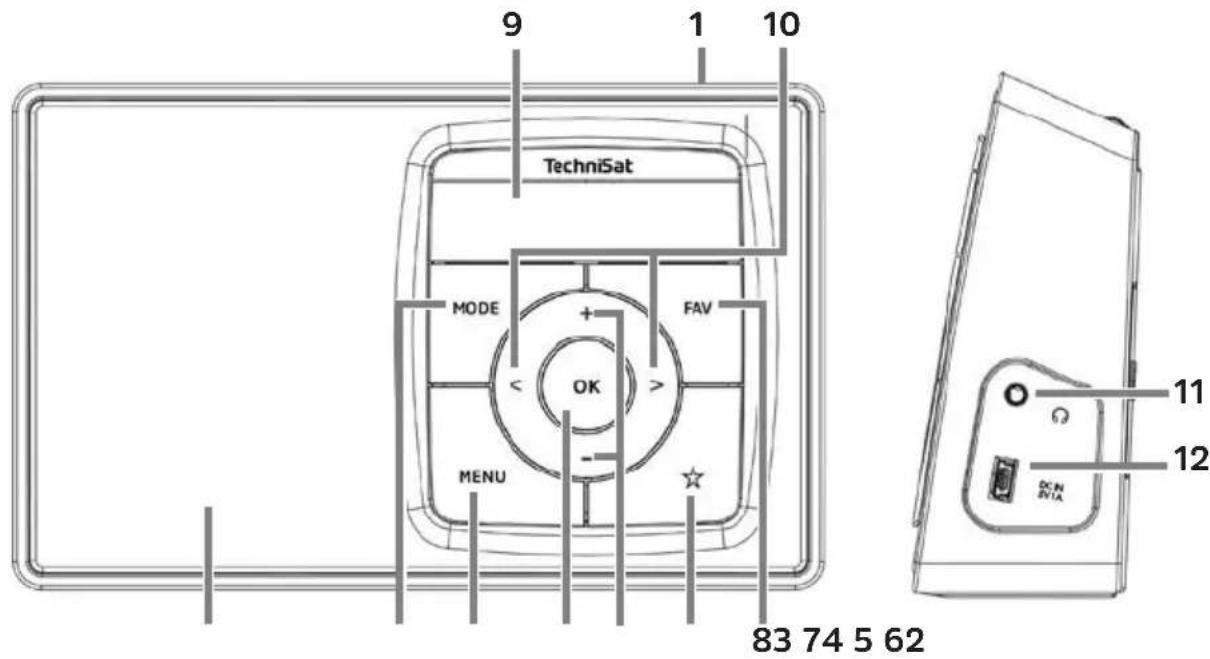

1.1 Front view / side view of DIGITRADIO 2

1 On/Standby (top)
2 Speaker (mono)
3 MODE button to change modes
4 MENU for opening the menu
5 OK button to confirm
6 Volume +/- button (higher/lower)
7 Shortcut button
8 FAV button
9 Display
10 < / > Selection buttons / navigation
11 Headphone jack (3.5 mm jack)
12 DC IN USB port for external power supply

1.1.1 Rear

Terminals Telescopic antenna

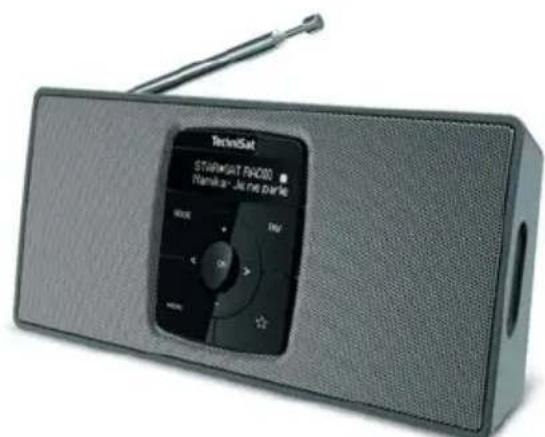

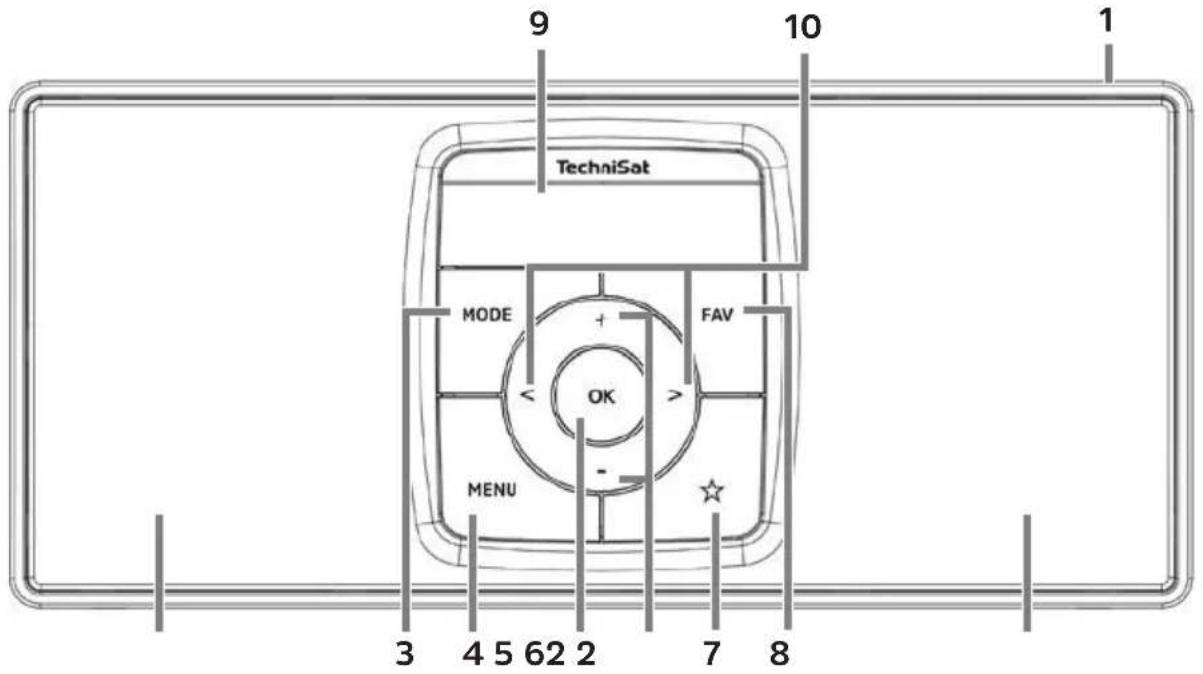

1.2 Front view of DIGITRADIO 2 S

1.2.1 Side view and description of DIGITRADIO 2 S

1 On/Standby (top)
2 Speaker
3 MODE button to change modes
4 MENU for opening the menu
5 OK button to confirm
6 Volume +/- button (higher/lower)
7 Shortcut button
8 FAV button
9 Display
10 < / > Selection buttons / navigation
11 Headphone jack (3.5 mm jack)
12 DC IN USB port for external power supply

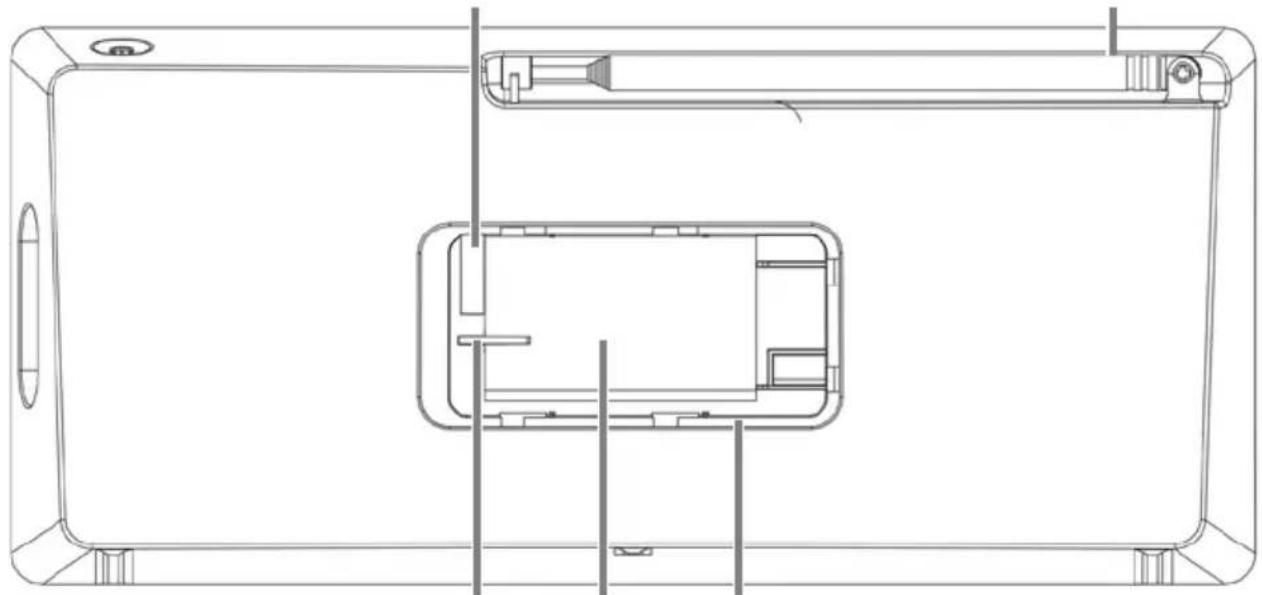

1.2.2 Rear

Terminals Telescopic antenna

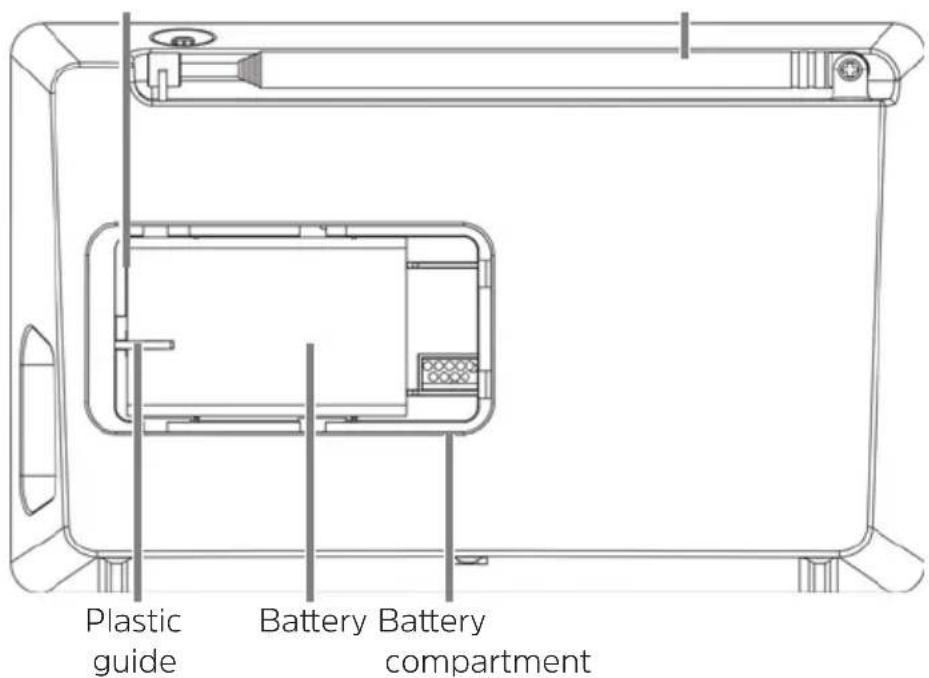

Plastic Battery Battery guide compartment

2 Contents

1 Illustrations 72
1.1 Front view / side view of DIGITRADIO 2 72
1.1.1 Rear 74
1.2 Front view of DIGITRADIO 2 S. 75
1.2.1 Side view and description of DIGITRADIO 2 S. 76
1.2.2 Rear 77
2 Contents 78
3 Preface 82
3.1 Target group for this instruction manual 82
3.1.1 Intended use 82
3.2 Important information 82
3.2.1 Safety 83
3.2.2 Disposal 89
3.2.3 Legal notices 92
3.2.4 Service instructions 94
4 Setting up the device 95
5 Description of the DIGITRADIO 98
5.1 Scope of delivery 98
78

5.2 Special features of the DIGITRADIO 98
5.3 Preparing the DIGITRADIO 2 S for operation 99
5.3.1 Insert the battery (using the DIGITRADIO 2 S as an example) 99
5.3.2 Connecting the power supply unit 101
5.3.3 Aligning the telescopic antenna 102
5.3.4 Using headphones 103
5.4 General device functions 104
5.4.1 Switching on the device 104
5.4.2 Switching off the device 105
5.4.3 Changing to DAB+/FM/Bluetooth mode 106
5.4.4 Adjusting the volume 106
5.4.5 Display 106
5.4.6 Retrieving displays 107

6 Menu operation 108

7 DAB+ (digital radio) function. 109

7.1 What is DAB+? 109
7.1.1 Data compression 110
7.1.2 Audio stream 110
7.2 DAB+ (digital radio) reception 111
7.2.1 Performing a complete scan 111
7.2.2 Selecting stations 112

7.2.3 Storing DAB+ stations on a memory slot 112
7.2.4 Retrieving DAB+ stations from a memory slot 113
7.2.5 Overwriting/deleting a station memory slot 113
7.2.6 Signal strength 113
7.2.7 Manual setting 114
7.2.8 Volume adjustment (DRC) 115
7.2.9 删除 inactive stations 116

8 FM mode 116

8.1 Switching on FM radio mode 116
8.2 FM reception with RDS information 117
8.3 Automatic station scan 117
8.4 Manual station scan 118
8.5 Scan setting 118
8.6 Audio settings 119
8.7 Saving FM stations to a memory slot 119
8.8 Retrieving FM stations from a memory slot 120
8.9 Overwriting/deleting a station memory slot 120

9 Bluetooth 121

9.1 Switching on Bluetooth mode 121
9.2 Pairing an external device 121
9.3 Cancel pairing 123
80

10 Sleep timer. 124
11 Equaliser 125
11.1 MyEQ 125
12 System settings. 126
12.1 Time and date settings 126
12.1.1 Manually setting the time/date 126
12.1.2 Time update 127
12.1.3 Setting the time format 128
12.1.4 Setting the date format 129
12.2 Display brightness 130
12.3 Language 131
12.4 Factory setting 132
12.5 Software version 133
13 Cleaning 133
14 Troubleshooting 134
15 Technical specifications / manufacturer's instructions 135

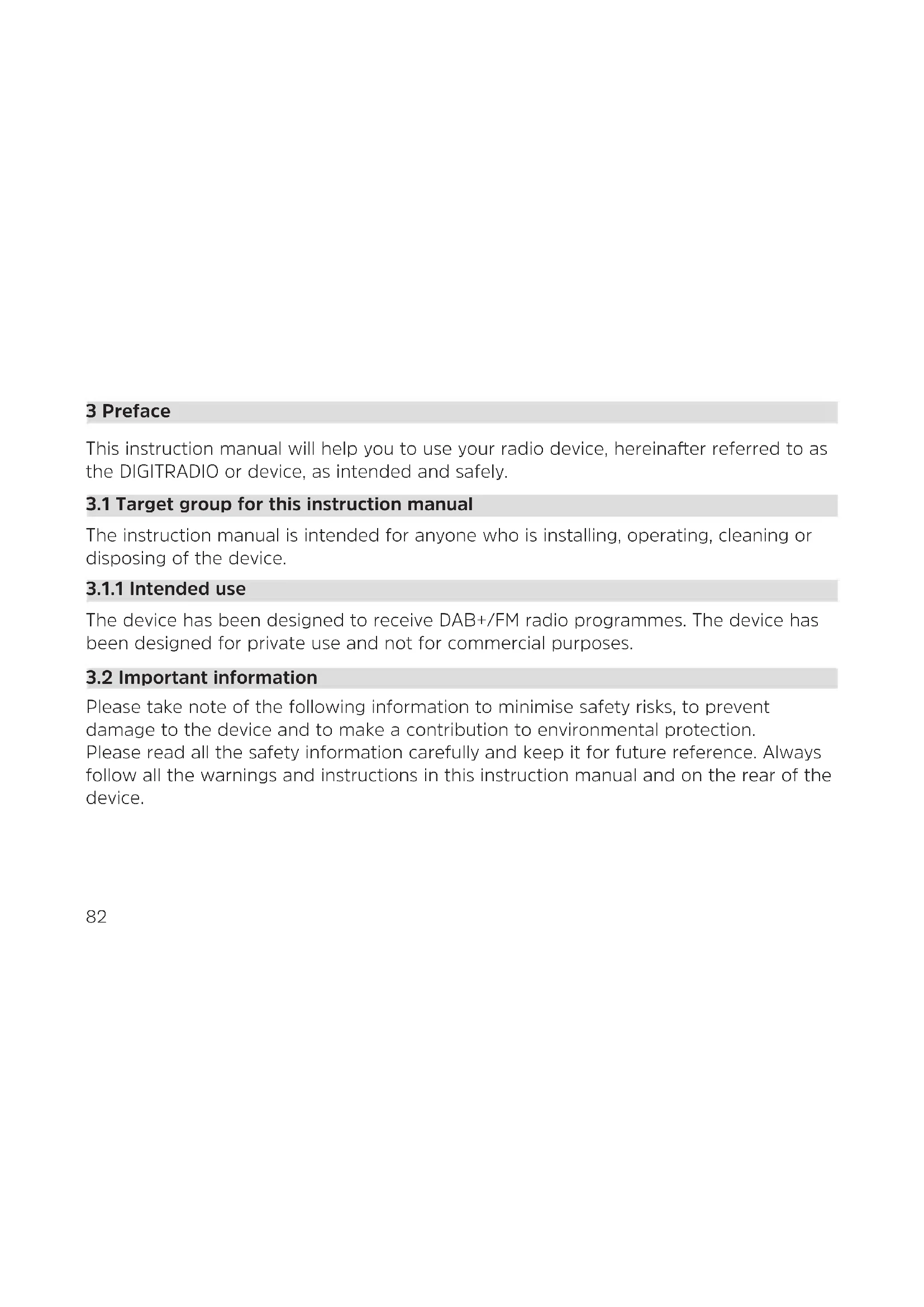

3 Preface

This instruction manual will help you to use your radio device, hereinafter referred to as the DIGITRADIO or device, as intended and safely.

3.1 Target group for this instruction manual

The instruction manual is intended for anyone who is installing, operating, cleaning or disposing of the device.

3.1.1 Intended use

The device has been designed to receive DAB+/FM radio programmes. The device has been designed for private use and not for commercial purposes.

3.2 Important information

Please take note of the following information to minimise safety risks, to prevent damage to the device and to make a contribution to environmental protection.

Please read all the safety information carefully and keep it for future reference. Always follow all the warnings and instructions in this instruction manual and on the rear of the device.

Caution - This identifies important information that must be observed to prevent device defects, data loss/misuse or undesired operation.

Tip - This identifies information relating to the described function, as well as to another related function that may have to be taken into account, with reference to the corresponding section in the manual.

3.2.1 Safety

For your protection, read the safety precautions carefully before operating your DIGITRADIO. The manufacturer accepts no liability for damage caused by inappropriate handling, or by non-compliance with the safety precautions.

Do not open the device under any circumstances!

Touching live parts poses a danger to life!

Any required intervention may only be performed by qualified staff.

The device must only be operated in an appropriate climate.

In the event of extended transportation in the cold and subsequent moving to warm rooms, do not switch on immediately; wait for the temperature to equalise.

Do not expose the device to dripping or splashing water. If water has penetrated the device, switch it off and inform the Service department.

Do not expose the device to heat sources that will heat it up more than normal use.

In the event of a thunderstorm, disconnect the device from the mains. Overvoltage can damage the device.

If you detect a device defect, odour or smoke, considerable malfunctions, or damage to the housing, switch off the device and inform the Service department.
The device may only be operated with the mains voltage specified on the power supply unit.
Never try to operate the device with another voltage.
The power supply unit must not be connected until the installation has been completed according to regulations.
Do not operate the device if the power supply unit is defective or if the device is damaged in any other way.
When removing the power supply unit from the power outlet, pull on the plug, not the cable.
Do not put the device into operation in the vicinity of baths, swimming pools or splashing water.

Never try to repair a faulty device yourself. Always contact one of our customer service locations.
Foreign bodies, e.g. nails, coins, etc. must not be allowed to fall inside the device. Do not touch the connection contacts with metal objects or fingers. This could lead to short-circuits.
Do not place any open flames, such as burning candles, on the device.
Never allow children to use the device unsupervised.
Even when switched off and on standby, the device is still connected to the mains power supply. If you do not intend to use the device for a prolonged period, remove the mains plug from the power outlet. Only pull on the plug, not on the cable.
Do not listen to music or the radio at high volume. Doing so can cause permanent hearing impairment.

This device is not intended to be used by people (including children) with limited physical, sensory or mental capacities or lack of experience and/or knowledge, unless they are supervised by a person responsible for their safety or they have been instructed by them as to how to use the device.

Children must be supervised to ensure that they do not play with the device.

It is forbidden to carry out modifications to the device.

Damaged devices or damaged accessories must not continue to be used.

Handling batteries

Make sure that batteries do not get into the hands of children. Children could put their batteries in their mouths and swallow them. This could lead to serious injuries. Seek medical advice immediately if this occurs! Therefore keep batteries out of reach of infants.

Only operate the device with the battery approved for this device.

Normal batteries may not be recharged. Batteries must not be reactivated by other means, not taken apart, heated or thrown into an open fire (danger of explosion!).

Clean battery contacts and device contacts before inserting.

If the rechargeable battery is inserted incorrectly, there is a danger of explosion!

Replace only with rechargeable batteries of the correct type and model number

Caution! Do not expose batteries to extreme conditions.

Do not place them on radiators, or expose them to direct sunlight.

Leaking or damaged batteries can cause burns if they come into contact with the skin. In this case use suitable protective gloves. Clean the battery compartment with a dry cloth.

Remove the battery if the device will not be used for a long time.

3.2.2 Disposal

The device packaging is exclusively comprised of recyclable materials. Please sort the components appropriately, and dispose of them in line with your local waste disposal regulations. At the end of its service life, this device must not be disposed of with your regular household waste. It must be taken to a recycling collection point for electrical and electronic equipment.

This is indicated by the symbol on the product, the instruction manual or the packaging.

The materials are recyclable according to their identification.

An important contribution is made to our environment by recycling, recovery of materials or other kinds of recycling for old devices.

Please ask local authorities for the location of the relevant disposal point. Ensure that used batteries/rechargeable batteries as well as electronic waste are not disposed of with domestic waste, but are properly disposed of (returned to the specialist shop, hazardous waste).

Batteries/rechargeable batteries may contain poisonous substances which cause harm to health and the environment. Batteries/rechargeable batteries are subject to European Directive 2006/66/EC. They must not be disposed of with normal domestic waste.

Disposal instructions:

Disposal of packaging:

Your new device was protected by packaging on its way to you. All materials used are environmentally friendly and recyclable. Please collaborate and dispose of the packaging in an environmentally-friendly way. Ask for information from your dealer regarding current disposal means or your local disposal facility.

Risk of suffocation! Do not give packaging and parts thereof to children. Risk of suffocation by films and other packaging materials.

Device disposal:

Old devices constitute valuable waste. Valuable raw materials can be recovered through environmentally-friendly disposal. Consult your town or local authority as to the possibilities for environmentally-friendly and proper disposal of the device. Prior to disposal of the device, remove the batteries/rechargeable batteries contained therein.

This device is identified in accordance with the Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU.

At the end of its service life, this device must not be disposed of with your regular household waste. It must be taken to a recycling collection point for electrical and electronic equipment. The symbol on the product, the operating manual or the packaging indicates this. The materials are recyclable according to their identification. An important contribution is made to our environment by recycling, recovery of materials or other kinds of recycling for old devices.

Important information for the disposal of batteries/rechargeable batteries: Batteries/rechargeable batteries may contain poisonous substances which harm the environment. Therefore you must always comply with applicable statutory provisions when you dispose of batteries/rechargeable batteries. Never dispose of batteries in normal household waste. Used batteries/rechargeable batteries can be disposed of at your specialist retailer or at special disposal sites free of charge.

3.2.3 Legal notices

TechniSat hereby declares that the DIGITRADIO 2 and DIGITRADIO 2 S radio equipment comply with Directive 2014/53 / EU. The complete text of the EU Declaration of Conformity is available at the following web address:

DIGITRADIO 2: http://konf.tsat.de/?ID=11932

TechniSat accepts no liability for product damage as a result of external influences, wear or improper handling, unauthorised repairs, modifications or accidents.

Changes and printing errors reserved. Version 02/19. Copying and reproduction are subject to the publisher's consent. The respective current version of the manual can be obtained in PDF format in the download area of the TechniSat homepage at www.technisat.de.

DIGITRADIO 2, DIGITRADIO 2 S and TechniSat are registered trademarks of:

D-54550 Daun/Eifel, Germany

www.technisat.de

3.2.4 Service instructions

This product is quality-tested and provided with the legal warranty period of 24 months as from the date of purchase. Please keep your receipt as proof of purchase. In the event of warranty claims please contact the product dealer.

Note!

Should you experience a problem with this device, or for queries and information, our Technical Hotline is available:

Mon. - Fri. 8:00 am - 8:00 pm on tel.:

[phone].

If the device needs to be sent back, please use the following address only:

39418 Stassfurt, Germany

The names of the companies, institutions or makes referred to are trademarks or registered trademarks of the respective owners.

4 Setting up the device

Place the device on a firm, secure and horizontal base. Make sure the area is well ventilated.

Caution!

Do not place the radio on soft surfaces such as carpets and blankets or near to curtains and wall hangings. These could obstruct the ventilation openings. The necessary flow of air could be interrupted as a result. This could potentially lead to fire in the device.
Do not place the device near to sources of heat, such as radiators. Avoid direct sunlight and very dusty environments.
Do not select a location for the device with high air humidity, e.g. a kitchen or sauna, as the precipitation of condensation water could damage the device. The device is intended for use in a dry environment and in a moderate climate and must not be exposed to dripping or splashing water.

Please note that the device footings could leave coloured marks on some types of furniture surfaces in certain situations. Place a protective layer between your furniture and the device.
Keep the DIGITRADIO away from devices which emit intense magnetic fields.
Do not place any heavy objects on the device.
If you move the device from a cold environment to a hot environment, moisture could accumulate inside the device. In this case, wait approximately one hour before putting it into operation.
Lay the mains cable in such a way that nobody can trip over it.
Ensure that the mains cable or the power supply unit are always easily accessible so that the device can be quickly disconnected from the power supply.
The power outlet should be as close to the device as possible.
Insert the plug fully into the socket to ensure connection to the mains.
Use a suitable, easy-to-access mains connection and avoid using multiple socket strips.
Do not touch the mains plug with wet hands; electric shock hazard.

In the event of a malfunction or the detection of smoke or odour from the housing, remove the plug from the power outlet immediately.
Remove the plug if the device is not going to be used for a prolonged period, e.g. before going away on a long trip.
If the device is not to be used for a long time, remove the battery.
Excessive volume, in particular when using headphones, can damage hearing.

5 Description of the DIGITRADIO

5.1 Scope of delivery

Before start-up, please check whether everything has been delivered.

1xDIGITRADIO
1 x rechargeable battery
1 x power supply unit
1 x instruction manual

5.2 Special features of the DIGITRADIO

The DIGITRADIO is comprised of a DAB+/FM receiver with the following functions:

• You can store up to 20 DAB+ and 20 FM stations.
• The radio receives on the FM 87.5-108 MHz (analogue) frequencies and DAB+ 174.9-239.2 MHz (digital).
• The device has a time and date display.
• One-touch button.
• Rechargeable battery.
• Music playback via a Bluetooth connection

5.3 Preparing the DIGITRADIO 2 S for operation

5.3.1 Insert the battery (using the DIGITRADIO 2 S as an example)

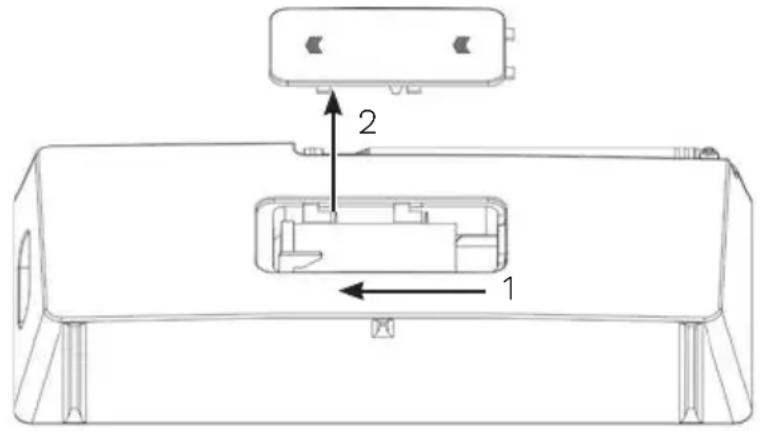

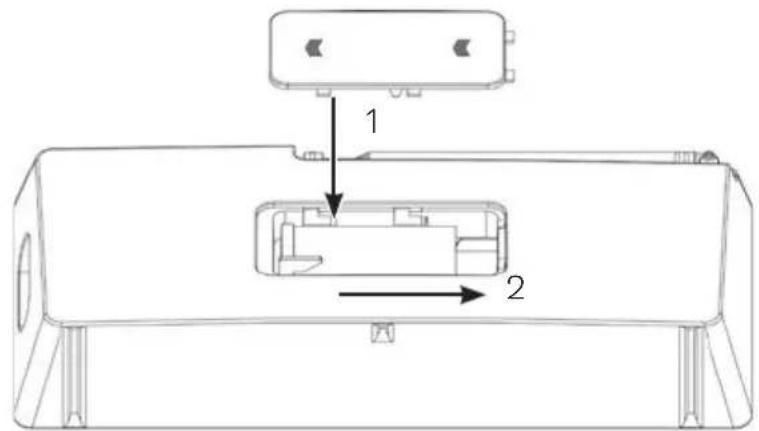

Open the battery compartment on the rear of the device by pushing the battery compartment lid in the direction of the arrow (1). Then remove the lid (2).

Insert the battery of the DIGITRADIO observing the alignment of the gold contacts with each other. To do this, push it under the plastic guide inside the battery compartment.

The rechargeable battery for the DIGITRADIO can also be bought separately in stores.

Place the battery compartment lid onto the battery compartment (1) and slide it in the opposite direction to the arrow until it clicks into place (2).

The battery is charged as soon as the device is connected to the mains. The charge status is shown on the display with a battery symbol.

Replace a rechargeable battery that is weak in good time or recharge it.

100

5.3.2 Connecting the power supply unit

To do this, connect the mini USB plug on the power supply unit included with the DC IN jack labelled on the side of the DIGITRADIO. Then connect the power supply unit to the mains supply.

Ensure that the operating voltage of the power supply unit matches the mains voltage before you insert it into the wall socket.

After establishing the mains connection for the first time "TechniSat Digital Radio" appears on the display. You can then select the operating language. To do this, select one of the available languages using the keys and confirm the selection by pressing the OK key. A channel search is then performed via DAB+ for the first time. Please refer to the information in Section 5.4.1.

5.3.3 Aligning the telescopic antenna

The number and quality of the stations to be received depend on the reception conditions at the installation location. Excellent reception can be achieved with the telescopic antenna.

Align the telescopic antenna and extend it.

The exact alignment of the telescopic antenna is often important, in particular on the outskirts of the DAB+ reception area. On the Internet you can quickly locate the location of the nearest transmission tower by visiting "www.dabplus.de".

• Start the first scan at a window in the direction of the transmission mast. The weather conditions are poor, DAB+ reception may be limited.

Do not touch the telescopic antenna during station playback. This could compromise the reception and lead to sound dropouts.

5.3.4 Using headphones

Hearing impairment!

Do not listen to the radio at high volume with headphones. Doing so can cause permanent hearing impairment. Turn down the radio volume to the lowest volume before using headphones.

Only use headphones with a 3.5 mm jack plug.

Insert the headphone plug into the headphone jack on the rear of the device. Sound will now only be heard via the headphones, the speaker is switched to mute.
If you would like to use the speakers again, unplug the headphones from the headphone jack on the radio.

If you want to set the maximum volume, shortly before reaching the maximum possible volume, a message appears [Attention! High volume! OK?]. Confirm the message by pressing the OK button. Then you can adjust the volume to the maximum possible. The setting is saved until you turn the device off/on again.

5.4 General device functions

5.4.1 Switching on the device

In order to guarantee good DAB+/FM reception, please fully extend the antenna located on the rear of the device. To do so, please refer to Section 5.3.3.
First prepare the DIGITRADIO for operation as described in sections 5.3.1 and 5.3.2.
Press the On / Standby button on the top of the unit to turn on the DIGITRADIO 2.

After switching on the device for the first time, you must first set the [Language]. To do this, select one of the available languages using the < or > keys and confirm the selection by pressing the OK key. The device then automatically performs a full channel search in DAB+ mode. While scanning, the display information shows the progress as well as the number of digital radio stations detected. After completing the station scan the first DAB+ channel is played.

5.4.2 Switching off the device

With mains operation:

By briefly pressing the On / Standby button you can switch the device to standby mode. [Standby] appears briefly on the display. The date and time are shown on the display. The display brightness in standby mode can be adjusted by following the instructions in Section 12.2.
Pressing and holding the On / Standby button will put the device in power-saving mode and the display will go off. [Power off] appears briefly on the display.

The battery will also charge in standby or low power mode.

In battery mode

In battery mode, the unit is always switched off by pressing the On / Standby button. [Power off] appears briefly on the display. In this case, there is no date and time display.
i Standby mode is not available on battery power.

5.4.3 Changing to DAB+/FM/Bluetooth mode

Press the MODE button to switch between DAB+ (Digital Radio), FM and Bluetooth.

5.4.4 Adjusting the volume

Adjust the volume with the Volume +/- button. The set volume is shown on the display by way of a bar chart. Also refer to Section 5.3.4 for operation when headphones are connected.

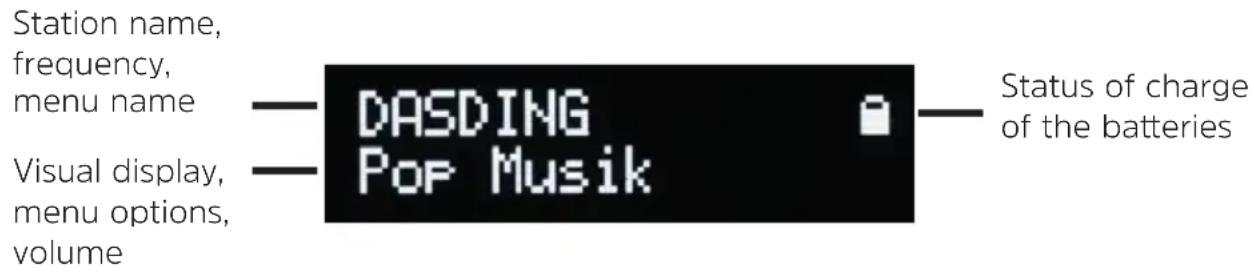

5.4.5 Display

Depending on the selected function or option, the display will show the following information:

5.4.6 Retrieving displays

Press the MENU button and use the < or > buttons to select the [Display] submenu. Then press the OK button. Use the <,> and OK buttons to select a display option. You have the choice of viewing the following information:

In DAB+ mode (the selected function is identified with an " ^ 串 "

[Running text] (continuous text with additional information provided by broadcasters etc.), [Signal intensity], [Channel type], [Ensemble], [Frequency], [Signal quality], [Bit rate and Codec], [Time] and [Date].

In FM mode (the selected function is identified with an *":

[Radio text] (if transmitted), [Channel type] (PTY), [Ps] (Programme Service Name or Station Name or Frequency), [Audio Information], [Time] and [Date].

In Bluetooth mode (the selected function is identified with an *):

[Status] (device name), [time] and [date].

Press the MENU button to exit the setting again and to return to the play view.

The display can also be changed by briefly holding down the one-touch button.

6 Menu operation

The menu takes you to all functions and settings of the DIGITRADIO. Menu navigation is carried out with the MENU, <,> and OK buttons. The menu is divided into submenus and contains different menu items or activatable functions depending on the mode (DAB+ or FM). To open the menu, simply press the MENU button briefly. To switch to submenus, first press the < or > buttons to display a submenu, then press the OK button to access thesubmenu. An asterisk (*) highlights the current selection.

To close the menu: Press the MENU button several times (depending on which submenu you are in) until the current radio channel is displayed again.

Settings are not saved until the OK button is pressed. If the MENU button is pressed instead of this, the settings are not accepted or saved (the MENU button in this case acts as a "Back" button).

The functions and buttons to be pressed are shown in bold in this instruction manual. Displays in [square brackets].
Some text (e.g. menu items, station information) may be too long to show on the display. These will be then shown as running text shortly thereafter.

7 DAB+ (digital radio) function

7.1 What is DAB+?

DAB+ is a new digital format through which crystal clear sound with no noise can be heard. In contrast to conventional analogue radio stations, DAB+ can be used to broadcast multiple stations on one and the same frequency. This is referred to as an ensemble or multiplex. An ensemble is comprised of the radio station, as well as several service components or data services, which are broadcast individually by the radio stations. For further information go to www.dabplus.de or www.dabplus.ch.

7.1.1 Data compression

With this, digital radio takes advantage of the properties of human hearing. The human ear does not perceive sounds which are found under a specific minimum volume. Data which are found under the so-called audibility threshold can, therefore, be filtered out. This is possible because, in a digital data stream, the relevant relative volume for other units is saved for every unit of information. Moreover, in an audio signal, the quieter parts are superimposed by louder ones at a specific limit value. All the sound information below the threshold of hearing in a piece of music can be filtered out of the signal to be broadcast. This leads to a reduction of data in the data stream to be transmitted, with no perceptible difference in sound for the listener (HE AAC v2 process as a supplementary codification process for DAB+).

7.1.2 Audio stream

With digital radio, audio streams are continuous data streams which contain the MPEG 1 audio layer 2 frames and thereby represent acoustic information. This enables standard radio channels to be broadcast and listened to on the receiver side. Digital radio provides you not only with excellent sound quality radio but also additional information. This may refer to the programme being broadcast or be independent information (e.g. news, weather, traffic, tips).

7.2 DAB+ (digital radio) reception

Press the MODE button until [DAB] is shown on the display.

If DAB+ is being started for the first time, a complete scan will be performed. After the scan is complete, the first station is played back in alphanumeric order.

7.2.1 Performing a complete scan

The automatic scan (Complete scan) scans all DAB+ band III channels and thereby finds all stations being broadcast within the reception area.

After the scan is complete, the first station is played back in alphanumeric order.

In order to perform a complete scan, open the menu by pressing the MENU button and use the <,> and OK buttons to select the menu item [Complete Scan].

[Scanning...] appears on the display.

During the scan a progress bar and the number of stations found is displayed.

If no station is detected, check the telescopic antenna and, if required, change the installation location (Section 5.3.3 / 3.2.1).

7.2.2 Selecting stations

By pressing the buttons, the station list can be called up and you can switch between the available stations.

Depending on the setting under MENU > Change channel, the OK button must then be pressed to play the selected station (alternatively: Channel change > List) or the station will be played automatically (alternatively: Change channel > Channel).

7.2.3 Storing DAB+ stations on a memory slot

The programme memory can save up to 20 stations in the DAB+ range.

First select the desired station (see section 7.2.2).
In order to store this station on a memory slot, keep the FAV button pressed while playing. Then use the <,> buttons to select a station memory slot (1 - 20). Press the OK button to save.
Repeat this process to save additional stations.

The station which has been stored in the FAV memory slot 1 can also be called up via the one-touch button.

7.2.4 Retrieving DAB+ stations from a memory slot

To retrieve a station that you have stored in the FAV memory slots, briefly press the FAV button and select a station slot (1 - 20) using the , buttons. Press the OK button to play the station.

If no station is saved on the selected station slot, [(empty)] appears on the display.

7.2.5 Overwriting/deleting a station memory slot

Simply save a new station to a favourite memory slot as described.

When retrieving the factory settings all memory slots are deleted.

7.2.6 Signal strength

Briefly press the MENU button, use the < or > buttons to select the [Display] item and press the OK button.

Use the < or > buttons to select the [Signal strength] item and press OK.
Exit the menu by pressing the MENU button several times.
The display shows the signal strength using a bar graph.

Stations with a signal strength below the required minimum signal intensity are not transmitting a strong enough signal. Align the telescopic antenna as described in section 5.3.3 if required.

7.2.7 Manual setting

This menu item is used to check the reception channels and can be used to position the antenna.

Briefly press the MENU button, use the < or > buttons to select the [Set manually] item and press the OK button.
Use the < or > and OK buttons to select a channel (5A to 13F). The signal strength will now be shown on the display. If a DAB+ station is being received on a channel, the station ensemble name is displayed. The antenna can now be aligned to the maximum signal intensity.

Stations with a signal strength below the required minimum signal intensity are not transmitting a strong enough signal. Align the telescopic antenna as described in section 5.3.3 if required.

7.2.8 Volume adjustment (DRC)

The Volume Adjustment menu item is used to set the compression rate, which compensates for dynamic fluctuations and the associated volume variations.

Hold down the MENU button and use the < or > buttons to select the [Volume Adjustment] item.
Press the OK button.
Select the compression rate using t or u

DRC high - High compression

DRC low - Low compression

DRC off - Compression switched off.

Confirm by pressing the OK button.

7.2.9 Deleting inactive stations

This menu item is for removing old stations and those no longer being received from the station list.

Hold down the MENU button and use the < or > buttons to select the [Delete inactive stations] item.
Press the OK button.

This is followed by the [Delete] prompt asking if the inactive stations are to be deleted.

Use < or > to select [Yes] and confirm by pressing the OK button.

8 FM mode

8.1 Switching on FM radio mode

Switch to FM mode by pressing the MODE button.
[FM] is shown on the display.

When switching on for the first time, the frequency 87.5 MHz is set.

If you have already set or saved a station, the radio plays the last station set.

In the case of RDS stations, the station name appears.
Align the telescopic antenna to improve reception (Section 5.3.3).

8.2 FM reception with RDS information

RDS is a procedure for broadcasting additional information via FM stations. Broadcasters with RDS broadcast their station name or the programme type, for example. This is shown on the display. The device can show the RDS information RT (Radio text), PS (Station name), PTY (Programme type).

8.3 Automatic station scan

Hold down the < or > buttons for longer (2 to 3 sec.), in order to automatically search for the next station with a sufficient signal.
Alternatively, you can press the OK button.

If an FM station with sufficient signal intensity is found, the scan stops and the station is played. If an RDS station is being received, the station name appears and, possibly, radio text.

Please use the manual station scan for setting weaker stations.

8.4 Manual station scan

Briefly press the < or buttons repeatedly to set the desired stations or frequency.

The display shows the frequency in increments of 0.05 MHz.

8.5 Scan setting

In this menu item it is possible to set the sensitivity of the scan.

Press the MENU button and use the < or > buttons to select the [Search settings] item, then press the OK button.

Select whether the scan should only stop for stations with a strong signal [Strong Stations Only] or for all stations (including stations with a weak signal) [All Stations].

With the All Stations setting the scan stops automatically upon detecting each available station. This can result in weak stations being played with background noise.

8.6 Audio settings

Hold down the MENU button and use the < or > buttons to select the [Audio settings] item.
Press the OK button.
Use < or > to select the [Stereo available] or [Mono only] item to play back in stereo or only in mono sound when the FM reception is weak.
Confirm by pressing the OK button.

8.7 Saving FM stations to a memory slot

The station memory can save up to 20 stations in the FM range.

First set the desired station frequency (section 8.3,8.4).
In order to store this station on a memory slot, keep the FAV button pressed while playing. Then use the <,> buttons to select a station memory slot (1 - 20). Press the OK button to save.
Repeat this process to save additional stations.

The station which has been stored in the FAV memory slot 1 can also be called up via the one-touch button.

8.8 Retrieving FM stations from a memory slot

In order to retrieve a station that you have previously stored in the FAV memory, briefly press the FAV button and use the <,> buttons to select a station memory slot (1 - 20). Press the OK button to play the station.

If you have not saved a station to the selected station slot, [(empty)] appears on the display.

8.9 Overwriting/deleting a station memory slot

Simply save a new station to the respective memory slot as described.

When retrieving the factory settings all memory slots are deleted.

9 Bluetooth

In Bluetooth mode, you can enjoy music from a connected smartphone or tablet from the DIGITRADIO's speakers. For this purpose, the two devices must first be "paired" to each other.

9.1 Switching on Bluetooth mode

Change to Bluetooth mode by pressing the MODE button.
[Bluetooth] is shown on the display.

When switching on for the first time, an external device (smartphone / tablet) must first be paired.

If the radio has already been paired with another device which is within range, the connection is automatically established. Depending on the connected device, music playback may start automatically.

9.2 Pairing an external device

To pair an external device, for example a smartphone or tablet, with the DIGITRADIO, follow these steps:

Start Bluetooth mode as described in section 9.1.

The display will show [Bluetooth] and [Please pair].
Now start the search for Bluetooth devices nearby on your external device. You may need to enable the Bluetooth feature on your external device first.

Please refer to the operating instructions for your external device to activate the Bluetooth function and perform a search on your external device.

During the pairing process, both devices should be within 10cm of each other.

DIGITRADIO 2 or DIGITRADIO 2S should now appear in the list of found Bluetooth devices on your external device. Tap on the name of the radio to complete the pairing process. If the pairing process is successfully completed, a confirmation tone sounds from the DIGITRADIO's speaker.
Depending on the external device, its name now appears in the display of the DIGITRADIO. You can now start playing music on your external device.

Depending on the Bluetooth protocol of your external device, you can control the music playback using the DIGITRADIO's buttons. Press the OK button to pause or continue playback. Press the > button to move to the next track. Press the < button to play the current track again or press the button twice to skip to the previous track.

Playback / pause - Button OK

Next track -Button>

Previous track - 2x button <

Track from beginning - Button <

Volume

Button

volume + / -

Alternatively, you can use the playback control for the music app on your external device.

9.3 Cancel pairing

To cancel an active pairing, select MENU > Disconnect and press the OK button. Note that the device to be decoupled must be connected to the DIGITRADIO if you want to decouple it. Then you can pair a new device, as described in Section 9.2.

Alternatively, you can also cancel the pairing on your external device.

10 Sleep timer

The sleep timer automatically switches the DIGITRADIO to Standby (mains operation) or Off (battery power) after the set time.

Press the MENU button and use the < or > button to select [Sleep timer].
Press the OK button.
Use < or > to select a period after which the DIGITRADIO should switch off. You can choose between Off, 5, 10, 15, 30, 60 and 90 minutes.
Press the OK button to apply the setting.

If you would like to check the time left while the sleep timer is active, just open the Menu > Sleep timer again. If you want to switch off an active sleep timer, select Sleep timer > Off.

11 Equaliser

With the equaliser* you can adjust the sound in DAB and FM mode according to your wishes.

In DAB or FM mode, press the MENU button and use the < or > buttons to select [Equaliser].
Press the OK button.
Use < or > to select [Optimal] for a sound optimally tuned to the device, or [MyEQ ...] to set treble and bass manually. Press the OK button to accept the selection.

• Not available in Bluetooth mode.

11.1 MyEQ

Select Menu > Equaliser > MyEQ and press the OK button.
Use the < or > buttons to select either [Treble] to adjust the treble, or [Bass] to adjust the bass. Then press OK.
Use the < or > keys to set a value between -7 and +7. Press the OK button to apply the setting.

12 System settings

All the settings referred to under this item are equally applicable in DAB+ and FM mode.

12.1 Time and date settings

12.1.1 Manually setting the time/date

Depending on the setting for time updates (section 12.1.2), the time and date have to be set manually.

Press the MENU button and use the < or > button to select [Time].
Press the OK button.
Use the < or > buttons to select [Set Time / Date] and press OK.
The first digits (hours) flash and can be changed using the < or > buttons.

The button increases the value, the < button decreases the value.

Press the OK button to apply the setting.

The next time digits (minutes) start to flash and can again be changed as described above.
Press OK after every other setting in order to go to the next setting.
To set the date, proceed in the same way as described above.
After all settings have been done and the OK button pressed, [Time saved] appears on the display.

12.1.2 Time update

In this submenu, you can determine whether the time update should be done automatically via DAB+ or FM, or whether you wish to enter it manually (Section 12.1.1).

Press the MENU button and use the < or > button to select [Time].
Press the OK button.
Use the < or > buttons to select [Set Time] and press OK.
Select the following options using the < or > and OK buttons:

[All sources] (Update via DAB+ and FM)

[Update from DAB] (Update via DAB+ only)

[Update from FM] (Update via FM only)

[No update] (Time/date must be entered manually, see Section 12.1.1).

12.1.3 Setting the time format

In the Set 12/24 hrs. submenu you can activate the 12- or 24-hour format.

Press the MENU button and use the < or > buttons to select [Time].
Press the OK button.
Use the < or > buttons to select [12/24 hrs.] and press OK.
Use the < or > buttons to select one of the following options:

[Set 24 hrs.]

[Set 12 hrs.]

Press the OK button to confirm.

12.1.4 Setting the date format

In the Set Date Format submenu you can determine the format for displaying the date.

Press the MENU button and use the < or > button to select [Time].
Press the OK button.
Using the < or > buttons, select [Set Date Format] and press OK.
Use the < or > buttons to select one of the following options:

[DD-MM-YYYY] (day, month, year)

[MM-DD-YYYY] (month, day, year)

Press the OK button to confirm.

12.2 Display brightness

You can set the display brightness for both operation and standby (only available when the radio is connected to mains power).

To do so, press the MENU button and use the < or > button to select [Brightness].
Press the OK button.
Select one of the following functions using the < or > buttons, then press the OK button:

[Operation] regulates brightness in normal operating status. You can choose from the [High], [Medium] and [Low] brightness intensities. Use the < or > buttons to select a brightness level and press the OK button to save. The setting applies to both mains operation and battery power.

[Standby] regulates the brightness in standby mode (only relevant if the radio is connected to the mains). You can choose from the [High], [Medium] and [Low] brightness intensities. Using the < or > buttons, select a brightness intensity and press the OK button to save.

[Auto Dim] dims the display automatically (with the option [On] selected) to the Low brightness value after 10 seconds without operating the radio.

When the [Off] option is selected, the display will be permanently lit with the brightness selected under [Operation]. Press the OK button to apply the setting.

For battery power, only the Operation and Auto-Dimming settings are relevant. Standby mode (after switching off, the date and time are shown in the display) is only available when the device is connected to the mains.

12.3 Language

Press the MENU button and use the < or > button to select [Language].
Press the OK button.
Using the < or > buttons, select one of the available languages and confirm by pressing the OK button.

12.4 Factory setting

If you change the location of the device, e.g. when moving house, it is possible that the saved stations can no longer be received. In this case you can reset the device to factory settings to delete all the saved stations and then launch a new scan.

Hold down the MENU button and use the < or > buttons to select the [Factory settings] item. Press the OK button.
Using the < or > buttons, select the [Yes] item to reset to the factory setting and press the OK button.

All previously stored stations and settings will now be deleted. The device is now in the same status as when delivered.

The display will show [Restart ...] and the device will start with the language selection [Language]. Select one of the available languages using the < or > buttons and confirm the selection by pressing the OK button. Subsequently, the device performs a channel search in DAB+ mode. While scanning, the display information shows the progress as well as the number of digital radio stations detected. After completing the station scan the first DAB+ channel is played.

12.5 Software version

Under SW Version you can retrieve the currently installed software version.

Press the MENU button and use the < or > buttons to select [SW Version].
Press the OK button. The current SW version is displayed.

13 Cleaning

To prevent the risk of an electric shock, you may not clean the device using a wet cloth or under running water. Prior to cleaning, pull out the mains plug and switch off the device.

You may not use scouring pads, scouring powder and solvents such as alcohol or petrol.

Do not use any of the following substances: saltwater, insecticide, chlorine-based or acidic solvents (ammonium chloride).

Clean the housing using a soft, moist cloth. Do not use spirit, thinners, etc.; you could damage the surface of the device.

Only clean the display with a soft, cotton cloth. If required, use a cotton cloth with small amounts of non-alkaline, diluted, water or alcohol-based soap solution.

Gently clean the surface using the cotton cloth.

14 Troubleshooting

If the device does not operate as intended, check the following table for information.

Symptom Possible cause/remedy
The device cannot be switched on.	The device is not being supplied with power. Connect the power supply unit correctly to the socket and to the device. Charge the battery.
No sound can be heard. Increase the volume.
The display does not switch on.	connect the device from the mains supply, remove the battery and reconnect the device to the mains.
Poor reception via DAB+/FM. Extend	the antenna. Change the position of the antenna or the DIGITRADIO.
The device cannot be operated. Disconnect the device from the mains supply, remove the battery and reconnect the device to the mains.
Bad Bluetooth connection and dropouts	Do not exceed the maximum range for Bluetooth of 10m.

If the malfunction has not been resolved, even after performing the checks described, please contact the Technical Hotline.

15 Technical specifications / manufacturer's instructions

Subject to technical changes and errors.

Reception channels DAB/DAB+, FM, Bluetooth
power supply AC Input: 100-240V, 50 / 60HzDC Output: 5V, 2A (DIGITRADIO 2S)DC output: 5V, 1A (DIGITRADIO 2)
Battery 3.7V / 1050 mAh Li-Ion, charging currentmax. 500 mABattery life up to 10 hours (speaker at medium volume)
Frequencies FM: 87.5-108 MHz	DAB/DAB+: 174-240 MHz Bluetooth (V4.1): 2.402-2.480 GHz Transmission power: Class 2 / max. +4 dBm
Display OLED
Power consumption max. operation: 9W (DIGITRADIO 2 S with power supply and battery charge), 8W (DIGITRADIO 2 with power supply and battery charge) typical during operation: 1W (50% volume, without battery charge) Standby: <0.5 W Power off: <0.4 W Battery operation, power off: <0.3 mW
Audio output performance 2x1W RMS DIGITRADIO 2S 1W RMS DIGITRADIO 2
Weight 464g DIGITRADIO 2S	365g DIGITRADIO 2
Dimensions (WxHxD) mm 245 x 109 x 47 D	DIGITRADIO 2 S 175 x 109 x 47 DIGITRADIO 2

Mode d'emploi

DIGITRADIO 2

DIGITRADIO 2 S

TechniSat

1 Illustrations

Risque de léssions auditives!

Lecture/Pause - Touche OK

3.2.4 Service-instructions

7.2.8 Volume regelen (DRC)
