Product type	Built-in electric oven
Brand	Whirlpool
Model	W7 OM4 4S1 P WH
Energy class	A+
Usable capacity	70 L
Dimensions (H x W x D)	595 x 595 x 568 mm
Net weight	35 kg
Power supply	230 V ~ 50/60 Hz, 16 A (adjustable to 13 A)
Maximum power	3.5 kW
Cleaning type	Pyrolysis (Pyro and Pyro Eco cycles)
Number of functions	More than 15 cooking functions including 6th Sense, Cook4, Fan forced, Hot air, Turbo grill, etc.
Removable door	Yes, with hinge removal
Lighting bulb	Halogen 20-40 W, type G9, T300°C
Meat probe	Yes (integrated on some models)
Sliding grills	Available as an option
Number of shelf levels	5
6th Sense function	Automatic cooking of many dishes
Multi-level cooking	Up to 4 simultaneous levels (Cook4)
Safety	Key lock, door locked during pyrolysis, automatic shut-off
Included accessories	Metal grill, drip tray, baking tray, meat probe (depending on model)

Frequently Asked Questions - W7 OM4 4S1 P WH WHIRLPOOL

How to set the language and time on first use?

When first powered on, the screen displays English. Use the + or - buttons to scroll through languages, then confirm with √. Then set the energy consumption (16 A by default, switch to 13 A if needed), then set the time by pressing + or - for hours and minutes, confirming at each step.

How to use the pyrolysis cleaning function?

Remove all accessories (grills, drip tray, etc.) and close the door. Press the icon to access Pyro, select the full cycle or Pyro Eco, optionally set a delayed end time, then press ▶. The door locks automatically. After the cycle, the door remains locked until the internal temperature has dropped to a safe level.

How to use the meat probe?

Insert the probe deeply into the meat avoiding bones and fatty parts. Plug the connector into the socket on the right side of the cavity. Select a compatible function (e.g. Convection, Fan forced, Turbo Grill). The screen will ask you to set the target probe temperature. Cooking stops automatically when this temperature is reached. You cannot program a duration or delayed start with the probe.

What to do if an error code 'F' followed by a number appears?

This indicates an oven malfunction. Turn off and on the appliance to check if the problem persists. Try resetting the oven via the SETTINGS menu by selecting RESET. Note the number after 'F' and contact the After-Sales Service.

How to replace the oven bulb?

Unplug the oven. Unscrew the bulb cover located at the top of the cavity. Replace the bulb with a halogen bulb 20-40 W / 230 V, type G9, rated up to 300°C. Do not touch the bulb with bare hands. Screw the cover back on and plug the appliance back in.

How to remove and refit the oven door?

Open the door fully, then push down the two hinge levers to the unlocked position. Close the door almost completely, hold it firmly with both hands (not by the handle) and lift it upwards to detach it. To refit, align the hooks onto their supports, lower the door, open it fully, and raise the levers to the locked position.

Why is the oven not heating?

Check that DEMO mode is not active (it disables heating). Go to the SETTINGS menu and make sure DEMO is set to Off. Also check that the electrical supply is sufficient (home network above 3 kW, otherwise switch to low power 13 A in settings).

Can I use the oven immediately after purchase?

Before first cooking, it is recommended to heat the empty oven at 200°C for about one hour with a fan-assisted function (e.g. Fan forced) to eliminate manufacturing odors. Ventilate the room well after use.

How to set a delayed start?

After selecting a function and setting the cooking duration, the screen displays the end time. Use the + or - buttons to set the time you want the cooking to finish, then confirm with √. The oven starts automatically so that cooking is ready at the chosen time. Note that preheating is not active in delayed start mode.

How to save a favorite function?

After using a function, the screen offers to save it. Press √, then choose a number between 1 and 10 with the + or - buttons and confirm. To use a favorite, press the FAVORITE icon, select the desired number, then press ▶.

USER MANUAL W7 OM4 4S1 P WH WHIRLPOOL

1. Control panel
   2.Fan
2. Circular heating element (not visible)
3. Shelf guides (the level is indicated on the front of the oven)
4. Door
5. Upper heating element/grill
6. Lamp
7. Meat probe insert point
8. Identification plate (do not remove)
9. Lower heating element (not visible)

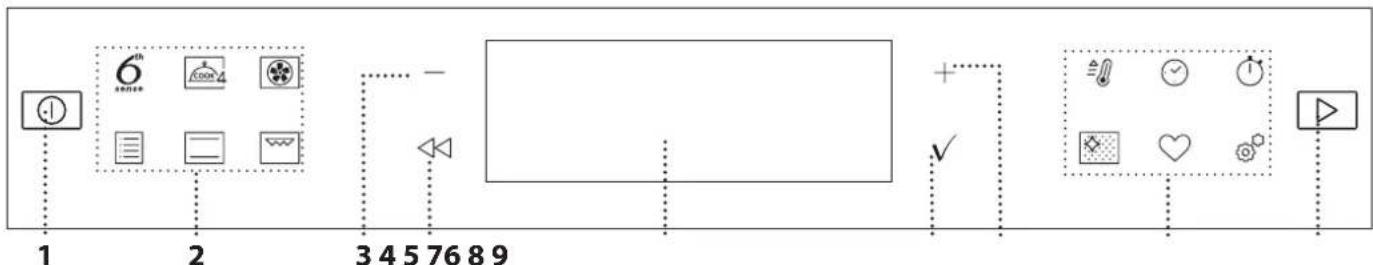

CONTROL PANEL DESCRIPTION

1. ON/OFF

For switching the oven on and off and for stopping an active function.

1. FUNCTIONS DIRECT ACCESS

For quick access to the functions and menu.

1. NAVIGATION BUTTON MINUS

For scrolling through a menu and decreasing the settings or values of a function.

1. BACK

For returning to the previous screen.

During cooking, allows settings to be changed.

1. DISPLAY

2. CONFIRM

For confirming a selected function or a set value.

1. NAVIGATION BUTTON PLUS

For scrolling through a menu and increasing the settings or values of a function.

8 OPTIONS / FUNCTIONS DIRECT ACCESS

For quick access to the functions, duration, settings and favorites.

1. START

For starting a function using the specified or basic settings.

ACCESSIONS

Use to cook food or as a support for pans, cake tins and other ovenproof items of cookware.

Use as an oven tray for cooking meat, fish, vegetables, focaccia, etc. or position underneath the wire shelf to collect cooking juices.

Use for cooking all bread and pastry products, but also for roasts, fish en papillotte, etc.

To facilitate inserting or removing accessories.

MEAT PROBE*

To measure the core temperature of food during cooking.

• Available only on certain models

The number and the type of accessories may vary depending on which model is purchased.

Other accessories can be purchased separately from the After-sales Service.

INSERTING THE WIRE SHELF AND OTHER ACCESSORIES

Insert the wire shelf horizontally by sliding it across the shelf guides, making sure that the side with the raised edge is facing upwards.

Other accessories, such as the drip tray and the baking tray, are inserted horizontally in the same way as the wire shelf.

REMOVING AND REFITTING THE SHELF GUIDES

• To remove the shelf guides, lift the guides up and then gently pull the lower part out of its seating: The shelf guides can now be removed.
• To refit the shelf guides, first fit them back into their upper seating. Keeping them held up, slide them into the cooking compartment, then lower them into position in the lower seating.

FITTING THE SLIDING RUNNERS (IF PRESENT)

Remove the shelf guides from the oven and remove the protective plastic from the sliding runners.

Fasten the upper clip of the runner to the shelf guide and slide it along as far as it will go. Lower the other clip into position.

To secure the guide, press the lower portion of the clip firmly against the shelf guide. Make sure that the runners can move freely. Repeat these steps on the other shelf guide on the same level.

Please note: The sliding runners can be fitted on any level.

USING THE MEATPROBE (IF PRESENT)

Insert the food probe deep into the meat, avoiding bones or fatty areas. For poultry, insert the probe lengthways into the centre of the breast, avoiding hollow areas.

Place the food in the oven and connect the plug by inserting it into the connection provided on the righthand side of the oven's cooking compartment.

FUNCTIONS

6^th SENSE

These allow a fully automatic cooking for all types of food (Lasagna, Meat, Fish, Vegetables, Cakes & Pastries, Salt cakes, Bread, Pizza).

To get the best from this function, follow the indications on the relative cooking table.

COOK 4

For cooking different foods that require the same cooking temperature on four levels at the same time. This function can be used to cook cookies, cakes, round pizzas (also frozen) and to prepare a complete meal. Follow the cooking table to obtain the best results.

FORCED AIR

For cooking different foods that require the same cooking temperature on several shelves (maximum three) at the same time. This function can be used to cook different foods without odours being transferred from one food to another.

TRADITIONALS

- CONVECT BAKE

For cooking meat, baking cakes with fillings on one shelf only.

TURBO GRILL

For roasting large joints of meat (legs, roast beef, chicken). We recommend using a drip tray to collect the cooking juices: Position the pan on any of the levels below the wire shelf and add 500ml of drinking water.

FROZEN BAKE

The function automatically selects the ideal cooking temperature and mode for 5 different types of ready frozen food. The oven does not have to be preheated.

SPECIAL FUNCTIONS

MAXI COOKING

The function automatically selects the best cooking mode and temperature to cook large joints of meat (above 2.5kg ). It is advisable to turn the meat over during cooking, to obtain even browning on both sides. It is best to baste the meat every now and again to prevent it from drying out.

RISING

For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

DEFROSTING

To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging to prevent it from drying out on the outside.

> KEEP WARM

For keeping just-cooked food hot and crisp.

ECO FORCED AIR

For cooking stuffed roasting joints and fillets of meat on a single shelf. Food is prevented from drying out excessively by gentle, intermittent air circulation. When this ECO function is in use, the light will remain switched off during cooking. To use the ECO cycle and therefore optimise power consumption, the oven door should not be opened until the food is completely cooked.

CONVENTIONAL

For cooking any kind of dish on one shelf only.

GRILL

For grilling steaks, kebabs and sausages, cooking vegetables au gratin or toasting bread. When grilling meat, we recommend using a drip tray to collect the cooking juices: Position the tray on any of the levels below the wire shelf and add 500ml of drinking water.

FAST PREHEAT

For preheating the oven quickly.

TIMERS

For editing function time values.

MINUTEMINDER

For keeping time without activating a function.

AUTOMATIC OVEN CLEANING - PYRO

For eliminating cooking spatters using a cycle at very high temperature. Two selfcleaning cycles are available: A complete cycle (Pyro) and a shorter cycle (Pyro Eco). We recommend using the quicker cycle at regular intervals and the complete cycle only when the oven is heavily soiled.

FAVORITE

For retrieving the list of 10 favorite functions.

SETTINGS

For adjusting the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1 minute. It will be reactivated automatically whenever any of the buttons are pressed.

When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this mode, access "DEMO" from " SETTINGS" menu and select "Off". By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.

Press to scroll through the list of available languages and select the one you require. Press to confirm your selection.

Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu, available by pressing .

2. SET THE POWER CONSUMPTION

The oven is programmed to consume a level of electrical power that is compatible with a domestic network that has a rating of more than 3kW (16): If your household uses a lower power, you will need to decrease this value (13).

Press or to select 16 "High" or 13 "Low" and press to confirm.

DAILYUSE

1. SELECT A FUNCTION

Press to switch on the oven: the display will show the last running main function or the main menu. The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu: To select an item from a menu (the display will show the first available item), press + or to select the desired one, then press to confirm.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing allows you to change the previous setting again.

TEMPERATURE / GRILL LEVEL

When the value flashes on the display, press to

3. SET THE TIME

After selecting the power, you will need to set the current time: The two digits for the hour will flash on the display.

Press to set the current hour and press : The two digits for the minutes will flash on the display. Press + or to set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in " SETTINGS" menu, available by pressing © .

4. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours. Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200^ for around one hour, ideally using a function with air circulation (e.g. "Forced Air" or "Convection Bake").

Please note: It is advisable to air the room after using the appliance for the first time.

change it, then press to confirm and continue with the settings that follow (if possible).

In the same way, it is possible to set the grill level: There are three defined power levels for grilling: 3 (high), 2 (mid), 1 (low).

Please note: Once the function has been activated, the temperature/grill level can be changed using + or -

DURATION

When the icon flashes on the display, press or + to set the cooking time you require and then press to confirm. You do not have to set the cooking time if you want to manage cooking manually (untimed): Press or to confirm and start the function. By selecting this mode, you cannot program a delayed start.

Please note: You can adjust the cooking time that has been set during cooking by pressing ⑦ : press or to amend it and then press to confirm.

END TIME (START DELAY)

In many functions, once you have set a cooking time you can delay starting the function by programming its end time. The display shows the end time while the icon flashes.

Press to set the time you want cooking to end, then press to confirm and activate the function. Place the food in the oven and close the door: The function will start automatically after the period of time that has been calculated in order for cooking to finish at the time you have set.

Please note: Programming a delayed cooking start time will disable the oven preheating phase: The oven will reach the temperature your require gradually, meaning that cooking times will be slightly longer than those listed in the cooking table. During the waiting time, you can press + or to amend the programmed end time or press to change other settings. By pressing , in order to visualize information, it is possible to switch between end time and duration.

.6^th SENSE

These functions automatically select the best cooking mode, temperature and duration to cook, roast or bake all the dishes available.

When required, simply indicate the characteristic of food to obtain an optimal result.

WEIGHT/HEIGHT (ROUND-TRAY-LAYERS)

To set the function correctly, follow the indications on the display, when prompted, and press + or to set the required value then press to confirm.

DONENESS/BROWNING

In some 6^th Sense functions it is possible to adjust the doneness level.

When prompted, press to select the desired level between rare (-1) and well done (+1). Press or to confirm and start the function.

In the same way, where allowed, in some 6^th Sense functions, it's possible to adjust the browning level between low (-1) and high (+1) .

3. START THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press to activate the function.

During the delay phase, press to skip this phase

and start the function immediately.

Please note: Once a function has been selected, the display will recommend the most suitable level for each function.

At any time you can stop the function that has been activated by pressing 0.

If the oven is hot and the function requires a specific maximum temperature, a message will shown on the display. Press to return to previous screen and select a different function or wait for a complete cooling.

4. PREHEATING

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature, requiring to "ADD FOOD". At this point, open the door, place the food in the oven, close the door and start cooking by pressing or

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it.

The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach using + or -

5. PAUSE COOKING / TURN OR CHECK FOOD

By opening the door, the cooking will be temporarily paused through deactivating heating elements.

To resume the cooking, close the door.

Some 6^th Sense functions will require the food to be turned during cooking.

An audible signal will sound and the display shows the action to be done. Open the door, do the action prompted by the display and close the door, then press l to continue cooking.

In the same way, at 10% of time before the end of cooking, the oven prompts you to check the food.

An audible signal will sound and the display shows the action to be done. Check the food, close the door and press or to continue cooking.

Please note: Press skip these actions. Otherwise, if no action is done after a certain time the oven will continue the cooking.

6.END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

Press to continue cooking in manual mode (untimed) or press + to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.

BROWNING

Some functions of the oven enable you to brown the surface of the food by activating the grill once cooking is complete.

When the display shows the relevant message, if required press to start a five-minute browning cycle. You can stop the function at any time by pressing 0 to switch the oven off.

. FAVORITES

Once cooking is complete the display will prompt you to save the function in a number between 1 and 10 on your list of favorites.

If you would like to save a function as a favorite and store the current settings for future use, press otherwise, to ignore the request press. Once has been pressed, press the qr to select the number position, then press to confirm.

Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.

To call up the functions you have saved at a later time, press : The display will show your list of favorite functions.

Press to select the function, confirm by pressing , and then press to activate.

AUTOMATIC CLEANING - PYRO

Do not touch the oven during the Pyro cycle. Keep children and animals away from the oven during and after (until the room has finished airing) running the Pyro cycle.

Remove all accessories - including shelf guides from the oven before activating the function. If the oven is installed below a hob, make sure that all the

burners or electric hotplates are switched off while running the selfcleaning cycle. For optimum cleaning results, remove excessive residuals inside the cavity and clean the inner door glass before using the Pyro function. We recommend onlwy running the Pyro function if the appliance contains heavy soiling or gives off bad odours during cooking.

Press to show "Pyro" on the display.

Press to select the desired cycle, then press to confirm. Once a cycle has been selected, if desired, press + or to set end time (start delay), then press to confirm.

Clean the door and remove all accessories as prompted, then close the door and press when done: the oven will begin the self-cleaning cycle, while the door locks automatically: a warning message appears on the display, along with a countdown indicating the status of the cycle in progress.

Once the cycle has been completed, the door remains locked until the temperature inside the oven has returned to a safe level.

. MINUTEMINDER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and press + or :The icon will flash on the display.

Press + or to set the length of time you require and then press to activate the timer.

An audible signal will sound and the display will indicate once the minuteminder has finished counting down the selected time.

Please note: The minuteminder does not activate any of the cooking cycles. Press + or to change the time set on the timer.

Once the minuteminder has been activated, you can also select and activate a function.

Press to switch on the oven and then select the function you require.

Once the function has started, the timer will continue to count down independently without interfering with the function itself.

Please note: During this phase, it isn't possible to see the minuteminder (only the icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press to stop the function that is currently active.

. KEYLOCK

To lock the keypad, press and hold for at least five seconds. Do this again to unlock the keypad.

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing 0.

. USING THE MEAT PROBE (IF PRESENT)

Using the probe enables you to measure the core temperature of the meat during cooking to ensure that it reaches the optimum temperature. The temperature of the oven varies according to the function that you have selected, but cooking is always programmed to finish once the specified temperature has been reached. Once you have inserted the probe, an audible signal is activated and "Probe Plugged" appears on the display.

Select the function you require from those that are

compatible (Conventional, Forced Air, Convection Bake, Turbogrill, Eco Forced Air, Maxi Cooking, 6^th Sense functions): The display prompts to set the target temperature of the probe: Press + or - to set it and press to set the following cooking parameters.

As cooking is programmed to finish once the required temperature has been reached, it is not possible to set the cooking time or set a specific time for cooking to end. The light will remain switched on until the probe is removed.

If the probe is removed during cooking, it will continue by the traditional mode (untimed).

An audible signal will sound and the display will indicate when the probe has reached the required temperature.

Please note: To change the settings subsequently, press for the probe temperature or press for other settings. An audible signal and a message will tell you if use of the probe is not compatible with the action done. If this is the case, remove the probe.

COOKING TABLE

FOOD CATEGORIES QUANTITY				TURN (OF COOK TIME)	LEVEL AND ACCESSORIES
LASAGNA - 0.5 - 3 kg-					2
MEAT	Beef-roasted	Roast (doneness 0) 0.6 - 2kg ** -			3
		Hamburgers (doneness 0)	1.5 - 3 cm 3/5		5 4
		Roast-Slow cooking (doneness 0)*	0.6 - 2 kg **		3
	Pork-roasted	Roast	0.6 - 2.5 kg **	-	3
		Shank *	0.5 - 2.0 kg **		3
		Sausages & wurstel	1.5 - 4 cm	2/3	5 4
	Veal-roasted *		0.6 - 2.5 kg **		3
	Lamb-roasted	Roast (doneness 0)*	0.6 - 2.5 kg **		2
		Leg (doneness 0)*	0.5 - 2.0 kg **		2
	Chicken-roasted	Whole	0.6 - 3 kg ** -		2
		Whole stuffed *	0.6 - 3 kg **		2
		Fillet & breast	1 - 5 cm	2/3	5 4
	Whole turkey-roasted	Whole *	0.6 - 3 kg **		2
		Whole stuffed *	0.6 - 3 kg **		2
	Kebabs		1 grid	1/2	5 4
FOOD CATEGORIES QUANTITY				TURNSOF COOK TIME)	LEVEL AND ACCESSORIES
FISH	Filletts 0.5 - 3 cm-				32
	Filletts-frozen 0.5 - 3 cm-				32
VEGETABLES	Vegetables-roasted	Potatoes 0.5 - 1.5 kg-			3
		Vegetables-stuffed 0.1 - 0.5 kg each-			3
		Vegetables-roasted 0.5 - 1.5 kg-			3
	Vegetables-gratin	Potatoes 1 tray-			3
		Tomatoes 1 tray-			3
		Peppers 1 tray-			3
		Broccoli	1 tray-		3
		Cauliflower	1 tray-		3
		Others	1 tray-		3
CAKES &PASTRIES	Rising cakes in tin	Sponge Cake	0.5 - 1.2 kg	-	3
	Pastries & filled pies	Cookies	0.2 - 0.6 kg-		3
		Choux pastry	1 tray-		3
		Tart	0.4 - 1.6kg	-	3
		Strudel	0.4 - 1.6kg	-	3
		Fruit filled pie	0.5 - 2 kg	-	3
QUICHES	-		0.8 - 1.2 kg	-	2
BREAD	Rolls		60 - 150 g each	-	3
	Sandwich Loaf in tin		400 - 600g each	-	2
	Big bread		0.5 - 2.0 kg	-	2
	Baguettes 200 - 300g each				3
PIZZA	Thin		round - tray	-	2
	Thick		round - tray	-	2
	Frozen		1 - 4 layers-		2
					42
					531
					5321

• Only in some models. Function available only in combination with the Meat probe.
  ** Suggested quantity.

ACCESSIONS

Wire shelf

Oven tray or cake tin on wire shelf

Drip tray / Baking tray or oven tray on wire shelf

Drip tray / Baking tray

Drip tray with 500ml of water

Meat probe (if supplied)

COOKING TABLE

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (MIN.)					SHELF AND ACCESSORIES
Leavened cakes / Sponge cakes		Yes 170 30 - 50		2
		Yes 160 30 - 50		2
		Yes 160 30 - 50		4	1
Filled cakes(chesecake, strudel, apple pie)		Yes	160 - 200	30 - 85	3
		Yes	160 - 200	35 - 90	4
		Yes 150 20 - 40		3
Cookies / Shortbread		Yes 140 30 - 50		4
		Yes 140	30 - 50		4
		Yes 135 40 - 60		5	3
Small cakes / Muffin		Yes 170 20 - 40		3
		Yes 150 30 - 50		4
		Yes 150 30 - 50		4	1
		Yes 150 40 - 60		5	3
Choux buns		Yes	180 - 200	30 - 40	3
		Yes	180 - 190	35 - 45	4
		Yes	180 - 190	35 - 45*	5
Meringues		Yes	90	110 - 150	3
		Yes	90	130 - 150	4
		Yes	90	140 - 160*	5
Pizza / Bread / Focaccia		Yes	190 - 250	15 - 50	2
		Yes	190 - 230	20 - 50	4
Pizza (Thin, thick, focaccia)		Yes	220 - 240	25 - 50*	5
		Yes	250 10 - 15		3
Frozen pizza		Yes	250 10 - 20		4
		Yes	220 - 240	15 - 30	5
Savoury pies(vegetable pie, quiche)		Yes	180 - 190	45 - 55	3
		Yes	180 - 190	45 - 60	4
		Yes	180 - 190	45 - 70*	5
Vols-au-vent / Puff pastry crackers		Yes	190 - 200	20 - 30	3
		Yes	180 - 190	20 - 40	4
		Yes	180 - 190	20 - 40*	5
Lasagna / Flans / Baked pasta/Cannelloni		Yes	190 - 200	45 - 65	3
Lamb / Veal / Beef / Pork 1 kg		Yes	190 - 200	80 - 110	3

FUNCTIONS

Conventional Forced air

Convection bake

Grill

TurboGrill

MaxiCooking

Cook 4

Eco Forced air

RECIPE FUNCTION PREHEAT TEMPERATURE (°C) DURATION (MIN.)					SHELF AND ACCESSORIES
Roast pork with crackling 2 kg - 170 110 - 150					2
Chicken / Rabbit / Duck 1 kg Yes 200 - 230	50 - 00				3
Turkey / Goose 3 kg Yes 190 - 200 80 - 130					2
Baked fish / en papillote (fillets, whole)		Yes 180 - 200	40 - 60		3
Stuffed vegetables (tomatoes, courgettes, aubergines)		Yes 180 - 200	50 - 60		2
Toast		-	3 (High)	3 - 6	5
Fish fillets / Steaks		-	2 (Mid)	20 - 30 **	4 3
Sausages / Kebabs / Spare ribs / Hamburgers		-	2 - 3 (Mid - High)	15 - 30 **	5 4
Roast chicken 1-1.3 kg		-	2 (Mid)	55 - 70 ***	2 1
Leg of lamb / Shanks		-	2 (Mid)	60 - 90 ***	3
Roast potatoes		-	2 (Mid)	35 - 55 ***	3
Vegetable gratin		-	3 (High)	10 - 25	3
Cookies	Cookies	Yes	135	50 - 70	5 4 3 1
Tarts	Tarts	Yes	170	50 - 70	5 3 2 1
Round pizzas	Pizza	Yes	210	40 - 60	5 3 2 1
Complete meal: Fruit tart (level 5) / lasagna (level 3) / meat (level 1)		Yes	190	40 - 120 *	5 3 1
Complete meal: Fruit tart (level 5) / roasted vegetables (level 4) / lasagna (level 2) / cuts of meat (level 1)		Yes	190	40 - 120 *	5 4 2 1
Lasagna & Meat		Yes	200	50 - 100 *	4 1
Meat & Potatoes		Yes	200	45 - 100 *	4 1
Fish & Vegetables		Yes	180	30 - 50 *	4 1
Stuffed roasting joints		-	200	80 - 120 *	3
Cuts of meat (rabbit, chicken, lamb)		-	200	50 - 100 *	3

• Estimated length of time: dishes can be removed from the oven at different times depending on personal preference.
  Turn food halfway through cooking.
  * Turn food two thirds of the way through cooking (if necessary).

HOW TO READ THE COOKING TABLE

The table lists the best function, accessories and level to use to cook different types of food. Cooking times start from the moment food is placed in the oven, excluding preheating (where required). Cooking temperatures and times are approximate and depend on the amount of food and the type of accessory used. Use the lowest recommended settings to begin with and, if the food is not cooked enough, then switch to higher settings. Use the accessories supplied and preferably darkcoloured metal cake tins and baking trays. You can also use Pyrex or stoneware pans and accessories, but bear in mind that cooking times will be slightly longer.

ACCESSIONS

Wire shelf

Oven tray or cake tin on wire shelf

Drip tray / Baking tray or oven tray on wire shelf

Drip tray / Baking tray

Drip tray with 500 ml of water

Meat probe (if supplied)

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

Wear protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Do not use corrosive or abrasive detergents. If any of these products inadvertently comes into contact with the surfaces of the appliance, clean immediately with a damp microfibre cloth.

INTERIOR SURFACES

• After every use, leave the oven to cool and then clean it, preferably while it is still warm, to remove any deposits or stains caused by food residues. To dry any condensation that has formed as a result of cooking foods with a high water content, let the oven to cool completely and then wipe it with a cloth or sponge.

• Clean the glass in the door with a suitable liquid detergent.

• The oven door can be removed to facilitate cleaning.

ACCESSIONS

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

REMOVING AND REFITTING THE DOOR

1. To remove the door, open it fully and lower the catches until they are in the unlock position.

1. Close the door as much as you can. Take a firm hold of the door with both hands - do not hold it by the handle.

Simply remove the door by continuing to close it while pulling it upwards at the same time until it is released from its seating. Put the door to one side, resting it on a soft surface.

1. Refit the door by moving it towards the oven, aligning the hooks of the hinges with their seating and securing the upper part onto its seating.
2. Lower the door and then open it fully. Lower the catches into their original position: Make sure that you lower them down completely.

Apply gentle pressure to check that the catches are in the correct position.

1. Try closing the door and check to make sure that it lines up with the control panel. If it does not, repeat the steps above: The door could become damaged if it does not work properly.

REPLACING THE LAMP

1. Disconnect the oven from the power supply.
2. Unscrew the cover from the light, replace the bulb and screw the cover back on the light.
3. Reconnect the oven to the power supply.

Please note: Only use 20-40 W/230 ~ V type G9, T300°C halogen bulbs. The bulb used in the product is specifically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). Light bulbs are available from our After-sales Service.

• If using halogen bulbs, do not handle them with your bare hands as your fingerprints could cause damage. Do not use the oven until the light cover has been refitted.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display shows the letter "F" followed by a number or letter.	Oven failure.	Turn off the oven and restart it to see if the problem persists.Try to perform the "FACTORY RESET" from, selectable from "SETTINGS".Contact you nearest Client After-sales Service Centre and state the number following the letter "F".
The oven does not heat up.	When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up.Demo appears on display every 60 seconds.	Access "DEMO" from "SETTINGS" and select "Off".
The light switches off. "ECO" mode is "On".	Accceed "ECO" from "SETTINGS" and select "Off".
The door will not open. Cleaning cycle in progress.	Wait for the function to finish and for the oven to cool down.
The home power goes off. Power setting wrong.	Verify if your domestic network has at least a rating of more than 3 kW. If no, decrease the power to 13 Ampere. Access "POWER" from "SETTINGS" and select "LOW".

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

Visiting our website docs.whirlpool.eu
- Using QR Code
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

For markets outside Europe:

To register your product and to receive more comprehensive local help and support, please call the number shown on the warranty booklet specific to your country or follow the website's instructions on:

Australia: www.whirlpool.com.au

Hong Kong: www.whirlpool.com.hk

New Zealand: www.whirlpool.co.nz

Singapore: www.whirlpool.com.sg South Korea: www.whirlpool.co.kr

Taiwan: www.whirlpool.com.tw

Vietnam: www.whirlpool.com.vn

MERCID'AVOIR CHOISI UN PRODUIT WHIRLPOOL

8. ACCES DIRECT AUX OPTIONS / FONCTIONS

REMOVER E REPOR A PORTA

3. CÓMOCONFIGURARLA HORA
