USER MANUAL SoundStone HUAWEI

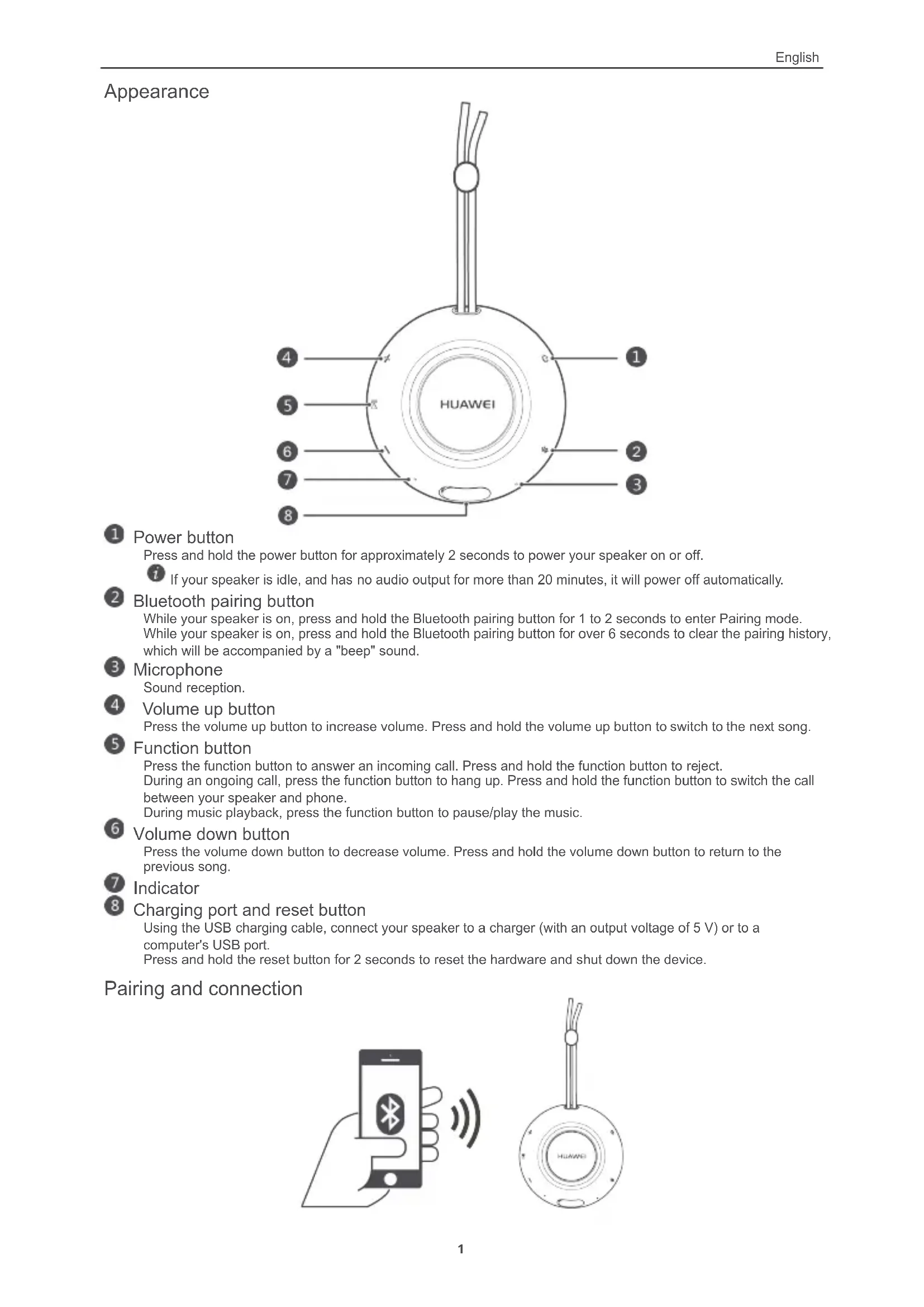

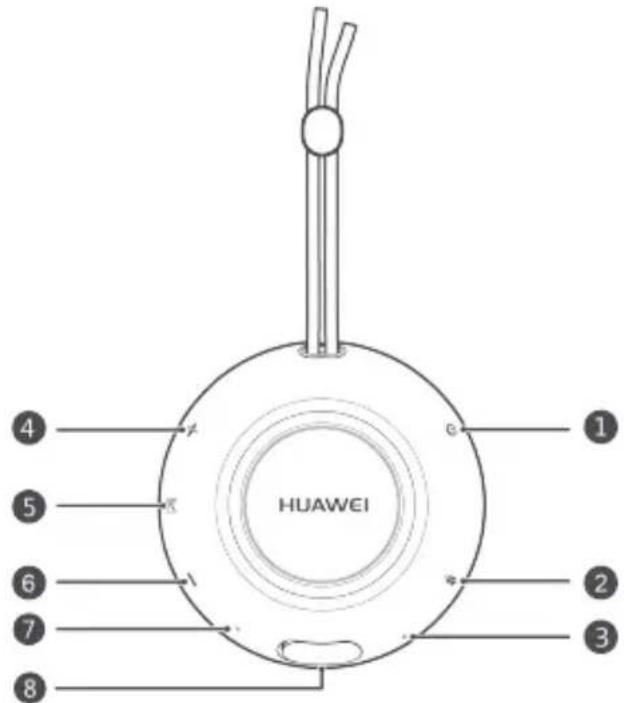

Appearance Power button Press and hold the power button for approximately 2 seconds to power your speaker on or off. If your speaker is idle, and has no audio output for more than 20 minutes, it will power off automatically. Bluetooth pairing button While your speaker is on, press and hold the Bluetooth pairing button for 1 to 2 seconds to enter Pairing mode. While your speaker is on, press and hold the Bluetooth pairing button for over 6 seconds to clear the pairing history, which will be accompanied by a "beep" sound. Microphone Sound reception. Volume up button Press the volume up button to increase volume. Press and hold the volume up button to switch to the next song. Function button Press the function button to answer an incoming call. Press and hold the function button to reject. During an ongoing call, press the function button to hang up. Press and hold the function button to switch the call between your speaker and phone. During music playback, press the function button to pause/play the music. Volume down button Press the volume down button to decrease volume. Press and hold the volume down button to return to the previous song. Indicator Charging port and reset button Using the USB charging cable, connect your speaker to a charger (with an output voltage of 5 V) or to a computer's USB port. Press and hold the reset button for 2 seconds to reset the hardware and shut down the device. Pairing and connectionEnglish

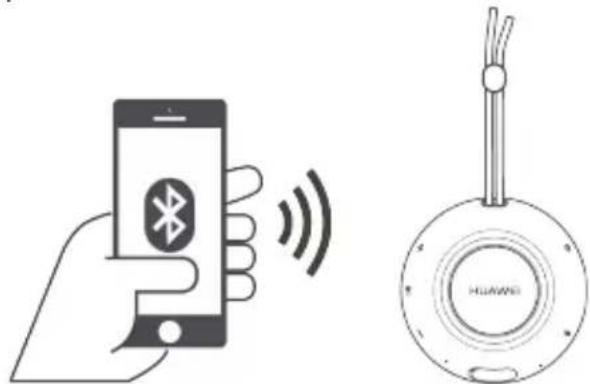

Pairing with one Bluetooth device When powering on for the first time, your speaker will automatically enter Pairing mode, which can then be found by a peripheral device. In this case, enable Bluetooth on the other device, and then search for available devices. Once the other device has found your speaker (with the Bluetooth name "HUAWEI CM51"), touch the speaker name to pair the speaker with the other Bluetooth device. Some Bluetooth devices may require a password to establish a connection with your speaker. In this case, the default password is 0000. If your speaker is not powering on for the first time, press and hold the Bluetooth pairing button for 1 to 2 seconds to enter Pairing mode. Pairing with two Bluetooth devices If you are attempting to connect two Bluetooth devices and you are powering on your speaker for the first time, perform the following procedures:

1. Successfully pair your speaker with the first Bluetooth device.

2. Press and hold the Bluetooth pairing button for 2 seconds to disconnect your speaker with the first Bluetooth device, in which your speaker will then re-enter Pairing mode.

3. Find and select your speaker on the second Bluetooth device to complete the pairing.

4. Reconnect your speaker to the first Bluetooth device.

Your speaker can only operate with one Bluetooth device at a time. To use the second, pause the playback on the first device, and manually play it on the second device, in which your speaker will then take the initiative to operate with the second device. To re-pair your speaker with the two devices, as long as the pairing history exists on both devices, you can directly re-establish the connection from the devices without re-initiating the pairing process. Safety information Before you use the device, read the following precautions carefully to ensure optimal product performance and to avoid danger or violation of laws and regulations. Electronic devices Do not use this device in areas where the use of wireless devices is prohibited. It may interfere with other devices or present other hazards. Interference with medical equipment Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants, and hearing aids. Consult the manufacturer of your medical equipment for more information. Keep a minimum distance of 15 cm between this device and implantable medical devices (such as pacemakers or cochlear implants) to prevent potential interference. Road safety Observe all local traffic laws and regulations while using this device. Do not use this device while driving. Concentrate on driving. Your first responsibility is to drive safely. Wireless signals may interfere with your vehicle's electrical systems. For more information, consult your vehicle manufacturer. Avoid placing the device directly above or in areas around the vehicles airbags shall they inflate and cause serious injuries. Wireless devices may interfere with the airplane's flight system. Power off your wireless devices according to airplane companies regulations. Operating environment Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. Use the device where the ambient temperature is between 0°C to +45°C. Store the device and its accessories where the ambient temperature is between –10°C to +45°C. Extreme heat or cold may damage the device. Avoid immersing the device and its accessories, as this may cause a fire or electrical shock. Keep your device away from fire or heating sources, such as electric heaters, ovens, microwave ovens, stoves, or water heaters. Do not allow pins or other sharp metallic objects to come into contact with the speaker or microphone to avoid damaging the device or harming yourself. Avoid touching the device for long periods of time if the operating temperature becomes too high, as this may cause low temperature burns or skin irritation. Keep the device out of reach of children and pets to prevent them from accidentally swallowing and choking on the small parts of the device. Biting or swallowing the device could lead to serious injury. Child safety This device and its accessories may contain some small components that present a choking hazard. Keep the device and its accessories out of the reach of children to prevent injury or accidental damage. This device is not a toy. Children should only use the device when supervised by an adult. Accessories Only use the authorized accessories that match the device. Otherwise, damage caused to the device may not be covered by the warranty. Using unauthorized accessories may also present a safety hazard. For more information, contact an authorized Huawei Customer Service Center. Do not use unauthorized or incompatible power supplies, chargers, or batteries to avoid hazards such as fire and explosion.English

Charger safety If you need to connect the device to a USB port to charge it, make sure the USB port is USB-IF certified and that it conforms to relevant USB-IF standards. Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-1/EN60950-1 and it is tested and approved according to national or local standards. Battery safety Do not attempt to disassemble or remanufacture the device, insert foreign objects into it, or immerse or expose it to water or other liquids. Doing so may lead to fire, explosion, or other hazards. Do not drop, squeeze, or pierce the device. If excessive pressure is applied to the device, the device may short circuit or overheat. The device comes with an irremovable, built-in battery. Do not attempt to replace the battery on your own to prevent the device and battery from being damaged. Go to an authorized Huawei Customer Service Center to replace the battery. Maintenance Keep the device and its accessories dry. Do not use the external heat source, such as microwave oven or hair dryer, to dry the device. Do not expose the device and its accessories to extreme temperatures as this could cause the device to malfunction, catch fire, or even explode. Before you clean or maintain the device, stop using it, close all apps, and disconnect all cables. Do not use any strong chemicals, detergents, or other chemical agents. Use a clean, soft, and dry cloth to clean the device and its accessories. Do not place magnetic stripe cards, such as bank cards, near the device. Otherwise, these cards may be ruined. Do not dismantle the device or accessories. This voids the warranty and releases the manufacturer from liability for damage. In case of any device malfunction, go to an authorized Huawei Customer Service Center for assistance. Environment protection Do not dispose of the device and accessories in normal household refuge. Dispose of or recycle your device and accessories according to local laws. Disposal and recycling information The crossed-out wheeled-bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in the normal waste stream with household garbage. It is the responsibility of the user to dispose of the equipment using a designated collection point or service for separate recycling of waste electrical and electronic equipment (WEEE) and batteries according to local laws. Proper collection and recycling of your equipment helps ensure electrical and electronic equipment (EEE) waste is recycled in a manner that conserves valuable materials and protects human health and the environment, improper handling, accidental breakage, damage, and/or improper recycling at the end of its life may be harmful for health and environment. For more information about where and how to drop off your EEE waste, please contact your local authorities, retailer or household waste disposal service or visit the website http://consumer.huawei.com/en/. Reduction of hazardous substances This device and any electrical accessories are compliant with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH, RoHS and Batteries (where included) regulations, etc. For declarations of conformity about REACH and RoHS, please visit our web site http://consumer.huawei.com/certification. EU regulatory conformance RF Exposure Your device is a low-power radio transmitter and receiver. As recommended by international guidelines, the device is designed not to exceed the limits established by the European Commission for exposure to radio waves. Statement Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The most recent and valid version of the DoC (Declaration of Conformity) can be viewed at http://consumer.huawei.com/certification. This device may be operated in all member states of the EU. Observe national and local regulations where the device is used. This device may be restricted for use, depending on the local network. Frequency bands and power (a) Frequency bands in which the radio equipment operates: Some bands may not be available in all countries or all areas. Please contact the local carrier for more details. (b) Maximum radio-frequency power transmitted in the frequency bands in which the radio equipment operates: The maximum power for all bands is less than the highest limit value specified in the related Harmonized Standard. The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows： Bluetooth: 10 dBm. Accessories and Software Information It is recommended that the following accessories should be used: Batteries: 622936English

All RF parameters (for example, frequency range and output power) are not accessible to the user, and cannot be changed by the user. For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at http://consumer.huawei.com/certification. FCC Regulatory Compliance RF Exposure Your device is a low-power radio transmitter and receiver. As recommended by international guidelines, the device is designed not to exceed the limits established by the Federal Communications Commission for exposure to radio waves. FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to this device not expressly approved by Huawei Technologies Co., Ltd. for compliance could void the user's authority to operate the equipment. Industry Canada compliance Body worn operation This device has been tested and meets applicable limits for radio frequency (RF) exposure. The highest SAR value reported to the IC for this device type when using in portable exposure conditions is 0.20W/kg. IC Statement This device complies with CAN ICES-3 (B)/NMB-3(B). This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Legal statement Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved. This document is for reference only. Nothing in this guide constitutes a warranty of any kind, express or implied. All pictures and illustrations in this guide, including but not limited to the phone color, size, and display content, are for your reference only. The actual product may vary. Nothing in this guide constitutes a warranty of any kind, express or implied. Please visit http://consumer.huawei.com/us/support/index.htm for recent updated hotline and email address in your country or region. The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license. Privacy protection To understand how we protect your personal information, please visit http://consumer.huawei.com/privacy-policy and read our privacy policy. For United States warranty card information, visit http://consumer.huawei.com/us/support/warranty-policy/index.htm.Български
