KTS200 - Heated blanket/cushion Cresta - Free user manual and instructions

Product type	Heating blanket
Brand	Cresta
Model	KTS200
Dimensions	180 × 130 cm
Power supply	230 V ~ 50 Hz
Power consumption	120 W
Temperature levels	0 (off), 1 (minimum), 2 (medium), 3 (maximum)
Automatic shut-off	After 180 minutes (3 hours)
Safety technology	Triple overheat protection
Usage	Household only
Care	Machine washable at 30 °C, delicate cycle
Washing	Use liquid detergent, do not wring, do not use tumble dryer
Drying	On a drying rack, without clothespins
Spot cleaning	Damp cloth with mild detergent
Precautions	Do not use folded or wet, do not pierce with sharp objects
Target audience	Adults only, keep out of reach of children
Warranty	2 years, upon presentation of the receipt
Repairs	Entrust to a qualified repairer; do not repair yourself
Instructions available	French, German, English, Dutch

Frequently Asked Questions - KTS200 Cresta

What are the basic operating instructions for the KTS200 heating blanket?

Plug the blanket into a 230 V mains socket. Set the temperature with the switch: position 0 (off), 1 (minimum heat), 2 (medium), 3 (maximum for preheating). The automatic shut-off occurs after 180 minutes. To restart, set the switch to 0, wait 5 seconds, then select a level.

Can I machine wash my Cresta KTS200 heating blanket?

Yes. Before washing, unplug the blanket and remove the cable with the switch. Fold the blanket twice lengthwise and place it in the machine. Wash at max 30 °C, delicate cycle, with liquid detergent. Do not use a tumble dryer; air dry on a drying rack without clothespins.

What should I do if the heating blanket stops heating?

First check that the socket works and the cord is not damaged. If the problem persists, do not attempt to repair it yourself. Contact Cresta technical support or a qualified repairer. The warranty covers manufacturing defects, but not damage caused by misuse.

Can the heating blanket be used by children?

No. This product is not intended for children, nor for persons sensitive to heat or requiring assistance. Never leave a child unsupervised near the appliance when in use.

How can I tell if the blanket is damaged?

Regularly inspect the blanket, cable, and plug for any signs of wear, cuts, or deformation. If you notice damage, stop using it immediately and have the appliance checked before reusing it.

What temperature settings are available?

The switch offers 4 positions: 0 (off), 1 (minimum heat for prolonged use), 2 (medium heat), 3 (maximum heat for quick preheating). It is recommended to lower the level after preheating.

Can I use an extension cord with the heating blanket?

Yes, provided the extension cord has power and voltage at least equal to those of the appliance (230 V, 120 W). Use an extension cord with a grounding plug that complies with safety standards.

What should I do in case of a malfunction or unexpected shutdown?

The automatic shut-off triggers after 3 hours. To restart, set the switch to 0, wait 5 seconds, then choose a level. If the appliance does not turn on, check the power supply. In case of persistent failure, contact after-sales service.

How do I maintain the heating blanket long-term?

Machine wash it a maximum of 1 to 2 times per year. Do not use chemical products, do not iron it, and do not tumble dry. Store it in its original packaging in a dry place, without placing heavy objects on top.

What is the warranty period and how do I activate it?

Cresta offers a 2-year warranty from the date of purchase. It covers manufacturing defects and technical issues not related to misuse. To activate it, keep your original receipt. The warranty does not cover damage caused by a fall, water, or improper use.

USER MANUAL KTS200 Cresta

Vermogen : circa 120W

: Automatische uitschakeling : na circa 3 uu - 180 minutes

Warmtestanden : 0- 1 - 2 - 3

Afmetingen : circa 180 x 130 cm

GARANTIE*

BELANGRIJK

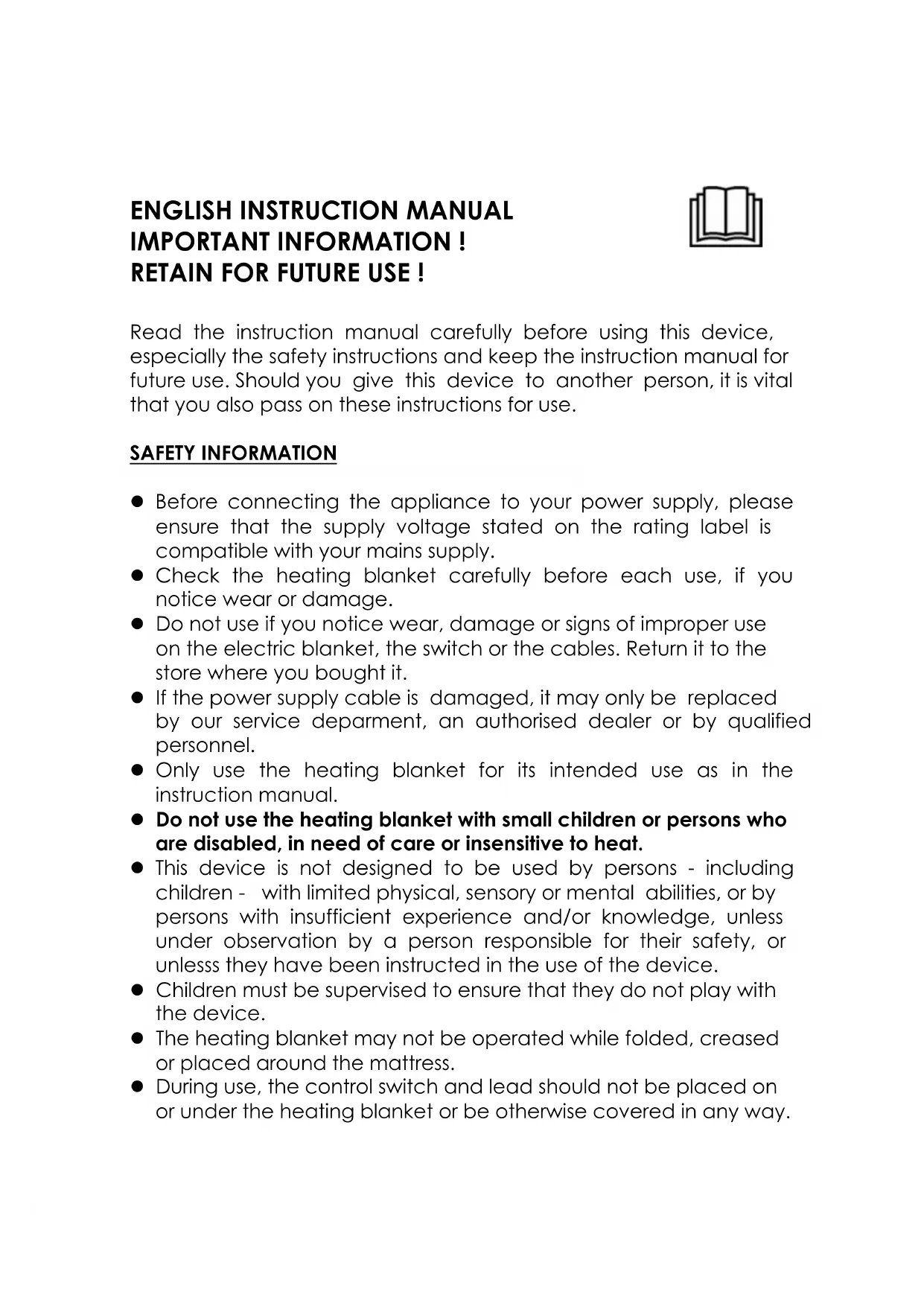

Read the instruction manual carefully before using this device, especially the safety instructions and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

SAFETY INFORMATION

• Before connecting the appliance to your power supply, please ensure that the supply voltage stated on the rating label is compatible with your mains supply.

• Check the heating blanket carefully before each use, if you notice wear or damage.

• Do not use if you notice wear, damage or signs of improper use on the electric blanket, the switch or the cables. Return it to the store where you bought it.

• If the power supply cable is damaged, it may only be replaced by our service department, an authorised dealer or by qualified personnel.

• Only use the heating blanket for its intended use as in the instruction manual.

• Do not use the heating blanket with small children or persons who are disabled, in need of care or insensitive to heat.

• This device is not designed to be used by persons - including children - with limited physical, sensory or mental abilities, or by persons with insufficient experience and/or knowledge, unless under observation by a person responsible for their safety, or unless they have been instructed in the use of the device.

• Children must be supervised to ensure that they do not play with the device.

• The heating blanket may not be operated while folded, creased or placed around the mattress.

• During use, the control switch and lead should not be placed on or under the heating blanket or be otherwise covered in any way.

• No safety pins or other pointed or sharp objects should be attached to the heating blanket or stuck into it.

• Never leave the heating blanket on when unattended.
• The device is only for private use and is not to be used in hospitals.
• Never handle a heating blanket that has fallen into water. Unplug it from the mains outlet immediately.
• Do not use the heating blanket in a damp or humid environment or if the heating blanket itself is damp. You may only use it again once it is completely dry.
• Never expose the control switch or leads to moisture of any kind.
• Keep the mains lead away from hot surfaces.
• Never carry, pull or twist the heating blanket by the mains lead and do not allow the lead to become tangled or snagged.
• Do not repair the heating blanket yourself in the event of damage or malfunction. Only have repairs carried out by an authorized specialist dealer or suitably qualified personnel.
• The heating blanket may only be operated with its special control unit.
• When storing the appliance, allow it to cool down before folding. When storing, do not place any objects on the electric blanket to prevent buckling.

OPERATION

SELECTING THE TEMPERATURE

To operate the device, first connect the switch to the electric blanket by plugging in the connector. Plug the power cord into the mains outlet.

The electric blanket heats up most quickly when you initially set the highest temperature level. We recommend than selecting the lowest temperature level when using the blanket for several hours.

TEMPERATURE SETTINGS

Level: 0 = Off

1 = Low heat
2 = Middle heat
3 = High heat

AUTOMATIC SWITCH-OFF FUNCTION

The electric blanket is automatically switched off after approx. 3 hours. To switch on the electric blanket again, first select the position « 0 », and then after approximately 5 seconds the desired temperature level.

CLEANING AND CARE

• Always disconnect the power plug from the socket outlet before cleaning the electric blanket.
• Before washing, unplug it from the mains outlet and let it cool down.
• Unplug the control switch unit from the heating blanket using the connector on the underside.
• Please note that the electric blanket may not be dry cleaned, wrung out, dried by machine, pressed or ironed.
• The electric blanket may be washed by hand according to the instructions on the label. Never immerse the control switch unit in water as moisture must not be allowed to get into unit.
• In case of heavier soiling, this electric blanket can be washed in a washing machine.
• Set the washing machine to a particularly gentle, 30C cycle - woollens programme. Use a wool laundry detergent and follow the manufacturer's instructions.
• To dry, lay the electric blanket flat on a moisture-absorbent towel or mat. When the electric blanket is completely dry, it should be reconnected to the control switch unit in correct manner. The electric blanket may only be operated with its special control unit.
• When storing the appliance, allow it to cool down before folding. Store the electric blanket in a clean and dry place. When storing,

do not place any objects on the electric blanket to prevent buckling.

ENVIRONMENT FRIENDLY DISPOSAL

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment – WEEE – requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation that when you dispose of the appliance, it should be separately collected. Contact your local authority for information concerning the correct disposal of your old appliance.

TECHNICAL DATA

Name and Model : KTS 200 Electric Heated Overblanket

Power supply : 220-240V ~ 50Hz

Heat output approx. 120W

Automatic switch off : after approx. 3 hours

Switch levels: 0-1-2-3

Dimensions approx. 180 × 130 cm

RoHS Compliant

Directive 2011/65/EU

GUARANTEE*

IMPORTANT

We thank you for your confidence in CRESTA and we are convinced that you will enjoy this product for many years. Should your product not work properly and / or should you have any questions regarding its proper functioning, a specialized helpdesk is at your disposal in order to provide you the necessary assistance and information. Please contact our helpdesk first - we can solve most problems instantly - before going back to the store where you have purchased the product. If we cannot solve immediately we will give you instructions how the product needs to be send for repair.

CRESTA HELPDESKPHONE NUMBER

[phone]

We offer you a 2 year warranty on all our products. This warranty covers all manufacturing flaws and technical problems that are not the result from incorrect use and / or from use other than intended. Damage resulting from breaking, dropping, dipping in water etc, are excluded from our warranty.

The RMA procedure is valid for this item - see also

www.cresta.nl/mma

• Warranty only applicable if the original purchase receipt is presented.

Printing errors and modifications reserved

RoHS Compliant Directive 2011/65/EU

GARANTIE
