USER MANUAL PS 16 OLYMPIA

8. Maintenance and service. .....................................22

11. Declaration of Conformity. ....................................24

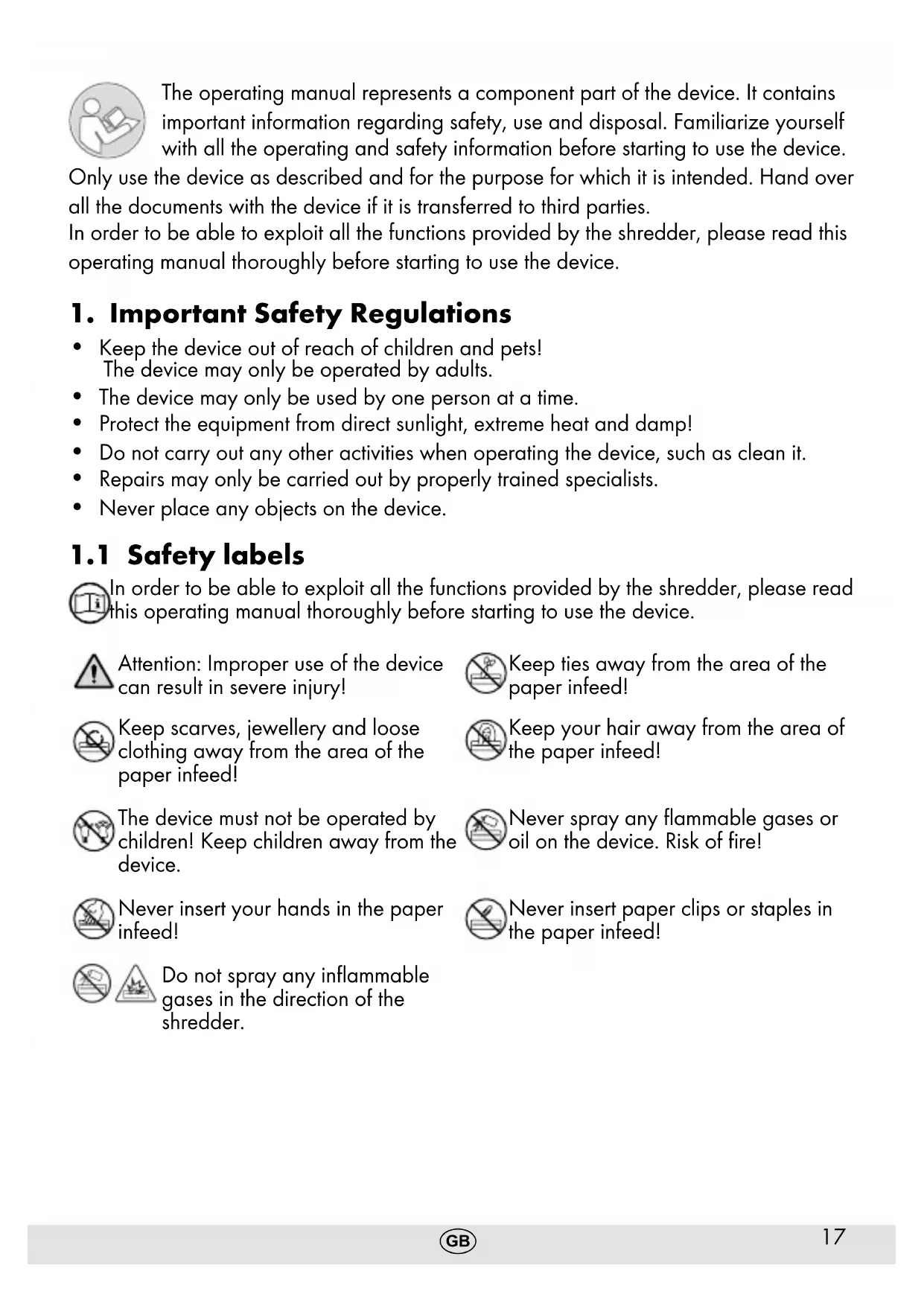

The operating manual represents a component part of the device. It contains important information regarding safety, use and disposal. Familiarize yourself with all the operating and safety information before starting to use the device. Only use the device as described and for the purpose for which it is intended. Hand over all the documents with the device if it is transferred to third parties. In order to be able to exploit all the functions provided by the shredder, please read this operating manual thoroughly before starting to use the device.

1. Important Safety Regulations

• Keep the device out of reach of children and pets! The device may only be operated by adults.

• The device may only be used by one person at a time.

• Protect the equipment from direct sunlight, extreme heat and damp!

• Do not carry out any other activities when operating the device, such as clean it.

• Repairs may only be carried out by properly trained specialists.

• Never place any objects on the device.

In order to be able to exploit all the functions provided by the shredder, please read this operating manual thoroughly before starting to use the device. Attention: Improper use of the device can result in severe injury! Keep ties away from the area of the paper infeed! Keep scarves, jewellery and loose clothing away from the area of the paper infeed! Keep your hair away from the area of the paper infeed! The device must not be operated by children! Keep children away from the device. Neversprayanyammablegasesor oilonthedevice.Riskofre! Never insert your hands in the paper infeed! Never insert paper clips or staples in the paper infeed! Donotsprayanyinammable gases in the direction of the shredder.18

Warning! Risk of injury through the insertion mechanism. Loose objects could be caughtintheinsertionslotandcauseinjuries.Keepngers,hair,scarves,ties, jewellery etc. away from the insertion slot. Attention! Failure to observe the safety labels can result in severe personal injury! If an object (sleeve, tie, etc.) does enter the infeed accidentally, disconnect the power plug from the power socket immediately! Safety information! The power socket must be close to the unit and easily acces- sible. This enables you to disconnect the machine from the power supply quickly in an emergency.

1.2 Electrical safety guidelines

• Disconnect the power plug from the power socket:

• if it will remain unused for a longer period,

• before emptying the waste bin,

• before cleaning the device,

• before moving the device.

• Do not put the device into operation in the case of damage to the power cable, the power plug or the device itself (risk of injury)!

• Donotcompleteanymodicationstothepowercablebecauseitisdesignedforthe powersupplyspecied.

• Never exceed the recommended load capacity of the power socket or any connect- ed extension cables! Attention! It is forbidden to open the cutting mechanism attachment for repair pur- poses. Risk of fatal accident! In addition, all claims under the terms of guarantee will be deemed null and void.

• Only use the PS 16 shredder to shred paper and credit cards! The paper to be shredded must be dry and comply with the requirements stipulated in Chapter "Technical Data"! Attempting to shred other material can lead to personal injury (e.g. through splinters from hard material, etc.) and damage to the equipment (e.g. damage to the cutting mechanism etc.).

• Remove all paper clips and staples from paper before feeding it in the device!

• Do not shred continuous forms in this device!

• The unit may only be used in dry, indoor rooms.19

Paper infeed with cutting mechanism20

1. Remove the device carefully from the packaging.

Attention! The underside of the cutting mechanism attachment has sharp edges. Risk of injury!

2. Fit the shredder attachment on a suitable waste bin which has an even surface. Pull

out the extension as far as necessary out of the cutting mechanism attachment. Note! The shredder attachment must not wobble! Note! A waste bin is not part of the equipment supplied.

3. Set the waste bin and shredder attachment on an even surface.

4. Position the device near a power socket. However, do not position the waste bin and

shredder attachment near a source of heat or in the vicinity of water.

5. Connect the power plug to a power socket.

Note! Pay attention that the power cable is laid so that people or pets do not walk over it or that other objects can be set down on it. Pay attention to the information regarding power supply on the rear side of the device for the necessary precautions. Safety information! For reasons of safety, the power socket to which the shredder power plug is connected must be near to the device and freely accessible so that the power supply can be disconnected quickly in an emergency!

Note! The recommended capacities stipulated in Chapter "Technical Data" must not be exceeded, otherwise paper will jam! Do not forget that the thickness of the paper increases when folded, as a result of which the recommended sheet capacity can be exceeded. Also reduce the quantity of paper when shredding coarse paper.

The sliding switch is used to control the cutting mechanism in the paper shredder. The sliding switch can be set to three positions:

• Position Rev: Continuous reverse running.

• Position O:Papershredderisswitchedo.

• Auto: In the Auto setting, the cutting mechanism starts automatically as soon as you feed paper or a credit card into the infeed slot. The shredder switches to forward running and draws in the paper or credit card. On completion of the shredding oper- ation,thedevicecontinuesrunningforapprox.2to4secondsandthenswitcheso automatically.

5.2 Switching the device on

1. Connect the power plug to a power socket.

5.3 Feeding in paper or credit cards

Note! A maximum of 6 sheets of A4 paper with a weight of maximally 80 g/ m² may be inserted in the paper infeed at a time.

1. The shredder is connected to the mains power outlet and the sliding switch is set to

2. The paper must be straight when inserted in the paper infeed. Feed credit cards in

between the two arrows. Note! Ensure that the sliding switch is set to O after the shredding operation has been completed.

5.4 Switching the device o

• Disconnect the power plug from the power socket.

Themotorswitchesoautomaticallyintheeventofanoverload.Firstofall,disconnect the power plug from the power socket and allow the motor to cool down to room temper- ature. Then connect the power plug to the power socket again and continue operation. Note! Observe the continuous operation time stipulated in Chapter "Technical Data".

7. Clearing Paper Jams

If too much paper is fed into the cutting mechanism, a paper jam occurs. The shredder switchesoautomaticallyintheeventofapaperjam. Proceed as follows:

1. Press the Rev button to activate reverse operation and feed the paper back out.

2. Remove any residual paper from the infeed in forward feed (Auto).

4. Reduce the quantity of paper being shred and continue with the shredding process.

7.1 Rev setting (reverse operation)

Set the sliding switch to Rev so that the cutting mechanism runs in reverse and releases the paper.

7.2 Forward feed (Auto)

Set the sliding switch to Auto in order to ensure any residual paper is shredded and removed from the cutting mechanism.22

8. Maintenance and service

Attention! Maintenance work may only be completed when the power plug has been disconnected from the power socket!

8.1 Emptying the Waste Bin

1. Disconnect the power plug from the power socket.

2. Remove the shredder attachment from the waste bin.

3. EntleerenSiedenInhaltdesAuangbeghältersangeeigneterStelle.

4. Replace the shredder attachment back on the waste bin.

Note!Itisrecommendednottoallowthewastebintollupagainstthecutting mechanism. This prevents the shredded paper congesting and jamming in the cutting mechanism. Empty the waste bin regularly.

8.2 Oiling the Cutting Mechanism

To ensure a long service life for your paper shredder, we recommend clearing any residue from the cutting mechanism regularly and applying a little special oil for paper shredders on the cutting tool. You can obtain the special CFC-free oil from your supplier or directly from our service centre in Hattingen. This helps lengthen the service life of the device.

• Each time the waste bin is emptied, apply several lines of the special oil in a lateral direction on a suitable sheet of paper and feed this sheet through the shredder by setting the sliding switch to Auto.

• Asanalternative,weoerlubricantsheets.Theoil,whichisonavegetablebasis, is impregnated in the paper and only escapes during the shredding process. This ensures simple, clean use. Simply insert the lubricant sheet in the paper shredder infeed, shred it and then switch the device to reverse running for approx. 10 seconds. The shredder is then ready for operation again. There are 12 lubricant sheets en- closed in one envelope and they can be obtained under Article Number 9130 from retailers or our Service department. Attention! It is forbidden to use oil spray from aerosol cans containing CFC!

2. Disconnect the power plug from the power socket.

3. Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any

solvents or cleaning agents.23

PS 16 Not intended for commercial use. Cutting capacity Max. 6 sheets of A4 (80 g/m2) or 1 credit card Cutting method, cut width Strip-cut, 6 mm Shredding speed 2.5 - 3.0 m/min Width of paper infeed 220 mm Continuous operation time 2 min. Noise level 73 dB(A) Range of operations Auto start/Auto stop Reverse running

Dimensions (W x D x H) 305-380 x 120 x 70 mm Weight 0,98 kg Power supply 220 - 240 V / 50 Hz Rated input power 0.9 A Declaration of conformity with security level according to DIN 66399 We declare that, regarding shredding documents, this shredder complies with the requirements of security level P-2 according to DIN 66399. P-2: Recommended for data media containing in-house data which should be rendered illegible.Materialparticlearea≤800mm²orstripwidth≤6mm,striplengthunlimited.24

Problem Diagnosis & Cause Solution Device does not work Is the power plug connected properly in the power socket? Connect the power plug in the power socket properly. Is the sliding switch set to Auto? Set the sliding switch to Auto. Does the motor fail to start when paper is inserted? Slide the paper in the respec- tive infeed slot so that it makes contact with the sensor in the middle. Device no longer functions after a longer period out of service or stops during operation Was the device shutdown for a longer time? Is the surface of the device hot? The permissible continuous operation time has probably been exceeded. First of all, disconnect the power plug from the power socket and allow the motor to cool down to room tem- perature. For informationon continuous operation, refer to Chapter "Technical Data". Paper jam Have you exceeded the permis- sible paper capacity (refer to Chapter "Technical Data")? Has the paper been fed in askew? Clear the paper jam, refer to Chapter "Clearing a paper jam". Note! If you cannot clear the fault yourself, contact your dealer or call the GO Europe hotline.

11. Declaration of Conformity

TheCEMarkonthedeviceconrmsconformity. The Declaration of Conformity can be read online at www.go-europe.com.

12. GS tested safety mark

The«GeprüfteSicherheit»mark(GStestedsafetymark)certies thattheproductsatisestherequirementsdenedbytheGerman Product Safety Act (ProdSG). The GS tested safety mark indicates that when implemented for itsintendeduseandintheeventofforeseeablemisusetheidentiedproductwillnot endanger the safety and health of the user. It concerns a voluntary safety mark which was issued by an authorized testing institute.25

The following symbols are provided on the packaging or on the device itself. This section explainsthesignicanceoftheindividualsymbols. The symbol indicates that the design of the product complies with Protection Class II (double insulation). A safety connection to the electrical earthing (ground) is not necessary. Only use the product indoors.

Find out about the possibilities of taking back used appliances free of charge from your dealer. The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations. The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration oces. Observetheidenticationonthepackagingmaterialsduringthewastesorting process;theyareidentiedbyabbreviations(b)andnumbers(a)whichhave thefollowingsignicance:1–7:plastic/20–22:paperandcardboard/80–98: composite materials. Packaging materials must be disposed of according to local regulations. The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.

Dear customer, We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.
