Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box. 4

Loading the batteries in the remote control. 4

Using the remote control. 4

Installing the amplifier. 4

02 Connecting up

Making cable connections. 5

About "Bi-wiring" 5

Connecting speaker cables 6

Connecting audio cables.. 6

Using centralized control with other Pioneer components 6

Digital audio input connections (A-70 only) 6

Using a USB cable to connect to a computer (A-70 only) 7

Plugging in 7

03 Controls and displays

Front panel 8

Rear panel. 9

Remote control 10

04 Operation

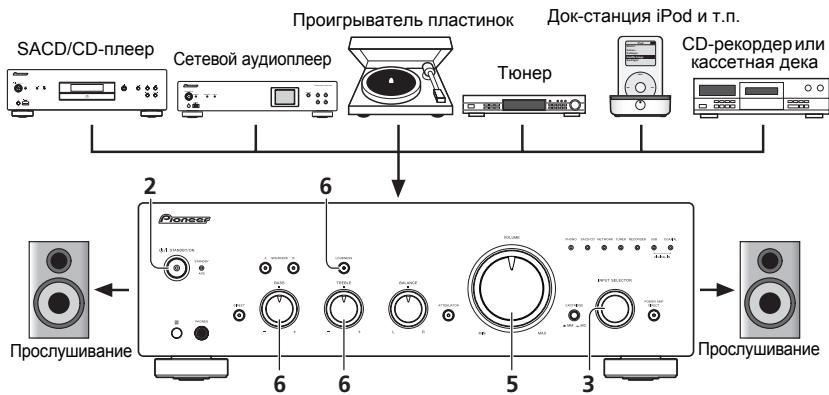

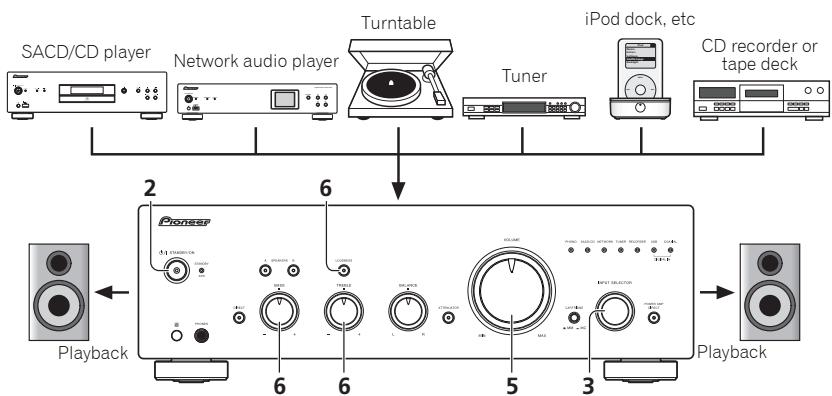

Playback 11

Set the power to Standby. 11

When using the unit as a power amplifier 11

Playing music from a digital audio component (A-70 only) 12

Playing music from a computer (A-70 only) 12

Making an audio recording 12

To set for automatic standby status (Auto Power Down) 13

Restoring all the settings to the factory default settings 13

05 Additional information

Troubleshooting. 14

Cleaning the unit. 14

Specifications 15

Chapter 1:

Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

Remote control
AAA/IEC R03 dry cell batteries x2
- Short pin plug x 2

(At time of purchase, these plugs have been factory installed in the rear panel's PHONO IN terminals.)

Power cord (Length: 1.8m
Warranty card
- Caution sheet (To first-time users)
- Operating instructions (This document)

Note

• Illustrations featured in the Operating Instructions may have been modified or simplified for ease of explanation, and may therefore differ from the actual product appearance.
  The illustrations used here are mainly of the A-70.

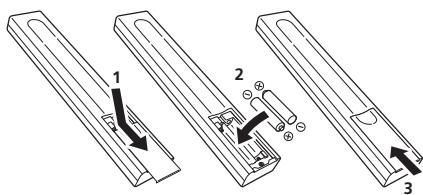

Loading the batteries in the remote control

1 Open the rear lid.
2 Insert the new batteries, matching the polarities as indicated inside the case.
3 Close the rear lid.

The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

WARNING

• Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Caution

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

• When inserting the batteries, make sure not to damage the springs on the battery's terminals. This can cause batteries to leak or overheat.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

Using the remote control

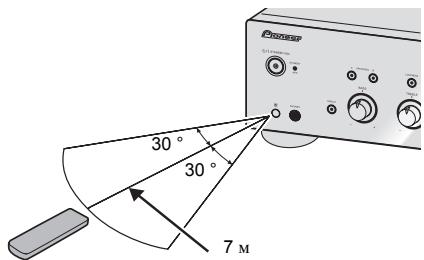

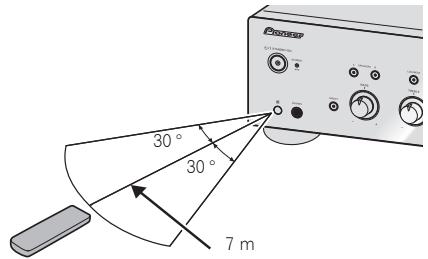

The remote has a range of about 7 m at an angle of about 30^ from the remote sensor.

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
  Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

Installing the amplifier

When installing this unit, make sure to put it on a level and stable surface.

• Don't install it on the following places:
  -on a color TV (the screen may distort)
• near a cassette deck (or close to a device that gives off a magnetic field). This may interfere with the sound.
  -in direct sunlight
  -in damp or wet areas
• in extremely hot or cold areas
• in places where there is vibration or other movement
• in places that are very dusty
• in places that have hot fumes or oils (such as a kitchen)
• Do not mount the unit on a sofa or other object or material with absorbent qualities, since sound quality may be adversely affected.

Chapter 2:

Connecting up

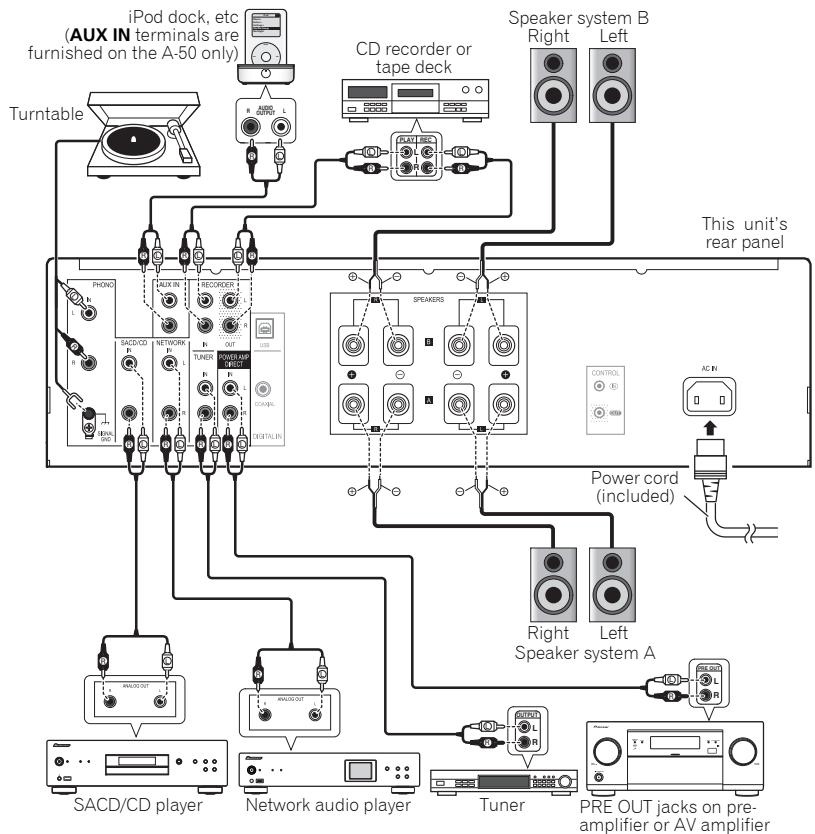

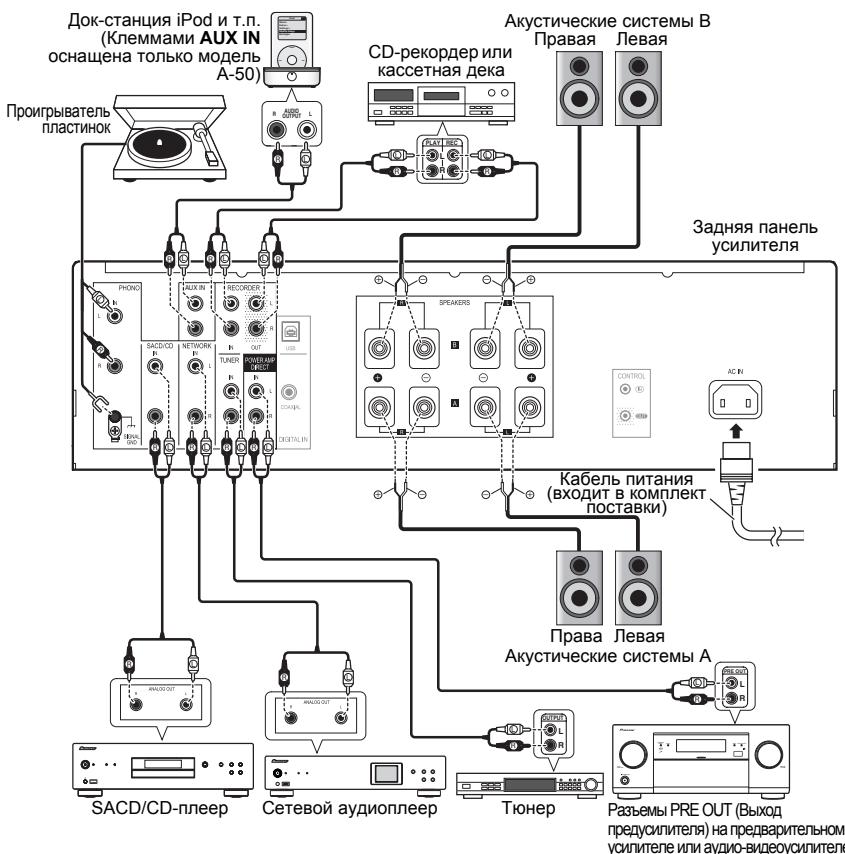

Making cable connections

Caution

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
• Connect the power cord after all the connections between devices have been completed.

Caution

• The SIGNAL GND terminal is provided to reduce noise when connecting the unit to components such as an analog turntable.
• The PHONO IN terminals are factory equipped with short pin plugs. These should not be removed except when connecting a turntable. Be sure to save the short pin plugs in a safe place.
• Do not insert the short pin plugs in any connectors other than the PHONO IN terminals. Connecting them to any other terminals may cause malfunctions.
• Do not connect the PHONO IN terminals to any component other than a turntable; also, do not connect to a turntable equipped with built-in equalizer. An excessively high sound output may be produced, resulting in damage to your speakers or other devices.
• The A-50's PHONO IN terminals are designed to be used only with turntables equipped with MM (moving-magnet) type cartridges. Turntables equipped with MC (moving-coil) cartridges cannot be used.
• Make sure not to bend the cables over the top of this unit (as shown in the illustration). If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

• The unit's POWER AMP DIRECT terminals should never be connected to any other component's connectors except PRE-AMP OUT.
• If your turntable has a grounding wire, secure it to the ground terminal on this amplifier.

Note

• When connecting a tape cassette deck, playback noise may be heard, depending on the installation location. This noise is caused by leakage flux from the amplifier's transformer. In this event, change the installation location, or move the deck farther from the amplifier.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

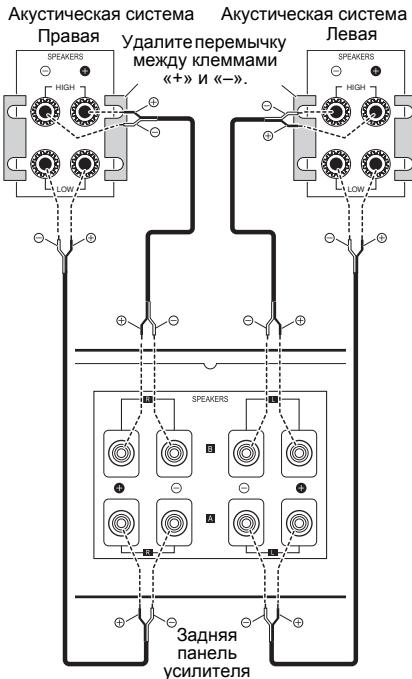

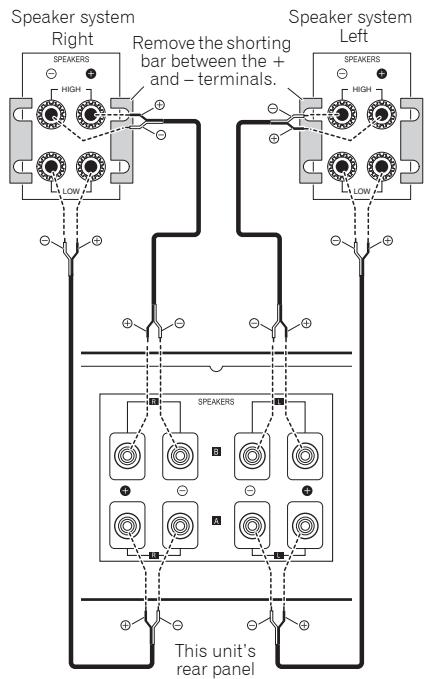

About "Bi-wiring"

This unit can be used with speakers that support biwiring. Be sure to connect the high-frequency and low-frequency connections correctly.

• During playback, be sure that both the SPEAKERS A button and SPEAKERS B button are set to ON (page 8).

Caution

• When using bi-wiring to connect speakers, avoid adverse affects on the amplifier by being sure to remove the HIGH and LOW short bars provided with the speakers. For detailed information, consult the instructions provided with the speakers.

• When using speakers with removable network circuits, note that if the network is removed, no effect will be produced and damage may be caused to the speaker.

• Another method of connection is to connect the SPEAKERS A terminals to HIGH and the SPEAKERS B terminals to LOW (reverse that shown in the illustration).

Connecting speaker cables

1 Twist the cable cores.
2 Loosen the nut on the SPEAKERS terminal, and insert the speaker cable into the exposed hole in the terminal shaft.
3 Retighten the terminal nut.

Caution

• When using only one set of speaker terminals (SPEAKERS A or SPEAKERS B), or when utilizing bi-wiring connections, the speaker used should have a nominal impedance between 4 Ω and 16 Ω. When using both sets of terminals, the connected speakers should have nominal impedance between 8 Ω and 32 Ω. Consult the instructions accompanying your speakers for details regarding the impedance value.
• Make sure the positive and negative (+/-) terminals on the amplifier match those on the speakers.
• These speaker terminals carry HAZARDOUS live voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.

Connecting audio cables

Connect the white plug to the left (L) jack, and the red plug to the right (R) jack. Be sure to insert the plugs fully into the jacks.

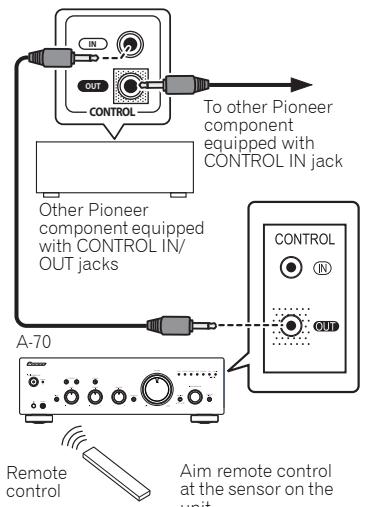

Using centralized control with other Pioneer components

Multiple Pioneer components equipped with CONTROL IN/OUT jacks can be connected to the unit, allowing centralized control of the components via the remote sensor on the unit. This also allows remote control of components not equipped with a remote sensor, or installed in places where the component's remote sensor cannot be accessed.

Note

• For connections use a commercially available monaural miniplug cord (without resistor).
• When connecting the CONTROL IN/OUT jacks, commercially available audio cords must also be used to make analog connections. Merely connecting the CONTROL IN/OUT jacks alone will not allow proper system control.
• When a control cord is connected to the unit's CONTROL IN jack, the unit cannot be controlled by pointing the remote control at the unit (the remote sensor is automatically disabled).

Digital audio input connections (A-70 only)

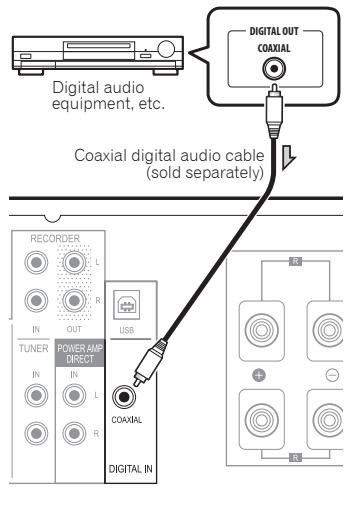

If a coaxial digital cable (sold separately) is used to connect this unit's DIGITAL IN COAXIAL terminal to the digital audio output connector of a digital audio playback component, the playback component can be used to play music through this unit.

For more information regarding the output of audio signals input to the DIGITAL IN COAXIAL terminal, consult page 12.

A-70's rear panel

Note

• Digital signal formats that can be input to this unit include linear PCM signals with sampling rate and quantitative bits up to 192kHz / 32 bits. (Depending on the connected device and environment, operation may not be successful).

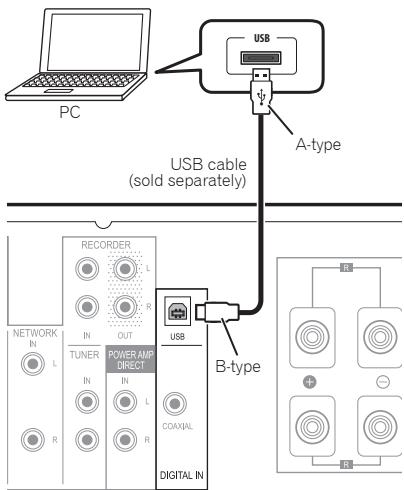

Using a USB cable to connect to a computer (A-70 only)

If a USB cable (sold separately) is used to connect this unit's DIGITAL IN USB terminal to a computer's USB port, music files located on the computer can be played through this unit.

For more information regarding the output of audio signals input to the DIGITAL IN USB terminal, consult page 12.

Important

• When using this connection to input audio files from a computer to this unit, it may be necessary to install a special driver on the computer. For details, see the website of Pioneer.

A-70's rear panel

Note

This unit cannot be used to play audio files from a computer unless Media Player is installed on the connected computer.

Plugging in

Important

• When going on a trip or otherwise not using the unit for an extended period, always disconnect the power cord from its outlet. Note that various internal settings will not be lost even if the power cord is disconnected from its outlet for an extended time.
• If it is necessary to detach the power cord, first be sure to press the O/I STANDBY/ON button on the front panel of the unit so the unit is turned OFF before detaching the cord.

Caution

• The use of a power cord other than the one provided will invalidate the warranty, since Pioneer will not be responsible for any damage incurred. (The power cord provided with the unit has a rated current capacity of 10 A.)
• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below.

After you've finished making all connections, plug the unit into an AC outlet.

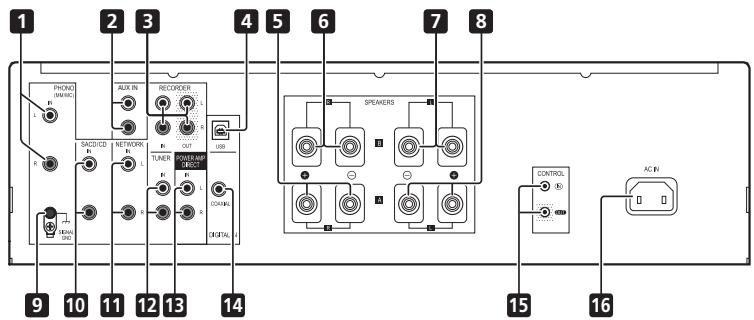

This unit's rear panel

1 Plug the supplied power cord into the AC IN socket on the rear panel of the unit.
2 Plug the other end into an AC outlet.

Chapter 3:

Controls and displays

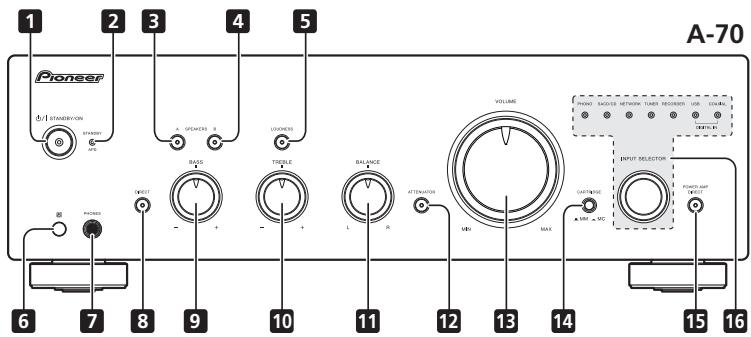

Front panel

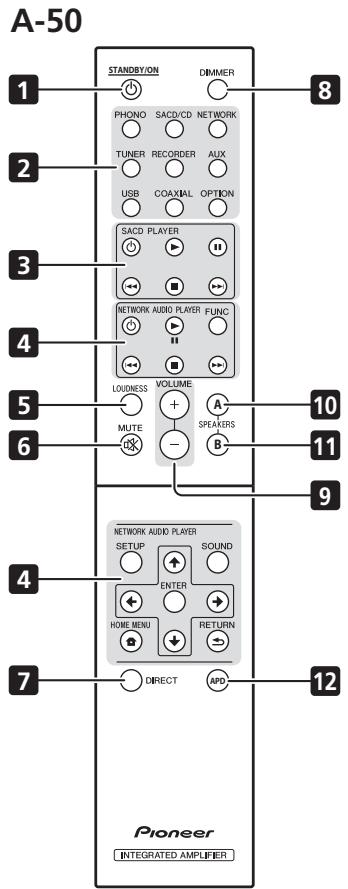

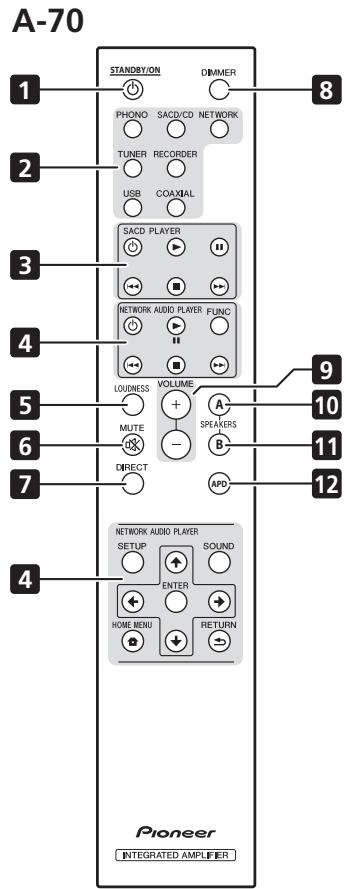

1 /STANDBY/ON

Switches the amplifier between off and on.

When power is turned on, the power indicator in the center of the button will light.

2 STANDBY/APD indicator

When power is set to standby, the indicator lights red. When the Auto Power Down (APD) function is on, the indicator lights green (page 13).

3 SPEAKERS A button/indicator

Use this button to listen to the speaker system connected to SPEAKERS A terminals.

On : The indicator lights. Sound is heard from the speaker system. (Sound will also be produced from the PHONES jack.)

Off: The indicator goes off. No sound is heard from the speaker system. Set to this position when listening with headphones.

4 SPEAKERS B button/indicator

Use this button to listen to the speaker system connected to SPEAKERS B terminals.

On : The indicator lights. Sound is heard from the speaker system. (Sound will also be produced from the PHONES jack.)

Off: The indicator goes off. No sound is heard from the speaker system. Set to this position when listening with headphones.

5 LOUDNESS button/indicator

Use when listening at low volume levels.

On: The indicator lights: Boosts low and high frequencies to give added punch to playback even at a low volume level.

Off: The indicator goes off: Should normally be left in this position.

• This button does not operate when the DIRECT button is in the on position.
• When sound volume is raised, the amount of change produced by the LOUDNESS circuit is reduced.

6 Remote sensor

Receives the signals from the remote control (page 4).

7 PHONES jack

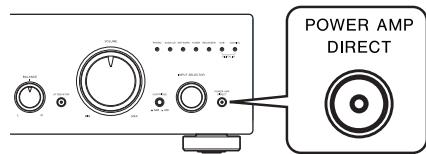

Use to connect headphones. No sound is produced when the POWER AMP DIRECT button is ON.

8 DIRECT button/indicator

On: The indicator lights: When this button is set to ON, sound signals are output directly, without being passed through the various adjustment circuits (BASS, TREBLE, BALANCE, LOUDNESS). This allows reproduction of the signals with greater fidelity, but it disables any settings made with the BASS, TREBLE, BALANCE or LOUDNESS controls.

Off: The indicator goes off: The signal passes through the various frequency adjusting circuits. When the indicator is OFF, adjustments can be made with the BASS, TREBLE, BALANCE, and LOUDNESS controls.

9 BASS tone control

Use to adjust the low-frequency tone. The center position is the flat (normal) position. When turned to the right, low-frequency tones are emphasized; when turned to the left, low-frequency tones are de-emphasized.

• This button does not operate when the DIRECT button is in the on position.

10 TREBLE tone control

Use to adjust the high-frequency tone. The center position is the flat (normal) position. When turned to the right, high-frequency tones are emphasized; when turned to the left, high-frequency tones are de-emphasized.

• This button does not operate when the DIRECT button is in the on position.

11 BALANCE control

Should normally be left in the center position. Adjust balance if the sound is louder from one of the speakers. If the right side is louder, turn toward the L (left) position and if the left side is louder, turn toward the R (right) position.

• This button does not operate when the DIRECT button is in the on position.

12 ATTENUATOR button (A-70 only)

Press when you wish to make fine adjustments to the sound volume when playing at very low sound volume levels.

13 VOLUME control

Use to adjust the volume level. (Also allows adjustment of the headphone sound volume.)

14 CARTRIDGE select switch (A-70 only)

Select the type of cartridge used with your turntable.

15 POWER AMP DIRECT button/indicator

Press this button when the unit is to be used as a power amplifier (page 11).

16 INPUT SELECTOR knob/indicators

Turn the knob clockwise or counterclockwise so that the indicator lights for your desired input source. Turning the knob clockwise causes the lit indicator to right. Turning counterclockwise causes it to left. When the remote control's MUTE button is pressed to mute the sound, the indicator for the input source selected with the INPUT SELECTOR knob flashes.

Rear panel

See pages 5-7 for details regarding connections.

1 PHONO IN (MM/MC) terminals (A-70)
PHONO IN (MM) terminals (A-50)
2 AUX IN terminals (A-50 only)
3 REORDER IN/OUT terminals
4 DIGITAL IN USB terminal (A-70 only)
5 SPEAKERS A terminals (Right channel)
6 SPEAKERS B terminals (Right channel)
7 SPEAKERS B terminals (Left channel)
8 SPEAKERS A terminals (Left channel)

9 GND (Turntable ground) terminal
This ground terminal is designed to help reduce noise when a turntable is connected. It is not a safety ground.
10 SACD/CD IN terminals
11 NETWORK IN terminals
12 TUNER IN terminals
13 POWER AMP DIRECT IN terminals

When using the unit as a power amplifier, connect the pre-amplifier here (page 11).

14 DIGITAL IN COAXIAL terminal (A-70 only)
15 CONTROL IN/OUT jack
16 ACIN jack

Connect power cord to here and an AC wall socket.

Remote control

1 STANDBY/ON

Switches the amplifier between standby and on.

2 Input selector buttons

Press to select an input source. These select the component connected to the corresponding input on the rear panel.

• When the A-50 is connected, the USB, COAXIAL, and OPTION buttons are disabled.

3 SACD PLAYER control buttons

Use to control Pioneer SACD player.

4 NETWORK AUDIO PLAYER control buttons

Use to control Pioneer network audio player.

5 LOUDNESS

Use to set the loudness circuit ON/OFF (page 8).

6 MUTE

Mutes/unmates the sound.

7 DIRECT

Press to access Direct listening (page 8).

8 DIMMER

This button allows the illumination of the unit's front panel indicators to be set in three levels (does not affect the STANDBY indicator).

9 VOLUME + / -

Use to set the listening volume.

10 SPEAKERS A button/indicator

Use this button to listen to the speaker system connected to SPEAKERS A terminals.

11 SPEAKERS B button/indicator

Use this button to listen to the speaker system connected to SPEAKERS B terminals.

12 APD

Use to set the Auto Power Down function to ON/OFF (page 13).

Chapter 4:

Operation

Playback

1 Turn on the power of the playback component.
2 Turn power ON to the unit.
- If the unit is in the standby mode, press the remote control's STANDBY/ON button.

3 Select the source you want to playback.

Select the playback component.

• When using the front panel controls, rotate the INPUT SELECTOR knob.

• In the case of the A-70, if PHONO is selected, use the CARTRIDGE select switch to designate the type of cartridge used with your turntable, either MM (■) or MC (—).
  4 Start playback of the component you selected in step 1.
  5 Adjust playback volume with VOLUME control.

6 Adjust the tone to your preference using the BASS and TREBLE controls, and LOUDNESS button.

If the DIRECT button has been set to ON, these controls are disabled.

Set the power to Standby

1 Press the remote control's STANDBY/ON button.

The next time you wish to turn on the power, press the remote control's STANDBY/ON button.

• If the front panel's / I STANDBY/ON button is pressed, the power will be turned off. In this case, if the power is off, pressing the remote control's STANDBY/ON button will not turn on the power. To turn on the power again, press the front panel's / I STANDBY/ON button.

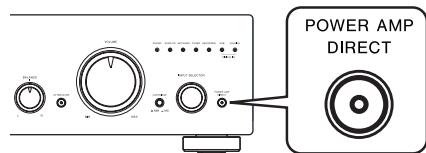

When using the unit as a power amplifier

When a pre-amplifier is connected to the unit's POWER AMP DIRECT IN terminals, the unit can be used as a power amplifier.

1 Press the POWER AMP DIRECT button on the front panel of the unit.

The POWER AMP DIRECT indicator will light.

Caution

• When the POWER AMP DIRECT indicator is lighted, operations change as follows:
• The unit's front-panel VOLUME, BASS, TREBLE, and BALANCE controls are disabled. These adjustments are controlled by the component connected to the unit's POWER AMP DIRECT IN terminals.
• The LOUDNESS button and ATTENUATOR button (A-70 only) are disabled.
• When the POWER AMP DIRECT indicator is lighted, sound volume from the unit will automatically be fixed at its maximum output. When using this unit as a power amplifier, check the output level of the component connected to the POWER AMP DIRECT IN terminals and set it to a low level as appropriate before turning on the POWER AMP DIRECT indicator. If the sound volume of the component connected to the POWER AMP DIRECT IN terminals is initially set to a high output level, loud sound may suddenly be output when the POWER AMP DIRECT indicator lights.
  Sound is not produced from the PHONES jack and REORDER OUT terminals.
• For more information, consult the operating instructions for the component connected to the unit's POWER AMP DIRECT IN terminals.

Playing music from a digital audio component (A-70 only)

Outputs digital signals input to the DIGITAL IN COAXIAL connectors.

1 Make a digital input connection.
See Digital audio input connections on page 6.

2 Press COAXIAL to select DIGITAL IN COAXIAL as the input source.

• When using the front panel controls, rotate the INPUT SELECTOR knob.
  Sound is produced from the RECORDER OUT terminals.

Note

• Digital signal formats that can be input to this unit include linear PCM signals with sampling rates and quantitative bits up to 192kHz / 32 bits (Depending on the connected device and environment, operation may not be successful).

Playing music from a computer (A-70 only)

Use this function to play digital audio input to the unit's rear panel DIGITAL IN USB port.

1 Connect the unit to a computer via USB cable

See Using a USB cable to connect to a computer on page 7.

2 Press USB to select DIGITAL IN USB as the input source.

• When using the front panel controls, rotate the INPUT SELECTOR knob.
  Sound is produced from the RECORDER OUT terminals.

3 Begin playback on the computer.

Note

• When using a USB cable to connect this unit to a computer for playing music files, the following linear PCM digital signals are supported:
• Quantitative bits: 16 bit, 24 bit, 32 bit
• Sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
• Playback cannot be controlled from this unit during use of this function; use your computer to control playback.
• When disconnecting the USB cable, always stop playback on the computer first.
  Sound may not be produced if your computer does not support USB 2.0 HS.
• This unit does not support use of a USB hub. Always use a USB cable to connect the unit directly to the computer.

Important

• When using the DIGITAL IN USB port to input audio files from a computer to this unit, it may be necessary to install a special driver on the computer. For details, see the website of Pioneer.

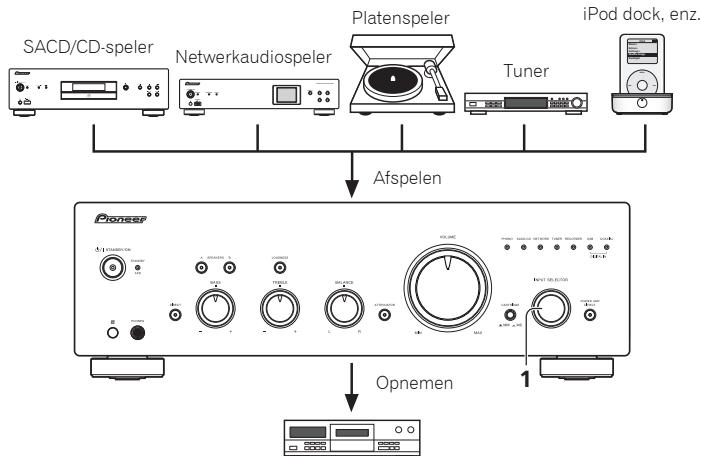

Making an audio recording

You can make an audio recording from any audio source connected to the amplifier.

Audio recording component
(CD recorder, tape deck, etc.)

1 Select the source you want to record.

2 Start recording, then start playback of the source component.

Caution

• Confirm that the short pin plugs are not inserted in the RECORDER OUT terminals, since malfunction will result if they are inserted.

To set for automatic standby status (Auto Power Down)

This function automatically switches the unit to standby mode if no signal or switch operation is detected for 30 minutes.

1 If the unit's power is ON, press the APD button on the remote control.

When this condition is set to ON, the STANDBY/APD indicator on the unit's front panel will light green. Press the buttons again to disable the setting.

• This setting can also be made by pressing the front panel LOUDNESS button and POWER AMP DIRECT button simultaneously and holding them depressed for 3 seconds.
  The factory default setting is ON.
• Rotating the TREBLE, BASS, BALANCE, or VOLUME controls will not be counted as a control operation for purposes of resetting the Automatic Power-Down 30-minute timer.

Note

• Depending on the device connected, excessive noise produced by the device may be interpreted as an audio signal, thus preventing the Automatic Power-Down function from operating.

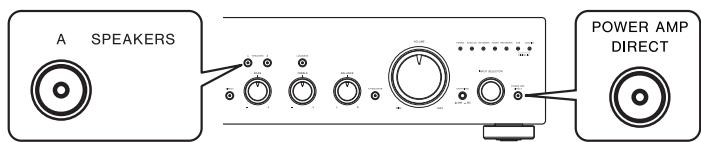

Restoring all the settings to the factory default settings

1 When power is in standby mode, hold the front-panel's SPEAKERS A button and POWER AMP DIRECT button depressed simultaneously for five seconds.

2 Turn power ON to the unit.

Chapter 5:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

Problem	Remedy
The power does not turn on.	·Is the power plug disconnected from the power outlet? Connect the power plug correctly to its outlet (page 7). ·Is the power cord disconnected from the AC IN connector? Connect the power cord correctly (page 7).
Power turns off.	·Is the Auto Power Down function turned ON? If you do not want the power to turn off automatically, disable the Auto Power Down function (page 13).
During playback, sound stops, and the STANDBY/APD indicator flashes red at about 0.5 second intervals.	·The protection circuit has been activated. This condition will result if a very low-frequency sound is played at a high sound volume level. ·Turn the power OFF and wait for at least one minute, then turn the power ON again; play the music at a lower sound volume level. ·When power is turned ON again, if the STANDBY/APD indicator flashes red at irregular intervals, the unit's circuitry may be damaged. Disconnect the power cord and consult your dealer or nearest Pioneer service station.
During playback, sound stops, and the STANDBY/APD indicator flashes red at about 1 second intervals.	·The unit's internal temperature has risen and the safety circuit has operated. ·Turn power OFF and wait for a minute or more, allowing the unit's temperature to cool before turning the power ON again. ·Install the unit in a location with better ventilation. ·Confirm that the unit is installed correctly; if the unit is turned on again without being allowed to cool, the same symptoms may appear (page 4).
During playback, sound stops, and the STANDBY/APD indicator flashes red at about 2 second intervals.	·Are you using speakers with impedance values not supported by this unit? Confirm the speaker's nominal impedance value (page 6). ·Are any speaker cables loose from the SPEAKERS terminals and touching other wires or the surface of the rear panel? Disconnect the power cord and reconnect the speaker cables correctly (page 6).
During playback, sound stops, and the STANDBY/APD indicator flashes red at about 3 second intervals.	·The protection circuit has been activated. This condition will result if a very high-frequency sound is played at a high sound volume level. ·Lower the sound volume and try playing again. ·If the same symptom appears when the power is turned OFF then ON again, the unit's circuitry may be damaged. Disconnect the power cord and consult your dealer or nearest Pioneer service station.
When power is turned on, the STANDBY/APD indicator flashes at irregular intervals.	·The unit's circuitry is damaged. Disconnect the power cord and consult your dealer or nearest Pioneer authorized service center.

Problem	Remedy
No sound is output when a function is selected.	•A connection cable is disconnected or connected improperly. Check your connections (page 5). •Connectors or pin plugs on a cable are dirty. Wipe off any dirt from connectors and pin plugs. •Confirm that the unit's input selector is set to the desired playback component. Set selector correctly (page 11). •Press MUTE on the remote control to turn muting off (page 10).
No sound from one speaker.	•Are the connection cables or speaker cables disconnected on one side? Reconnect securely (page 5).
Can't operate the remote control.	•Replace the battery (page 4). •Operate within 7 m, 30° of the remote sensor on the front panel (page 4). •Remove the obstacle or operate from another position. •Avoid exposing the remote sensor on the front panel to direct light. •Is the control cord for one component connected improperly? Confirm correct connections (page 6).
Can't change input source.	•Check whether POWER AMP DIRECT function is ON. If so, press the front panel's POWER AMP DIRECT button to turn the function OFF (page 11).
No sound is heard when a linear PCM signal with frequency of 96 kHz or more is input to the DIGITAL IN COAXIAL terminal.	•Sound may not be output properly depending on the digital coaxial cable used; try replacing the cable (sold separately) with another.
When the DIGITAL IN USB port is connected to a computer via USB cable, audio files on the computer cannot be played.	•Has the proper device driver been installed on the computer? When using a USB cable to connect the unit's DIGITAL IN USB port to a computer in order to play audio files on the computer, the proper device driver must be downloaded from the Pioneer website and installed on your computer. Consult the Pioneer website for instructions on installing the driver.
No sound is produced when attempting to play files on a computer.	•Are volume settings correct for the OS and application program? Raise the volume settings as required.
	•Is the OS audio output set to MUTE? Cancel the MUTE setting.
	•Are multiple applications running simultaneously? Try closing applications that are not in use.
	•Has the audio output been set properly within the OS or application used? For audio device select "Pioneer USB Audio Device".

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.

• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.

• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

Specifications

Amplifier section

Power output specification is for when power supply is 230V

Continuous power output (both channels driven at 20Hz to 20kHz

A-70/A-50. 90 W + 90 W

(THD 0.5%, 4 Ω)

A-70/A-50. 65 W + 65 W

(THD 0.5%, 8Ω)

Audio section

Input (Sensitivity/Impedance)

SACD/CD, NETWORK, TUNER, REORDER, AUX (A-50

only) 200 mV/50 kΩ

POWER AMP DIRECT 1 V/10 kΩ

PHONO (MM) 2.8 mV/50 kΩ

PHONO (MC) 0.24 mV/100 Ω (A-70 only)

COAXIAL .500 mVp-p/75 (A-70 only)

Output (Level/Impedance)

RECORDER OUT .200 mV/2.2 kΩ

Frequency response

SACD/CD, NETWORK, TUNER, REORDER, AUX (A-50

only) 5 Hz to 20 kHz ±2 dB*

PHONO (MM) 20 Hz to 20 kHz ±0.5 dB*

PHONO (MC) .20 Hz to 20 kHz ±0.5 dB* (A-70 only)

• Measured with DIRECT button switched on.

- Tone control

(When VOLUME is set to -30 dB)

Bass. ± 10dB (100 Hz)

Treble. ± 10dB (10 kHz)

- Signal-to-Noise Ratio (IHF SHORTED, A-NETWORK)

SACD/CD, NETWORK, TUNER, REORDER, AUX (A-50

only) 101 dB*

PHONO (MM, 5 mV input). 89 dB*

PHONO (MC, 0.5 mV input). .74 dB* (A-70 only)

• Measured with DIRECT button switched on.

- Speaker load impedance

A,B 4Ωto16Ω

A+B. 8Ω to 32Ω

Bi-wiring 4 Ω to 16 Ω

Miscellaneous

Power requirements

AC 220 V to 230 V, 50 Hz

Power consumption

A-70 .74W

A-50 .72W

In standby 0.2 W

Dimensions

A-70 . . . . . 435 mm (W) x 141.5 mm (H) x 361.5 mm (D)

A-50 . 435 mm (W) x 138.5 mm (H) x 357 mm (D)

Weight (without package)

A-70 17.1 kg

A-50 11.1 kg

Accessories

Remote control. 1

AAA/IEC R03 dry cell batteries 2

Short pin plug. 2

Power cord

Warranty card

Caution sheet

Operating instructions (This document)

Note

• Specifications and the design are subject to possible modifications without notice, due to improvements.
  Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corporations.

IMPORTANT

A propos de "bi-câblage (bi-wiring)"

© 2012 PIONEER CORPORATION.

3 Pulsante/spia SPEAKERS A

10 Pulsante/spia SPEAKERS A

WAARSCHUWING NETSNOER

2 STANDBY/APD-indicator

Audio-opnamecomponent (cd-recorder, cassettedeck,

Bass.	± 10 dB (100 Hz)
Treble.	± 10 dB (10 kHz)

© 2012 PIONEER CORPORATION.

© 2012 PIONEER CORPORATION.

IcnoB3OBAHne npbTa DnCTaHcHOnHOrO ynpabLeHn

IyIbT IaHCTaIHIOHOYIpyaJIeHHN HMeET DaJIbHOCT bIeICTBnOKOJIO 7M pIpyIeOTKIOHeHHN OTeHCopa 30^

ПИн ИсторICALI YIJIБТАНСТАЦHОДУ YIPIAВДЕЛХИ NOMHITDE O CJIYELOUHIM:

CJIeIHTe 3a TEM, YTO6bMy MekJy IYIbTOM HUCTAHINHOHORO UnpabJIENH N HAXOJIIMCMc HA yCHJIHTeJI pIHemHbIM CEHCOPOM He bJIO HHKAKHX IIpeIITCTBNI.
IyIbI JnCTaHINHOYnpABJIeHHN MoKet pa6oTaIb HeycoTHUBO, cHaJI Ha npHEMHNK ETO CnHAnIOB IOniJaAeT CNlBHy coJIeHcyH bCBET HInI JOMNHecIeHTHO H3JUYHENe.
IyIbIbI HJCTaHINHOHOrO yIpabJIeHNr OIT pa3hIxvCyTOOBCTB MOYr MEuATb Dpyr Hy.HeHIOJIb3yIte INCTaHUNOHnBE IyJIbTI pIyTOrO 6ObyoBaHN, paCIOIOKeHHOrO pydOM c 3THMycTOIcTBOM.
EclnBbA 3aMeHtneYMeHbIeHNE daJIbHoCTN IeCTBna IIyIbTa IINCTAHIOHHORO YnpabJIeHNN, 3aMeHNTe B nIyIbTe 6atapateKy.

YctaHOBka ycnJIHTeJIa

UcTpoCTBO HyKHO yCTaHOBHTb Ha pOBHyO H yCToHNBYIO NOBepXHOCTb.

He yctaHabJIbaiIe erO B cJeIyIOJIne MeCTa:
- HA TEJIEBH3OP (ETO MOKET Bb3BaTb HCKAKeHHE H306PaeHHe)
-Bo3JI KacessTHOJdekH (HINB6JIH3N YCTPOIcHTBa, rerehpnyuioero MaHHTHOE POJIe).TO MOKET Bb3BATb HCKAKJEHNE 3BykA.
-HaIpIaMbIX COJIHeuHbIX JIyax
-B CbIPbIX H BJIaJXHbIX MecTAX
B Ype3MepHO XOIOIbIX HJIN TOpRyHX MeCTaX
-B Mectax,Γe IHe IMeET MeCTO BVbpaHn HIn JpyTOE DBHKeHHe
-BOueHbIbJIbHBIX MECTAX
B MECTAX, ILE PPHCYTCTBYOT TOPRYNE HCNAPENH NIN MACHA (HANHPMEK, HA KXUYE)

He yctahabJIbAHte DaHHOe ycIpoCTBO Ha DnBaH INJINDpyTO IpeIMET Hm MatePNaI C nFOJIIOAIOIHMMCBOCTBAMH, TAK KAC 3TO MOKET He6laIaONPiHrTHO NOBIIHTb HA KaueCTBO 3Byka.

TnaBa2:

Поклоченье

IopKIOUeHne Ka6eNei

OctopoxHo

-П配电д,чсmpнзвдьткakнe-Jибо IOДКЛIOчЕнг,БыклIOчNTe ПИТаHнE NOTKЛIOчNTe cTeBOI IIHyp ot pO3ETKN.
IIOJIHOHYAT KaEBI IIHTAHN K 3JEKTHPCHECKO PO3ETK CEJYET IIOE BILNOHHEHNE CoEHNEHN MEXNJy BCEMI yCTPOJCTBAMI.

Octopokho

KJIeMMA SIGNAL GND (3a3emJIeHHe cHrHaJa) IpeIHa3aHcHEnI JIINCHKeHNy UypOBH IIYMOB IIPI INIOJIIOUeHHN yCHInTEJI K TAKMH YCTPOHCTBaM, KAK IPOHOIRbATEJIL BHNIIIOBbIX IIIACTHNOK.
KJIEMMb PHONO IN OCHaHHeB HHTeKePHOI 3aYJUHKO.3Tu 3aJIyHKU He cJIeYET cHMATb KpOME cJuaY aIOKnIOueHHN pNOHbPTaeY BHNIOBx bIACTnOK. CHTyOa3JIuHKU cJIeYET xpanHTb TaK, TcBOb OH a He nOpTePAJac.
3aIIeIaTcBCTabIbIbIteKepHyIO 3aIyIuKy B KaKeHJIIOO PA3bEMbIK, KpOME KJIeMM PHONO IN. POJIIOHueHNEIIEKepHOI 3aIyIuKy K KaKMnJIIO OpyTHM pa3bEmAM MOKeT CTbI pRNUHNO HEINCPABHOCTN.
He cIeJyETIOJIIOHATK BxOyI PHON0 IN KAKHEIHO yCTPOIcTBa, KpOMEIOPIrHbIaBtJI BHHIOBIX IIACTHOK. TaKHe JcIeJyETIOJIIOHATK BxOTMy BXOyI IOPIRbIaBtJI, OsCHAENHIH BCTPOEHBM 3KBaIIaJI3EpoM. TO MOJEPTIIPBECTK BbIOYID3BkyCa Cpe3MEpHO BVICOKHM YpOBHem I pOMKoTH N B pe3yJIbTaTE -IOBpKdEHHIO AC HIN dpyTnx VCTPOIHcTB.
KJIeMMbI PHONO IN MoJIH A-50 IpEHa3NaueHbI IyIIOJIOJIeUHeN IPOHrPbBateJIeBHINIOJBBX IIaCTHIOK, OCHaENHbHI TOJIOBJB 3BYKOCHNMeTcI c IOJIIBKNbHM MaHTnOM (MM). He cJIeYer IOJIkIOUayI IOHPbBATEJIiO, OCHaENHbIe ToJIOBJKO BYKOCHNMeTcI c IOJIbHNbKHOT KATyIKoM (MC).
He npereH6aIte Ka6eJIH NIOBepx yctpoIcTbA (KaK 103aHaO H JaIIIOCTpaIIN). B 30m cIyae co3daBaEMOE TpaHcΦopMAtOpAMH yctpoIcTBA 1EIEKTPOPMARHHTOE IIOJE MOKET Bb3BaTbΦOHBOH bIM B DInHAMKAX.

K KJIEMMA MPAM POWER DIRECT yCJHINTEHe JIeJyET IIOKJIIOHTb KaKHe-JIHO BxOJbIb, KpOMe BxOJa PRE-AMP OUT (BxOJcnpUcNtHEnT).
Ecn y Baunero npnoHpBbATEJe ectb 3a3eMJIHOuINI IPOBOJIOKJIOHOnTE erO K3a3eMJIHOUeIe KJIeMMe ycHJIHeTJE.

PpmeuHne

-Пин ПОДКЛЮЧЕНН KACCETHоJ DeKN MOT ket 6bTb CJIbIeH NIIb WOCIOINB3EDEHnN B 3ABHCIMOCTN OMeCTa YCtAHOBK.3TOT NIIH MOT ket 6bTb B4B3AH NOTOKOM paccEHHN OTr TpAHCΦopMATOpa yCnIHTeJI.B 3OM CIyue AYcTAHOBInTe yCnIHTeJI b JpyTOM MeCTe HIN INIpeMeCTHTe DeKу Ha 6OJIbIeepacCToHHe Ote yCnIHTeJI.

• Pod ⅢAETOB TcABHm3nAKOM KOMAHINNApple INC, aperetncptroBAAHmB C IIIIA nJpyrTHxCtphAA.

O "DByxnpoBODHom CoeHHeHn"

JaHHbI yCHInTeJIb MoKHO HcIOJIb3OBaTb c AC, IIOJIepKJBbAOUIHM DByXIIPOBOIDHoe COeINHeHHe. Heo6xOJHMo IOJCOeIHNHTb KJIEMMbI Hn3KOaCTOTbHbIX N bHyCOKOaCTOTbHbIX CNTHaIOB COOTBeTCTBYUoiHM 06pa3OM.

BoBpemI pOcIyUHbAHnK KHOPIKN SPEAKERS A (AkyCTuHeCKHe cHCTeMbI A) H SPEAKERS B (AkyCTuHeCKHe cHCTeMbI B) DOJIKNbI HAXOJITbcB N POJOKeHHN 包 K , 1C. T

Octopoxho

-Пин HCIOJIb3ObaHHn DByxIpyOBdHOro coeJINHeHHA NC He06xoHmdo YAaIIHTpeNMeHcKc KJIeMM «HIGH» (B)И «LOW» (H) AC JIAIpeOTdRpaueHHne H6JIaONprrHrTO B03JIeCTBnHa YCHInTeJIb. ПIoPbo6HbIe CbeEHNc CM. B INHCTpyKUqHX, BXOJIuHx B COMJIIEKT NocTBkA NC.

IpnH HcHIOJIb3OBaHHN AC cOTKJHOaEMbIMH p43dJIHTeJIbHMn dHJbTpAMn IOMNHTE, YTO eCIN dHJbTp OTKJHOeH, 9dFekT bJed TcYCTBOBAT h MOKET npOHI3OH II IOBpeKeHe AC.
Takke MoKHO IIOJIKNOHITb IIPOBJa OT KJIEMM SPEAKERS A (AkyCTHueCKHe CHTeMb A) K KJIEMMAM «HIGH» (BU), a OT KJIEMMAM SPEAKERS B (AkyCTHueCKHe CHTeMb B) - K KJIEMMAM «LOW» (HU) (IpiOTBHONOIOJKHM oBpa3OM TOMY, KaK IIOKA3AO HO nPCyHKe).

Iopknioyehne ka6eJeN AC

1 CkpyTte XnIbI npoBOIOB ka6eIa.
2 Ocna6bTe raKy KEmMbI SPEAKERS (AkyCTnueckne CnCTembl) N BCTaBbTe npoBOD AC B OTKpbIBWeecr OTBepTne B wTbIpe KEmMbI.
3 3aTAHHTe raKy KJIeMMbl.

Octopokho

• Pnpncn30BAHIN TOLbKO OndHoro Habopa KIeMM AC SPEAKERS A (Akyctneckne CNTeMb A) / SPEAKERS B (Akyctneckne CNTeMb B) nnn npn cnoN3oBAHH DByXnpOBOHbIX CoeINHeNH AkyctNeckne CNTeMb DOnJXhH IMeBT HOMHNAbHO BOpOTnBHeH B dAna3OHe OT 4 Ω do 16 Ω. Pnpncn3oBAHH DBxH ABpO B KJIeMM AC DOJXHb IMeBT HOMHNAbHO BOpOTnBHeH B dAna3OHe OT 8 Ω do 32 Ω. CBedeHnO O HOMHNbHOM CoPOTnBHeHm CM.B INcTpyKunxNo KcKnpyatauAC.
  PioJIOKHTIEbHHeN OTRPiATeIbHHe KJIEMMb（+/-）Ha yChJIHTeJe DOJIKHbIbBbIb CoeIHHeHb c COOTBeTcTBouIiMHn KJIEMMAMBa HA AC.
  Ha KJIeMMaxI JIIOJIKIIIOHeHHA AKVCTHNeCKOJ CHCTEMbI HMeTcE T OANACHOE DJI KUN3HN HAnpXKeHEn Bo h36BeJHnne IopApExHH EJIeKTPHueCkHM TOKOM IIPIH IOJIcoEHHENH IOTCOeJIHHeHHI IPOBOJb AC OTcoeJIHInHTe Ka6eJIb IIITAHN, IpeKJe CEm PIPKOKCHyBc K KaKHM-JIN60 HEH30JIINPOBAHBHm DetJIAM.

Bce KJHnI OIeJIeHOIOIPOBJIo JIOLJIHb 6bIbTckpyeHHa,IOPOBJIoJIKeBHbIOJIHOCTbBO BCTABJIEN B KJIEMMy AC.EcII KAKOI-JIN6O IOJIeHHBIOIPOBJAOCJETKACJBc3aIJIeHNJIaNEHmO,MOKeT cpa08tATs 3aIHTNHb bIKJIOUoHaeTIb IITAHNIA.

3 KhoNka c nHnKaTopoM SPEAKERS A

HnKMMte3y KHOINKU DII INPOCSUYIHHBAHNAC, IIOKJIIOUEHHBIX KJIEMMAM SPEAKERSA (AkycSTHueCKeH cHCTeMbAI).

On (BkJ.): HINIHKATOP rotH. AKCYTHUeCKHe CHCTeMb BOCIPHOH3BOJAT 3yK. 3yK TAKKe BOcIIPOH3BOJITCpe3 BbIXoL PHONES (HayuHHKn).

Off (BbIa.): IHINKATOP he IORPT. AKCYTNUeCKHe CHTeMBe IHE BOCPNOH3BOJET 3Bky. UCTAHOBITE KHOKNY B 3TO IIOJIOKeHne IPII pOcIyUHNBAHHN 3Bkya Yepe3 HauYNHKn.

4 KhoNka c HndikaTopom SPEAKERS B

HAnKMHTe 3Ty KHOIIKU, IJIAIIOPOcIYIHHBANHAC, IIOJIIOUChEHHbIX KJIEMMaM SPEAKERS B (AkyCTHueCKeH cHCTeMb A).

On (BkJ.): HNdkatop torH. AkyctnuceKHe cnCTtemb BOCIOPOH3B3Yk. 3Byk TAKke BOCIOPOH3BOIDTCpe3 BbXoD PHONES (HayuHHKn).

Off (BbKJ.) : HINHIKATOP he roHPT. AkyTHNueCKHe CHCTEMbI He BOcPnO3HBOJET 3yBk. YcTAHOBITE KHOJIKN BY 3TOIPOJOHNe PnH IpcOJUHHBAHHN 3ByKAYepe3 HAYHNNKNI.

5 KhoIka c HndkaTopom LOUDNESS

HcNIOJIbYIe 3Ty KOHNJy pNII npocJyINHbAHNN 38yKa Ha HnKOHr rPOMKoTH.

On (BkJ.): HNdkatopr gopnt. IpoHcxOJHT yCJIHeHne HNHKHX H BepXHHX 3BkyKBbXt aCtTdoYIyUHHeHHBOcPnOH3EeHHa H N3KOr rPOMKoTH.

Off (BbkiJ.) : HnHkATOpHe ropt. KHOJIKA o6bUHO doJIxHa HAXOHTbCBA 3OTM IOIOKEHHI.

C I I I O M O I S B I O 3 T O N K H O I N K B K J I H O A e T C H O T K J I H O A e T C H P Y H K I I N A B T O M A T H U E C K O T O B B K J I H O U E H H N (c m. c t p. 13).

TnaBa 4:

3Kcπnyataζη

Послушваимe

1 BkIIOUHTe nHTaHHe KOMNoHEHTa, CnIHan c KOTOPOro 6yDet HcNOb3ObTaBcra.
2 BkIIOUHTe nITaHne ycJIInTeJIA.

EclnHJIeJIb HAOJIITcB PekHM OKHJIAHNA, HAKMHTe HAJIbTe IY KHOIIky STANDBY/ON (PekHM OKHJAHN BYKLI).

3 BbI6epNTe NCTOCHNK, CnHAn c KOTOPORo Bbl XOTNTe BOCnPON3BecTN.

Bb6epHTe KOMIOHEnT DJII IpocJyIHBaHHa.

6 OtperynnpyTe Tem6p B COOTBeTCTBm CBOMM NpeDnOHTeHnMa C NOMoCbHo peryIaTOPOB BASS (Tem6p HU) n TREBLE (Tem6p B), a TaKke KhoNk LOUDNESS (ToHKomneHcaun).

Пин Нажатин КНОДКИ DIRECT (Ппямoe ПОДКЛЮЧЕнe) 3TN peryIaTOpbI He ФУнКИнOHPyHOT.

IpeekJIuOeHne ycHInTeIaBpeKIM OxNdaHnA

1 Haxmnte Ha npylte Dy KhoNky
STANDBY/ON (Pexim OxuaHa / Bkn).

IJIIOCTyUOIEFO BKIOUChENH IINTHAHN HAJKMITE Ha IIyIbTe IV KHOHNY O STANDBY/ON (PeKHM OOKHDAHH / BKNJ).

EcnHa nepeHne Hn HauKaTHa KHOHka O/ISTANDBY(ON (PeKHM OKHaHNH /BkI),PiHTaHHe 6yET ot KIOHcHEno. B 30m C1yueae, cHInPiTAnHe 0TKIOHcHn, HauKATHe Ha NJIbTe DY KHOHKn O/STANDBY(ON (PEKHM OKHaHNH /BkI) He IINPBcET K BKIOUeHnO yCJHITJeL. JINI IOBTOPHO BRKIOUeHn IIITAHN HauKMITE KHOINKY O/ISTANDBY/ ON (PeKHM OKHaADHH /BkI) Ha nepHei PAnHei YCNHITeJ.

NcNoJIb3OBAHne YCnJInteJI B KaueCTBe YCnJInteJI MOUHOCTn

Прил NOДКЛIOОЕИН ПIEДВAPERTIELBOHORO yCJHINTEЯ K OДНOMY ИЗ BXOJOB DAJIHONO YCJHINTEЯ POWER AMP DIRECTIN (ПОНМО NOДКЛIOОЕЕ N K YCJHINTEO MOIIHCTH) eTO MOJOHO HCSIOJIb3OBATB B KAYECTBE yCJHINTEЯ MOIIHCTH.

1 HaxMMTe KhoNky POWER AMP DIRECT (Ppmaoe noKluOHeHne K yCnIHTeLIO MOuHocTn) Ha nepeDnei naHei ycNlnteIa.

3aoropntcHnIHKatOP POWER AMP DIRECT (PiPmoe IIOKJIIOUChHe K cHJInTeIIO MOIIHOCTH).

OctopoxHo

Ecln ropht HnIHKATOP POWER AMP DIRECT (PiPmoe PIOJIKLIQUHNE K yCNIJIHTeJIO MOIOHCTN), yHKNiH yCNIJIHTeJI MEHJOITcY yKa3AHbM HNKe 06p3aOM:
OTKIIIOaIOCTcpeYIaTOpBbVOLUME (TpOMKOCTb),BASS(Tem6pHt),TREBLE (Tem6pBt) H BALANCE (BaJIaHc) Ha nepeJHne IaJIeHN yCUNITHeTbe.3TH NACTPOIKH bINIOJHOHTcC IIOMOIIbO peYIaTOpOB KCMIOHEHTa, POJIckUOHnHO ROKxOly POWER AMP DIRECT IN (PpIMoe PIOKJIIOueHene K yCUNITeIO MOIOHcOy) yCUNITHeTbe.
KhoIIka LOUDNESS H KOIIka ATTENUATOR (ToJIbKO DJI MIOJIEN A-70) ABTOMATUeCKH OTKHOJAOTC.
B Cnyuae,ecnI roptH HnDnKatop POWER AMP DIRECT（PiPmoePiOJIIOHOENe K yCNIHHTeHO MOUHOCTH),TROMKoCTb3yka YcHJHTeJIa 6ydet ABOTOMATHCECKYtAChOBHeHaMAKCHMABHOb BxHOJHOe 3HAueHHe. IPrn HCIOJI3OBOAHIN YCNHHTeBA KCAUcTeBc YCNHHTeJIa MOUHOCTH, cJeYET PIOBepNTb BxHOJHOyn OpyeBH KOMIOHEnb,TIOJIIOHOENH KOJIEMMAM POWER AMP DIRECT IN (PiPmoePiOJIIOHOENe K YcHJHTeIIMOUHOCTH),N UcTAHOBHTb Ha Tpe6yeMbMy MNHHMAbJIbYPOBEh DO BKIOHOHNNHDAKATOPA POWER AMP DIRECT.EcSnrPOMKoCTb 3yka KOMIOHEnb,TIOJIIOHOHNoK

KJIeMMaMPowerAMPDIRECT IN (Pjmaoe IIOJDKIOHeHE K yCSIHTIEMO MOIHOCTH), H3NaUJIbHO yCTaHOBJIeHa N BAICOKOM yPOBHE, IIPI BJKIOHHeHHNIIHnKaTOpOB POWERAMPIRECT MOKETBHE3AIHNO 6bITb BILDAH TpOMKNI 3BYK.

• Bocnpo3BcElenHe 3bKa He 6bIeT ocUyIeCTBIAIbctBa pe3 BxOJI PhONES (HayuHnKn) H RECORDER OUT (BbxOJ na peKopIep).

IIOJIINHTEJIHbIE CBEJEHNr CM. BpyKOBoJIDTBX IIO KcIIJIyATaIIIN KOMIIOHEYTOB, IIOKIIIOUeHHbIX K KJIEMMAM POWER AMP DIRECT IN.

Bocnpou3BeDeHne My3bIKn C yctpoiCTBa UuΦpOBOrO 3Byka (Tolbko dIra MoTeN A-70)

IuΦpOBbIe CnHJIbI IIOJaIOCTc Ha pa3bEmbl DIGITAL IN COAXIAL (KoakChaJIbHI bIuΦpOBoI BxOJ).

1 CobepTe cxemy cnoKluoyeHnem uΦpOBoROro cnHaJa.

Cm. paoJIe PaoBemuIyPooOz 8ayKoOzo cunHaia (moBoK 8H moJouu 7-O) ha strp. 6.

2 HaxmTe KhoNky COAXIAL (KoakCnai), TTo6bl Bb6paTb DIGITAL IN COAXIAL (KoakCnaiBbHbIuΦpOBoB BXoD) B KaueCTBe NCTOUYHkA BXoHOrO CnHaHa.

B ciyueae HcnoIb3IOBnA OprAnOB UnpaIeHnHa IpeJeHne HaneJIn ObaOpuHbIte CeIeKtrop INPUT SELECT (Bb6bp BxoJa).
3BKY 6yETB VBOBIOHTbC KJEMM RECDER OUT (BHXO1 ANIHCBAHOHERTO yctpoRCTbA).

PpimmeaHne

KΦopomatamIINpPobBIXCNHJIABOB,KOTOpBIEMOrYT 6bIbTIOaHbYHaCHJIeJIb,OTHOCTcNCHAIJIb IHHHeHHNHKcAuaCToAMTNIAckPeRTHaIIIN JO 192kT HKNBAHTOBAHEMJ0326HT（HEKOTOpBIE IOKJIHOaHaemyeUcpoHCTBaIIHN KOHfHpyaIIHN MOrYT HeIOJDEPKHBATsE.

Bocnpom3BeDeHne My3bIKn C

KOMnbHOTepa(ToIbKO DnIy MoDeJI N A-70)

37a yHKnHnno3BOJnRt BOCnPOnB3OoNHTb HfPpOBo 3BvK, BDOHMnIepe3 npot DIGITAL IN USB (IIhPpOBo USBnopT) na3aJHneIy cYHInTeJIa.

1 CoeHHnte yCNIHTeIb c KOMNbHOTepom uepe3 USB-Ka6eIb.

Cm. paeJI TookIcHueo K konMbOmepy c nomoubIO UBX-KaBae (moIbko dria moeua A-70) ha strp. 7.

2 Haxmte KhONky USB (Koakcnan), YTO6bI Bbl6paTb DIGITAL IN USB (KoAKCnAJIbHBI UINΦpOBoB BXoD) B KaueCTBe NCTOUYHkBAxODHORO CnHaHa.

B ciayae hnciIb3ObaHnnpaHOBu npaBJIeHNHa npeJeHne IaHeIn NIOBpaUHBAITe cIeKtOp INPUT SELECTOR(Bb6bopXbOa).
3Bky 6yETBbBOITtCBcKJEMM RECDRER OUT (BbXoI 3nAChbBAOHeOero YctpoICTBa).

3 3aynctnte Bocnpou3BeDeHne Ha KOMnIbIoTepe.

PpimueaHne

-Пин Ипользованн USB-кабел Дд IOДКИчЕннуMHITELКOMЛВОТЕРДСВОПСЗВЕDEHINNY3KALHbIhФаIOLN,ДIOPEKHNBAOTCJIeYIOUHHeuPbOBYe CTHHANJINHEHINK
- Pa3pyIHHocTb: 166HT, 246HTa, 326HTa
- YactotbI hckpert3aunn: 44, kTg, 48 kTg, 88,2kTg,96 kTg,176,4kTg,192 kTg

-Пи HСIOЛБ3OBaHH 3TOI ФунКИHH, BOCIIPOIN3BDEHHeM HeIb3 YIpyabJIrTb C yCHInTeJi; YIpyABJIrTb BOCIIPOIN3BDEHHeM CJIeDyHa KOMIIbHOtepe.
IpeTe TEM, KAK OTCOeHHHTB USB-Ka6eHb, BhauaJIe CJIeYer OCTaHOHBt BOCIIPOH3BeHeHHe KAOMIIbTOtepe.
BbBOJ 3Byka MOKET b8Ib THeB03MOKeH BcIyae,ecIIOMIIbOteP HeIOJIpeKHaBaT BcICOKoCkOpocTHOH HnTePfeic USB 2.0.
- YchInIeTJIb He NIOJIePKeHBAeTa pa6Ory epe3 USB-KoHcIeTpaTOpBc. CJIeJyET BcERJa HaprrMyUO IIOJIInuHaTb YCHInIeTJIb KOMIIbToEpy c HOMOIIbHO USB-Ka6JIa.

BHHMaHne

- OTHOSEHNE CnHaJI-lyM (IHF, A-NETWORK, BXoD 3aKopoYe)

SACD/CD, NETWORK, TUNER, REORDER, AUX (TOIbko IJIЯ moJELN A-50) .101 ^ PHONO (MM, BXoJH O nCnHaJ 5 MB). .89 ^ PHONO (MC, BxoJ 0,5 MB) 74 ^ (TOIbko IJIЯ moJELN A-70) ^ I3mepeno npu hauKamou KhONke DIRECT.

ConpotNBHeHne akyctnuecknx CnCTeM

A,B.4Ωdo16Ω

A+B. 8Ωdo32Ω

PIONEER CORPORATION, 2012.

Bce npaba 3aunuiehbl.

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B4_Ru

© 2012 PIONEER CORPORATION.

All rights reserved.

© 2012 PIONEER CORPORATION.
