Product type	Mobile liquid fuel heater (outdoor use only)
Brand	Qlima
Model	DFA2900 Premium
Recommended fuel	Paraffin (Class C1) or high-quality diesel, water-free
Power supply	230 V / 50 Hz
Power (ignition)	145 W
Adjustable thermostat	Yes, from 5 °C to 45 °C
Digital temperature display	Yes (Premium models)
Fuel tank	Integrated, with gauge and cap
Factory-set pump pressure	4 psi (0.28 bar)
Operation indicator light	Yes
Overheat protection	Yes, with safety device and 5A 250V fuse
Photocell	Flame detection
Fan	With cleanable blades
Filters	Cleanable/replaceable air filter and fuel filter
Mobility	Casters, front handle, cord winder
Maintenance	Drain tank every 200 h, clean filters every 500 h
Warranty	24 months (excluding normal wear and non-original parts)
Standards	LVD/EMC, CE

Frequently Asked Questions - DFA2900 Premium QLIMA

What fuel to use in the Qlima DFA2900 Premium?

Use only paraffin (Class C1 compliant with the orders of 25/06/2010 and 18/07/2002) or high-quality diesel without water. Never use gasoline, benzene, or alcohol.

How to start the appliance?

Fill the fuel tank (appliance cold), plug the cord into a grounded outlet, set the thermostat between 5 and 45 °C, then set the switch to On. The indicator light turns on and the heater starts.

Why is the indicator light flashing and the display showing E1?

Code E1 indicates a flame fault. Possible causes: incorrect pump pressure, dirty fuel filter, clogged nozzle, dirty or defective photocell. Refer to the troubleshooting table in the manual.

What does code E2 on the screen mean?

Code E2 corresponds to a disconnected or faulty temperature sensor. Check the sensor connection and replace it if necessary.

What does code E3 mean?

Code E3 indicates a faulty thermostat switch. The switch must be replaced.

What safety distances must be observed?

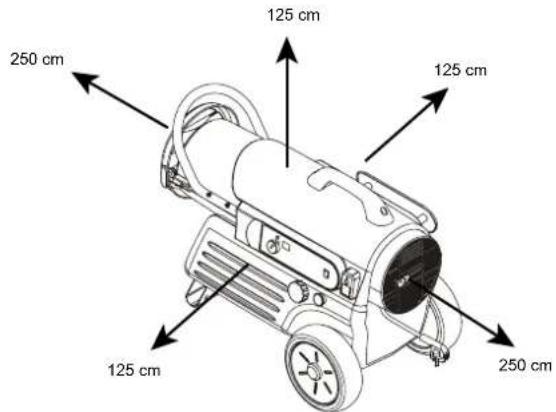

Keep at least 250 cm away from air inlet/outlet openings and 125 cm from exterior/top surfaces. Never place the appliance under an electrical outlet.

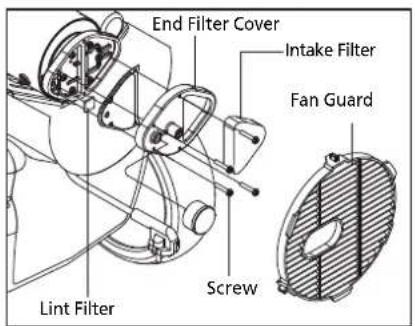

How to maintain the air filters?

Every 500 hours of operation or once a year, clean or replace the air inlet and outlet filters. Remove the top cover and fan guard to access them.

Can I use an extension cord?

No, the use of an extension cord or power strip is prohibited. Plug the heater directly into a grounded wall outlet.

How to replace the fuse?

Unplug the appliance, remove the side cover, disconnect the switch wires, remove the circuit board, then replace the fuse with an identical 250V, 5A model. Never use a different rating.

How to store the appliance off-season?

Completely empty the fuel tank, clean the filters, and store the heater in a dry place above 10 °C, preferably in its original packaging.

USER MANUAL DFA2900 Premium QLIMA

Environmental protection

Assembling the heater

Installation

Replacing the lamp

Storage instructions

Guarantee conditions

Environmental protection

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Output 16,500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 2900 premium

Pin 220-230V/50hz/1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 4100 premium

Pin 220-230V/50hz/1Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 41,000W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 16.500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 2900 premium

Pin 220-230V/50hz/1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 4100 premium

P_in 220-230 V / 50 Hz / 1 Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 41,000W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 16.500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Qlima

Model DFA 2900 premium

P_in 220-230V/50Hz/1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Qlima

Model DFA 4100 premium

P_in 220-230V/50Hz/1Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 41,000W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

FOR OUTDOOR USE ONLY. Dangerous and prohibited. Read the instructions before using the appliance. The appliance must be installed in accordance with the instructions and local regulations. For a well-ventilated area, a minimum of 25% of the surface area must be open. Air delivery temperature classification: space heating appliance. Use away from combustible materials. Areas of foreign premises for use in public, becoming the heater for national regulations. Connect power cord to a well-grounded 220V-50Hz source or power.

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

1 READ THE USER MANUAL BEFORE USE.

2 IF IN DOUBT, CONTACT YOUR RETAILER.

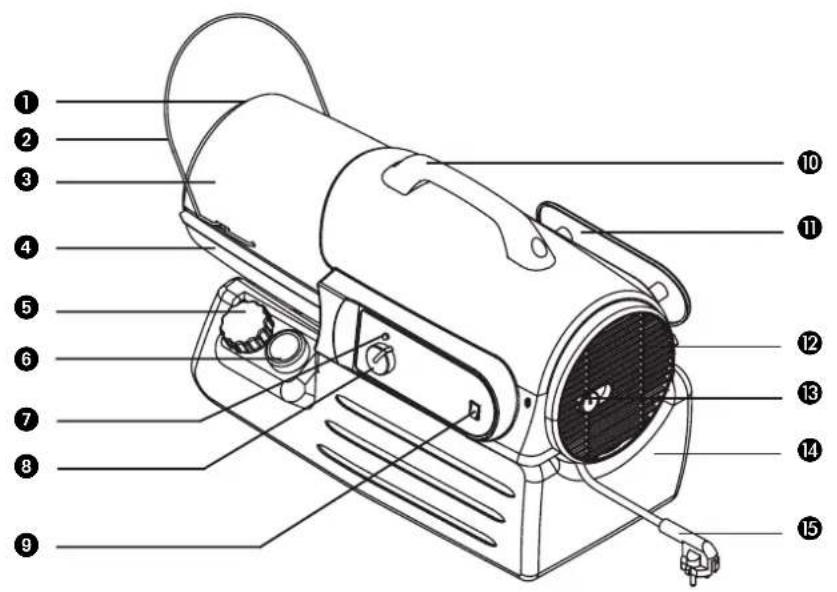

MAIN COMPONENTS

REPLACING THE FUSE

WARRANTY CONDITIONS

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 16.500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 2900 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 4100 premium

Pin 220-230V/50hz/1Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 41,000W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

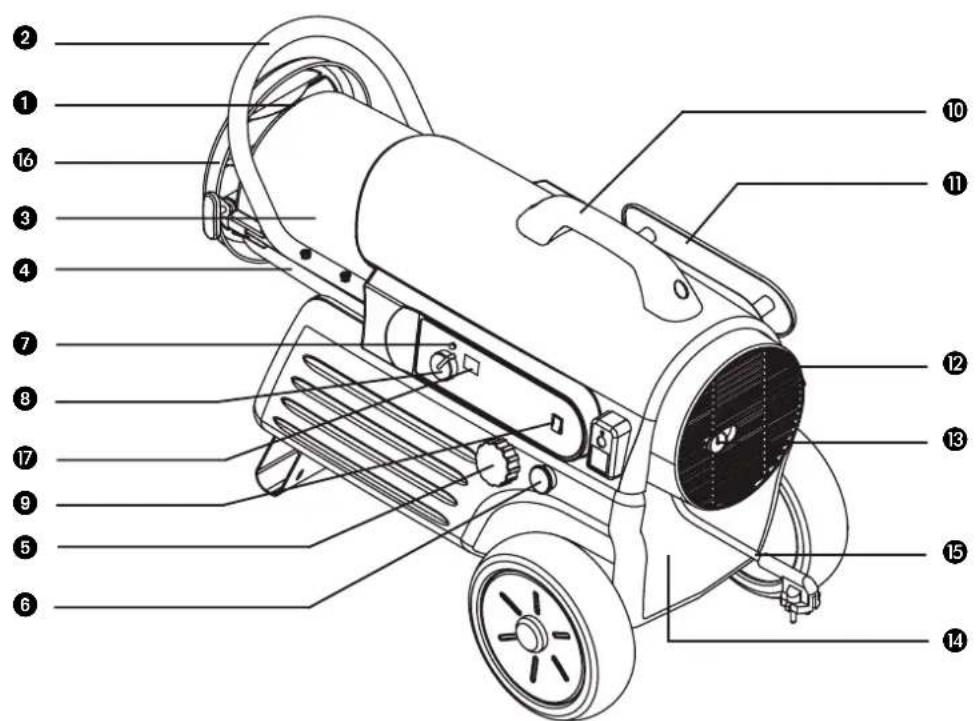

MAIN COMPONENTS

Hot air outlet, Front guard, Upper shell, Lower shell, Fuel cap, Fuel gauge, Indicator lamp, Thermostat knob, LED power / reset switch, Handle, Cord wrap, Fan guard, Pressure gauge, Fuel tank, Power cord, Louver, Temperature display

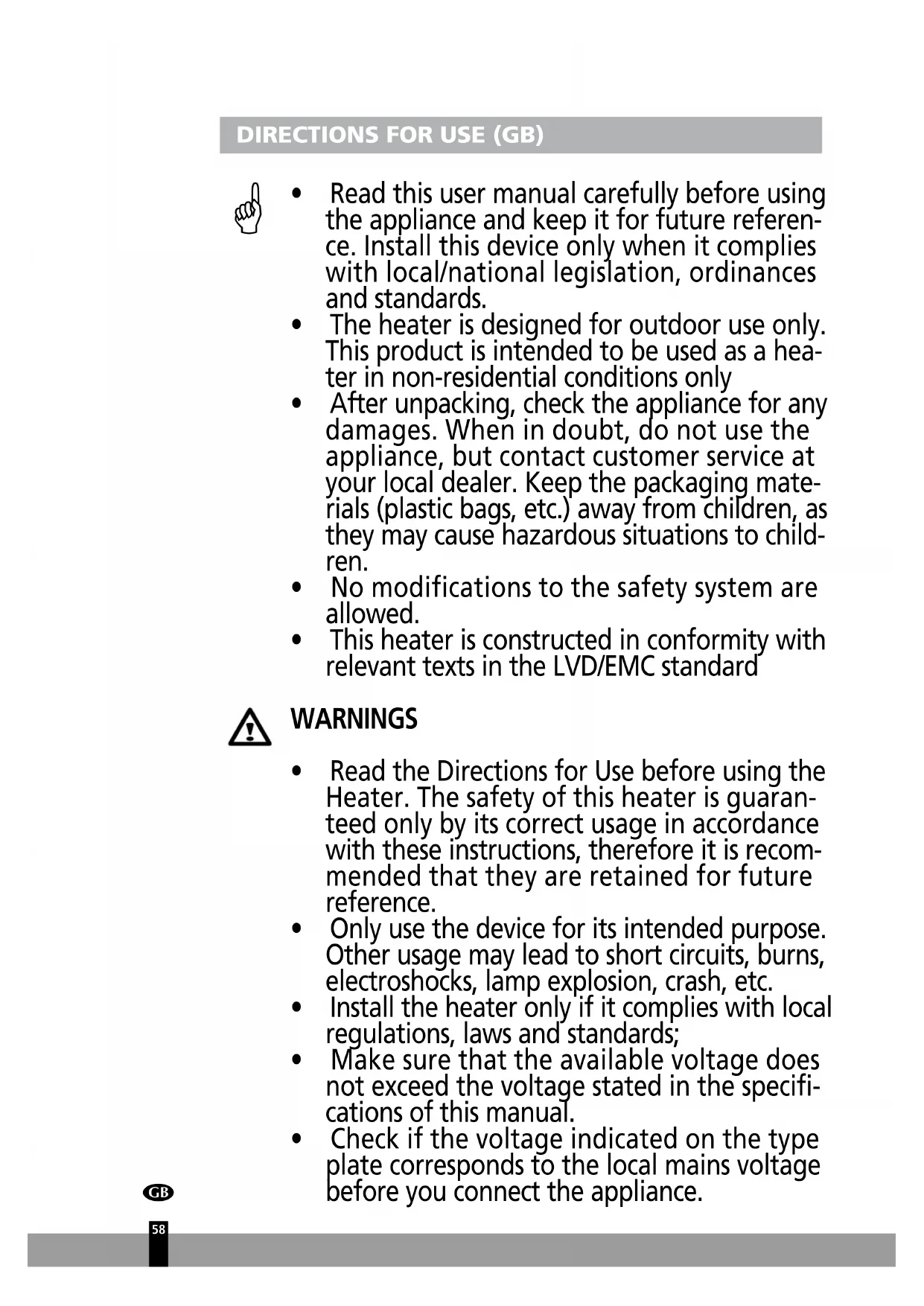

• Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.
• The heater is designed for outdoor use only. This product is intended to be used as a heater in non-residential conditions only.
• After unpacking, check the appliance for any damages. When in doubt, do not use the appliance, but contact customer service at your local dealer. Keep the packaging materials (plastic bags, etc.) away from children, as they may cause hazardous situations to children.
• No modifications to the safety system are allowed.
• This heater is constructed in conformity with relevant texts in the LVD/EMC standard.

WARNING

• Read the Directions for Use before using the Heater. The safety of this heater is guaranteed only by its correct usage in accordance with these instructions, therefore it is recommended that they are retained for future reference.
• Only use the device for its intended purpose. Other usage may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc.
• Install the heater only if it complies with local regulations, laws and standards.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.

The appliance is suitable for mains voltages ranging from ~230V. Always make sure that you actually see the appliance when you want to switch it on. Never use things like a timer, programmer or any other device (including Internet apps) that switches on the appliance automatically as this may cause fire! - Use the heater according to the instructions as described in the installation section of the directions for use; - This heater is manufactured according to CE safety standards. Nevertheless, as with any other heating device, care must be taken; - RISK OF FIRE Never use the heater in places where inflammable and/or harmful Gases, products or fumes may be present (e.g. exhaust Gases, paint fumes, curtains, paper, clothes); If the heater is positioned too close to inflammable materials you may risk fire; - Do not use any extension cords or multi-socket adapters. - For safety reasons take care when children or animals are in the proximity of the heater, as with any other heating device, and make sure that children are always aware of the presence of a hot heater; - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - If the supply cord is damaged, it shall be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Children should be supervised to ensure that

they do not play with the appliance.

In order to avoid overheating, do not cover the device. - The device must not be located immediately below a socket outlet. - Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. - Make sure that the power cable can never touch the heater. - The guard of this heater is intended to prevent direct access to warm parts and must be in place when the heater is in use. - Do not insert objects into the openings of the device. - The guard does not give full protection for young children and infirm persons. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away from the heater. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. - CAUTION - some parts of this product can become very hot and cause burns. Particular

attention has to be given where children and vulnerable people are present.

• WARNING - Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• During operation and just after operation the appliance will be extremely hot. NEVER touch it during operation or just after operation. NEVER move the appliance during this time.
• Switch off the appliance when it is unattended.
• Do not cover or obstruct the heater when in use.
• Disconnect the mains during installation, cleaning, maintenance and transportation. Ensure it is cooled down completely before moving, cleaning or performing maintenance.

Improper use of this heater can result in serious injury or death from burns, fire, explosion, electrical shock and/or carbon monoxide poisoning.

• Improper use of this heater can result in serious injury or death from burns, fire, explosion, electrical shock and/or carbon monoxide poisoning.
• Use this heater only in well ventilated areas.
• Use good quality fuel like Qlima Premium Quality fuels or similar in order to ensure that your heater can be used without problems.
• Never use other fuels than kerosene or diesel.
• Never use this heater with liquids like gasoline, benzene, paint thinners, alcohol based liquids or other oil compounds.
• Never use this heater where flammable vapours may be present.
• Never refill the heater, unless it has cooled

down completely.

• Use kerosene OR diesel as a fuel only, not mixed. When you want to switch from kerosene to diesel or vice versa, first empty the fuel tank completely. Always respect the minimum clearance distances when using the heater: Air inlet and air outlet: 250cm. Sides and top 125cm.
• Never use ducts or other objects to guide the air flow on air inlet or air outlet side.
• Never transport the heater with fuel in the tank. Make sure it is empty before moving it. Always ensure that the heater is standing and keeps standing on a level and firm surface.
• Make sure the surface on which the heater is standing is stable, without vibrations and not moving. Make sure that (potentially) dangerous situations cannot occur.
• Combustible objects should be stored safely according to local regulations, but never in such a way that the heater can heat or ignite them or (potentially) dangerous vapours can be generated. Make sure the heater is standing on a surface which cannot be harmed by using the unit.
• For optimal performance of this heater, please use Qlima Premium Quality Fuels or other kerosene. Diesel may be used, but the performance of the heater will be influenced. Emissions might be higher and burning process will be a little more volatile (small flame tips might be visible at the exhaust of the heater.

If you fail to consult and/or follow up the rules, instructions and explanation, the warranty will no longer be valid, and the manufacturer will no longer deal with any damage to the appliance and/or your environment under the warranty.

ASSEMBLING THE HEATER

The manufacturer is not responsible for any harm or damage if attention is not paid to the points described above.

The use of this product and the elements required for that purpose is entirely at the end user's own risk.

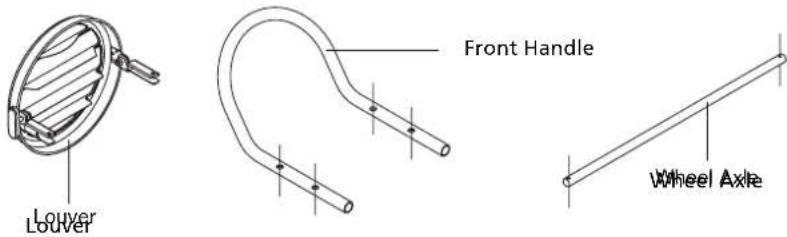

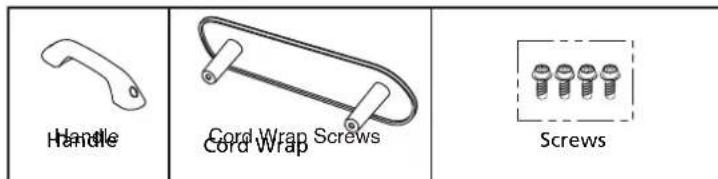

	DFA 1650 premium	DFA 2900 premium	DFA 4100 premium
Wheel	No Yes		Yes
Wheel Axle	No	Yes	Yes
Wheel Cap	No	Yes	Yes
Front Handle	No	Yes	Yes
Handle Yes Yes			Yes
Cord Wrap	Yes Yes Yes
Louver	No Yes Yes
Hardware Kit	Yes Yes Yes

INSTALLATION

Make sure to use the appliance only on a firm and sturdy underground. In case of doubt have underground checked by an expert.

WARNING - this appliance must be connected to an earthed power socket.

The heater is fitted with a supply cable and molded plug, therefore the terminals should not be interfered with. The following points should be considered when positioning the heater

• Your heater has been designed for use with high-quality, water-free pure paraffin oil such as Qlima Premium Quality Fuels or high quality, water-free

pure diesel oil (not home-oil). We recommend you to use paraffin. Only fuels of this kind will ensure clean and proper burning.

Lower quality fuel may result in:

• Increased possibility of malfunctioning Incomplete combustion
• Reduced heater lifetime Smoke and/or fumes Deposits on the grid, mantle or other objects
• Increased repair costs

Using the right fuel is therefore essential for safe, efficient and comfortable use of your heater.

Damage and/or malfunctioning of the heater due to the use of other than high-quality water-free pure paraffin oil or high quality, water-free pure diesel oil (not home-oil) is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

FILLING FUEL

Fill the fuel tank in a suitable, well ventilated area. Please avoid spillage of fuel and respect following precautions:

Make sure the heater is standing on a level surface - Make sure the heater is switched off and cooled down completely - Remove the fuel tank cap - Ensure that the same fuel is added to the remaining fuel in the tank, unless the tank is empty. - Fill the tank just below the maximum level in order to avoid spillage; the gauge indicates the fuel level - Replace the fuel tank cap

IGNITING AND OPERATING THE HEATER

STARTING THE HEATER

After refilling the fuel, put the plug into an earthed socket. Turn the thermostat control knob to the desired setting (5 - 45°C.) and put the power switch in the 'ON' position. The power indicator lamp will light up and the heater will start.

The temperature display (DFA 2900 Premium and DFA 4100 Premium only) will indicate:

• 'Lo' when the detected temperature is below 5°C. The actual temperature when it is between 5 and 45°C.
• 'Hi' when the detected temperature is above 45°C.

When the heater doesn't start, the set temperature may be lower than the detected temperature.

STOPPING THE HEATER

Put the power switch in 'OFF' position.

RESTART THE HEATER

Wait for minimum 20 seconds after stopping the heater in order to avoid damage to the heater.

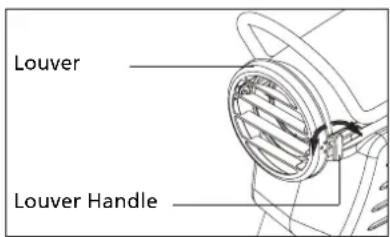

ADJUSTMENT OF AIR FLOW DIRECTION WITH THE LOUVER

The only way to adjust the air flow direction is by using the louver. Approximately 28 degrees upward and 20 degrees downward.

TROUBLESHOOTING

TROUBLE	POSSIBLE CAUSE	CORRECTIVE ACTION
Heater ignites but main PCB assembly shuts heater off after a short period of time (Indicator Lamp is flickering and temperature display indicates "E1").	Wrong pump pressure	See pump pressure adjustment
	Dirty air output, air intake of lint filter.	See air output, air intake and lint filters
	Dirty fuel filter See fuel filter

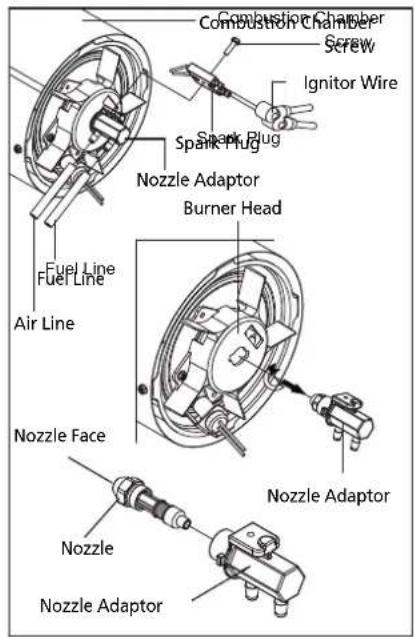

	Dirt in nozzle See nozzle
	Dirty photocell lens Clean photocell lens
	Photocell assembly not properly installed (not seeing the flame)	Make sure photocell boot is properly seated in bracket
	Bad electrical connection between photocell and main PCB assembly	Check electrical components. See wiring diagram
	Defective photocell Replace photocell.
Heater will not ignite but motor runs for a short period of time (Indicator lamp is flickering and temperature display indicates "E1")	No fuel in tank Fill tank with kerosone
	Wrong pump pressure	See pump pressure adjustment

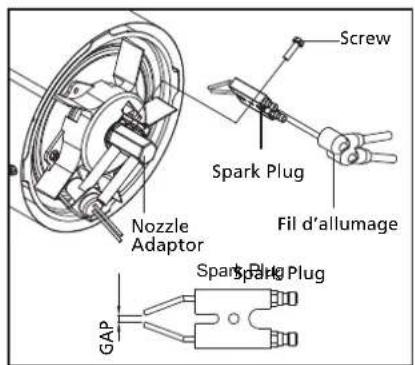

	Carbon deposits on spark plug and/or improper gap	See spark plug
	Dirty fuel filter See fuel filter
	Dirt in nozzle See nozzle
	Water in fuel tank	Flush fuel tank with clean kerosone
	Bad electrical connection between ignitor and main PCB assembly	Check electrical components. See wiring diagram
	Ignitor wire is not attached to spark plug	Attach ignitor to spark plug
Fan does not turn when heater is plugged in and power switch was in the "On" position. (Indicator lamp is on or flickering)	Thermostat setting is too low	Turn thermostat control knob to a higher setting
	Bad electrical connection between motor and main PCB assembly	Check electrical connections. See wiring diagram
Indicator lamp is flickering and temperature display indicates "E2"	Temperature sensor disconnected	Reconnect sensor. See wiring diagram
	Sensor failure	Replace sensor. See wiring diagram.
Indicator lamp is flickering and temperature display indicates "E3"	Thermostat switch failure	Replace switch. See wiring diagram
Heater will not turn on (Indicator lamp is off)	Temperature limit safety device is overheated	Turn power swith to "Off" and allow to cool (about 10 minutes)
	No electrical power	Check to insure heater cord and extension cord are plugged in. Check power supply
	Blown fuse	Replace safety fuse in PCB board
	Bad electrical connection between temperature limit safety device and PCB board	Check electrical connecti-ons. See wiring diagram

MAINTENANCE (TO BE EXECUTED BY AUTHORIZED PERSONS ONLY)

WARNING!!: NEVER SERVICE HEATER WHILE IT IS PLUGGED IN OR WHILE HOT!

USE ORIGINAL EQUIPMENT REPLACEMENT PARTS ONLY. Use of third party or other alternate components will void warranty and may cause unsafe operating conditions.

FUEL TANK

• Flush every 200 hours of operation or as needed.

UPPER SHELL REMOVAL

• Remove the screws that secure the side.
• Push out in the direction of the arrow and extract the side cover's bracket from the rectangular hole, then separate the side cover (R).
• The side cover (L) is opposite the side cover (R). It separates by the same method. (DFA 2900 premium and DFA 4100 premium)
• Remove the 4 screws along each side of the heater using a medium Phillips screwdriver. These screws attach the upper rear and lower shells together. (DFA 1650 premium).
• Remove the screws along each side of the heater using a medium Phillips screwdriver. These screws attach the upper and lower shells together.

AIR OUTPUT, AIR INTAKE AND LINT FILTERS

Wash and dry with soap and water or replace every 500 hours of operation or once a year.

• Remove the upper shell.
• Remove the fan guard.
• Remove the end filter cover screws using a medium Phillips screwdriver.
• Remove the end filter cover.
• Replace the air output and lint filters.
• Wash or replace the air intake filter.
• Reinstall the fan guard and the upper shell.

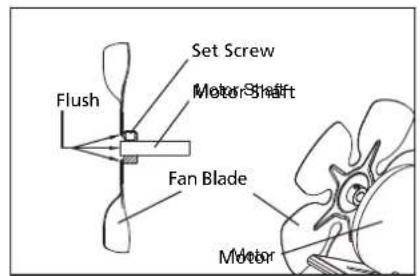

FAN BLADES

Clean every season or as needed.

• Remove the upper shell.
• Use a 1/8-inch Allen wrench to loosen the set screw that holds the fan blade to the motor shaft.
• Slide the fan blade off the motor shaft.
• Clean the fan blade using a soft cloth moistened with kerosene or solvent.
• Dry the fan blade thoroughly.
• Reinstall the fan blade on the motor shaft. Place the fan blade hub flush with the end of the motor shaft.
• Place the set screw on the flat of the shaft. Tighten the set screw firmly (40–50 inch-pounds / 4.5–5.6 N·m).

FUEL FILTER

Clean or replace twice a heating season or as needed.

• Remove the upper shell.
• Remove the fan blade. Pull the fuel line off from the fuel filter neck.
• Remove the fuel filter.
• Wash the fuel filter with clean kerosene and replace it in the tank.
• Attach the fuel line to the fuel filter neck.
• Replace the fan blade and the upper shell.

PUMP PRESSURE ADJUSTMENT

• Start the heater and allow the motor to reach full speed.
• Adjust the pump pressure. (Using a flat blade screwdriver)
• Turn the relief valve clockwise to increase pressure.
• Turn the relief valve counter-clockwise to decrease pressure.
• Set the pump pressure according to the chart below.
• Stop the heater.

NOTE: Use only original equipment replacement parts. Use of alternative or third party components will void any warranty and may cause unsafe operating conditions.

REPLACING THE FUSE

NOTICE: This heater is fuse protected.

If your heater fails to ignite, do not return it to the store.

Please follow the simple instructions below to inspect and change the fuse first.

To prevent personal injury, unplug the power cord before replacing the fuse.

Unplug the heater. Remove the screw that secures the side cover. Push out in the direction of the arrow and extract the side cover's bracket from the rectangular hole, then separate the side cover. Disconnect the switch wires from the power switch. Remove the two screws using a medium Phillips screwdriver. These screws attach the circuit board to the side cover. Remove the fuse from the fuse holder and replace it with a 250V, 5A fuse.

To avoid fire, do not substitute with a higher or lower current rating.

• Reconnect the switch wires to the power switch.
• Replace the circuit board and the side cover.

MODEL PUMP PRESSURE
DFA 1650 Premium 3 psi
DFA 2900 Premium 4 psi
DFA 4100 Premium 5 psi

STORAGE INSTRUCTIONS

Store the heater in a dry place above 10°C in the original packaging. Remove all fuel from the tank before storing.

GUARANTEE CONDITIONS

The appliance is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply: 1. We expressly refuse all further damage claims, including claims for collateral and/or consequential damage. 2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee. 3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted, or repairs are carried out by third parties. 4. Components subject to normal wear, such as filters, batteries, lamps, and heating elements, are not covered by the guarantee. 5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to it. 6. The guarantee is invalid for damage caused by neglect and/or by actions that deviate from those in this instruction booklet. 7. Transportation costs and the risks involved during the transportation of the appliance or components of the appliance shall always be for the account of the purchaser. 8. Damage caused by not using suitable spare parts is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the appliance to your dealer for repairs if these instructions do not provide a solution.

www.qlima.com

ENVIRONMENTAL PROTECTION

Do not dispose of electrical appliances as unsorted municipal waste; use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 1650 Premium

P_in 220-230V / 50Hz / 1Ph

Ignition 145 W

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 16,500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 2900 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 4100 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 41,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

1 READ THE INSTRUCTIONS FOR USE FIRST.

2 IN CASE OF DOUBT, CONTACT THE DEALER.

MAIN COMPONENTS

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 16.500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 2900 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 4100 premium

P_in 220-230 V / 50 Hz / 1 Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 41,000W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 16.500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 2900 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 210 W

Normal operation 190 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 29,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Model DFA 4100 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 41,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

1 READ THE USER MANUAL FIRST.

2 IF IN DOUBT, CONSULT YOUR DEALER.

MAIN COMPONENTS

Remove the top cover.

Normal operation 125 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

Pout 16.500 W

IP class IPx4

Serial number

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Qlima

Model DFA 2900 premium

Power input: 220-230 V / 50 Hz / 1 Ph

Ignition: 210 W

Normal operation: 190 W

(BS2869 part 2) or 1-K kerosene or No. 1 fuel oil

Power output: 29,000 W

IP class: IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

SPECIFICATIONS DUAL FUEL FORCED AIR HEATER

Qlima

Model DFA 4100 premium

P_in 220-230V / 50Hz / 1Ph

Ignition 220 W

Normal operation 200 W

(BS2869 part2) or 1-K kerosene or No.1. fuel oil

P_out 41,000 W

IP class IPx4

PVG Holding BV, Kanaalstraat 12 C, 5347 KM

Oss, the Netherlands | P.O. Box 96,

5340 AB Oss, the Netherlands

Qlima.com

Made in Korea

DFA 1650 Premium

DFA 2900 Premium DFA 4100 Premium

1. BEFORE USING THE APPLIANCE, READ THE USER MANUAL. 2. IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

MAIN COMPONENTS

(DFA 2900 premium and DFA 4100 premium)

Distributed in Europe by PVG Holding B.V.

If you need more information or if problems occur, please visit our website www.qlima.com, or contact our customer service (phone number on www.qlima.com). For all further information or in case of problems with the appliance, refer to www.qlima.com or the local customer center (phone numbers found on www.qlima.com). If you need information or if you have a problem, visit our website www.qlima.com, or contact our customer service (you will find the phone number on www.qlima.com). If you wish to obtain additional information or if you encounter a problem, visit our website (www.qlima.com) or contact our customer service (you will find the address and phone number on www.qlima.com). If you need more information or if the device has problems, visit the website www.qlima.com or ask PVG consumer service (www.qlima.com). If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (you will find its phone number on www.qlima.com). For information and in case of problems, visit the website www.qlima.com or contact the Customer Service Center (to know the phone number, see www.qlima.com). If you need information, or if you have a problem with the product, you can go to the website www.qlima.com. Alternatively, you can contact PVG's consumer service (phone number on www.qlima.com). If you need more information or if you have a problem, visit our website (www.qlima.com) or contact the sales support department (address and phone on www.qlima.com). If you need information or if you have problems, visit the website www.qlima.com or contact the Assistance Center (phone number on www.qlima.com). In case of problems and for detailed information, visit the Qlima website at www.qlima.com or contact the Qlima contact center (www.qlima.com). If you need service or information or have a problem with the appliance, you can visit www.qlima.com or contact Qlima customer service (you will find the phone number on www.qlima.com). If you want additional information, visit the company's website at www.qlima.com or call the phone (www.qlima.com). If you need more information or if you encounter a problem, visit the Qlima website at www.qlima.com or contact the Qlima customer center in your country (phone number: www.qlima.com).
