Product type	Baby monitor (audio monitor) wireless
Brand	Philips
Model	SBCSC368-00Y
Parent unit power supply	Rechargeable NiMH batteries (included) or 9V DC 200mA mains adapter
Baby unit power supply	4 AA 1.5V batteries (not included) or 9V DC 200mA mains adapter
Mains adapters included	2 adapters 230V AC 50Hz, output 9V DC 200mA
Maximum range	Up to 250 meters under ideal conditions
Operating temperature	10°C to 40°C
Channel selection	2 channels (A/B) to avoid interference
Microphone sensitivity adjustment	Yes, from 1 to 9
Volume control	Yes, with on/off switch
Link indicator	LINK LED indicator
Sound alarm for lost connection	Can be activated (internal setting)
Parent unit battery life	Approximately 12 hours after full charge
Baby unit battery life	More than 30 hours with new batteries
Belt clip	Yes, on the parent unit
Charging base	Yes, for the parent unit
Maintenance	Clean with a dry cloth
Safety instructions	Keep the power cord out of reach of the child; place the baby unit at least 1 meter away

Frequently Asked Questions - SBCSC368-00Y PHILIPS

What to do if the power indicator of the parent unit does not light up?

Check that the volume/Off control is turned clockwise (ON position). If the batteries are low, recharge the parent unit in its charging base.

What to do if the power indicator of the baby unit does not light up?

Make sure the unit is turned on by pressing the Power button (A-4). Check that the mains adapter is properly plugged in or that the batteries are not depleted. If you use a socket with a switch, make sure it is set to ON.

Why do I hear no sound?

The volume of the parent unit may be too low: turn the volume control clockwise. The units may be out of range: move the parent unit closer to the baby unit.

What to do in case of interference or poor reception?

Move any mobile or cordless phone away from the units. Try changing the channel by setting both units to the same channel (A or B). If the problem persists, move the units closer together.

How to activate the sound alarm for lost connection?

Open the battery compartment of the parent unit (B-9) and set the sound warning selector (B-12) to the On position. The LINK indicator will continue to flash even if the alarm is deactivated.

Why does the power indicator flash?

This indicates that the batteries are low. For the parent unit, recharge the batteries by placing it on the base. For the baby unit, replace the batteries or plug in the mains adapter.

How long does the parent unit charge take?

The first charge must last at least 14 hours. Once fully charged, the battery life is approximately 12 hours.

Can I use the baby unit only on batteries?

Yes, the baby unit can operate on batteries (4 AA 1.5V batteries not included). It offers more than 30 hours of autonomy with new batteries.

How to adjust the microphone sensitivity of the baby unit?

Use the SENSITIVITY control (A-5) on the baby unit. Adjust it from 1 (least sensitive) to 9 (very sensitive). The middle position (5) is recommended to start.

What to do if the units are no longer linked (LINK indicator flashes)?

Move the parent unit closer to the baby unit. Check that both units are on the same channel. Make sure the batteries are sufficiently charged.

USER MANUAL SBCSC368-00Y PHILIPS

This document is printed on chlorine free produced paper Data subject to change without notice Printed in China

CE0682!

baby monitor

SBC SC368

Instructions for use Instructions pour l'utilisation Modo de empleo Bedienungsanleitung Gebruiksaanwijzing Istruzioni per l'uso Instruções de uso Οδηγίες χρήσης Bruksanvisning Vejledning Bruksanvisning Käyttöohje

English......page 2

Français ...... page 8

Español ...... página 14

Deutsch ...... Seite 20

Nederlands ...... pagina 26

Italiano ...... pagina 32

Português ...... página 38

Ελληνικά ...... σελίδα 44

Svenska ...... sida 50

Dansk ...... side 56

Norsk ...... side 62

Suomi ...... sivu 68

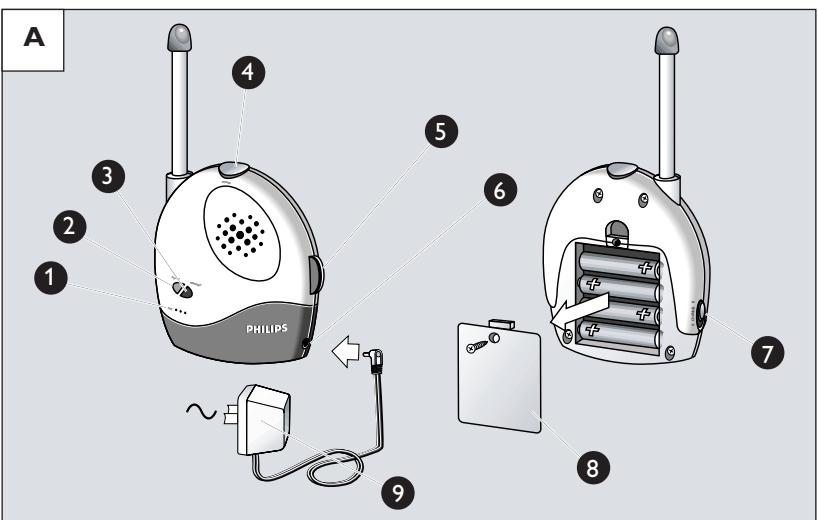

BABY UNIT

GB

A-1 Microphone---- high-sensitivity microphone
A-2 Power light---- lights when unit is powered; flashes when batteries are low
A-3 Transmit light ____ lights when a sound is being transmitted
A-4 Power pushbutton ---- push this button to switch the unit on or off
A-5 Microphone sensitivity ---- set the level at which the microphone will pick-up sounds
A-6 DC power supply socket ---- plug mains adapter connector into this socket
A-7 Channel selection switch ---- select channel A or B (whichever has least interference)
A-8 Battery compartment cover ---- unscrew and unclip to insert batteries
A-9 AC power adapter ---- plug into AC mains socket and into DC power supply socket

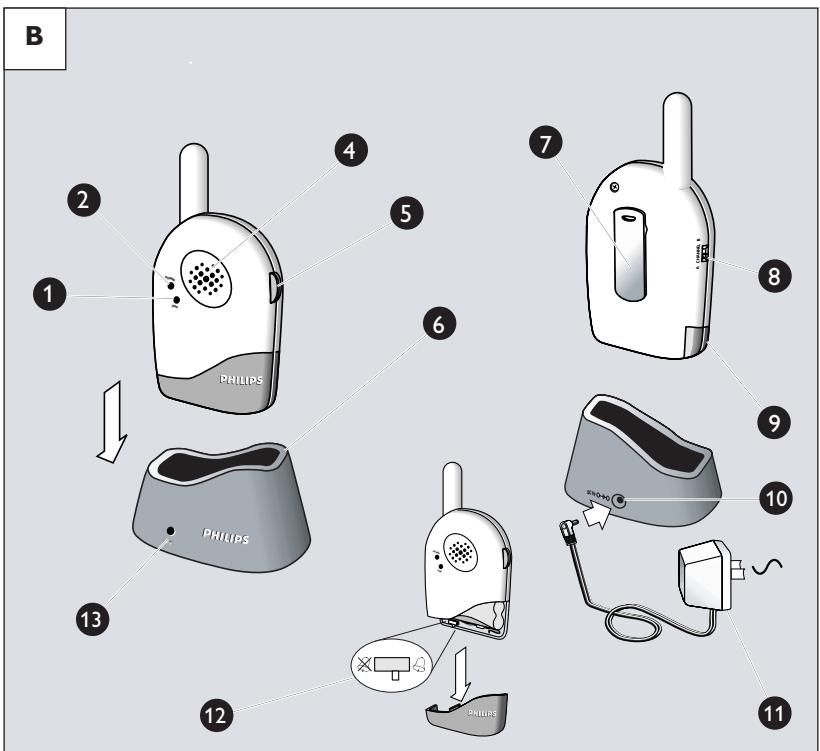

PARENT UNIT

B-1 Link light ____ lights to show that both units are in touch with each other
B-2 Power light---- lights when unit is powered; flashes when batteries are low
B-4 Loudspeaker ---------------------------------- provides clear sound
B-5 Loudspeaker Volume control /
Off switch ----
- set loudspeaker level;
- switches off the power to the unit completely
B-6 Charging base ---- place unit in base to operate it on mains power and when batteries are low
B-7 Belt clip --handy clip for carrying the unit
B-8 Channel selection switch ---- select channel A or B (same as Baby unit)
B-9 Battery compartment cover ---- unclip to replace batteries
B-10 DC power supply socket ---- plug mains adapter connector into this socket
B-11 AC power adapter ---- plug into AC mains socket and into DC power supply socket
B-12 Audible warning switch ---- sets audible link alarm on or off
B-13 Charging base light ---- lights when unit is in the base and charging

CONGRATULATIONS

You have just purchased a high-performance, cordless Baby Monitor that lets you listen to your child from wherever you are in and around the house. Please read this guide carefully before using the monitor, and keep it for future reference.

IMPORTANT!

This Baby Monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

Make sure the Baby unit and adapter cable are always out of reach of the baby, at least 1 metre away.

Never place the Baby unit inside the baby's bed or playpen!

The antennas on the Parent and Baby units are fixed; do not try to extend them.

Never cover the Baby unit (with a towel, blanket, etc.)

GETTING THE UNITS READY FOR USE

Baby unit

Connect the AC power adapter (A-9) to an AC mains socket, and then connect the cord to the DC power supply socket (A-6) of the Baby unit.

If you want to use batteries, remove the battery compartment cover (A-8) using a screwdriver. Insert four 1.5V, AA batteries (not included; we recommend non-chargeable Philips Alkaline batteries), noting the + and - configuration inside the battery compartment. Put the cover back in place and tighten screw.

The Baby unit operates cordlessly for up to 30 hours on fresh batteries. The red POWER light (A-2) flashes when battery power is low. If this happens install new batteries.

Note: To switch off the Baby unit completely push the POWER button (A-4).

Parent unit

The Parent unit uses a rechargeable battery pack. This is already installed, but first it must be charged for at least 14 hours as follows before using the unit outside the charging base:

• Connect the AC power adapter (B-11) to an AC mains socket, and then connect the cord to the DC power supply socket (B-10) of the charging base (B-6).
• Place the Parent unit inside the charging base. The red charging light (B-13) lights.

The Parent unit can be operated now but you should leave it in the charging base until the batteries are fully charged (at least 14 hours). When the batteries are fully charged, take the Parent unit out of the charging base and use cordlessly for up to 12 hours.

When the red POWER light (B-2) on the Parent unit flashes, the battery power is low. Place the Parent unit inside the charging base to recharge the batteries.

Monitoring baby's sounds

To use the units to listen to your baby:

• Position the Baby unit at least 1 metre away from the baby so that the microphone (A-1) can pick up baby's sounds.
• Set the channel switch to the same position on both units.
• Push the POWER switch on the baby unit (A-4) to switch it on.
• Set the SENSITIVITY control (A-5) on the Baby unit to about mid-range (5).
• The green TRANSMIT light (A-3) lights when a sound is picked up.
• Move away from the Baby unit with the Parent unit.
• Switch on the Parent unit using the Volume control/Off (B-5) and adjust the volume to the level you prefer.
• If required, re-adjust the SENSITIVITY control (A-5) on the Baby unit to set the level at which the microphone will start to pick up sounds.

When the SENSITIVITY control (A-5) is set to 9, the microphone picks up even the softest sounds. Experiment with different levels until you find the setting that suits you and your baby best.

The green LINK light (B-1) lights continuously when the Parent unit and the Baby unit are in touch with each other.

ADDITIONAL FEATURES

Avoiding interference

Both units use anti-interference technology to reduce the chance of interference from other signals. If interference does occur or if sound reception is poor, try switching both units to the other channel to improve the sound quality.

Note: Always make sure that the channel selection switches (A - 7, B - 8) on both units are set to the same position.

Checking that the units are in touch

The green LINK light (B-1) of the Parent unit lights continuously to show that the Parent unit and the Baby unit are in touch with each other. This light flashes if the Baby unit is out of range for more than 30 seconds or if the signal is blocked.

When the units are no longer in touch, try one of the following:

• Move the Parent unit closer to the Baby unit. (The maximum operating distance is 250m in ideal conditions. Walls and floors can limit this distance.)
• Switch both units to the other channel.
• Check that both units are powered correctly (low batteries?).

Switching on the audible warning

If you wish, you can switch on a special feature that lets you hear an audible warning on the Parent unit when the units are not in touch. The Parent unit is delivered with this beep switched off to avoid intermittent disturbances that can occur when the connection is interrupted for a short period.

To switch on the audible warning, open the Parent unit's battery compartment cover (B-9) and set the switch (B-12) inside to the On position ( ♂ ).

Note: The LINK light (B-1) continues to operate even if the audible warning is switched off.

Belt clip

When the batteries of the Parent unit are charged, the unit can be carried around giving you freedom of movement while still monitoring your baby. Use the belt clip (B-7) to attach the unit to your clothing and so keep your hands free.

PROBLEM SOLVING

Problem	Possible Cause	Solution
Power light does not light (Parent unit).	Unit is not turned on. Batteries are low.	Turn Volume control/Off switch clockwise (B-5). Recharge batteries.
Power light does not light (Baby unit).	Unit is not turned on. AC adapter is not plugged in or Batteries are exhausted. AC adapter plugged into an outlet that is not working.	Push the Power switch (A-4) to switch on the unit. Plug in AC adapter or replace batteries. If the power socket has a switch, turn it on.
High pitched noise.	Units are too close together. Volume too high.	Move Parent unit away from Baby unit. Turn volume control on Parent unit counter-clockwise.
No sound.	Volume control on Parent unit is set too low. Units are out of range.	Turn volume control/Off switch clockwise (B-5). Move Parent unit closer to Baby unit.
Power light blinking.	Batteries are low or empty.	Parent unit:- recharge batteries. Baby unit:- replace batteries or connect to mains power.
Interference or poor reception.	Mobile or cordless phones too close to the baby monitor can cause interference.	Move the phones away from the units.

TECHNICAL SPECIFICATIONS

Power supply

• Battery pack; rechargeable NiMH for Parent Unit (included);
• Optional batteries 4 × 1.5V ; AA alkaline for Baby Unit (not included);
• AC power adapter 230V AC, 50 Hz (two included): - Output voltage 9V DC, 200mA.

Only use the AC power adapter included or a type that complies with safety standard EN60950 and that has the following specification: 9 Volt DC / 200mA.

Operating range

- up to 250 metres in ideal conditions

- 10^ to 40^

Pilot tone

- Continuous communication link (hidden signal ensures a continuous link between both units so you only hear your baby's sounds).

Transmission frequencies

	Channel A	Channel B
SBC SC368/86U & SBC SC368/87U:	40.695 MHz	40.675 MHz
SBC SC368/05U (IRE, UK):	49.890 MHz	49.830 MHz
SBC SC368/13U (SE):	27.145 MHz	27.095 MHz
SBC SC368/16U (ES):	31.350 MHz	31.000 MHz
