USER MANUAL GE72VSS SAMSUNG

Owner's instructions & Cooking guide

Planet First

100 % Recycled Paper

This manual is made with 100% recycled paper.

GE72V

imagine the possibilities

Thank you for purchasing this Samsung product. Please register your product at

www.samsung.com/register

CONTENTS

Quick look-up guide 2

Oven 3

Accessories ....3

Control panel 4

Using this instruction booklet ....4

Important safety information ....4

Legend for symbols and icons 4

Precautions to avoid possible exposure to excessive microwave energy. .5

Important safety instructions ....5

Correct disposal of this product (waste electrical & electronic equipment) 8

Installing your microwave oven 8

Setting the time 9

How a microwave oven works 9

Checking that your oven is operating correctly ....1

What to do if you are in doubt or have a problem....10

Cooking/Reheating 1

Power levels 1

Stopping the cooking 1

Adjusting the cooking time....12

Manual defrosting food 1

Using the auto defrosting feature 12

Auto defrost settings....12

Choosing the accessories ....1

Grilling 13

Combining microwaves and the grill 13

Cookware guide 14

Cooking guide 15

Cleaning your microwave oven 23

Storing and repairing your microwave oven....24

Technical specifications 2

QUICK LOOK-UP GUIDE

If you want to cook some food.

1. Place the food in the oven. Select the power level by rotating the COOKING POWER CONTROL knob.

2. Select the cooking time by rotating the TIME/WEIGHT (○/g(**)) dial.

Result: Cooking starts after about two seconds.

If you want to auto defrost some food.

1. Turn the COOKING POWER CONTROL knob to the Auto Defrost ( ^** g) symbol

2. Turn the TIME/WEIGHT (○/g(∗∗)) dial to select the appropriate weight.

Result: Cooking starts after about two seconds.

If you want to adjust the cooking time.

Leave the food in the oven

Turn the TIME/WEIGHT (○/g(∗∗)) dial to the desired time.

If you want to grill some food.

1. Turn the COOKING POWER CONTROL knob to the Grill (UN) symbol

2. Turn the TIME/WEIGHT (○/g(**)) dial to select the appropriate time.

Result: Cooking starts after about two seconds.

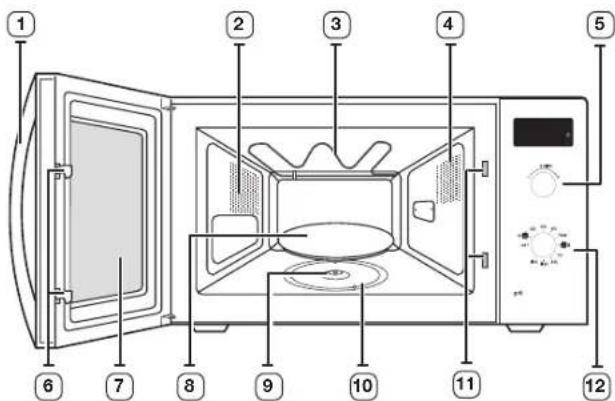

OVEN

Labeled diagram of a microwave oven with numbered parts for identification

1. DOOR HANDLE
2. VENTILATION HOLES
3. GRILL
4. LIGHT
5. TIMER KNOB

6. DOOR LATCHES

7. DOOR

8. TURNTABLE
9. COUPLER
10. ROLLER RING
11. SAFETY INTERLOCK HOLES
12. VARIABLE COOKING POWER CONTROL KNOB

ACCESSORIES

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Coupler, already placed over the motor shaft in the base of the oven.
   Purpose: The coupler rotates the turntable.
2. Roller ring, to be placed in the centre of the oven.
   Purpose: The roller ring supports the turntable.
3. Turntable, to be placed on the roller ring with the centre fitting to the coupler.
   Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.
4. Grill rack, to be placed on the turntable.
   Purpose : The metal rack can be used in grill and combination cooking.
   DO NOT operate the microwave oven without the roller ring and turntable.

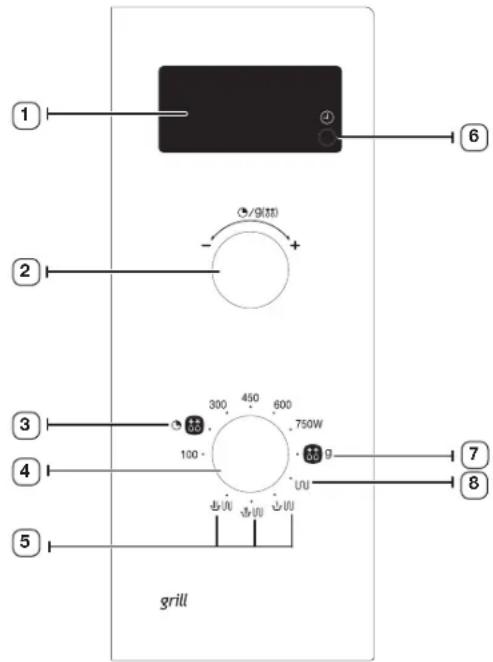

CONTROL PANEL

1 2 3 4 5 grill 6 - /9相 + 750W UU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU UUU

1. DISPLAY
2. TIME / WEIGHT DIAL
3. MANUAL DEFROST

4. VARIABLE COOKING POWER CONTROL KNOB

5. COMBI (Microwave+Grill)

6. CLOCK SETTING BUTTON
7. AUTO DEFROST
8. GRILL

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven:

• Safety precautions
• Suitable accessories and cookware
  • Useful cooking tips
• Cooking tips

IMPORTANT SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Before using the oven, confirm that the following instructions are followed.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

LEGEND FOR SYMBOLS AND ICONS

Hazards or unsafe practices that may result in severe personal injury or death.

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface

Warning; Electricity Warning; Explosive material

Do NOT attempt. Follow directions explicitly.

Do NOT disassemble. Unplug the power plug from the wall socket.

Do NOT touch. Important Make sure the machine is grounded to prevent electric shock.

Call the service center for help. Note

pREcAuTloNS To Avoid poSSIbLE ExpoSuRE To ExcESSIvE MlcRoWAvE ENERGy.

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.

(b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.

(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) Door (bent)

(2) Door hinges (broken or loose)

(3) Door seals and sealing surfaces

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment.

For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

IMpoRTANT SAfETy INSTRucTloNS

Make sure that these safety precautions are obeyed at all times.

WARNING
	Only qualified staff should be allowed to modify or repair the microwave oven.	√	√	√
	Do not heat liquids and other food in sealed containers for microwave function.	√	√	√
	For your safety, do not use high-pressure water cleaners or steam jet cleaners.	√	√	√
	Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	√	√	√
	This appliance must be properly grounded in accordance with local and national codes.	√	√	√
	Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	√	√	√
	Do not pull or excessively bend or place heavy objecton the power cord.	√	√	√
	In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	√	√	√
	Do not touch the power plug with wet hands.	√	√	√
	Do not turn the appliance off by unplugging the power plug while an operation is in progress.	√	√	√
	Do not insert fingers or foreign substances, if any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	√	√	√
	Do not apply excessive pressure or impact to the appliance.	√	√	√
	Do not place the oven over a fragile object such as a sink or glass object. (Counter top model only)	√	√

	Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	√	√	√	√
	Ensure that the power voltage, frequency and current are the same as those of the product specifications.	√	√		√
	Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	√	√	√
	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√
	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√
	Appliances are not intended to be operated by means of an external timer or separate remote-control system.	√	√
	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Children should be supervised to ensure that they do not play with the appliance. Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.	√	√	√	√
	The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.	√	√	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	√		√	√
	The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet. (Counter top model only)	√	√	√	√
	WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.	√	√	√	√

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.	√	√	√	√
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.	√	√	√	√
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.	√	√	√	√
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.	√	√	√	√
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.	√	√	√
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.	√		√	√
WARNING: Accessible parts may become hot during use. To avoid burns young children should be kept away.	√		√
WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating.In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.	√		√	√

WARNING: Only allow children to use the oven withoutsupervision when adequate instructions have been givenso that the child is able to use the oven in a safe way andunderstands the hazards of improper use.	√	√	√	√
This appliance can be used by children aged from 8 years andabove and persons with reduced physical, sensory or mentalcapabilities or lack of experience and knowledge if they havebeen given supervision or instruction concerning use of theappliance in a safe way and understand the hazards involved.Children shall not play with the appliance. Cleaning and usermaintenance shall not be made by children without supervision.	√	√	√	√
WARNING: If the door or door seals are damaged, the ovenmust not be operated until it has been repaired by a competentperson.	√	√	√	√
WARNING: It is hazardous for anyone other than a competentperson to carry out any service or repair operation that involvesthe removal of a cover which gives protection against exposureto microwave energy.	√	√	√	√
WARNING: Ensure that the appliance is switched off beforereplacing the lamp to avoid the possibility of electric shock.	√	√	√
WARNING: Liquids and other foods must not be heated insealed containers since they are liable to explode.	√		√	√
WARNING: Accessible parts may become hot during use. Toavoid burns young children should be kept away.	√		√
WARNING: Microwave heating of beverages can result indelayed eruptive boiling,therefore care must be taken whenhandling the container; To prevent this situation ALWAYS allowa standing time of at least 20 seconds after the oven has beenswitched off so that the temperature can equalize. Stir duringheating, if necessary, and ALWAYS stir after heating.In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√
During use the appliance becomes hot. Care should be takento avoid touching heating elements inside the oven.	√		√	√

★	WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;		√
★	The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.	√	√	√	√
★	This oven should be positioned proper direction and height permitting easy access to cavity and control area.	√	√	√	√
★	Before using the your oven first time, oven should be operated with the water during 10 minute and then used.	√	√	√	√
★	This microwave oven has to be positioned so that plug is accessible. If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.	√	√	√	√
□	during cleaning conditions the surfaces may get hotter than usual and children should be kept away (Cleaning function model only)		√	√
□	Excess spillage must be removed before cleaning and utensils which state in cleaning manual can be left in the oven during cleaning. (Cleaning function model only)	√	√	√	√
★	Appliance should allow to disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. (Built-in model only.)	√	√	√	√
□	If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.		√
□	WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.		√
□	The temperature of accessible surfaces may be high when the appliance is operating.		√

	The door or the outer surface may get hot when the appliance is operating.	√
cAuTloN
	Only use utensils that are suitable for use in microwave ovens;DO NOT use any metallic containers. Dinnerware with gold or silver trimmings, Skewers, forks, etc.Remove wire twist ties from paper or plastic bags.Reason: Electric arcing or sparking may occur and may damage the oven.	√		√
	When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;	√		√
	Do not use your microwave oven to dry papers or clothes.	√		√
	Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√
	If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;	√		√
	The oven should be cleaned regularly and any food deposits removed;	√	√
	Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√
	Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-seated bottles, jars, containers, nuts inshells, tomatoes etc.			√
	Do not cover the ventilation slots with cloth or paper. They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	√		√
	Always use oven mitts when removing a dish from the oven to avoid unintentional burns.			√
	Do not touch heating elements or interior oven walls until the oven has cooled down.			√

★	Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.		√
★	Stand at arms length from the oven when opening the door to avoid getting scaled by escaping hot air or steam.		√
☐	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the microwave oven is started accidentally.	√		√
☐	Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.	√		√
★	Install the oven in compliance with the clearances stated in this manual (See Installing Your Microwave Oven)	√		√
★	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Place the oven on a flat level surface 85cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the sides of the oven and 20 cm (8 inches) of space above.

1. Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

1. This microwave oven has to be positioned so that plug is accessible.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For your personal safety, plug the cable into a 3-pin, 230 Volt, 50 Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable.
Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

SETTING THE TIME

Your microwave oven has an inbuilt clock. When power is supplied, "0", "88:88" or "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

• When you first install your microwave oven
  • After a power failure

Do not forget to reset the clock when you switch to and from summer or winter time.

1. To display the time in the...

12-hour notation

24-hour notation

1. Turn the TIME/WEIGHT (○/9(∗∗)) dial to set hour.

1. Press the ⏻ button.

1. Turn the TIME/WEIGHT (○/9(♂)) dial to set minute.

1. Press the ⏻ button.

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without the foods form or colour changing.

You can use your microwave oven to:

• Defrost (manual & auto)
• Cook
- Reheat

Cooking Principle

1. The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the recipient used and the properties of the food:

• Quantity and density
• Water content
• Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre
• The same temperature throughout the food

CHECKING THAT YOUR OVEN IS OPERATING CORRECTLY

The following simple procedure enables you to check that your oven is working correctly at all times.

Open the oven door by pulling the handle on the right side of the door. Place a glass of water on the turntable. Then, close the door.

1. Set the power level to maximum by turning COOKING POWER CONTROL knob.

1. Set the time 4 to 5 minutes by turning the TIME/WEIGHT (○/g(∗∗)) dial.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum is used, the water takes longer to boil.

WHAT TO DO IF YOU ARE IN DOUBT OR HAVE A PROBLEM

If you have any of the problems listed below try the solutions given.

This is normal.

• Condensation inside the oven.
• Air flow around the door and outer casing.
• Light reflection around the door and outer casing.
• Steam escaping from around the door or vents.

The oven does not start when you turn the TIME/WEIGHT (○/9(88)) dial

• Is the door completely closed?

The food is not cooked at all.

• Have you set the timer correctly?
• Is the door closed?
- Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?

The food is either overcooked or undercooked.

• Was the appropriate cooking length set for the type of food?
• Was an appropriate power level chosen?

Sparking and cracking occur inside the oven (arcing).

• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminum foil too close to the inside walls?

The oven causes interference with radios or televisions.

- Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.

If the above guidelines do not enable you to solve the problem, contact your local dealer or SAMSUNG after-sales service.

COOKING/REHEATING

The following procedure explains how to cook or reheat food.

Always check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door.

1. Set the power level to maximum by turning COOKING POWER CONTROL knob. (MAXIMUM POWER : 750 W)

1. Set the time by turning TIME/WEIGHT (○/g(**)) dial.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Never switch the microwave oven on when it is empty.
You can change the power level during cooking by turning the COOKING POWER CONTROL knob.

POWER LEVELS

You can choose any of the power levels listed below.

Power level	Output
	MWO GRILL
HIGH 750 W
MEDIUM HIGH 600 W
MEDIUM 450 W
MEDIUM LOW 300 W
MANUAL DEFROST ( Ⓞ ^** )	180 W
AUTO DEFROST ( Ⓞ ^** g)	180 W
LOW/KEEP WARM 100 W
GRILL - 1100 W
COMBI I (LW)	300 W 1100 W
COMBI II (JW)	450 W 1100 W
COMBI III (JW)	600 W 1100 W

If you select higher power level, the cooking time must be decreased.
If you select lower power level, the cooking time must be increased.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

1. To stop temporarily;

Open the door.

Result: Cooking stops. To resume cooking, close the door.

1. To stop completely;

Turn the TIME/WEIGHT (○/g(**)) dial to the left. "：0" will be displayed.

ADJUSTING THE COOKING TIME

Adjust the remaining cooking time by rotating the TIME/WEIGHT (###)

During the cooking to increase or decrease the cooking time of you food, turn the dial right or left.

MANUAL DEFROSTING FOOD

The Manual Defrost feature enables you to defrost meat, poultry, fish. First, place the frozen food in the centre of the turntable and close the door.

1. Turn the COOKING POWER CONTROL knob to the Manual Defrost (○) symbol.

1. Turn the TIME/WEIGHT (G/g(**)) dial to select the appropriate time.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Use only recipients that are microwave-safe.
Select the Manual Defrosting function with a power level of 180 W if you want to defrost food manually. For further details on manual defrosting and defrosting time, refer to the page 20.
Select the Manual Defrosting function with a power level of 180 W if you want to defrost food manually. For further details on manual defrosting and defrosting time, refer to the page 20.

USING THE AUTO DEFROSTING FEATURE

The Auto Defrost feature enables you to defrost meat, poultry, fish. First, place the frozen food in the centre of the turntable and close the door.

1. Turn the COOKING POWER CONTROL knob to the Auto Defrost ( ^** g) symbol.

1. Turn the TIME/WEIGHT (○/g(♂)) dial to select the appropriate weight.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Use only recipients that are microwave-safe.

AUTO DEFROST SETTINGS

Remove all kinds of packaging material before defrosting. Place the frozen foods on a turntable. Turn the food over when the oven beeps. Keep the corresponding standing time after Auto Defrosting has finished.

Food Portion Standing time Recommendation

Meat 200-1500 g 20-60 min. Shield the edges withaluminium foil. Turn the foodover when the oven beeps.

Poultry 200-1500 g 20-60 min.

Fish 200-1500 g 20-50 min.

CHOOSING THE ACCESSORIES

Use microwave-safe recipients; do not use plastic containers, dishes, paper cups, towels, etc.

If you wish to select the combined cooking mode (grill and microwave), use only dishes that are microwave-safe and oven-proof.

For further details on suitable cookware and utensils, refer to the cookware guide on page 14.

GRILLING

The grill enables you to heat and brown food quickly, without using microwaves. To this aim, a grill rack is supplied with your microwave oven.

1. Preheat the grill to the required temperature, by turning the cooking power control knob to Grill symbol (UU) and turning the TIME/WEIGHT (PQ) to the appropriate.

1. Open the door. Place the food on the rack and the rack on the turntable. Close the door.

1. Set the time by turning the TIME/WEIGHT (○/9(♂)) dial.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Do not worry if the heater turns off and on while grilling. This system is designed to prevent overheating of the oven.
Always use oven gloves when touching the dishes in the oven, as they will be very hot.

coMbINING MlcRoWAvES AND THE GRILL

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.
ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

1. Open the oven door. Place the food on the rack and the rack on the turntable. Close the door.

1. Turn the cooking power control knob to the appropriate power level (↓↓↓↓↓↓)

1. Set the time by turning TIME/WEIGHT (○/g(♂)) dial.

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

The maximum microwave power for the combined microwave and grill mode is 600 W.

COOKWARE GUIDE

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave-safe Comments
Aluminum foil	√ ✘	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Browning plate	√	Do not preheat for more than eight minutes.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast-food packaging
• Polystyrene cups containers	√	Can be used to warm food. Overheating may cause the polystyrene to melt.
• Paper bags or newspaper	✗	May catch fire.
• Recycled paper or metal trims	✗	May cause arcing.
Glassware
• Oven-to-table ware	√	Can be used, unless decorated with a metal trim.
• Fine glassware	√	Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.

Cookware Microwave-safe Comments
Glass jars	√	Must remove the lid. Suitable for warming only.
MetalDishesFreezer bag twist ties	✗✗	May cause arcing or fire.
PaperPlates, cups, napkins and kitchen paperRecycled paper	√✗	For short cooking limes and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✗	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended

√X : Use caution

X : Unsafe

COOKING GUIDE

MICROWAVES

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

COOKING

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking Guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Portion Power Time			(min.)	Standing time (min.)	Instructions
Spinach 150 g 600	W 5 12 -6 12	2-3 Add 15	ml (1		tbsp.) cold water.
Broccoli 300 g 600	W 10-11 2-3 Add 15 ml (1				tbsp.) cold water.
Peas 300 g 600 W	8-9 2-3 Add 15 ml (1				tbsp.) cold water.
Green Beans 300 g	600 W 10-11 2-3 Add 15 ml (1				tbsp.) cold water.
Mixed Vegetables (Carrots/Peas/ Corn)	300 g 600 W 9-10		2-3 Add 15 ml (1		tbsp.) cold water.
Mixed Vegetables (Chinese Style)	300 g 600 W 8 12 -9 12		2-3 Add 15 ml (1		tbsp.) cold water.

Cooking Guide for rice and pasta

Rice : Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished.

pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

food portion power Time		(min.)	Standing time (min.)	Instructions
White Rice (Parboiled)	250 g 750 W 17-18 5	Add 500 ml	cold	water.
Brown Rice (Parboiled)	250 g 750 W 22-23 5	Add 500 ml	cold	water.
Brown Rice 250 g 750 W 22-23 10 Add 600 ml cold				water.
Mixed Rice (Rice + Wild Rice)	250 g 750 W 18-19 5	Add 500 ml	cold	water.
Mixed Corn (Rice + Grain)	250 g 750 W 19-20 5	Add 400 ml	cold	water.
Pasta 250 g 750 W 11-12 5	Add 1000 ml	hot		water.

Cooking Guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

All fresh vegetables should be cooked using full microwave power (750 W).

food	portion Time (min.)		Standing time (min.)	Instructions
Broccoli 250 g	500 g	5-5 12 8 12 -9	3 Prepare	even sized florets.Arrange the stems to the centre.
Brussels Sprouts	250 g	6 12 -7 12 3	Add 60-75 ml (5-6 tbsp.) water.
Carrots	250 g	5-6 3 Cut carrots into even sized slices.
Cauliflower	250 g500 g	5 12 -69 12 -10	3 Prepare	even sized florets.Cut big florets into halves.Arrange stems to the centre.
Courgettes	250 g	4-4 12	3	Cut courgettes into slices.Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender.
Egg Plants 250 g	4 12 -5		3 Cut egg plants	into small slices and sprinkle with 1 tablespoon lemon juice.
Leeks	250 g	5-5 12	3	Cut leeks into thick slices.
Mushrooms	125 g250 g	1 12 -23 12 -4	3 Prepare	small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.
Onions	250 g	5-6 3 Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water.
food portion Time		(min.)	Standing time (min.)	Instructions
Pepper 250 g 4	12 -5 3 Cut pepper into small slices.
Potatoes 250 g	500 g	5-69-10	3 Weigh	the peeled potatoesand cut them into similar sizedhalves or quarters.
TurnipCabbage	250 g 5-5 12 3 Cut turnip cabbage into smallcubes.

REHEATING

Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take. Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

• Some foods can be reheated using 750 W power while others should be reheated using 600 W, 450 W or even 300 W.
  Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).
  Stir well or turn food over during reheating for best results. When possible, stir again before serving.
  Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken - for future reference.

Always make sure that the reheated food is piping hot throughout. Allow food to stand for a short time after reheating - to let the temperature even out.

The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

REHEATING LIQUIDS

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

REHEATING BABY FOOD

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C.

BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

REMARK:

Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating.

Reheating liquids and food
Use the power levels and times in this table as a guide lines for reheating.

Food Portion Power Time			(min.)	Standing time (min.)	Instructions
Drinks (coffee, milk, tea, water with room temperature)	150 ml(1 cup)250 ml(1 mug)	750 W 1 12 -22-2 12	1-2 Pour	in to a ceramic cup and reheat uncovered. Place cup 150 ml or mug 250 ml in the centre of turntable, Stir carefully before and after standing time.
Soup (chilled) 250 g450 g		750 W 3 312 4-4 12	2-3 Pour	into a deep ceramic plate. Cover with plastic lid. Stir well after reheating. Stir again before serving.
Stew (chilled) 350 g 600 W 5-6 2-3 Put stew in a deep				ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Pasta with sauce (chilled)	350 g 600 W 4-5 3	Put pasta (e.g.		spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving.

food portion power Time		(min.)	Standing time (min.)	Instructions
Filled pasta with sauce(chilled)	350 g 60	0 W 4 12 -5 12 3 Put filled	pasta (e.g.	ravioli, tortellini) in a deep ceramic plate.Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Plated meal(chilled)	300 g400 g	600 W 5-66-7	3 Plate	a meal of 2-3 chilled components on a ceramic dish.Cover with microwave cling-film.
Frozen ready meal	300 g400 g	600 W 1 12 -12 12 13-14	4 Put m	microwave proofdish with frozen ready meal (-18 °C) on the turntable. Pierce film or cover with microwave cling film. After reheating stand for 4 minutes.

Reheating baby food and milk

Use the power levels and times in this table as guide lines for reheating.

food portion	power Time	Standing		time (min.)	Instructions
Baby Food (Vegetables + Meat)	190 g 600	W 30 sec.	2-3 Empty info ceramic		deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby Porridge (Grain + Milk + Fruit)	190 g 600	W 20 sec.	2-3 Empty info ceramic		deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby Milk	100 ml 200 ml	300 W 30	-40 sec. 1 min. to 1 min. 10 sec.	2-3 Stir or shake well and pour into a sterilized glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully.

DEFROSTING

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible.

Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing.

Leave the fish, meat and poultry to stand in order to complete defrosting.

The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide.

All frozen food should be defrosted using defrosting power level (180 W).

food portion Time		(min.)	Standing time (min.)	Instructions
MeatMinced Beef 500 g 10-12 5-20 Place the meat on a flat Pork Steaks 250 g 6-8				ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time!
PoultryChicken Pieces 500 g(2 pcs)Whole Chicken 1000 g 25-28		12-14	15-40 First, put chicken piecesfirst skin-side down, whole chicken first breast-side-down on a flat ceramic plate.Shield the thinner parts like wings and ends with aluminium foil. Turn over after half of defrosting time!
FishFish Fillets	250 g(2 pcs)400 g(4 pcs)	6-7	5-20 Put frozen fish in the middleof a flat ceramic plate.Arrange the thinner parts under the thicker parts.Shield narrow ends with aluminium foil. Turn over after half of defrosting time!
FruitsBerries	250 g 6-7	5-10	Distribute fruits on a flat,round glass dish (with a large diameter).
BreadBread Rolls(each ca. 50 g)Toast/SandwichGerman Bread(Wheat + Rye flour)	2 pcs4 pcs250 g 4-5500 g	112 -23-48-10	5-10 Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of tumstable. Turn over after half of defrosting time!

GRILL

The grill-heating elements are located underneath the ceiling of the cavity. They operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 2-3 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark:

Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE + GRILL

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly.

Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill.

Cookware for cooking with microwave + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwave + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark:

The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

Grill guide

Preheat the heater with the grill-function for 2-3 minutes before grilling food. Use the power levels and times in this table as guide lines for grilling. Use oven gloves when taking out food.

Fresh food Portion Preheat		time (min.)	Cooking mode	1^st side time (min.)	2^nd side time (min.)
Toast Slices 4	pcs(4 x 25 g)	3 Grill only	6-7 5-6
	Instructions
	Put the toast slices side by side on the rack.
Bread Rolls(Already Baked)	2-4 pieces 3	Grill only 3-4 2-3
	Instructions
	Put bread rolls first with the bottom side up in a circle directly on the rack.
Grilled Tomatoes	250 g(2 pcs)	3 300 W	+Grill	512-612-
	Instructions
	Cut tomatoes into halves. Put salt, pepper and some cheese on top.Arrange in a circle in a flat glass pyrex dish. Place dish on the rack.
Toast Hawaii 2	pcs(300 g)	3 300 W	+Grill	7-9 -
	Instruction
	Toast the bread slices first. Put the toast with topping (ham, pineapple,cheese slices) side by side on the rack. After cooking stand for 2-3 minutes.
Chicken Wings(Chilled)	400-500 g(6 pcs)	3 300 W	+Grill	12-14 11-13
	Instruction
	Prepare chicken pieces such as chicken wings or drumsticks with oil and spices. Put them in a circle on the rack with the bones to the middle. After grilling stand for 2-3 minutes.

Fresh food Portion Preheat		time (min.)	Cooking mode	1^st side time (min.)	2^nd side time (min.)
Baked Potatoes	500 g 3 450 W +		Grill	10-12 -
	Instruction
	Cut potatoes into halves and put in a circle on the rack with the cut side to the grill. Brush cut side with olive oil and spices. After grilling stand for 3 minutes.
Frozen Pasta	400 g	-	600 W + Grill	16-18 -
	Instruction
	Put the frozen pasta (-18 °C), e.g. lasagne, tortellini or caneloni in a suitable sized glass pyrex dish and set on rack.
Frozen Fish Gratin	400 g	-	450 W + Grill	20-22 -
	Instruction
	Put the frozen fish gratin (-18 °C) in a suitable sized glass pyrex dish and set on rack.
Frozen Pizza Snacks	250 g(8 pcs)	-	300 W + Grill	10-12 -
	Instruction
	Put the frozen pizza snacks (-18 °C) or mini quiches in a circle on the rack.
Frozen Streusel Cake	200-250 g(1-2 pcs)	-	300 W + Grill	4-6 -
	Instruction
	Put the frozen cake pieces (-18 °C) side by side on rack. After defrosting stand for 5 minutes.

SPECIAL HINTS

MELTING BUTTER

Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 750 W, until butter is melted.

MELTING CHOCOLATE

Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted.

MELTING GELATINE

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 750 W, until glaze/icing is transparent. Stir twice during cooking.

COOKING JAM

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 750 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

COOKING PUDDING

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 750 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
• Door and door seals
• Turntable and roller rings

ALWAYS ensure that the door seals are clean and the door closes properly.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside surfaces or on the roller ring with a soapy cloth. Rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice on the turntable and heat for ten minutes at maximum power.
4. Wash the dishwasher-safe plate whenever necessary.

Do not spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

• Accumulate
  • Prevent the door from closing correctly

Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

Only a qualified microwave service technician should can repair this oven.

NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
• Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dust-free place.

Reason: Dust and damp may adversely affect the working parts in the oven.

This microwave oven is not intended for commercial use.

TECHNICAL SPECIFICATIONS

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model GE72V
Power source 230 V ~ 50 Hz
Power consumptionMicrowaveGrillCombined mode	1150 W1100 W2250 W
Output power 100 W / 750 W (IEC-705)
Operating frequency 2450 MHz
Magnetron OM75S(31)
Cooling method Cooling fan motor
Dimensions (W x H x D)OutsideOven cavity	489 x 275 x 379 mm330 x 211 x 309 mm
Volume 20 liter
WeightNet 12.5 kg approx

MEMo MEMo

25

GE72V-BB_SWS_DE68-04050R_EN.indd 25 7/11/2012 9:41:06 AM

ENGLISH

SAMSUNG

QUESTIONS OR COMMENTS

COUNTRY	CALL	OR VISIT US ONLINE AT
AUSTRIA	0810 - SAMSUNG(7267864, € 0.07/min)	www.samsung.com
BELGIUM 02-201-24-18		www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)
DENMARK 70 70 19 70		www.samsung.com
FINLAND 030 - 6227 515
FRANCE 01 48 63 00 00
GERMANY	01805 - SAMSUNG (726-7864 € 0,14/Min)aus dem dt. Festnetz,aus dem Mobilfunk max. € 0,42/Min)
ITALIA	800-SAMSUNG (726-7864)
GREECE	80111-SAMSUNG (80111 726-7864) onlyfrom land line, ([phone]from mobile and land line
LUXEMBURG 261 03 710
NETHERLANDS	0900-SAMSUNG(0900-7267864) (€ 0,10/Min)
NORWAY 815-56 480
PORTUGAL 808 20- SAMSUNG (808 20 7267)
SPAIN 902 - 1 - SAMSUNG (902 172 678)
SWEDEN 0771 726 7864 (SAMSUNG)
SWITZERLAND	0848 - SAMSUNG(7267864,CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fr/(French)
U.K 0330 SAMSUNG (7267864)		www.samsung.com
EIRE 0818 717100

Code No.: DE68-04050R

Labeled diagram of a microwave oven with numbered parts for identification

Labeled diagram of a microwave oven with numbered parts for identification

1. POIGNÉE
2. ORIFICES DE VENTILATION
3. GRIL
4. ÉCLAIRAGE
5. BOUTON DE MINUTERIE

6. LOQUETS DE LA PORTE

7. PORTE

8. PLATEAU TOURNANT
9. COUPLEUR
10. ANNEAU DE GUIDAGE
11. ORIFICES DU SYSTÈME DE VERROUILLAGE DE SÉCURITÉ
12. BOUTON DE COMMANDE DE LA PUISSANCE DE CUISSON VARIABLE

ACCESSOIRES

DES QUESTIONS OU DES COMMENTAIRES?

PAYS	TÉLÉPHONE	OU SUR INTERNET
AUSTRIA	0810 - SAMSUNG(7267864, € 0.07/min)	www.samsung.com
BELGIUM 02-201-24-18		www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)
DENMARK 70 70 19 70		www.samsung.com
FINLAND 030 - 6227 515
FRANCE 01 48 63 00 00
GERMANY	01805 - SAMSUNG (726-7864 € 0,14/Min)aus dem dt. Festnetz,aus dem Mobilfunk max. € 0,42/Min)
ITALIA	800-SAMSUNG (726-7864)
GREECE	80111-SAMSUNG (80111 726-7864) onlyfrom land line, ([phone]from mobile and land line
LUXEMBURG 261 03 710
NETHERLANDS	0900-SAMSUNG(0900-7267864) (€ 0,10/Min)
NORWAY 815-56 480
PORTUGAL 808 20 - SAMSUNG (808 20 7267)
SPAIN 902 - 1 - SAMSUNG (902 172 678)
SWEDEN 0771 726 7864 (SAMSUNG)
SWITZERLAND	0848 - SAMSUNG(7267864,CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fr/(French)
U.K 0330 SAMSUNG (7267864)		www.samsung.com
EIRE 0818 717100

Labeled diagram of a microwave oven with numbered parts for identification

1. MANIGLIA DELLO SPORTELLO

2. FORI DI VENTILAZIONE

3. GRILL

4. SPIA

5. TIMER

6. CHIUSURE DELLO SPORTELLO

7. SPORTELLO

8. PIASTRA GIREVOLE

9. ACCOPPIATORE

10. ANELLO DELLA PARTE GIREVOLE

11. FORI DEI CIRCUITI DI SICUREZZA

12. MANOPOLA DI REGOLAZIONE DELLA COTTURA

ACCESSORI
