USER MANUAL SBCRU538-19W PHILIPS

Instructions for use

English 4

Mode d'emploi

Français 12

Bedienungsanleitung

Deutsch 20

Gebruiksaanwijzing

Nederlands 28

Bruksanvisning

Svenska 36

Käyttoöhje

Suomi 44

Brugsanvisning

Dansk 52

Bruksanvisning

Norsk 60

Instructions for use

usui3

Contents

1. Introduction 4
2. Installing the remote control 5-7

Inserting the batteries 5
Testing the remote control 5
Setting the remote control 6
Automatically setting the remote control 7

1. Keys and functions 8
2. Extra possibilities 9-10

Adjusting device selection (Mode selector) 9
Adding a remote control function 10
Restoring the original remote control settings 10

1. Troubleshooting 11
   6.Need help? 11

Code list of all brands / equipment 68

1. Introduction

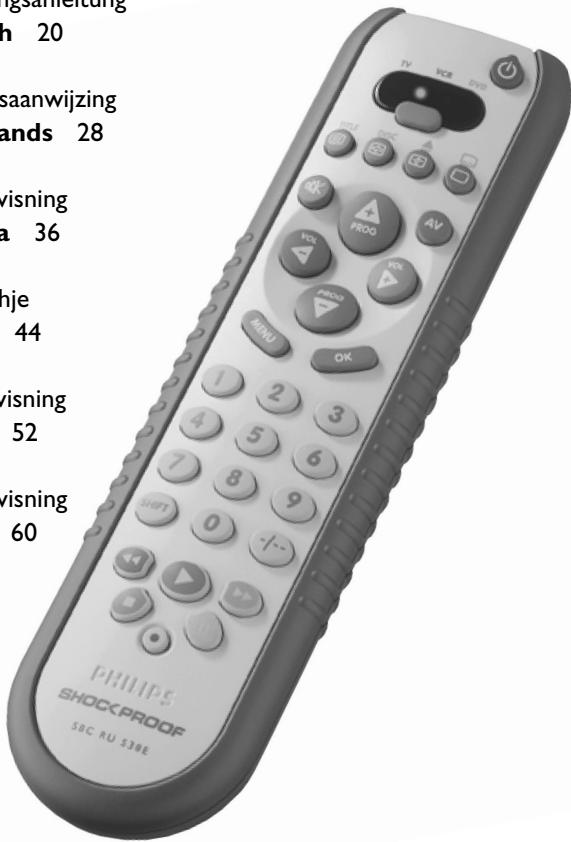

Congratulations on your purchase of the Philips SBC RU538 universal remote control. After installing the remote control you can operate a maximum of

3 different appliances with it:TV, VCR and DVD players/recorders.

You can find information about how to prepare this remote control for use in the chapter 'Installing the remote control'.

2. Installing the remote control

Inserting the batteries

1 Press the cover inwards and slide it in the direction of the arrow.
2 Place two R03, UM4 or AAA type batteries into the battery compartment, as shown.
3 Slide the cover back and click it firmly into place.

Testing the remote control

The remote control has been programmed to operate most Philips appliances. Because the RU538 may use different signals for each make and even for different models of the same make, it is advisable to test whether your appliance responds to the RU538.

The example below (TV) instructs you how to do this.

You can repeat the same steps for other appliances

(VCR and DVD players/recorders) which you want to operate using the RU538.

Example of TV:

1 Turn your TV on manually or use the original remote control.

Tune to channel 1.

2 Use the RU538's mode selector to select TV. Press the key until the green light under TV in the selector window lights up.

If no green light appears, check whether the batteries are properly inserted (see 'Inserting the batteries').

3 Check whether all the keys are working.

For an overview of the keys and their functions see '3. Keys and functions'.

If the TV responds as it should to all of the key commands the RU538 is ready for use.

If the device does not respond at all or not to all of the key commands, follow the instructions under 'Setting the remote control'.

Instructions for use

Setting the remote control

This is only necessary if your appliance does not respond to the RU538. If that is the case, the RU538 does not recognize the brand and/or model of your appliance and you need to program the remote control to do so. The example below (TV) instructs you how to do this. You can repeat the same steps for other appliances (VCR, DVD player/recorder) which you want to operate using the RU538.

Example of TV:

1 Turn on the TV manually or use the original remote control. Tune in to channel 1.
2 Look up the brand of your TV in the code list at the back of this manual. One or more four-figure codes are shown for each brand. Note the first code. Be careful! There are separate tables for TV, VCR and DVD. Make sure you use the codes from the correct table.
3 Select TV with the mode selector. (See 'Testing the remote control').

4 Keep keys '1' and '3' pressed simultaneously for three seconds until the green light under TV in the selector window flashes twice and then remains lit.

5 Then enter the code noted in step 2 using the digital keys.
- The green light in the selector window will now flash twice. If the light flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2.
6 Point the RU538 at the TV and check that it responds as it should.
- If the TV responds to all of the key commands, the RU538 is ready for use. Do not forget to note your code.
If the device does not respond at all, or not to all of the key commands, start again from step 2 and try the next code from the list.

Automatically setting the remote control

If you cannot find the right code for your brand device, the remote control can automatically search for the right code.

Example of TV:

1 Make sure the TV is switched on and select a channel using the original remote control or the keys on the TV (for example channel 1). The RU538 emits the 'switch off TV' signal for all models of TV that are stored in the memory.
If the device is a DVD-player or video recorder, insert a disk or tape and start playback.
2 Then keep keys 1 and 3 on the RU538 pressed simultaneously for three seconds, until the green light underTV in the selector window flashes twice and then remains lit.
3 Press the Standby key of the RU538 briefly.

• The RU538 now starts emitting all known 'TV off' signals, one by one. Each time a code is sent, the green light under TV in the selector window lights up.

4 When your TV switches off (stand-by), you press the Standby key of the RU510 twice within 1 second, to confirm.

The RU538 has now found a code that works on your TV.

5 Check if you can operate all functions on your TV with the RU538.

If this is not the case, you can redo the automatic setting. The RU538 will then search for a code that perhaps works better.

After the RU538 has run through all the known codes, the search will stop automatically and the green light will stop flashing.
Automatic programming of a TV takes a maximum of 5 minutes. For VCR and DVD this time is 2 minutes.

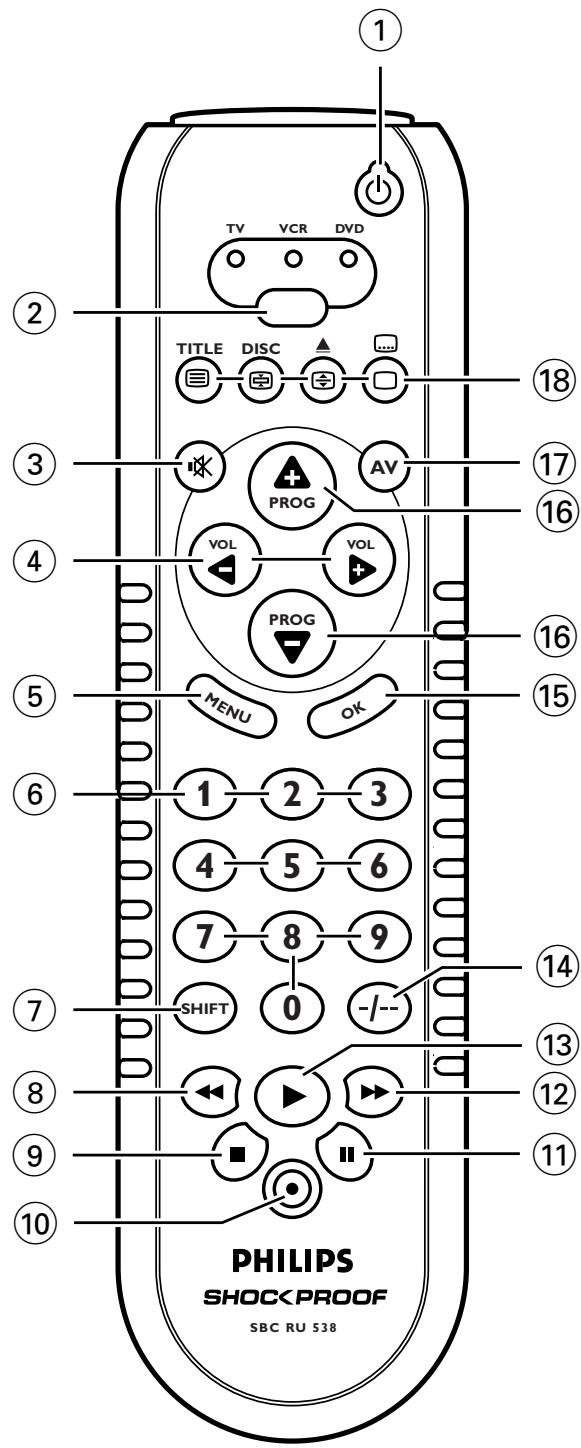

3. Keys and functions

The illustration on page 3 gives an overview of all keys and their functions.

① Ⓞ Standby . . . . . . switches TV, VCR ,or DVD mode on or off.
② Mode selector . . . selects the device you want to operate: TV, VCR or DVD.
(3) mutes the sound of the TV.
(4) -VOL + . adjusts the TV volume.
(5) MENU . turns the menu on and off.
^6 Digital keys. . direct choice of channels and other functions.
⑦ SHIFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . for extra functions. When pressed at the same time as a second key, the second key will get another function. For example:

SHIFT + PROG+: 'menu up'

SHIFT + PROG::. 'menu down'

SHIFT + VOL+... 'menu right'

SHIFT + VOL: ... 'menu left'

Try out other combinations with the Shift-key on your appliance in order to find out which functions are available.

Only functions featured on the original remote control are available.

8 -red teletext key

• rewind (VCR/DVD)

(9) -green teletext key

• stop (VCR/DVD)

10 . tv: P-P, previous channel

VCR: record

DVD: clear

11 . yellow teletext key

• pause (VCR/DVD)

12 blue teletext key

• wind (VCR/DVD)

13 - white teletext key

• index

• play (VCR/DVD)

(14) selects between one- and two-figure channels.

numbers.

(15) OK. confirms your selection.

16 - PROG + . selects a previous or following channel.

⑦ AV. switches between external inputs of your equipment.

TITLE DSC 18

DVD: disc, title, eject, open/close, subtitle

VCR: timer, Showview

If you use the () 'memory off' key to get to the next teletext page on your Philips TV, you can press the STOP key for this. See also 'Troubleshooting'.

If the device does not respond at all, or not to all of the key commands, follow the instructions under 'Setting the remote control'. It is possible that you must enter another code for the device.

4. Extra possibilities

Adjusting device selection (Modeselector)

The RU538 is default set for operating TV, VCR and DVD. You can select the device you wish to operate with the Mode selector. Each option allows operation of one device only. If desired, you can program the Mode selector to select a different kind of device.

For example, if you want to operate a second TV.

In the following example you will see how to configure the DVD mode for a second TV.

1 Switch on the second TV.
2 Press the Mode selector to select DVD.

3 Then keep 1 and 6 on the RU538 pressed simultaneously for five seconds, until the green light under DVD in the selector window flashes twice and then remains lit.

4 Press keys 9, 9 and 2, in that order.

5 Press the Mode selector to select TV.
6 Press the 1 key.
- The green light under DVD flashes twice. DVD will now allow you to operate your second TV.

7 Program the RU538 to operate the second TV. See 'Setting the remote control'.

Instructions for use

Adding a function to the remote control

If you want to add a function to the RU538, you can contact the Philips service line for Universal Remote Control to ask for the 3-figure code for the extra function.

Using the Mode selector, select the device for which you want to add the function.

2 Then keep 1 and 6 on the RU538 pressed simultaneously for five seconds, until the green light under TV in the selector window flashes twice and then remains lit.

3 Press keys 9, 9 and 4, in that order.

4 Enter the 3-figure code which you received from the service line within thirty seconds.
5 Press the key under which you want to store the new function.

The light flashes twice.

The extra function has been successfully added to the RU538.

If you want to store the function under Shift in combination with another key, first press the Shift key and then press the required function key.
- For restoring the original function of the key, see 'Restoring the original functions of your remote control'.

Restoring the original functions of your remote control

1 Keep keys 1 and 6 on the RU538 pressed simultaneously for five seconds, until the green light under TV in the selector window flashes twice and then remains lit.

2 Press keys 9, 8 and 1, in that order.

The light flashes twice. All original functions have now been restored and any extra functions have been deleted.

5. Troubleshooting

Problem
Solution

• The device you want to operate does not respond and the green light does not flash when you press a key.
  Replace the old batteries with two new 1.5 Volt, RO3, UM4 or AAA batteries.
• The device you want to operate does not respond but the green light does flash when a key is pressed.
• Point the RU538 at the device and make sure that there are no obstructions between the RU538 and the device.
  The RU538 does not respond properly to commands.
• Maybe you are using the wrong code. Try programming the RU538 again using another code, which is mentioned under the brand of your device, or reset for automatic search to find the right code. If the device still does not respond, call our helpline.
• You cannot get the Teletext pages on your screen, while you are used to use the (◇) button for this.
• Follow the instructions under 'Installing the remote control' and at step 5
  press keys 0, 0, 6 and 4.
  Press the STOP key to get Teletext pages on your screen.
  The Teletext keys do not work.
  Find out whether your TV is equipped with Teletext.
  You cannot switch off Teletext.
  Press the key for subtitling ( ) to switch off Teletext.
  You have difficulties operating all of the functions on your device.
• Maybe the RU538 has to be adapted to the model of the device. Call our helpline for details.
• Your brand of device is not in the code list.
  Try to set the RU538 automatically. See 'Automatically setting the remote control'.
• None of the codes works during manual setting of the remote control.
  If that is the case, follow the instructions under 'Automatically setting the remote control'.

If you have any questions about the RU538, call our special helpline. You will find the telephone number after the code list at the back of this manual.

Read this manual carefully before you make a call. You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device shown in the code list at the back of this manual. This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device. When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SBC RU538/00U.

Date of purchase:

..../...../....(day/month/year)

Mode d'emploi

Sommaire

VCR: timer, Showview

VCR: timer, Showview

SHIFT + PROG+: 'meny opp'

SHIFT + PROG::... 'meny ned'

VCR: timer, Showview

Hvis du bruker knappen (G) 'minne av' for a gà til;neste Tekst-TV-side
pá Philips-TVen, kan du bruke STOPP-kappen til à gjore det.
Se ögså 'Problemlösing'.

• Hvis encheten ikke reagerer i det—hele tatt, eller ikke reagerer på alle knappekommandoe, følger du anvisingene under 'Stille inn fjernkontrollen'.

.0398,0507,0543,0575,579,0658

Akib. 0321

Akiba. 0064, 0245, 0309, 0321,

0482

Akito .0299

Akura. 0064, 0036, 0245, 0309

0386

Alaron. .0206

Alba. 0064, 0190, 0036, 0245,

0243,0063,0262,0274

0398,0445,0458,0514

Allorgan. 0244, 0233, 0321

Allstar .0064

Ambassador .0204

Amplivision. .0397, 0244, 0347

0427

Amstrad.0064,0036,0245,0204

0389, 0398, 0543

Anam National 0677

Anitech.0064,0036,0103,0309

Ansonic. .0064, 0036, 0397, 0129

0319,0455

Arc En Ciel.....0223, 0360, 0426, 0528

Arcam. .0243,0244

Aristona .0064, 0583

Arthur Martin. 0264

Asberg. .0103,0129

Asora. .0036

Asuka. .0245, 0244

Atlantic. 0233, 0347

AudioTon. 0244, 0455, 0513

Audiosonic.....0064, 0136, 0036, 0397

.0245,0244,0364,0455,0513

Autovox.0244,0103,0114,0233

.0264,0274,0322,0363,0571

BPL. 0064, 0309

BSR. .0321, 0579

BTC. 0245

Baird .0244, 0235, 0099, 0100

0370,0584

Bang & Olufsen .0114, 0302

Barco. .0579

Basic Line. 0064, 0036, 0245, 0244

0309,0401,0482

Baur .0064,0532,0037,0376

0388,0539,0571,0581

Bazin. .0244

Beko. 0064, 0397, 0455, 0513

Beon. .0064,0445

Best. .0397,0364,0448

Bestar .0064,0397,0401

Binatone .0244

Brandt Electronic. .0528

Brinkmann .0064,0445

Brionvega .0114,0389

Britannia. 0243, 0244

Bruns. 0114

Bush. 0064, 0036, 0245, 0244,

.0063,0235,0299,0309

0321,0376,0388,0398,0401

0514,0579

CCE. 0064

CGE. 0397,0101,0103,0111

0274,0279,0445,0579

CS Electronics .0245, 0243, 0274

CTC .0274

Canton. .0245

Carad. .0637

Carena. 0064, 0482

Carnivale. .0057

Carrefour. 0064, 0063

Cascade. 0064, 0036

Cathay. 0064

Centurion .0064

Century. .0114, 0240, 0274

Cimline .0036,0245

City. 0036

Clarivox. 0064, 0129

Clatronic .0064,0036,0397,0245

.0244,0103,0129,0274

0347,0398

Condor. 0064, 0036, 0397, 0129

.0274,0309,0347

Contec. 0036, 0243, 0063

Continental Edison.0136,0223

0264,0314,0360,0426,0514

0528

Cosmel. 0064, 0364

Crezar. .0240

Crosley .0101,0103,0111,0114

0240,0274,0374,0579

Crown .0064,0036,0397,0235

0103,0366,0386,0445

0448,0513

Crystal. 0458

Curtis Mathes. .0120

Cybertron. 0245

Daewoo .0064,0036,0245,0244

0401,0526

Dainichi .0245,0243

Dansai. 0064, 0243, 0063, 0062

Dantax 0513

Dayton. 0036

Daytron. 0401

De Graaf .0235, 0575

Decca .0064, 0244, 0099, 0102

.0299,0543

Denver. 0064

Desmet. 0064, 0036

Diamant. .0064

Dixi .0064,0036

Dual 0064,0244,0286,0363

0379,0571,0579

Dual Tec. 0244

Dumont.0097,0114,0129,0240

.0322,0374

Elbe. 0244,0265,0286,0319

0462,0543

Elin.....0064,0036,0131,0332,0376

.0388,0575

Elite .0245,0347

Elman. .0129

Elta .0036,0458

Emco. .0274

Emerson.0064, 0097, 0114, 0206

0240,0274,0309,0347

0388,0398

Emperor .0309

Envision .0057

Erres. .0064

Euromann .0064,0448

Europa .0064

Europhon.0244,0129,0240,0543

Expert. .0233,0332

Exquisit. 0064

FNR. .0129

Fenner. .0036,0401

Ferguson. 0064, 0136, 0100, 0256,

0265,0314,0362,0370

Fidelity.0190, 0243, 0256, 0378

0388,0398,0539,0571

Filsai .0244

Finlandia .0190, 0235, 0099, 0373

0386,0575

Finlux. 0064, 0244, 0097, 0099

0114,0129,0131,0132,0206

0322,0373,0374,0543,0579

Firstline .0064, 0036, 0243, 0244

0099, 0265, 0274, 0321, 0348

0401,0571,0579

Fisher. 0397, 0244, 0063, 0235

0099, 0114, 0131, 0571, 0579

.0582

Flint .0064, 0245, 0099, 0482

.0637

Formenti.....0064, 0243, 0114, 0240

0347,0374,0579

Fraba. 0064,0397

Friac. 0036, 0397, 0129, 0526

Frontech. 0190, 0036, 0244, 0274

0458

Fujitsu. .0244,0099,0129,0233

Funai .0206,0321

GBC.0036,0245,0240,0401,0579

GEC.....0064,0190,0244,0070,0099

0388,0543,0584

GPM. .0245

Galaxi. 0064, 0129

Galaxis. 0064, 0397

Geloso....0036, 0240, 0374, 0401, 0579

General Technic. 0036

Genexxa.0190,0036,0245

Germanvox. 0240

Gibraltar .0057

GoldStar .0064, 0136, 0190, 0243

0244,0057,0274,0317

.0388,0458

Goldline. .0364

Gooding .0514

Goodmans.....0064, 0036, 0245, 0244

0063,0062,0099,0206,0262,0344

0362,0370,0398,0401,...0507,0514

0526,0543

Gorenje. 0397,0448

Gradient. 0080, 0197

Graetz.0190,0374,0388,0584

Granada .0064,0253,0244,0135

0235,0099,0102,0366,0378,0383

0386,0500,0543

Grandin. 0064, 0190, 0036, 0309

0347,0401,0482,0637

Grundig. 0064, 0583, 0036, 0614

.0097,0103,0218,0264,0514,0581

Grunpy 0206

HCM....0064,0036,0245,0244,0309

0445

HMV. .0114

Halifax. 0244

Hampton. .0243,0244

Hanimex. 0321

Hanseatic.0064, 0583, 0036, 0244

0309,0347,0388,0455

0458,0571

Hantarex. 0064, 0240, 0543

Hantor. .0064

Harley Davidson .0070, 0206

Harwood .0064,0036,0344

Havermy. .0120

Hema .0036, 0244

Hemmermann. .0571

Hifivox. 0223, 0426, 0528

Hikona. 0245

Hinari. 0064, 0036, 0245, 0063

0206,0262,0514

Hisawa.0245,0309,0427,0482

.0637

Hit .0114

Hitachi. 0064, 0136, 0190, 0244

0063, 0070, 0071, 0099, 0132

0223, 0240, 0252, 0374, 0376

0383,0500,0519,0526,0543

0575,0579,0584

Hornyphone. 0064

A

Huanyu .0243,0401

Hyper 0036,0243,0244,0274

Hypersonic 0388

Hypson. 0064, 0309, 0427, 0482

ICE.....0583,0245,0243,0244,0398

ICeS .0245,0243

IR.0064,0583,0532,0136,0253

0190,0397,0243

.....0244, 0063, 0135, 0120, 0037, 0038

.0062,0070,0097,0099,0100

....0101, 0103, 0114, 0128, 0129, 0131

....0132, 0218, 0223, 0233, 0240, 0252

.....0262, 0264, 0265, 0270, 0274, 0279

.....0314,0316,0317,0318,0319,0321

.....0322, 0332, 0344, 0347, 0350, 0354,

....0370,0376,0378,0383,0384,0386

.0388,0401,0528,0539,0543,0579

.0580,0581,0584

ITC. .0579

ITS .0243,0398

ITT .0190,0235,0206,0366,0373

.....0374, 0376, 0378, 0388, 0500, 0507

.0571,0575,0584,0637

ITV. .0064

Iberia. 0064

Imperial.0397,0101,0103,0111

0274,0279,0445,0579

Indesit. 0240, 0264

Indiana .0064

Ingelen. 0190, 0584

Ingersol. 0036

Inno Hit. 0036, 0244, 0099, 0317

0543

Interbuy 0064

Interfunk. 0064, 0190, 0114, 0274,

0302,0354,0388,0528,0539,0584

Internal 0064

Intervention.....0064, 0245, 0244, 0129

0274,0309,0458,0482,0513,0514

Irradio.0245,0274,0317,0398

Isukai. 0064, 0245, 0309, 0482

JVC.0680,0245,0063,0080,0121

0398,0445,0633

KB Aristocrat. 0190

KTV. 0244, 0057

Kaisui.....0064, 0036, 0245, 0243, 0244,

0309,0482

Kamp. 0243

Kapsch....0190, 0131, 0233, 0388, 0584

Karcher. .0129, 0309, 0448, 0637

Kasui .0309

Kathrein .0583

Kendo....0064, 0129, 0262, 0274, 0389

0455,0637

Kennedy. 0233, 0240, 0462, 0579

Kenwood. 0057

Kingsley 0243

Kneissel. 0064, 0265, 0286, 0319

0462,0637

Kolster. 0064

Konka. 0245, 0398

Korpel. 0064

Korting. 0114, 0347, 0448

Kosmos .0064

Koyoda. 0036

Kraking .0265

Kyoto .0190

La Sat. 0513

Lenco .0131

Leyco .0064,0099,0321

Liesenk & Tter. 0064

Liesenkotter .0064,0354

Lifetec. 0064, 0245, 0401

Loewe....0064, 0102, 0114, 0316, 0319

.0539

Logik. .0038, 0256

Luma. 0233, 0286, 0332, 0389

Lumatron 0244

Luxor ...0190, 0235, 0264, 0317, 0376,

0383,0384,0388,0575

M Electronic....0064, 0136, 0190, 0036

43,0244,0131,0132,0274,0314

0373,0401,0507,0519,0539

MGA .0057

MTC .0397,0376,0539

MTEC 0299

Magnadyne ....0114, 0129, 0274, 0374

.0543,0571,0579

Magnafon.....0243,0100,0103,0129

0240,0543

Magnavox. 0063, 0206

Magnum. .0064

Manesth .0064,0244,0062,0262

0321.0347

Marantz. 0064, 0583, 0057

Marelli. 0114

Mark. 0064

Matsui....0064, 0190, 0036, 0244, 0063,

.....0235,0038,0062,0099,0204,0218

.....0262,0299,0321,0362,0398,0482

0514,0543,0571

Matsushita. 0677

McMichael. 0070

Mediator .0064

Medion .0064

Megas. 0637

Melvox. .0427

Memorex .0036

Memphis. .0364

Metz.....0064, 0114, 0240, 0266, 0302

.0394,0581

Minerva.0097,0264,0514,0581

Minoka. 0386

Mitsubishi.0064, 0063, 0135, 0114

0256,0264,0539

Mivar....0243,0317,0318,0319,0543

0636

Monaco .0036

Motion. 0103

Motorola. 0120

Multitech....0036, 0243, 0244, 0102

0103,0129,0274,0513

Murphy .0190,0243,0099

Myryad .0583

NEC. 0057,0197,0347

NEI. 0064,0364,0398,0458

Naiko 0633

Nakimura. .0064, 0401

Nakio .0507

National .0264, 0267

Neckermann ..0064,0583,0532,0397 0114,0218,0240,0274 0347,0354,0376,0445,0581

Nesco. .0206, 0274

Network. 0364

Neufunk. .0064, 0583

New Tech. 0244, 0370

Nicam .0571

Nikkai....0064,0036,0245,0243,0244 0063,0062,0099,0364

Nobliko. 0243, 0097, 0103, 0129

Nogamatic. 0223, 0360, 0528

Nokia....0190,0235,0206,0347,0366, .0373,0374,0376,0378,0386,0388, .0401,0500,0507,0575,0584,0633. 0637,0658

Nordmende...0136,0223,0240,0314 0370,0426,0528

Novatronic .0064,0132

Oceanic.0190,0235,0374,0388 0575

Okano .0064,0036,0397

Onwa. 0245,0129,0398

Optimus 0677

Orion....0064,0204,0206,0262,0321 0344,0347,0348,0543,0571

Online. .0064, 0245

Orsowe. 0543

Osaki....0064,0245,0244,0099,0299 0401

Osio .0064

Oso .0245

Osume. 0064, 0245, 0063, 0099

Otake. 0344

Otto Versand..0064,0583,0532,0136, .0253,0244,0063,0120,0037,0218, .0240,0262,0274,0321,0347,0370, .0374,0376,0388,0539,0571,0579. .0581

Pael. 0243

Palladium. 0397, 0445

Panama .0244, 0274

Panasonic .0064, 0677, 0153, 0253, .0190, 0240, 0264, 0267, 0367, 0374, .0388, 0394, 0543, 0575, 0584

Panavision .0064

Pathe Cinema 0190,0243,0240 0265,0347,0579

Pathe Marconi .0223,0264,0360 0426,0528

Pausa. 0036

Perdio .0064,0190,0347

Philco....0064, 0397, 0101, 0103, 0111,

.0114,0240,0274,0445,0579

Philex .0378

Philips....0064,0583,0070,0114,0256, 0350,0359,0370,0401,0581,0632

Phoenix..0243, 0114, 0347, 0513, 0579

Phonola .0064,0243,0114

Pilot. 0057

Pioneer.0064,0136,0190,0314 0388,0455,0513

Plantron. 0036

Playsonic. 0244

Portland. 0401

Prandoni Prince 0240,0388,0543

Precision 0244

Prinz. 0571

Profex.....0190, 0036, 0103, 0388, 0458

Profi. 0036

Profitronic. .0064, 0129

Proline. .0099, 0348

Prosonic .0064

Protech.0064,0036,0244,0129 0274,0364,0445,0458,0579

Pye 0064,0583,0114,0256,0581

Quasar. 0274

Quelle....0064,0532,0037,0038,0097 0101,0111,0131,0240,0279,0322 0354,0355,0388,0539,0571,0579 0581

Questa. 0063

R-Line .0064

RBM 0097

RFT .0099,0114,0455

RTF. 0114

Radialva .0064,0245,0364,0458

RadioShack. 0064, 0057

Radiola. 0064, 0244, 0350

Radiomarelli.....0064, 0114, 0274, 0543

Radiotone.0064,0036,0322,0455

Rank Arena 0063

Realistic. 0057

Recor .0064

Rediffusion 0378,0388,0575

Redstar. 0064

Reflex 0064

Revox. 0064

Rex.0190,0233,0286,0332

Roadstar.....0064,0036,0245,0445

Robotron. 0114

SBR. 0064,0070

SEG.0064,0036,0244,0063,0103 0129,0389,0579

SEI.....0037,0114,0129,0204,0233，.0240,0321,0374,0543,0571,0579

SEI-Sinudyne. .0064, 0240

Saba....0136,0190,0102,0114,0223, 0240,0314,0362,0370,0374,0388, 0426,0528,0543,0575,0584

Saccs .0265

Sagem 0482,0637

A

Saisho...0036,0244,0038,0204,0262 0458,0543,0571

Salora....0190,0317,0376,0383,0386 0388,0543,0575,0579

Sambers .0103,0129,0240,0543
Sampo. .0057

Samsung 0064, 0583, 0036, 0397, 0243

0244,0614,0235,0099,0317,...0671

Sandra. .0243, 0244

Sansui. .0064

Sanyo....0397,0243,0244,0063,0135, 0235,0038,0099,0131,0240,0366 0571,0582

Schaub Lorenz.0374,0388,0584

Schneider. .0064, 0583, 0245, 0244, .0274, 0286, 0350, 0363, 0379, 0388, .0398, 0571

Scotland. 0190

Sears .0206

Seleco .0190,0233,0286,0332 0374,0389

Sencora .0036

Sentra .0245,0062

Serino .0243,0482,0637

Sharp .0063,0120,0321,0543

Shintoshi .0064

Shorai. 0206, 0321

Siarem...0114, 0129, 0240, 0374, 0543, .0579

Siemens. .0064, 0218, 0240, 0354, .0355, 0374, 0581

Silva .0243

Silver. 0063, 0206, 0388

Singer .0114,0129

Sinu .0129

Sinudyne.0037,0114,0129,0204 0233,0240,0262,0321,0374,0543 0571,0579

Skantic. 0383, 0384

Solavox...0190, 0099, 0378, 0388, 0575

Sonitron. 0397, 0235, 0366

Sonoko .0064,0036,0309

Sonolor 0190,0235,0388

Sontec .0064, 0036, 0397, 0321

Sony.....0532,0063,0037,0038,0129 0256

Sound & Vision .0129, 0401

Soundesign. 0206

Soundwave .0064, 0347, 0445

Sangyong .0036

Standard. .0064, 0036, 0245, 0244 0347, 0401

Starlite .0579

Stenway .0245,0309

Stern. 0190, 0233, 0286, 0332

Strato. .0064

Stylandia .0244

Sunkai. 0321, 0348, 0482, 0637

Sunstar .0064, 0036, 0398

Sunwood .0064

SuperTech. 0064, 0036, 0243

Superla .0543

Supra. 0036

Susumu .0245

Sysline 0064

Sytong 0243

TMK. 0204

TVTEXT 95 .0583

Tactus. 0299

Tandberg.0316,0322,0394

Tandy.....0190, 0245, 0244, 0120, 0099

Tashiko .0190,0243,0244,0063 0070,0386

Tatung 0064, 0244, 0038, 0099

.0299,0543

Teac 0064

Tec. 0036, 0244, 0274, 0286, 0364

0498,0579

Technema. 0347

Technics. 0677

Technol Ace. 0206

Teleavia .0223,0360,0370,0426 0517,0528

Telefunken.....0064,0136,0100,0101,...0111,0128,0223,0240,0279,0362

0370,0498,0513,0528,0593

Telegazi. 0064

Tensai....0064,0036,0245,0244,0131, 0132,0274,0321,0344,0347,0398 0401

Tenson. 0347

Texet. 0036, 0245, 0243, 0401

Thomson. .0064, 0136, 0223, 0264, .0314, 0360, 0362, 0370, 0376, 0426, .0498, 0517, 0528

Thorn.0064,0532,0062,0099,0100 0101,0111,0131,0256,0265,0299 0362,0370,0386,0388,0401,0526 0539,0580

Tokai .0064,0190,0036,0364

Tokyo 0062

Tomashi 0309

Toshiba. .0535, 0136, 0063, 0062, .0097, 0129, 0270, 0517, 0580

Towada 0579

Trans Continens. 0244

Trident. 0543

Tristar 0245

Triumph. .0583, 0204, 0270, 0373, .0543

Tsoschi 0309

Uher.....0064,0233,0347,0401,0445 0513

Ultravox.0064,0243,0114,0129 0240,0274,0378,0579

Unic Line. 0064, 0500

United .0064

Universum.....0064,0532,0036,0397

.....0244,0063,0037,0038,0097,0101

....0103,0131,0132,0197,0204,0240

.....0274,0279,0317,0321,0322,0354

.....0364,0373,0388,0389,0445,0448

.....0507,0519,0528,0539,0571,0579

.0581

Univox....0064, 0190, 0114, 0265, 0364

Vestel .0064, 0244, 0579

Vibrant. .0299

Videologic. 0245, 0243

Videosat .0274

Videotechnic. 0244, 0347

Videoton. 0383, 0458

Vision. .0244, 0347

Vistar .0233

Voxson. 0190, 0114, 0445

Waltham.....0064,0136,0244,0383

0445,0458,0517

Wards. .0206

Watson..0064,0036,0245,0240,0347

Watt Radio....0243, 0129, 0240, 0571,

.0579

Wega. 0064,0063,0114

Wegavox .0036

Weltblick. .0347

White Westinghouse.0064, 0243

0347,0364

Windstar. 0309

Xrypton .0064

Yamishi .0244,0309,0482

Yokan 0064

Yoko.....0064,0036,0245,0244,0332

0366,0448,0458

Zanussi. 0244, 0233, 0332

Zenor. 0366

SETUP CODES FOR VCR

ASA. .0108, 0064

AVP .0379

Adelsound. 0031

Adventura. 0027

Adyson .0099

Aiwa.....0375,0064,0027,0379,0334

0236

Akai.....0342,0133,0047,0068,0080

Akiba. 0099

Akitan .0322

Akura 0099

Alba.0375,0342,0027,0305,0099

0379,0047,0236,0322

Allstar. .0108, 0349

Ambassador .0047

Amstrad .0027,0099

Anitech. .0099,0349

Ansonic .0031

Aristona 0108

Asha 0267

Asuka 0064

Audio Tom 0047

Audiosonic. .0305

Baird .0027,0131,0068,0134

Basic Line 0305,0099,0047

Beaumark. 0267

Bestar 0305

Blaupunkt.....0108,0222,0253,0189

0061,0181,0254,0430

Bondstec. 0099, 0047

Bosch .0181

Brandt....0347,0068,0233,0348,0520

Brandt Electronic. 0068

Broksonic .0236, 0322

Bush.....0375,0342,0305,0099,0379

0236

CGE .0027

Calix. 0064

Carena. 0236

Carrefour. 0072

Cathay. .0305

Catron. 0047

Cimline 0099

Cineral. 0305

Citizen. .0064, 0305

Clatronic. 0047

Colt. 0099

Combitech. 0379

Condor .0305,0047

Craig. 0064, 0099, 0074

Crown. 0305, 0099, 0047, 0349

Curtis Mathes. 0189

Cybernex. 0267

Cyrus .0108

Daewoo .0305,0047

Dansai. .0305,0099

De Graaf.0108, 0075, 0069, 0131

0073,0193

Decca ....0108, 0094, 0027, 0035, 0236

Denon. 0069

Diamant. 0064

Domland 0236

Dual. 0108, 0305, 0068

Dumont .0108, 0027, 0131

ESC. 0305, 0267, 0047

Elbe 0305

Elcatech. .0099

Electrohome .0064

Electrophonic. .0064

Elin. .0267

Elsay 0099

Elta .0305,0099

Emerex. 0059

Emerson....0072,0064,0027,0070 0305,0099,0063,0235,0236

Europhon. 0047

Ferguson. .0027, 0347, 0068, 0080, .0134, 0348, 0520

Fidelity. .0027, 0099

Finlandia.0108,0075,0027,0069 0131,0193

Finlux.0108,0027,0069,0131

Firstline. .0375, 0072, 0064, 0070, .0099, 0115, 0236

Fisher.....0131, 0047, 0073, 0074, 0081

Flint 0236

Frontech. 0047, 0349

Funai. .0027

GE. 0267

GEC .0108

Galaxis. 0305

General .0047

General Technic. 0375

Genexxa. .0131

GoldHand 0099

GoldStar. 0064

Goodmans.0108,0064,0027,0305 0099,0047,0430

Gradient. .0035

Graetz. 0267, 0131, 0068

Granada.0108,0075,0064,0253 0027,0267,0069,0131,0073

Grandin. 0064, 0027, 0305, 0099

Grundig.0108,0222,0253,0347 0099,0034,0374,0376,0430

HCM. 0099, 0349

HI-Q. 0074

Hanimex. 0379, 0322

Hanseatic 0064, 0236

Hantor 0047

Harley Davidson. .0027

Harwood. 0099

Headquarter. 0073

Hinari ...0305, 0267, 0099, 0379, 0031, .0068, 0115, 0235, 0349

Hisawa. 0379

Hischito 0072

Hitachi. .0108, 0027, 0267, 0069 0031, 0068, 0193

Hornyphone. 0108

Hypson .0305,0099,0236

IR.0108,0375,0072,0133,0253

.....0267,0069,0131,0099,0031,0047

.....0068,0074,0080,0134,0181,0235

0236,0322,0349

ITT. 0133, 0267, 0131, 0068, 0073

0411

ITV .0064,0305,0047

Imperial .0027

Ingersol .0267,0031,0236

Inno Hit 0267,0099

Interfunk .0108, 0131

Intervention.....0064, 0027, 0305, 0236

Irradio. .0108, 0099

JVC.0094,0035,0068,0233,0411

KLH. 0099

Kaisui .0099

Kendo. 0342, 0133, 0099, 0236

Kenwood .0094, 0068, 0073, 0411

Kimari. 0074

Kneissel. 0379

Kodak. 0064

Korpel. 0099

Kuba Electronic. 0074

Kyoto 0099

Lenco .0305

Leyco .0099

Lloyd's. 0027

Loewe.....0108,0064,0189,0031,0481

Logik. 0133, 0267, 0031, 0236

Luxor....0075, 0133, 0070, 0131, 0099

0073,0074

M Electronic. 0064, 0027

MGA .0267

Magnavox. 0108, 0027

Magnin .0267

Manesth .0108, 0072, 0099, 0236

Marantz.0108,0173,0236,0322

Marquant. 0349

Matsui....0375,0027,0267,0379,0031 0063,0115,0235,0236,0322

Medion .0375

Memorex.0075,0064,0027,0267 0131,0189,0073

Memphis. 0099

Metz.0108,0222,0064,0189,0254 0374,0481

Minerva .0222

Minolta .0069

Mitsubishi.0108, 0094, 0070

Motorola. 0075

Multitech. 0027, 0099, 0047

Murphy. 0027

Myryad .0108

NEC. .0094,0068

Neckermann .0108

Nesco .0099

Nikkai .0305,0099,0047

Nokia....0075,0133,0305,0267,0131

0068,0073

Nordmende....0347, 0068, 0348, 0411

.0521

Oceanic.0108,0075,01330027

0131,068 073

Okano 0375, 042.0099

Olyus 53

Optimistic 005,0064

Orion.75,037,1991,0063,0115

0235,0236,0322

Osaki .0064,0027,0099

Otake. 0236

Otto Versand. 0108

Palladium.0064, 0267, 0099, 0031

.0068,0236

Panasonic.0253,0189,0254,0481

Pathe Cinema 0070,0031,0063

Pathe Marconi 0068

Penney. 0064, 0267, 0069, 0081

Pentax. 0069

Perdio .0027,0236

Philco. 0099, 0236

Philips.....0108, 0173, 0411, 0430, 0494

Phonola 0108

Pioneer. 098, 094 0069

Portland 007

Prinz 5

ProVision. 0305

Profex. 0349

Profitronic .0108, 0267

Proline .0027

Prosonic .0305

Protec. 0099

Pye. 0108

Quarter. 0073

Quartz. 0073

Quasar. 0305, 0189

Quelle. 0108

RCA. .0267,0069

RFT. 0099, 0430

Radialva. 0075, 0064

Radiola. 0108

Radix .0064

Randex 0064

Realistic. 007, 004, 027)131

Rex 2411

Roadcar. 064,0305,0.67,0u9

Royal 0349

SBR. .0108,0173

SEG. 0305, 0267, 0099, 0349

SEI .0108,0031

Saba.....0347,0068,0233,0348,0411

0521

Saisho....0375,0031,0063,0115,0235

0236

Salora. 0133, 0070, 0131, 0073

Samsung. .0267,0459

Sanky. 0075

Sansui .0094,0133,0027,0068

Sanwa. 0031

Sanyo ....0075, 0267, 0131, 0073, 0074

Saville. 0305, 0267, 0379

Schaub Lorenz.0133,0027,0131

0068

Schneider.0108,0064,0027,0305

.0267,0069,0099,0173

Scott. 0070

Sears.....0064,0027,0069,0131,0073

.0074,0081

Seleco .0064,0047,0068,0411

Semp. 0072

Sentra .0099,0047

Sharp .0075

Shintom 0099

Shivaki. .0064

Shogun 2267

Sho1 31,0.15

Siemei. 08,022,064,0131

0034,0081,0173,0374

Siera .0108

Silva .0064

Singer. .0072, 0099

Sinudyne. 0108, 0031, 0236

Solavox .0047

Sonneclair. 0099

Sonolor. .0073

Sontec. 0064, 0305

Sony.....0059,0133,0027,0038,0061

1059

Soundwave. 0064, 0236

Sangyong 0099

Stern .0305

Sunkai .0375, 0236, 0322

Sunstar. .0027

Suntronic. .0027

Sunwood. 0099

Suppl. 14

Symptoms 0027

TMK. 0267, 0063, 0235

Taisho .0031, 0115, 0236

Tandberg. 0305

Tashiko...0108, 0075, 0064, 0027, 0267

Tatung....0108, 0075, 0027, 0070, 0068

0080,0236

Teac. 0027,0068

Tec .0305,0099,0047

Tech Line. 0099

Technics. .0253,0189

Teleavia. 0068, 0520

Telefunken.....0347,0068,0348,0411

.0520,0521

Teletech. 0099

Tenosal .0099

Tensai. 0027,0099,031,0349

Thom 0348

Thomas 0027

Thompson ....094,0305,0 47,u8

348,041,020,0521

Thorn. 0067, u131, 0063, 0068

Tokai. 0099

Toshiba...0108, 0072, 0070, 0068, 0411

Totevision .0267

Towada 0349

Triumph. 0235

Uher. 0267
Ultravox. .0305
Unitech. 0267
Universum.....0108,0375,0222,0064
0133,0027,0267,0349
Vector. 0072
Video Concepts 0072
Videomagic. 0064
Villain .0027
Wards. .0075
Watson. .0108
XR-1000. 0027,0099
Yamaha .0068
Yamishi .0305,0099
Yokan 0099
Yoko. 0267,0047
Zenith. .0027,0061

SETUP CODES FOR DIGITAL

VERSATILE DISC

Alba. 0744
Bush .0717
Denon. .0517
DiViDo .0732
Enterprise. .0618
Greenhill 0744
Grundig. 0566, 0722, 0732
JMB. .0722
JVC. 0585
Kenwood .0517,0561
LG. 0618
Leccson .0723
Magnavox .0530
Mitsubishi. 0548
Onkyo. .0639
Oritron. 0678
Panasonic .0517
Philco .0717
Philips .0530,0566,0673
Pioneer. .0552, 0598
REC. .0716
Revoy. 0726
Roadstar. 0716
SM Electronic. .0717
Samsung 0600
Sharp 0657
Sony .0560
Technics. .0517
Thomson. .0578
Toshiba .0530
Umax. .0717
Universum 0618
Wesder. .0726
Wharfedale. 0723
Yamakawa .0692
Zenith. .0530

Guarantee certificate Certificate de garantie Garantiebewijs Zaručni list
