USER MANUAL Star Pads 9 iDance

http://www.idanceaudio.com/documentation/declarationofconformity/

PLEASE READ THIS USER MANUAL COMpletely BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

BITTE LESSEN SI DESE BEDIENUNSALEITUNG VOLLSTANDIG DURB, BEVOR Si DESE BENUTZING NUTZEN, UND BEWAHERN SE DISES HANDBUCF FOR DIE ZUKUNFT AUF.

VEULILTE LIRE ATTEDITENCENTE MANUEL AVANT D'UTILISERITE UNITE ET CONSERVER CE LIVRET RÉPONSE D'ULTÉRIÉUE

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert User of the presence of un-insulated hazardous voltage within the product's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons

The exclamation mark inside an equilateral triangle is intended to alert user of the presence of the important operating and maintenance (servicing) instructions in the literature accompanying the product.

NOTES:

Please do not attempt to open the back cover or power adapter as opening or removing the covers may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled: There are no user servicing components inside.

NOTES:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

NOTES:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for assistance.

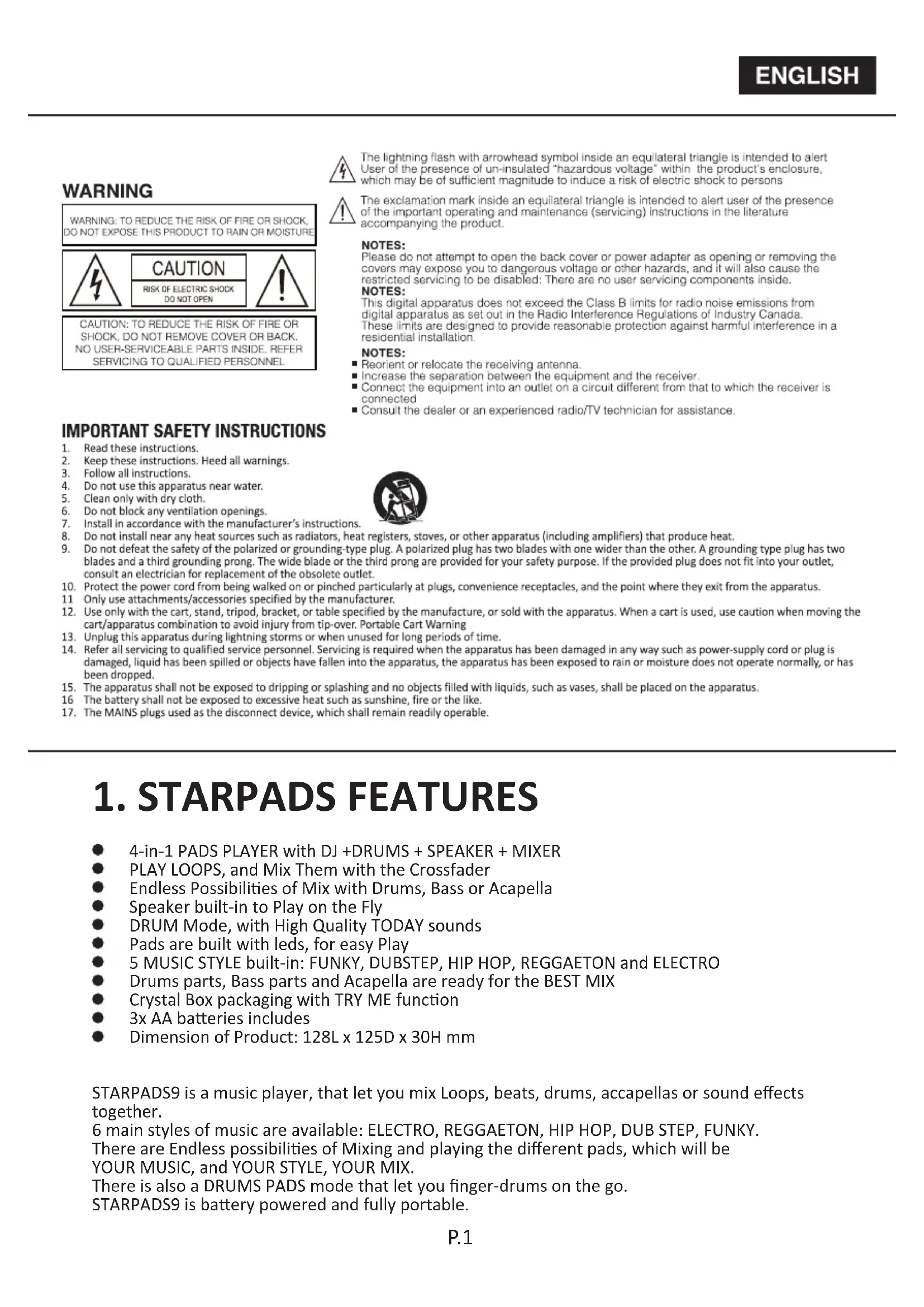

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings.
7. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety purpose. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
    11 Only use attachments/accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacture, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.
14. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
    16 The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
15. The MAINS plugs used as the disconnect device, which shall remain readily operable.

1. STARPADS FEATURES

4-in-1 PADS PLAYER with DJ +DRUMS + SPEAKER + MIXER
- PLAY LOOPS, and Mix Them with the Crossfader
- Endless Possibilities of Mix with Drums, Bass or Acapella
Speaker built-in to Play on the Fly
- DRUM Mode, with High Quality TODAY sounds
- Pads are built with leds, for easy Play
5 MUSIC STYLE built-in: FUNKY, DUBSTEP, HIP HOP, REGGAETON and ELECTRO
Drums parts, Bass parts and Acapella are ready for the BEST MIX
Crystal Box packaging with TRY ME function
3x AA batteries includes
Dimension of Product: 128L x 125D x 30H mm

STARPADS9 is a music player, that let you mix Loops, beats, drums, accapellas or sound effects together.

6 main styles of music are available: ELECTRO, REGGAETON, HIP HOP, DUB STEP, FUNKY.

There are Endless possibilities of Mixing and playing the different pads, which will be

YOUR MUSIC, and YOUR STYLE, YOUR MIX.

There is also a DRUMS PADS mode that let you finger-drums on the go.

STARPADS9 is battery powered and fully portable.

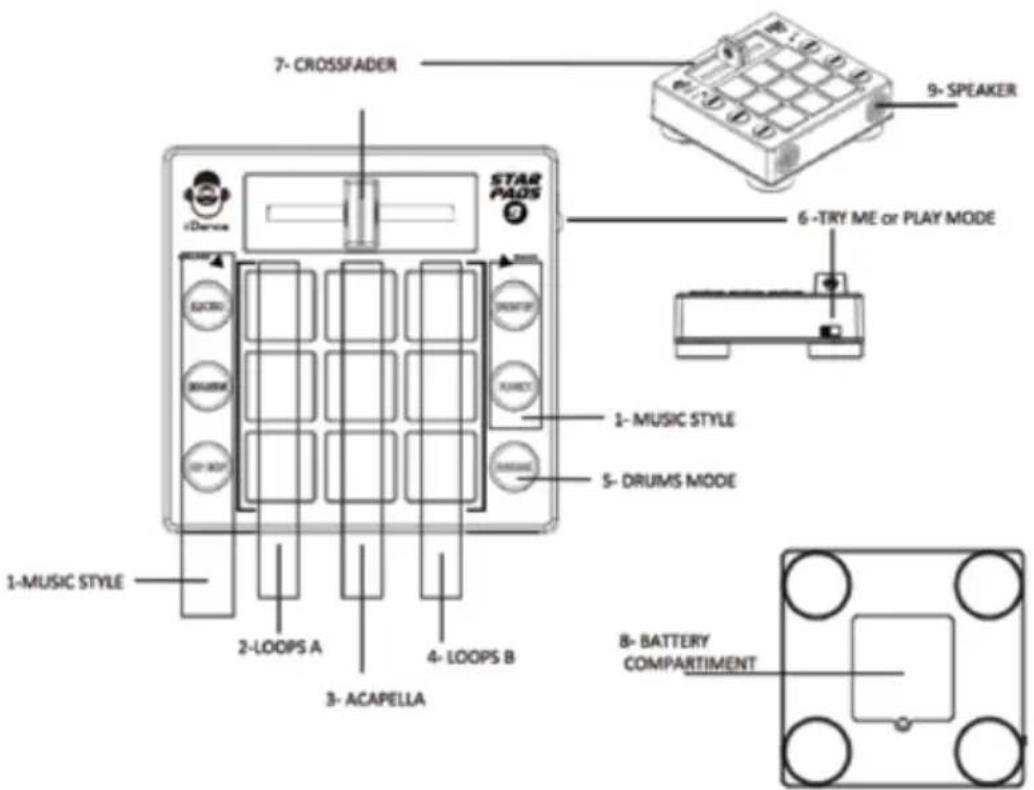

1. MUSIC STYLE

Press to Select your genre.

2. LOOPS A

These 3 pads with Music loops can be played one by one, and can be heard when the CROSSFADER's position is on the LEFT.

3. ACAPELLA/FX sounds

Can be Played and heard at any position of the CROSSFADER.

IMPORTANT: CROSSFADER on LEFT position, ONLY LOOPS A can be heard.

IMPORTANT: CROSSFADER on MIDDLE position, LOOPS A and LOOPS B can be heard.

4. LOOPS B

These 3 pads with Music Loops can be played one by one, and can be heard when the CROSSFADER's position is on the RIGHT.

IMPORTANT: CROSSFADER on RIGHT position, ONLY LOOPS B can be heard.

IMPORTANT: CROSSFADER on MIDDLE position, LOOPS A and LOOPS B can be heard.

5.DRUMS MODE

9 drums sound can be played at any position of the CROSSFADER, so CROSSFADER will have NO FUNCTION when you are on DRUMS MODE.

6. TRY ME MODE

Switch on the Right position will be DEMO mode, playing the iDANCE's song. Switch on Right position will be the PLAY MODE.

IMPORTANT: STARPADS9 will automatically turns on when you press any keys, and it will be turning off after 2 minutes.

7. CROSSFADER

Is the MIXER that will BLEND music between the LOOPS A group and the LOOPS B group. CROSSFADER on LEFT position, ONLY LOOPS A can be heard.

CROSSFADER on MIDDLE position, LOOPS A and LOOPS B can be heard.

CROSSFADER on RIGHT position, ONLY LOOPS B can be heard.

8. Battery Compartment

Please follow the Battery installation procedure/GETTING STARTED.

9. SPEAKER

Will play LOOPS with the CROSSFADER or DRUMS sounds.

2. GETTING STARTED

Requires 3 "AA" alkaline batteries. When performance diminishes, replace with new batteries. ALWAYS Power off the unit when not in use to preserve battery power.

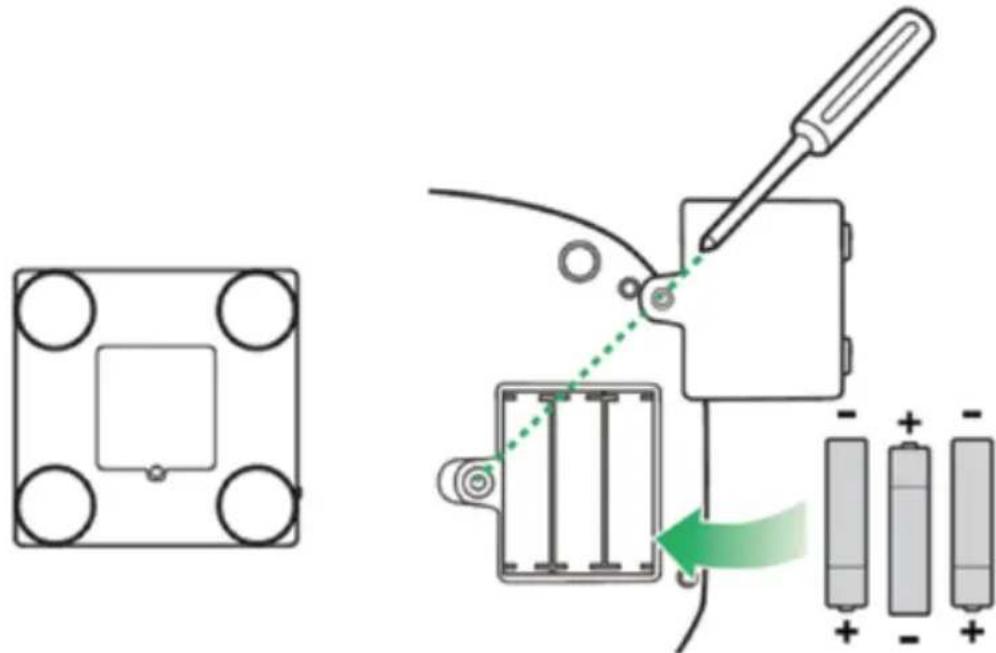

BATTERY INSTALLATION

1. Locate the BATTERY COMPARTMENT on bottom of the unit.
2. Using a Phillips head screwdriver, remove the SCREW and BATTERY DOOR.
3. Install 3 new "AA" batteries, matching polarity icons with those on the BATTERY COMPARTMENT.
4. Replace the BATTERY DOOR and tighten the SCREW.

BATTERY SAFETY INFORMATION

WARNING!

Battery acid leakage can cause personal injury and cause damage to the product and surrounding property. If battery leakage occurs, thoroughly wash any affected skin, making sure to keep battery acid away from eyes, ears, nose and mouth. Immediately wash any clothing or other surface that comes in contact with leaked battery acid. Leaking batteries may make "popping" sounds. Dispose entire toy according to Local, State or Federal Battery Laws.

TO AVOID BATTERY PROBLEMS:

NEVER mix old and new batteries or different brands of batteries.
NEVER mix alkaline, standard(carbon-zinc), rechargeable(nickel-cadmium)batteries with this product.
NEVER dispose of batteries in fire, as they may leak and explode.
NEVER use rechargeable batteries.
NEVER attempt to charge non-rechargeable batteries.
ALWAYS remove exhausted batteries from toy.
ALWAYS have an adult install batteries consistent with installation instructions.
- ONLY use batteries specified by manufacturer.
- Batteries are to be inserted with the correct Polarity.
The supply terminals are not to be short-circuited.

3. CREATING MUSIC WITH STARPADS 9

There are 2 ways to create music with STARPADS9:

1. Play with the LOOPS and MIX with the CROSSFADER
2. Drums mode for Fingerdrumming

Play with Loops, using the 5 different music style built-in

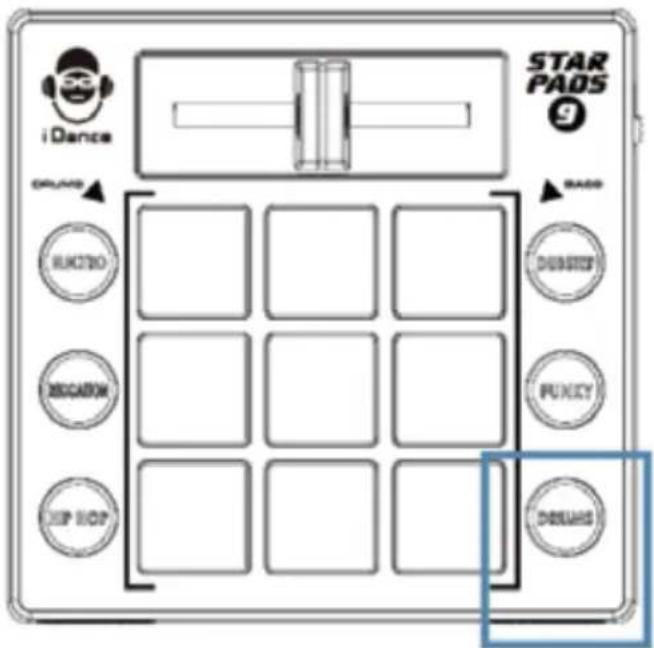

Drums mode, finger drum alone, the crossfader will not be used for that mode, just press DRUMS and play with the 9 pads!!!

LOOPS AND MIX MODE

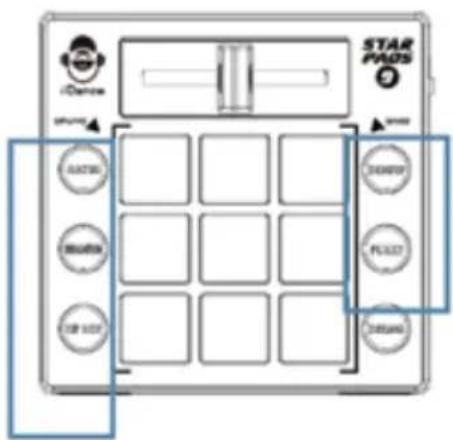

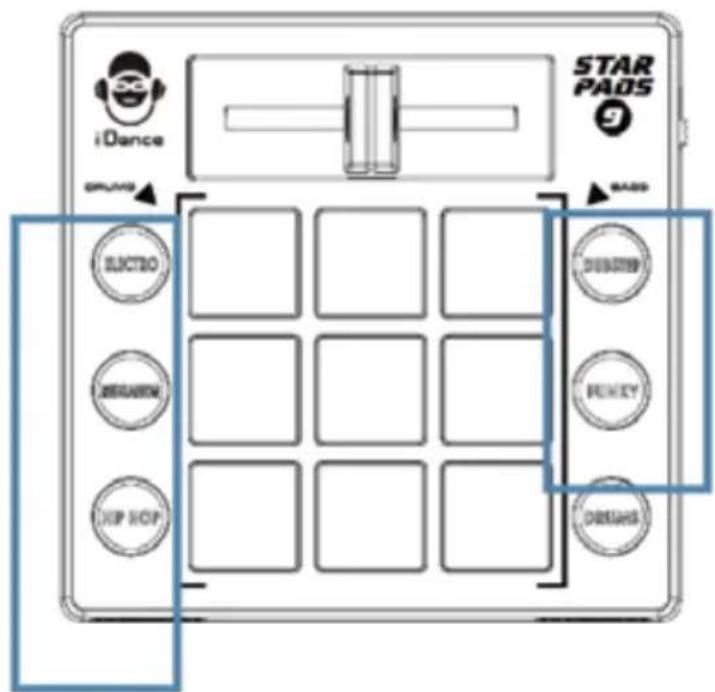

1. Select your Music Style

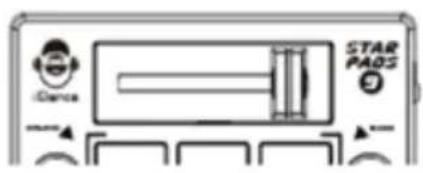

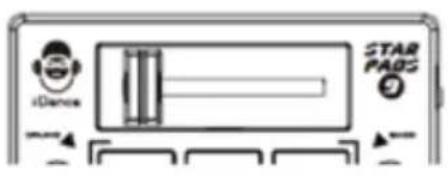

1. Move your CROSSFADER to LEFT POSITION

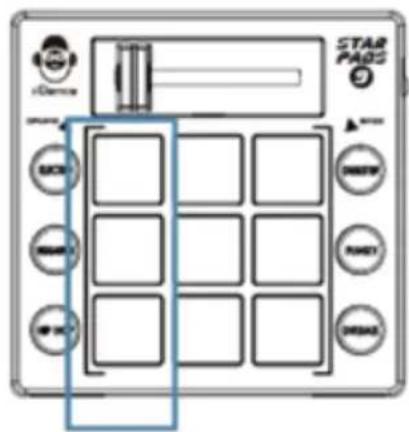

1. PRESS one of the 3 pads of LOOPS A group, the pad you are playing will be lighten, ONLY one of the 3 pads of this group can be played at the same time

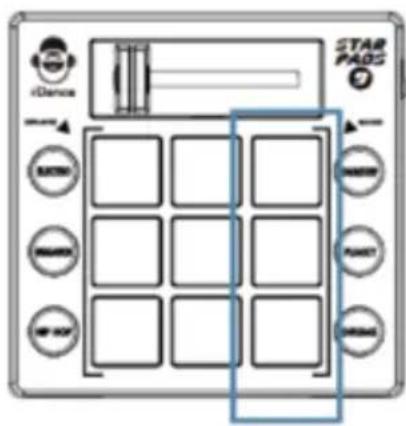

1. PRESS one of the Pads of LOOPS B Group, the pads you are playing will be lighten, ONLY one of the 3 pads of this group can be played at the same time

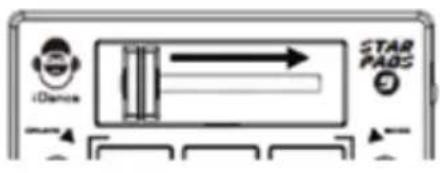

1. Move your CROSSFADER from LEFT to RIGHT position, to mix your 2 different loops

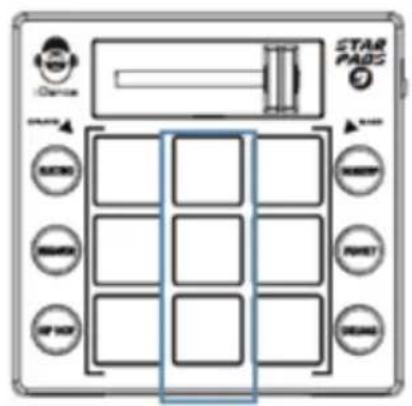

1. PRESS any pads in the ACAPELLA group, only one of these 3 pads of this group can be played at the same time

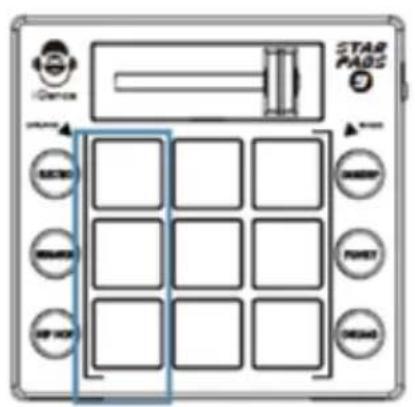

1. PRESS any PADS on the LOOPS A Group, that is not lighten, ONLY one of the 3 pads of this group can be played at the same time

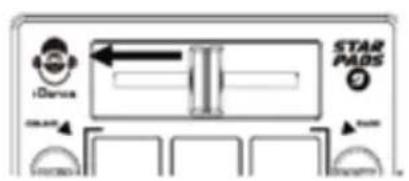

1. Move your CROSSFADER from RIGHT to LEFT position, to mix with your different loops that you have selected

AVERTISSEMENT

AVERTISSEMENT:POUR RÉDUIRE LE RISQUE D'INCENDIE OU DE CHOC ÉLECTRIQUE, N'EXPOSEZ PAS CE PRODUIT À LA PLUIE OU À L'HUMIDITE

MISE EN GARDE RISQUE DE CHOC ELECTRIQUE NE PAS OUVIRIR

ATTENTION: POUR RÉDUIRE LE RISQUE D'INCENDIE OU D'ÉLECTROCUTION, NE RETIREZ PAS LE COUVERCLE OU L'ARRÊRÉE. AUCUNE PIECE RÉPARABLE PAR L'UTILISATEUR. CONTACTER UN SERVICE AU PERSONNEL QUALIFIE

1. Move your CROSSFADER from LEFT to RIGHT position, to mix your 2 different loops

The undersigned, iDance Co declares that the radio equipment of the STARPADS 9 type complies with the 2014/53/EU directive. The complete text is available at www.idanceaudio.com

Unit i, 6/F., MG Tower, 133 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong.

UK OFFICE:

iDance Audio U.K.
Graham Lloyd Building, Midland Structures Industrial Estate
Ampthill Road, Bedford MK42 9JJ, United Kingdom

EUROPE OFFICE:

iDance Audio Europe H.O.Neeskens B.V. Salland 9 1948RE, Beverwijk The Netherlands

This product meets the essential requirements of Directive 2014/53/EU http://www.idanceaudio.com/documentation/declarationofconformity/
