USER MANUAL Party Box XD25 iDance

Bluetooth PARTYBOX with MIXER, ECHO, Voice Changer and DISCO LIGHTING

ENGLISH...EN1-EN5

FRANÇAIS...FR1-FR5

NEDERLANDS....D1-D5

DEUTSCH....DE1-DE5

ESPANOL....ES1-ES5

ITALIANO....IT1-IT5

PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATION THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE

WORLD

HEADQUARTERS:
IDance H.K.
Unit 1, B/F, MG Tower.
133 Hui Boun Road, Kowu Tong, Kowloon, Hong Kong

UK OFFICE:
IDance Audio U.K.
Graham Lloyd Building, Midland
Structures Industrial Estate AmphithRoad Bedford MK42911
United Kingdom

EUROPE OFFICE:
IDance Audio Europe
Gaasterland 2c
846RG Bewittwir The Netherlands

WARNING

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF FIRE OR SHOCK,DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDEREFER SERVICING TO QUALIFIED PERSONNEL

Class II equipment symbol

This symbol indicates that the unit has a double system.

The exclamation mark inside an equilateral triangle is intended to alert user of the presence of the important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert User of the presence of un-insulated "hazardous voltage" within the product's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons

NOTES:

Please do not attempt to open the back cover or power adapter as opening or removing the covers may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled: There are no user servicing components inside.

NOTES:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

NOTES:
Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for assistance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings.
7. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety of the polarized of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacture, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
16. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
17. The MAINS plugs used as the disconnect device, which shall remain readily operable.

FEATURES

• Bluetooth wireless stereo audio streaming
  Support A2DP Profiles for most smart phones / laptops
  Aux Out output (3.5 mm Stereo Mini Jack)
  Audio Out output (RCA Jack)
  Aux In output (3.5 mm Stereo Mini Jack)
• Microphone input jack (6.3 mm Jack)
• Front panel with Disco light effect

CONTROL LOCATION

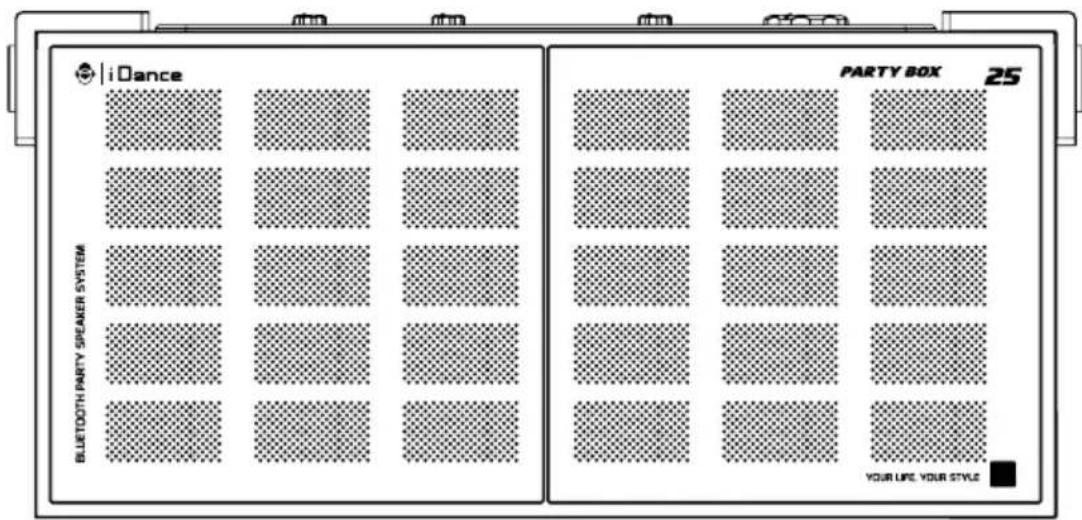

FRONT VIEW

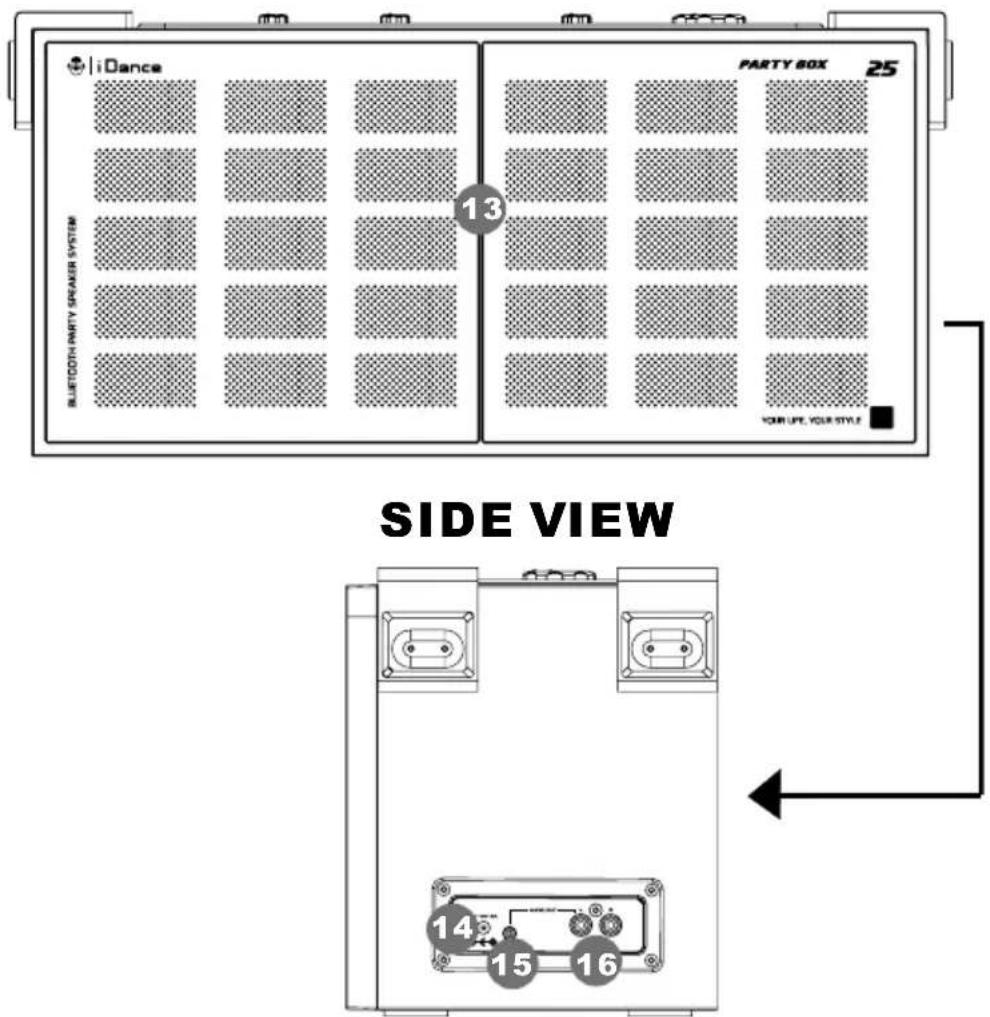

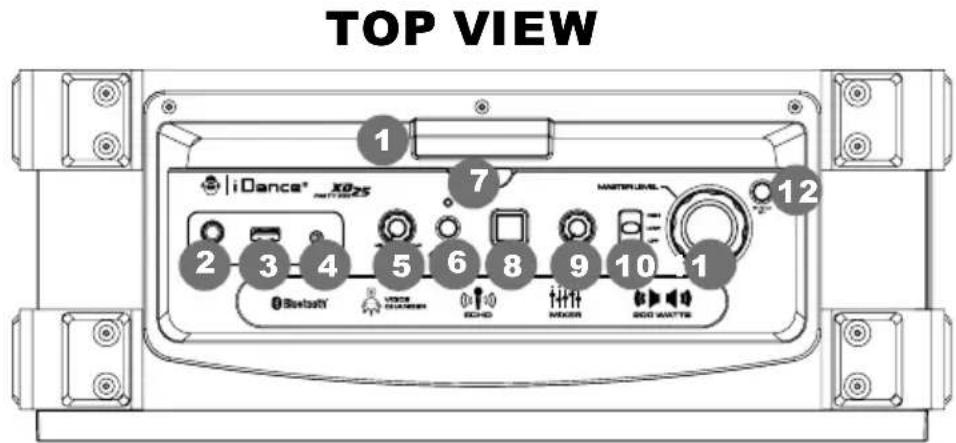

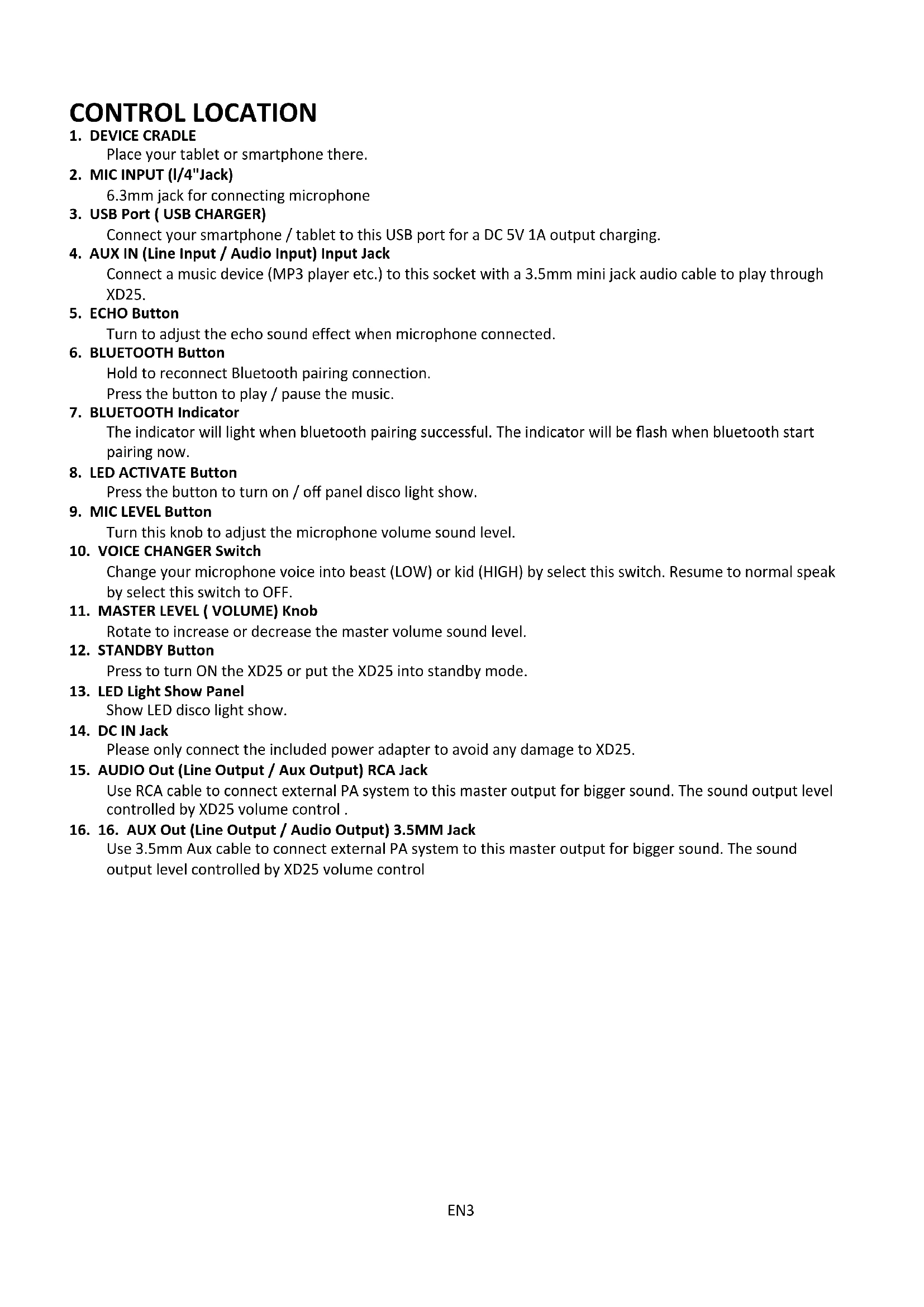

CONTROL LOCATION

1. DEVICE CRADLE

Place your tablet or smartphone there.

1. MIC INPUT (I/4"Jack)

6.3mm jack for connecting microphone

1. USB Port (USB CHARGER)

Connect your smartphone / tablet to this USB port for a DC 5V 1A output charging.

1. AUX IN (Line Input / Audio Input) Input Jack

Connect a music device (MP3 player etc.) to this socket with a 3.5mm mini jack audio cable to play through XD25.

1. ECHO Button

Turn to adjust the echo sound effect when microphone connected.

1. BLUETOOTH Button

Hold to reconnect Bluetooth pairing connection.

Press the button to play / pause the music.

1. BLUETOOTH Indicator

The indicator will light when bluetooth pairing successful. The indicator will be flash when bluetooth start pairing now.

1. LED ACTIVATE Button

Press the button to turn on / off panel disco light show.

1. MIC LEVEL Button

Turn this knob to adjust the microphone volume sound level.

1. VOICE CHANGER Switch

Change your microphone voice into beast (LOW) or kid (HIGH) by select this switch. Resume to normal speak by select this switch to OFF.

1. MASTER LEVEL ( VOLUME) Knob

Rotate to increase or decrease the master volume sound level.

1. STANDBY Button

Press to turn ON the XD25 or put the XD25 into standby mode.

1. LED Light Show Panel

Show LED disco light show.

1. DC IN Jack

Please only connect the included power adapter to avoid any damage to XD25.

1. AUDIO Out (Line Output / Aux Output) RCA Jack

Use RCA cable to connect external PA system to this master output for bigger sound. The sound output level controlled by XD25 volume control.

1. 1. AUX Out (Line Output / Audio Output) 3.5MM Jack

Use 3.5mm Aux cable to connect external PA system to this master output for bigger sound. The sound output level controlled by XD25 volume control

GENERAL OPERATIONS

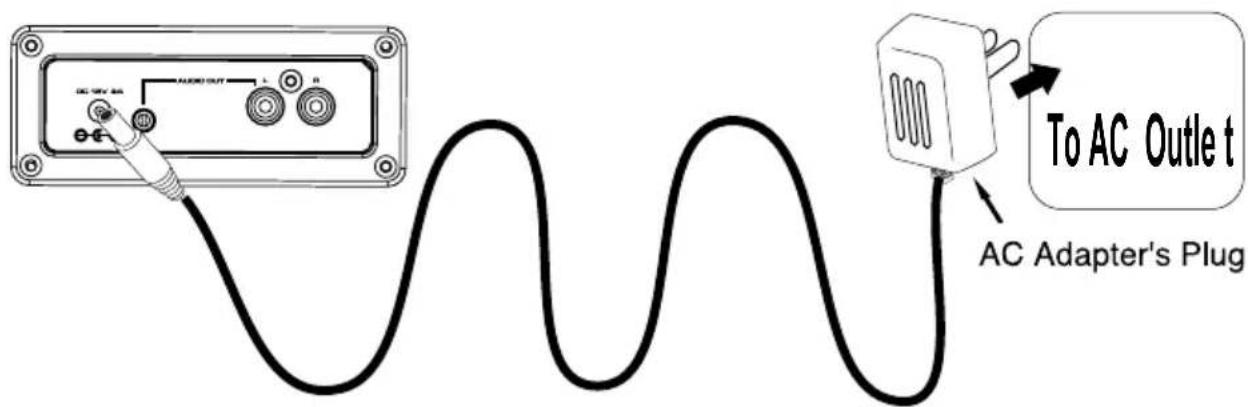

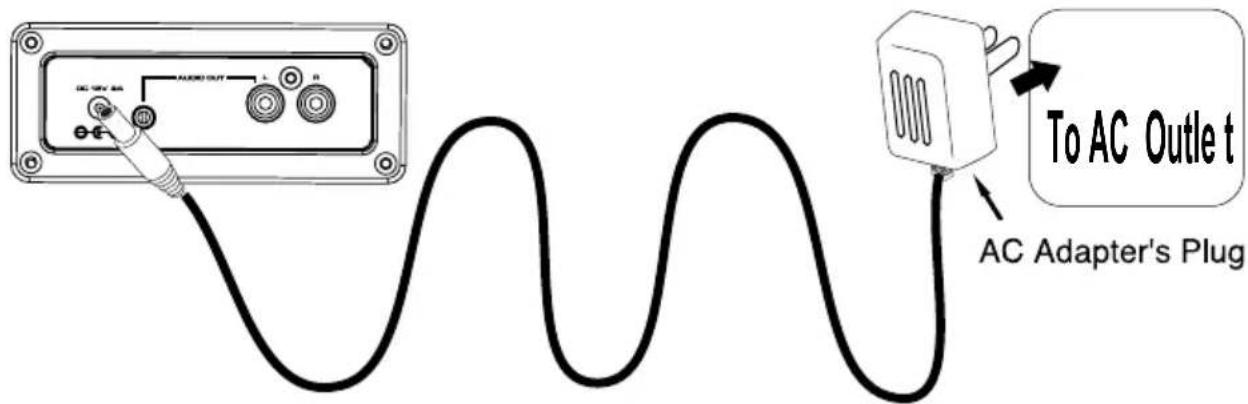

Power Adapter Connection

Connect small end of adapter to main unit and plug the supplied adapter into standard AC wall socket.

Press the STANDBY button to turn on power. Press again turn unit to standby.

SIDE VIEW OF MAI N UNIT

Notes:

1. If the adapter does not fit properly, turn it over and again. Do not force AC plug.
2. Remove the power adapter when the unit not operation or unused for long periods of the time.

Connecting Bluetooth to your Smartphone I Tablet

1. Press the STANDY button to turn on unit, hold the BLUETOOTH button to connect your external Bluetooth device.
2. On your smartphone / Tablet, turn on Bluetooth and enable device scanning.
3. When XD25 shows on the Bluetooth scan, select it to connect it to your device.
4. When both devices are successfully connected, you are ready to play music wirelessly from your device.
5. Press the PLAY button of external Bluetooth device to start music playback.
6. Press the NEXT / PREV of XD25 or external Bluetooth device to switch between music tracks.
7. Hold the BLUETOOTH button to reconnect other Bluetooth device.

Power Management Function

Unit will automatically go to standby mode after 15 minutes without sound output or operation. To resume operation, simply press the STAND BY button to turn on unit.

Troubleshooting

If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE AND SOLUTION column to locate and fix the problem.

PROBLEM POSSIBLE CAUSE AND SOLUTION
Noise on speaker output when microphone is connected and turn on XD25	Make sure your microphone or microphone cable is in good condition, grounded and shielded. Internal gain of voice processing could cause vibration from poor ground noise.
Bluetooth cannot connect to XD25	Make sure no other device from your friend or family is connected to XD25. When XD25 Bluetooth is connected, press BLUETOOTH button would stay ON. So make sure XD25 indicating Bluetooth is ready to connect. Also make sure your smartphone / tablet is located close to XD25 less than 2 meters when pairing.Hold the BLUETOOTH button to reconnect again.
Intermittent Bluetooth music streaming	The wireless Bluetooth distance of XD25 is about 7-10 meter in open area. Below conditions could block you Bluetooth signal and please ensure you would get rid of those:Metal protection on case for your phone/tabletMetal or wall is blocking in between your phone / tablet and XD25Another Bluetooth device is working close to XD25
No sound on selected source • Ensure	that the XD25 is powered ONCheck the master volume on the XD25Check the volume level on paired Bluetooth deviceRemove the power adapter / connection cable and reconnect again.

SPECIFICATIONS

AC ADAPTER AC Input :AC~ 100-240V 50	60Hz DC Output = 15V, 2000mA
USB Output DC Output = 5V, 1A
SOUND SOURCE INPUT Bluetooth, Aux in, Microphone
Total Harmonic Distortion Below 10%
Signal to Noise Ratio Over 41dB
Master Power Output 13W X 2 RMS
Speaker	4 Inch 8 Ohm 20 W
