USER MANUAL Party Speaker XD200 iDance

Bluetooth Party System with Buit-in Light Show

Thank you for purchasing iDance Audio System.

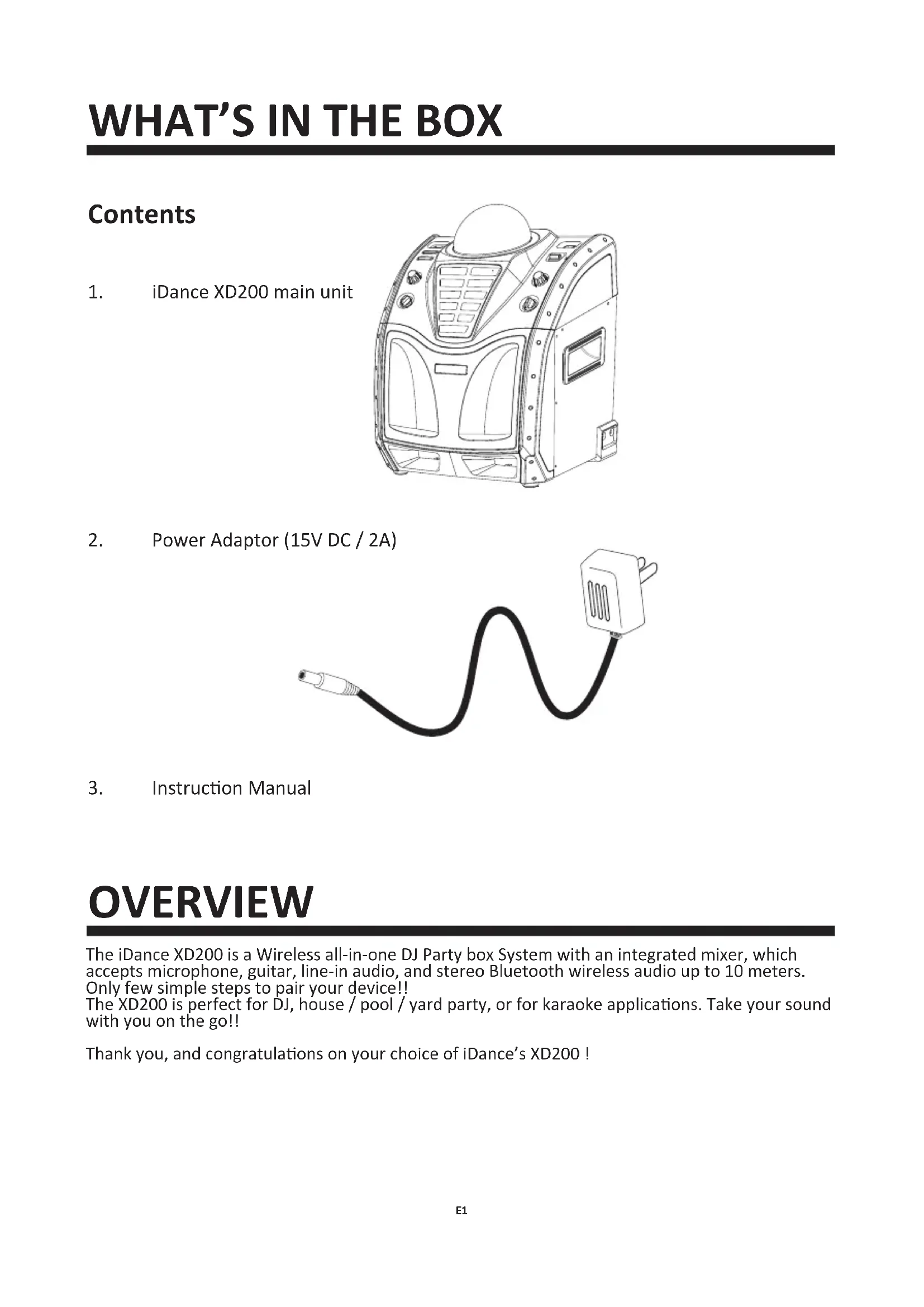

Contents

1. iDanceXD200 main unit

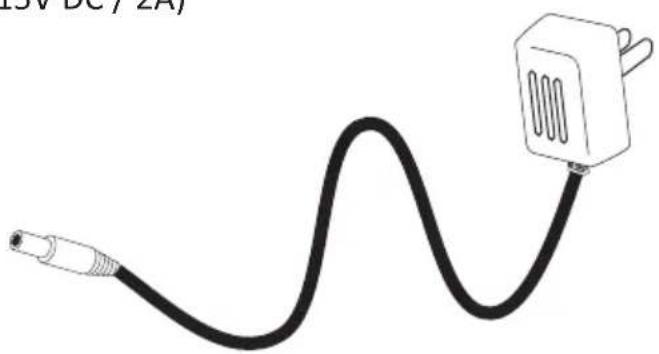

1. Power Adaptor (15V DC / 2A)

1. Instruction Manual

OVERVIEW

The iDance XD200 is a Wireless all-in-one DJ Party box System with an integrated mixer, which accepts microphone, guitar, line-in audio, and stereo Bluetooth wireless audio up to 10 meters. Only few simple steps to pair your device!!

The XD200 is perfect for DJ, house / pool / yard party, or for karaoke applications. Take your sound with you on the go!!

Thank you, and congratulations on your choice of iDance's XD200!

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

Class II equipment symbol

This symbol indicates that the unit has a double insulation system.

The exclamation mark inside an equilateral triangle is intended to alert user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert User of the presence of un-insulated "hazardous voltage" within the product's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons.

WARNING

Please do not attempt to open the back cover or power adapter as opening or removing the cover may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled. There are no user servicing components inside.

WARNING

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

WARNING

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
■ Consult the dealer or an experienced radio/TV technician for assistance.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
4. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

5. The MAINS plug is used as the disconnect device, which shall remain readily operable.

6. Bluetooth wireless stereo audio streaming
   Support A2DP Profiles for most smart phones / laptops
   Line-In input (3.5 mm Stereo Mini Jack) for external music source

7. Microphone input (1/4" Jack)
8. disco Ball with disco light effect.
   6.5" Full range Driver X1
   1.5" Tweeter driver X1
9. Included power adapter for unit AC power

CONTENTS

What's in the box E1
Overview E1
Warning E2
Important safety instructions E3
Features E4
Contents
Control Location E5
Control Location E6
General Operations E7
Troubleshooting E8
Specifications E8

You may connect your smartphone / tablet to this port for charging.

Note: charging cable is NOT included.

1. STD BY Button

When unit is in standby mode, press this button to turn on unit

When unit is ON, press and hold the button to enter standby mode.

When unit is playing, short press the button to turn off LED light show.

1. PAIRING & PLAY Button

Press and hold this button to reconnect Bluetooth connection

Short press once to play Bluetooth music next file.

Short press twice to play Bluetooth music previous file

Turn this knob to adjust the microphone volume sound level.

1. MIC ECHO Knob

Turn this knob to adjust the echo sound effect.

1. LED LIGHT SHOW PANEL

2. BLUETOOTH / STANDBY Indicator

The indicator will light blue color when Bluetooth is successfully paired.

The indicator will flash blue color when Bluetooth start pairing.

The indicator will light red color when unit in standby mode.

1. LED ON/OFF Button

Press to turn on/off disco ball light show

1. DISCO LED MODE Selector

Slide the switch to select different light effect for all light show.

1. VOLUME LEVEL Knob

Rotate the VOLUME knob to select sound level.

1. VOICE CHANGER Selector

You may change your microphone voice into beast (Low) or kid (Hi) by simply turn this knob to High / Normal / Low.

1. DISCO BALL

Different color LED light show

1. DC IN Jack

Connect the power adapter to power up of XD200.

1. MIC 1/2 IN (1/4" Jack) Input

6.3mm unbalanced jack for connect microphone.

1. GTR IN (1/4" Jack) Input

This jack can take a 6.3mm unbalanced cable for guitar (or other Hi-Z instrument) input

1. AUDIO OUT (RCA Jack) Output

Use RCA cable to connect the external PA system to this master output for bigger sound. The

level of this output is controlled by the master volume knob.

1. LINE IN (Aux In / Audio Input) Input

Connect a music device (MP3 player etc.) to this socket with a 3.5mm audio cable. The

external device will sound from XD200 speaker.

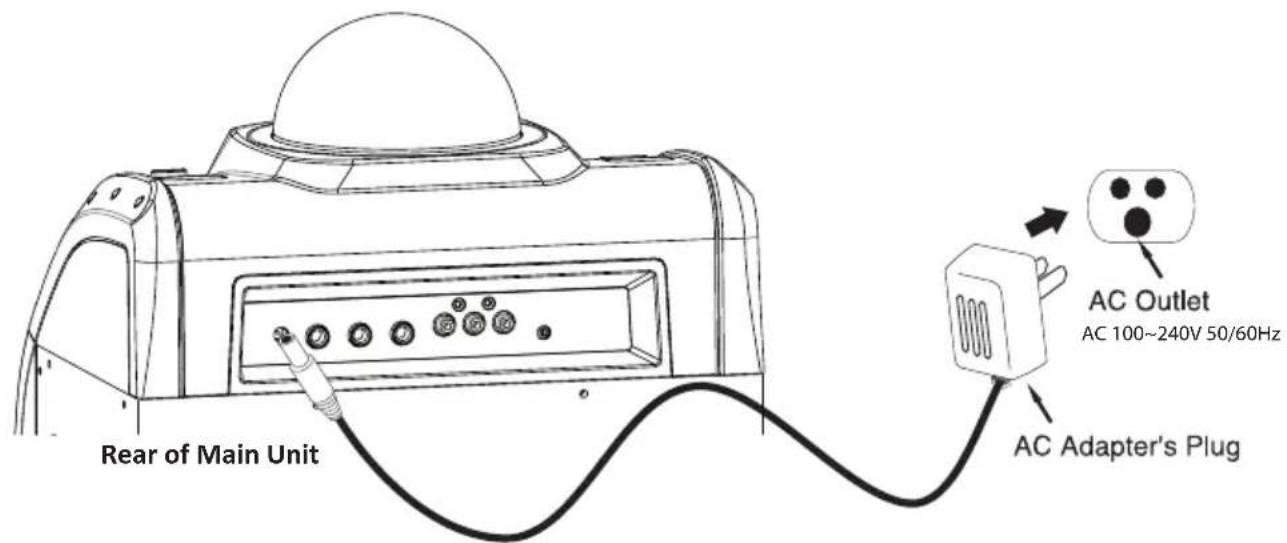

Power Adapter Connection

Connect the included adapter to main unit and plug the supplied adapter into standard AC wall socket. Press the STD BY button to turn on power. Hold the button STD BY again turn unit to standby mode.

Notes:

If the adapter does not fit properly, turn it over and again. Do not force AC plug.
- Remove the power adapter when the unit not operation or unused for long periods of the time.

Connecting Bluetooth to your Smartphone I Tablet

Press the STD BY button to turn on, hold the PAIRING button to connect your external Bluetooth device.
- On your smartphone / Tablet, turn on Bluetooth and enable device scanning.
- When XD200 is showed on the Bluetooth device list, select it to connect.
- When both devices are successfully connected, you are ready to play music wirelessly from your device.
Press the PLAY button to start music playback.
Press PREV/NEXT of external Bluetooth device to switch between music tracks.
Hold the PAIRING button to reconnect other Bluetooth device.

Power Management Function:

Unit will automatically go to standby mode after 15 minutes without sound output or operation. To resume operation, simply press the STD BY button to turn on unit

TROUBESHOOTING

If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE AND SOLUTION column to locate and fix the problem.

PROBLEM	POSSIBLE CAUSE AND SOLUTION
Noise on speaker output when microphone is connected and turn on XD200	Make sure your microphone or microphone cable is in good condition, grounded and shielded. Internal gain of voice processing could cause vibration from poor ground noise.
Bluetooth cannot connect to XD200	■ Make sure no other device from your friend or family is connected to XD200. When XD200 Bluetooth is connected, press BLUETOOTH button would stay ON. So make sure XD200 indicating Bluetooth is ready to connect. Also make sure your smartphone / tablet is located close to XD200 less than 2 meters when pairing.Hold the BLUETOOTH button to reconnect again.
Intermittent Bluetooth music streaming	The wireless Bluetooth distance of XD200 is about 7-10 meter in open area. Below conditions could block you Bluetooth signal and please ensure you would get rid of those:■ Metal protection on case for your phone/tablet■ Metal or wall is blocking in between your phone / tablet and XD200■ Another Bluetooth device is working close toXD200
No sound on selected source	■ Ensure that the XD200 is powered ON■ Check the master volume on the XD200■ Check the volume level on paired Bluetooth device■ Remove the power adapter and reconnect again.

SPECIFICATIONS

AC ADAPTER	AC Input :AC~ 100-240V 50/60Hz DC Output = 15V, 2000mA
SOUND SOURCE INPUT	Bluetooth, 1/4 ″ Microphone, Aux-In
Total Harmonic Distortion	Below 10% at Standard Output
Signal to Noise Ratio	Over 45dB
Speaker Size	6.5 ″Full range driver X1 + 1.5" Tweeter driver X1
Speaker Power Output	100 Watts

Specifications are typical, individual units might vary. They are subject to continuous improvement without notice and without incurring any obligation.

Contenu

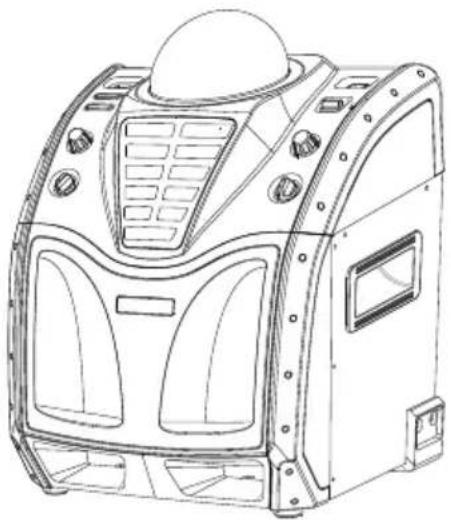

1. Apparel principal XD200 iDance
