USER MANUAL Deco Heater Plus 687 Solis

Solis of Switzerland AG

CARACTERISTIQUES DU PRODUIT

Touche ROTATION (oscillation)

Solis of Switzerland SA

Solis-Haus · CH-8152 Glattbrugg-Zurich · Suisse Telephone [phone] · Teffax [phone] [e-mail] · www.solis.ch · www.solis.com

USER MANUAL

Please read the instructions carefully before using the product and keep this user manual for future reference.

PRODUCT FEATURES

• 2 heating power options: 1^200 / 2^000W
• With touch sensor switch
• With remote control
  1-12 hours timer
• Oscillation function;
• LED functions' indicators
  Overheat protection
  Tip-over protection
• With removable air filter for easy cleaning
• With temperature setting from 15 to 35
• With the function of indicating the room temperature

SAFETYWARNINGS

• This product is not a toy. It should not be used by children or infirm persons without supervision.
• Children would be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Disconnect from mains when not in use or cleaning.
• Do not operate the appliance with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• It is not recommended to use an extension cord.
• The heater is hot when in use. To avoid burns, do not let bare skin touch hot surface.
• Do not immerse cord, plug or any part of the appliance in water or any other liquid.
• Do not use the heater in dusty environments or where flammable vapours are present (e.g. in a workshop or garage).
• Do not place the heater on or near any other source of heat.
• Warning: in order to avoid overheating, do not cover the heater.
• A fire may occur if the heater is covered with or touches flammable material, including curtains, drapes, bedding etc. when in operation. KEEP THE HEATER FROM SUCH MATERIALS.
• Do not use the heater in the immediate surroundings of bathtubs, showers, washing stands or swimming pools.
• Do not locate the heater immediately below a socket-outlet.
• Do not let the mains lead hang over the edge of the table or work surface or touch hot surfaces.
• Do not use outdoors.
• Do not use the appliance for other than its intended use. This appliance is intended for household use only.
• Do not misuse the cord or pull the cable to disconnect it from the outlet. Instead, grasp the plug and pull it to disconnect.
• Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.
• Do not insert or allow foreign objects to enter the ventilation or exhaust openings as this may cause an electric shock, fire or damage to the appliance.

• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

• When the heater is turned on for the first time, it may release a slight, harmless odor. This odor is a normal occurrence caused by the initial heating of the internal heating elements and should not occur again.

• Please do not put any unit on the product.
• In order to avoid any accident, please turn off the unit when people leave.
• Please do not use the product when there are no people to take care of children, animal or the disabled people.
• If do not use the product for a long time, please disconnect the plug, put the product into the box and stock the product in a dry and ventilated place.
• When using the product, please do not locate the air outlet and inlet next to the wall or curtain to avoid obstructing the air and influence the effect.
• Please do not use the product under the direct sunshine.
• The inflammable or explosive article is not allowed to be put around the heater. The product is not allowed to be use in the environment filled with inflammable air or dust.
• Please do not let the power cord touching the front net cover in order to avoid the high temperature damaging the power cord.
• Do not hang the wet clothes above the heater.
• The voltage and frequency of the power supply must comply with the technical specification of the heater.
• Not allowed to impinge or shake the unit when it is in operation.
• Please keep wind inlet & outlet unblocked, to avoid any malfunction appearance, such as distortion, changing color, etc.
• Do not let the power cord at the wind outlet, it will damage the insulation layer of wires.
• Ensure no water or rain drop into the unit, in order to avoid electric shock, short circuit or fire.
• Clean the surface of the unit with damp cloth (or add some detergent). Do not use corrosive detergent or solvent to clean. Not allowed to wash directly with water.
• Do not handle the power cord and plug by wet hands.
• Do not insert the wood or metal stick or other slim objects into air inlet or outlet.
• Do not put heavy objects onto the power cord.
• Do not face the wind outlet to babies for a long time.
• We recommend the installation of a residual current circuit-breaker to provide additional protection when using electrical appliances. It is advisable to use a circuit-breaker with a nominal fault current of maximum 30mA . Your local electrician can advise you.

WARNING:

DO NOT DEPEND ON THE ON/OFF BUTTON SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER.

WHEN SERVICING OR MOVING THE HEATER, ALWAYS UNPLUG THE POWER CORD.

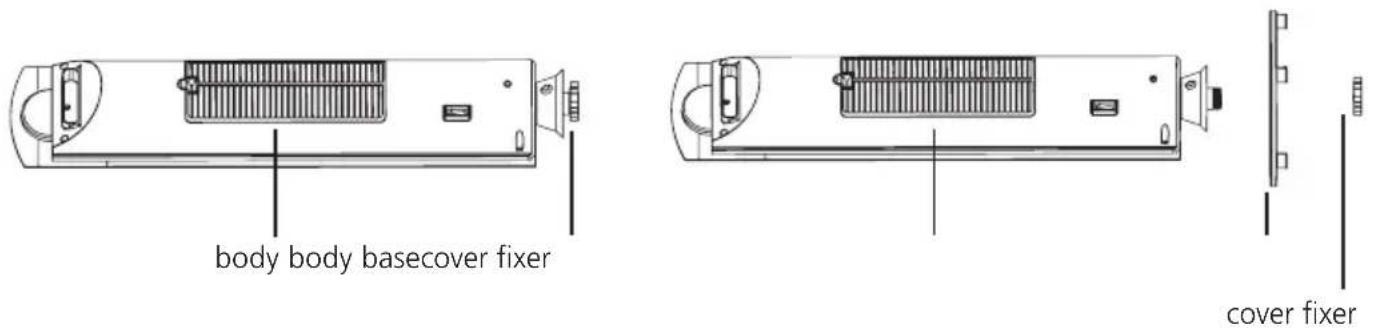

ASSEMBLY INSTRUCTION

• Open the packing, take the unit out and unscrew the cover fixer.

• Insert the glass base into the bottom - Upright the unit and place it of the unit, screw the cover fixer. on the flat floor before use.

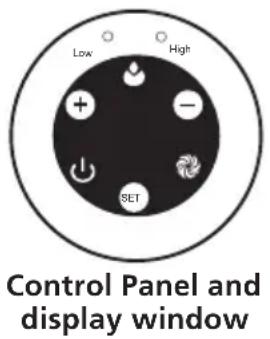

PARTS DESCRIPTION

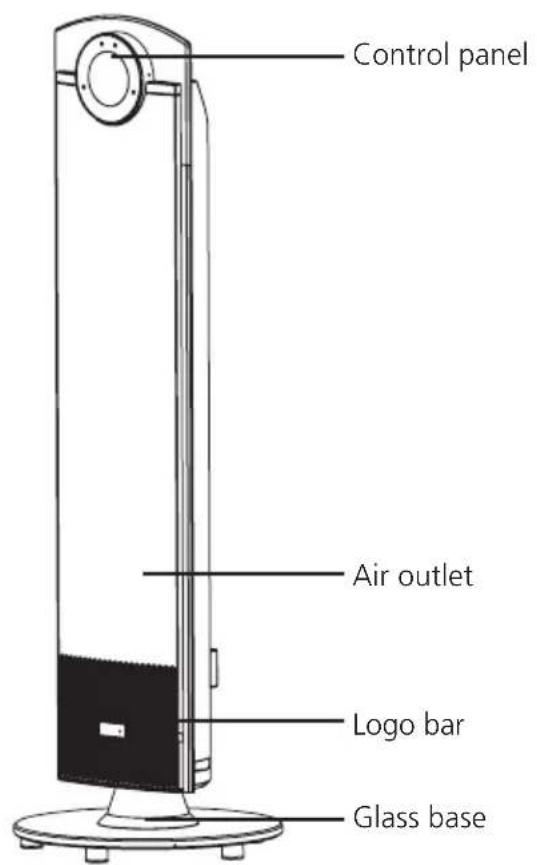

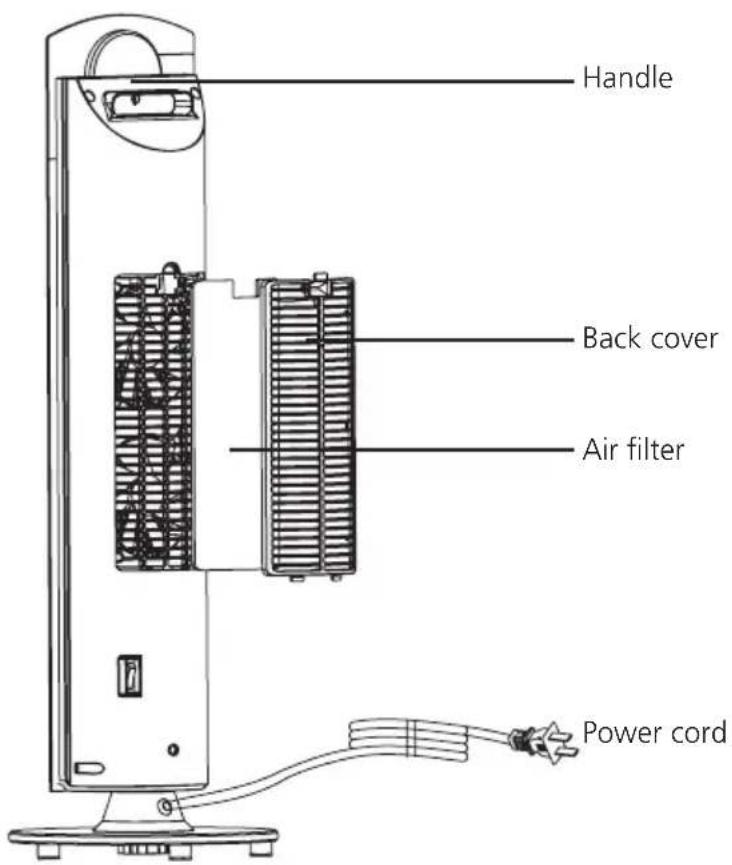

Front view Back view

Firstly, connect the power cord to the correct power supply.

Power switch (at the bottom of rear cover under the removable air filter) Press the power button to "I" position. If you heard the sound of "didi", the heater is ready to use. Press the button to 0 position for turning off the heater.

ON/OFF key

Press the « » key, the power indicating light will be turned on, the machine starts operation at low heating power (LED indicator of the heating function shows « LOW »). Press the key again, then all the functions are stopped and the unit goes into the condition of standby mode and the power indicating light will be turned off.

HEATER key

When the product is operated at low heating power, press the « » key, the high heating power will be turned on, and the LED indicator will show «HIGH». Pressing this key controls the selection of the low heating power or the high heating power.

SWING key (Oscillation)

When the unit is under operating, press the « » key, the heater body will turn left and right automatically. At the same time, the LED indicator of this swing function will be turned on. Press this key again, the swing function will be stopped, and the LED light will be turned off..

SETkey

When the unit is under operating, pressing the « SET » key to set the temperature or time.

A: set the timer:

press the key, the light will show "0 H", then press the «+» or «-» key, to set the working time (within a range of 1-12 hours). The time will be added or minus by 1 hour per every press of the «+» or «-» key, at the same time, the displaying light will show the time you set.

Notice: when press the set key, the LED light will flicker per 0.5 second for 5 seconds. If there is no operation to the keys after 5 seconds, or press other keys except the « SET », «+», «-» key, then the LED indicator will show the room temperature.

Set the temperature:

When the timing setting finished, press the « SET » again, then the LED light will show 25^ C, and now you can set the temperature. Press the «+», «-» key, to set the temperature (within a range of 15 - 35^ C). The temperature will be added or minus by 10^ C per every press of the «+» or «-» key, at the same time, the LED indicator will show the temperature you set.

Notice: when press the set key, the LED light will flicker per 0.5 second for 5 seconds. If there is no operation to the keys after 5 seconds, or press other keys except the « SET», «+» or «-» key, then the LED indicator will show the room temperature. When the room temperature is ≤ -10^ C, the LED indicator will show as «LO», when the room temperature is 40^ C, the LED indicator will show as «HI». When the room temperature is between -10^ C to 40^ C, then the LED indicator will show the corresponding temperature by number.

N.B.

When the temperature set is reached, the unit goes in stand-by mode, the power level indication disappears and air circulation stops after 10 seconds. When the ambient temperature is 2^ below the set temperature, the unit begins operating again at the same power level previously set.

Operation instruction of remote control

Pull out the battery door at the back side of remote control (see picture 1). Insert a Li battery into the tray of the door. (see picture 2). Push the battery door into the remote control.

Disposal

Information for correct disposal of the battery in accordance with the European Directive 2006/66/EC

Please replace battery when its electricity charge is used up: please do not eliminate this battery together with normal household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of a battery separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the battery is marked with a crossed-out dustbin.

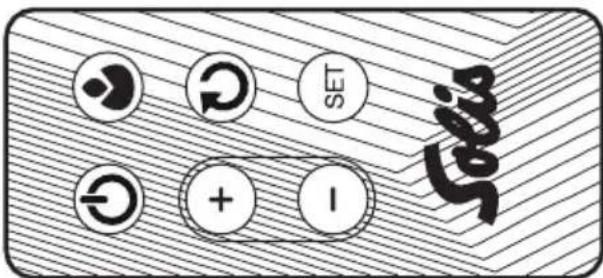

Remote control panel

There are six function keys on the remote control and their functions are same as those keys on the control panel of the heater. While operating the remote control, point the remote control to the display window of the heater; the signal distance is about 6M.

CLEANING AND MAINTENANCE

Make sure the power switch is turned off and the plug is disconnected from the socket before cleaning or maintenance. Otherwise, it may cause electric shock.

Clean the unit surface:

Clean the surface with damp cloth (or add some detergent). Do not use corrosive detergent or solvent to clean, such as Petrol, Tina, etc. Do not wash the unit directly with water.

Clean the air filter monthly if needed.

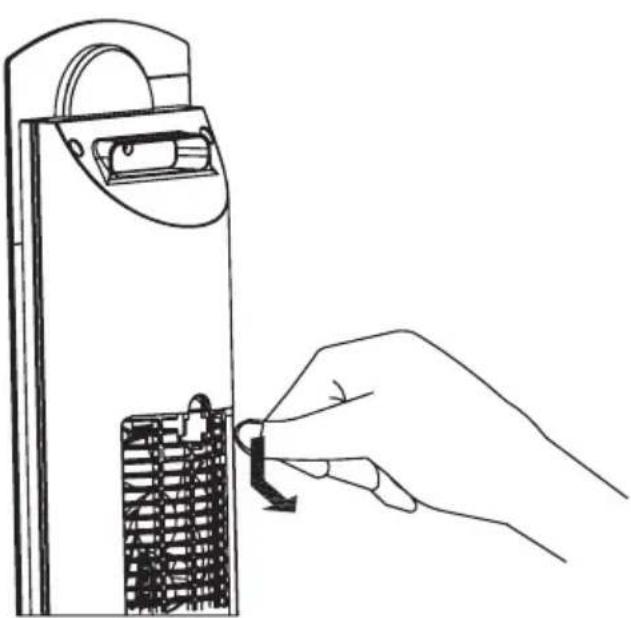

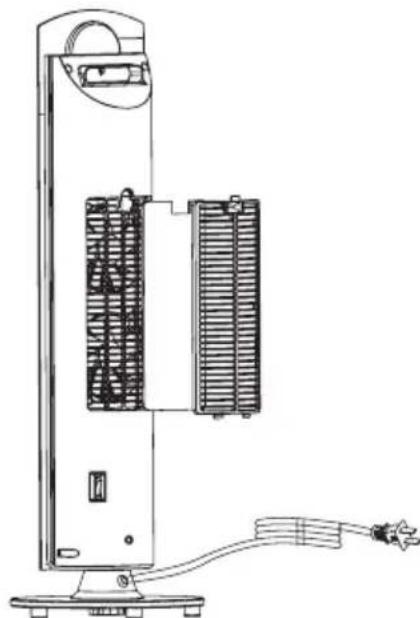

• Remove the air filter for cleaning as shown in the following diagram.

• Do not use chemicals for cleaning.

• Use the soft cloth to wipe the dust. If you use water for cleaning, please make sure the air filter is dry before reinstall back to the unit.

SPECIFICATION

Model No. DF-HT5218P
Product name Slim heater
Voltage/Frequency 220-240V/50 Hz
Power 1'200/2'000 W
Speed ≥ 1.6 m/s
Oscillation angle 76^ Timer 1-12 hours
Noise ≤ 50 dB (1 m)
Tip over protection angle 40± 10^ Product size 263× 825 mm
Net weight 4.3~kg Gross weight 6.2~kg

Disposal

Information for correct disposal of the product in accordance with the European Directive 2002/96/EC

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

SOLIS reserves the right to make technical or visual changes at any time and make modifications in the interest of improving the product.

HELPLINE: 091 802 90 10

(Only for customers in Switzerland)

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.

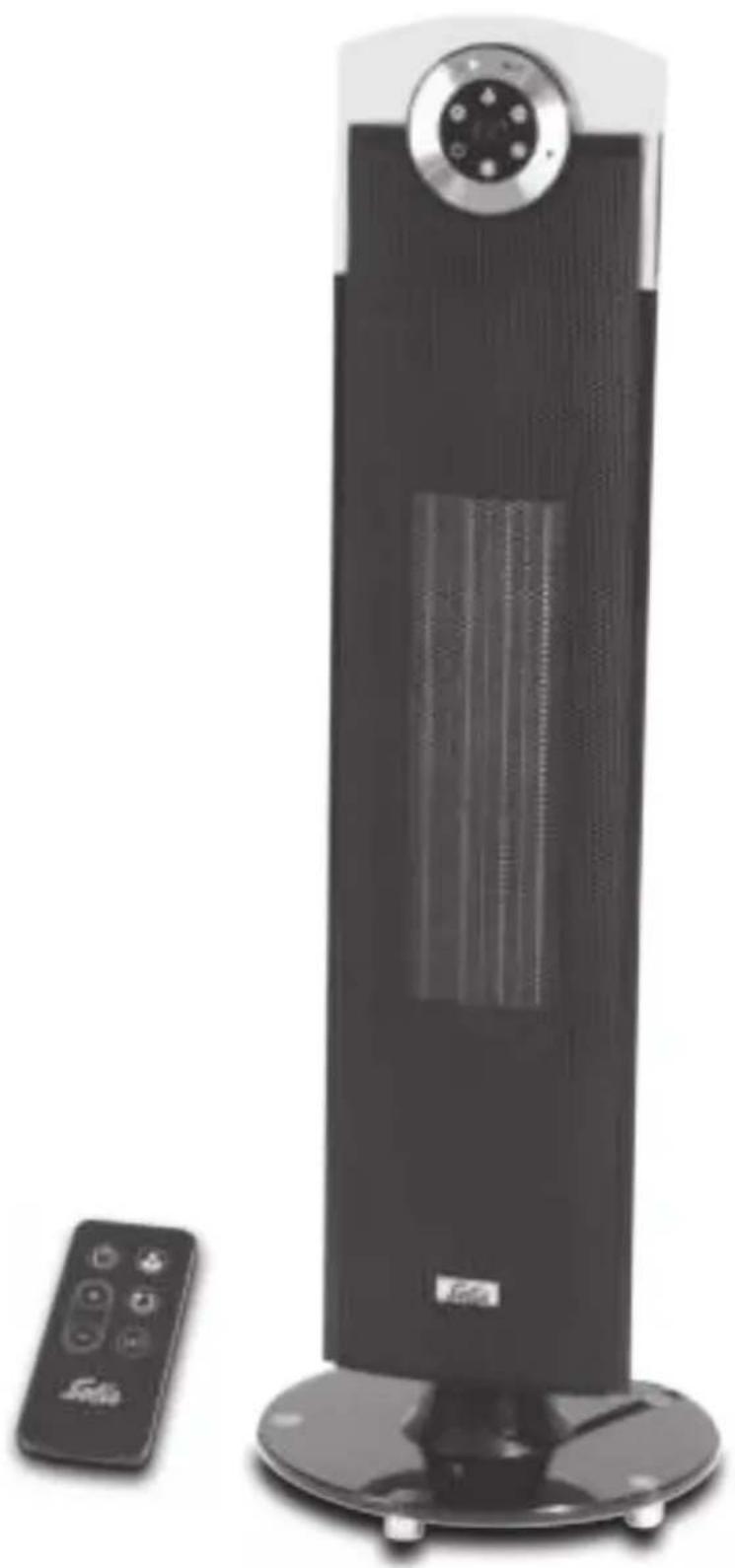

Remote Control

Two heat levels

Thermostat

Automatic switch off

Solis of Switzerland Ltd

Solis-House · CH-8152 Glattbrugg-Zurich · Switzerland

Phone [phone] Fax [phone]

[e-mail]·www.solis.ch·www.solis.com

GEBRUIKSAANWIJZING

Solis of Switzerland AG

Solis-House · CH-8152 Glattbrugg-Zurich · Zwitserland

Telefoon [phone] • Fax [phone]

[e-mail] • www.solis.ch • www.solis.com

GARANTIE DE 2 ANS (valable uniquement accompagnée de la preuve d'achat)	2 ANNI DI GARANZIA (valida solo con lo scontrino)	2 JAAR GARANTIE (Alleen geldig met bewijs van aankoop)
Nous accordons une garantie pour ce produit, si le défaut est imputable à un défaut de piece ou main d'oeuvre, sous réserve d'une utilisation et d'un entretien corrects. La garantie prend effet à la date inscrite sur la preuve d'achat, devant être jointe au produit. En cas d'utilisation profession- nelle, la durée de la garantie est limitée à 12 mois. Les conditions de garantie détaillées sont disponible sur le site www.solis.com.	Sul presente prodotto assicuriamo una garanzia qualora sua dimostrabile che il guasto sua stato causato da un difetto di costruzione o dei materiali e qualora il prodotto sua stato impiegato corretta- mente e con la dovuta cura. La garanzia decorre dal- la data di acquisto, per la quale fa fede lo scontrino di vendita che deve essere allegato all'articolo. In caso di utilizzo commerciale, il periodo di garanzia ammonta a 12 mesi. Le condizioni di garanzia det- tagliate sono visionabili su www.solis.com.	Wij geven voor dit product garantie, indien het defect aantoonbaar het gevolg is van een ma- teriaal- en/of constructiefout en bij juist handelen en onderhoud ontstaan is. De garantie begint op de verkoopdatum die vermeld staat op het aankoop- bewijs dat bij het product megegeveen is. Voor commercieel geleuik geldt een garantietermijn van 12 maanden. Uitgebrechtarie garantievoorwaarden kunt u vinden op www.solis.com.
SERVICE CLIENTÉLE Pour toute réparation, les clients et clients résid- nant en Suisse renuovient directement l'appareil à: Solis Produzione SA, Centro Solis, Via Penate 4, CH-6850 Mendrisio, Suisse. Il est recommendé de telephoner avant tout return d'appareil, car les dysfonctionnements peuvent souvent être résolus par nos experts à l'aide de quelques conseils et astuces. Hors de Suisse, les contacts spécifiques à chaque pays sont indiqués sur le site www.solis.com. Bien entendu, nous vous informons volunteers par telephone. Vous pouvez nous contacter par télé- phone aux numérios suivants:	SERVIZIO CLIENTI I clienti residenti in Svizzera devono inviare gli articoli da riparare direttamente a: Solis Produ- zione SA, Centro Solis, Via Penate 4, CH-6850 Mendrisio, Svizzera. In agli caso, prima di spedire l'apparechchio, è preferibile contattare Telefonica- mente il servizio clienti: spesso i problemi di fun- zionamento si possono risolverve fácilmente con il consiglio o l'accorgimento giusto dei nostri specia- listi. I clienti al di fuori della Svizzera devono vis- tare il situ www.solis.com per verificare i contatti specifici del proprio Paese. Ovviamente siamo disponibili a fornire informazionianche telefoni- camente; siamo raggiungibili ai seguenti numero:	KLANTENSERVICE Het is alsijd handig om te bellen voordat u het apparaat opstuurt, odomat storingen vaak snel en eenvoudig+kunnen worden opgelost met een juiste tip of trucje van once specialisten. Bezoek onze website www.solis.com voor landspecifieke contactgegevens. Uiteraard geven wij u deze in- formatie ook graag Telefonisch. U kunt ons op de volgende telefoonnummers bereiken:
Pour la Suisse: [phone] Pour la Belgique: [phone] Pour les autres pays: [phone]	Per la Svizzera: [phone] Per gli altri Paesi: [phone]

2 JAHRE GARANTIE 2 YEAR GUARANTEE (Nur mit Kassenbeleg gültig) (Only valid with a till receipt)

We provide a guarantee for this product, if the defect has demonstrably arisen as a result of faults in the material or construction, and has arisen despite proper handling and care. The guarantee starts from the date of sale, as noted on the sales receipt, which must be enclosed with the item. For commercial use, the guarantee lasts for 12 months. The detailed guarantee conditions are available at www.solis.com.

KUNDENDIENST
