USER MANUAL WiFi Ceramic Heater Solis

Solis of Switzerland AG

Solis of Switzerland SA

Solis-Haus · CH-8152 Glattbrugg-Zurich · Suisse

Telephone [phone] • Télefax [phone]

[e-mail] · www.solis.ch · www.solis.com

NORMEDI SICUREZZAIMPORTANTI

IMPORTANT SAFETY PRECAUTIONS

Please read through this user manual thoroughly before using your Solis WiFi Ceramic Heater, so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the appliance nor the power cord and power plug must come into contact with water or other liquids. Risk of electric shock! Should the appliance resp. the power cord or the power plug come into contact with liquid, use dry rubber gloves to immediately pull the power plug from the socket.
2. Do not operate or unplug the appliance with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate matches your mains voltage.
4. Do not leave the power cable hanging over table edges so that it can be pulled. Make sure that it does not come into contact with hot surfaces, such as hotplates or a radiator, or that they come into contact with the appliance.
5. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.
6. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.

7. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.

8. The appliance has to be placed upright on a solid, dry and stable surface during use to prevent it from falling over.

9. During use, the appliance has to be placed on a solid, dry, stable and moisture resistant surface, f.e. a table or a worktop.
10. Keep a distance of at least 20cm between the appliance and walls,curtains, textiles or other heat sensitive materials and objects and never point the air outlet in the direction of heat sensitive objects. Please note that the air around the appliance has to be allowed to circulate freely. Especially the area surrounding the air inlet (on appliance back side) and the air outlet on appliance front side) has to be open at all times.
11. Never cover the appliance with cloths or the like while it is in use or in a still warm state - danger of overheating.
12. Always pull the plug when the appliance is out of use or unsupervised and you do not wish to operate it using your smartphone app or if it has to be cleaned. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30mA maximum. For professional advice consult an electrician.
13. Do not make any adjustments to the appliance, cable, plug or accessories.
14. Incorrect use may cause injury!
15. Never take hold of an appliance that has fallen into water or another liquid. Always pull the power plug before removing it. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.
16. Never place the appliance in such a way that it could fall into water (f.e. next to a bathtub or a swimming pool). Do not use it in wet rooms or bath rooms and do not expose it to moisture – the appliance has to absolutely dry at all times.

17. Never submerge the appliance, power cable or plug in water, or bring it into contact with water or other liquids.

18. Place the appliance so that it is never exposed to direct sunlight.

19. Never put sharp or pointed objects and tools into the appliance openings. The appliance may become damaged - danger of electric shock!
20. Do not shake or relocate the appliance while it is in operation.
21. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories can lead to damage of the appliance, resp. to fire, electric shock or personal damage.
22. This appliance is only for domestic use and is not suitable for commercial use.
23. Remove and discard all packaging materials and potential stickers or labels before using the appliance for the first time.
24. Check the appliance before each use and ensure that the appliance, power cord and plug are not damaged.
25. To prevent electric shock, do not use the appliance if cord or power plug are damaged or if the appliance has other faults, has fallen down or is damaged. Never attempt repairs yourself, but take your appliance to Solis or a Solis approved service centre in order to get it inspected or mechanically and electrically repaired.
26. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the appliance except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8.
27. During use keep the appliance with power cord away from children - risk of burns!

28. Children must be supervised to prevent them from playing with the WiFi Ceramic Heater.

29. Keep the appliance clean. Always switch the appliance off and pull the plug from the socket before cleaning and storing the appliance. Please refer to the notes given in the section "Cleaning and maintenance" on page 71 of this manual.

30. Always fully unwind the power cord before plugging the power plug into the socket.
31. Only use the appliance standing upright. If it is turned, tilted or overturned, the built-in safety mechanism switches the heater to standby mode.
32. Before moving or cleaning the appliance, always switch it off with the ON/OFF button on the control panel, push the power flip switch on the appliance backside to 0'' and pull the plug.
33. Never use the appliance in rooms with explosive resp. flammable substances or liquids, like f.e. aerosol containers (deodorant sprays, hair sprays etc.). Do not use in dusty rooms either.
34. Do not spray anything into the appliance.

Please consider these important notes before starting to use the heater:

1. Do not place anything on the appliance.
2. Never cover the appliance with a blanket, wet or dry textiles or similar items. The appliance could overheat and be damaged resp. cause electric shock, fire or personal damage.
3. Never cover the air openings on the front and back of the appliance or block the air circulation! Keep a big enough distance to curtains, furniture, walls or other heat sensitive surfaces!
4. Never switch the appliance off with the power plug, always operate the ON/OFF button first. Then, wait for the cool-down phase to complete (Countdown from "10" to "0") and the appliance to switch to standby mode. Only then switch the power flip switch on the appliance backside to "0" before pulling the power plug.
5. Never operate the appliance resp. pull the plug with wet hands.
6. The heater gets hot during use, therefore never touch the air outlet on the front side. You could burn yourself!
7. Never point the air outlet of the heater in the direction of babies, small children or older persons.
8. Always let the appliance cool down before moving it. The appliance will be hot for some time after it is switched off!
9. Should you notice an unusual smell or an unusual sound, always switch the appliance off and pull the plug.

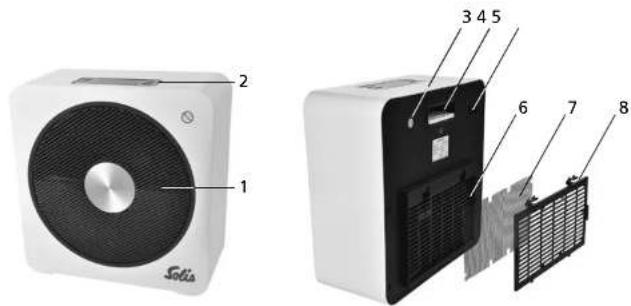

APPLIANCE DESCRIPTION

Appliance front side

1 Air outlet with front grid
2 Control panel with function buttons and display

Appliance back side

3WiFi button
4 Compartment for remote control
5 Power flip switch
6 Air inlet
7 Filter
8 Protective grid

Infrared remote control

APPLIANCE DESCRIPTION

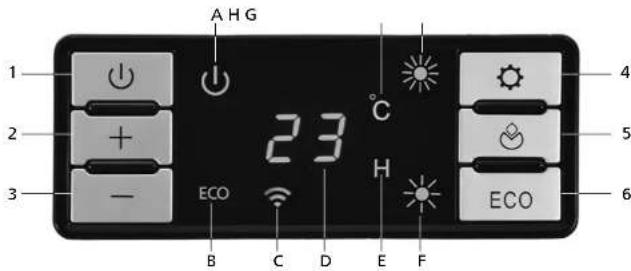

The function buttons

1 ON/OFF button
2 Button for increasing temperature resp. operating time
3 Button for decreasing temperature resp. operating time
4 MODE button for adjusting timer and temperature
5 Button for adjusting heating power (low or high heating power)
6 Button for activating or deactivating ECO function

The function lights and the display

A Appliance is connected to power and in standby mode resp. switched on
B Appliance is in automatic ECO mode (with fixed temperature setting of 22^
C Appliance is connected to WiFi (lights up permanently) and can be operated via smartphone
D Temperature resp. timer display
E If H^ is lit up, the figure in the display states the current timer setting resp. the remaining operating time
F Appliance working at low heating power
G Appliance working at high heating power
H If ^ C^ is lit up,the figure in the display states the current temperature setting resp. room temperature

APPLIANCE DESCRIPTION

The buttons on your remote control

The symbols and functions of the remote control buttons are identical to those on the control panel:

1 ON/OFF button
2 Button for increasing temperature resp. operating time
3 Button for decreasing temperature resp. operating time
4 MODE button for adjusting timer and temperature
5 Button for adjusting heating power (low or high heating power)
6 Button for activating or deactivating ECO function

CAUTION: The remote control requires a type CR2032 battery. It is not included in the delivery and has to be inserted as pictured before use.

Inserting battery

STARTINGUP

• Place the appliance upright on a dry and stable surface near a power socket. Place the appliance in such a way that it can not be knocked over and nobody trips over the power cord.
• Plug the power plug into a suitable wall outlet.

SWITCHING THE APPLIANCE ON

1. Set the power flip switch on the appliance back side to "1". A signal sound can be heard twice and the symbol O lights up in the display to indicate that the appliance is now in standby mode. You can now activate the appliance by pressing the ON / OFF button O in the control panel.
   CAUTION: When in standby mode, the heater will only react if you press the button. All other buttons are operable only after the appliance has been activated with the button.
   NOTE: To turn the appliance off again, press the button once more. The display will count down from 10 to 0, then the appliance is switched off and returned to standby mode.
2. Once the appliance has been switched on, the symbol indicating low heating power as well as the current room temperature with the symbol "C" to its right side light up.

ADJUSTING HEATING POWER

1. With the button, you can adjust heating power.
2. Low heating power is the standard setting after activation. If you press the button, the appliance will work on high heating power. Pressing the button again will switch back to low heating power. The control panel will always display the corresponding symbol:

low heating power
high heating power

CAUTION: In ECO mode you can not adjust heating power, here, the heating power automatically adapts to the current room temperature.

1. You can adjust the timer and thus determine how long the appliance should heat before automatically switching off with the MODE button
2. Press the button once. The figure "0" flashes in the display next to "H", representing hours. Press the button to increase the number of hours or the button to decrease the number of hours. You can set any operating time between 0 and 12 hours. Each press of the and buttons will change the setting by one hour. Keep the buttons pressed for 2 seconds or longer and the display will quickly count up or down.
3. Not pressing either of the two buttons for 5 seconds or pressing any other button saves the setting. The display states the remaining operating time in hours and the heater automatically switches to standby mode once it reaches "0".

NOTES:

You can only adjust the timer by pressing the button once so that H" lights up in the control panel and then using the and buttons to set the time. Only pressing the button without using the or but- tons afterwards will not set an operating time and does not activate the timer.
If you do not wish to set an operating time (setting 0" hours), your appliance will stay active until it is manually switched off with the button.

SETTING THE DESIRED TEMPERATURE

1. You can use the button to set the desired room temperature.
2. Press the button twice. The number flashes in the display, next to "C" representing degrees Celsius.
3. Press the button to increase temperature or the - button to decrease temperature. You can set any room temperature you desire, between 5^ and 35^ . Each press of the buttons or changes the setting by one degree. Keep the buttons pressed for longer than 2 seconds and the display will quickly count up or down.
4. Not pressing either of the two buttons for 5 seconds or pressing any other button saves the setting.

NOTES:

• You can only set your desired temperature by pressing the button twice so that ^ C lights up in the control panel and then using the + and - buttons to set the temperature. Only pressing the button twice without using the or buttons afterwards will not set any temperature. Instead, the last set temperature stays saved.
  If you have selected the automatic ECO mode, you can not set a desired temperature. The standard setting in ECO mode is 22^ and can not be changed.

In general:

• The built-in thermostat takes approx. 10 seconds to register the current room temperature. As soon as it has registered the room temperature, the ceramic heater starts up, provided the current room temperature is at least 2^ lower than the set temperature. If the current room temperature is at least 2^ higher than the set temperature, heating stops and the symbols for low or high heating power in the control panel go out. When the temperature sinks again, the appliance automatically switches back on.
• Please consider that the thermostat in the appliance can only measure the temperature immediately surrounding the appliance. Should you simultaneously measure the temperature with a thermometer some distance away from the heater (f.e. in the other end of the room), the value measured by the thermometer could be a few degrees lower than the value displayed by the heater. Should the thermometer be positioned f.e. directly above the heater, the value could be even higher than stated on the heater, as warm air rises up. The heating function of the WiFi Ceramic Heater is determined by the temperature value measured and displayed by the built-in thermostat of the heater.
• If you have set the timer, the set operation time and the current room temperature alternately light up at 30 second intervals. If you have not set the timer, the current room temperature is displayed constantly.

SETTING THE AUTOMATIC ECO MODE

• When you press the ECO mode button, you switch to the energy saving and automatic ECO mode. The display states ECO.
• In ECO mode, the set room temperature is fixed to 22^ , it can not be changed.
• If the current room temperature is below 18^ , the appliance works at high heating power in ECO mode. The corresponding symbol lights up in the control panel.
• If the current room temperature is between 18^ and 22^ , the appliance works at low heating power in ECO mode. The corresponding symbol rights up in the control panel.
  Once the room temperature has reached 22^ , the appliance switches to stand by mode. The display constantly shows the current room temperature.

NOTES:

• In ECO mode, neither the heating power nor the desired room temperature can be set.
• You can, however, set the timer in ECO mode to determine operating time.

■ MEMORY FUNCTION

• If you have not disconnected the appliance from the power grid and/or switched it off with the power flip switch and then switch it on again with the button without making any other settings, the appliance works in the last saved settings. Only the timer function is not saved, meaning operation time is not set.
• If the appliance was disconnected from the power grid or switched off with the power flip switch, the last saved settings are deleted. The appliance will start in low heating power with a standard temperature setting of 25^ once it is reactivated.

FOR YOUR INFORMATION

After approx. 1 minute, the illumination of the function lights in the control panel and the display is dimmed resp. reduced by one third. This prevents the lights from affecting your sleep at night. Each time the appliance is operated and the buttons are pressed, the LED lamps light up in the highest brightness.

TIP OVER PROTECTION

• Should the appliance be tipped over, the appliance will immediately switch to standby mode resp. stop the blower after 10 seconds. This is done for your safety, as a tipped over heater can cause a fire.

SWITCHING THE APPLIANCE OFF

1. If you want to switch the appliance off, press the button on the control panel and wait for the appliance to count down from 10 to 0. Then, the blower will stop as well.
2. As soon as the numbers in the display have gone out, push the power tilt switch on the appliance back side to the position u0'' and pull the plug.

CAUTION: If you want to operate your appliance with a smartphone, your appliance has to be plugged in and switched on with the power switch (power tilt switch set to position "I") so that it is in standby mode. Furthermore, it has to be connected to the WiFi.

WIFI FUNCTION: OPERATE YOUR WIFI CERAMIC HEATER BY SMARTPHONE

• If you have installed the free app on your smartphone, this modern ceramic heater can by very easily operated and controlled with your smartphone from everywhere (from the same WiFi network, from a different WiFi network or from the 3G resp. 4G mobile data network). Everything you need for that are the heater, a WiFi router, your smartphone and, obviously, the app.

Step 1: Downloading the free app

1. Should you own an iPhone, get the app "Solis Heater" from the App Store.
2. Should you own an Android phone, get the app "Solis Heater" from the Google Play Store.
3. Go to the "Search" function and type "Solis Heater" into the search bar. After that, you can download the app.

Step 2: Connecting WiFi router and heater (to connect, the smartphone and the heater have to be logged on to the same WiFi network)

1. Check if the heater is connected to the power (connect power plug to wall outlet) and switched on with the power tilt switch on the appliance backside, so that it is in standby mode.
2. Open the app.
3. Switch the heater on with the ON/OFF button and keep the WiFi button on the appliance backside pressed until the symbol flickers in the control panel.
4. Then, click "Add a new device" in the app (fig.1). The detected WiFi network is displayed (fig.2).
5. Enter the corresponding WiFi password of the router and then press the arrow symbol (fig. 2). Wait approx. 120 seconds (you can watch the time being counted down on your smartphone).
6. The user interface appears on your mobile phone. You can now comfortably operate your ceramic heater with your smartphone (fig. 3)

fig.1 fig.2 fig.3

TIP: You can rename the appliance by touching and holding the appliance name in the menu shown in fig. 1.

CAUTION: To permanently operate the appliance with your smartphone, it has to be connected to the power and the power switch on the appliance. backside has to be set to the position "l", so that your appliance is in standby mode. This allows it to be switched on and be programmed at any time.

NOTE: If you want to connect to a new WiFi network, press the WiFi button on the appliance back side of the heater until the symbol flickers and repeat all previously mentioned steps.

1 Operation time
2 Currently set temperature
3 Adjust temperature
4 Adjust timer
5 Adjust heating power
6 Set ECO mode
7 ON/OFF button
8 Current room temperature
9 Power usage

CLEANING AND MAINTENANCE

• Disconnect your appliance from the power grid before every cleaning and let it cool down completely.
  Clean the appliance chassis with a slightly wet towel.
• Keep pointed and sharp objects away from the appliance to prevent any damage.
• Never use scouring or aggressive detergents, just as you should never use acetone or alcohol.
• Never submerge the heater in water or bring it into contact with water in any other way.
• From time to time, clean the protective grid and the filter of the air inlet on the appliance back side. You can remove the protective grid by pushing the latches down and pulling the grid away. The filter, which is positioned in the frame of the protective grid, can be removed and cleaned under running water with a little dishwashing liquid. The same applies to the protective grid. Let both parts air dry completely before placing the filter back in the protective grid and fixing it to the hooks. Remount the protective grid with the filter to the appliance backside, locking it into place.

STORAGE

• Best store the completely cooled down and cleaned appliance in the original packaging standing upright in a dark and dry room.
• Do not place anything on the appliance.

TECHNICAL SPECIFICATIONS

Model no. DF-HT5C08P, type 698

Product description Ceramic heater

Voltage/frequency 220-240 V/50 Hz

Output 2'000 watts

Dimensions approx. 35,0 x 35,5 x 17,5 cm

(width x height x depth)

Weight approx. 3,9 kg

Technical changes reserved.

DISPOSAL

EU 2002/96/EC

Information for correct disposal of the product in accordance with the European Directive 2002/96/EC

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

HELPLINE:

091 802 90 10

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

Solis of Switzerland Ltd

Solis-House · CH-8152 Glattbrugg-Zurich · Switzerland

Phone [phone] Fax [phone]

[e-mail] • www.solis.ch • www.solis.com
