USER MANUAL WineControl 610 CASO

11 Operating Manual 21
11.1 General 21
11.2 Information on this manual 21
11.3 Warning notices 22
11.4 Limitation of liability 23
11.5 Copyright protection 23
12 Safety 24
12.1 Intended use 24
12.2 General Safety information 25
12.3 Sources of danger 26
12.3.1 Danger of Burning 26
12.3.2 Dangers due to electrical power 26
13 Commissioning 27
13.1 Safety information 27
13.2 Delivery scope and transport inspection 27
13.3 Unpacking 27
13.4 Disposal of the packaging 27
13.5 Electrical connection 28
14 Design and Function 29
14.1 Complete overview 29
14.1 Rating plate 29
15 Operation and Handing 30
16 Cleaning and Maintenance 31
16.1 Safety information 31
16.2 Cleaning 31
17 Troubleshooting 32
17.1 Troubleshooting 32
17.2 Safety notices 32
18 Disposal of the Old Device 32
19 Guarantee 33
20 Technical Data. 33

21 Mode d'emploi 35

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your food processor will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the wine cooler (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning
Operation
Troubleshooting and/or
- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

△GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

A VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE

NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
Uses for non-intended purposes
- Improper repairs
Technical alterations
- Use of unauthorized spare parts

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in households in enclosed spaces for keeping bottles of wine either cool, or warm; The device can hold bottles with diameter at or less than 90mm. You will achieve the most pleasant taste by adjusting the device to desired temperature for chilling, or warming. The wine cooler is also great for chilling bottles of soft drink and beer. The temperature range can be 5^ - 50^ .

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNUNG Warning
Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. Use the device exclusively for its intended use. Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS

Please note

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
  If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
• Persons, who are not able to operate the device because of any physical, mental or motor disabilities may only use the device under the supervision or under the instructions of a responsible person.
  Do not permit children to use the device, unless they are supervised.
  Do not leave the device unsupervised when it is in operation.
  Make sure the extension cord is carefully positioned to avoid people tripping over it.
  Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
  Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
  After you have finished using the appliance, empty the contents and allow the unit to dry thoroughly.

12.3 Sources of danger

12.3.1 Danger of Burning

WARNING WARNING

The bottles warmed with this appliance as well as the surface of the appliance can become very hot.

Adhere to the following safety instructions in order to avoid burning or scalding yourself or others:

Protect your hands during all work at the hot appliance by using heat insulating gloves, dish cloths or similar.
Do not touch the hot interior of the wine cooler.

12.3.2 Dangers due to electrical power

▲GEFAHR Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
- Do not unplug this wine cooler by pulling on the power cord, and always grasp the plug firmly, then pull out from the electric outlet.
Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
- Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
To protect against fire, electric shock and personal injury, do not immerse cord, plugs, or appliance in water or other liquid.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the wine cooler is delivered with the following components:

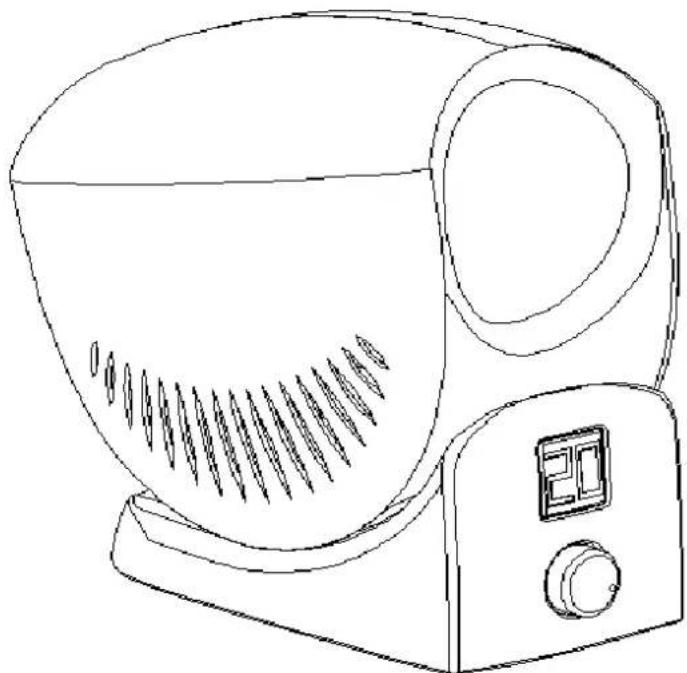

WineControl
- Operating Instructions

HINWEIS Please note
Examine the shipment for its completeness and for any visible damages.
Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, remove the device out of the carton and remove the packaging material.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
• The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

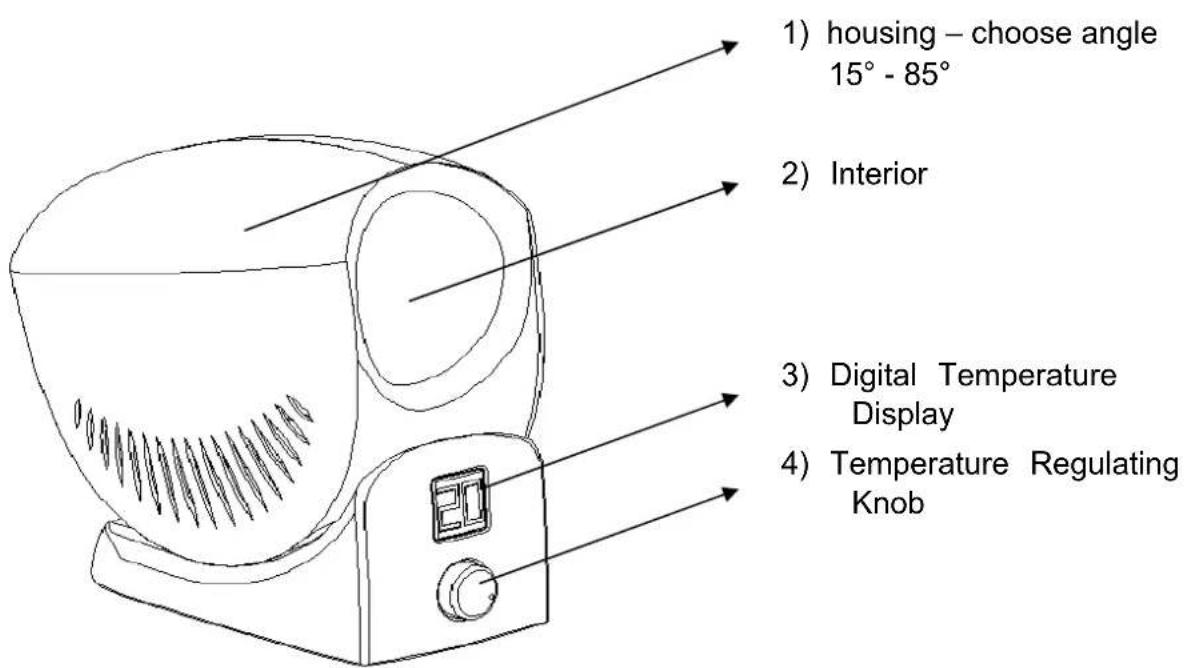

14.1 Complete overview

14.1 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

Pick up the wine cooler carefully and place it on a dry and stable surface. Ensure that the adaptor is attached to the wine cooler.

Place the bottle into the wine cooler.

HINWEIS Please note

Please pay attention, that the bottle touches the interior well.

Attach the adapter plug to appliance first, then plug cord into the wall outlet.

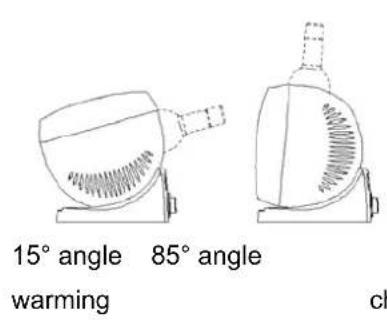

Put the appliance at either angle 15^ , or angle 85^ .

HINWEIS Please note

You may choose either angle 15^ , or angle 85^ direction when operates for different kinds of wine. It is suggested that you put the device at angle 85^ for chilling wine, the device work more effectively at the angle 85^ direction.
When you want to rotate the body of this appliance to choose either 15^ or 85^ tilting angle position, you must hold the base of this appliance in advance.

Put the switch "on' and put the knob to desired temperature. You can put the knob to set the temperature to "5"to fully chill; you can put the knob to set the temperature to "50"to fully warm.

When the drink is chilled or warmed to the suitable temperature, put the power switch 'OFF' and unplug the adaptor from the wine cooler. Bring the wine cooler to the table or to wherever desired and use it.

Should for any reason you need to change desired temperature, you can slowly slide the switch direction until the desired temperature is reached.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

• Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet.
  Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
  If dampness penetrates into the device, this can damage the electronic components.
  Do not use any aggressive or abrasive cleaning agents or solvents.
  Do not scrape off stubborn dirt with hard items.

16.2 Cleaning

Wine cooler

To clean, simply wipe the outside and inside body of the wine cooler with a damp cloth. Once clean, ensure that the appliance is dried thoroughly.

HINWEIS Please note

• When you have finished using the wine cooler, unplug the AC adaptor from the power outlet and remove from the unit before cleaning.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Troubleshooting

1. Wine control don't work:

It may not be plugged in; the circuit may break.

1. When chill, wine is not cool enough:

The time is not enough to chill; the environment is too hot.

1. When warm, wine is not hot enough:

The time is not enough to warm; the environment is too cool.

17.2 Safety notices

▲VORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the nonrecyclable waste under any circumstances.

HINWEIS Please note

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device Wine cooler

Name WineControl

Model SA901-22

Item No.: 610

Mains data DC 12V, 50 Hz

Temperature Range 5° - 50°C

power 60 Watt

Measures (W/H/D) 12 x 21 x 25 cm
