USER MANUAL EQ.3 S500 TI305206RW SIEMENS

Fully automatic espresso machine

siemens-home.bsh-group.com/welcome

en Instruction manual 6

fr Mode d'emploi 28

Register your product online

Illustration of a modern coffee machine with control panel and side-mounted buttons (no text or symbols visible)

i C

1

16 15 14 13 12 11 1 2 3 SIEMENS 4 5 6 7 8 9 10 11 12 13 14 Siemens

2

Diagram showing a mechanical assembly with a cylindrical component and a vertical shaft, no text or symbols present.

Mechanical assembly diagram showing a tool interacting with a cylindrical component (no text or symbols visible)

3D diagram of a vertical cylindrical component inserted into a wall, with no visible text or symbols

3

Hand holding a device with blue arrows indicating rotation or movement (no text or symbols)

Interior view of a cleaning or cleaning facility with a hand washing a cloth, showing no text or symbols.

Diagram showing a hand pressing a component with labeled arrows and a lock icon, indicating a process step or adjustment.

Interior view of a mechanical or electrical device with blue arrows indicating flow direction (no text or symbols)

click

click

4

Hand holding a device with blue directional arrows indicating rotation or movement (no text or symbols)

Interior view of a car seat with blue arrows indicating downward motion, no visible text or symbols

Diagram illustrating appliance cleaning and inspection process with labeled icons and checkmark indicators

5

Diagram of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Diagram showing a mechanical assembly with a vertical component and a mounted device, no text or symbols present.

Diagram illustrating a mechanical assembly with labeled parts and a checkmark indicating inspection or validation.

Diagram showing a mechanical device with a cylindrical component and a vertical shaft, connected by a blue arrow (no text or symbols present)

3D diagram of a vertical mechanical component with an arrow indicating upward motion (no text or symbols)

3D rendering of a vertical cylindrical object mounted on a wall, with no visible text or symbols

6

Illustration of a glass with liquid and a submerged object, no text or symbols present

Diagram of a mechanical device with a lid and internal components, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical device with a central cylindrical component and a side-view inset showing a water level (no text or symbols)

7

Table of contents

Intended use....6

Important safety information . . . 6

Environmental protection ..... 8

Saving energy....8

Environmentally-friendly disposal .... 8

Getting to know your appliance .9

Included in delivery....9

Assembly and components ..... 9

Controls 10

Accessories ..... 11

Before using for the first time . 12

Installing and connecting the appliance 12

Commissioning the appliance ..... 12

Operating the appliance ..... 13

Preparing coffee using freshly ground beans 13

Preparing drinks with milk ..... 14

Adjusting beverage settings ..... 15

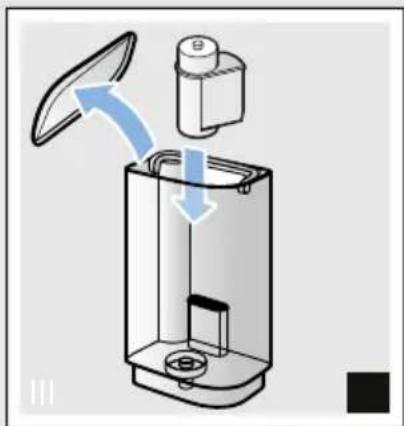

Water filter 17

Frost protection.... 17

Settings.....18

Automatic switch-off ..... 18

Switching the audible signal on/off. . 18

Setting the language. 18

Setting the water hardness ..... 19

Factory reset....19

Daily care and cleaning ..... 20

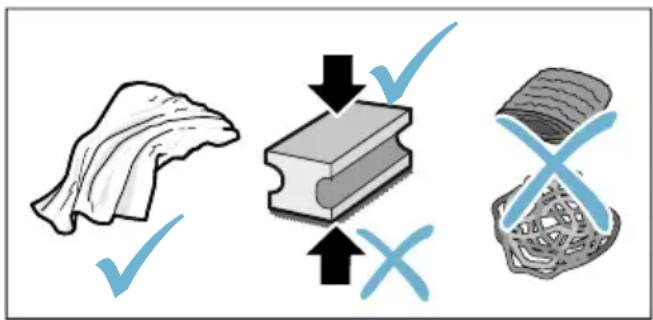

Cleaning agent 20

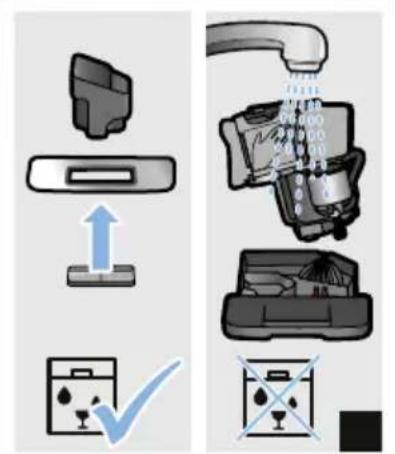

Cleaning the appliance ..... 20

Cleaning the drip tray and coffee grounds container 21

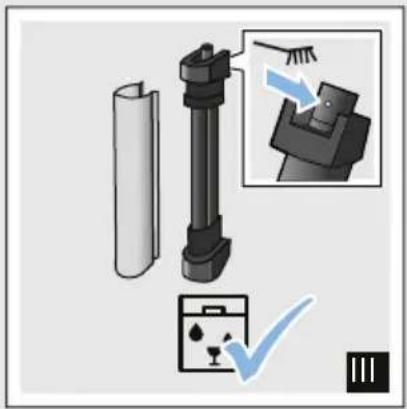

Cleaning the milk system ..... 21

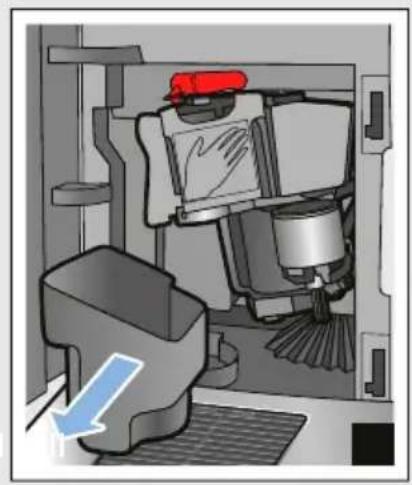

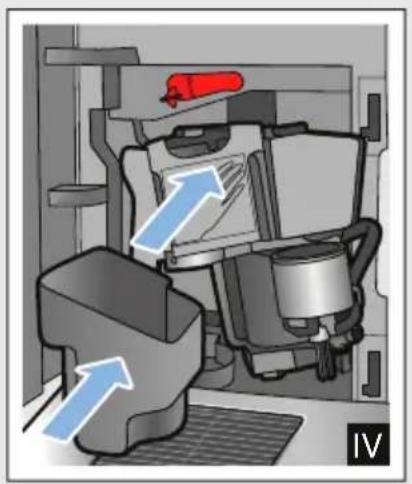

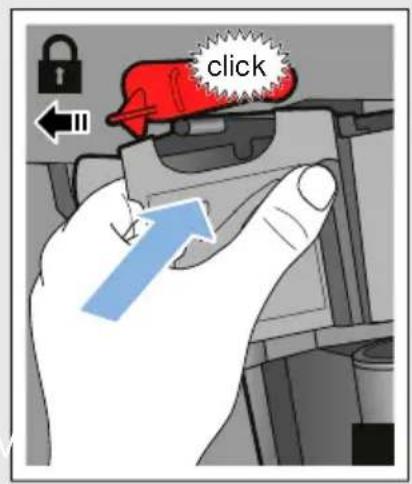

Cleaning the brewing unit ..... 21

Service programme. 22

Starting Calc'nClean 23

Trouble shooting. 24

Customer service 27

Technical data....27

E number and FD number.....27

Guarantee 27

Intended use

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read carefully, follow and retain the operating instructions. When passing on the appliance, enclose these instructions.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Warning

Danger of electric shock!

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic electricity supply has been correctly installed.
■ Connect and operate the appliance only in accordance with the specifications on the rating plate. If the power cord of this appliance is damaged, it must be replaced by customer service.
- Do not use if the power cable or appliance is damaged. If a fault occurs, pull the mains plug or switch off the mains voltage immediately.
■ To prevent hazards, the appliance may be repaired by our customer service only.
■ Never immerse the appliance or mains cord in water.
■ The plug and socket connection of the appliance must not come into contact with liquids.
■ Please note the special information on cleaning in the instructions.

Warning

Hazard due to magnetism!

The appliance contains permanent magnets which may affect electronic implants, e.g. heart pacemakers or insulin pumps. Persons with electronic implants should keep a minimum distance of 10 cm from the appliance and the water tank when removed.

Warning

Risk of suffocation!

Do not let children play with packaging material. Store small parts safely as they can be easily swallowed.

Warning

Risk of burns!

■ The milk system becomes very hot. After use, allow it to cool down first before touching it.
■ After use, surfaces such as the cup warmer may still be hot for a certain period.
■ Freshly prepared beverages are very hot. Leave to cool a little if necessary.

Warning

Risk of injury!

■ Improper use of this appliance may result in injury.
■ Do not reach into the grinding unit.

Warning

Fire hazard!

■ The appliance will become hot.
■ Never operate the appliance in a cupboard.

Environmental protection

Saving energy

■ If the appliance is not being used, switch it off.
■ Set the interval for automatic switch-off to the smallest value.
If possible, do not interrupt coffee or milk froth dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
■ Descale the appliance regularly to avoid a build-up of limescale. Limescale residue results in higher energy consumption.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Please ask your dealer about current disposal routes.

Getting to know your appliance

This section provides an overview of the scope of delivery, the assembly and the components of your appliance. It also introduces you to the different controls.

Note: Depending on the appliance model, individual details and colours may differ.

How to use these instructions:

The cover pages of the operating instructions can be folded out towards the front. The illustrations are identified using numbers that are referred to in the operating instructions.

Example: → Fig. 1

Included in delivery

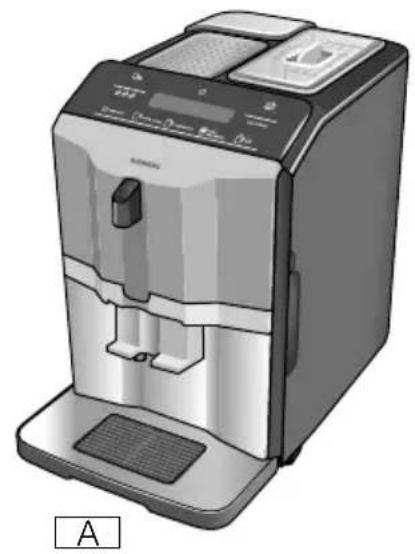

→ Fig. 1

A Fully automatic coffee machine
B Water hardness testing strip
C Instruction manual
D Milk frother

Assembly and components

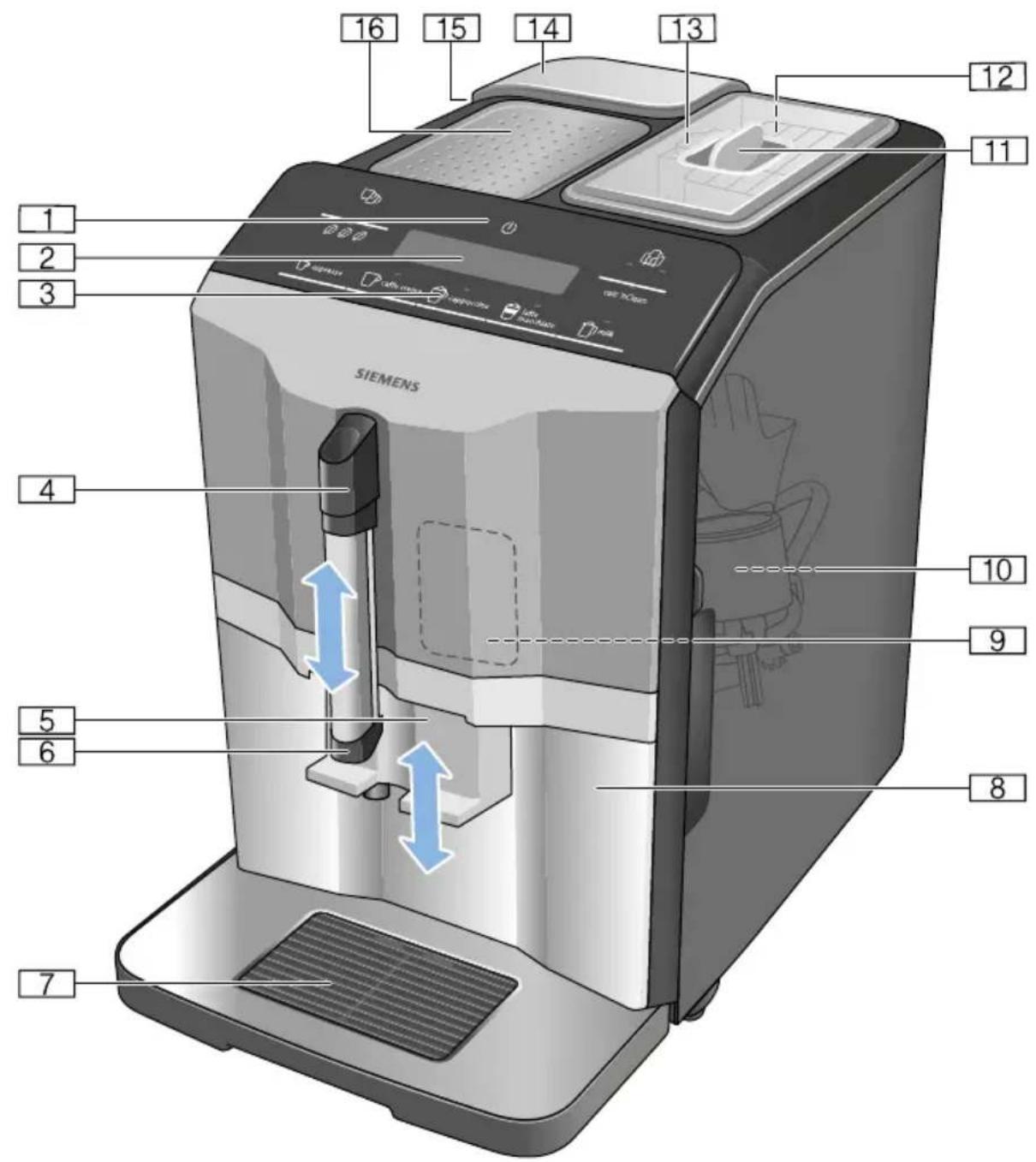

→ Fig. 2

1 On / off button (stand-by mode)
2 Display
3 Control panel
4 Handle of milk frother
5 Outlet system for coffee, height adjustable
6 Milk frother (holder, frother, cover), height adjustable
7 Drip tray (coffee grounds container, drip grate, drip plate, float)
8 Door of brewing chamber
9 Rating plate
10 Brewing unit
11 Aroma lid
12 Bean container
13 Rotary selector for setting grinding level
14 Cover for water tank
15 Water tank
16 Cup warmer

Controls

By touching the fields, you can e.g. select and start making a drink or adjust the coffee strength.

Button Meaning
	Switch the appliance on and offThe appliance rinses automatically when it is switched on and off.The appliance is not rinsed if:■ it is still warm when switched on, or■ coffee was not dispensed before the appliance was switched off.The appliance is ready for use when the LEDs of the buttons for selecting drinks light up in the control panel. The appliance has automatic switch-off. → "Selecting automatic switch-off" on page 18
espresso Dispensing Espresso
caffe crema Dispensing Caffe cremaor display navigation “<” (back without saving).
cappuccino Dispensing cappuccinoor display navigation “▼” (navigate down).
latte macchiato Dispensing latte macchiatoor display navigation “ok” (confirm and save).
milk Frothing up milk
Coffee strengthAdjusting the coffee strength → "Adjusting beverage settings" on page 15
calc'nClean Start the service programmeFlashes when the service programme needs to be performed.→ "Calc'nClean service programme" on page 23
	Make 2 Espresso or 2 Caffe crema at the same time. Position the cups next to one another under the coffee dispenser.→ "Operating the appliance" on page 13
	The fully automatic coffee machine has a cup warmer that can be switched on or off manually with the button. When the cup warmer is on, the button lights up.⚠ WarningRisk of burns!The cup warmer becomes very hot!Note: For optimal cup warming, place them with the base on the cup warmer.
Display
	Lights up when the water tank needs to be topped up with water, the water tank is not inserted, or the water filter needs to be changed. A message appears on the display.
	Lights up when trays need to be emptied.Flashes when door of brewing chamber is open.
espresso
is continuously lit	Ready to use, selection possible
is pulsing Dispensing underway
is flashing Waiting for operation, e.g. with calc'nClean off Not available

Display

The display 2 shows the selected drinks, settings and setting options, as well as messages about the appliance's operating status.

The display also prompts the user to perform certain actions.

The individual steps for performing the action are shown in the display.

If the action required has been carried out, e.g. "Fill water tank", the corresponding message will disappear.

Accessories

The following accessories are available from retailers or from customer service:

Accessory Order number

Retail Customer service

Cleaning tablets TZ80001N 00311807

Descaling tablets TZ80002N 00576693

Water filter TZ70003 00575491

Care set TZ80004 00576330

The contact data for customer service in all countries can be found at the back of these instructions.

Before using for the first time

In this section, you will learn how to commission your appliance.

Note: Only use the appliance in frost-free areas. If the appliance was transported or stored at temperatures below 0 °C, you must wait for at least 3 hours before using it.

Installing and connecting the appliance

1. Remove any protective plastic film.
2. Place the appliance on a level, water-resistant surface which can bear the weight.
3. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

Note: After plugging in, always wait (approx. 5 seconds).

Commissioning the appliance

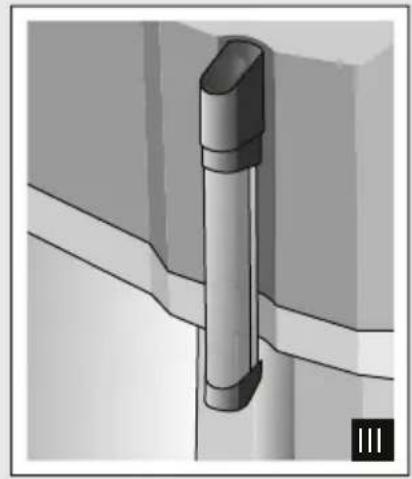

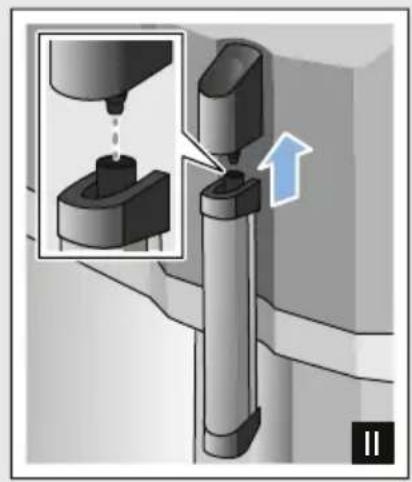

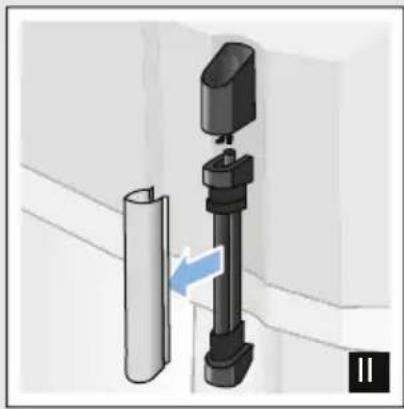

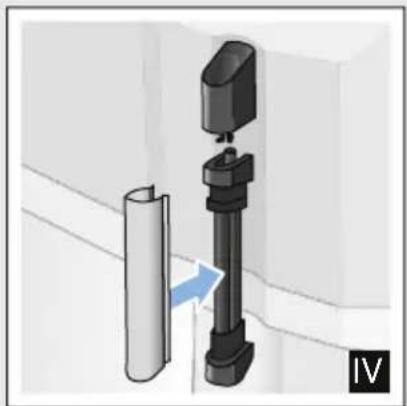

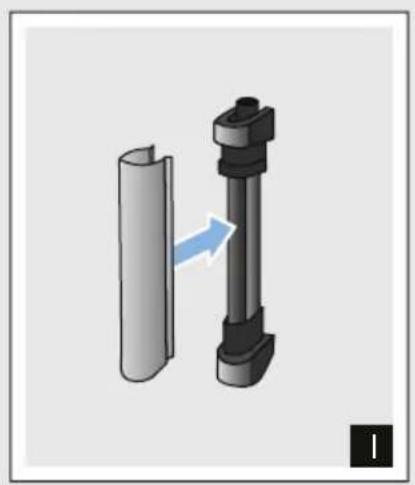

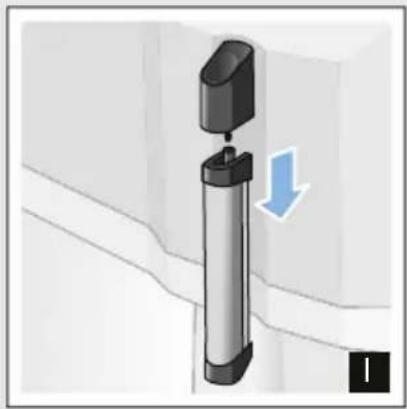

Attaching milk frother

→ Fig. 3

1. Remove milk frother parts from the bag.
2. Assemble milk frother.
3. Attach the milk frother on the front of the appliance.

Filling the bean container

This appliance can be used to make coffee drinks from coffee beans.

1. Open the lid 11 of the bean container 12.
2. Pour in coffee beans.
3. Close the lid again.

Notes

■ Coffee beans that have been glazed or caramelised or that contain other sugary additives block the brewing unit. Only use pure bean mixes that are suitable for use in fully automatic espresso or coffee machines.
■ The coffee beans are freshly ground for each brewing process.
- Keep the coffee beans sealed and stored in a cool place to maintain optimum quality.
■ Coffee beans can be stored in the bean container for a number of days without losing their aroma.

Filling the water tank

Important: Fill the water tank with fresh, cold, still water on a daily basis. Prior to operation, check whether the water tank has been sufficiently filled.

1. Carefully remove the cover of the water tank.
2. Use the handle to remove the water tank and then rinse out.
3. Fill the water tank with water up to the "max" marking.
4. Put the water tank back in the holder again, keeping it straight, and fit the cover of the water tank.

Setting the language

1. Switch on the appliance with the ⏻ button.
   The preset language appears in the display.
2. Touch the “▼” button cappuccino repeatedly until the required language appears on the display.
3. Touch the "ok" button latte macchiato to confirm the setting.
   The appliance rinses and is ready to use when "Choose beverage" appears in the display.

Notes

■ Language selection only appears automatically when the appliance is switched on for the first time.
■ You can change the language at any time. → "Settings" on page 18

General information

The factory settings of the fully automatic coffee machine are programmed for optimal performance.

■ The appliance switches off automatically after a specific time.
■ Whenever a button is pressed, a signal sounds. It can be switched off.→ "Settings" on page 18
■ When the appliance is used for the first time, after running a service programme or has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.
■ After commissioning the appliance, you will only achieve a suitably thick and stable "crema" after the first few cups have been dispensed.

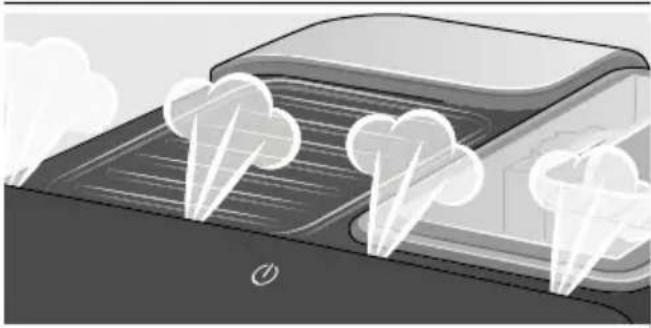

If the appliance is in use for a long period of time, water droplets will form on the ventilation slots. This is normal.
■ Escaping steam is not a fault but due to the design of the machine.

Illustration of a cooling system with steam rising from cooling panels (no text or symbols)

Before using your new appliance, you should check and select the water hardness.→ "Settings" on page 18

Operating the appliance

In this section, you will learn how to make beverages with coffee and milk. It contains information about settings, water filters and adjustment of the grinding level, in addition to frost protection.

Note: Freshly prepared beverages may be very hot.

Preparing coffee using freshly ground beans

You can choose between Espresso and Caffe crema. → "Preparing drinks with milk" on page 14

The appliance is switched on. The water tank and bean container have been filled.

1. Place a cup under the outlet system.
2. Touch Ⓞ meaning repeatedly to select the required coffee strength.
3. Touch the espresso or caffe crema button.
   The coffee is brewed and then dispensed into the cup.

Note: To stop dispensing the drink before the end, touch espresso or caffe crema again.

en Operating the appliance

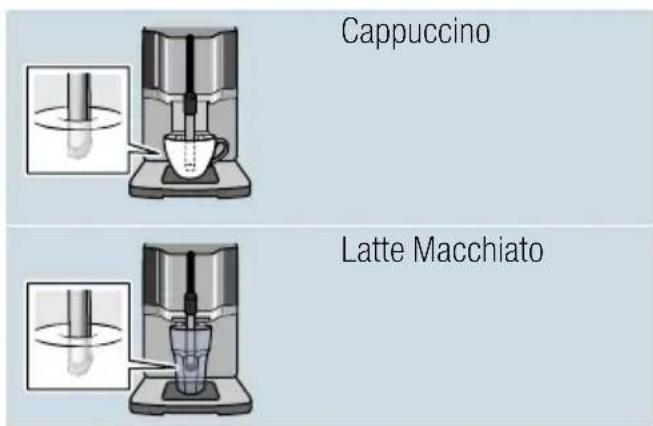

Preparing drinks with milk

This appliance has a milk frother. You can make drinks of coffee with milk or froth up milk.

Tip: You can also use plant-based alternatives to milk, e.g. soya milk.

Notes

■ The quality of the milk froth depends on the type of milk or the plant-based alternative used.
Dried milk residues are difficult to remove so always perform cleaning.→ "Daily care and cleaning" on page 20

Warning

Risk of burns!

The milk frother gets very hot. Hold only by the handle. After use, let it cool down first before touching it.

Coffee drinks with milk

You can choose between cappuccino and latte macchiato. When doing so, please check the position of the coffee dispenser and milk frother.

Cappuccino Latte Macchiato

The appliance is switched on. The water tank and bean container have been filled.

The milk frother is installed.

1. Fill a large cup or a large glass with approx. 100 ml milk for cappuccino and approx. 150 ml milk for latte macchiato.
2. Place a cup or a glass under the outlet system.
3. Push the coffee dispenser and milk frother right down.
4. Touch ⓄOO repeatedly to select the required coffee strength.
5. Touch the cappuccino or latte macchiato button.
   The milk is first frothed up in the cup or glass. The coffee is then brewed and dispensed into the cup or glass.

Note: To stop current dispensing of the drink before the end, touch cappuccino or latte macchiato again.

Frothing up milk

The appliance is switched on. The water tank has been filled.

The milk frother is installed.

1. Fill a large cup or a large glass with approx. 100 ml milk.
2. Place a cup or a glass under the outlet system.
3. Push the coffee dispenser and milk frother right down.
4. Touch the milk button. The milk is frothed up.

Note: To stop the process before the end, touch milkagain.

Adjusting beverage settings

Preparing two cups at once

Before making a drink, you can select dispensing of two cups at once.

Touching ☐ switches the function on or off.

"Double cup on" or "Double cup off" lights up in the display for 5 seconds.

The Double cup function is only possible for espresso and caffe crema; the buttons light up. Dispensing other drinks is not possible while the Double cup function is switched on.

Notes

■ The drinks are prepared in two steps (two grinding operations). Please wait until the process is fully completed.
If no button is pressed within 90 seconds, the appliance automatically switches to the setting "Double cup off".

Coffee strength

Before making a drink, you can adjust the coffee strength:

To do so, touch ⏻ to select the strength you require.

●	very mild
●●	mild
●●●	regular
●●●	strong
●●●	very strong
only with TI305:
●●●	aromalntense

Note: The coffee strength selected is then active for all drinks made with coffee.

Filling level

You can adjust the filling level of your drinks.

Press and hold espresso or caffe crema for 3 seconds.

Dispensing takes place, with the button selected flashing.

Progress is shown on the display:

Abstract graphic with geometric shapes and dot patterns on dark background (no text or symbols)

Once the required filling level is reached, touch the button selected to stop. The new filling level is only apparent after the next drink is dispensed.

Note: The filling level can be selected either for Espresso (25 - 60 ml) or Caffe crema (80 - 200 ml). A minimum quantity is always brewed: Espresso approx. 25 ml and Caffe crema approx. 80 ml.

Frothing time

You can adjust the frothing time of your drinks.

Press and hold cappuccino, latte macchiato or milk for 3 seconds.

The milk is frothed up, and the button selected flashes.

Progress is shown on the display:

Abstract pattern of gray rectangular blocks on dark background, no text or symbols present

Once the required frothing time is reached, touch the button selected to stop.

Note: Setting the frothing time has no impact on the amount of coffee.

en Operating the appliance

Setting the grinding level

This appliance features an adjustable grinder. This enables the grinding level of the coffee to be individually changed.

Warning

Risk of injury!

Do not reach into the grinding unit.

Caution!

The appliance may be damaged! Only adjust the grinding level when the grinder is running!

When the grinder is in operation, use the rotary selector 13 to set the grinding level.

■ Finer grinding level: turn anticlockwise. (Fig. a)
■ Coarser grinding level: turn clockwise. (Fig. b)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

3D illustration of a stylized animal head with a blue arrow pointing to it, no text or symbols present

Notes

■ The new setting will not become apparent until after the second cup of coffee.
■ Set a finer grinding level with dark-roasted coffee beans and a coarser grinding level with lighter coffee beans.

Water filter

→ Fig. 7

A water filter lessens limescale deposits and reduces impurities in the water. The appliance also does not need to be descaled so often. Water filters are available from retailers or from customer service.

If a water filter is inserted, the appliance will show when this needs to be changed. The display shows the relevant prompt. The 📄 symbol will light up.

Inserting or replacing a water filter

A new water filter must be rinsed before it can be used.

The appliance is switched on. The water tank has been filled.

1. Simultaneously hold down Ⓞ¶¶ and calc'nClean for at least 3 seconds.

2. Touch the "▼" button cappuccino repeatedly until "W. hardness" appears.

3. Confirm by pressing the "ok" button latte macchiato.

4. Press the "▼" button cappuccino repeatedly until "Water filter" appears.

5. Confirm by pressing the "ok" button latte macchiato.

The display shows "Filter act.".

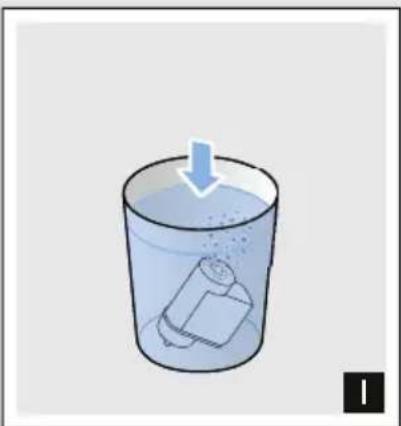

1. Immerse the water filter (opening facing up) in a container filled with water until no more air bubbles rise to the surface. → Fig. 7

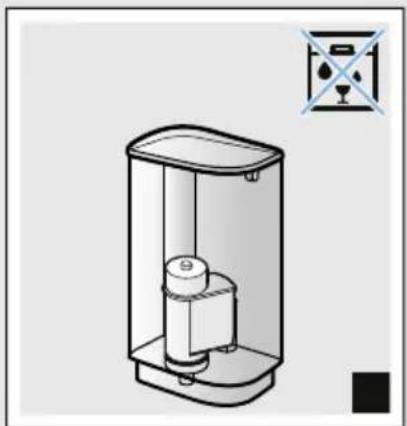

2. Then press the water filter firmly into the empty water tank.

3. Fill the water tank with water up to the "max" marking.

4. Place a container with a capacity of 1.0 litre under the outlet.

5. Touch the "ok" button latte macchiato to save the setting and start rinsing.

6. Touch the “<” button caffe crema to exit the menu.

7. Then empty the container. The appliance is ready for use again.

Removing the water filter

If the water filter has been removed and no new one inserted, please select the appropriate water hardness. → "Setting the water hardness" on page 19

Frost protection

To prevent frost damage during transportation and storage, completely empty the appliance beforehand.

Info: The appliance must be ready for use and the water tank filled.

1. Place a large container under the outlet of the milk frother and push the frother down.
2. Press and hold the milk button for at least 5 seconds. The LED in the button flashes, and the appliance now heats up.
3. As soon as steam escapes from the milk frother, remove the water tank.
4. Allow the appliance to cool down. Wait until 📄 "Water tank empty" appears.
5. Use the ⏻ button to switch the appliance off.
6. Empty the water tank and the drip tray and thoroughly clean the appliance.
   The appliance can now be transported or stored.

Note: The brewing unit is now secured and cannot be removed.

Settings

This appliance has different factory settings. You can customise the settings on the appliance.

Note: If no button is pressed within 90 seconds, the appliance switches to "Choose beverage" without saving. The previous setting remains unchanged.

You can select the following settings:

Automatic switch-off

The appliance switches off automatically at a specific time after the last button was pressed. This time can be selected, with settings from 15 minutes to 4 hours possible here.

1. Simultaneously hold down Ⓞ¶¶ and calc'nClean for at least 3 seconds.
2. Touch the “▼” button cappuccino repeatedly until "Auto Stand-by" appears.
3. Confirm by pressing the "ok" button latte macchiato.
   The factory settings are activated, the language selection appears.
4. Touch the “▼” button cappuccino and select the time. The following settings are possible:
5. after 15 min.
6. after 30 min. (factory setting)
7. after 1 hour
8. after 2 hours

9. after 4 hours

10. Confirm by pressing the "ok" button latte macchiato.

The factory settings are activated, the language selection appears.

1. Touch the "<" button caffe crema to exit the menu.

Switching the audible signal on/off

Whenever a button is pressed, an audible signal sounds.

This can be switched on or off.

1. Simultaneously hold down Ⓞ¶¶ and calc'nClean for at least 3 seconds.
2. Touch the "▼" button cappuccino repeatedly until "Sound" appears.
3. Confirm by pressing the "ok" button latte macchiato.
   The factory settings are activated, the language selection appears.
4. Touch the “▼” button cappuccino and select "Sound on" or "Sound off".
5. Confirm by pressing the "ok" button latte macchiato.
   The factory settings are activated, the language selection appears.
6. Touch the "<" button caffe crema to exit the menu.

Setting the language

1. Simultaneously hold down Ⓞ¶¶ and calc'nClean for at least 3 seconds.
2. Touch the “▼” button cappuccino repeatedly until "Language" appears.
3. Confirm by pressing the "ok" button latte macchiato.
   The factory settings are activated, the language selection appears.
4. Touch the “▼” button cappuccino and select the required language.
5. Confirm by pressing the "ok" button latte macchiato.
   The factory settings are activated, the language selection appears.
6. Touch the “<” button caffe crema to exit the menu.

Setting the water hardness

It is important to set the water hardness correctly so that the appliance indicates in good time when the descaling programme should be run. The preset water hardness is level 4.

You can check the water hardness using the enclosed test strip or by asking your local water supplier.

1. Briefly immerse the enclosed test strip in fresh tap water, leave it to drip and read off the result after 1 minute.
   The number of fields on the test strip that change colour indicate the water hardness level.

2. Simultaneously hold down Ⓞ¶¶ and calc'nClean for at least 3 seconds.

3. Touch the “▼” button cappuccino repeatedly until "W. hardness" appears.

4. Touch the "ok" button latte macchiato and confirm.

5. Touch the “▼” button cappuccino and select the water hardness. The following settings are possible:

6. W. hardness 1

7. W. hardness 2
8. W. hardness 3
9. W. hardness 4 (factory setting)
10. Water filter (when used)

11. H2O-softener (setting if water softener available)

12. Touch the "ok" button latte macchiato to save the setting.

13. Touch the “<” button caffe crema to exit the menu.

The table shows the allocation of the levels to the different degrees of water hardness:

Setting Degree of water hardness German (°dH) French (°fH)

1 1-7 1-13

2 8-14 14-25

3 15-21 26-38

4 22-30 39-54

Subsequent changes to the water hardness can be made at any time.

Note: When using the water filter (see section "Accessories"), proceed as follows → "Water filter" on page 17.

Factory reset

If you set the appliance back to the factory settings, you will lose your own settings.

1. Simultaneously hold down Ⓞ¶¶ and calc'nClean for at least 3 seconds.
2. Touch the "▼" button cappuccino repeatedly until "Factory reset" appears.
3. Confirm by pressing the "ok" button latte macchiato.
   The factory settings are activated, the language selection appears.
4. Touch the “▼” button cappuccino repeatedly until the required language appears on the display.
5. Touch the "ok" button latte macchiato to confirm the setting. The appliance rinses and is ready to use when "Choose beverage" appears on the display.

Daily care and cleaning

With good care and cleaning, your appliance will remain fully functioning for a long time to come. In this section, you will learn how to correctly clean and care for your appliance.

Warning

Risk of electric shock!

Before cleaning the appliance, pull out the mains plug. Never immerse the appliance in water. Do not use a steam cleaner.

Cleaning agent

Please observe the following information to ensure that the different surfaces are not damaged by using the wrong type of cleaning agent.

Do not use:

■ Harsh or abrasive cleaning agents.
■ Any cleaning agents containing alcohol or spirits.
- Hard scouring pads or sponges.

Diagram showing three labeled objects: a shell, a block with checkmark and cross, and a textured object with X.

Notes

■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel. Wash new sponge cloths thoroughly before use.
■ Always remove any limescale, residues of coffee or milk, cleaning or descaling solution immediately. This residue may cause corrosion.

Caution!

Not all of the appliance's components can be cleaned in the dishwasher.

→ Fig. 5 - 7

Not dishwasher-safe:

	Water tank
	Cover for water tank
	Aroma lid
	Brewing unit
	Drip tray

Dishwasher-safe:

	Drip plate
	Drip grate
	Coffee grounds container
max.60°C	Float
	Milk frother
	Cover for milk frother

Cleaning the appliance

1. Wipe down the outside of the appliance with a soft, damp cloth.
2. Clean the control panel using a micro-fibre cloth.
3. Wipe down the coffee dispenser if required after dispensing each beverage.

Notes

If the appliance is cold when switched on or if it is switched off after dispensing coffee, it rinses automatically. The system is therefore self-cleaning.
If the appliance has not been used for a long period of time (e.g. while you are on holiday), clean the entire appliance thoroughly, including the milk frother, trays and brewing unit.

Cleaning the drip tray and coffee grounds container

→ Fig. 5

Note: The drip tray and coffee grounds container should be emptied and cleaned every day in order to prevent deposits. With frequent use also empty from time to time, as soon as the float is clearly visible, or the relevant message appears in the display.

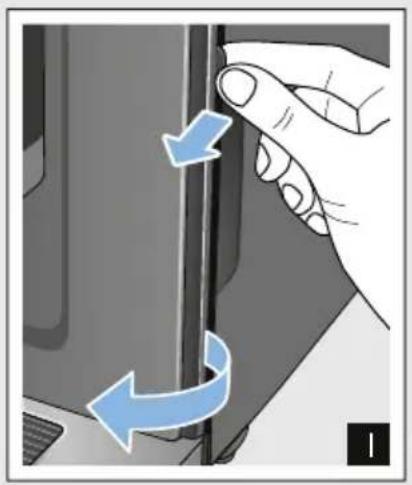

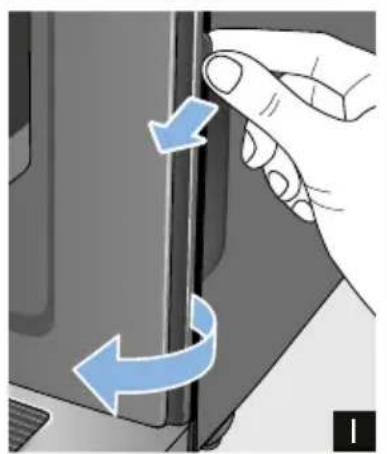

1. Open the door.

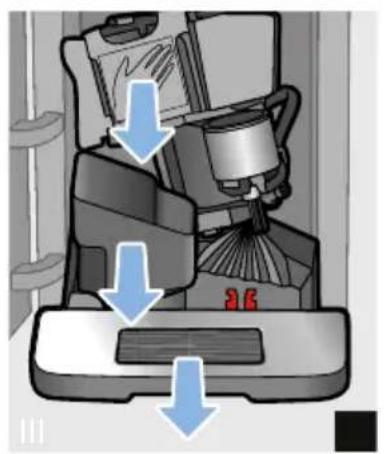

2. Pull the drip tray with the coffee grounds container forwards and out.
3. Remove the drip plate with grate.
4. Empty and clean the drip tray and coffee grounds container.
5. Wipe out the inside of the appliance (area of drip tray).

Cleaning the milk system

The milk system must be cleaned after each use to remove residues.

Warning

Risk of burns!

The milk frother gets very hot. Hold only by the handle. After use, let it cool down first before touching it.

1. Fill a glass half-full with water and place under the outlet system.
2. Push the milk frother right down.
3. Touch the milk button to clean the milk system.
4. Push the milk frother right up and allow it to cool down.

5. Dismantle the milk frother into its individual parts and clean thoroughly.
   → Fig. 6

6. Dry the individual parts, reassemble and fit back onto the appliance.

Notes

■ To stop the process before the end, touch milk again.
■ All parts of the milk system should be cleaned in the dishwasher. Detergent residues in the milk system must be thoroughly removed following the rinsing process.

Cleaning the brewing unit

→ Fig. 4, → Fig. 5

In addition to automatic cleaning, the brewing unit should be removed regularly for cleaning.

Caution!

Clean the brewing unit without detergent or products containing vinegar or acid and do not place in the dishwasher.

Remove the brewing unit:

1. Switch off the appliance.
2. Open the door to the brewing chamber.
3. Remove the coffee grounds container.

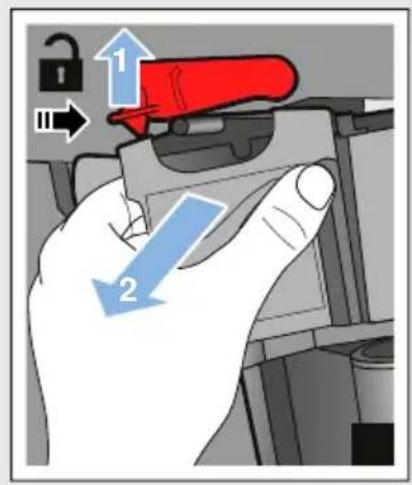

4. Push the red lever up, grasp the brewing unit by the handle and pull forwards carefully.
5. Rinse the brewing unit thoroughly under warm, running water.
6. Clean the interior of the appliance thoroughly with a damp cloth, removing any coffee residues.
7. Allow the brewing unit and the interior of the appliance to dry.

Insert the brewing unit:

1. Hold the brewing unit only by the handle.
2. Push the red lever up, position the brewing unit underneath and slide back as far as it will go. The lever must snap into place.

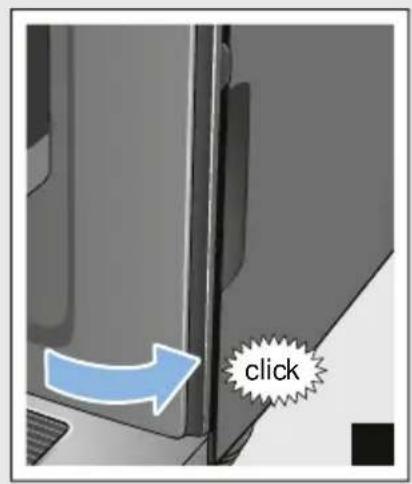

3. Insert the coffee grounds container again and close the door.

Important: If the brewing unit has not been inserted, or the brewing unit or drip tray not inserted correctly, it will not be possible to close the door.

Service programme

Every so often – with the exact frequency depending on water hardness and usage – the calc'nClean button will light up. The display shows "Calc'nClean required".

The appliance should be immediately cleaned and descaled using the programme.

Notes

■ Important: If the appliance is not cleaned and descaled in good time, it may be damaged.
Important: If the appliance is not descaled and cleaned in time, it will be locked. The display shows "Device locked"
If the appliance is locked, it can only be operated again once the service programme has been carried out.

■ Caution! For each of the service programmes, use Calc'nClean descaling and cleaning agents as described in the instructions and observe the (relevant) safety information.

■ Do not drink the liquids.

■ Never use citric acid, vinegar or any vinegar-based agents to descale the appliance.

For cleaning and descaling, only use the tablets intended for such purposes. They have been specially developed for this appliance, and new stocks can be ordered through customer service. → "Accessories" on page 11

■ Never insert descaling tablets or other products into the brewing unit.

■ Never interrupt the service programme.

■ Prior to starting a service programme, remove, clean and re-insert the brewing unit. Clean the milk frother.

- At the end of a service programme, wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. This residue may cause corrosion.

■ New sponge cloths may contain salts. Salts can cause rust film on stainless steel, so cloths must always be washed out thoroughly before use.

■ Using a water filter increases the intervals until a service programme needs to be performed.

If the service programme is interrupted, e.g. by a power failure, calc'nClean and will light up on the display. Proceed as described in the section calc'nClean from item 10.

Starting Calc'nClean

Duration: approx. 40 minutes

1. Press and hold the calc'nClean button for approx. 5 seconds.
   symbol lights up.
2. Open the door, remove the drip tray and coffee grounds container and empty.
3. Remove and clean the brewing unit.
4. Place a Siemens cleaning tablet in the brewing unit and re-insert the unit.

Illustration of a hand pressing down on a mechanical component with a magnified view (no text or symbols)

1. Re-insert the drip tray and coffee grounds container and close the door.

symbol lights up.
6. Remove the water filter (if there is one).
7. Pour 0.5 litres of lukewarm water into the empty water tank up to the mark and dissolve a Siemens descaling tablet in it.
8. Re-insert the water tank and place a large container (approx. 1 litre) under the outlet system.
9. calc'nClean flashes, touch calc'nClean.

The programme starts, cleans and descales the appliance. calc'nClean pulses. Duration approx. 20 minutes.

symbol lights up.

1. Empty the container, open the door, empty the drip tray and re-insert.

2. Close the door and place a container under the outlet system.

symbol lights up.

1. Clean the water tank and replace the water filter (if removed).

→ Fig. 7

1. Fill with fresh, still water up to the "max" mark. Place the container under the outlet system again.

2. calc'nClean flashes, touch calc'nClean.

The programme starts and then cleans and rinses the appliance. calc'nClean pulses.

symbol lights up.

1. Empty, clean and re-insert the drip tray and coffee grounds container.

The programme has finished. The appliance is ready for use again.

Trouble shooting

Faults often have simple explanations. Before calling the customer service,

please refer to the fault table and attempt to correct the fault yourself.

Please read through the safety information at the beginning of these instructions.

Fault table

Problem Reason Remedial action
The appliance no longer responds.	Fault in the appliance. Pull out the mains plug, wait 5 seconds, plug it back in.
Coffee or milk froth quality var-ies considerably.	Build-up of limescale in the appliance.	Descale the appliance in accordance with the instructions.
The individually selected per-cup quantity is not reached. Coffee dispensing slows to a trickle or stops completely	The grinding level is too fine. Set a coarser grinding level.
	Heavy build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
	Air in the water filter. Immerse the water filter in water until no more air bubbles escape, then insert the filter again.
The quality of the milk froth var-ies.	The quality of the milk froth depends on the type of milk or the plant-based alternative used.	Optimise the result by selecting your milk or plant-based alternative as appropriate.
No coffee dispensed, only water.	An empty bean container is not detected by the appliance.	Add coffee beansNote: The appliance will adjust to the coffee beans on the next dispensing process.
	The coffee shaft on the brewing unit is blocked.	Clean the brewing unit. → "Cleaning the brewing unit" on page 21
	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container.Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.
Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a higher proportion of robusta beans.
The coffee is too "acidic". Grinding level set too coarse. Set a finer grinding level.
The coffee is too "bitter".	Coffee is ground too fine.	Set a coarser grinding level.
	Unsuitable type of coffee. Change the type of coffee.
The coffee tastes "burnt". Coffee is ground too fine. Set a coarser grinding level.
	Unsuitable type of coffee. Change the type of coffee.
Milk/blended milk drinks too hot. Milk froth too thin, loud sucking noise.	Too little milk in glass or cup. Use more milk or adjust frothing time.
Milk/blended milk drinks too cold.	Too much milk in glass or cup. Use less milk or adjust frothing time.
No milk/milk froth dispensed.	The milk frother is soiled. The milk frother is not inserted in the milk.	Clean the milk frother in the dish-washer. → "Cleaning the milk system" on page 21 Use more milk, check whether the milk frother is inserted in the milk. Slide the outlet system right down.
The water filter does not stay in position in the water tank.	The water filter is not mounted correctly.	Immerse the water filter into water until no more air bubbles escape; insert the filter again. Firmly press the water filter straight down into the tank connection.
Water dripped onto the inner floor of the appliance when the drip tray was removed.	Drip tray removed too early. Wait a few seconds after the last drink was dispensed before removing the drip tray.
The brewing unit cannot be removed.	The brewing unit is not in the removal position (e.g. frost protection activated).	Switch the appliance on again.
The appliance cannot be operated, display messages changing.	The appliance is in demo mode. Hold the ⏻ button for at least 5 seconds to deactivate demo mode.
The grinder will not start. The appliance is too hot. Wait 1 hour so the appliance can cool down.
Display shows "Close door" despite door closed.	The door is not properly closed. Press the door firmly closed.
	The appliance is too hot. Wait 1 hour so the appliance can cool down.
Display shows: "Empty trays" despite empty drip tray - what to do?	Emptying is not detected when the appliance is off.	When the appliance is switched on, remove and re-insert the drip tray.

en Trouble shooting

Display shows "Fill water tank" despite full water tank.	Water tank wrongly inserted. Insert water tank correctly.
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
	Float is stuck in the water tank. Remove the water tank and clean thoroughly.
	New water filter not rinsed according to the instructions.	Rinse the water filter according to the instructions and then switch on.
	Air in the water filter. Immerse the water filter (opening up) in water until no more air bubbles escape; insert the filter again. → "Inserting or replacing a water filter" on page 17
	Water filter is old. Insert a new water filter.
	Limescale deposits in the water tank can block up the system.	Thoroughly clean the water tank and start calc'nClean. → "Calc'nClean service programme" on page 23
Display shows "Fill water tank" and LEDs flashing.	Water tank is missing or not inserted correctly.	Insert water tank correctly.
	The pipe system in the appli-ance is dry.	Fill the water tank with fresh tap water. Do not fill with carbonated water.
	Air in the water filter. Immerse the water filter (opening up) in water until no more air bubbles escape; insert the filter again.
Display shows "Clean brewing unit".	Brewing unit is soiled. Clean the brewing unit.
	The brewing unit's mechanism is stiff.	Clean the brewing unit. → "Daily care and cleaning" on page 20
Display shows "Incorrect vol-tage".	Incorrect voltage in building. Only operate the appliance at 220V-240V.
Display shows "Appliance too cold".	The ambient temperature is too cold.	Operate the appliance at temperatures >5°C.
Display shows "Restart appli-ance", LEDs flashing.	Brewing unit very heavily soiled or brewing unit cannot be removed.	Switch the appliance off and back on again. Clean brewing unit if possible.
Display shows "Restart appli-ance"; LED does not light up.	Fault in the appliance. Restart appliance.
Display shows "Clean/fill water tank", calc'nClean and light up.	The descaling process has been interrupted.	Proceed as described in the section calc'nClean from item 10.
Display "calc'nClean" keeps on appearing.	The water is too hard. Insert water filter and activate accord-ing to the instructions. → "Water filter" on page 17
If you are unable to solve the problem, always call the hotline. You will find the telephone numbers at the back of these instructions

Customer service

Technical data

Power connection (voltage - frequency)	220-240 V ~, 50/60 Hz
Power rating 1300 W
Maximum static pump pressure 15 bar
Maximum water tank capacity (without filter) 1.3 l
Maximum capacity of the coffee bean container ≈ 250 g
Length of the power cable 100 cm
Dimensions (H x W x D) 37.3 x 24.9 x 42.8 cm
Weight, empty approx. 8-9 kg
Type of grinder Ceramic/steel

E number and FD number

When calling us, please give the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. These numbers can be found on the rating plate 9. (→ Fig. 2)

To save time, you can make a note of the data for your appliance and the telephone number for customer service here, should this be required.

E no.

FD

Number

Customer service

The contact data for customer service in all countries can be found at the back of these instructions.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

fr

Table des matières

Exemple : → figure 1

Illustration of a kitchen air conditioner unit with smoke emitting vapor (no text or symbols)

Abstract graphic with circular and rectangular shapes on dark background, no text or symbols present

Digital display screen showing a grid of 16 small square units and one unit filled with white dots, likely representing a binary or data visualization.

Simple 3D diagram of a mouse inside a container with an arrow indicating rotation (no text or symbols)

3D rendered object with a curved arrow indicating direction, no visible text or symbols

Remarques

1. Effleurer la “▼” touche cappuccino

1. Effleurer la "▼" touche cappuccino

Diagram showing three labeled objects: a folded paper, a rectangular block with checkmark and cross symbols indicating approval or rejection.

Remarques

→ Figure 4, → Figure 5

Illustration of a hand inserting a component into a mechanical device (no text or symbols visible)

Illustration of a microwave oven with cooling fans and airflow lines (no text or symbols)

Abstract graphic with geometric shapes and dot patterns on dark background (no text or symbols)

Abstract pattern of gray rectangular blocks on dark background, no text or symbols present

Diagram of a mechanical component with a blue arrow indicating direction (no text or symbols)

3D diagram of a mechanical component with a blue arrow indicating direction (no text or symbols)

Aanwijzingen

nl Service programme

Calc'nClean starten

Duur: ca. 40 minuten

Illustration of a hand inserting a coin into a mechanical device (no text or symbols visible)

Illustration of a kitchen appliance with steam rising from outlets (no text or symbols)

Abstract graphic with geometric shapes and dot patterns on dark background (no text or symbols)

Abstract pattern of gray grid-like shapes on dark background, no text or symbols present

Diagram of a mechanical component with a curved arrow indicating rotation (no text or symbols)

3D-rendered cartoon character with a blue arrow pointing to its head (no text or symbols)

Wskazówki

Diagram showing three labeled objects: a rolled document, a rectangular block with checkmark and cross symbols indicating approval or rejection.

Illustration of a hand inserting a coin into a mechanical device (no text or symbols visible)

Illustration of a kitchen appliance with smoke emitting vapor (no text or symbols)

Abstract graphic with circular and rectangular shapes on dark background, no text or symbols present

Abstract pattern of gray rectangular blocks on dark background, no text or symbols present

Simple illustration of a mouse inside a container with an arrow indicating rotation (no text or symbols)

3D rendered object with a curved arrow and circular features, no visible text or symbols

Upozornění

Diagram showing three labeled objects: a shell, a block with checkmark and cross, and a textured object with X.

Upozornění

Illustration of a hand inserting a coin into a mechanical device (no text or symbols visible)

Illustration of a kitchen appliance with steam rising from outlets (no text or symbols)

Abstract graphic with geometric shapes and dot patterns on dark background (no text or symbols)

Abstract pattern of gray rectangular blocks on dark background, no text or symbols present

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

3D-rendered abstract geometric shape with a blue arrow indicating direction (no text or symbols)

Указания

Diagram showing three labeled objects: a cloth-like object, a rectangular block with checkmark arrows indicating approval or rejection, and a mesh-like structure with X marks.

Указания

Illustration of a hand inserting a coin into a mechanical device with a hand gesture (no text or symbols)

Störungen, was tun?.....173

Kundendienst 176

Illustration of a smart air conditioner unit emitting exhaust plumes (no text or symbols)

Digital display panel with icons for buttons, a grid of squares, and a plus sign

Image displaying a grid of gray rectangular blocks with varying dot patterns and one white rectangle, likely representing a digital display or data matrix.

Diagram of a mechanical component with a blue arrow indicating direction (no text or symbols)

3D diagram of a mouse inside a container with a blue arrow indicating direction (no text or symbols)

Hinweise

Diagram showing three labeled objects: a shell, a block with checkmark and cross, and a textured object with X.

Hinweise

Illustration of a hand inserting a coin into a mechanical device (no text or symbols visible)

de Störungen, was tun?

Service-Hotlines
www.siemens-home.bsh-group.com

AE	04 803 0501	LI	05 274 1788
AL	066 206 47 94	LU	26 349 300
AT	0810 550 522	LV	067 425 232
AU	1300 368 339	ME	050 432 575
BA	033 213 513	MK	02 2454 600
BE	070 222 142	NL	088 424 4020
BG	02 931 50 62	NO	22 66 06 00
CH	043 455 4095	PL	801 191 534
CN	400 889 9999Call rates depend on the network used	PT	21 4250 720
CZ	0251 095 546	RO	021 203 9748
DE	0911 70 440 044	RU	8 800 200 29 62
DK	44 89 89 85	SE	0771 11 22 77 (local rate)
EE	0627 8730	SK	02 444 520 41
ES	902 11 88 21	SL	01 200 70 17
FI	020 7510 700Lankapuhelimesta 8,28 snt/puhelu + 7 snt/min (alv 24%)Matkapuhelimesta 8,28 snt/puhelu + 17 snt/min (alv 24%)	TR	444 6688Çağrı merkezini sabit hatlardan aramanın bedeli şehir içiücretlendirme. Cep telefonlarından ise kullanılan tarifeyegore değişkenlik göstermektedir
FR	0140 10 1200	US	866 447 4363 (toll free)
GB	0344 892 8999Calls charged at local or mobile rate	XK	044 172 309
GR	18 182 (Aotikıchipeωση)	XS	011 21 39 552
HR	01 3028 226
HU	0036 1 489 5461
IE	01450 26550.03 € per minute at peak. Off peak 0.0088 € per minute.
IL	08 9777 222
IS	0520 3000
IT	800 018 346 (Line Verde)

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.

DE Deutschland, Germany

mailto:[e-mail] www.siemens-home.bsh-group.com/ae

www.siemens-home.bsh-group.at

www.siemens-home.bsh-group.com/au * Mo-Fr: 24 hours

www.siemens-home.bsh-group.com/be

www.siemens-home.bsh-group.com/ch

CY Cyprus, Kúπρος

BSH Ikiakes Syskeves-Service 39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:bsh.service.cyprus@

cytanet.com.cy

www.siemens-home.bsh-group.com/cz

DK Danmark, Denmark

BSH Hvidevarer A/S

Telegrafvej 4

2750 Ballerup

Tel.: [phone]

[e-mail]

www.siemens-home.bsh-group.com/dk

ES España, Spain

www.siemens-home.bsh-group.es

FI Suomi, Finland

BSH Kodinkoneet Oy

Itälahdenkatu 18 A

PL 123

00201 Helsinki

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/fi

siemens-home.bsh-group.com

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts or accessories or for product advice please visit www.siemens-home.bsh-group.com/uk Or call

Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Τηλέφωνο: 181 82

www.siemens-home.bsh-group.com/gr

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon,

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 030 (Macao)

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/hk

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call Tel.: [phone]*

www.siemens-home.bsh-group.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel

C/S/B/ Home Appliance Ltd.

1. Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House,

Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

Tehaco s.a.r.l.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LU Luxembourg

www.siemens-home.bsh-group.com/lu

MK Macedonia, Makedonia

GORENEC

Jane Sandanski 67 lok. 3

1000 Skopje

Tel.: [phone]

Mobil: 070 233 689

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

www.siemens-home.bsh-group.nl

NO Norge, Norway

www.siemens-home.bsh-group.com/no

PL Polska, Poland

www.siemens-home.bsh-group.pl

PT Portugal

www.siemens-home.bsh-group.com/pt

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ro

RU Russia, Россия

www.siemens-home.bsh-group.ru

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.siemens-home.bsh-group.com/se

SK Slovensko, Slovakia

www.siemens-home.bsh-group.com/tr

www.siemens-home.bsh-group.com/ua

XK Kosovo

Service-General SH.P.K.

rr. Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

Tel.: [phone]

mailto:[e-mail]

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

BSH Hausgeräte GmbH

siemens-home.bsh-group.com
