Product type	Automatic espresso machine
Brand	Siemens
Model	EQ.6 Plus S300 TE653M19RW
Dimensions (H x W x D)	385 x 280 x 468 mm
Weight (empty)	10-12 kg
Power supply	220-240 V, 50/60 Hz, 1500 W
Maximum pump pressure	15 bar
Water tank capacity	1.7 L
Bean hopper capacity	~300 g
Grinder type	Ceramic grinder
Main functions	Espresso, coffee, cappuccino, latte macchiato, milk-based drinks, hot water, ground coffee, two cups, aromaDouble Shot, favorites
Grind adjustment	Yes, rotary selector (while grinder is running)
Integrated milk frother	Yes, with automatic steam cleaning
Child safety lock	Yes, control panel lock
Maintenance programs	Descaling, cleaning, calc'nClean, milk frother cleaning
Brew unit cleaning	Removable, washable with water
Compatible water filter	Yes (Siemens TZ70003)
Automatic shut-off	Yes, adjustable from 15 min to 3 h
Included accessories	Milk hose, suction tube, measuring spoon, water hardness strip, water filter, milk container (depending on model), descaling tablets (depending on model)
Warranty	According to distributor's terms

Frequently Asked Questions - EQ.6 Plus S300 TE653M19RW SIEMENS

What to do if the appliance does not turn on?

Check that the power plug is properly inserted and the main switch (position 1) is on. If the appliance still does not respond, unplug it, wait 10 seconds, then plug it back in.

How to descale the machine?

Use the Descaling program in the Cleaning and maintenance menu. Remove the water filter, pour 0.5 L of warm water with a Siemens descaling tablet into the tank, place a 0.5 L container under the spout, and follow the on-screen instructions. The program takes about 30 minutes.

How to prepare a cappuccino?

Make sure the milk hose is connected and immersed in cold milk. Select the Cappuccino symbol on the control panel, adjust the size and intensity if desired, then press start/stop. The machine first dispenses the milk foam, then the coffee.

What to do if the coffee drips or does not flow?

This may be due to a grind setting that is too fine or scale build-up. Set the grinder selector to a coarser setting (only while the grinder is running). If the problem persists, run a descaling program.

How to clean the milk frother?

After each use, the machine performs an automatic steam rinse. For weekly manual cleaning, disassemble the milk frother (upper and lower parts), the hose, and the suction tube. Wash them by hand with dish soap or in the dishwasher, rinse and dry before reassembling.

How to adjust the water hardness?

Use the provided strip to measure your water hardness. In the menu, select Water hardness and choose the corresponding level (1 to 4 or Softener). The default setting is 4. A correct setting allows the machine to indicate when to descale.

Why is the milk foam insufficient or absent?

Check that the milk system is clean and properly assembled. Use cold milk with at least 1.5% fat content. If the problem persists, clean the milk frother and its holder, or descale the appliance.

How to use ground coffee?

Select the desired beverage, then press the [∅] button until ground coffee is displayed. Open the coffee drawer, add a maximum of 2 level measuring spoons of ground coffee (not instant), close the drawer and press start/stop.

What does the message 'Please empty the drip tray' mean when it is empty?

When the appliance has been turned off, the emptying operation is not detected. Turn on the machine, remove the drip tray, clean it thoroughly and put it back. If the message persists, check that the float is not stuck.

How to activate the child safety lock?

Press the [°°] button for at least 3 seconds. A key symbol appears on the screen. The control panel is then locked. To deactivate, press [°°] again for 3 seconds.

USER MANUAL EQ.6 Plus S300 TE653M19RW SIEMENS

Fully automatic coffee machine

TE65..

en Instruction manual

fr Mode d'emploi

Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome

The future moving in.

Siemens Home Appliances

en	English	6
fr	Français	31
nl	Nederlands	57
pl	Polski	82
cs	Čeština	109
ru	Русский	134
de	Deutsch	162

A

Included in delivery (see page 9)

Line drawing of a water dispenser with labeled components (no text or symbols)

b SIEMENS c SIEMENS

E-Nr. .... FD... ...

Simple line drawing of a U-shaped tube with two connectors and a separate vertical bar (no text or symbols)

e

f

g*

Simple line drawing of a cylindrical container with a lid (no text or symbols)

h*

i*

B start stop Espresso normal mittelgroß ok ✓ menu ml

C 10 11 9 12 13 19 6 5 2 3 4 1 17

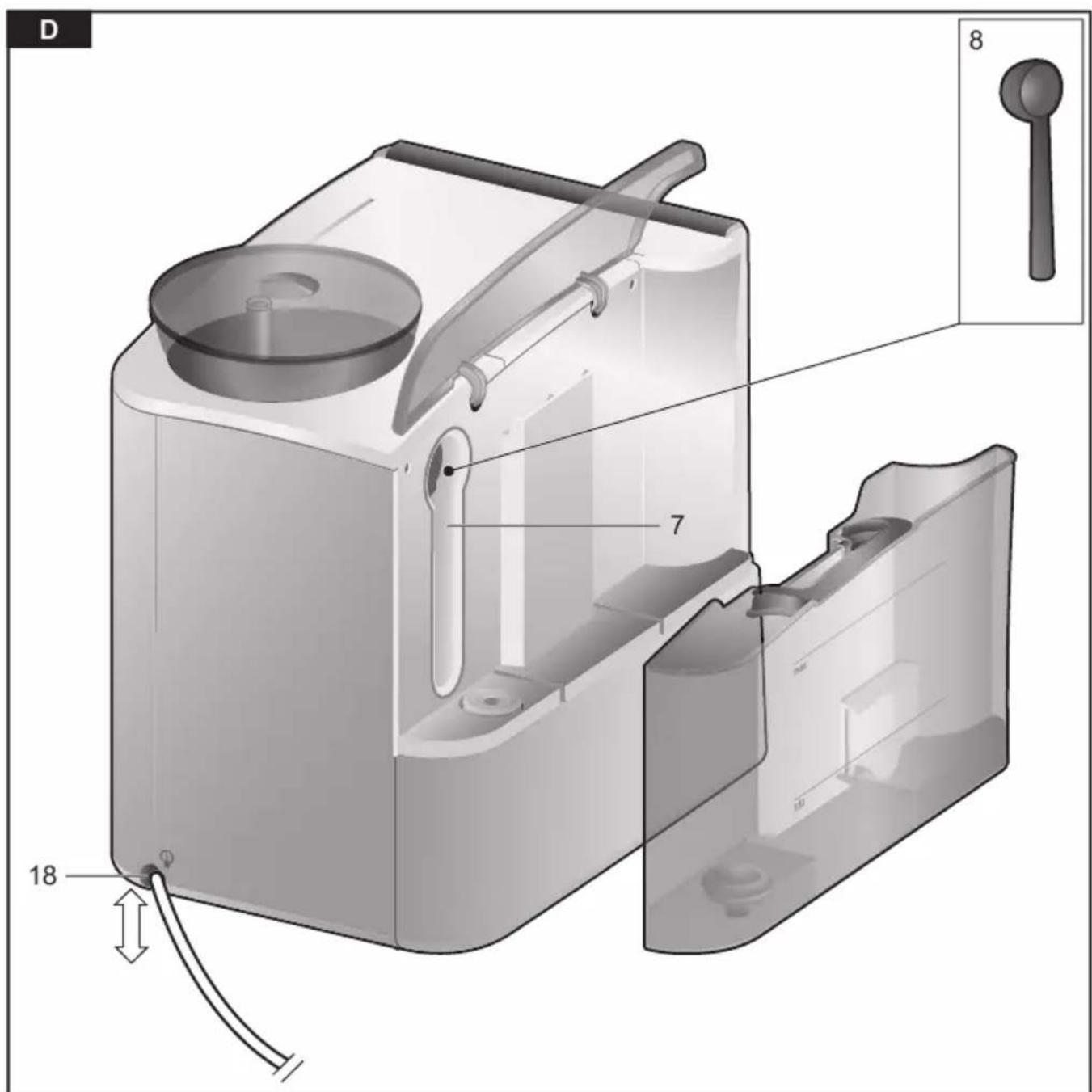

D 8 7 18

E 4e 4b 4c 4a 4d

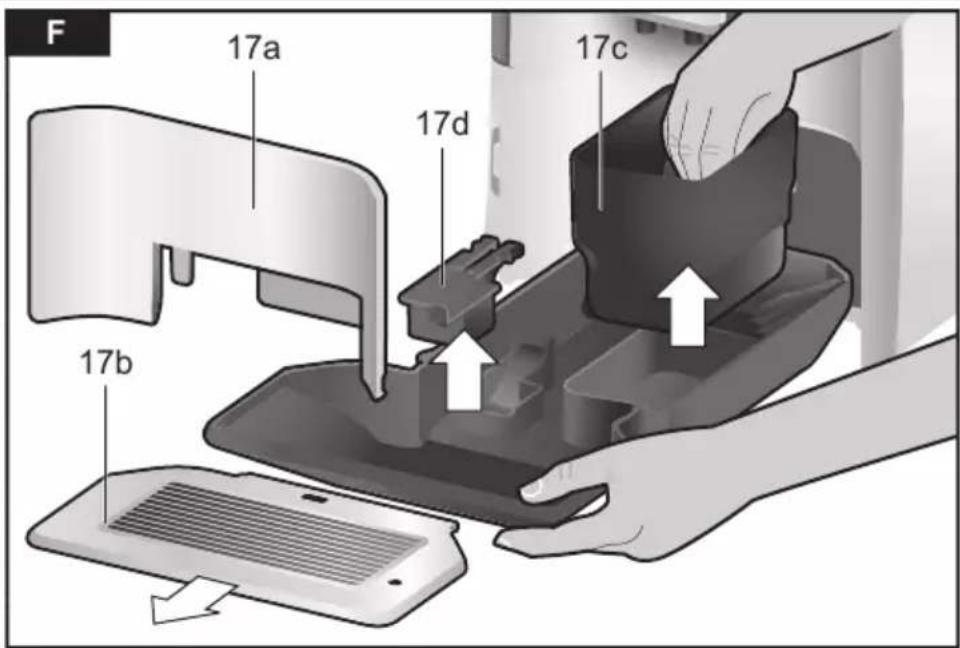

F 17a 17d 17c 17b

Dear Coffee Connoisseur, Congratulations on purchasing this fully automatic coffee machine from Siemens.

This instruction manual describes a number of versions of the appliance with minor differences.

Please also take note of the enclosed Quick reference guide, which you can then keep in the specially provided compartment 16 until you need it again.

These instructions also show display texts and symbols in a special way so that you can clearly see where we refer to texts displayed by the appliance or symbols that are marked on it.

Example of display texts: Espresso Example of control elements: [start/stop]

Contents

Intended use ....7

Important safety information....7

Included in delivery....9

Overview....9

Overview of control elements .....10

Display....11

Initial use....12

Own settings "Favourite" ....13

Childproof lock....13

Preparing drinks....13

Preparing coffee drinks 14

Preparation using milk 15

Special beverages 16

Preparation using ground coffee .....17

Adjusting the grind setting .....17

Menu 17

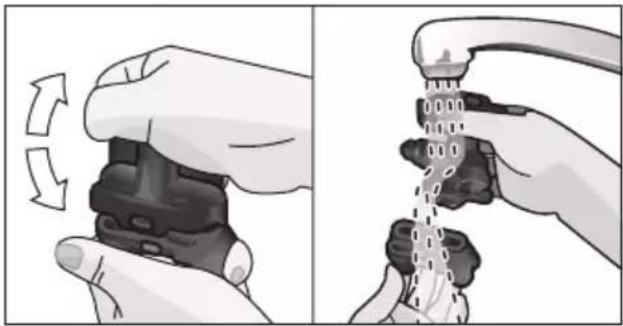

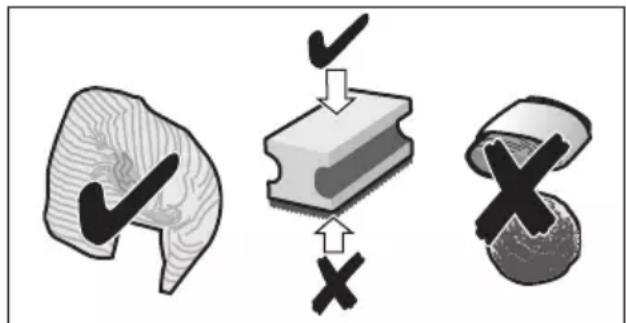

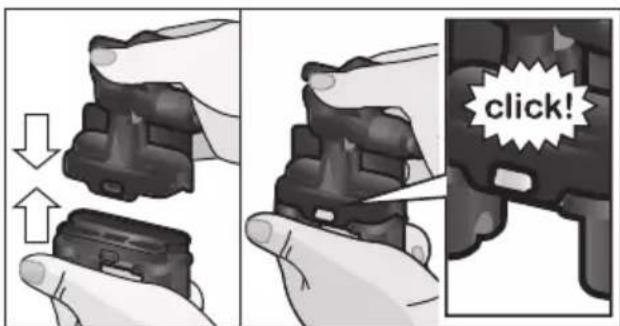

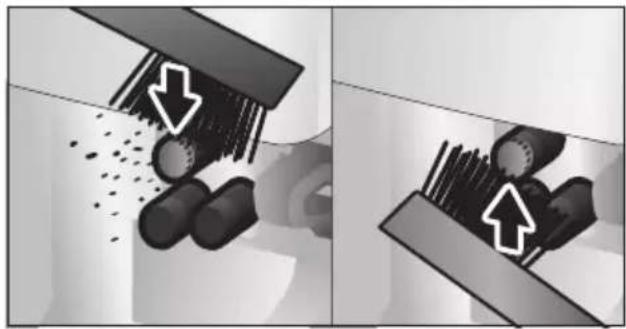

Care and daily cleaning ....20

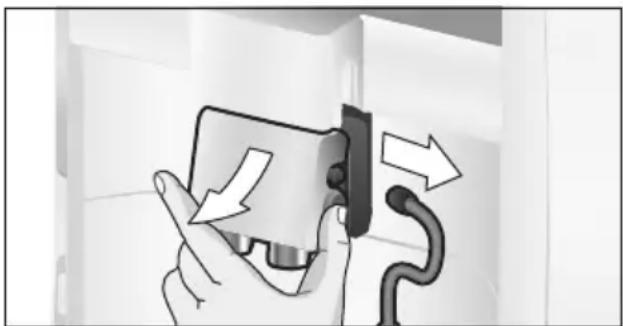

Cleaning the milk system....21

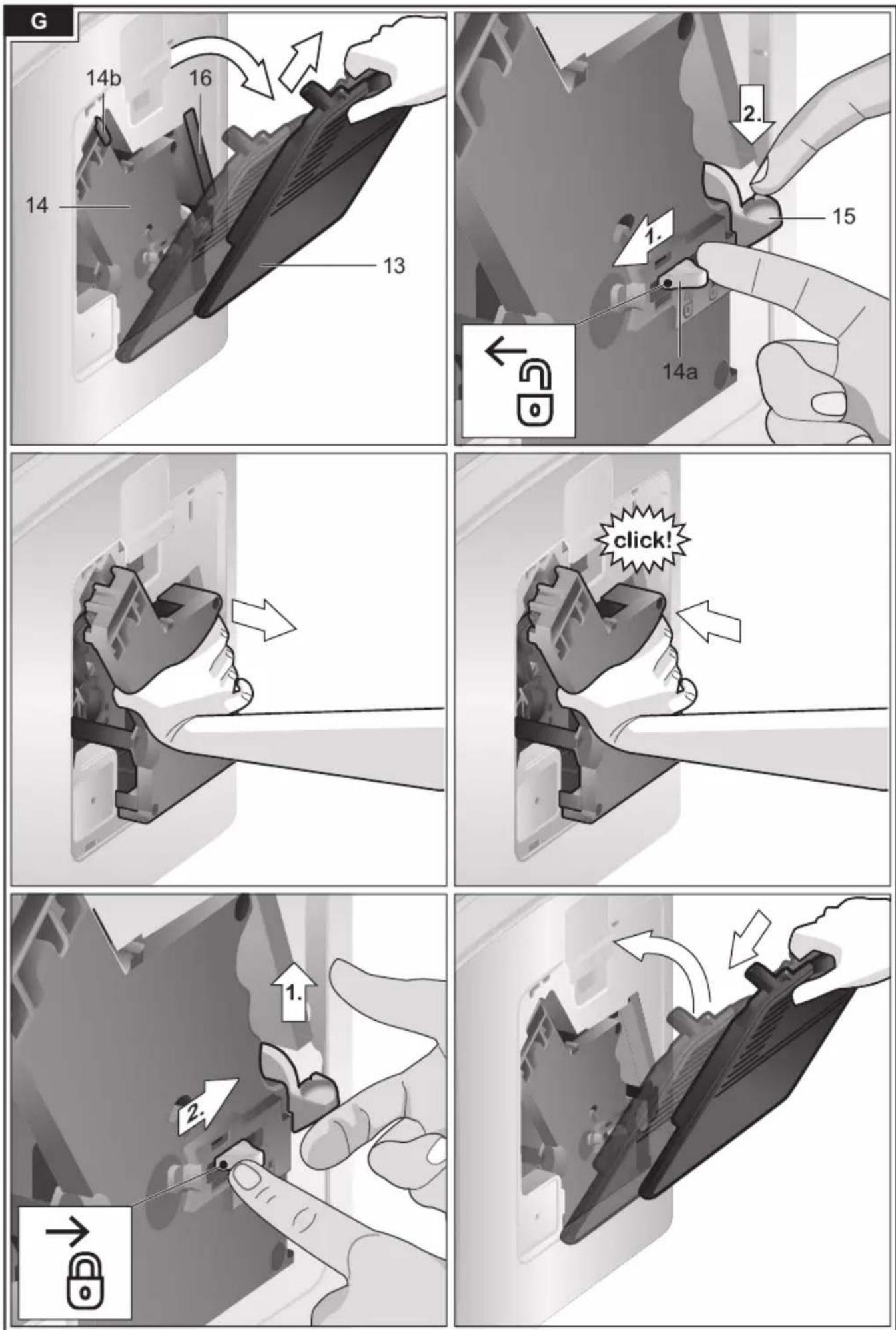

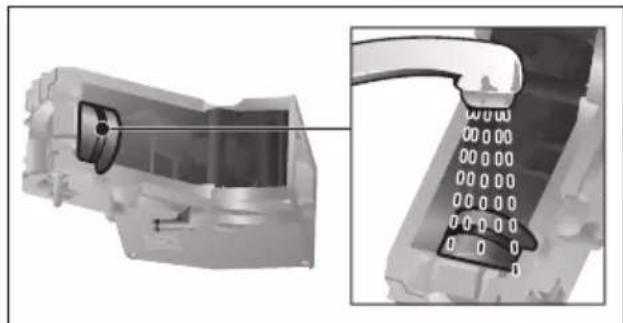

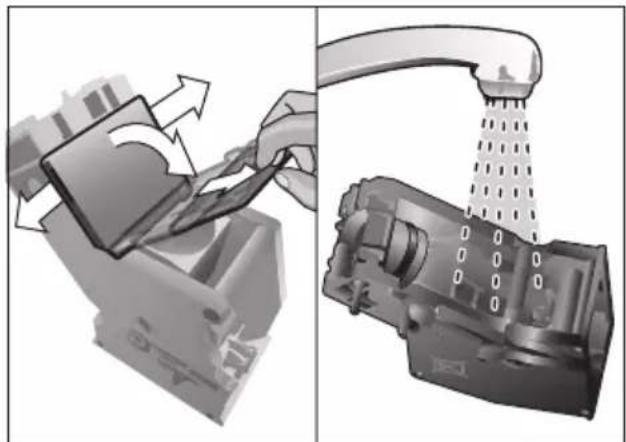

Cleaning the brewing unit (Figure G).....22

Service programmes....23

Cleaning the milk system....23

Descaling 23

Cleaning 24

calc'nClean 24

Tips on energy saving......25

Frost protection....26

Storing accessories ......26

Accessories ......26

Disposal....26

Guarantee....26

Simple troubleshooting ....27

Technical specifications ....30

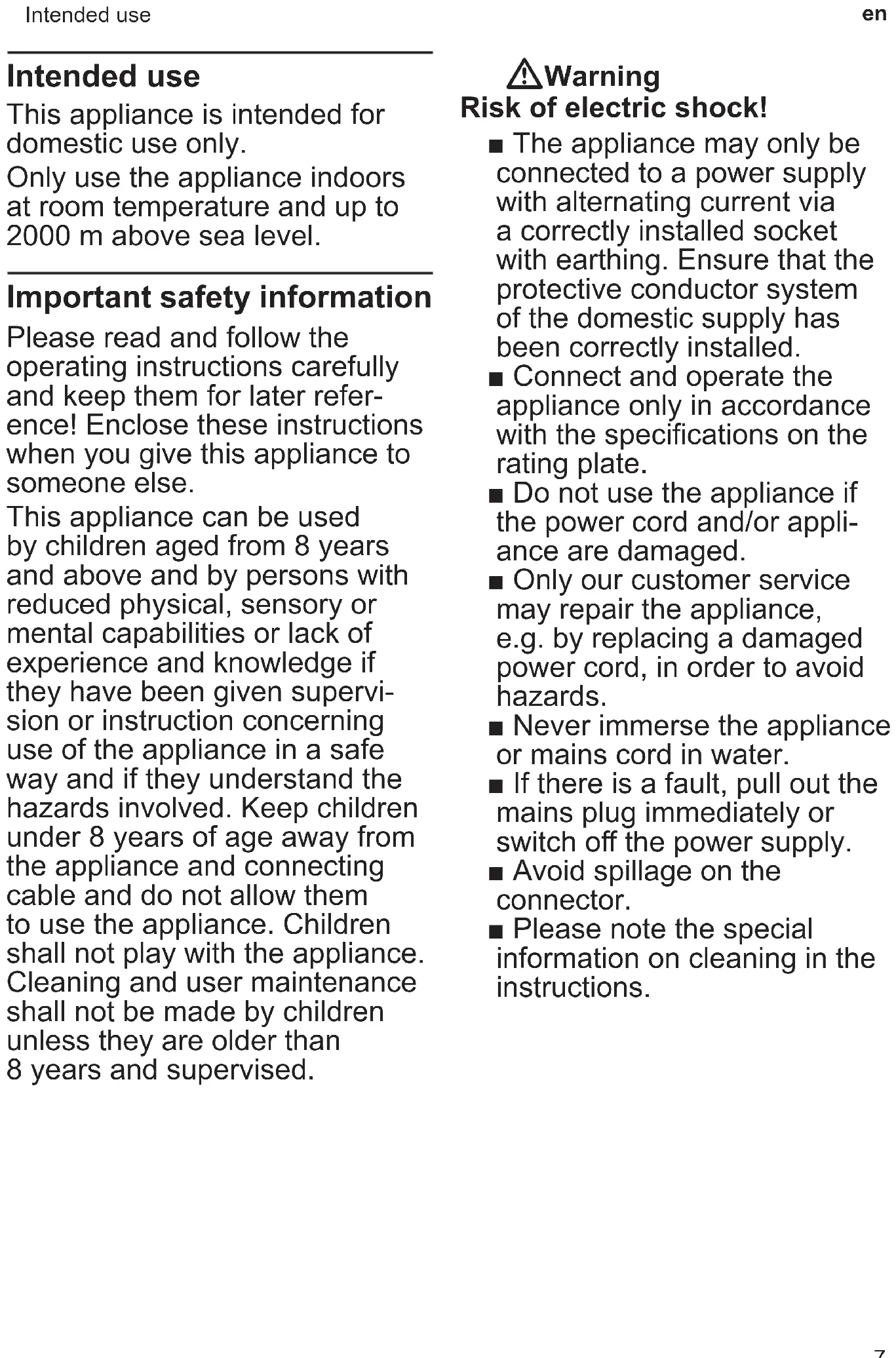

Intended use

This appliance is intended for domestic use only.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Please read and follow the operating instructions carefully and keep them for later reference! Enclose these instructions when you give this appliance to someone else.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

⚠ Warning

Risk of electric shock!

■ The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed.
■ Connect and operate the appliance only in accordance with the specifications on the rating plate.
■ Do not use the appliance if the power cord and/or appliance are damaged.
■ Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
■ Never immerse the appliance or mains cord in water.
■ If there is a fault, pull out the mains plug immediately or switch off the power supply.
■ Avoid spillage on the connector.
■ Please note the special information on cleaning in the instructions.

⚠ Warning

Hazard due to magnetism!

The appliance contains permanent magnets which can affect electronic implants such as pacemakers or insulin pumps. Persons wearing electronic implants must maintain a minimum distance of 10 cm from the appliance and from the following parts upon removal: milk container, milk system, water tank, drip tray and brewing unit.

⚠ Warning

Risk of suffocation!

■ Do not allow children to play with packaging material.
■ Store small parts safely as they can be easily swallowed.

⚠ Warning

Risk of injury!

■ Do not reach into the grinding unit!
■ Improper use of this appliance may result in injury.

⚠ Warning

Risk of fire!

■ The appliance gets hot.
■ Never operate the appliance in a cupboard.

⚠ Warning

Risk of burns!

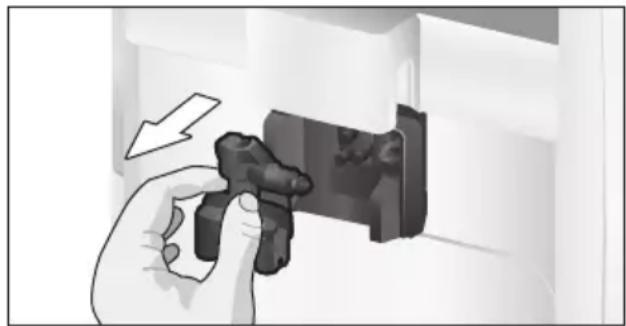

■ The milk system becomes extremely hot. After use, always let it cool down before you touch it.
■ After use the surfaces of the heating element or hotplate can remain hot for some time.
■ Freshly prepared beverages are very hot. Leave to cool a little if necessary.

Included in delivery

(Figure A)

a Fully automatic coffee machine
b User Manual
c Quick reference guide
d Milk tube and suction pipe
e Water hardness testing strip

f Measuring spoon
g Water filter *
h Milk container with "freshLock" lid *
i Descaling tablets *

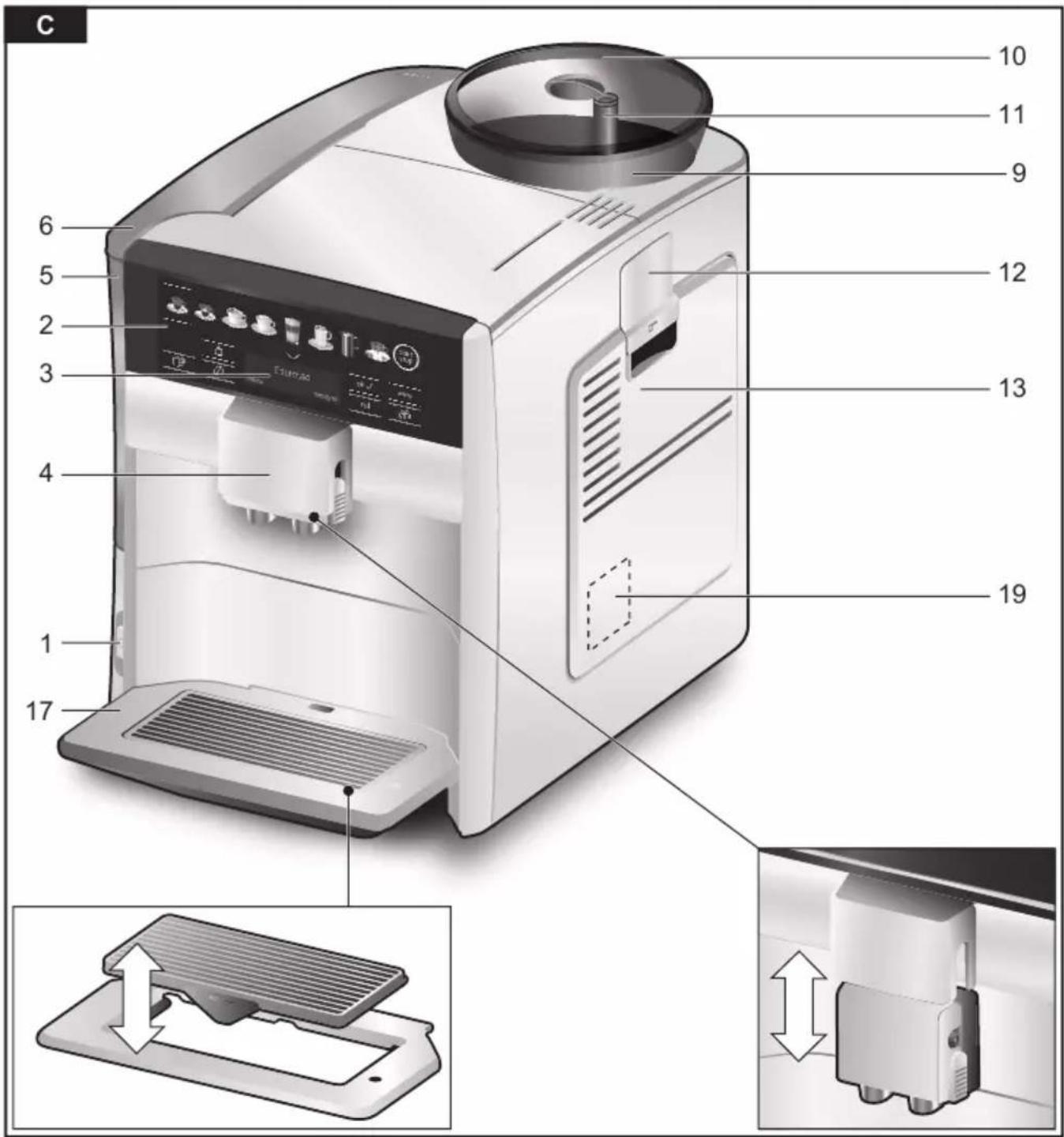

Overview

(Figures B, C, D, E, F and G)

1 Mains switch ①
2 Control panel (see next page)
3 Display

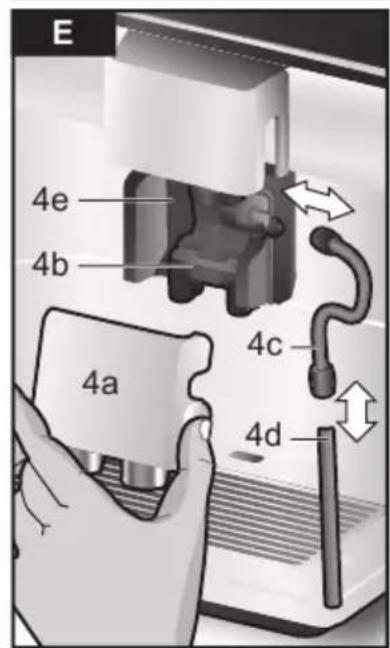

4 Drinks outlet (coffee, milk, hot water), height-adjustable
a) Cover
b) Milk system /coffee outlet (two-part)
c) Milk tube
d) Suction pipe
e) Milk system holder

5 Removable water tank

6 Lid for water tank

7 Storage compartment for measuring spoon

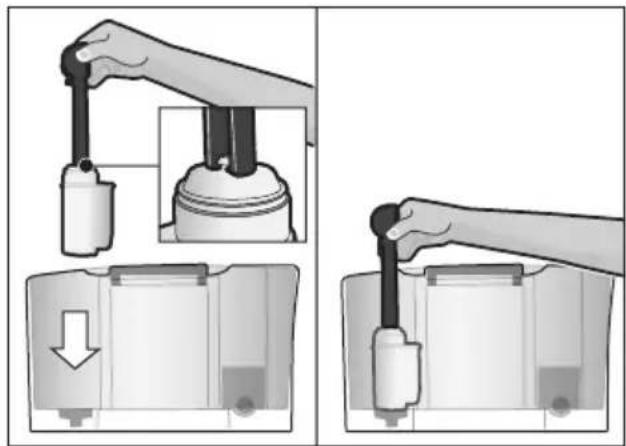

8 Measuring spoon (insertion aid for water filter)

9 Bean container

10 Aroma cover
11 Dial selector for grinding level
12 Drawer (for ground coffee/cleaning tablet)
13 Door to brewing unit
14 Brewing unit a) Locking mechanism b) Cover
15 Eject lever
16 Storage compartment for quick reference guide
17 Drip tray a) Drip tray panel b) Drip tray (two-section) c) Coffee grounds container d) Floater
18 Compartment for power cord
19 Rating plate (E number, FD)

* These user instructions describe a number of appliance versions. Items marked * are not present in all models.

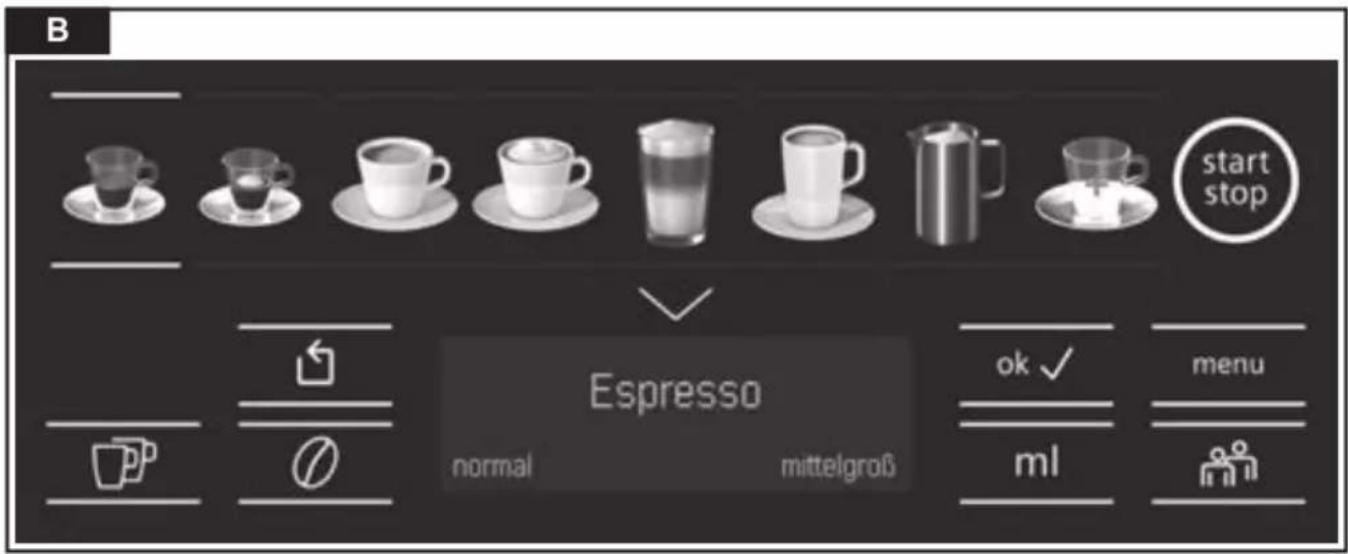

Overview of control elements

(Figure B)
The following symbols are visible or backlit depending on the appliance's current operating mode:

	Espresso Latte Macchiato
	Espresso Macch. Caffe Latte
	Coffee Milk froth
	Cappuccino		Special beverages (see the section “Special beverages”).
	[start/stop] – Start/stop button [√] – Selection down
	[∅] – Back	menu	[menu] – Open menu
	[∅P] – Dispense two cups simultaneously	ok√	[ok√] – Confirm / Store
	[∅] – Set coffee strength	ml	[ml] – Select cup size
	[∅∅] – Call up Favourite (touch briefly) and Childproof lock (touch for at least 3 seconds).

Mains switch ①

The mains switch ① is used to switch the appliance on or off. The appliance rinses itself automatically when it is switched on and off.

The appliance does not rinse if:

■ it is still warm when switched on, or
■ no coffee was dispensed before it was switched off.

The appliance is ready for use when the symbols and the display on the control panel are lit.

Control panel (touch field)

In the control panel you can easily navigate the controls just by touching the symbols and characters.

You will hear an audible signal.

These audible signals can be switched on or off (see the section "Menu – Key tones").

Drink selection

Touching the corresponding symbol selects the desired drink (see the section "Preparing drinks").

Start/stop button

Touching [start/stop] either begins preparing a drink or launches a service programme. If you touch [start/stop] again while the drink is being prepared, dispensing will be prematurely halted.

Menu

Touching [menu] calls up the menu, the navigation symbols will be activated and light up. Touch [√], [ok√] and [☐] to navigate through the menu and call up information or change settings (see the section "Menu").

Drink options

Touching [∅] or [ml] adjusts the strength or size of the drink, touching [PP] prepares two cups simultaneously as soon as you touch [start/stop] to begin dispensing (see the section "Preparing drinks").

"Favourite" and Childproof lock

Briefly touching [ˈmɪŋ] calls up personalised beverages (see the section “Own settings Favourite”).

Touching [ˈmɪŋ] for 3 seconds or more activates or deactivates the childproof lock (see the section “Childproof lock”).

Display

The display shows the selected drinks and settings plus messages reporting the appliance's operating status.

Espresso

Regular medium

Please refill water tank

These messages are cleared as soon as the action has been carried out.

Initial use

General

Fill the appropriate container using only pure, cold, uncarbonated water and solely roasted beans. Do not use coffee beans that have been glazed, caramelised or treated with other additives containing sugar, since they will block the brewing unit. The water hardness setting on the appliance can be adjusted. The factory setting for the water hardness is 4. Use the enclosed test strip to determine the hardness of your water supply. If this shows a value other than 4, you will need to programme the appliance appropriately after it has been taken into service (see section "Menu – Water hardness").

Setting up the appliance

■ Remove any protective plastic film.
■ Place the fully automatic coffee machine on a level, waterproof surface that is able to support its weight.
- The appliance's ventilation slits must not be covered or obscured.

Important: Only use the appliance in a frost-free room. If it has been transported or stored at temperatures below 0^ C, wait at least 3 hours before taking it into operation.

■ Connect the power supply (cable storage compartment 18) to the socket. You can adjust the length of the cable by pulling it further out or pushing it back in. To do this, place the appliance with its back flush with the edge of the work surface and either pull the cable out downwards or push it in upwards.

■ Flip up the lid of the water tank 6.
■ Remove the water tank 5, rinse it out and fill it with fresh cold water. Do not fill it past the "max" mark.
■ Replace the water tank 5, making sure that it is straight, and push it right down into place.
■ Reclose the lid of the water tank 6.
■ Fill the bean container 9 with coffee beans.

■ Use the main switch ① 1 to switch on the appliance.
The control panel and the display will be activated. The display will show the previously specified language, which will also be used for all subsequent display texts. A number of different languages are available.

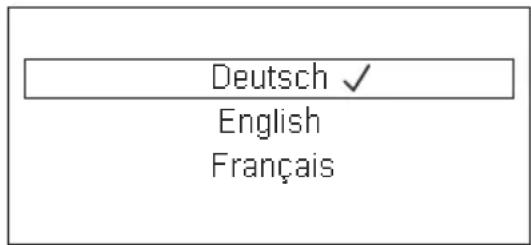

■ Touch [√] repeatedly until the display indicates the desired language.

Deutsch ✓ English Français

■ Touch [start/stop] to confirm your selection.

The chosen language is now stored. The brand logo will light up on the display 3. The appliance will heat up and rinse itself, a small amount of water will run out of the drink outlet 4.

The appliance is ready for use when the symbols and the display on the control panel are lit.

Product display screen showing icons for coffee, tea, and coffee cup with Chinese labels

The factory settings of the fully automatic coffee machine are programmed for optimal performance. The appliances switches off automatically after a configured time (see the section "Menu – Automatic shut-down").

When the appliance is used for the first time, after a service program has been run and when it has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.
When the fully automatic coffee machine is first used, you will achieve a suitably thick and stable “crema” only after the first few cups have been dispensed.
If the appliance is in use for a long period of time, water droplets will form on the ventilation slits. This is normal.

Own settings "Favourite"

The number of Favourites depends on the model of the appliance. The menu item "Favourite" can be used to store and change individual (personalised) beverages (see the section "Menu – Favourite").

Call up individual beverage

■ Briefly touch [icon].
■ Select one of the Favourites already stored with your own settings.
■ Touch [start/stop] to begin dispensing the beverage.

Childproof lock

The appliance can be locked to protect children against scalding and burns.

■ Touch [icon] for at least 3 seconds.
A key symbol appears on the display 3.
The childproof lock is now active.
It is no longer possible to operate the appliance.

■ Touch [图标] for at least 3 seconds.

The key symbol disappears from the display 3. The childproof lock is now deactivated. The appliance can be used in the usual way.

Preparing drinks

This fully automatic coffee machine grinds fresh beans for every brewing. For optimum quality, store the beans in a cool place in sealed containers.

i Important: Fill the water tank 5 with fresh clean water every day. The tank 5 should always contain sufficient water for operating the appliance.

i Cups should be prewarmed, e.g. with hot water. This applies particularly to small thick-walled espresso cups.

For a number of settings, coffee is prepared in two stages (see "aromaDouble Shot"). Please wait until the process is completely finished.

Different beverages can be prepared just by touching a key.

Drink selection

Touching the appropriate symbol selects the desired drink. Your selection is indicated by lines above and below the symbol. The name of the drink and the currently active values for strength and cup size are shown in display 3.

You can choose from the following drinks:

Touch the “special beverages” button several times to select different drinks one after the other:

Hot water Americano *

Warm milk * Flat White *

Coffee pot * Cafe Cortado *

Kleiner Brauner *

Items marked * are not present in all models.

Adjusting the strength, selecting ground coffee

Touch [∅] to set the strength of your coffee individually or to specify that ground coffee is to be used.

The following settings are possible:

very mild very strong

mild doubleshot strong

regular doubleshot strong+

strong Ground coffee

■ Touching the appropriate symbol selects the desired drink.

■ Touch [∅] repeatedly until the desired setting e.g. strong or Ground coffee (see the section “Preparation using ground coffee”) appears on the display.

aromaDouble Shot

The longer the coffee is brewed, the more bitter substances and undesired aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. So for extra strong coffee, the appliance has a special aromaDouble Shot function. When half the quantity has been prepared, it grinds and brews fresh coffee beans so that only the pleasant, aromatic scents are released.

The aromaDouble Shot function can be selected for any drink containing a proportion of at least 35 ml coffee volume. It is not available for small drinks such as a small espresso or when the [☐] setting is enabled.

Select cup size

Touching [ml] individually selects the beverage volume desired.

The following settings are possible:

small medium large

■ Touching the appropriate symbol selects the desired drink.

■ Touch [ml] repeatedly until the display indicates the desired setting.

An arrow or multiple arrows next to the setting, e.g. "large \\", indicate that the preset capacity (see the section "Menu - Set cup size") has been changed.

Two cups at once

Once you have selected a black coffee or milky coffee drink (for some appliances, this applies only to black coffee), touching [P] prepares two cups simultaneously as soon as you touch [start/stop] to begin dispensing.

The setting is shown on the display.

■ Touching the appropriate symbol selects the desired drink.

■ Touch [☐].

■ Place two prewarmed cups at left and right underneath the beverage outlet 4.

■ Touch [start/stop] to begin dispensing the beverage.

The selected drink will be brewed and will then be dispensed into the two cups.

The drink is prepared in two stages (two grinding operations). Please wait until the process is completely finished.

Depending on the type of appliance the function “Two cups at once” may be available only for black coffee, not for milky coffee drinks.

Preparing coffee drinks

The appliance must be ready for use.

■ Place a prewarmed cup underneath the beverage outlet 4.
■ Touch the appropriate symbol to select the desired drink, Espresso or Coffee.

The name of the drink and the currently active values for strength and cup size are shown in display.

Coffee

Regular

medium

You can change the cup size and coffee strength by touching [ml] and [∅]. If you select Ground coffee, follow the procedure described under "Preparation using ground coffee".

For example:

■ Touch [ml] repeatedly until the display shows large.
■ Touch [∅] repeatedly until the display shows mild.
■ Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the cup.

You can touch [start/stop] again to prematurely halt dispensing.

Preparation using milk

This fully automatic coffee machine possesses an integrated milk system that enables you to prepare coffee with milk or milk froth or warm milk alone.

Tip: It is also possible to use plant-based alternatives to milk, e.g. soya milk.

Note: The quality of the milk froth depends on the type of milk or the plant-based alternative used.

Risk of burns! The upper and lower sections of the milk system 4b become extremely hot. After use, always let them cool down before you touch them.

Caution! Dried milk residues are difficult to remove, therefore always clean (see the section “Cleaning the milk system”).

While milk is being prepared you may hear a whistling sound. This is due to the technical nature of the milk system 4b.

i Touch [start/stop] again to prematurely halt dispensing.

The appliance must be ready for use. The milk tube and suction pipe must be connected.

■ Insert the suction pipe 4d into the milk container.
■ Place a prewarmed cup or glass underneath the beverage outlet.

Coffee-based drinks with milk

■ Touch the appropriate symbol to select Espresso Macch., Caffe Latte, Latte Macchiato or Cappuccino.

The name of the drink and the previously specified values for strength and cup size are shown in display.

You can change the cup size and coffee strength by touching [ml] and [∅]. If you select Ground coffee, follow the procedure described under "Preparation using ground coffee".

■ Touch [start/stop] to begin dispensing the beverage.

The milk or milk froth is dispensed into the cup or glass first. Then the coffee is brewed and runs into the cup or glass.

You can touch [start/stop] again to prematurely halt dispensing of the milk or coffee, touching [start/stop] twice stops the entire dispensing process.

Milk froth

■ Touch the symbol to select Milk froth.
■ Touch [ml] to select the cup size.
■ Touch [start/stop] to begin dispensing the beverage.
Milk froth is dispensed from the beverage outlet.

Special beverages

Touch the “special beverages” button several times to select different drinks one after the other.

Items marked * are not present in all models.

Hot water

Before hot water is dispensed, the milk system should be cleaned and the milk tube removed (see the section “Cleaning the milk system”). If the milk system is not cleaned, small amounts of milk may be dispensed together with the hot water.

Risk of burns!

The milk system 4b becomes extremely hot. After use, always let it cool down before you touch it.

The appliance must be ready for use.

■ Place a cup or glass underneath the beverage outlet 4.
■ Touch the “special beverages” symbol repeatedly until Hot water appears on the display.

■ Touch [ml] to select the cup size.

■ Touch [start/stop] to begin dispensing the beverage.

If you see the message Please remove suction hose, proceed as follows:

■ Take off the milk tube 4c and then touch [start/stop] again.

Hot water will flow out of the outlet 4.

You can touch [start/stop] again to prematurely halt dispensing.

Warm milk \*

Please read through first and take note of the section "Preparation using milk".

Then:

■ Touch the “special beverages” symbol repeatedly until Warm milk appears on the display.

■ Touch [ml] to select the cup size.

■ Touch [start/stop] to begin dispensing the beverage.

Warm milk will flow out of the outlet 4.

You can touch [start/stop] again to prematurely halt dispensing.

Americano \*

■ Place a prewarmed cup underneath the beverage outlet 4.
■ Touch the “special beverages” symbol repeatedly until Americano appears on the display.
■ Select settings such as the cup size and strength as described in the section "Preparing coffee drinks".

■ Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the cup.

You can touch [start/stop] again to prematurely halt dispensing.

Flat White \*, Cafe Cortado \* or Kleiner Brauner\*

Please read through first and take note of the section "Preparation using milk".

Then:

■ Place a cup or glass underneath the beverage outlet 4.
■ Touch the “special beverages” symbol repeatedly until Flat White, Cafe Cortado or Kleiner Brauner appears on the display.
■ Select settings such as the cup size and strength as described in the section "Preparing coffee drinks".

■ Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and runs into the cup or glass. Milk or milk froth is dispensed depending on the beverage. The sequence of coffee/milk depends on the beverage.

You can touch [start/stop] again to prematurely halt dispensing of milk or coffee. Touching [start/stop] twice stops the entire dispensing process.

Pot function \*

■ Place a pot underneath the beverage outlet 4.
■ Touch the “special beverages” symbol repeatedly until Pot function appears on the display.

■ Touch [∅] to select the desired coffee strength.
■ Touch [ml] to select the desired quantity (4 or 6 cups).
■ Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the pot.

You can touch [start/stop] again to prematurely halt dispensing.

Preparation using ground coffee

This fully automatic coffee machine can also be operated using ground coffee (but not instant coffee).

When using ground coffee, the setting for the strength of the coffee, dispensing two cups at once and aromaDouble Shot is not available.

The appliance must be ready for use.

■ Place a prewarmed cup underneath the beverage outlet 4.
■ Touch the appropriate symbol to select a black or milky coffee drink.

■ Touch [∅] repeatedly until the display shows Ground coffee.

■ Open the ground coffee drawer 12.
■ Place no more than two level measuring spoons of ground coffee in the drawer.

Caution!

Do not place coffee beans or instant coffee in this drawer.

■ Close the ground coffee drawer 12.

■ Touch [start/stop] to begin dispensing the beverage.

The coffee is brewed and then dispensed into the cup.

Touch [start/stop] again to prematurely halt dispensing.

Adjusting the grind setting

You can use the rotary selector 11 to adjust the grind setting from coarse to fine.

Caution!

Adjust the grind setting only while the grinding unit is running, otherwise you may damage the appliance.

Risk of injury!

Do not reach into the grinding unit.

■ With the grinding unit running, adjust the selector 11 from fine (a: turn anticlockwise) to coarse (b: turn clockwise).

Simple cartoon illustration of a helmet with a head and circular bubbles, labeled 'a' in the top-left corner (no text or symbols on the helmet itself)

Simple grayscale illustration of a mushroom-shaped container with bubbles and a pointed tip (no text or symbols)

The new setting will not become apparent until after the second cup of coffee.

For dark roast coffee beans, choose a finer grind, for lighter beans a coarser grind.

Menu

The menu is used for changing individual settings, accessing information and launching processes.

■ Touch [menu] to open the menu.

In the display you will see the various setting options, the navigation symbols light up. The current setting is marked on the display.

Navigating through the menu:

[∨] = move down

[ok√] = confirm / store

[凸] = go back

[menu] = open the menu / exit from the menu

Touching [√] displays each setting or selection option in order. After you reach the lowest menu item the topmost one is shown again.

For example:

Setting the coffee temperature to max.:

■ Touch [menu]. The menu is opened.
■ Touch [√] repeatedly until the display shows Coffee temperature.
■ Touch [ok√], the display shows e.g. high.
■ Touch [ √ ] repeatedly until the display shows max.
■ Touch [ok√] to store the setting. The display shows the confirmation.
■ The menu item Coffee temperature appears.
■ Touch [↩] to exit from the menu.

You can specify the following settings:

Cleaning and care

Starting the special service programmes.

You can select Rinse the milk system,

Descale, Clean or calc'nClean.

■ Use [√] to choose the desired programme and touch [ok√] to confirm your choice.

■ Touch [start/stop] to begin running the programme.

Important: Be sure to take note of the section on "Service programmes".

Info Service programmes

(depending on the type of appliance)

Display how many beverages can still be prepared before it will be necessary to run one of the service programmes.

■ Use [√] to display Clean after --- □ or Descale after --- □.

■ Touch [↩] to exit from the display.

For technical reasons the counter does not represent a precise number of cups.

Coffee-milk ratio *

The coffee-milk mixing ratio set in the factory can be adjusted in several steps.

■ Use [√] to select the beverage (only for coffee drinks with milk) and confirm with [ok√].
■ Use [√] to select the desired mixing ratio (setting of milk content in %) and confirm with [ok√].
■ The setting is saved.

Example: If a value of 30% is selected, 30% milk and 70% coffee will be dispensed.

Items marked * are not present in all models.

Favourite

The menu item Favourite can be used to create or change personalised beverages. The number of Favourites depends on the model of the appliance.

■ Use [√] to select a new or existing profile and confirm with [ok√]
■ Touch the desired beverage and confirm with [ok√].
- Your selection for the beverage settings appears on the display depending on the beverage, e.g. ml or Coffee–milk ratio.
■ Make your settings and confirm with [ok√] each time.
■ The beverage is now saved in the profile.

Set cup size

Set up the volume dispensed for each drink and each size of cup. The volumes set up in the factory can be adjusted stepwise.

■ Use [√] to choose a drink and touch [ok√] to confirm your choice.
■ Use [√] to choose the desired volume and touch [ok√] to confirm your choice.

The setting is then saved.

Water hardness

Set this to the hardness of the local water supply.

Level 1, 2, 3, 4 or Softening system can be selected. The preset level of water hardness is level 4.

■ Use [√] to choose the desired water hardness and touch [ok√] to confirm your choice.

It is important to set the water hardness correctly, so that the appliance indicates accurately when the descaling programme should be run.

You can check the water hardness using the enclosed test strip or by asking your local water supplier. If a water softening system is installed in the house, please select the Softening system setting.

■ Briefly dip the test strip in the water and check the result after one minute.

Level Water hardness

	German (°dH)	French (°fH)
1	1-7	1-13
2	8-14	14-25
3	15-21	26-38
4	22-30	39-54

Automatic shut-down

Setting how long the appliance should wait after the last drink was prepared before it automatically switches itself off.

You can specify values from 15 minutes to 3 hours. The factory setting is 30 minutes.

■ Use [√] to choose the desired interval and touch [ok√] to confirm your choice.

Coffee temperature

Specifying the temperature for coffee drinks and hot water.

You can choose normal, high, or max.

The setting applies to all types of drink preparation.

■ Use [√] to choose the desired temperature level and touch [ok√] to confirm your choice.

Water filter

Specifying whether a water filter should be activated or whether no filter is used.

You can choose Activate new filter or No filter.

A water filter lessens limescale deposits and reduces impurities in water. The appliance also does not need to be descaled so often.

Water filters are available from retail outlets or from customer services (see the section "Accessories").

Important: Before you can use a new water filter it will need to be rinsed.

■ Immerse the water filter with the opening facing upwards in a container filled with cold water.
■ Gently compress the sides of the filter until no more air bubbles rise to the surface and the water filter rests on the base of the container.
■ Use the measuring spoon 8 to press the water filter firmly into the water tank 5.

Illustration of a mechanical device being lifted, showing internal components and a downward arrow (no text or symbols)

■ Fill the water tank with water up to the "max" mark.
■ Connect the milk tube 4c to the milk system 4b and the suction pipe 4d.
■ Insert the end of the suction pipe 4d into the drip plate 17b.

■ Touch [menu] and use [√] to select Water filter.

■ Touch [ok√] and use [▽] to select Activate new filter.

■ Empty the drip tray and re-insert.

■ Touch [ok√] to confirm.

Water will now flow through the filter to rinse it.

■ Then empty the drip tray and re-insert.

The appliance is ready for use again.

Rinsing the filter simultaneously activates the setting for displaying the message “Please change water filter”. When this message appears, or at the latest after two months, the filter will no longer be effective. It needs to be replaced for reasons of hygiene and to prevent a build-up of limescale (which could damage the appliance).

If you do not intend to insert a new filter, select the setting No filter and touch [ok√] to confirm.

If the appliance has not been used for a prolonged period (for example, while you are on holiday), the existing filter should be rinsed before the appliance is used again. To do this, simply dispense a cup of hot water.

Languages

Setting up the language to be used for display texts.

■ Use [√] to choose the desired language and touch [ok√] to confirm your choice.

Frost protection

Service programme to prevent frost damage during transportation and storage. This programme completely empties the appliance.

The appliance must be ready for use and the water tank 5 must be filled.

■ Touch [start/stop] to begin running the programme.
■ Remove the water tank; the appliance automatically empties all its pipes and then switches itself off.
■ Empty the water tank 5 and the drip tray 17.

Key tones

Switches on or off the tones that you hear when you touch the control panel.

■ Touch [ok√] to confirm your choice.
■ Use [√] to choose Key tones ON or Key tones OFF and touch [ok√] to confirm your choice.

Beverage statistics

(depending on the type of appliance) Shows the volume of drinks dispensed since the appliance was taken into service.

■ Touch [☐] to exit from the display.

Factory settings

Resets your own settings to the condition when delivered.

■ Touch [start/stop] to clear all your own settings.

Care and daily cleaning

Risk of electric shock!

Before cleaning the appliance, unplug it from the mains. Never immerse the appliance in water. Do not use a steam cleaner.

■ Wipe the outside of the appliance with a soft, damp cloth.
■ Clean the control panel with a microfibre cloth.
■ Do not use any cleaning agents containing alcohol or spirits.
■ Do not use abrasive cloths or cleaning agents.

Diagram illustrating three types of medical or surgical procedures: a skull, a block with checkmark and cross symbols, and a cross symbol.

■ Always immediately remove any lime-scale, or residues of coffee, milk, cleaning or descaling solution. It is possible for corrosion to form underneath such deposits.
■ New sponge cloths may contain salts that can cause rust films to form on stainless steel, so such cloths should always be thoroughly rinsed before use.

■ Pull the drip tray 17 and coffee grounds container 17c towards the front and remove them. Take off the panel 17a and drip plate 17b. Empty and clean the drip tray and coffee grounds container.
■ Wipe out the inside of the appliance (holder, trays) and the drawer for ground coffee (this cannot be removed).
■ Remove the float 17d and clean it with a moist cloth (depends on the type of appliance).

Do not put the following parts in the dishwasher:

Panel of drip tray 17a, cover 4a, brewing unit 14, water tank 5 and aroma cover 10.

The following parts may be cleaned in the dishwasher:

Drip tray 17, drip plate 17b, coffee grounds container 17c, measuring spoon 8 and the upper and lower parts of the milk system 4b.

Important: The drip tray 17 and coffee grounds container 17c should be emptied and cleaned every day in order to prevent deposits.

If the appliance is cold when switched on, or if it is switched off after dispensing coffee, it rinses automatically. The system is therefore self-cleaning.

Important: If the appliance is not used for a lengthy period (e.g. while you are on holiday), clean the entire appliance thoroughly, including the beverage dispenser 4, milk system 4b, drip tray 17 and brewing unit 14.

Cleaning the milk system

The milk system 4b is automatically cleaned with a short jet of steam directly after preparing a milk drink. Clean the milk system manually once a week or more frequently if required. For particularly thorough cleaning, the milk system 4b can be automatically rinsed with the programme "Cleaning the milk system" (see the section "Service programmes – Cleaning the milk system").

Cleaning by hand

Risk of burns!

The milk system 4b becomes extremely hot. After use, always let them cool down before you touch them.

Take the milk system 4b apart to clean it:

■ Push the beverage outlet 4 right down.
■ Take off the cover 4a towards the front and pull off the milk tube.

Illustration of a hand inserting a plug into a wall-mounted cable, with arrows indicating direction (no text or symbols)

■ Remove the milk system 4b by pulling it straight forward.

Hand holding a device with a downward arrow indicating compression (no text or symbols)

en Care and daily cleaning

■ Clean the milk system holder 4e thoroughly to remove any coffee residues.

Two-panel illustration showing mechanical components with arrows indicating motion or force direction (no text or symbols)

■ Take apart the upper and lower parts of the milk system 4b.

Illustration showing two hands performing a manual task: one holding a device with rotational motion arrows, the other handling a tool with a dashed line (no text or symbols)

■ Separate the milk tube from the suction pipe.

■ Clean the individual parts with washing-up liquid and a soft cloth.

■ Rinse all parts with clean water and dry them.

The upper and lower parts of the milk system 4b, the milk tube 4c and the suction pipe 4d can also be cleaned in a dishwasher.

■ Reassemble the individual parts.

click!

■ Place the milk system 4b back in the appliance from the front, making sure it is straight.

■ Replace the cover 4a.

Cleaning the brewing unit (Figure G)

See also the Quick reference guide in the storage compartment 16.

In addition to the automatic cleaning programme, the brewing unit 14 should be removed regularly for cleaning.

■ Use the main switch ① 1 to switch the appliance completely off.

■ Open the door 13 to the brewing unit.

■ Slide the red latch 14a on the brewing unit 14 all the way to the left.

■ Press the eject lever 15 right down. The brewing unit will be released.

■ Take hold of the brewing unit 14 by the recessed grips and carefully remove it.

Important: Clean it without using washing-up liquid and do not put it in the dishwasher.

■ Remove the cover 14b and thoroughly clean the brewing unit 14 under running water.

Two-panel illustration showing a hand pouring liquid into a device and a close-up of a mechanical component with a showerhead (no text or symbols)

■ Thoroughly clean the strainer of the brewing unit under the water jet.

Mechanical component diagram showing internal structure and close-up view of a button mechanism (no text or symbols)

■ Thoroughly clean the inside of the appliance with a moist cloth, removing any coffee residues.
- Allow the brewing unit 14 and the inside of the appliance to dry.
■ Replace the cover 14b on the brewing unit and then push the brewing unit 14 back into the appliance until it latches into place.
■ Press the eject lever 15 right up.
■ Slide the red latch 14a all the way to the right and close the door 13.

Service programmes

See also the Quick reference guide in the storage compartment 16.

Following prior notification, either

Descaling necessary or Cleaning necessary or calc'nClean necessary.

appears in display 3 at certain intervals. The unit should immediately be cleaned or descaled using the appropriate programme. The two processes Descale and Clean can optionally be carried out together using the calc'nClean function (see the section "calc'nClean"). Failure to carry out the service programme according to the instructions may damage the appliance.

Using a water filter increases the intervals until a descaling programme needs to be performed.

Important: if descaling is not performed on the appliance in good time, then the following appears: Descaling overdue. Appliance will soon be locked --> press menu for 3 sec. Immediately perform the descaling process in accordance with the instructions. If the appliance is locked, it can only be operated again once the descaling process has been carried out.

Caution!

For each of the service programmes, use descaling and cleaning agents as described in the instructions. Never interrupt a service programme. Do not swallow any cleaning fluids! Never use citric acid, vinegar or any vinegar-based agents. Never place descaling tablets or other descaling materials in the coffee drawer 12!

Before starting the service program (Descale, Clean or calc'nClean) remove the brewing unit, clean it as instructed and replace it.

Clean the milk system holder 4e thoroughly to remove any coffee residues.

Specially developed suitable descaling and cleaning tablets are available from retail outlets or from customer services (see the section “Accessories”).

Cleaning the milk system

Takes about 1 minute.

Touch [menu] to open the menu.

■ Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.
■ Use [√] to choose Rinse the milk system and touch [ok√] to confirm your choice.
■ Touch [start/stop] to begin running the programme.

The display 3 will indicate the progress of the programme:

■ Place an empty glass under the beverage outlet 4 and stand the end of the suction pipe 4d in it.
■ Touch [start/stop]. The milk system will now clean itself automatically.
■ Then empty the glass and clean the suction pipe 4d.

You should also regularly clean the milk system manually (dishwasher or by hand, see the section “Care and daily cleaning”).

Descaling

Takes about 30 minutes.

The line at the bottom of the display

indicates the progress of the descaling process.

If there is a water filter in the water tank 5, be sure to remove it before starting the service programme.

■ Touch [menu] to open the menu.
■ Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.
■ Use [√] to choose Descale and touch [ok√] to confirm your choice.
■ Touch [start/stop] to begin running the programme.

he display 3 will indicate the progress of the programme:

■ Empty and re-insert the drip tray 17.

The following request appears: Remove water filter if inserted →start.

■ Remove the filter and then touch [start/stop] again.
■ Pour lukewarm water into the empty water tank 5 up to the "0.51" mark and then dissolve one Siemens descaling tablet TZ80002N in it.

■ Touch [start/stop].
■ Place a container with a capacity of 0.5 litre under the beverage outlet 4.
■ Place the end of the suction pipe 4d in the container.
■ Touch [start/stop].

The descaling programme will now run for about 20 minutes.

If there is not enough descaling solution in the water tank 5, you will see the prompt Refill descaler start.

■ Add more descaling solution and then touch [start/stop] again.
- Rinse the water tank 5 and refill it with fresh water up to the "max" mark.
■ If you use a filter, replace it now.
■ Touch [start/stop].

The descaling programme will now run for about 1 minute and rinse the appliance.

■ Empty and re-insert the drip tray 17.

Important: Wipe over the appliance with a soft damp cloth to ensure that you immediately remove any traces of descaling solution. It is possible for corrosion to form underneath such deposits. New sponge cloths may contain salts that can cause rust films to form on stainless steel, so such cloths should always be thoroughly rinsed before use. Clean the suction pipe 4d of the drinks outlet particularly carefully.

The appliance has finished descaling and is ready for use again.

Cleaning

Takes about 9 minutes.

The line at the bottom of the display indicates the progress of the descaling process.

■ Touch [menu] to open the menu.
■ Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.
■ Use [√] to choose Clean and touch [ok√] to confirm your choice.
■ Touch [start/stop] to begin running the programme.

The display 3 will indicate the progress of the programme:

■ Empty and re-insert the drip tray 17.
■ Open the ground coffee drawer 12.
- Drop one Siemens cleaning tablet in the drawer 12 and close it.
■ Touch [start/stop].

The cleaning programme will now run for about 7 minutes.

■ Empty and re-insert the drip tray 17.

The appliance has finished cleaning and is ready for use again.

calc'nClean

Takes about 43 minutes.

calc'nClean combines the functions

Descale and Clean.

If both programmes are due to be carried out close together the fully automatic coffee machine will automatically suggest this service programme.

The line at the bottom of the display indicates the progress of the descaling process.

If there is a water filter in the water tank 5, be sure to remove it before starting the service programme.

■ Touch [menu] to open the menu.
■ Use [√] to choose Cleaning and care and touch [ok√] to confirm your choice.
■ Use [√] to choose calc'nClean and touch [ok√] to confirm your choice.
■ Touch [start/stop] to begin running the programme.

The display 3 will indicate the progress of the programme:

■ Empty and re-insert the drip tray 17.
■ Open the ground coffee drawer 12.
■ Drop one Siemens cleaning tablet in the drawer 12 and close it.
■ Touch [start/stop].

The following request appears: Remove water filter if inserted → start.

■ Remove the filter and then touch [start/stop] again.
■ Pour lukewarm water into the empty water tank 5 up to the "0.51" mark and then dissolve one Siemens descaling tablet TZ80002N in it.
■ Touch [start/stop].
■ Place a container with a capacity of 1 litre under the beverage outlet 4.
■ Place the end of the suction pipe 4d in the container.
■ Touch [start/stop].

The descaling programme will now run for about 28 minutes.

If there is not enough descaling solution in the water tank 5, you will see the prompt Refill descaler →start.

■ Add more descaling solution and then touch [start/stop] again.

■ Rinse the water tank 5 and refill it with fresh water up to the “max” mark.

■ If you use a filter, replace it now.
■ Touch [start/stop].

The descaling programme will now run for about one more minute, and then the

cleaning programme will run for about 7 minutes and rinse the appliance.

■ Empty and re-insert the drip tray 17.

Important: Wipe over the appliance with a soft damp cloth to ensure that you immediately remove any traces of descaling solution. It is possible for corrosion to form underneath such deposits. New sponge cloths may contain salts that can cause rust films to form on stainless steel, so such cloths should always be thoroughly rinsed before use. Clean the suction pipe 4d of the drinks outlet particularly carefully.

The appliance has finished descaling and is ready for use again.

Important: If any of the service programmes is ever interrupted, for instance by a power failure, please proceed as follows:

• Rinse the water tank 5 and refill it with fresh water up to the “max” mark.
  ■ Touch [start/stop].

The appliance will be rinsed for approx. 2 minutes for safety reasons.

■ Empty and re-insert the drip tray 17.

The aborted service programme must be restarted.

Tips on energy saving

■ When the fully automatic coffee machine is not in use, use the mains switch ① 1 on the front of the appliance to switch it off.

■ In the menu, set the Automatic shut-down period to 15 minutes.

■ If possible, do not interrupt the dispensing of coffee or milk froth. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
■ Descale the appliance regularly to avoid a build-up of limescale. Limescale residues cause higher energy consumption.

Frost protection

Caution!

To prevent frost damage during transportation and storage, completely empty the appliance beforehand.

See the section "Menu – Frost protection".

Storing accessories

The fully automatic coffee machine has special compartments to hold the measuring spoon and the Quick reference guide.

■ To store the measuring spoon 8, lift off the water tank 5 and place the spoon in the preformed recess 7.
■ To store the Quick reference guide, open the door to the brewing unit 13 and insert the guide into the space provided 16.

Accessories

The following accessories are available from retailers or from customer service:

Accessories Order number

	Retail /Customer service
Cleaning tablets TZ80001A / 00312097TZ80001B / 00312098
Descaling tablets TZ80002A / 00312094TZ80002B / 00312095
Water filter TZ70003 / 00575491
Care set TZ80004A / 00312105TZ80004B / 00312106
Milk container with “freshLock” lid	TZ80009N / 00576166

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Simple troubleshooting

Problem Cause Remedial action
The appliance no longer responds.	Fault in the appliance Pull out the mains plug, wait 10 seconds, plug it back in.
The grinder will not start.	The appliance is too hot. Disconnect the appliance from the mains and leave to cool for one hour.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.	Descale the appliance according to the instructions.
Milk froth quality varies widely	The quality of the milk froth depends on the type of milk or the plant-based alternative used.	Optimise the result through the selection of the type of milk or plant-based drink.
No hot water dispensed.	The milk system or the intake of the milk system is soiled.	Clean the milk system or the intake (see the section “Care and daily cleaning”).
Too little milk froth, none at all, or the milk system is not taking in any milk.	The milk system or the intake of the milk system is soiled.	Clean the milk system or the intake (see the section “Care and daily cleaning”).
	Milk not suitable. Do not use milk that has been boiled. Use cold milk with a fat content of at least 1.5%.
	The milk system is assembled incorrectly.	Moisten the upper and lower sections and fit them together.
	Build-up of limescale in the appliance.	Descale the appliance according to the instructions.
The milk/blended milk drinks are too cold.	The milk used is too cold. Use lukewarm milk.
The personally selected per-cup quantity is not reached. Coffee dispensing slows to a trickle or stops completely.	Coffee is ground too finely. Pre-ground coffee is too fine.	Adjust the grinding level to a coarser setting. Use a coarser ground coffee.
	Heavy build-up of lime-scale in the appliance.	Descale the appliance according to the instructions.
Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a higher proportion of robusta beans.
If you are unable to solve the problem, always call the hotline!You will find the telephone numbers at the back of these instructions.
Coffee is too “acidic”. The grinding setting is too coarse or the pre-ground coffee is too coarse.		Adjust the grinding unit to a finer setting or use finer pre-ground coffee.
Coffee is too “bitter”. The grinding setting is too fine or the pre-ground coffee is too fine.		Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
The coffee tastes “burnt”. The brewing temperature is too high		Reduce the temperature, see the section “Menu – Coffee temperature”.
The appliance is not dispensing drinks	Air in the water filter. Dip the water filter in water until no more air bubbles escape, then replace the filter.
The appliance is not dispensing drinks	Residues of limescale remover are blocking the water tank.	Remove the water tank and clean thoroughly.
The water filter does not stay in position in the water tank.	The water filter is not fitted correctly.	Firmly press the water filter straight down into the tank connection.
The coffee grounds are not compact and are too wet.	The grinding setting is too fine or too coarse, or not enough ground coffee has been used.	Adjust the grinding unit to a coarser or finer setting, or use 2 level measuring spoons of ground coffee.
Water dripped onto the inner floor of the appli-ance when the drip tray was removed.	Drip tray removed too early.	Wait a few seconds after the last drink was dispensed before removing the drip tray.
Display shows Please refill bean container although the container is already full, or the grinder is not grinding any beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container. Possibly change the type of coffee. When the bean container is empty, wipe it with a dry cloth.
Display Empty drip tray despite empty drip tray.	Emptying is not detected when the appliance is switched off.	When the appliance is switched on, remove and re-insert the drip tray.
	The drip tray is soiled. Clean the drip tray thoroughly.
If you are unable to solve the problem, always call the hotline! You will find the telephone numbers at the back of these instructions.
DisplayFill with uncarbonated water or change filter	Water tank inserted wrongly.	Insert water tank correctly.
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
	Float is stuck in the water tank.	Remove the tank and clean thoroughly.
	New water filter not rinsed according to the instructions.	Rinse the water filter according to the instructions and switch on.
	Air in the water filter. Dip the water filter in water until no more air bubbles escape, then replace the filter.
	Water filter is old. Insert a new water filter.
Very frequent display that descaling is necessary.	Water is too hard. Insert a water filter and activate (see chapter “Menu – Water filter”).
	Beverage dispenser blocked.	Clean the beverage dispenser and the milk system intake (see the section “Care and daily cleaning”).
DisplayPlease clean brewing unit, then replace it	Brewing unit is soiled. Clean the brewing unit.
	Too much pre-ground coffee in the brewing unit.	Clean the brewing unit. Place no more than 2 level measuring spoons of ground coffee in the drawer.
	The mechanism of the brewing unit is stiff.	Clean the brewing unit (see the section “Care and daily cleaning”).
DisplayRestart appliance	Brewing unit is soiled. Clean the brewing unit.
DisplayAppliance not sufficiently descaled. Repeat the process	Incorrect or insufficient descaler or excessive scale on appliance.	Perform descaling programme again
DisplayLeave the appliance to cool down	Appliance is too hot. Switch off appliance for 30 minutes.
DisplayErrorPlease contact the hotline	The appliance has a fault. Please contact the hotline.
If you are unable to solve the problem, always call the hotline!You will find the telephone numbers at the back of these instructions.

Technical specifications

Power connection (voltage – frequency) 220-240 V – 50/60 Hz
Power rating 1500 W
Maximum static pump pressure 15 bar (TE651.., TE653.., TE654..)
Maximum water tank capacity (without filter) 1.7 l
Maximum capacity of the coffee bean container ~300 g
Length of power cable 100 cm
Dimensions (H x B x D) 385 x 280 x 468 mm
Weight, empty 10-12 kg
Type of grinding unit Ceramic

[start/stop] – Touche Start / Stop

Deutsch ✓ English Français

Product display screen showing coffee and tea icons with labels like 'Coffee' and 'Coffee 1'

Simple cartoon illustration of a mushroom-shaped object with a cutout and small circles inside (no text or symbols)

Simple grayscale illustration of a mushroom-shaped container with bubbles and a base (no text or symbols)

Informations relatives aux

programmes de maintenance

Proportion lait/café *

Illustration of a mechanical device being lifted or inserted, showing internal components and motion (no text or symbols)

Diagram illustrating three types of medical or surgical procedures: a skull, a block with checkmark and X marks, and a cross-sectional view.

Illustration of a hand inserting a wall-mounted device into a wall, with arrows indicating direction (no text or symbols)

Hand inserting a plug into a wall socket, showing a lightning bolt (no text or symbols)

Two-panel illustration showing a mechanical component with arrows indicating motion or force, no text or symbols present.

Illustration showing two hands performing a manual task: one holding a device with rotational arrows, the other pouring liquid into a tap (no text or symbols)

Two-panel illustration showing a mechanical device being processed and before or after cleaning a component (no text or symbols)

Mechanical component diagram showing internal structure and close-up view of a keypad (no text or symbols visible)

Deutsch ✓ English Français

Product display panel showing coffee machine control interface with icons and labels

Illustration of a hand using a mechanical device to lift a cylindrical component, with no text or symbols present.

Diagram illustrating three types of medical or surgical procedures: a human head with checkmark, a block with checkmark and X symbol, and a cross-shaped object.

Hand holding a wall-mounted device with a cable inserted, showing a directional arrow (no text or symbols)

Hand holding a black plastic clip with a downward arrow, next to a wall-mounted device (no text or symbols visible)

Two-panel illustration showing a mechanical component with arrows indicating motion or force, no text or symbols present.

Illustration showing two hands holding a device with motion arrows indicating rotation (no text or symbols)

Two-panel illustration showing a hand pouring liquid into a device and a mechanical component with a showerhead (no text or symbols)

Mechanical component diagram showing internal structure and close-up view of a keypad (no text or symbols visible)

Deutsch ✓ English Français

Product display screen showing coffee machine icons and brand name 'Business' with navigation buttons

Simple cartoon illustration of a helmet with a circular head and small bubbles, labeled 'a' in the top-left corner (no text or symbols on the helmet itself)

Simple grayscale illustration of a mushroom-shaped container with bubbles and a handle (no text or symbols)

Illustration of a hand using a mechanical device to lift a cylindrical component, with no text or symbols present.

Diagram illustrating three types of medical or surgical procedures: a cross-sectional view, a mechanical component with checkmark indicators, and a cross-sectional view.

Hand inserting a plug into a wall socket with a cable, showing electrical connection (no text or symbols)

Hand holding a black object with a lightning bolt symbol, next to a wall-mounted device (no text or symbols visible)

Two-panel illustration showing a mechanical component with arrows indicating motion or force, no text or symbols present.

Illustration showing two hands performing a manual task: one holding a black device, the other handling a hand with a tool (no text or symbols present)

Two-panel illustration showing a mechanical device being processed with a tool, and a close-up of a mechanical component with a drain shower (no text or symbols)

Mechanical component diagram showing internal structure and close-up view of a keypad (no text or symbols visible)

Deutsch ✓ English Français

Product display screen showing coffee machine icons and menu options in Chinese

Simple cartoon illustration of a helmet with a flag, no text or symbols present

Simple grayscale illustration of a mushroom-shaped container with bubbles and a handle (no text or symbols)

Illustration of a piston-cylinder assembly process showing mechanical components and fluid flow (no text or symbols)

Diagram illustrating three stages of a process: surface graft, a mechanical press, and a final product with checkmark and cross symbols.

Hand inserting a plug into a wall-mounted device with a cable, showing a directional arrow (no text or symbols)

Hand inserting a plug into a wall socket, showing a lightning bolt (no text or symbols)

Two-panel illustration showing a mechanical component with arrows indicating motion or force, no text or symbols present.

Illustration showing two hands performing a manual task: one adjusting a device with rotational arrows, the other handling a showerhead (no text or symbols)

Two-panel illustration showing a hand using a tool to clean or store the engine, with no visible text or symbols.

Mechanical component diagram showing internal structure and external view (no text or symbols)

Deutsch ✓ English Français

Product display screen showing coffee machine icons and menu options, including 'Coffee' and 'Coffee Ebook'

Simple cartoon illustration of a helmet with a circular design and small dots, labeled 'a' in the top-left corner (no text or symbols on the helmet itself)

Simple grayscale illustration of a mushroom-shaped container with bubbles and a base (no text or symbols)

Illustration of a hand using a piston to lift a cylinder into a cylindrical housing, with a downward arrow indicating motion (no text or symbols present)

Diagram illustrating three types of biological structures: a human head, a rectangular block with checkmark indicators, and a cross-shaped object.

Illustration of a hand inserting a wall-mounted cable with arrows indicating direction (no text or symbols)

Hand inserting a plug into a wall socket, showing a black plug and arrow (no text or symbols)

Two-panel illustration showing a mechanical component with arrows indicating motion or force, no text or symbols present.

Illustration showing two hands performing a manual task: one adjusting a device with rotational arrows, the other pouring liquid from a faucet (no text or symbols)

Two-panel illustration showing a hand using a tool to clean or store the engine, with no visible text or symbols.

Mechanical component diagram showing internal structure and close-up view of a keypad (no text or symbols visible)

Deutsch ✓ English Français

Screenshot of a coffee machine control panel with icons and labels for menu, coffee cup, coffee cup with checkmark, and coffee cup with checkmark.

Two identical grayscale diagrams labeled 'a' and 'b', each showing a circular object with internal bubbles, no text or symbols present.

Two-panel illustration showing a hand operating a piston and lifting a cylinder into a battery casing (no text or symbols)

Diagram illustrating three types of biological structures: a human head, a rectangular block with checkmark indicators, and a cross-shaped object.

Illustration of a hand inserting a plug into a wall socket with arrows indicating direction (no text or symbols)

Hand inserting a black plastic clip into a wall-mounted device (no text or symbols visible)

Two-panel illustration showing mechanical components with arrows indicating motion or force, no text or symbols present.

Illustration showing two hands performing a manual task: one holding a black device, the other handling a tool with a handle (no text or symbols present)

Two-panel illustration showing a hand pouring liquid into a device and another emitting a showerhead (no text or symbols)

3D mechanical component diagram showing internal structure and close-up view (no text or symbols)

www.siemens-home.bsh-group.de

AE United Arab Emirates,

www.siemens-home.bsh-group.com/me

*Sun-Thu 8am to 5pm (exclude public holidays)

AM Armenia

ZIG ZAG LLC

Charenci str. 25

Yerevan 375025

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.zigzag.am

www.siemens-home.bsh-group.at

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

mailto:[e-mail]

www.siemens-home.bsh-group.com/au

*Mo-Fr: 24 hours

AZ Azärbaycan Respublikası, Azerbaijan

Baku Service Company MMC

Azadliq Pr. 116

Baku

Tel.: [phone]

mailto:[e-mail]

www.ser-cen.az

Yurd Service MMC

50, Bakikhanov Str.

Baku, AZ1007

Tel.: [phone]

mailto:[e-mail]

www.yurd.az

www.siemens-home.bsh-group.com/be

BH Bahrain

Bahrain Gas WLL

Bldg 725 / Road 117 / Block 701

Sheikh Salman Highway,

Tubli-701; Bahrain

Manama

Tel.: [phone]

mailto:[e-mail]

*Sun-Thu 8am to 6pm (exclude public holidays)

www.siemens-home.bsh-group.com/ch

CN China

BSH Home Appliances Service Jiangsu Co. Ltd.

19F, Jinling Asia Pacific Tower,

No.2 Hanzhong Road,

Gulou District,

210005 Nanjing, Jiangsu Province

Service Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.cn

*phone rate depends on the network used

CY Cyprus, Kúπρος

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:EGO-CYCustomerService@

bshg.com

CYN Turkish Rep. Of North Cyprus

Argas Limited Company

37 Osman Paşa Cad. K. Çiltlik

Lefkoşa

Tel.: [phone]

mailto:[e-mail]

Semson Ticaret Sti. Ltd.

Bedrettin Demirel Cad. no 17

Girne

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/dk

ES España, Spain

www.siemens-home.bsh-group.com/fi

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts or accessories or for product advice please visit www.siemens-home.bsh-group.com/uk Or call

Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GE Georgia,

Elit Service Ltd.

Vake-Saburtalo district, Intersection of Al. Kazbegi ave. and Kavtaradze Str. 0186

Kavtaradze str. 1

Tbilisi

Tel.: [phone]

mailto:[e-mail]

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

www.siemens-home.bsh-group.com/gr

HK Hong Kong,

BSH Home Appliances Limited

Unit 07, 23/F, CDW Building,

388 Castle Peak Road

Tsuen Wan, New Territories,

Hong Kong

Tel.: [phone] (HK)

Fax: [phone]

Toll free 0800 030 (Macao)

mailto:[e-mail]

www.siemens-home.bsh-group.com.hk

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.siemens-home.bsh-group.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

*Mo-Sa 8am to 8pm (exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

PL Polska, Poland

www.siemens-home.bsh-group.pl

Yakkacinarskaya street No: 144/4

Dushanbe

Tel.: [phone]

mailto:[e-mail]

www.volna.tj

KG Kyrgyzstan,

Кыргыз Республикасы

OcOO Alfa Systems

Jibek Jolu str. 40

Bishkek

Tel.: [phone]

mailto:[e-mail]

PT Portugal

BSHP Electrodomésticos,

www.siemens-home.bsh-group.com/pt

TM Türkmenistan, Turkmenistan

Bayram Anna Yuryewna

Stariya marka, Atabeyeva str.

Spectrum mağaza

Ashgabat

Tel.: [phone]

mailto:[e-mail]

LU Luxembourg

www.siemens-home.bsh-group.com/lu

RU Russia, Россия

www.siemens-home.bsh-group.ru

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]*

mailto:[e-mail]

www.siemens-home.bsh-group.com/tr

www.siemens-home.bsh-group.com/se

UA Ukraine, Україна

www.siemens-home.bsh-group.com/ua

www.siemens-home.bsh-group.nl

SK Slovensko, Slovakia

Viac informácií (napr. záručné podmienky, predlžená záruka a i.)

www.siemens-home.bsh-group.com/sk/

www.siemens-home.bsh-group.com/no

ZA South Africa

BSH Home Appliances (Pty) Ltd.

96 Fifteenth Road, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

Service-Hotlines

www.siemens-home.bsh-group.com

AE 04 881 4401

AT 0810 550 522

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR 181 82

IE 01450 2655*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IL 08 9777 222

IS 0520 3000

IT 02 412 678 200

LU 26 349 821

MK 02 2454 600

NL 088 424 4020

NO 22 66 05 73

PL 801 191 534

PT 214 250 720

RO 021 203 9748

RU 8 (800) 200 29 62

SE 0771 19 55 00 local rate

SK [phone]

TR 0 216 444 6688*

siemens-home.bsh-group.com

8001169686(0006)

en © Manufactured by BSH Hausgeräte GmbH under Trademark License of Siemens AG
