Brand	Philips
Model	SBCHC8650
Product type	FM wireless audio system (headphone and transmitter)
Transmission	FM (frequency modulation), 864 MHz band
Effective range	Up to 100 meters, omnidirectional (360°)
Carrier frequency (transmitter)	Channel 1: 863.5 MHz; Channel 2: 864.0 MHz; Channel 3: 864.5 MHz
Carrier frequency (headphone)	863.2 - 864.7 MHz (auto tuning)
Frequency response (headphone)	10 - 22,000 Hz
Signal-to-noise ratio	> 60 dB (1 kHz, A-weighted)
Total harmonic distortion	< 0.5% THD
Channel separation	> 30 dB
Input level	500 mVrms (1 kHz sine wave)
Transmitter power supply	12 V / 200 mA DC, AC/DC adapter (Philips SBC CS030/00)
Headphone power supply	2 rechargeable NiMH LR03/AAA batteries (550 mAh) included
Battery life / charging	Full charge in 16 hours; green charge indicator
Number of channels	3 selectable channels on transmitter
Functions	Auto power on/off, mute, auto tuning, auto charging on transmitter
Audio connectivity	3.5 mm stereo audio input (headphone jack) and line input (RCA) - one at a time
Supplied accessories	Transmitter HC8652, headphone HC8655, AC/DC adapter, audio cable (2 m) with 3.5 mm plug and 2 RCA plugs, 3.5 mm to 6.3 mm adapter, 2 rechargeable NiMH AAA batteries
Compatibility	Can be used with multiple compatible headphones (864 MHz band, 19 kHz pilot tone)
Maintenance	Clean with a slightly damp cloth, no alcohol or solvents
Safety	Do not expose to moisture, excessive heat, direct sunlight
Regulation	Complies with EU directive R&TTE 1999/5/EC, class 3 (NET 300 445)

Frequently Asked Questions - SBCHC8650 PHILIPS

What to do if I get no sound?

Check that the AC/DC adapter is properly connected to the mains and to the transmitter. Make sure the headphone is powered on (On/Off button on On). The headphone batteries may be low: place the headphone on the transmitter to recharge. Check that the audio source is on and producing sound. Increase the volume of the source and the headphone. Perform a tuning by pressing the tuning button on the headphone for 1 second.

The sound is distorted, what to do?

Adjust the headphone tuning by pressing the tuning button for 1 second. If necessary, change the transmitter channel (1, 2 or 3) and retune. Make sure the headphone batteries are charged. Reduce the volume of the audio source or headphone if too high. Move away from sources of interference (neon lamps, other radio devices) or get closer to the transmitter.

How to recharge the headphone batteries?

Simply place the headphone on the transmitter, aligning the charging contacts. The green indicator on the transmitter lights up during charging. Completely discharged batteries require approximately 16 hours for a full charge. The headphone switches off automatically during charging.

Can I use multiple headphones with one transmitter?

Yes, it is possible to use multiple compatible wireless headphones or speakers with the same transmitter, provided they operate in the 864 MHz band and detect a 19 kHz pilot tone. Check the specifications of your devices to verify compatibility.

How to tune the headphone to the transmitter?

Press and hold the tuning button on the headphone for about 1 second. The headphone automatically searches for the correct frequency and the red tuning indicator lights up. If this does not work, repeat the operation or change the transmitter channel.

What type of batteries to use in the headphone?

Use exclusively rechargeable NiMH LR03/AAA batteries (preferably Philips). Do not use NiCd or alkaline batteries, as this could damage the system. The supplied batteries are NiMH 550 mAh.

How to replace the headphone batteries?

Carefully remove the ear cushions. Remove the old batteries and dispose of them according to local regulations. Insert two new NiMH LR03/AAA batteries, respecting the indicated polarities (+/-). Replace the ear cushions. Before first use, charge the batteries for 16 hours.

Can I connect the transmitter to my TV's headphone output?

Yes, use the supplied audio cable: plug the 3.5 mm connector into the TV's headphone output and the RCA connectors into the line input of the transmitter (or vice versa depending on the chosen option). If the headphone output is 6.3 mm, use the supplied adapter. Use only one audio input at a time.

What to do if the headphone power indicator flashes?

Flashing indicates low batteries. Recharge the headphone by placing it on the transmitter. The red LED flashes when the charge is low. After 16 hours of charging, the green LED lights up when the headphone is charging.

What are the maintenance precautions?

Clean the housing with a slightly damp chamois. Never use alcohol, thinner, ammonia or abrasive products. Protect the device from excessive heat, direct sunlight, dust, moisture and shocks. Remove the batteries if you do not use it for a long period.

USER MANUAL SBCHC8650 PHILIPS

Wireless FM Stereo Headphone

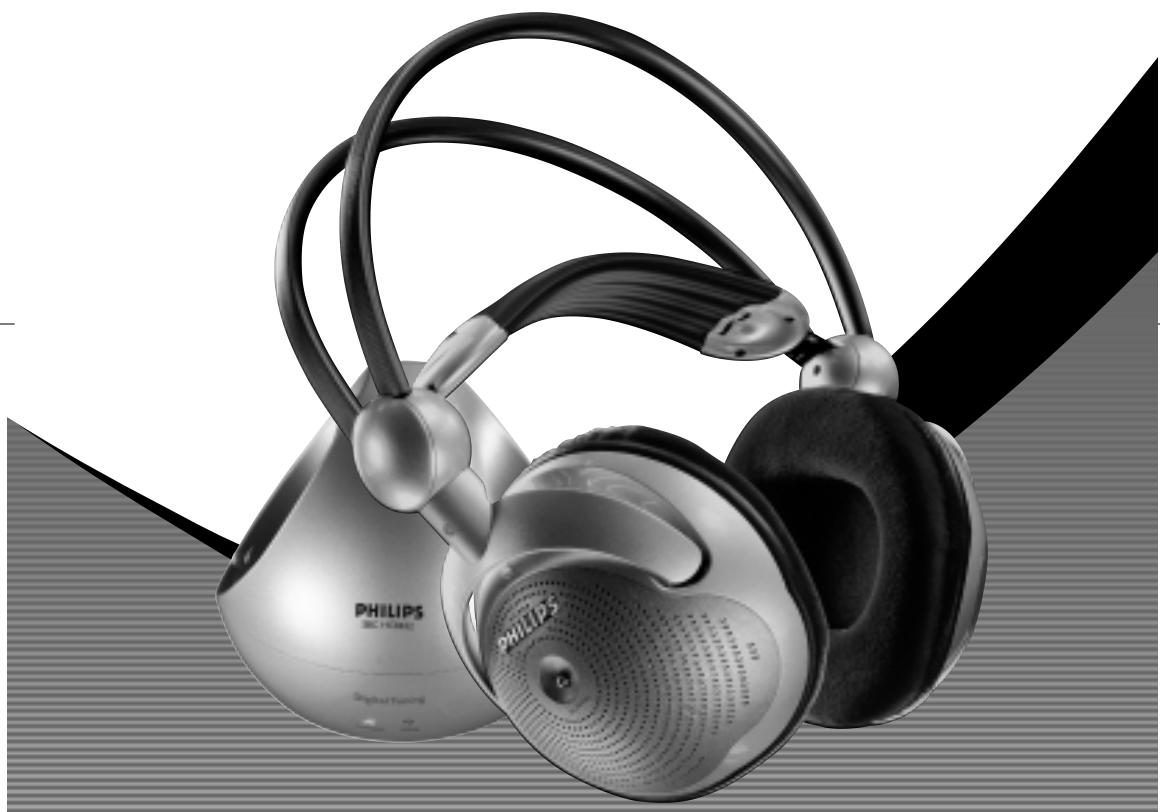

Black and white photo of Philips 360+ audio headphones with black earbuds and external microphone (no visible text or symbols)

Figure 1

Figure 2

Figure 3

Index

English

English 4

Svenska 68

Svenska

Français

Français 12

Norge 76

Norge

Español

Español 20

Suomi 84

Suomi

Deutsch

Deutsch—28

Русский—92

Русский

Nederlands

Nederlands 36

Polski 100

Polski

Italiano

Italiano 44

Magyar 108

Magyar

Português

Português 52

Türkçe 116

Türkçe

Dansk

Dansk 60

Ελληνικά —— 124

Ελληνικά

Introduction

General information

Congratulations!

You have just bought the most sophisticated FM wireless stereo sound system. This system uses the latest FM wireless technology, which gives you complete freedom of movement while enjoying your favorite music and movies. No more inconvenience from cables or headphone wires! To ensure you get the best performance from your FM wireless stereo sound system please read this manual carefully.

IMPORTANT

Read these instructions. All the safety and operating instructions should be read before using the wireless headphone system.

Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply.

Remove the batteries from the headphone's battery compartment and disconnect the adapter from the mains if the system is not in use for a long period.

Prevent fire or shock hazard: do not expose this equipment to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

Radio equipment for wireless audio applications is not protected against disturbance from other radio services.

IMPORTANT

Before using the FM headphone for the first time, please ensure that the batteries are fully charged for about 16 hours. This will guarantee a longer operating lifetime of the batteries.

Benefits of Philips latest RF/FM wireless technology

Wireless transmission

The FM transmitter transmits the stereo audio signal from your audio or video source to your FM headphone without wires.

Wide transmission range

Your FM headphone can receive signals up to 100 meters away.

High-frequency radio system

The FM headphone set uses a high radio frequency as the signal carrier, ensuring a very clear, sharp reception.

Mute function

Reduces the noise disturbance when the sound signal is too low or not available.

Automatic power on/off indicator

The FM transmitter automatically switches on and starts transmitting when audio signals are detected at the audio input (red LED). When no audio signals are detected the FM transmitter automatically switches off after a few minutes.

Automatic tuning

The FM headphone automatically tunes to the right transmission frequency if you push the tuning button.

Automatic rechargeable system

The FM transmitter automatically recharges the headphone's built-in rechargeable LR03/AAA NiMH batteries. Just position the headphone on the transmitter and contact. The green LED lights up during charging.

Easy transmission

The FM headphone is able to receive signals from the transmitter, even through barriers such as doors, walls and windows.

Multiple headphones with one transmitter

An additional number of headphones and/or wireless speakers can be used with a single transmitter if they:

• operate in the 864 MHz band
• can detect a 19 kHz pilot tone

Please consult the appliance's electrical specification sheets for confirmation on compatibility.

Kit contents

This FM headphone system consists of the following accessories:

1 × SBC HC8652 FM transmitter

1 x SBC HC8655 FM headphone

1 × SBC CS030/00 12Volt / 200mA AC/DC adapter (for UK: SBC CS030/05 12 Volt/200 mA AC/DC adapter)

2 × rechargeable batteries LR03/AAA (NiMH), 550 mAh

1 x 3.5 mm stereo plug to 2x RCA audio cable (2 m)

1 x 3.5 mm plug to 6.3 mm stereo adapter plug

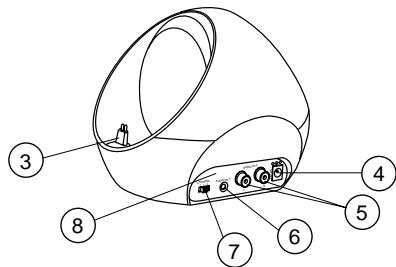

Transmitter (figure 1)

1 Power indicator – lights up when audio signals are detected at the audio input.
2 Recharging indicator – lights up when headphone is replaced on the FM transmitter. Completely flat batteries will be fully charged after about 16 hours.
3 Recharging contact – make sure you align your headphone to this contact for recharging.
4 DC power – connect to the 12 Volt/200 mA AC/DC adapter
5 3.5 mm stereo headphone audio input – connects your FM transmitter to an audio source
6 Line audio input – alternative connection to an audio source.

IMPORTANT

Use only 1 of the audio inputs:

3.5 mm stereo headphone audio input OR the line audio input!

Using both audio inputs at the same time may damage your FM wireless system or your audio source!

7 Channel switch – select one of 3 channels for best reception. We advise you to select channel 1 as a first option.
8 Controls plate

Headphone (figure 2)

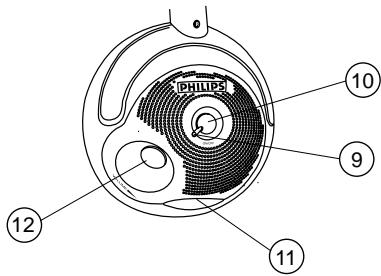

9 Power indication – lights up when in use. When batteries are low, the power indicator flashes, and you should recharge the headphone for about 16 hours before the next use.
10 Power On/Off – push the button to switch the headphone on/off.
11 Recharging contacts – align headphone to the transmitter, green recharging LED on the transmitter's front must switch on, indicating that the headphone is being recharged.
12 Volume – adjust volume to your desired listening level.

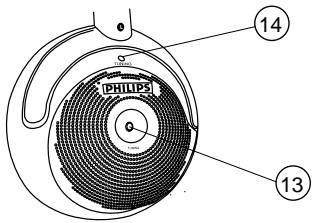

13 Tuning – press and hold the button for about 1 second. The headphone automatically tunes to the right transmission frequency and the tuning indicator will light up. If not, repeat this step.
14 Tuning indicator – lights up when receiving optimal transmission.

Transmitter power supply

IMPORTANT

Use only Philips SBC CS030/00

12 Volt/200 mA AC/DC adapter.

(For UK, use only Philips SBC CS030/05)

1 Make sure the adapter's rated voltage corresponds to the mains socket voltage.
2 Connect the DC connector of the AC/DC adapter to the 12 Volt DC power input connector located at the rear of the transmitter.
3 Connect the 12 Volt/200 mA AC/DC adapter to the mains socket.
- Always disconnect the AC/DC adapter if the transmitter is not to be used for a long period of time.

Headphone power supply

IMPORTANT

Use only rechargeable LR03/AAA

NiMH batteries (preferably Philips).

Do not use NiCd batteries or alkaline batteries as these may damage your FM wireless system!

1 Check if the power button of the FM headphone is in the on position.
2 When the red power indicator on the FM headphone starts flashing, it indicates that the batteries are running low.
3 To recharge the headphone's built-in rechargeable LR03/AAA NiMH batteries, position the headphone on the transmitter and contact.

Environmental Information

All redundant packing material has been omitted. We have done our best to make the packaging easily separable into two materials: cardboard and polyethylene

Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Installation

Audio Connections

Notes:

Completely flat batteries need approximately 16 hours to recharge.

The FM headphone will switch off automatically during recharging.

Always remove the batteries if the headphone is not to be used for a long period of time.

Batteries contain chemical substances, so they should be disposed of properly.

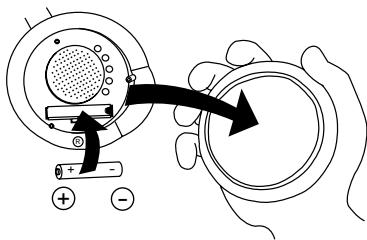

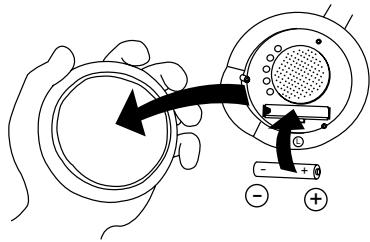

Headphone battery replacement (figure 3)

IMPORTANT

Use only rechargeable LR03/AAA NiMH batteries (preferably Philips).

Do not use NiCd batteries or alkaline batteries as these may damage your FM wireless system!

1 Remove the earcushions.
2 Take out the batteries and dispose of them properly.
3 Insert new batteries. Only use LR03/AAA NiMH batteries (preferably Philips).
4 Make sure the batteries are correctly inserted as indicated by the engraved symbols in the battery compartment.
5 Put the earcushions back on the earshells.

IMPORTANT

Before using the FM headphone for the first time, please ensure that the batteries are fully charged for about 16 hours. This will guarantee a longer operating lifetime of the batteries.

Audio Connections

IMPORTANT

Use only 1 of the audio inputs:

3.5 mm stereo headphone audio input OR the line audio input!

Using both audio inputs at the same time may damage your FM wireless system or your audio source!

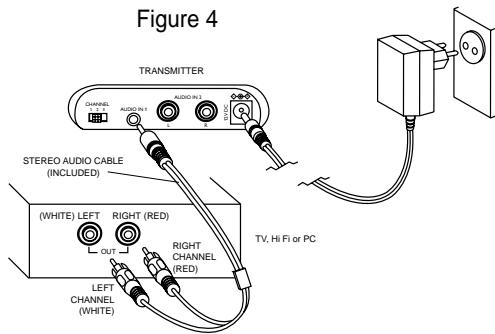

Option 1 (figure 4)

Connecting the FM transmitter to a line output of an audio source, e.g. REC OUT, LINE OUT.

1 Connect the 3.5mm stereo plug of the stereo audio cable to the FM transmitter's 3.5mm headphone input.
2 Connect the 2 RCA plugs of the stereo audio cable to a line output (REC OUT or LINE OUT) of an audio source, e.g. TV, HiFi or PC:
- Check if the red RCA plug (right channel) is connected to the right channel (red) of the audio source.
- Check if the white RCA plug (left channel) is connected to the left channel (white) of the audio source.
3 Switch on your audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
4 In case the line output of the audio source has an adjustable output level, adjust the line output level of the audio source to the highest acceptable undistorted level.
5 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.
6 To tune, press and hold the tuning control button for about 1 second. Repeat if necessary until the red tuning indication lights up.

7 Adjust the volume to the desired level with the headphone volume control.

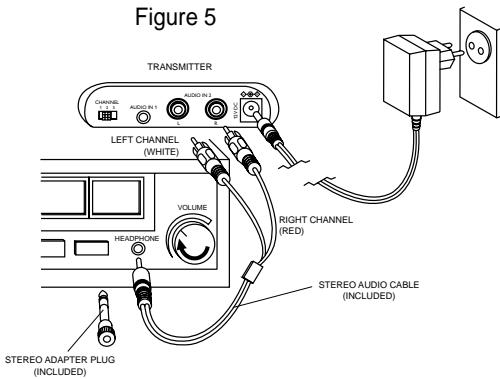

Option 2 (figure 5)

Connecting the FM transmitter to a headphone output of an audio source

IMPORTANT

Use only 1 of the audio inputs:

3.5 mm stereo headphone audio input OR the line audio input!

Using both audio inputs at the same time may damage your FM wireless system or your audio source!

1 Connect the 2 RCA plugs of the stereo audio cable to the FM transmitter's audio input 2:

• Check if the red RCA plug (right channel) is connected to the right channel (red) of the FM transmitter's audio input 2.
• Check if the white RCA plug (left channel) is connected to the left channel (white) of the FM transmitter's audio input 2.

2 Connect the 3.5mm stereo plug of the stereo audio cable to the headphone output of an audio source, such as TV, HiFi or PC.

- In case your audio source has a 6.3mm headphone output, use the supplied 3.5mm to 6.3 mm stereo adapter plug.

3 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
4 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.

5 To tune, press and hold the tuning control button for about 1 second. Repeat if necessary until the red tuning indication lights up.
6 Adjust the volume to the desired level with the headphone volume control.

Basic operation

When the FM transmitter is connected to a: - line output of an audio source, such as REC OUT or LINE OUT or - headphone output of an audio source.

1 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
2 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.
3 To tune, press and hold the tuning control button for about 1 second. Repeat if necessary until the red tuning indication lights up.
4 Adjust the volume to the desired level with the headphone volume control.

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the warranty.

Problem	Remedy
No sound	- Check if the AC/DC adapter is fully inserted into the AC outlet and that its DC connector is properly inserted into the 12 Volt DC input connector located at the rear of the transmitter.- Check if the headphone's on/off switch is in the on position.- Headphone batteries running low. Position the headphone on the transmitter and contact. (See Headphone power supply)- Check if the audio source is switched on and tuned to a channel with audio.- Volume not adjusted. Adjust the volume on the audio source/ headphone to a higher level.- Adjust the headphone's tuning frequency. Press and hold the tuning control button for about 1 second.- Make use of the HC8652 transmitter. Some transmitters already built into other equipment may not be compatible with the HC8655 headphone because of the advanced technologies used in the HC8655 headphone.
Distorted sound	- Adjust the headphone's tuning frequency. Press and hold the tuning control button for about 1 second. Repeat if necessary until the red tuning indication lights up.- Adjust the transmitter's frequency. Select any of the 3 channels of the transmitter. Next adjust the headphone's frequency by pressing and holding the tuning button for about 1 second.- Headphone batteries running low. Position the headphone on the transmitter and contact. (See Headphone power supply)

Troubleshooting

English

Distorted sound

– Check the volume on audio source/ headphone is not set at too high a level. Reduce the volume.

– Distance from the transmitter is too large. Move closer to the transmitter.

– Interference from fluorescent lamps/ other radio sources. Move transmitter or headphone elsewhere/ change the transmitter's channel.

– Make use of the HC8652 transmitter. Some transmitters already built into other equipment may not be compatible with the HC8655 headphone because of the advanced technologies used in the HC8655 headphone.

Maintenance

– If the headphone will not be used for a long time, please remove the batteries to prevent leakage and corrosion.

– Only replace the batteries with LR03/AAA NiMH batteries (preferably Philips).

– Do not leave the headphone near heat sources. Do not expose to direct sunlight, excessive dust, moisture, rain or any kind of mechanical shock.

– Do not use alcohol, thinner or petroleum-based substances to clean the headphone or transmitter. Use a slightly dampened chamois cloth to clean the housing.

– Do not use cleaning agents containing alcohol, spirits, ammonia or abrasives as these may harm the housing.

Hearing Safety! Continuous use at a high volume may permanently damage your hearing.

Specifications
Regulations

System:	Radio Frequency (RF)
Carrier Frequency:(Transmitter HC8652)	Channel 1: 863.5 MHzChannel 2: 864.0MHzChannel 3: 864.5MHz
Carrier Frequency:(Headphone HC8655)	863.2 to 864.7 MHz (Auto tuning)
Modulation:	Frequency Modulation (FM)
Radiated Output Power:	<10m Watt
Effective Transmission Range:	up to100 meters, omni directional (360°)
Input level:	500 mVrms (1 kHz sine wave)
Power supply – transmitter:	12Volt / 200 mA DC, centre positive
Power supply – headphone:	2 × LR03 (AAA) batteries (NiMH)
Frequency range(Headphone):	10 – 22,000 Hz
Signal/Noise ratio:	>60 dB (1 kHz sine wave ,A-weighted)
Distortion:	< 0.5% THD
Channel separation:	>30 dB

European Regulations

This product has been designed, tested and manufactured according the European R&TTE Directive 1999/5/EC.

Following this Directive, this product can be brought into service in the following states:

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

This product complies with class 3 requirements as set down in ETS 300 445.

Introduction

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

1 x trasmittente MF, SBC HC8652

1 × cuffia MF, SBC HC8655

1 x adattatore CA/CC 12 volt/200 mA, SBC CS30/00

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Transmissor (figura 1)

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Transmitter (figur 1)

1 Strømindikator – lyser, när der konstateres audio-signaler ved audio-indgangen.

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Dette produkt overholder klasse 3 kravene, der er fastsat i ETS 300 445.

Inledning

Allmän information

Grattis!

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Dette produktet er i overensstemmelse med kravene i klasse 3 i henhold til ETS 300 445.

Onnittelumme!

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

I × SBC HC8372 FM iletici

I x SBC CS030/00 12 Volt/200 mA AC/DC adaptör

1 x 3,5 mm stereo fiş 2x RCA ses kablosu (15 cm)

1 × 3,5 mm fış 6,3 mm stereo adaptör fışı

I x anten tüpü

Kontroller

İletici (şekil 1)

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	√	DK	√	E	X	GR	X	F	√
IRL	√	I	X	L	√	NL	√	A	√
P	√	SU	√	S	√	UK	√	N	√
D	√	CH	√

Meet Philips at the Internet

http://www.philips.com

HC 8372

Printed in China /CMM RM 0126
