Brand	Philips
Model	SBCHC065
Product type	Infrared wireless headphone system (IR)
Transmission technology	Infrared (IR) with FM modulation
Transmission range	7 meters
Transmitter power supply	12 V DC / 200 mA (power adapter included)
Headphone power supply	2 AAA 1.5 V batteries
Carrier frequency	2.3 MHz (left), 2.8 MHz (right)
Signal-to-noise ratio	> 60 dB (1 kHz, A-weighted)
Total harmonic distortion	< 1 %
Channel separation	> 30 dB
Audio input level	300 mVrms (1 kHz)
Included accessories	IR transmitter, IR headphone, power adapter, 3.5 mm to 6.3 mm adapter plug
Care and cleaning	Clean with a slightly damp cloth; do not use alcohol, thinner or abrasive products
Safety	Do not expose to moisture, rain, sand or excessive heat; avoid direct sunlight
General information	Use with Philips SBC HC066 transmitter; multiple headphones compatible with one transmitter

Frequently Asked Questions - SBCHC065 PHILIPS

Why is there no sound in the headphone?

Check that the power adapter is properly connected and the transmitter is on. Ensure the headphone batteries are charged and the volume is high enough. The audio source must be powered on and the volume adjusted.

How to replace the headphone batteries?

Remove the ear cushions, take out the old batteries and insert two AAA 1.5 V batteries respecting the indicated polarities. Put the cushions back.

What is the maximum range of the system?

The effective range is about 7 meters. For optimal reception, place the transmitter at the same height or slightly higher than the headphone, with no obstacles between them.

Why is the sound distorted?

This can be due to weak batteries, too high volume, excessive distance from the transmitter or interference (neon lights, etc.). Reduce the volume, move closer to the transmitter or reposition it.

Can I use multiple headphones with one transmitter?

Yes, it is possible to use multiple headphones on the same transmitter if they operate on the same frequency. Check compatibility in the specifications.

Which power adapter should I use?

Use exclusively the Philips SBC CS030/00 adapter (12 V DC, 200 mA). A non-compliant adapter could damage the device.

How to clean the headphone or transmitter?

Use a slightly damp cloth (chamois) to clean the housing. Never use alcohol, thinner, ammonia or abrasive products.

The headphone does not work outdoors, why?

Intense sunlight or powerful light bulbs can interfere with the IR signal. Place the transmitter and headphone in a more shaded or dimmed location.

Can I repair the device myself?

No, any attempt to repair voids the warranty. In case of malfunction, first consult the troubleshooting solutions in the manual, then contact a dealer or authorized service center.

How to preserve hearing?

Prolonged listening at high volume can damage hearing. Set the volume to a comfortable level and take regular breaks.

USER MANUAL SBCHC065 PHILIPS

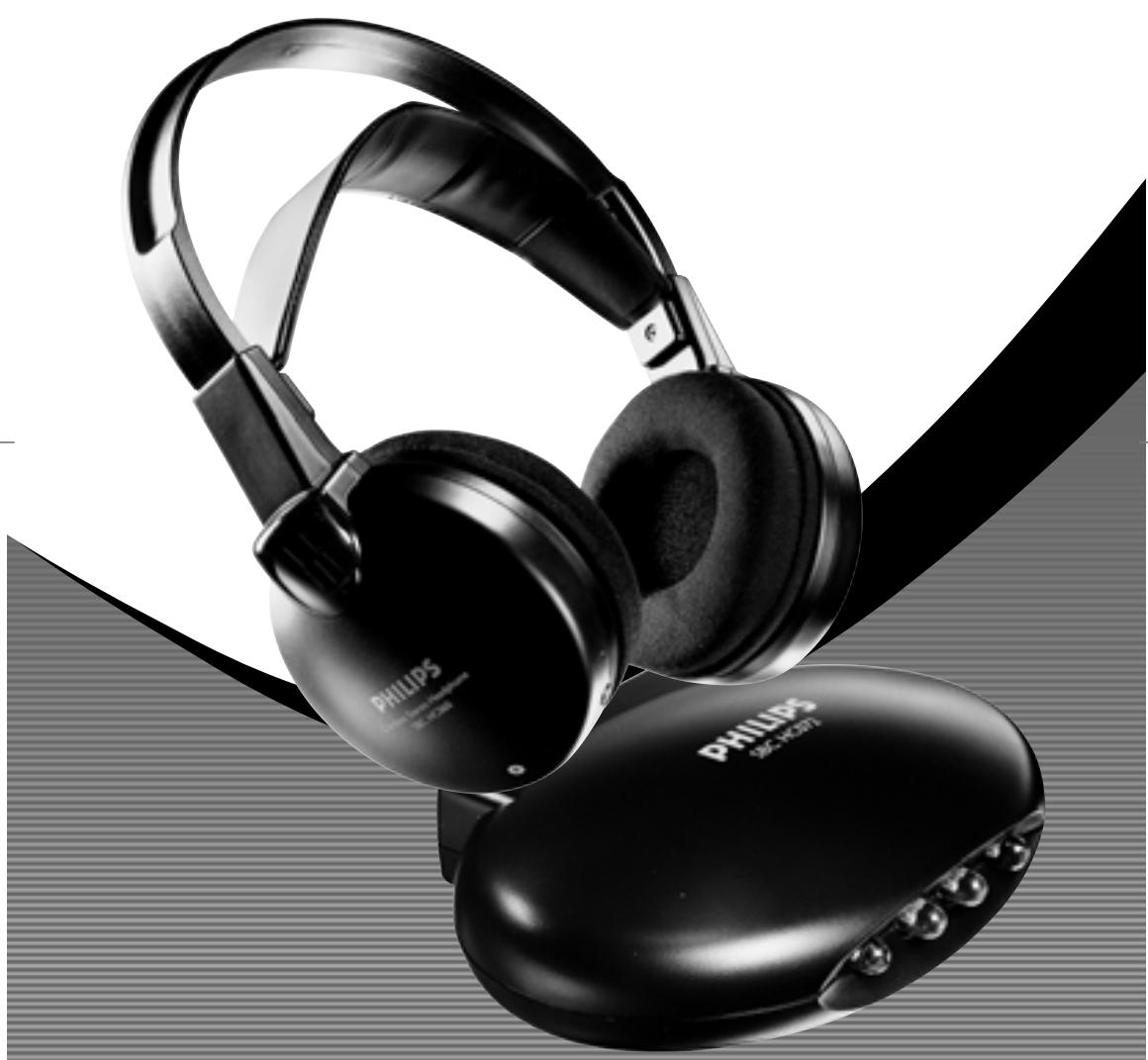

Wireless IR Stereo Headphone

Black and white photo of Philips 36-40+ headphones with earphones and earphones (no visible text or symbols on the devices themselves)

Index

English

English 4

Svenska 44

Svenska

Français

Français 9

Norge 49

Norge

Español

Español 14

Suomi 54

Suomi

Deutsch

Deutsch—19

Русский—59

Русский

Nederlands

Nederlands 24

Polski 64

Polski

Italiano

Italiano 29

Magyar 69

Magyar

Português

Português 34

Türkçe 74

Türkçe

Dansk

Dansk 39

Ελληνικά ____79

Ελληνικά

Figure 1

Figure 2

Introduction

General information

Congratulations!

You have just bought the most sophisticated InfraRed (IR) wireless stereo sound system. This system uses the latest IR wireless technology, which gives you complete freedom of movement while enjoying your favorite music and movies. Without the inconvenience of cables or headphone wires! To ensure you get the best performance from your IR wireless stereo sound system please read this manual carefully.

IMPORTANT

Read these instructions. All the safety and operating instructions should be read before using the wireless headphone system.

Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply.

Remove the batteries from the headphone's battery compartment and disconnect the adapter from the mains if the system is not in use for a long period.

Prevent fire or shock hazard: do not expose this equipment to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

Benefits of Philips latest RF/FM wireless technology

Wireless transmission

The IR transmitter transmits the stereo audio signal from your audio or video source to your IR headphone without wires.

Wide transmission range

Your IR headphone can receive signals up to 7 meters away.

Easy transmission

High frequency IR waves carry the audio signal to ensure clear and sharp reception.

Multiple headphones with one transmitter

An additional number of headphones can be used with a single transmitter if they operate on the same frequency.

Please consult the appliance's electrical specification sheets for confirmation on compatibility.

Kit contents

This IR headphone system consists of the following accessories:

1 × SBC HC066 IR transmitter

1 × SBC HC060 IR headphone

1 × SBC CS030/00 12 Volt/200 mA AC/DC adapter (for UK: SBC CS030/05 12 Volt/200 mA AC/DC adapter)

1 × 3.5 mm plug to 6.3 mm stereo adapter plug

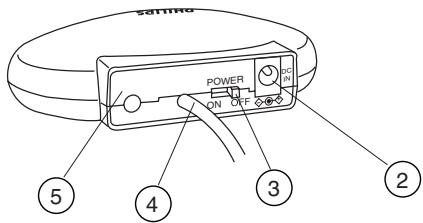

Transmitter (figure 1)

1 IR transmitting LEDs – transmit audio signal to IR headphone.
2 DC power – connect to the 12 Volt/200 mA AC/DC adapter.
3 Power switch – power on/off switch.
4 3.5 mm stereo headphone audio input – connects your IR transmitter to an audio source.
5 Controls plate

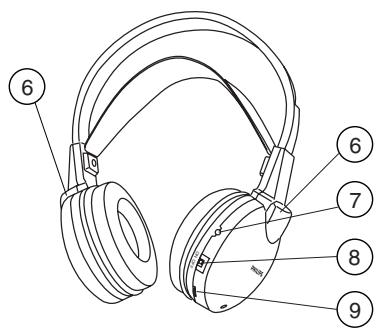

Headphone (figure 2)

6 IR sensors – to receive IR waves from the transmitter
7 Power indication – lights up when in use.
8 Power On/Off – slide the switch to the on or off position to switch the headphone on/off.
9 Volume – adjust volume to your desired listening level.

Transmitter power supply

IMPORTANT

Use only Philips SBC CS030/00

12 Volt/200 mA AC/DC adapter.

(For UK, use only Philips SBC CS030/05)

1 Make sure the adapter's rated voltage corresponds to the mains socket voltage.
2 Connect the DC connector of the AC/DC adapter to the 12 Volt DC power input connector located at the rear of the transmitter.
3 Connect the 12 Volt/200 mA AC/DC adapter to the mains socket.

- Always disconnect the AC/DC adapter if the transmitter is not to be used for a long period of time.

Headphone power supply

1 Check if the power button of the IR headphone is in the on position.
2 Ensure the batteries are put in the battery compartment correctly according to the engraved polarity symbols.

Note:

Always remove the batteries if the headphone is not to be used for a long period of time.

Batteries contain chemical substances, so they should be disposed of properly.

Environmental Information

All redundant packing material has been omitted. We have done our best to make the packaging easily separable into two materials: cardboard and polyethylene

Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Installation

Audio Connections

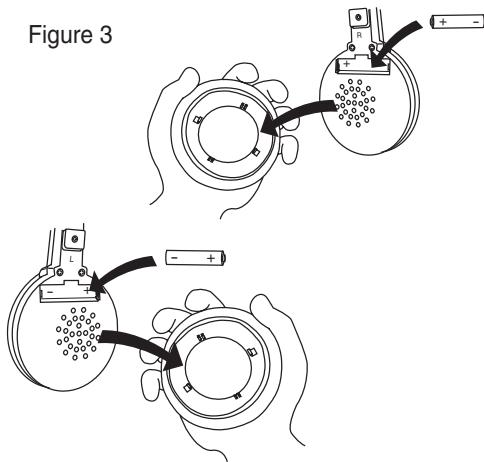

Headphone battery replacement (figure 3)

1 Remove the earcushions.
2 Take out the batteries and dispose of them properly.
3 Insert new batteries.
4 Make sure the batteries are correctly inserted as indicated by the engraved symbols in the battery compartment.
5 Put the earcushions back on the earshells.

Audio Connections

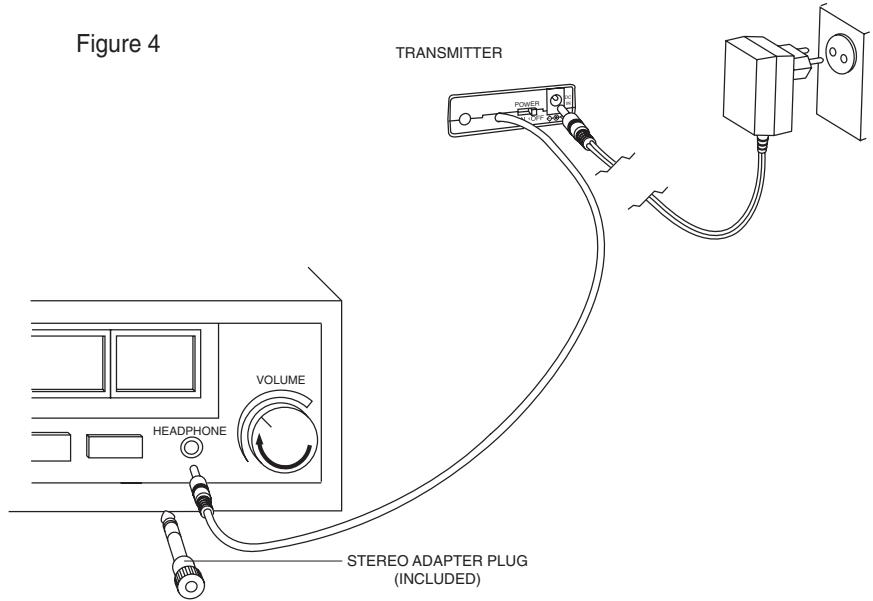

Connecting the IR transmitter to a headphone output of an audio source (figure 4)

1 Connect the 3.5mm stereo plug of the stereo audio cable to the headphone output of an audio source, such as TV, HiFi or PC.
- In case your audio source has a 6.3mm headphone output, use the supplied 3.5mm to 6.3 mm stereo adapter plug.
2 Switch on your audio source and carefully increase the volume of the audio source.
3 Switch on the headphone.
4 Adjust the volume to the desired level with the headphone volume control.

Basic operation

When the IR transmitter is connected to a headphone output of an audio source.

1 Switch on your IR transmitter and place it at the same height or slightly higher than the reception height of the IR headphone.
2 Position the LED's towards the listening area, ensuring that there are no obstacles in between transmitter and headphone.
3 Switch on the headphone.
4 Switch on your audio source and carefully increase the volume of the audio source.
5 Adjust the volume of the IR headphone to the desired level with the headphone volume control.

IMPORTANT

Because IR light travels in a straight line, place the IR transmitter at the same height, or slightly higher than the reception height of the IR headphone.

High IR light content such as sunlight and bright incandescent indoor lighting may degrade the audio signal and cause interference. If you experience such problems, simply move the system to a darker area.

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the warranty.

Problem	Remedy
No sound	- Check if the AC/DC adapter is fully inserted into the AC outlet and that its DC connector is properly inserted into the 12 Volt DC input connector located at the rear of the transmitter.- Check if the headphone's on/off switch is in the on position.- Headphone batteries running low. (See Headphone power supply)- Check if the audio source is switched on.-Volume not adjusted. Adjust the volume on the audio source/ headphone to a higher level.- Make use of the HC066 transmitter. Some transmitters already built into other equipment may not be compatible with the HC060 headphone because of the advanced technologies used in the HC060 headphone.
Distorted sound	- Headphone batteries running low. (See Headphone power supply)- Check the volume on audio source/ headphone is not set at too high a level. Reduce the volume.- Distance from the transmitter is too large. Move closer to the transmitter.- Interference from fluorescent lamps/ other radio sources. Move transmitter or headphone elsewhere.- Make use of the HC066 transmitter. Some transmitters already built into other equipment may not be compatible with the HC060 headphone because of the advanced technologies used in the HC060 headphone.

Troubleshooting

Specifications

Maintenance

- If the headphone will not be used for a longer time, please remove the batteries to prevent leakage and corrosion.

- Do not leave the headphone near heat sources. Do not expose to direct sunlight, excessive dust, moisture, rain or any kind of mechanical shock.

- Do not use alcohol, thinner or petroleum-based substances to clean the headphone or transmitter. Use a slightly dampened chamois cloth to clean the housing.

- Do not use cleaning agents containing alcohol, spirits, ammonia or abrasives as these may harm the housing.

Hearing Safety! Continuous use at a high volume may permanently damage your hearing.

System:	Infra Red (IR)
Modulation:	Frequency Modulation (FM)
Effective Transmission Range:	7 meters
Input level:	300 mVrms (1 kHz sine wave)
Power supply – transmitter:	12Volt / 200 mA DC, centre positive
Power supply – headphone:	2x 1.5V AAA batteries
Carrier Frequency (Headphone):	2.3 Mhz (L), 2.8 Mhz (R)
Signal/Noise ratio:	>60 dB (1 kHz sine wave ,A-weighted)
Distortion:	< 1% THD
Channel separation:	>30 dB
