USER MANUAL Voxtel SM315 BINATONE

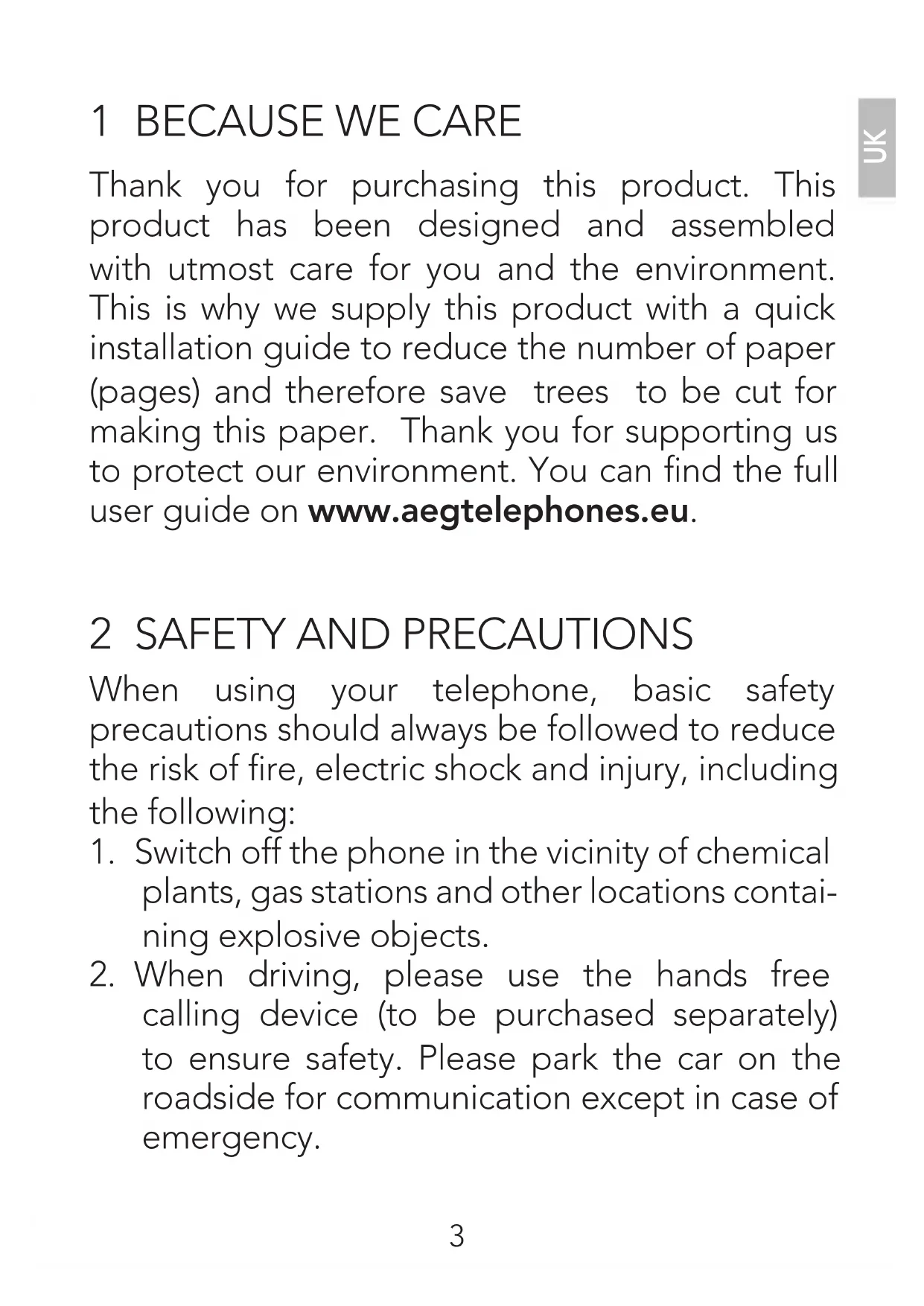

Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefore save trees to be cut for making this paper. Thank you for supporting us to protect our environment. You can find the full user guide on www.aegtelephones.eu.

2 SAFETY AND PRECAUTIONS

When using your telephone, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:

1. Switch off the phone in the vicinity of chemical plants, gas stations and other locations containing explosive objects.

2. When driving, please use the hands free calling device (to be purchased separately) to ensure safety. Please park the car on the roadside for communication except in case of emergency.

3. Switch off the phone when boarding an airplane and do not switch the phone on during the flight.

4. Be careful when using the mobile phone in the vicinity of devices such as pacemakers, hearing aids and other electro-medical equipment, which may be interfered by the mobile phone.
5. Never attempt to disassemble the phone by yourself.
6. Do not recharge the phone without battery being installed.
7. Charge the phone in well-ventilated environment and keep away from inflammable and highly explosive elements.
8. To avoid demagnetization, keep the handset away from magnetic substances, such as magnetic discs or credit cards.
9. Keep the phone away from liquid. If soaking or erosion occurs, take the battery out and contact the supplier.
10. Avoid using the phone in extremely high or low temperature environments. Never leave the phone exposed under direct sunlight, in high humidity or in a dusty environment.
11. Do not use liquid or anything wet with strong detergents to clean the handset.

2.1 Medical units

The use of equipment that transmits radio signals, e.g. mobile phones, can interfere with insufficiently protected medical apparatus. Consult a doctor or the manufacturer of the apparatus to determine if it has adequate protection against external radio signals, or if you have any questions. Wherever there are notices to forbid use of mobile phones, you should comply. Hospitals and other health care facilities sometimes use equipment that can be sensitive to external radio signals.

2.2 Pacemaker

Pacemaker manufacturers recommend a distance of at least 15 cm. between a mobile phone and a pacemaker to avoid the risk of interference with the pacemaker. These recommendations are in accordance with independent research and recommendations from Wireless Technology Research. People with pacemakers should:

not carry the unit in a breast pocket
- hold the unit against the ear on the opposite side from the pacemaker to reduce the risk of interference

If you suspect that there is a risk of interference, turn off the unit and move it further away.

2.3 Emergency calls

当

Important!

Mobile phones use radio signals and the mobile phone network. This means that connection in all circumstances cannot be guaranteed.

Therefore you should never rely solely on a mobile phone for very important calls such as medical emergencies.

Important Safety Instructions

To prevent possible hearing damage, do not listen at high volume levels for long periods.

3 SET HANDSET LANGUAGE

• Press Menu - and / to select "Settings", then press OK.
• Press l to select "Phone settings", then press OK.
• Press / to select "Language", then press OK.
• Press l to select your language, press OK to confirm.

4 GETTING TO KNOW YOUR PHONE

当

4.1 Keys and parts

# Meaning
1 LED Light
2 Micro USB		Charging input for power adapter
3	Left soft Key	Performs the functions displayed above
4 Talk key		Press to answer a phone call. Press to enter the calls log. Press to dial a number.
5 Torch key Slide to turn on/off torch.
6	Battery cover-open mark	Open the battery cover from here.
7 * Key		In edit mode : press to change input symbol.
8	Right soft Key	Performs the function displayed above.
9	End Call / Power On-Off button	Press to end or reject a call. Press to return to the Home Screen/Standby mode. Press and hold to switch the phone on or off

10 # Key	• In idle: press to input "#". • In idle: long press to change to silent mode. • In edit mode: press to change input method.
11 0 Key	Press to dial "0" / Long press to input "+" / "P" / "W".
12 Lock Key Press it to lock/unlock keypath
13 Camera
14 SOS Key	Press and hold 3 sec to start SOS call procedure.
15 Up/Down Key	• Press to adjust receiving volume in talk. • Press to step through names, phone numbers, menus and settings.
16 Cradle Micro USB	Input for power adapter

当

4.2 Display icons and symbols

The default idle screen shows the following information:

	Meaning
	Radio link Showing the signal strength.
	Battery charge level Internal segments cycle during battery charging.
	Alarm On if alarm is set.
	Silent mode
	Ring on On if only the ringer is enabled.
	Vibrate on On if only the vibrate is enabled.
	Vibrate then ring On if vibrate then ring is enabled.
	New SMS Indicates you have new text messages.
	Lock On when the handset's keypad is locked.
	Missed call On if you have new missed calls.
	Bluetooth On when bluetooth is active.
	Photo Contact

5 INSTALLATION AND SETUP

5.1 Install the SIM card and battery

• Switch off the phone, disconnect the power adaptor and remove the backcover.
• Remove the battery by lifting the middle part.
• Carefully slide the SIM card into the holder with the gold connectors face down and angled corner.
• Insert the Micro SD card by carefully slide into the holder.

• Replace the battery by aligning the gold connectors on the battery with those on the phone, and push the the battery down until it clicks into place.

• Replace the back cover by placing it flat on the back of the handset and pressing until it clicks into place.

5.2 Charge the battery

Warning:

Use only supplied/approved battery and charger. Using others may be dangerous and will invalidate approvals or warranty. A battery must be fitted. Do not charge with the back cover removed.

• Connect the charger lead firmly into the microUSB socket at bottom of the handset, or place the handset directly in the charging cradle.
• Plug the mains power adapter into an AC mains socket. If the handset is turned on, "Charger connected" displays for a few seconds, and the battery symbol bars scroll to indicate that charging has started. If the handset is turned off, the display shows a battery symbol with the segments cycling to indicate charging has started.
• Charging the battery may take up to 4 hours.
• If "charger connected" does not display, disconnect and retry.
• The battery is fully charged when the bars within the battery symbol are continuously on. Disconnect the charger from the phone and the

AC outlet. "Charger removed" displays for a few seconds to indicate the charging has stopped.

5.3 Switching on and off

To switch the phone on and off:

• To switch off, press and hold until the display turns off.
• To switch on, press and hold until the display turns on.

Warning:

Do not switch on when mobile phone use is prohibited or if it may cause interference or danger.

5.4 To unlock handset keypad

When the is shown, keypad is locked. To unlocked, First way is to press Unlock then press * button display shows "Unlocked".

Second way is Long Press the Lock Key.

Note:

When the keypad is locked, you can answer, end or reject a call in the normal way, use the SOS button or dial the Emergency Services number 112 and operate the phone as usual during a call.

6 MAKING AND ANSWERING CALLS

当

6.1 To make a call

Ensure the phone is switched on and in service.

Key in the telephone number including a code. (To add prefix '' + '' long press the "0")

• Press to dial the number on the display.
• To end calls press button.

6.2 Last number redial

• In idle mode, press to see the All calls list - a list of the last 10 numbers for each of the dialled, received and missed calls.
• Press /to go to the number you want.
• Press to dial the number.

6.3 To answer a call

• When the phone rings, Press to answer it.

6.4 Earpiece volume

• During a call, press + / - to alter the volume.

The volume level displays and stays for future calls.

7 USING THE PHONEBOOK & SPEED DIAL KEYS

当

You can store names and phone numbers in the Internal phone book (up to 100) and in the SIM phone book (SIM dependant).

7.1 To access the phonebook

In idle mode:

• Press Menu, select Phonebook, and OK. OR
• Press Names.

7.2 To add a new phonebook entry

• Press Menu, select Phonebook and OK.
• Press Up and select Add new contact Or Photo contacts from the menu list, and press Options key.
• Select store To SIM or To Phone from the menu list, and press OK.
• Enter the name then press key.
• Enter the digits for the number.
• Press Options then Save to save the new contact.

Note:

When writing the name, use # to switch cases, between Upper case (ABC), lower case (abc) or Numerals (123).

7.3 To call a stored number

• Press Names (Right Soft Key) OR
• Press Menu, select Phonebook, and OK.
• Press l to find the name you want, or key the first letter of the name then
• Press to dial the number.

8 CALL LOGS

If a call is not answered, 1 missed call(s) and icon

displays.

on the display indicates a new missed call in

the Call log.

8.1 To view the call log entries

• From the home screen/idle mode, press to show the All Calls - a combined list of received calls, dialled calls and missed calls. OR
• Press Menu, select Call History and OK, where you can view separate lists for Missed calls, Dialled calls, Received calls, All calls or Delete call logs.
• Press l to select the calls log you wish to view, and press OK to show the selected list.

• When in a list, press /to find the call entry you want.

• Press Options to see the following list of options:

View View details of the selected call.
Call Call the selected number.
Send message Send SMS to the number.
Save to Phonebook	Save the selected number to your phonebook.
Add to Blacklist	Add the selected number to your Blacklist.
Edit before call Edit the selected number before call.
Delete	Delete the selected number from the log.

当

9 SMS TEXT Messaging

Send and receive text messages. These are saved in the phone memory (up to 50) or on the SIM card (SIM dependant). Received SMS are stored in the Inbox and the icon indicates new messages. Also "Unread messages" is displayed.

9.1 To access the SMS menu

• Press Menu and select Messages.
• Press OK to display the options:

Write message	to write a new message.
Inbox	to go to your inbox to read received texts.
Drafts	to view messages in draft.
Outbox	to go to your outbox. (includes saved drafts).
Sent messages	to view the sent messages.
SMS Settings to	check or change SMS settings.

9.2 To write and send a text message

• Press Menu then / to show Messages.
• Press OK to show Write message
• Press OK again to display a flashing cursor.
• Write your message using the digit / letter keys.

Note:

When writing text, use # to switch cases, to Upper case (ABC), lower case (abc) or Numerals (123).

Note:

Use [4]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]/ / [3]· to move the cursor, Clear to delete letters and the * key for symbols or punctuation, or repeated pressing of the 1 key.

• To send, press Options and then select Send to.

• Press Select again to show Enter number.

• Press OK and enter the full number, including area code. OR

• Press / to select Add from Phonebook to choose a number from the phonebook and press OK.
• Press Options when the number is entered.
• Press Send to send the message.

9.3 To read your messages

• Press Menu then / to show Messaging and OK to select.
• Press to choose Inbox and OK to select it.
• Press l to step through the messages.
• Press Options to show a list of options:

View to read	the message and its date/time.
Reply to send	a reply to the message.
Call sender to call	the message sender.
Forward to forward	the message to other recipient.
Delete to delete	the message.
Delete all to delete	all the Inbox messages.

10 SOS BUTTON

当

During standby mode with the display on, press and hold the SOS button for 3 seconds to start the emergency call

operation. The phone outputs an emergency siren from the speaker during a countdown, before sending the emergency SMS to any of the five emergency numbers that are programmed. By default this message is „Help me!“

Then the phone makes a call to the first programmed SOS Number.

If the first number is busy or out of area, not answered within 25 seconds or not press „0" within 25 seconds, it will try the 2nd and then the 3rd, 4th and 5th. If it still does not get through it will repeat the sequence 5 times.

Note:

You can use the emergency SOS button even if the key lock is turned on. The receiver of the SOS call need to press "0" on his phone to confirm the call is answered and to stop the SOS procedure.

This function only works if the SOS function is turned on, and at least one SOS number exists.

To setup the SOS function:

• Press Menu to show show Settings, and then press OK to show SOS settings, press OK to see the SOS options :

Status Switch SOS On or OFF

SOS Number to program the SOS numbers

SOS SMS On/OFF to switch SMS on or off

SOS SMS to edit the SMS content that is send to all SOS numbers

Warning tone to activate siren when SOS key is pressed

当

11 DEFAULT RESET

If you want to clear all data in your phone and reset it to the factory settings.

• Press Menu and select Settings.
• Press OK and select Restore settings.
• Press OK and input the phone password (Default = 0000).
• Select Yes to confirm the reset or No to cancel.

12 GUARANTEE AND SERVICE

The phone is under warranty for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.

Please keep your sales receipt; this is your proof of guarantee.

12.1 While the unit is under Guarantee

• Pack up all parts of your phone system, using the original package.
• Return the unit to the shop where you bought it, making sure you take your sales receipt.
• Remember to include the main adapter.

12.2 After the Guarantee has expired

If the unit is no longer under Guarantee, contact us via www.aegtelephones.eu

13 TECHNICAL DETAILS

当

Standard GSM Mobile
Frequency Band	GSM 850/900/DCS 1800/1900 MHz
Operating Time (with fully charged battery)	Standby: > 360 hours Talking: > 5 hours
Charging Time < 4 hours
Temperature range	Operating: 0°C to 40°C Storage: -20°C to 60°C
Electrical power Handset	BL-4D Li-ion 3.7V DC, 700mAh Battery Pack
Travel charger	XT-128E-5060 Input 100-240V AC 50/60Hz 0.15A Output 5.0V DC:600mA
SAR Value	Maximum Head: 0.603W/kg Body: 1.36W/kg

*Variation in operation times may occur depending on SIM card, network, and usage settings, usage style and environments.

14 CE DECLARATION €0700

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on: www.aegtelephones.eu

15 DISPOSAL OF THE DEVICE (ENVIRONMENT)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user guide and/or box indicates this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

Batteries must be removed before disposing of the device. Dispose of the batteries in an environmental manner according to your country regulations.

16 CLEANING AND CARE

当

Do not clean any part of your phone with benzene, thinners or other solvent chemicals as this may cause permanent damage which is not covered by the Guarantee.

When necessary, clean it with a damp cloth.

Keep your phone system away from hot, humid conditions or strong sunlight, and do not let it get wet.

4 GETTING TO KNOW YOUR PHONE

4.1 Keys and parts

Meaning

16 Micro USB Charging input for power adapter.

4.2 Display icons and symbols

The default idle screen shows the following information:

4.2 Display icons and symbols

The default idle screen shows the following information:

*Variation in operation times may occur depending on SIM card, network, and usage settings, usage style and environments.

14 DICHIARAZIONE CE €0700
