CeneAsp - Vacuum Cleaner RIBIMEX - Free user manual and instructions

Brand	Ribimex
Model	CeneAsp
Vacuum type	4-in-1 multifunction vacuum
Motor power	1,200 W
Voltage	230 V - 50 Hz
Suction	17 kPa
Total capacity	30 liters
Upper tank (dry/wet)	15 liters
Lower tank (ashes)	15 liters
Tank material	Stainless steel
Weight	6.30 kg
Power cord length	4.5 m
Suction hose length	1.5 m
Mobility	4 swivel wheels
Compatible uses	Cold ashes, dry vacuum, wet vacuum, blower
Hot ashes / embers	Prohibited
Pellet ashes	Not recommended

Frequently Asked Questions - CeneAsp RIBIMEX

What are the 4 functions of the RIBIMEX CeneAsp?

The CeneAsp is a 4-in-1 device: cold ash vacuum (fireplace, stove, barbecue), dry vacuum for dust and debris, wet vacuum for spilled liquids, and blower. This versatility makes it suitable for many uses in the home and garden.

Can hot ashes or embers be vacuumed?

No. The CeneAsp is designed for cold ashes only. Vacuuming hot ashes, embers, or burning materials may damage the device and cause a fire. Always wait until the ashes are completely cooled (at least 24 hours after the fire is extinguished) before use.

Is the CeneAsp suitable for pellet stove ashes?

No. The manufacturer Ribimex explicitly advises against using the CeneAsp for pellet ashes. Pellet ashes are very fine and can quickly clog the filter or damage the motor. Use a vacuum specifically designed for pellets.

How does the CeneAsp's dual tank work?

The CeneAsp has two separable stainless steel tanks of 15 liters each, totaling 30 liters. The upper tank collects dry debris or liquids, while the lower tank is dedicated to ash collection. The tanks can be easily separated for emptying and cleaning.

What accessories come with the CeneAsp?

The box contains:

• 1 flexible suction hose of 1.5 m
• 2 rigid extensions of 45 cm each
• 1 floor brush
• 1 ash brush
• 1 metal hose of 1.10 m
• 1 metal lance of 20 cm

The power cable is 4.5 m long, providing good freedom of movement.

How to empty the tanks after use?

Turn off the device and unplug it. Separate the two stainless steel tanks by unlocking the closure system. Empty each tank separately into a bag or collection bin. Before reassembling the tanks, check the filter's condition and shake or replace it if necessary.

Can the CeneAsp be used as a blower?

Yes. By reversing the suction direction (connecting the hose to the air outlet), the CeneAsp functions as a blower. This feature is useful for clearing debris in hard-to-reach areas, such as fireplace grates or barbecue ducts.

Can the CeneAsp vacuum water or other liquids?

Yes, it operates in wet mode thanks to the upper 15-liter tank. It can vacuum water, spilled liquids, or light mud. Make sure not to exceed the maximum capacity and empty the tank after each use to prevent mold development.

How to maintain the CeneAsp filter?

After each use, remove the filter and gently tap it to dislodge accumulated dust. Clean it with compressed air or rinse it with clear water (let it dry completely before reassembling). Replace the filter as soon as it is clogged or damaged to maintain suction power.

Why has the CeneAsp lost suction power?

The most common cause is a clogged filter: clean or replace it. Also, check that the tanks are not full and that the hose or extensions are not obstructed or bent. An improperly positioned tank seal may also cause a loss of suction.

Are the CeneAsp's wheels swivel?

Yes, the CeneAsp is equipped with 4 swivel wheels that allow it to move easily in all directions without having to lift it. This facilitates its use around a fireplace, stove, or in a garage.

Where to find spare parts or a replacement filter for the CeneAsp?

Replacement filters and accessories are available on the official website ribimex.fr or from specialized retailers like Spareka or FixPart. Note the exact filter reference indicated in the manual before ordering.

USER MANUAL CeneAsp RIBIMEX

User and maintenance manual CENEASP 30 L

FR

Carefully read this instruction manual before operating this appliance. Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVERTISSEMENT:

to the senses of the art. 13 of the Decree Legislative 25 July 2005, n. 151 "realization of the directives 2002/95/CE, 2002/96/CE and 2003/108/CE, related to the reduction of the use of dangerous substances in her electric equipments and electronics, as well as to the disposal of the refusals"

The symbol of the "small container with the bar" brought on the equipment points out that the product to the end of it own useful life must separately be picked from the other refusals. The consumer will owe, therefore, to confer the equipment sews together to end life to the fit centers of diversified harvest of the electric and electronic refusals, or to redeliver it to the retailer to the moment of the purchase of a new equipment type equivalent, in reason for one against one. The suitable diversified harvest for the following start of the equipment swerve to the recycling, to the treatment and the compatible disposal environmentally it contributes to to avoid possible negative effects on the environment and on the health and it favors the I recycle some materials of which the equipment is composed.

The Authorized disposal of the product from the consumer involves the application of the administrative sanctions of which to the D.Lgs. n. 152/2006 (articles 255 and 256).

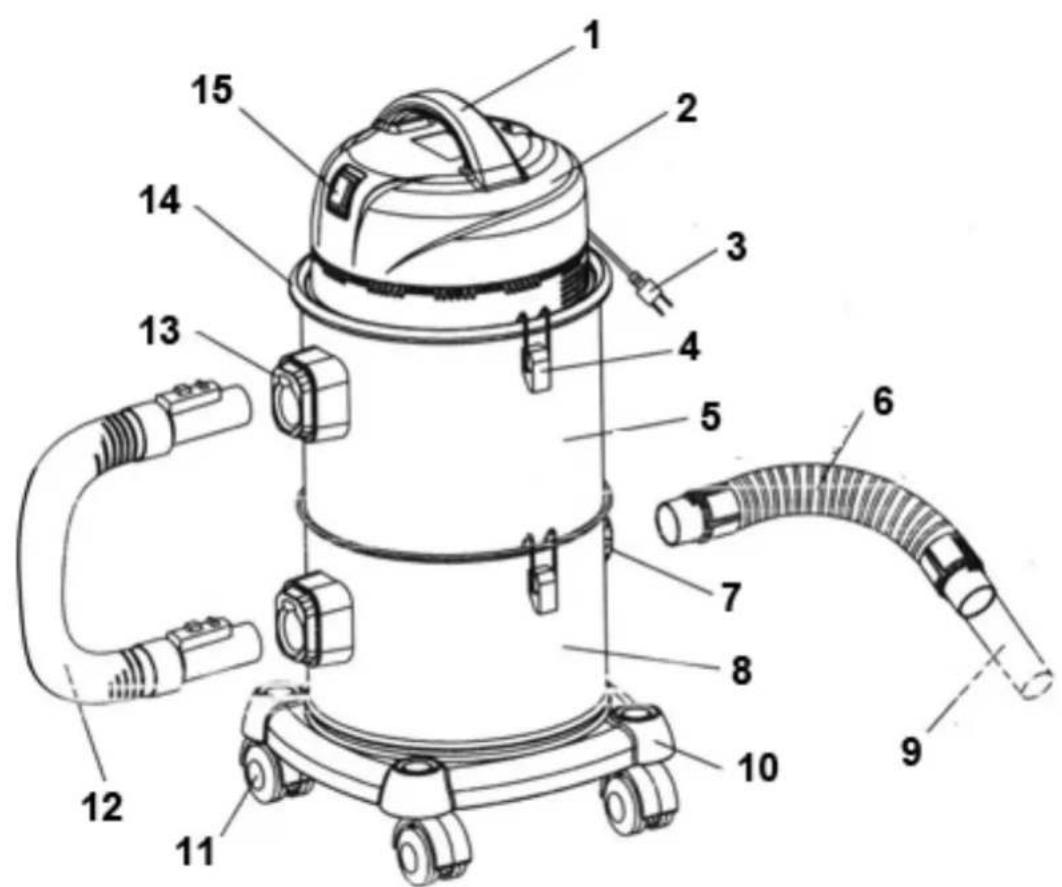

NAME OF PARTS:

1. Handle
2. Top Cover
3. Power plug
4. Barrel lock
5. Upper tank
6. Metal hose
7. Ash inlet mouth
8. Bottom tank
9. Aluminium inlet tube
10. Pedestal
11. Small wheel
12. Connecting hose assembly
13. Air inlet mouth
14. Barrel cap
15. Switch

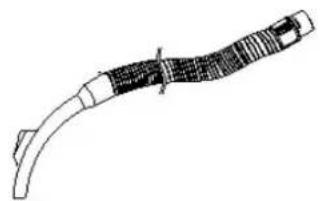

ACCESSORIES INCLUDED:

Suction hose

Flat nozzle

Floor nozzle

Rigid tubes in ABS

TECHNICAL DATA:

Ref: PRCENEASP

Product: Aspira solidi / liquidi / cenere

Voltage: 230 - 50 Hz

Power: 1200 W

Protection: II

Capacity: ±30 Litri

Filter: Provided with cloth filter and sponge filter

GENERAL SAFETY NOTES:

• Do not expose the product to inclement weather (e.g. rain, snow...) or damp.
• Warning! Risk of injury and/or damage and/or deterioration of the product in the event of non-compliance with the safety requirements.
• Read the instruction manual.
• Equipment with Class II protection.
• Keep people (children) and animals away from the product and the work area.
• Remove the plug from the mains before carrying out any work, maintenance or cleaning operation on the product or when the product is not in use.
• Disconnect the power cord if the cord itself or the product has been damaged during use.
• Disconnect the product by removing the plug from the socket. Do not pull the cord.
• Do not dispose of this product together with ordinary urban waste. The product must be suitably disposed of to ensure that the parts are recycled. Contact the local authority in charge or a waste disposal company for further information concerning the disposal methods.

SAFETY INSTRUCTIONS

Before using this product, read all the safety instructions and check that they are clear. Always follow the safety instructions to avoid any risk of injury, electric shock, fire or damage. Keep this manual safely.

READ ALL THE INFORMATION BEFORE USING THE PRODUCT.

• Keep the work area tidy.
• Untidiness in the work area increases the risk of accidents.
• Always bear in mind the influence of environmental factors.
• Never expose the product to rain or damp.
• Do not use the product in the presence of water or damp.
• Make sure that the lighting is good (sunlight or artificial light).
• Do not use the product in an explosive atmosphere (close to combustible liquids or gas.)
• Keep the product away from children.
• Do not let other people touch the product or the cord.
• Keep other people (e.g. children) away from the product and the work area.
• Keep the product out of children's reach and, in any case, away from their environments. Do not allow children to use the product. Children must be supervised to ensure that they do not play with the equipment.
• Store the product in a safe place.
• When not in use, the product must be kept in a dry room under lock and key so that it is not accessible to children.
• Do not damage the power cord.
• Do not pull or move the product by the cord and do not pull the cord to remove the plug from the socket.
• Protect the cord from heat, oil and sharp edges.
• Check the power cord every so often and, if it is damaged, have it replaced by an authorised repair service.

• Check the extension cords every so often and replace them if they are damaged.

• If the plug or the power cord are damaged they must be replaced with a plug and power cord set identical to the original.

• Always remove the plug.
• Always remove the plug when the product is not in use and before any maintenance procedure.
• Use of extension cords.
• When the product is used with an extension cord, only use extension cords designed and produced to withstand the current used to operate the equipment.
• Always pay attention.
• Look at what you are doing. Be sensible.
• Do not use the product if you are not concentrating, if you are tired or under the influence of alcohol, medicine or drugs.
• Check that the product is not damaged.
  Before continuing to use the product check carefully that there is no damage and that the safety devices work properly.
• If the switch is damaged it must be replaced by a repair workshop.
• Never use the product if the switch cannot be turned on or off.

Warning!

The use of accessories other than those recommended in the operating instructions may lead to a risk of injury to people and animals or damage to property.

The product user and/or operator are the only people responsible for any damage to property or injuries to people.

• Repairs must only be carried out by a qualified electrician.
• Damaged parts must be repaired or replaced by a repair workshop unless otherwise stated in the operating instructions. This product complies with the relative safety regulations.
• Repairs can only be carried out by a qualified electrician, otherwise the operator could be injured.
• For safety reasons, only accessories and additional devices specified in the operating instructions or recommended by the manufacturer must be used. Notes:
• The safety instructions given in this manual are not able to illustrate fully all the conditions and situations that may arise. The user and/or operator must use the product sensibly and with care especially with regard to events that are not specified in this manual.

PRODUCT SAFETY INSTRUCTIONS

• Become familiar with the controls and the proper use of the product.
• Use of this product is forbidden by children and adolescents.
  The equipment can only be used by adults who have been properly trained to do so.
• This product is not suitable for use by people (including children) with reduced physical, sensorial or mental capacities, or by those lacking the necessary skill and experience, unless they are supervised or trained to use the equipment by a person responsible for their safety.
• Do not use the product if it is damaged.
• If the power cord is damaged, it must be replaced by the manufacturer, the customer service or by a person with appropriate qualifications to avoid any risk of danger.
• If the power cord or the extension cord shows signs of wear or has been damaged while the product is in use, remove the plug from the socket immediately.
• Do not touch the power cord or the extension cord before the plug has been removed from the socket.
• Under no circumstances must the following be picked up with the vacuum cleaner:
• Lit matches or cigarettes, burning embers, inflammable materials, corrosive and explosive materials in the form of gases or liquids, sharp objects or those with cutting edges.
  The product is not suitable for vacuuming dust that is dangerous for the health.
  The product must only be connected to a normal earthed 220 Volt 50 / 60Hz socket.

TO START

• Unpacking the product
• Remove the product from the packing using the handle provided.
• Check that neither the equipment nor the accessories have been damaged.
• Loosen the fastening hooks.
• Remove the vacuum unit.
  Take out the contents of the bin and position the sponge filter and the bag filter.
• Insert the suction pipe into the hole at the side of the bin and tighten securely.

Starting and stopping the equipment

• Put the plug into a socket and press the switch. The product will start operating.
• The vacuum power can be regulated by sliding the regulating switch.

Vacuuming liquids

Before vacuuming liquids, put the sponge filter in place. The product is provided with a float device and sponge filter to protect the motor from the vacuumed liquids.
- Blowing function
- Insert the suction pipe into the upper hole on the bin and tighten securely.
In this way, the blowing function of the product can be used.

CLEANING AND STORAGE

Before carrying out any operation, make sure the product is not connected to the mains.

Cleaning

Clean the plastic parts using just a suitable soft cloth. Do not use aggressive products (solvents, cleansing

agents), or abrasive sponges, sharp objects or those with cutting edges.

Never immerse the product in water or in any other liquid.

Cleaning the bin:

After vacuuming or when the bin is full of dust/liquid, the suction power decreases considerably. In this case, the plug must be removed and the bin emptied. To do this, release the two hooks, remove the top lid, the sponge filter and the cloth filter. Then empty out the dust or liquid. Replace the top lid and secure it in place with the two fastening hooks.

Storage

Store in a dry place under lock and key or out of children's reach.

NOTE D'INFORMATION POUR LES UTILISATEURS

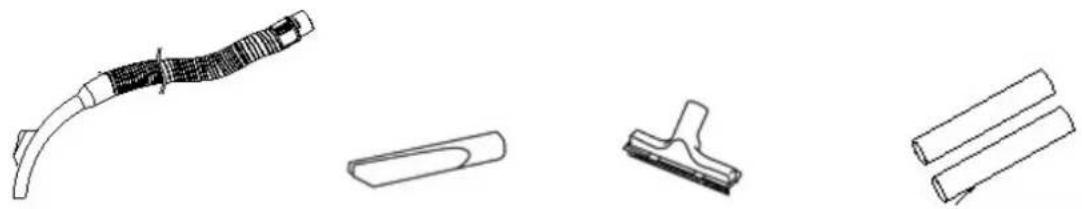

ACCESSORIES INCLUS :

Tuyau d'aspiration

Lance plate

Brosse

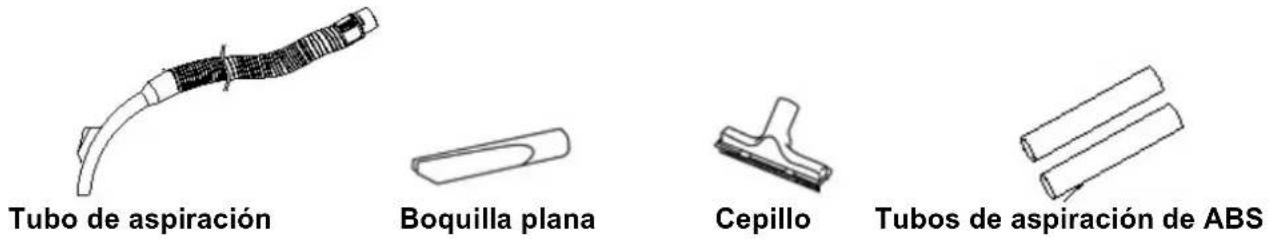

ACCESORIOS INCLUDES:

CHARACTERISTICAS TECNICAS:

Códio Artístico:

PRCENEASP

Descripción:
