USER MANUAL TI1FSOFT BRANDT

Contacter le service client BRANDT FRANCE – SAS au capital de 1.000.000 euros 89/91 Boulevard Franklin Roosevelt – 92500 Rueil-Malmaison (France)14 Dear Customer, Thank you for buying a BRANDT product and for your confidence in our company. This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years. So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and answer all your questions or suggestions You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information. BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.15 CONTENTS

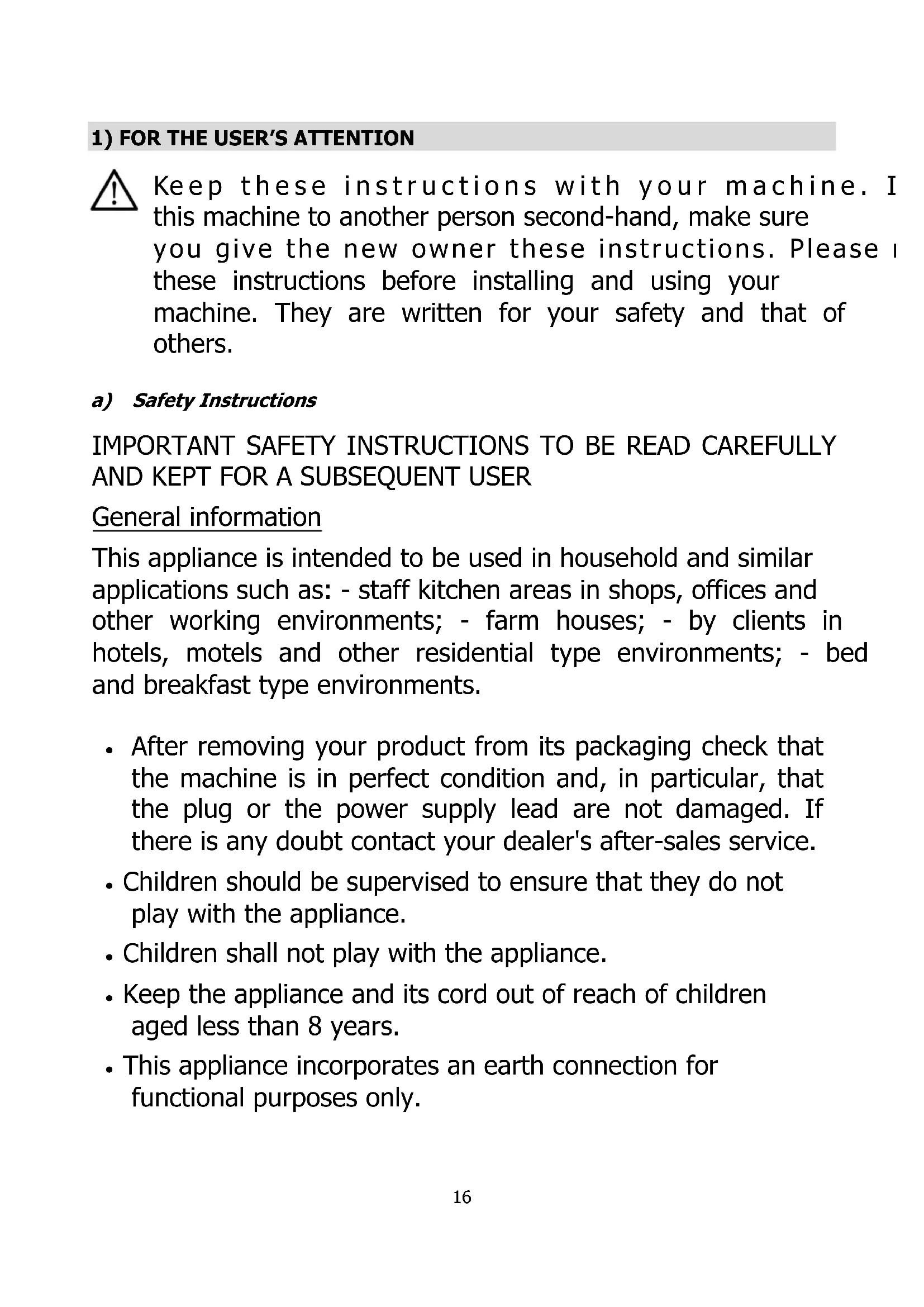

eep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others. a) Safety Instructions IMPORTANT SAFETY INSTRUCTIONS TO BE READ CAREFULLY

AND KEPT FOR A SUBSEQUENT USER

General information This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• After removing your product from its packaging check that the machine is in perfect condition and, in particular, that the plug or the power supply lead are not damaged. If there is any doubt contact your dealer's after-sales service.

• Children should be supervised to ensure that they do not play with the appliance.

• Children shall not play with the appliance.

• Keep the appliance and its cord out of reach of children aged less than 8 years.

• This appliance incorporates an earth connection for functional purposes only.17 Safety Instructions for Installing the Machine Install or place this cooker as the installation instructions recommend. See the 'INTRODUCTION TO YOUR MACHINE' section.

• This machine must not be placed on furniture.

• Do not obstruct your machine's air inlets.

• I f this machine is covered or in contact with a flammable material including curtains, drapes and similar items, there is a fire risk when it is working.

• Keep the power cable away from the hot surface.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system. Safety Instructions for Using the Machine

he machine and its accessible parts may become hot during use. Young children should be kept away.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• The accessible parts of this machine may become hot when it is operating.

• Make sure that the pans used are compatible with use on an induction hob.

• Precautio ns must be taken when handling saucepans to avoid burns.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hotplate since they can get hot.18

• After use the cooking area is hot. To avoid burning yourself touching the cooking area is not recommended.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. Safety Instructions for Cleaning the Machine

urn off the plate and unplug the power cable before cleaning. Lack of maintenance for the hob may lead to deterioration of the surface and thus damage to the machine.

• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

• This machine must be cleaned regularly and all food residues removed.

• Do no t use an abrasive sponge or metal scraper to clean the ceramic plate because they might scratch the surface, which could then cause the glass to crack.

• For your safety a steam cleaner must not be used.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This product is guaranteed by your distributor. For more details please refer to the guarantee conditions provided by the distributor. Non-compliant use The manufacturer denies all responsibility in the event of non- compliant use. This machine is exclusively intended for the use described in the manual. Take into account the general and safety recommendations listed in this chapter. This induction hob is not intended for outdoor use.19 This induction cooker is only intended for domestic use in private dwellings. The use of this product in communal or professional premises such as rooms for breaks, workshops, camping or hotel premises, etc. does not represent compliant use as defined by the manufacturer. b) Technical Data Model TI1FSOFT Voltage/Frequency 220-240V— 50Hz Power 2000W Net weight 2.2 Kg Dimensions mm (HxWxD) 60x290x355mm Eco Design Information/Product Data Sheet Symbol Value Unit Brand Brandt Model TI1FSOFT Type of plate Portable Heating technology Induction Number of heating zones 0 - Diameter of the useful heating surface (single or right-hand zone)

Diameter of the useful heating surface (left-hand zone)

Energy consumption per heating zone (single or right-hand zone) EC zone

Energy consumption per heating zone (left-hand zone) EC zone

Energy consumption of the hob EC hob

c) Environmental Protection At the end of its life this product must not be discarded with household waste. It must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources. A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product. Energy saving advice Cook with a well-fitting lid to save energy. If you use a glass lid you can control cooking perfectly. If it is necessary to take precautions during installation of the appliance, appropriate details are given. For appliances marked with different rated voltages or different rated frequencies (separated by a /), instructions are included to indicate to the user or installer what actio

must be taken to adjust the appliance for operation at the required rated voltage or rated frequency.20

2) INTRODUCTION TO YOUR MACHINE

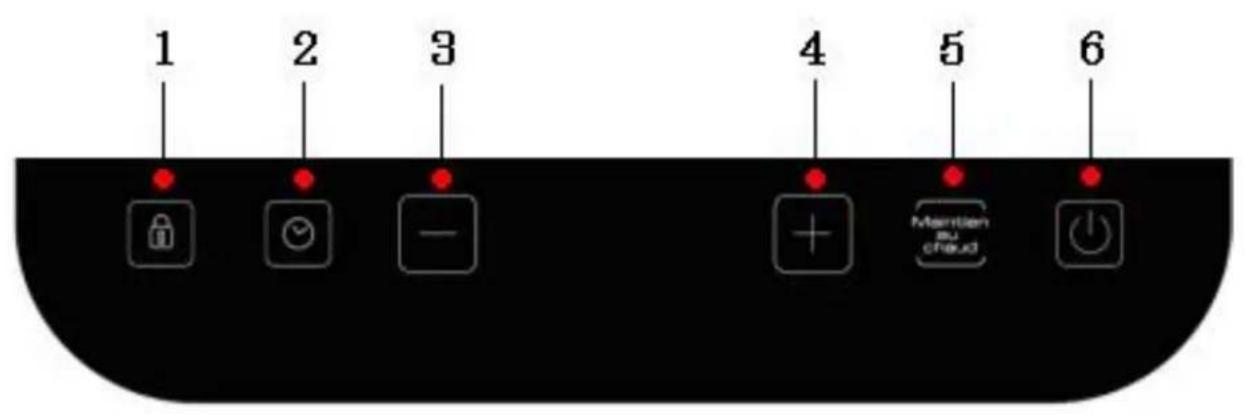

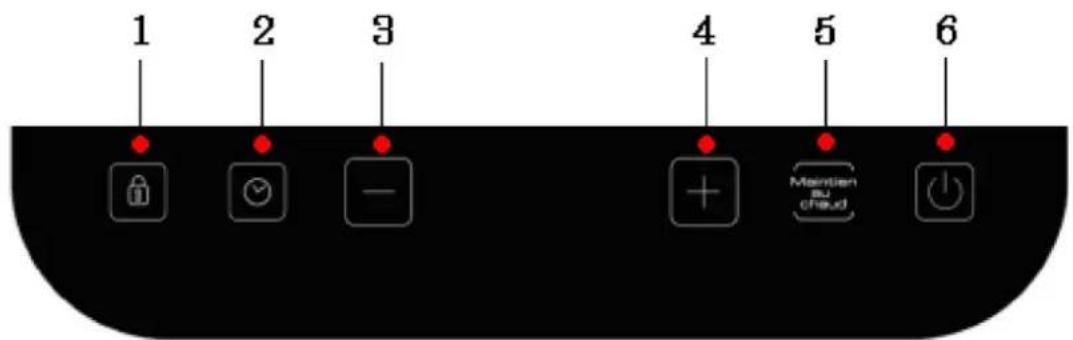

a) Description of your Induction Cooker Control panel

3. Reduce the power/time

4. Increase the power/time

b) Before Using for the First Time Unpack the machine and remove all the paper and plastic. Makes sure no pieces of packaging remain on the parts of the machine. Before using the induction cooker for the first time, it is wise to ensure that it is at least 10 centimetres from all walls, partitions or flammable materials (curtains, drapes, etc.). Then plug the cooker into a 10 ampere (minimum) earthed socket. If the use of an extension lead proves to be indispensable make sure that it is in good condition and compliant. Your machine must rest on a clean, horizontal, flat, stable surface that is heat-resistant. Do not move the machine when it is operating. When using the machine you may hear a slight noise which is due to the high electromagnetic frequency. This is normal and is not a source of danger.21 c) Compatible and Incompatible Pans Compatible pans must be used. In order to determine whether your pans are compatible or not you just need to use a magnet. If the magnet sticks to the bottom of the pan this means that your pan is compatible with induction cookers. You can also refer to the diagram below showing compatible pans: Metal frying pan Stainless steel pan Metal pan Metal kettle

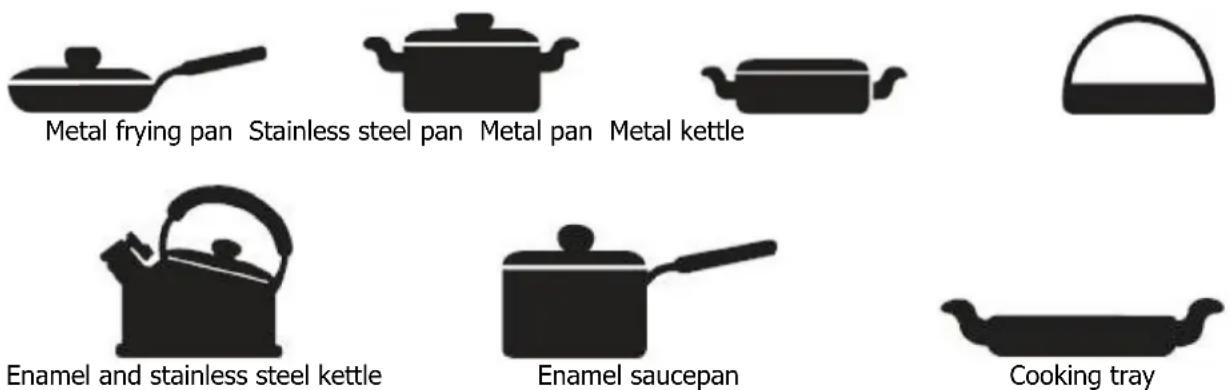

Enamel and stainless steel kettle Enamel saucepan Cooking tray The compatibility of these pans refers to tests performed on pans containing stainless steel 430 with a base of 180 +/- 10 mm. Other cooking utensils do not guarantee results of equivalent quality. Pans in aluminium, copper, ceramic, glass or aluminium alloy must not be used with this machine, as well as those with a diameter of less than 12 cm or more than 26 cm. This machine can in fact take saucepans with a diameter of between 12 and 26 cm. d) The Safety Pack The machine has a complete safety pack: Anti-overheating system. If the temperature inside the machine is too high, it will stop heating. Protection against over-current or voltage anomalies. When the voltage is abnormal or when the current is cut abruptly the induction cooker will stop to avoid any damage. Once the problems have been dealt with the induction cooker will function normally again. The pan detection system. If a pan is removed whilst the machine is in operation the machine will stop heating. After that it will go on standby. Automatic switch-off. When the timer reaches the end of the time set the machine will stop automatically until the user turns on the timer again. Similarly the machine will turn off automatically if a dish being cooked has been forgotten for a long time. Locking the controls (1). This key makes it possible to lock all the controls to simplify cleaning and also to protect children from any risk.22

3) USING YOUR MACHINE

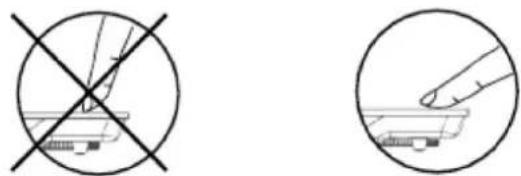

a) Description of the Control Panel The control keys are touch-sensitive. There is no need to apply pressure. Use the base of your finger and not the tip as shown in the pictures below. Push the slider with your finger to increase or decrease the power, You will hear a beep each time an action is recorded. The control panel must always be clean, dry and not covered by an object or a fabric. Even a fine film of water may create malfunctions. b) Starting the Machine After having turned the machine on the audible alarm sounds and the screen displays "L" (cold) or "H" (hot), indicating that the temperature of the induction plate is less than or higher than 60°C. Then press the Start/Stop key (6). The screen displays "----" meaning that the machine is on standby and ready to be programmed. You can now use your induction plate. Never place an empty pan on the ceramic plate without having turned the machine on. Note: Once the machine is ready to be used, and if you don't press any other key during the next 30 seconds, it will turn off automatically for safety reasons. The screen will show "L" meaning that the machine has gone back to standby. In the same way if you place an incompatible pan on the plate the machine will show "E1", a beep will be heard and the machine will turn off after 30 seconds. c) Using the Functions Timer After selecting the level of heating power required press the timer key (2). The digital screen will then show "00:00". Within 4 seconds press the +/- keys to adjust the cooking time. Each press increases or decreases the time by 1 minute. If you hold down the key the time will increase or decrease by 10 minute increments. The timer can be adjusted from 1 minute to 180 minutes. Once the set time has elapsed a beep is heard and the machine goes to standby. To leave the timer mode, press the Timer key (2) again.23 "Keep Warm" (Maintien au chaud) function To keep your preparation at service temperature press the Maintien au chaud (Keep Warm) key (5). The machine will automatically adjust itself to the minimum power 1 and will stop after 120 minutes. To adjust the power again press the +/- keys. Then, if you wish to increase the power, press the + key. The power level will increase on the display and the Keep Warm function will deactivate automatically. Locking function To lock all the control keys during cooking press the locking key (10). The "Lo" indicator will appear on the screen. In this situation only the Start/Stop key (6) can be used to turn off the machine. If you press the Start/Stop key (6) in locking mode the screen will display "L" or "H" meaning that your machine is turned off. To unlock the controls press the Start/Stop key (6) again and then press the locking key for 3 seconds. d) Stopping the Machine After use the electric plate will be hot, the audible alarm sounds and the "H" indicator flashes on the screen. "H" means that the cooking surface is hotter than 60°C. To turn off the machine press the Start/Stop key (6) and then unplug it. For information, you can refer to the following table to find the heating level relating to each number on your control panel. Level 1 2 3 4 5 6 7 8 9 10 Wattage (W) 120 300 500 800 1000 1200 1400 1600 1800 2000

4) LOOKING AFTER AND CLEANING YOUR MACHINE

a) Cleaning the Machine Ensure the machine is off and unplugged before cleaning. Carry out cleaning when the ceramic plate has cooled down. About the vitroceramic plate and the control panel Lightly soiled: clean with a soft, damp cloth Soiled with fat: clean with a soft, damp cloth with a little toothpaste or neutral detergent until the residues are removed. Do not use an abrasive, flammable, acid or alkaline cleaning liquid Note: When cleaning never clean the surface of the hob with a stiff brush.24 About the air inlet and the air vent After a long period of use dust and other dirt may accumulate in the air inlet or the air vent. The body of the induction cooker should be cleaned carefully with a clean, dry cloth. The dust around the air inlet and the air vent must be cleaned with a supple brush or a cleaner. Note: Do not immerse the induction cooker in water and do not clean it with a steam cleaner. b) Troubleshooting Below you will find the inspections recommended for the defects encountered most often: Do not dismantle the machine yourself to avoid any danger or deterioration of the induction cooker. Problems Points to be checked After plugging the machine in the indicator for the Start/Stop key does not light up and there is no display on the screen. Check the machine is correctly connected to the electric socket. Check that the switch, the plug and the fuse are in good condition. The Start/Stop key indicator light comes on but heating does not start. Make sure that the pans are compliant with use on induction hobs. Make sure that the pans are correctly placed on the induction hob.

Call an engineer. The machine stops heating abruptly when it is operating. Let the machine cool. Clear the air inlet and outlet. Adjust the timer again.

Refer to the fault codes below. Display of error codes

The machine circuits are defective

The induction cooker has not detected a pan or the pans on the induction cooker are not compatible

The induction cooker has overheated

The voltage is too high

The voltage is too low E5, E6

Short-circuit E1-E3-E4 Inspect the product to resolve the problem before any other approach E0-E2-E5-E6
