USER MANUAL BPE6411XM BRANDT

Robinet Grille support casserole

— Usea lid on your cookware as oen as possibletoreducethe lossofheatbyevaporaon.

SERVICE APRÈS VENTESERVICE APRÈS VENTEGUIDE FOR INSTALLATION AND USE EN Cooking hob CZ2100210_EN-05/2526 Dear Customer, You have just acquired a BRANDT product and we would like to thank you. We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. We have devoted our know-how, our innovative spirit and the passion that has been guiding us for over 60 years. In an effort to ensure that our products meet your requirements in the best possible way, our Customer Relations department is at your disposal, to answer all your questions and to listen to all your suggestions. Visit our website www.brandt.com where you will find our latest innovations, as well as useful and complementary information. BRANDT is delighted to assist you every day and hopes you get the most out of your purchase. Important: Before using your appliance, read this user guide carefully to familiarise yourself more quickly with its operation. 06/2427 SOMMAIRE

• Ca ring for the environment

• Description of your appliance

• Tips for flush mounting

• Changing of gas supply

USING YOUR APPLIANCE

• Description of the worktop

• Cookware suitable for the gas burners

• Cookware for electric plate

• Maintaining your appliance

52> We have designed this cooking hob for use by private individuals in their homes.

This appliance must be installed in compliance with currently applicable regula- tions and used only in a well- ventilated location.

Consult this guide before installing and using your appliance.

Never leave the appliance unattended when in use.

These cooking hobs are intended exclusively for cook- ing beverages and foodstuffs and do not contain any asbestos-based materials.

This appliance is not connected to a device for evacuating combustion pro- ducts. It must be installed and connected in compliance with the regulations in force. Particular attention must be given to the guidelines concerning ventilation.

The use of a gas cooking appliance produces heat and humidity in the room where it is located. Ensure that the kit- chen is well-ventilation orifices open.

The use of a gas cooking appliance produces heat and humidity in the room where it is located. Ensure that the kit- chen is well-ventilated: keep mechanical ventilation orifices open.Intensive and prolonged use of the appliance may require additional ventilation, for example opening a win- dow, or more efficient ventila- tion, for example by increa- sing the power of the mecha- nical ventilation if present.

Do not store CLEANING products or FLAMMABLE prod- ucts (aerosol cans or pres- surised containers, as well as papers, cookbooks, etc.) in the cabinet underneath your cooking hob.

If the hob has been installed over a drawer, we recommend that you avoid using it to store flammable items (plastics, papers, aerosol cans, etc.).

If you plug electrical appli- ances into a socket close to the hob, ensure that no cable comes into contact with the hotplates and burners.

The electrical plug must remain accessible after installation.

The CE mark is affixed to these hobs.

This appliance is designed to be installed on a work surface only.

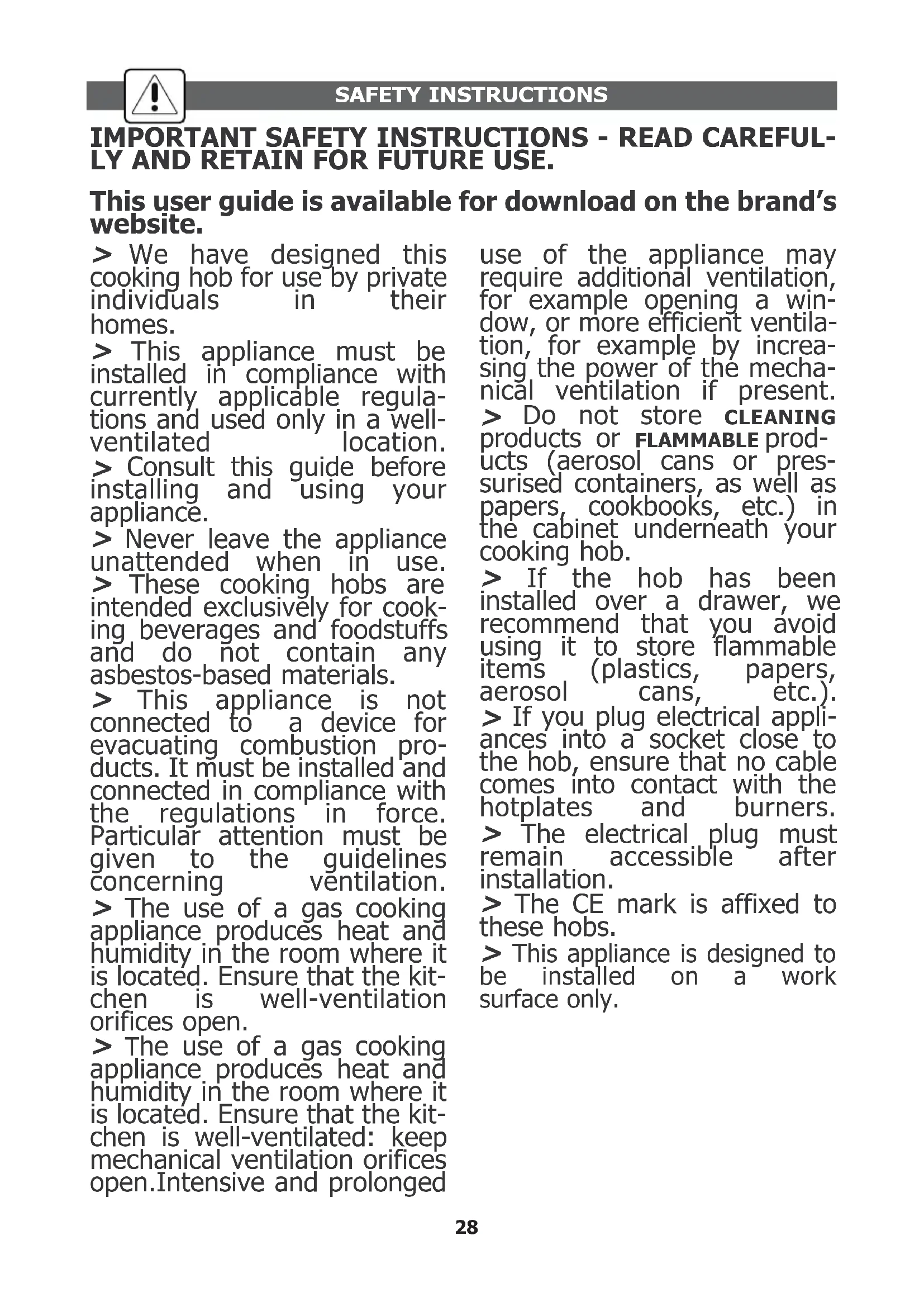

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFUL-

LY AND RETAIN FOR FUTURE USE. This user guide is available for download on the brand’s website.

Only use protection sys- tems designed by the manu- facturer of the cooking appliance or systems men- tioned by the manufacturer of the appliance in the user guide for the intended use, or use the protection system integrated into the applian- ce. Use of unsuitable protec- tion systems could cause accidents.

As a safety measure, remember to shut off the mains gas supply or the buta- ne/propane gas cylinder when not in use.

When a knob becomes difficult to turn, do not force it. Request an emer- gency service call for the installater.

This appliance may be used by children aged 8 years and older, and by persons with impaired physical sensorial or mental capacities, or without experience or knowledge, if they are supervised or have received prior instructions on how to use the appliance safely and have understood the risks involved. Children must not be allowed to play with the appliance. Cleaning and maintenance operations must not be carried out by childen without supervision.

Do not use a steam cleaner. SAFETY INSTRUCTIONS

It must be possible to disconnect the appliance from the power supply, either using a plug or by fitting a switch on the fixed wiring system in accordance with installation rules.

Do not use containers whose surfaces extend past the edges of the hob.

We do not recommend using any hob protection mechanism.

Children must be supervi- sed to prevent them from playing with the appliance.

If the power supply lead is damaged, it must be replaced by a H05V2V2F cable and three 1 mm

This unit is not intended to be operated using an external timer or a separate remote control system.

Before installation, ensure that the conditions of local distribution (gas type and pressure) and the settings of the appliance are compatible.

Installation should only be undertaken by qualified fitters and technicians.

This hob is compliant with standard EN 60335-2-6 relat- ing to the heating of cabinets and the Class 3 standard with regard to installation (as per standard EN 30-1-1). 29> CAUTION: The cooking process must be monito- red. A short cooking pro- cess must be continuously monitored.

When not monitored, cooking on a cooking plate with fat or oil can be dan- gerous and may cause a fire.

protection systems desi- gned by the manufacturer of the cooking appliance or systems mentioned by the manufacturer of the appliance in the user guide for the intended use, or use the protection system integrated into the appliance. Use of unsuitable protection sys- tems could cause acci- dents.

So that you can easily locate any reference numbers for your appliance, we recom- mend that you make a note of them on the “After-Sales Service and Customer rtions” page (this page also explains where this information may be found on your appliance).

WARNING: the applian-

ce and the accessible parts of it will become hot during use. Be careful not to touch the heated ele- ments. Children under the age of 8 years must not be allowed to touch the appliance, unless they are supervised continually.

Never use aluminium foil for cooking. Never place products wrapped in aluminium foil or in alumi- nium trays onto your hob. The aluminium will melt and permanently damage your appliance.

The conditions for setting this appliance are described on the label inside the bag or on the rating plate.

WARNING: it is dange-

rous to cook with oil or fat if the hob is left unatten- ded, as this may cause a fire. Do not attempt to extinguish a fire with water but switch off the appliance, then cover the flame with a lid or a fire blanket.

Fire hazard: Do not store objects on the cooking surfaces.

SAFETY INSTRUCTIONS> This appliance’s packing materials are recyclable. Recycle them and play a role in protecting the environ- ment by depositing them in local authority containers provided for this purpose. Your appliance also contains various recyclable materials. It is therefore marked with this logo to indicate that, in European Union countries, used appliances must not be mixed with other waste. Appliance recycling organised by your manufacturer will thus be carried out in opti- mum conditions, in accor- dance with European directive 2002/96/CE relating to electri- cal and electronic equipment waste. Contact your local council or your retailer to find out the drop-off points for used appliances that are near- est to your home. We thank you for your help in protecting the environment.

Burner cover Burner head Thermocouple

Tap Fig. 01 Fig. 02 Tip This Guide to Installation and Use is valid for several models. Minor differ- ences in details and fittings may emerge between your appliance and the descriptions provided. Burner

Your appliance shoud be flush mounted in the surface of a support cabinet that is a minimum of three cm thick, made of a material that resists heat or that is covered with such a material. So as not to disturb movement of cooking utensils, there should not be to the right or left or back any obstacle within 30 cm of the hob. If a horizontal divider wall is positioned under the hob, it should be placed between 10 cm and 15 cm away from the top of the work top. In any event, do not store aerosol cans or containers under pressure in any compart- ment that may exist under the hob (See

— Remove the pan supports, the burner covers and burner heads, noting their posi- tions. — Turn the hob over and carefully place it on top of the opening in the cabinet so as not to damage the knobs and spark plugs. — To ensure a tight seal between the hou- sing and the work top, glue the foam seal along the exterior edge of the housing before installing the hob (Fig. 02).

INSTALLING YOUR APPLIANCE

- Place your hob in the opening of the sup- port cabinet, carefully pulling the table towards you. - Reposition the burner heads, burner cov- ers and pan supports on the hob. - Connect your hob to the gas supply (See “Gas Connection” chapter) and to the power supply (See “Electrical Connection” chap- ter). If you wish, you can immobilise the hob using the four mounting brackets delivered with a screw (Fig. 02) to attach them to the four corners of the housing. You must use the holes provided for this purpose, according to the diagram above (Fig. 01). Stop screwing when the mounting bracket starts to become deformed. Do not use a screwdriver. Fig. 01 Fig. 02 Mounting bracketsUnderside viewof the housing

INSTALLING YOUR APPLIANCE

34ELECTRICAL CONNECTION The oven must be plugged in using a standardized power cable with 3 conductors each 1,5 mm² ( 1 ph + 1 N + ground) which must be connected to the 220~240 Volt network by means of a standardized IEC 60083 power socket or a single-pole cut-off device in compliance with installation regulations. The safety wire (green-yel- low) is connected to the appliance's ground terminal and must be connected to the installation's ground lead. — The plug of the electrical outlet must be accessible after installation.

CROSS-SECTION OF CABLE TO BE USED

H05V2V2F - T90 cable Cross-section of the conductors in mm

50 Hz Gas and dual 3 conductors including 1 ground

Neutral (N) Live (L) Blue wire Black, brown, or red wire Green and yellow wire Earth Cable type H05V2V2F Attention — The safety wire (green/yellow) is connected to the appliance’s ground termi- nal and must be connected to the ground lead of the electrical set-up. — If a cooking hob is used that is not connected to the ground or has a faulty ground electrode, the manufacturer’s liability shall under nos circumstances be incurred in the event of an incident or for anay of its consequences. Connect the wires to the electricity supply making sure that the different- coloured wires are in the right order.

INSTALLING YOUR APPLIANCE

35The gas connection must be installed in compliance with applicable regulations in the country of installation.

• Gas distributed by pipe; natural gas, For your safety, you must choose from the three following connection options: — Connection with a rigid pipe made from copper and with screw-on mechanical connectors (G1/2 gas standard mark). Make the connection directly to the end of the elbow fitted on the appliance. — Connection with a flexible metal hose (stainless steel) with screw-on mechanical connectors (compliant with NF D 36-121 standard) whose service life is unlimited (Fig. A). — Connection with a flexible rubber hose reinforced with screw-on mechan- ical connectors (compliant with the NF D 36-103 standard) whose service life is 10 years (Fig. B). WARNING When connecting your hob’s gas supply, if you have to change the direction of the elbow fitted on the appliance : - Change the gasket. Screw on the elbow’s nut, careful not to exceed a torque of 17 N.m. GAS CONNECTION

• Preliminary comments If your hob is installed above an oven or if proximity to other heating elements poses a threat of overheating the connection, you absolutely must insulate the cable in a rigid pipe. If a hose or soft pipe (in the case of butane gas) is used, it should not come into contact with a moving part of the cabinet, nor should it pass through a location that may become blocked.

INSTALLING YOUR APPLIANCE

36• Gas supplied by cylinder or tank (gas butane/propane) For your safety, you must choose from the three following connection options: — Connection with a rigid pipe made from copper and with screw-on mechanical connectors (G1/2 gas standard mark). Make the connection directly to the end of the elbow fitted on the appliance. — Connection with a flexible metal hose (stainless steel) with screw-on mechanical connectors (compliant with NF D 36-125 standard) whose service life is unlimited (Fig. 01). — Connection with a flexible rubber hose reinforcedwith screw-on mechani- cal connectors (compliant with the XP D 36-112 standard) whose service life is 10 years (Fig. 02). ;;@@;;QQ Fig. 01 Fig. 02

Sealing washer (not supplied) Adaptor (not supplied) Clamp (not supplied)

You can obtain the adaptor and the sealing washer from your After-Sales Service.

OTE Screw on the adaptor with a torque not exceeding 25 N.m. Warning All soft pipes and hoses whose serv- ice life is limited must have a maxi- mum length of two meters and must be accessible along their entire length. They must be replaced before the end of their service life (indicated on the pipe). Regardless of the means of connection chosen, ensure that the connection is sealed, after installation, with soapy water. In France, you must use a hose or a pipe bearing the stamp NF Gaz .

INSTALLING YOUR APPLIANCE

37CHANGING THE GAS SUPPLY

Warning Your appliance is sold pre-set for natural gas. The injectors required for adaption to butane/propane can be found in the plastic bag containing this guide. Each time you change the gas supply, you must complete the following: — Adapt the gas connection — Change the injectors — Adjust the hob connections

• Adapt the gas connection : Refer to the “gas connection section.

• Change the injectors, proceeding as follows: — Remove the pan supports, heads and covers from all burners. — Using the wrench provided, unscrew the injectors located under each crucible and remove them (Fig. 01). — Replace with the corresponding gas injec- tors, in compliance with the placement of the injectors and the table of gas properties at the end of this section; to do so: — First screw them in manually until the injector locks into place. — Apply the wrench to the injector as far as it will go. — Draw a line on the burner plate using a pencil at the place indicated (Fig. 02). — Turn the wrench clockwise until the line appears on the other side(Fig. 03). Warning Exceeding this limit may damage the product. — Reposition the burner heads, burner covers and pan supports on the hob.

TIP Each time you change the gas supply, tick the box corresponding to the new gas level on the label found in the plastic bag. Refer to the corresponding “Gas Connection” section. Fig. 02 Fig. 03 Line Line WrenchWrench Fig. 01 WrenchInjector Crucible

INSTALLING YOUR APPLIANCE

38• Adjust the hob connections: they are located underneath the knobs (Fig. 04).— Proceed one tap at a time.— Remove the knobs and the gaskets bypulling them up. WITCHING FROM NATURAL GAS TO BUTA-NE/PROPANE With a small flat-head screwdriver, screwin all the way the brass (yellow) burnerpower screws (Fig. 05), in a clockwisedirection. Replace the gaskets and the knobs, pay-ing careful attention to their direction andensuring that the knobs are pushed in allthe way.

WITCHING FROM BUTANE/PROPANE TONATURAL GAS

- Unscrew the brass (yellow) burner power screws (Fig. 05) , using a small flat-headscrewdriver, by turning two times coun-terclockwise. Replace the knob, Light the burner in maximum heat mode,then turn down to reduced heat mode. Remove the knob again, then turn theburner power screws clockwise until itreaches the lowest possible setting thatdoes not extinguish the flame. Replace the gasket and knob. Make several attempts to shift from themaximum flow rate to the minimum: theflame should not go out; if it does,unscrew the burner power screw so as toobtain good flame retention during theseposition switches. Knob Gasket Tap Fig. 04

INSTALLING YOUR APPLIANCE

Burner power adjustment screwFig. 05Tap axis• Marking on the injectors The adjacent table shows where the injectors are positioned on your appliance according to the type of gas used. Each number is marked on the injector. Natural gas Butane/Propane gas Four-burner gas model * Three-burner gas model* + 1 electric plate Example: Injector marking 94

• See “Description of the Top” chapter.

INSTALLING YOUR APPLIANCE

INSTALLING YOUR APPLIANCE

USING YOUR APPLIANCE

Each burner is supplied by a tap which can be opened by pressing it and turning it in in a counterclockwise motion. The “ l” point corresponds to closing the tap. Choose the desired burner by using the symbols located near the knobs (e.g.: Rear right burner ). To light a burner, press the electronic starter button by turning the knob to the maximum position . Keep pressing the starter button until the burner ignites. The setting for more moderate flame intensi- ties is between the and the symbol

TIP — If the flame goes out accidentally, reignite normally following the lighting instructions. — The burner’s flames are smaller near the support to protect the support’s enamel. — The noise made by certain burners is related to their high power and to gas combustion; it does not alter cooking quality. — In the event of a power cut, place a lighted match near an open burner.

USING YOUR APPLIANCE

43WARNING — Adjust the ring of flames so that they do not extend beyond the edges of the cookware (Fig. 01). — Do not use cookware with a con- cave or convex bottom (Fig. 02). — Do not use cookware that partially covers the knobs (Fig. 03). — Do not leave a gas burner operating with empty cookware.

Tip Keep natural ventilation outlets in your home open or install a mechanical ventilation device (mechanical ventilation hood). Intensive, prolonged use of the appliance may require additional ventilation; you can, for example, open a window or pro- vide more effective ventilation or increase power to the mechanical ventilation, if you have it (a minimum air flow of 2 m

per kW of gas power is required). Example: 60 cm - Four gas burners Total power: 1.5 + 2.25 + 3.1 + 0.85 =

• Which burner should you use depending on your cookware? Diameter of the cookware 18 to 28 cm 16 to 28 cm 12 to 24 cm Burner Super fast High-speed Semi-fast Auxiliary Use Frying - Boiling Searing foods Sauces - Reheating Gentle simmer

USING YOUR APPLIANCE

(depending on model) Use cookware with flat bottoms that perfectly hug the surface of the burner: — in stainless steel with a thick, tri metal or “sandwich” bottom”, — in aluminium with a thick (smooth) bottom, — in enamelled steel.

POWERING ON THE ELEC-

TRIC PLATE (depending on the model) Position the knob on the marking that cor- responds to the desired cooking method (Fig. 01) (see cooking guide at the end of this guide). The cooking zone’s power indi- cator lights up. Upon first use, allow the plate to heat up with no cookware at maximum power for three minutes to harden the coating. TIP — Use cookware of an appropriate size: the diameter of the bottom should be greater than or equal to the diameter of the electric cooking zone (Fig. 02). — When cooking is nearly complete, turn the knob to the “O” off position to take advantage of the heat accumulated in the plate. — Use a lid on your cookware as often as possible to reduce the loss of heat by evaporation. WARNING — Do not operate an electric cooking zone without cookware (except dur- ing initial use) or with an empty pot. — The electric plate will remain hot for a certain time after the knob has been turned to the “O” position. Do not touch this zone because there is a risk of burning.

USING YOUR APPLIANCE

Fig. 02PRODUITS/ACCESSOIRES A UTILISER . Small, hard-bristled brush. . Safety pin . Gentle scrubbing cream. . Cleaning sponge . Commercially available restorative product. . Gentle scrubbing cream. . Commercially available specialised stainless steel product.

MAINTAINING YOUR APPLIANCE

WHAT TO DO ? If the spark igniters become dirty, clean them using a small, stiff-bristled brush (non-metallic). The gas injector is located in the centre of the burner in the form of a crucible. Be careful not to clog it during cleaning, as this will reduce the performance of your hob. In the event of obstruction, use a safety pin to unclog the injector. If tough stains occur, use a non-abra- sive cream, then rinse with clean water. Carefully wipe each part of the burner before using your hob again. The heating plate is protected by a black coating, so you should avoid using any abrasive products. After each use, wipe it with a thick towel. If the plate shows signs of rusting, remove the rust (with an emery cloth, for example) and restore the black coating with a commercially available high-temperature restorative product. To clean the hob’s enamel, use a scour- ing cream. Polish it with a dry cloth. Do not allow acidic liquids such as lemon juice, vinegar, etc. to remain in contact with the enamel. To clean the hob’s stainless steel, use a sponge and soapy water or a commer- cially available special stainless steel product. MAINTENANCE... Of the spark plugs and injectors Of the pan supports and gas burners Of the electric plate Enamel or stainless steel

DAILY CARE OF YOUR APPLIANCE

Warning It will be easier to maintain your hob if you clean it before it has com- pletely cooled down. However, never clean your appliance while it is in opera- tion. Set all the electric and gas controls to zero. Tip — It is better to clean the parts of the hob by hand rather than in the dishwasher. — Do not use an abrasive sponge to clean your hob. — Do not use steam cleaning. 46DURING USE

Lighting of burners: There are no sparks when you press the knobs.

When you press on a knob, all the burners spark at the same time.

There are sparks, but the burner (burners) does (do) not light.

In reduced heat mode, the burner goes out or the flames remain high.

During cooking, the knobs become hot. . Check the electrical connection of your appliance . Check that the spark plugs are clean. . Check that the burners are clean and properly assem- bled . If the hob is attached to the work surface, check that the mounting brackets are not deformed. . Check that the gaskets under the knobs are not coming out of their seats.C’est normal. . This is normal. The lighting function is centralised and controls all of the burners simultaneously. . Check that the gas inlet pipe is not pinched. . Check that the length of the gas inlet pipe is less than two meters. . Check that the gas inlet pipe is open. . If you have gas in a cylinder or tank, check that it is not empty. . If you have just installed the hob or changed the gas cylinder, hold the knob down in maximum open posi- tion until gas arrives in the burners. . Check that the injector is not clogged; if it is, unclog it with a safety pin. . Light your burner before placing your saucepan on it. . Avoid strong air currents in the room. . Check that the gas type being used corresponds to the injectors installed (Read about markings on the injectors in the “Changing the Gas Supply” chapter). Reminder: The cooking hobs are sold pre-set for use with gas from the grid (natural gas). . Check that the burner power screws are properly set (See the “Changing the Gas Supply” chapter). . Check the cleanliness of the burners and injectors under the burners, the assembly of the burners, etc. . Check that there is enough gas in the bottle. . Use small saucepans on the burners located closest to the knobs. Large cookware should be used on the lar- gest burners, which are farther away from knobs. . Properly place the saucepan in the centre of the bur- ner.

PREPARATIONS VERY HIGH HIGH MEDIUM GENTLE KEEP SIMMER WARM 653-421 SOUPS Broths XX Thick soups XXX FISH Court-bouillon XX Frozen XX SAUCES Thicks X with butter X VEGETABLES Chicory, spinach X Dry vegetables X Boiled potatoes X Browned potatoes XX MEATS Steak X Grilled food X FRYING Chips X MISCEL- Fruit compotes X LANEOUS Pancakes X Custard X Melted chocolate X Jams X Milk X Pasta XX Rice pudding X Keep warm X

FAST FAST SOUPS Broths 8-10 minutes X Thick soups X FISH Court-bouillon 8-10 minutes X Grilled food 8-10 minutes

SAUCES Hollandaise, béarnaise XX Béchamel, aurore 10 minutes XX VEGETABLES Chicory, spinach X Cooked peas 25-30 minutes XX Provençal tomatoes 15-20 minutes XX Browned potatoes XX Pasta X MEATS Steak X Blanquette, Osso-bucco 90 minutes X Sauteed poultry breasts 10-12 minutes X Tournedos 10 minutes X FRITURE Chips X Fritters X DESSERTS Rice pudding 25 minutes XX Fruit compote XX Crêpes 3-4 minutes XX Chocolate 3-4 minutes X Custard 10 minutes X Coffee (small percolator) X COOKING GUIDES 48EN PERSONAL NOTE 49PERSONAL NOTE 50EN PERSONAL NOTE 51EN AFTER-SALES SERVICE Any maintenance on your equipment should be undertaken by: - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appli- ances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufactur- er’s nameplate attached to your equip- ment. (Fig. 01).
