USER MANUAL Spirit E320 WEBER

GaS GrILL LP Gas Grill Owner’s Guide YOU MUST READ THIS OWNER’S GUIDE BEFORE OPERATING YOUR GAS GRILL.m DANGERIf you smell gas: 1. Shut off gas to the appliance.2. Extinguish any open flames.3. Open lid.4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.Leaking gas may cause a fire or explosion which can cause serious bodily injury, death, or damage to property.m WARNING:1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.m WARNING: Follow all leak-check procedures carefully in this manual prior to barbecue operation. Do this even if the barbecue was dealer-assembled.NOTICE TO INSTALLER: These instructions must be left with the owner and the owner should keep them for future use.THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.m WARNING: Do not ignite this appliance without first reading the BURNER IGNITION sections of this manual.2 WarNINGS m DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. m WARNINGS m Do not store a spare or disconnected liquid propane cylinder under or near this barbecue. m Improper assembly may be dangerous. Please follow the assembly instructions carefully. m After a period of storage, and/or nonuse, the Weber

gas barbecue should be checked for gas leaks and burner obstructions before use. See instructions in this manual for correct procedures. m Do not operate the Weber

gas barbecue if there is a gas leak present. m Do not use a flame to check for gas leaks. m Combustible materials should never be within 24 inches (61 cm) of the back or sides of your Weber

gas barbecue. m Do not put a barbecue cover or anything flammable on, or in the storage area under the barbecue. m Your Weber

gas barbecue should never be used by children. Accessible parts of the barbecue may be very hot. Keep young children away while it is in use. m You should exercise reasonable care when operating your Weber

gas barbecue. It will be hot during cooking or cleaning and should never be left unattended, or moved while in operation. m Should the burners go out while in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to relight, using the igniting instructions. m Do not use charcoal or lava rock in your Weber

gas barbecue. m Never lean over open grill or place hands or fingers on the front edge of the cookbox. m Should a grease fire occur, turn off all burners and leave lid closed until fire is out. m Do not enlarge valve orifices or burner ports when cleaning the valves or burners. m The Weber

gas barbecue should be thoroughly cleaned on a regular basis. m Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane unit or liquid propane gas in a natural gas unit is dangerous and will void your warranty. m Do not attempt to disconnect any gas fitting while your barbecue is in operation. m Use heat-resistant barbecue mitts or gloves when operating barbecue. m Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. m Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. m Do not use this barbecue unless all parts are in place. The unit must be properly assembled according to the assembly instructions. m Do not build this model of grill in any built-in or slide-in construction. Ignoring this Warning could cause a fire or an explosion that can damage property and cause serious bodily injury or death. m Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. (Wash hands after handling this product.)

LIQUID PROPANE GAS UNITS ONLY: m Use the pressure regulator and hose assembly that is supplied with your Weber

gas barbecue. m Do not attempt to disconnect the gas regulator and hose assembly or any gas fitting while your barbecue is in operation. m A dented or rusty liquid propane cylinder may be hazardous and should be checked by your liquid propane supplier. Do not use a liquid propane cylinder with a damaged valve. m Although your liquid propane cylinder may appear to be empty, gas may still be present, and the cylinder should be transported and stored accordingly. m If you see, smell or hear the hiss of escaping gas from the liquid propane cylinder:

1. Move away from liquid propane cylinder.

2. Do not attempt to correct the problem yourself.

3. Call your fire department.

14. Rear Frame Support

34. Hose / Regulator

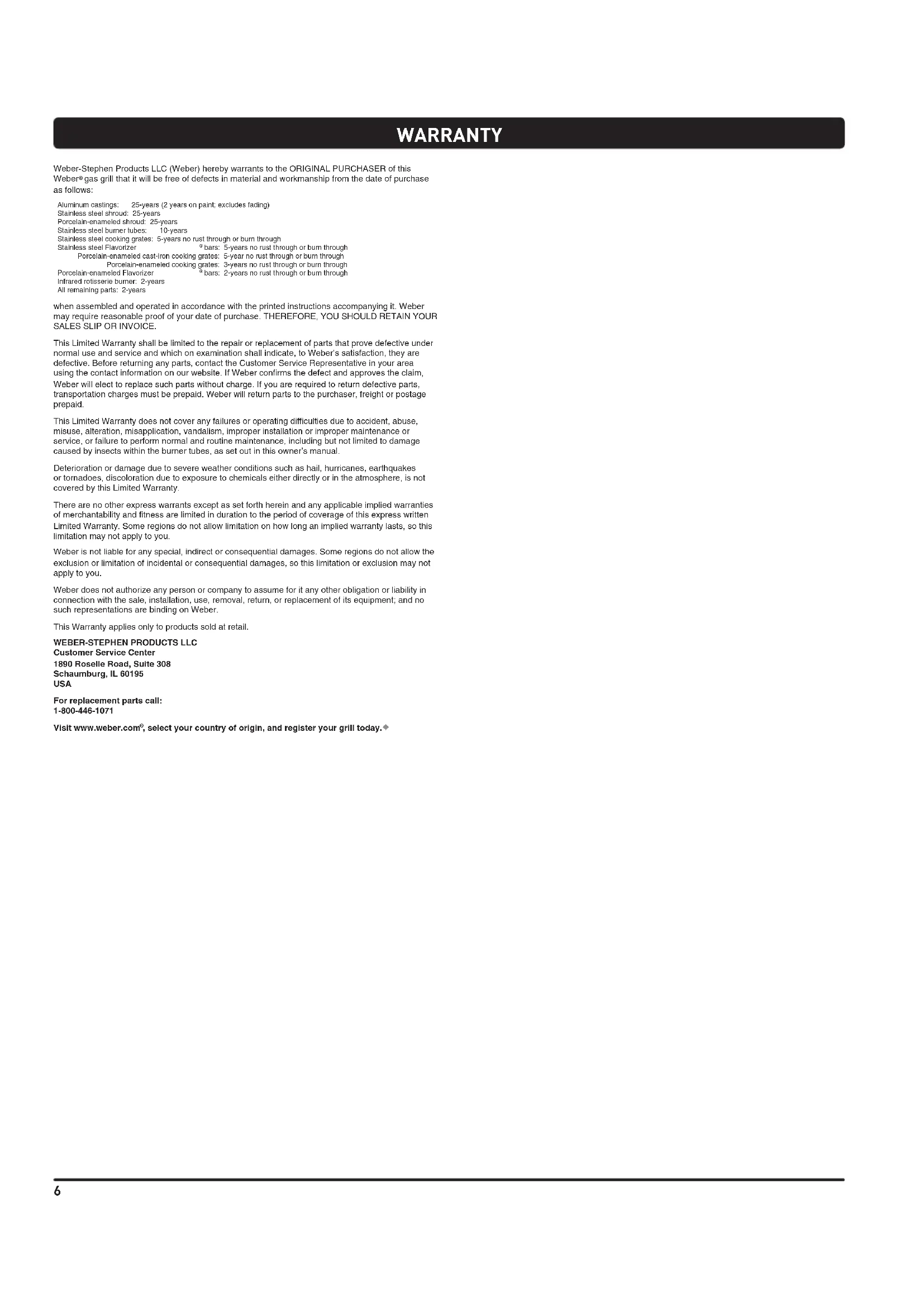

gas grill that it will be free of defects in material and workmanship from the date of purchase as follows: Aluminum castings: 25-years (2 years on paint; excludes fading) Stainless steel shroud: 25-years Porcelain-enameled shroud: 25-years Stainless steel burner tubes: 10-years Stainless steel cooking grates: 5-years no rust through or burn through Stainless steel Flavorizer

bars: 5-years no rust through or burn through Porcelain-enameled cast-iron cooking grates: 5-year no rust through or burn through Porcelain-enameled cooking grates: 3-years no rust through or burn through Porcelain-enameled Flavorizer

bars: 2-years no rust through or burn through Infrared rotisserie burner: 2-years All remaining parts: 2-years when assembled and operated in accordance with the printed instructions accompanying it. Weber may require reasonable proof of your date of purchase. THEREFORE, YOU SHOULD RETAIN YOUR SALES SLIP OR INVOICE. This Limited Warranty shall be limited to the repair or replacement of parts that prove defective under normal use and service and which on examination shall indicate, to Weber’s satisfaction, they are defective. Before returning any parts, contact the Customer Service Representative in your area using the contact information on our website. If Weber confirms the defect and approves the claim, Weber will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. Weber will return parts to the purchaser, freight or postage prepaid. This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration, misapplication, vandalism, improper installation or improper maintenance or service, or failure to perform normal and routine maintenance, including but not limited to damage caused by insects within the burner tubes, as set out in this owner’s manual. Deterioration or damage due to severe weather conditions such as hail, hurricanes, earthquakes or tornadoes, discoloration due to exposure to chemicals either directly or in the atmosphere, is not covered by this Limited Warranty. There are no other express warrants except as set forth herein and any applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this express written Limited Warranty. Some regions do not allow limitation on how long an implied warranty lasts, so this limitation may not apply to you. Weber is not liable for any special, indirect or consequential damages. Some regions do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you. Weber does not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on Weber. This Warranty applies only to products sold at retail.

WEBER-STEPHEN PRODUCTS LLC

, select your country of origin, and register your grill today. ◆WWW.WEbEr.com

gas barbecue is a portable outdoor cooking appliance. With the Weber

gas barbecue you can grill, barbecue, roast and bake with results that are difficult to duplicate with indoor kitchen appliances. The closed lid and Flavorizer

bars produce that “outdoor” flavor in the food. The Weber

gas barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber

gas barbecue with, if you move. Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.

gas barbecue. Please read the instructions carefully before using your Weber

gas barbecue. Improper assembly can be dangerous.

• Notforusebychildren.

• Iftherearelocalcodesthatapplytoportablegasgrills,youwillhavetoconformto them. Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.

• ThepressureregulatorsuppliedwiththeWeber

gas barbecue must be used. This regulator is set for 11 inches of water column (pressure).

gas barbecue is designed for use with liquid propane (LP) gas only. Do not use with natural (piped in city) gas. The valves, orifices, hose and regulator are for LP gas only.

• Donotusewithcharcoalfuel.

• Checkthattheareaunderthecontrolpanelandtheslideoutgreasetrayarefree from debris that might obstruct the flow of combustion or ventilation air.

• TheareasaroundtheLPcylindermustbefreeandclearfromdebris.

CANADIAN INSTALLATION These instructions, while generally acceptable, do not necessarily comply with the Canadian Installation codes, particularly with piping above and below ground. In Canada the installation of this appliance must comply with local codes and/or Standard CSA-B149.2 (Propane Storage and Handling Code).

OPERATING m WARNING: Only use this barbecue outdoors in a well- ventilated area. Do not use in a garage, building, breezeway or any other enclosed area. m WARNING: Keep ventilation openings for cylinder enclosure free and clear from debris. m WARNING: Your Weber

gas barbecue shall not be used under overhead combustible construction. m WARNING: Your Weber

gas barbecue is not intended to be installed in or on recreational vehicles and/or boats. m WARNING: Do not use the barbecue within 24 inches of combustible materials. m WARNING: The entire cookbox gets hot when in use. Do not leave unattended. m WARNING: Keep electrical supply cord and the fuel supply hose away from heated surfaces. m WARNING: Keep the cooking area clear of flammable vapors and liquids such as gasoline, alcohol, etc., and combustible materials. m WARNING: Never store an extra (spare) LP cylinder under or near the Weber

gas barbecue. m WARNING: The LP cylinder used with your barbecue must be with a listed OPD (Overfilling Prevention Device) and a QCC1 or Type 1 (CGA810) cylinder connection. The cylinder connection must be compatible with the barbecue connection.

gas barbecue is not in use.

gas barbecue is stored indoors, the gas supply must be DISCONNECTED and the LP cylinder stored outdoors in a well-ventilated space.

• LPcylindermustbestoredoutdoorsinawell-ventilatedareaoutofreachofchildren. Disconnected LP cylinder must not be stored in a building, garage or any other enclosed area.

gas barbecue, the appliance and LP tank must be kept outdoors in a well-ventilated space.

gas barbecue should be checked for gas leaks and any obstructions in the burner tubes before using. (Refer to “MAINTENANCE/ANNUAL MAINTENANCE”).

• Checkthattheareasunderthecontrolpanelandthedriptrayarefreefromdebris that might obstruct the flow of combustion or ventilation air.

• LiquidPropane(LP)gasisapetroleumproductasaregasolineandnaturalgas.LP gas is a gas at regular temperatures and pressures. Under moderate pressure, inside a cylinder, LP gas is a liquid. As the pressure is released, the liquid readily vaporizes and becomes gas.

• Tofill,taketheLPcylindertoagaspropanedealer,orlookup“gas-propane”inthe phone book for other sources of LP gas. m WARNING: We recommend that your LP cylinder be filled at an authorized LP gas dealer, by a qualified attendant, who fills the tank by weight. IMPROPER FILLING IS DANGEROUS.

• AirmustberemovedfromanewLPcylinderbeforetheinitialfilling.YourLPdealeris equipped to do this.

• TheLPcylindermustbeinstalled,transported,andstoredinanuprightposition.LP cylinders should not be dropped or handled roughly.

• NeverstoreortransporttheLPcylinderwheretemperaturescanreach125°F(toohot to hold by hand — for example: do not leave the LP cylinder in a car on a hot day). Note: A refill will last about 18-20 hours of cooking time at normal use. The fuel scale, a feature on some of our grills, will indicate the propane supply so you can refill before running out. You do not have to run out before you refill.

• Treat“empty”LPcylinderswiththesamecareaswhenfull.EvenwhentheLPtank is empty of liquid there still may be gas pressure in the cylinder. Always close the cylinder valve before disconnecting. m CAUTION: Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

• DonotuseadamagedLPcylinder.DentedorrustyLPcylindersorLPcylinders with a damaged valve may be hazardous and should be replaced with a new one immediately.

• ThejointwherethehoseconnectstotheLPcylindermustbeleaktestedeachtime the LP cylinder is reconnected. For example, test each time the LP cylinder is refilled.

• Besuretheregulatorismountedwiththesmallventholepointeddownwardsothatit will not collect water. This vent should be free of dirt, grease, bugs etc.

gas appliance have been designed and tested to meet 100% CSA and ANSI requirements. m WARNING: Replacement LP tanks must match the regulator connection supplied with this Weber

gas appliance. Liquid Propane Cylinder Requirements

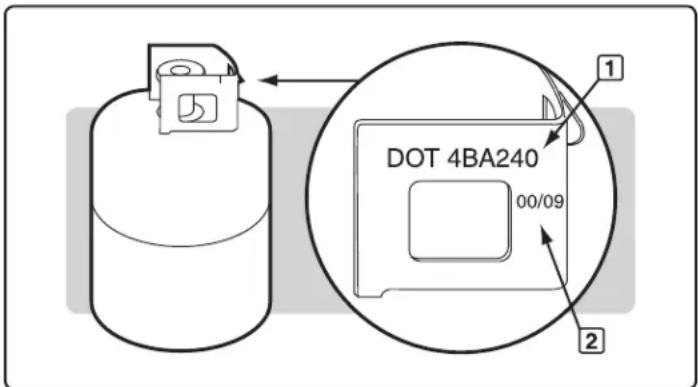

• ChecktobesurecylindershaveaD.O.T.certification(1), and date tested (2) is within five years of use. Your LP gas supplier can do this for you.

• ThecylindermustbeconstructedandmarkedinaccordancewiththeSpecifications for LP - Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes or Transportation of Dangerous Goods; and Commission, as applicable. Canadian Liquid Propane Cylinder Requirements Note: Your retailer can help you match a replacement tank to your barbecue.

• TheLPcylindermustbeconstructedandmarkedinaccordancewiththe specifications for LP gas cylinders, T.C. ◆WWW.WEbEr.com

m DANGER NEVER store a spare LP cylinder under or near Weber

gas appliances. NEVER fill the tank beyond 80% full. Failure to follow these statements exactly may result in a fire causing death or serious injury. Weber gas appliances are equipped for a cylinder supply system designed for vapor withdrawal. m WARNING: Only use Weber

gas appliances outdoors in a well-ventilated area. Do not use in a garage, building, breezeway or any other enclosed area. The proper filling methods for the filling of your cylinder are by weight or volume, as described in NFPA 58. Please make sure your filling station fills your LP cylinder by weight or volume. Ask your filling station to read purging and filling instructions on the LP cylinder before attempting to fill.

Check That All Burner Valves Are Off Valves are shipped in the OFF position, but you should check to be sure that they are turned off. Check by pushing down and turning clockwise. If they do not turn, they are off. If they do turn, continue turning them clockwise until they stop, then they are off.

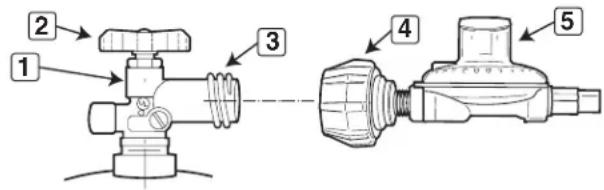

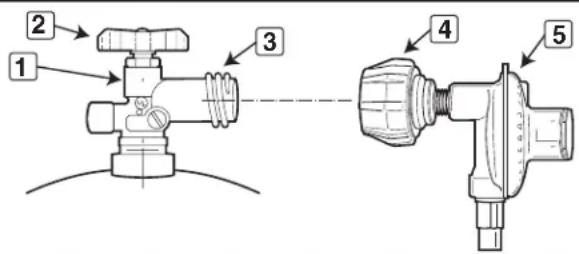

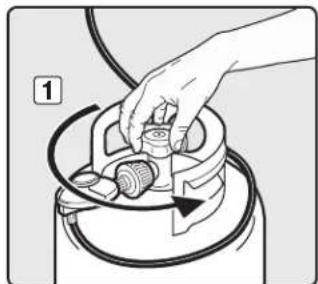

TYPE 1 coNNEcTIVE coUPLING 1 Type 1 Valve2 Hand Wheel3 External Thread4 Thermally Sensitive Nut5 Propane Regulator m DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or flames will result in a fire or explosion which can cause serious bodily injury or death, and damage to property. The Liquid Propane Cylinder All Weber liquid propane gas grill regulators are equipped with a UL-listed tank connection as per the latest edition of ANSI Z21.58. This will require a liquid propane tank that is similarly equipped with a Type 1 connection in the tank valve. This Type 1 coupling allows you to make a fast and totally safe hookup between your gas grill and your liquid propane tank. It eliminates the chance of leaks due to a POL fitting that is not properly tightened. Gas will not flow from the tank unless the Type 1 coupling is fully engaged into the tank coupling. m WARNING: Make sure that the LP cylinder valve is closed. Close by turning valve clockwise.10 GaS INSTrUcTIoNS

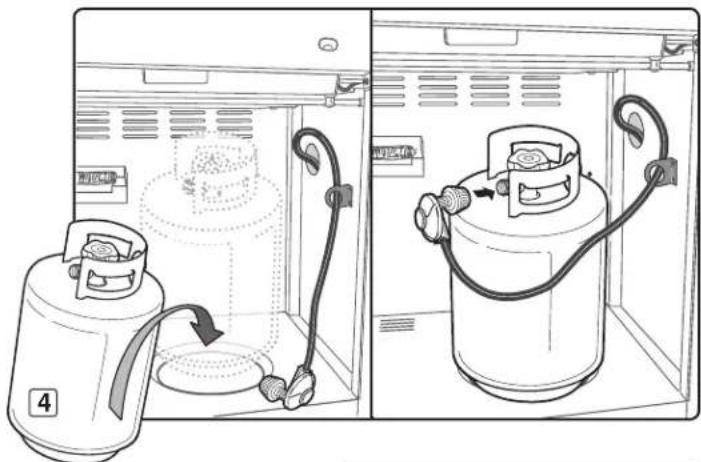

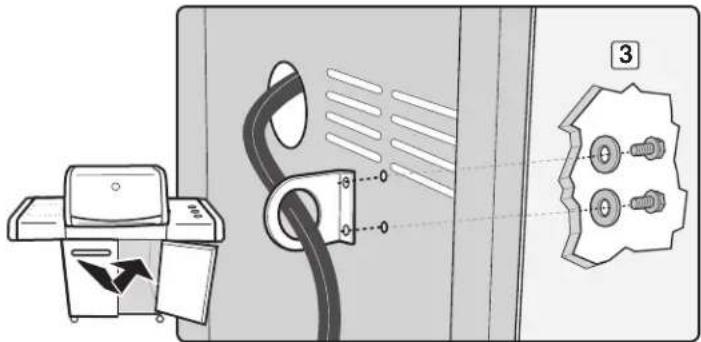

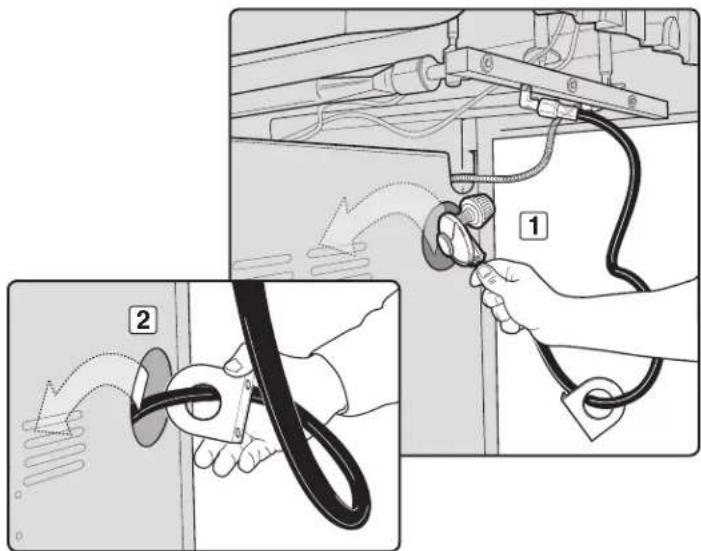

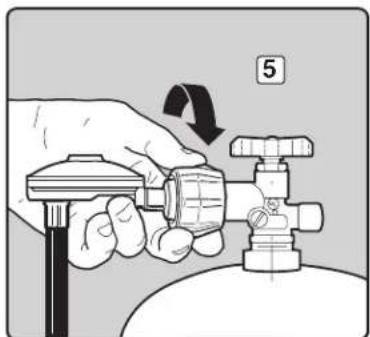

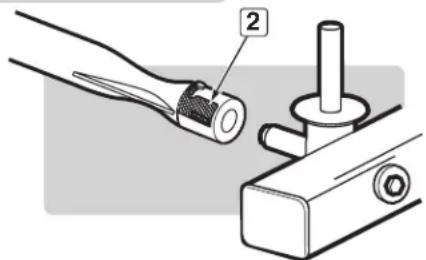

A) Open base cabinet doors. B) Pass the regulator hose through the side panel opening to the inside of the base cabinet. (1) C) Slide the hose retention bracket (2) along the hose and through the side panel opening to the inside of the base cabinet. D) Position the hose retention bracket on the right inside panel and secure with two hex/washer/bolts (3). m WARNING: The hose must be secured to the side panel with the Hose Retention Bracket. Failure to do so could cause damage to the hose resulting in a fire or explosion which can cause serious bodily injury or death, and damage to property. The LP cylinder is installed inside the base cabinet. E) Turn the LP cylinder so the opening of the valve is either to the front or side of the Weber

gas barbecue. F) Lift and place the cylinder into the tank base opening in the bottom panel (4). Weber recommends the use of cylinder manufacturer’s Manchester and Worthington, with a 47.6 lb water capacity. Other cylinders may be acceptable for use with the appliance provided they are compatible with the appliance retention means. Connect The Hose To The Cylinder A) Remove the plastic dust cover from the valve. B) Screw the regulator coupling onto the tank valve, clockwise, or to the right (5). Hand-tighten only. Note: This is a new type of connection. It tightens clockwise and will not allow gas to flow unless the connection is tight. The connection requires tightening by hand only. m WARNING: Do not use a wrench to tighten the connection. Using a wrench could damage the regulator coupling and could cause a leak.WWW.WEbEr.com

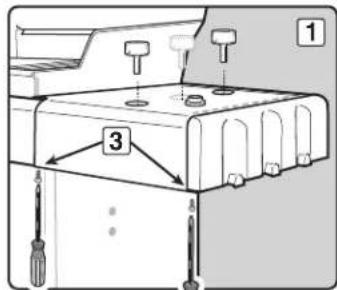

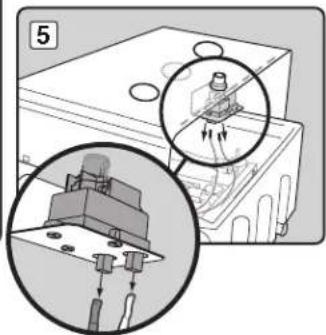

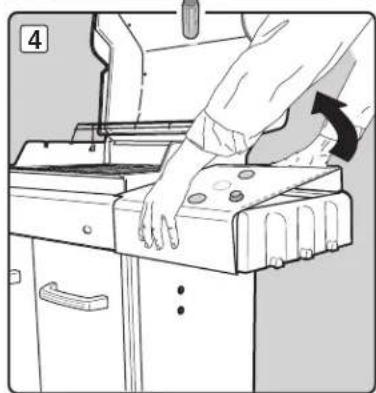

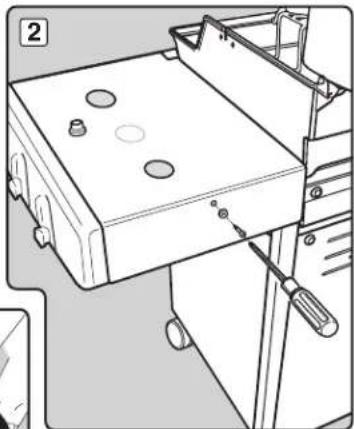

Remove Control Knobs & Control Panel For Leak Testing You will need: Phillips screwdriver.A) Take off the burner control knobs (1).B) Remove screw and washer from back of control panel with a Phillips screwdriver (2).C) Remove machine screw from lower left and right side of control panel with a Phillips screwdriver (3).D) Tilt the back edge of the control panel up. Carefully lift control panel up and away from frame (4). E) Disconnect the igniter wires from the ignition module (5). F) Replace control panel when leak check is completed. Note: All factory-made connections have been thoroughly checked for gas leaks. The burners have been flame-tested. As a safety precaution however, you should recheck all fittings for leaks before using your Weber® gas barbecue. Shipping and handling may loosen or damage a gas fitting. m WARNING: The gas connections of your gas grill have been factory tested. We do however recommend that you leak check all gas connections before operating your gas grill. m WARNING: Perform these leak checks even if your barbecue was dealer or store assembled. If your grill has a side burner make sure the side burner is turned off.Turn on gas supply at source. m WARNING: Do not ignite burners when leak checking. You will need: A soap and water solution and a rag or brush to apply it.A) Mix soap and water.B) Turn on gas supply (1). C) Check for leaks by wetting the fitting with the soap and water solution and watching for bubbles. If bubbles form, or if a bubble grows, there is a leak.If there is a leak, turn off the gas and tighten the fitting. Turn the gas back on and recheck with the soap and water solution. If leak does not stop do not use the barbecue. Contact the customer service representative in your area using the contact information on our web site. Log onto www.weber.com

D) When leak checking is complete, turn gas supply off at the source and rinse connections with water.Note: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks. m WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting. m DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, which can cause serious bodily injury or death and damage to property.

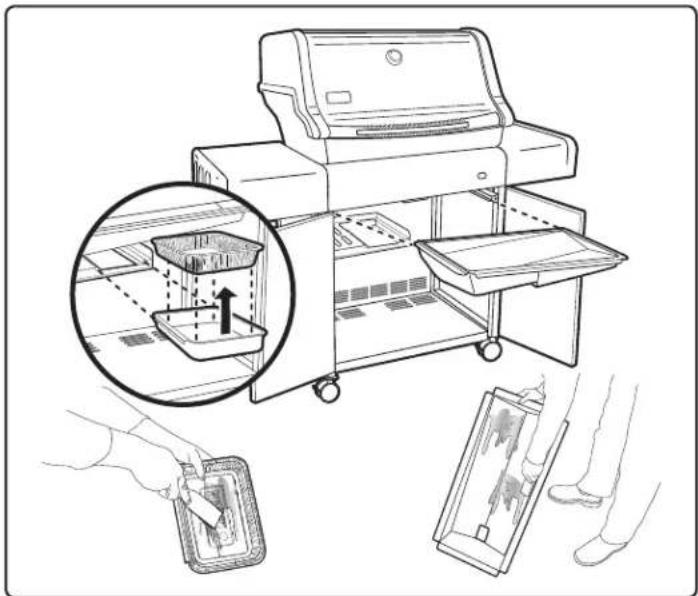

bEForE USING THE GrILL SLIDE-OUT GREASE TRAY AND DISPOSABLE DRIP PAN Your grill was built with a grease collection system. Check the slide-out grease tray and disposable drip pan for grease build-up each time you use your grill.Remove excess grease with a plastic spatula; see illustration. When necessary, wash the grease tray and drip pan with a soap and water solution, then rinse with clean water. Replace the disposable drip pan as needed. m WARNING: Check the slide-out grease tray and disposable drip pan for grease build-up before each use. Remove excess grease to avoid a grease fire. A grease fire can cause serious bodily injury or damage to property. m CAUTION: Do not line the slide-out grease tray with aluminum foil.

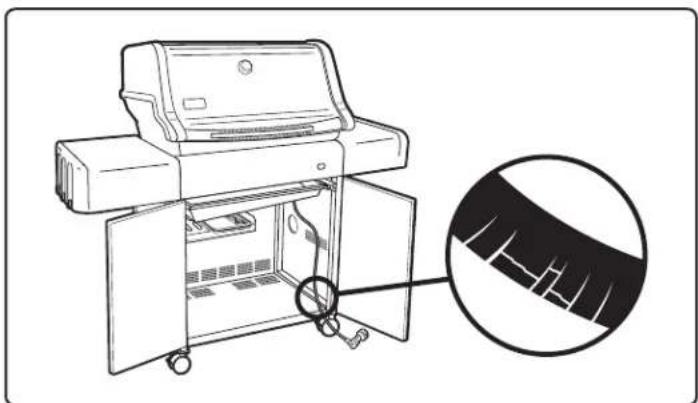

HOSE INSPECTION The hose should be inspected for any signs of cracking. m WARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber

authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

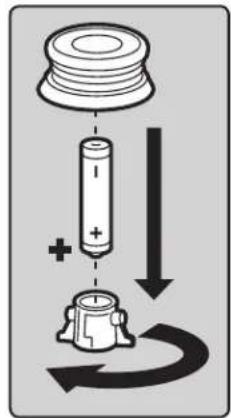

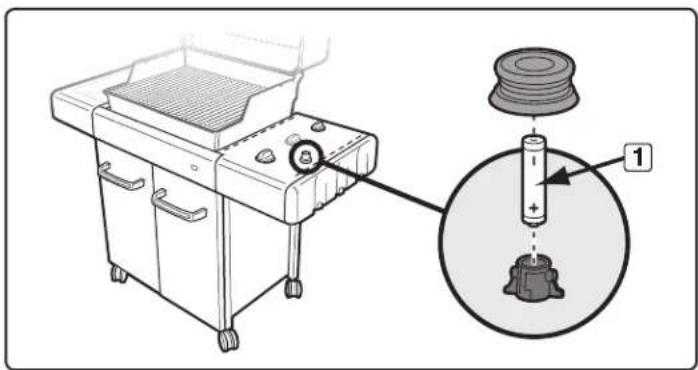

Verify that your AA battery (alkaline only) is in good condition and that it is installed correctly (1). Some batteries have a plastic protective wrap around them. This plastic must be removed. Do not confuse this plastic with the battery label.

The grill illustrated may have slight differences than the model purchased.

maIN bUrNEr IGNITIoN & USaGE m DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up which can cause serious bodily injury or death. Crossover

Ignition System Note: The Crossover® Ignition System ignites BURNER 1 with a spark from the igniter electrode inside the Gas Catcher™ ignition chamber. You generate the energy for the spark by pushing the electronic ignition button. You will hear it sparking. m WARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber

authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

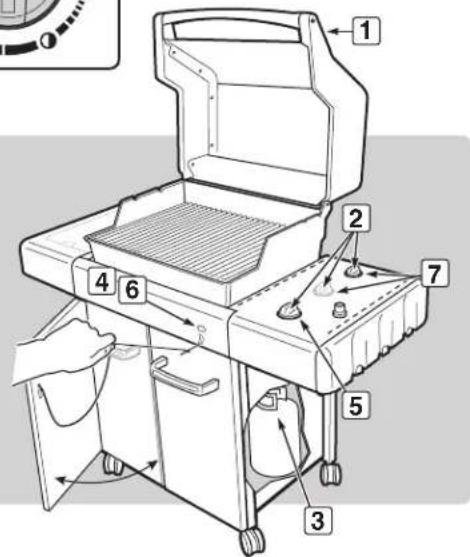

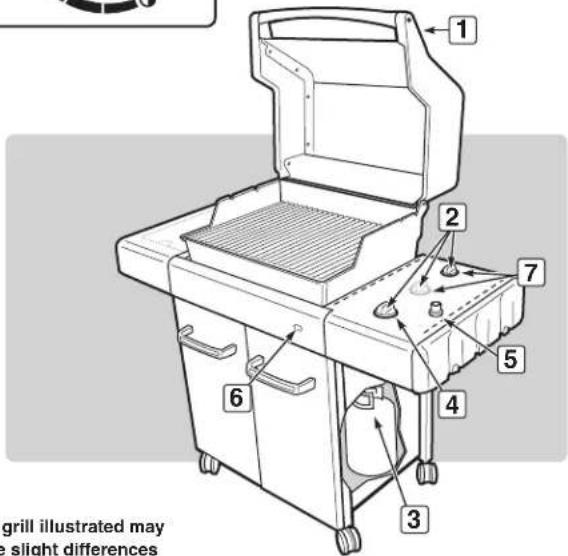

A) Open the lid (1).B) Make sure all burner control knobs are turned OFF (2). (Push control knob down and turn clockwise to ensure that it is in the OFF position.) m WARNING: The burner control knobs must be in the OFF position before turning on the liquid propane cylinder tank valve. If they are not in the OFF position, when you turn on the LP cylinder valve, the “excess gas flow control” feature will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn OFF the LP cylinder valve and burner control knobs. Start over.

MAIN BURNER IGNITION

Summary lighting instructions are inside the left hand cabinet door. m DANGER When the “excess gas flow control” feature is activated, a small amount of gas is still flowing to the burners. After turning OFF the cylinder valve, wait at least five minutes for the gas to clear before attempting to light the barbecue. Failure to do so may result in an explosive flare-up, which can cause serious bodily injury or death. C) Turn the cylinder on by slowly turning the cylinder valve counterclockwise (3). m WARNING: Do not lean over the open barbecue. Keep your face and body at least one foot away from the matchlight hole when lighting the barbecue. D) Push BURNER 1 control knob down and turn to START/HI (4).E) Push and hold the electronic ignition button. You will hear it sparking (5).F) Check that the burner is lit by looking through the matchlight hole on the front of the cooking box. You should see a flame (6). m WARNING: If the burner does not light in five seconds, turn the Burner 1 control knob to OFF and wait five minutes to let the gas clear before you try again or try to light with a match. G) After BURNER 1 is lit you can turn on BURNER 2 (and BURNER 3) (7).Note - Always light BURNER 1 first. The other burners ignite from BURNER 1.

TO EXTINGUISH Push down and turn each burner control knob clockwise to the OFF position. Turn gas supply OFF at the source. ◆WWW.WEbEr.com

m DANGER Failure to open the lid while igniting the barbecue’s burners, or not waiting five minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flare-up which can cause serious bodily injury or death. A) Open the lid (1).B) Make sure all burner control knobs are turned OFF (2). (Push each knob down and turn clockwise to ensure they are in the OFF position.) m WARNING: The burner control knobs must be in the OFF position before turning on the LP cylinder valve. If they are not in the OFF position, when you turn on the LP cylinder valve, the “excess gas flow control” feature will activate, limiting the flow of gas from the LP cylinder. If this should occur, turn OFF the LP tank valve and burner control knobs. Start over.

APAGADO OFF ARRETE 1 m DANGER When the “excess gas flow control” feature is activated, a small amount of gas is still flowing to the burners. After turning OFF the cylinder and burner control knobs, wait at least five minutes for the gas to clear before attempting to light the barbecue. Failure to do so may result in an explosive flare-up, which can cause serious bodily injury or death. C) Turn the cylinder on by turning the cylinder valve counterclockwise (3). D) Insert match holder with lit match into the matchlight hole in the front of the cookbox (4). m WARNING: Do not lean over open barbecue. Keep your face and body at least one foot away from the matchlight hole when lighting the barbecue. E) Push BURNER 1 control knob down and turn to START/HI (5).F) Check that the burner is lit by looking through the matchlight hole on the front of the cookbox. You should see a flame (6). m WARNING: If the burner does not light in five seconds, turn the Burner 1 control knob to OFF and wait five minutes to let the gas clear before you try again. G) After BURNER 1 is lit you can turn on BURNER 2 (and BURNER 3) (7).Note - Always light BURNER 1 first. The other burners ignite from BURNER 1.

TO EXTINGUISH Push down and turn each burner control knob clockwise to the OFF position. Turn gas supply OFF at the source. The grill illustrated may have slight differences than the model purchased.16

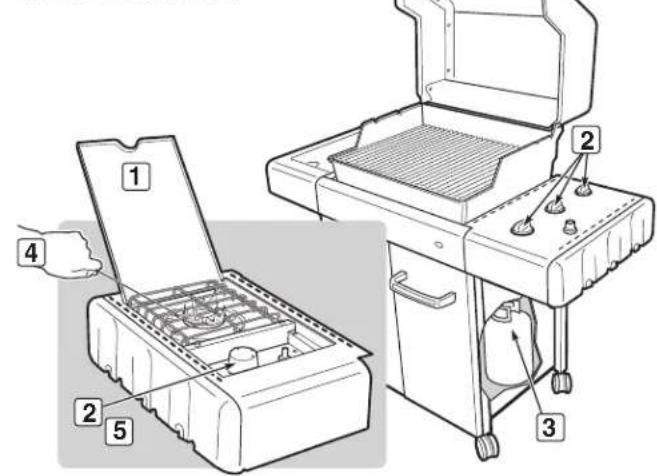

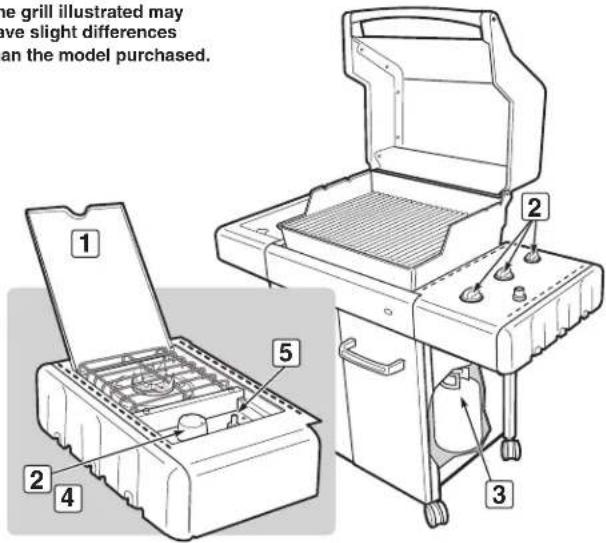

SIDE bUrNEr IGNITIoN & USaGE The grill illustrated may have slight differences than the model purchased.

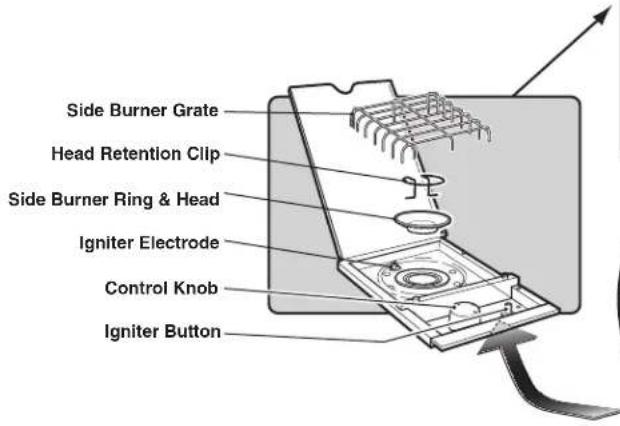

SIDE BURNER IGNITION

Summary lighting instructions are inside the left hand cabinet door. m DANGER Failure to open the lid while igniting the side burner, or not waiting five minutes to allow the gas to clear if the side burner does not light, may result in an explosive flare-up which can cause serious bodily injury or death. m WARNING: Check hose before each use of barbecue for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber

authorized replacement hose. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

A) Open the side burner lid (1). B) Check that the side burner valve is turned off (2) (Push control knob in and turn clockwise to ensure that it is in the OFF position), turn all burners not being used to the OFF position (push in and turn clockwise). C) Turn the gas supply valve on (3). D) Push down and turn the side burner control valve to START/HI (4). E) Press the igniter button several times so it clicks each time until you see a flame (5). m CAUTION: Side burner flame may be difficult to see on a bright sunny day. m WARNING: If the side burner does not light in five seconds: a) Turn off the side burner control valve, main burners and gas supply at source. b) Wait five minutes to let the gas clear before you try again, or try lighting with a match (refer to “SIDE BURNER MANUAL IGNITION”).

TO EXTINGUISH Push down and turn side burner control knob to the OFF position. Be sure the burner is off and cool before closing the side burner lid. ◆WWW.WEbEr.com

m DANGER Failure to open the lid while igniting the side burner, or not waiting five minutes to allow the gas to clear if the side burner does not light, may result in an explosive flare-up that can cause serious bodily injury or death. A) Open the side burner lid (1).B) Check that the side burner valve is turned off (2) (Push control knob in and turn clockwise to ensure that it is in the OFF position), turn all burners not being used to the OFF position (push in and turn clockwise).C) Turn the gas supply valve on (3).D) Put match in a match holder and strike match.E) Hold match holder and lit match by either side of the side burner (4).F) Push down and turn the side burner control valve to START/HI (5). m CAUTION: Side burner flame may be difficult to see on a bright sunny day. m WARNING: If the side burner does not light in five seconds: a) Turn off the side burner control valve, main burners and gas supply at source. b) Wait five minutes to let the gas clear before you try again.

TO EXTINGUISH Push down and turn side burner control knob to the OFF position. Be sure the burner is off and cool before closing the side burner lid. The grill illustrated may have slight differences than the model purchased.18 GrILLING TIPS & HELPFUL HINTS

• Grillingtimesinrecipesarebasedon70°F(20°C)weatherandlittleornowind.Allow more cooking time on cold or windy days, or at higher altitudes. Allow less cooking time in extremely hot weather.

• Grillingtimescanvarybecauseoftheweather,ortheamount,sizeandshapeofthe food being grilled.

• Ingeneral,largepiecesofmeatwillrequiremorecookingtimeperpoundthansmall pieces of meat. Foods on a crowded cooking grate will require more cooking time than just a few foods. Foods grilled in containers, such as baked beans, will require more time if grilled in a deep casserole rather than a shallow baking pan.

• Trimexcessfatfromsteaks,chopsandroasts,leavingnomorethanascant¼inch (6.4mm) of fat. Less fat makes cleanup easier, and is a virtual guarantee against unwanted flare-ups.

• Ifanunwantedflare-upshouldoccur,turnallburnersoffandmovefoodtoanother area of the cooking grate. Any flames will quickly subside. After flames subside, relight the grill. NEVER USE WATER TO EXTINGUISH FLAMES ON A GAS GRILL.

• Somefoods,suchasacasseroleorthinfishfillets,willrequireacontainerforgrilling. Disposable foil pans are very convenient, but any metal pan with ovenproof handles can also be used.

• Alwaysbesuretheslideoutgreasetrayandcatchpanarecleanandfreefromdebris.

• Donotlinetheslideoutgreasetraywithfoil.Thiscouldpreventthegreasefrom flowing into the catch pan.

• Usingatimerwillhelptoalertyouwhen“well-done”isabouttobecome“over- done.” Note: If grill looses heat while cooking refer to the troubleshooting section of this manual. m WARNING: Do not move the Weber

gas barbecue when operating or while barbecue is hot. You can adjust the individual burners as desired. The control settings are OFF, START/HI, MEDIUM, or LOW. Note: The temperature inside your cookbox for the first few uses, while surfaces are still very reflective, may be hotter than those shown in your cookbook. Cooking conditions, such as wind and weather, may require the adjustment of the burner controls to obtain the correct cooking temperatures. If burners go out during cooking, turn off all burners and wait five minutes before relighting.

gas barbecue is an energy-efficient appliance. It operates at an economical low BTU rate. Preheating the grill before grilling is important. Light your grill according to the instructions in this Owner’s Manual. To preheat: after lighting turn all burners to START/HI,closethelid,andheatuntilthetemperaturereachesbetween500°and550° F(260°and290°C),therecommendedbroilingtemperature.Thiswilltake10to15 minutes depending on conditions such as air temperature and wind.

COVERED COOKING All grilling is done with the lid down to provide uniform, evenly circulated heat. With the lid closed, the gas grill cooks much like a convection oven. The thermometer in the lid indicates the cooking temperature inside the grill. All preheating and grilling is done with the lid down. No peeking — heat is lost every time you lift the lid.

bars are designed to “smoke” the correct amount of drippings for flavorful cooking. Excess drippings and grease will accumulate in the catch pan under the slide out grease tray. Disposable foil drip pans are available that fit the catch pan. m WARNING: Check the slide out grease tray and catch pan for grease build-up before each use. Remove excess grease to avoid a grease fire in the slide out grease tray.

SYSTEM When meat juices drip from the food onto the specially angled Flavorizer

bars, they create smoke that gives foods an irresistible barbecued flavor. Thanks to the unique design of the burners, Flavorizer

bars and the flexible temperature controls, uncontrolled flare-ups are virtually eliminated, because YOU control the flames. Because of the special design of the Flavorizer

bars and burners, excess fats are directed through the slide out grease tray into the grease catch pan. ◆WWW.WEbEr.com

TroUbLESHooTING ProbLEm cHEcK SoLUTIoN Side Burner burns with a yellow or orange flame, in conjunction with the smell of gas. Inspect side burner orifice alignment (Position of orifice to side burner tube.) Loosen orifice and re-align orifice parallel to the side burner tube. Refer to “SIDE BURNER MAINTENANCE”. Side Burner does not light. Is gas supply off? The excess flow safety device, which is part of the barbecue to cylinder connection, may have activated. Turn supply on. To reset the excess flow safety device turn all burner control knobs and the cylinder valve off. Disconnect the regulator from the cylinder. Turn burner control knobs to START/HI. Wait at least 1 minute. Turn burner control knobs to OFF. Reconnect the regulator to the cylinder. Turn cylinder valve on slowly. Refer to “SIDE BURNER IGNITION”. Flame is low in HI position. Is the fuel hose bent or kinked? Straighten hose. Push button ignition does not work. Does burner light with a match? If match lights burner, check igniter. Refer to “SIDE BURNER MAINTENANCE”. If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

ProbLEm cHEcK SoLUTIoN Burners burn with a yellow or orange flame, in conjunction with the smell of gas. Inspect Spider/Insect screens for possible obstructions. (Blockage of holes.) Clean Spider/Insect screens. Refer to “ANNUAL MAINTENANCE”. Symptoms: Burners do not ignite. -or- Burners have a small flickering flame in the HI position. -or- Barbecue temperature only reaches 250° to 300° in the HI position. The excess flow safety device, which is part of the barbecue to cylinder connection, may have activated. To reset the excess flow safety device turn all burner control knobs and the cylinder valve off. Disconnect the regulator from the cylinder. Turn burner control knobs to HI. Wait at least 1 minute. Turn burner control knobs to OFF. Reconnect the regulator to the cylinder. Turn cylinder valve on slowly. Refer to “MAIN BURNER IGNITION”. Burner does not light, or flame is low in HI position. Is LP fuel low or empty? Refill LP cylinder. Is fuel hose bent or kinked? Straighten fuel hose. Burner does not ignite when you push the igniter button. Be sure that there is gas flow to the burners by attempting to match light your burners. Refer to “MAIN BURNER MANUAL IGNITION”. If match lighting is successful, the problem lies in the ignition system. Refer to “ELECTRONIC IGNITION SYSTEM OPERATIONS”. Is there a fresh battery installed? Verify that the battery is in good condition and installed correctly. Refer to “ELECTRONIC IGNITER INSPECTION”. Are the wires connected properly to the ignitior module? Be sure that wires are correctly inserted into terminals on ignition box. Refer to “ELECTRONIC IGNITION SYSTEM OPERATIONS”. Is there plastic wrapping around the new battery? Remove plastic wrapping. Experiencing flare-ups: m CAUTION: Do not line the slide out grease tray with aluminum foil. Are you preheating barbecue in the prescribed manner? All burners on HI for 10 to 15 minutes for preheating. Are the cooking grates, heat deflectors, and Flavorizer

bars heavily coated with burned-on grease? Clean thoroughly. Refer to “CLEANING”. Is the slide out grease tray dirty and not allowing grease to flow into catch pan? Clean slide out grease tray. Burner flame pattern is erratic. Flame is low when burner is on HI. Flames do not run the whole length of the burner tube. Are burners clean? Clean burners. Refer to “MAINTENANCE”. Inside of lid appears to be “peeling.” (Resembles paint peeling.) The inside of the lid is porcelain enamel or stainless steel, and is not painted. It cannot “peel”. What you are seeing is baked on grease that has turned to carbon and is flaking off. THIS IS NOT A DEFECT. Clean thoroughly. Refer to “CLEANING”. Cabinet doors are not aligned. Check the adjustment pin on the bottom of each door. Loosen adjustment nut/s. Slide door/s until aligned. Tighten nut. If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

gas barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section (1) of the burner tubes. This blocks the normal gas flow, and can cause the gas to flow back out of the combustion air opening. This could result in a fire in and around the combustion air openings, under the control panel, causing serious damage to your barbecue. The burner tube combustion air opening is fitted with a stainless steel screen (2) to prevent spiders and other insects access to the burner tubes through the combustion air openings. We recommend that you inspect the Spider/Insect screens at least once a year. (Refer to “ANNUAL MAINTENANCE.”) Also inspect and clean the the Spider/Insect screens if any of the following symptoms should ever occur: A) The smell of gas in conjunction with the burner flames appearing yellow and lazy. B) Barbecue does not reach temperature. C) Barbecue heats unevenly. D) One or more of the burners do not ignite. m DANGER Failure to correct the above mentioned symptoms may result in a fire, which can cause serious bodily injury or death, and cause damage to property.

CLEANING m WARNING: Turn your Weber

gas barbecue off and wait for it to cool before cleaning. m CAUTION: Do not clean your Flavorizer

bars or cooking grates in a self-cleaning oven. Outside surfaces - Use a warm soapy water solution to clean, then rinse with water. m CAUTION: Do not use oven cleaner, abrasive cleansers (kitchen cleansers), cleaners that contain citrus products, or abrasive cleaning pads on barbecue or cart surfaces. Slide-out grease tray - Remove excess grease, wash with warm soapy water, then rinse. m CAUTION: Do not line the slide-out grease tray with aluminum foil. Flavorizer

bars and cooking grates - Clean with a suitable stainless steel bristle brush. As needed, remove from grill and wash with warm soapy water, then rinse with water. For availability of replacement cooking grates and Flavorizer

bars, contact the Customer Service Representative in your area using the contact information on our website. Log onto www.weber.com

Catch pan - Disposable foil trays are available, or you can line the catch pan with aluminum foil. To clean the catch pan, wash with warm soapy water, then rinse. Thermometer - Wipe with warm soapy water; clean with plastic scrub ball. Cookbox - Brush any debris off of burner tubes. DO NOT ENLARGE BURNER PORTS (OPENINGS). Wash inside of cookbox with warm soapy water and a water rinse. Inside lid - While lid is warm, wipe inside with paper towel to prevent grease build-up. Flaking built-up grease resembles paint flakes. Stainless steel surfaces - Wash with a soft cloth and a soap and water solution. Be careful to scrub with the grain direction of the stainless steel. Do not use cleaners that contain acid, mineral spirits or xylene. Rinse well after cleaning. Preserve your stainless steel - Your grill or its cabinet, lid, and control panel may be made from stainless steel. To keep the stainless steel looking its best is a simple matter. Clean it with soap and water, rinse with clear water, and wipe dry. For stubborn particles, a non-metallic brush can be used. m IMPORTANT: Do not use a wire brush or abrasive cleaners on the stainless steel surfaces of your grill as this will cause scratches. m IMPORTANT: When cleaning surfaces be sure to rub/wipe in the direction of the grain to preserve the look of your stainless steel. ◆WWW.WEbEr.com

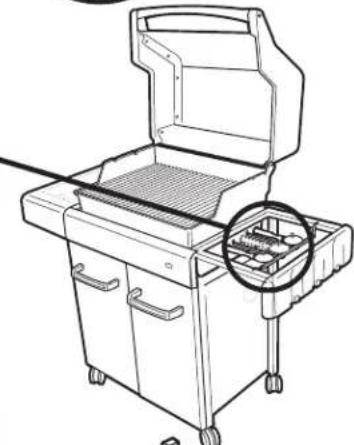

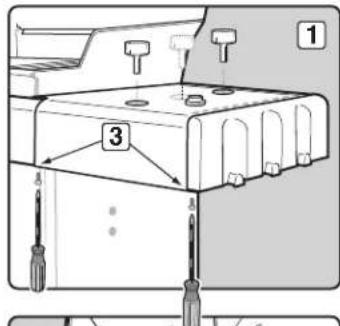

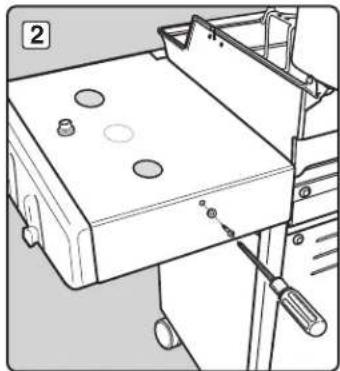

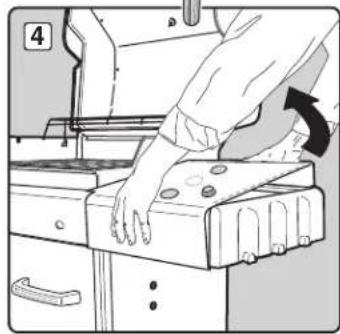

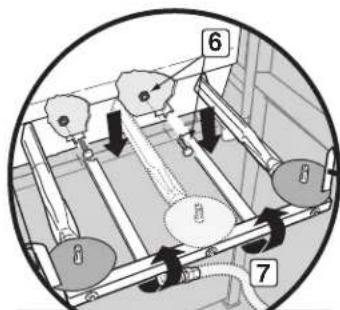

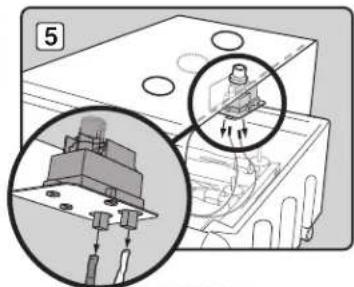

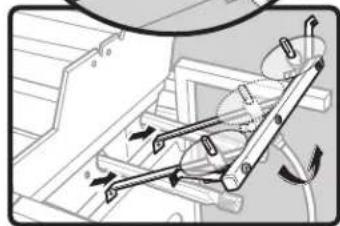

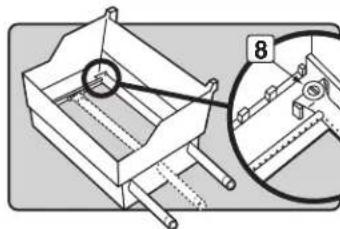

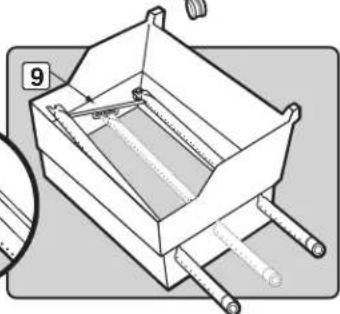

BURNER TUBES CLEANING OR REPLACEMENT

You will need: Phillips screwdriver and flathead screwdriver.A) Your Weber gas barbecue must be OFF and cool.B) Turn gas OFF at source.C) Remove cookbox components - warming rack, grates and Flavorizer bars. Control Panel Removal To remove control panel:A) Take off the burner control knobs (1).B) Remove screw and washer from back of control panel with a Phillips screwdriver (2).C) Remove machine screw from lower left and right side of control panel with a Phillips screwdriver (3).D) Tilt the back edge of the control panel up. Carefully lift control panel up and away from frame (4). E) Disconnect the igniter wires from the ignition module (5). Burner Tube Removal To remove burner tube(s):A) Remove the two nuts (6) that hold the manifold support bracket to the cookbox. Pull the manifold and valve assembly towards you, at the same time lift the manifold assembly up to release the manifold brackets from the frame assembly (7).B) Slide the burner assembly out from under the guide screw and washer (8) in the corners of the cookbox.C) Lift and twist the burner assembly slightly, to separate the crossover tube (9) from the burners. Remove the burners from the cookbox. Burner Tube Cleaning To clean the burner tube(s):A) Look inside each burner with a flashlight (10). B) Clean the inside of the burners with a wire (11) (a straightened-out coat hanger will work). C) Check and clean the air shutter opening at the ends of the burners. Check and clean the valve orifices at the base of the valves. Use a steel bristle brush to clean outside of burners (12). This is to make sure all the burner ports are fully open. m CAUTION: Do not enlarge the burner ports when cleaning. Burner Tube Reinstallation A) To reinstall the burner tubes, reverse steps for “Removing Control Panel” and “Burner Tube Removal” as previously described. m CAUTION: The burner openings (13) must be positioned properly over the valve orifices (14). Check proper assembly before fastening manifold in place. m WARNING: After reinstalling the gas lines, they should be leak checked with a soap and water solution before using the barbecue. (Refer to “CHECK FOR GAS LEAKS”) m WARNING: Make sure that all parts are assembled and hardware is fully tightened before operating the grill. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property. ◆22

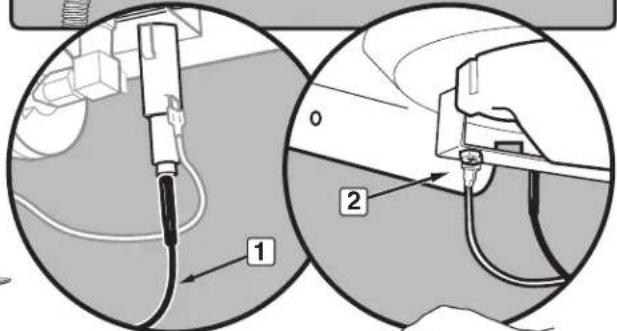

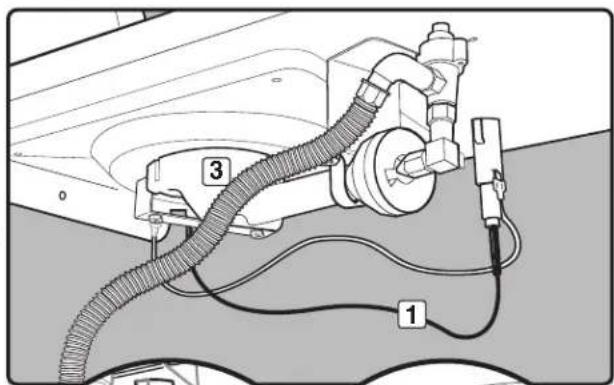

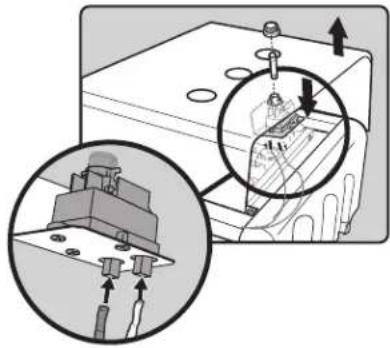

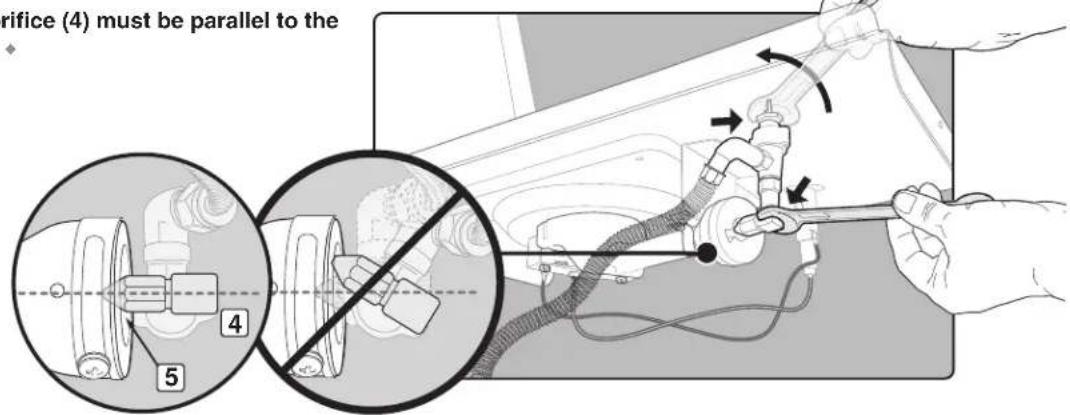

m WARNING: All gas controls and supply valves should be in the OFF position. Make sure black wire is connected between the igniter and electrode.Make sure white wire is connected between the igniter and grounding clip.Spark should be a white/blue color, not yellow.A) Igniter Wire (1)B) Ground wire (2)C) Burner (3) m WARNING: The side burner orifice (4) must be parallel to the side burner tube opening (5).

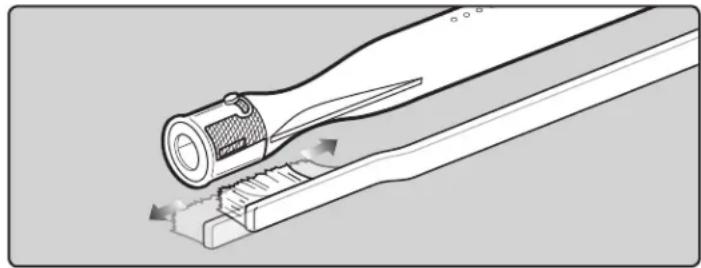

ANNUAL MAINTENANCE Inspection And Cleaning Of The Spider/Insect Screens To inspect the Spider/Insect screens, remove the control panel. If there is dust or dirt on the screens, remove the burners for cleaning the screens. Brush the Spider/Insect screens lightly with a soft bristle brush (i.e., an old toothbrush). m CAUTION: Do not clean the Spider/Insect screens with hard or sharp tools. Do not dislodge the Spider/Insect screens or enlarge the screen openings. Lightly tap the burner to get debris and dirt out of the burner tube. Once the Spider/ Insect screens and burners are clean, replace the burners. If the Spider/Insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

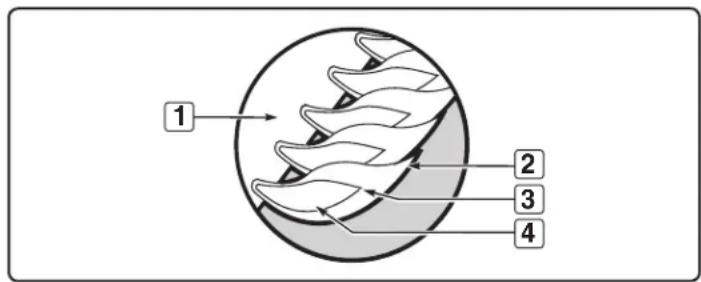

gas barbecue burners have been factory set for the correct air and gas mixture. The correct flame pattern is shown. A) Burner tube (1) B) Tips occasionally flicker yellow (2) C) Light blue (3) D) Dark blue (4) If the flames do not appear to be uniform throughout the burner tube, follow the burner cleaning procedures.

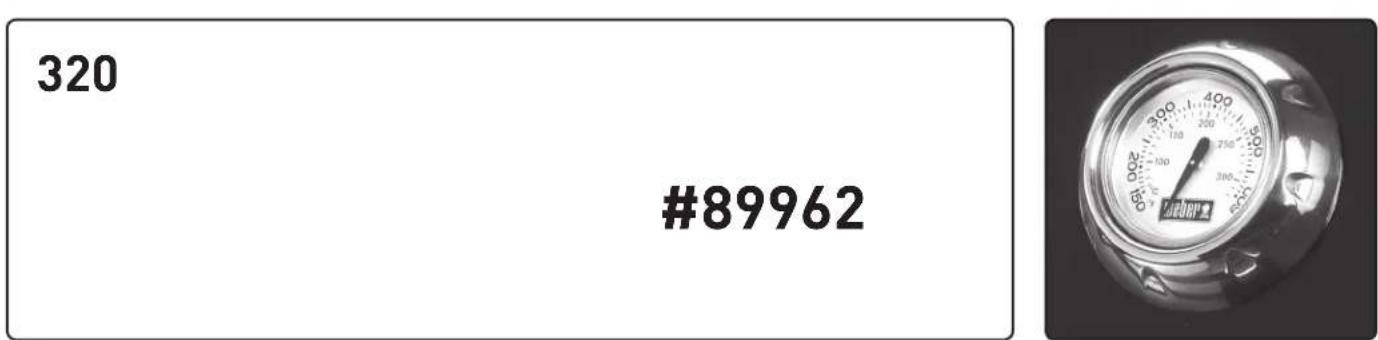

4m ATTENTION: This product has been safety tested and is only certified for use in a specific country. Refer to country designation located on outer carton. These parts may be gas carrying or gas burning components. Please contact Weber-Stephen Products LLC, Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information. m WARNING: Do not attempt to make any repair to gas carrying, gas burning, igniter components or structural components without contacting Weber-Stephen Products LLC, Customer Service Department. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property.
