ROB506BG - Food Processor BRANDT - Free user manual and instructions

USER MANUAL ROB506BG BRANDT

Thank you for buying a BRANDT product and for your confidence in our company.

This product has been designed and manufactured for you considering your lifestyle and your requirements, so that it meets your expectations in the best way possible. We have invested it with our expertise, spirit of innovation and all the enthusiasm which has driven us for more than 60 years.

So that we are always able to satisfy your requirements as well as possible, our customer service is available, ready to listen and suggestions

You can also visit our website www.brandt.com where you will find our latest innovations as well as additional useful information.

BRANDT is happy to support you daily and hopes you will enjoy your purchase to the full.

Important: Before starting your machine, please read this guide for installation and use carefully in order to familiarise yourself with how it operates quickly.

CONTENTS

1) FOR THE USER'S ATTENTION. 15

a) Safety Instructions. 15
b) Technical Data. 18
c) Environmental Protection. 18

a) Description of the Food Processor 18
b) Before Using for the First Time 19

a) Using the Chopper/Mincer 19
b) Using the Grating and Slicing discs 20
c) Using the Emulsifier 20
d) Using the dough blade 21
e) Using the Blender 21

4) LOOKING AFTER AND CLEANING YOUR MACHINE 21

a) Cleaning the Machine 21
b) Storing your Machine 22

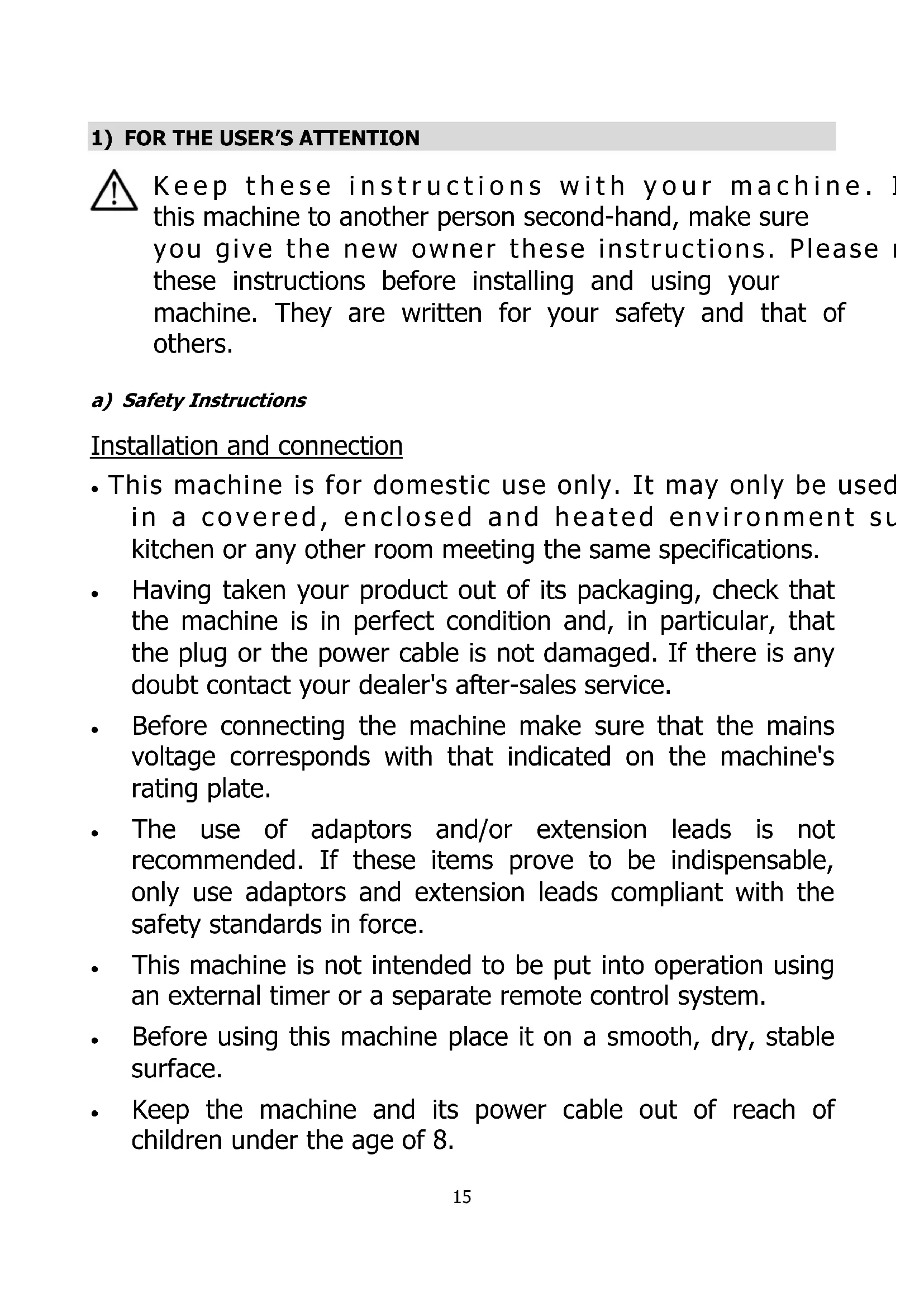

1) FOR THE USER'S ATTENTION

Keep these instructions with your machine. If this machine to another person second-hand, make sure you give the new owner these instructions. Please use these instructions before installing and using your machine. They are written for your safety and that of others.

a) Safety Instructions

Installation and connection

• This machine is for domestic use only. It may only be used in a covered, enclosed and heated environment sl kitchen or any other room meeting the same specifications.
• Having taken your product out of its packaging, check that the machine is in perfect condition and, in particular, that the plug or the power cable is not damaged. If there is any doubt contact your dealer's after-sales service.
• Before connecting the machine make sure that the mains voltage corresponds with that indicated on the machine's rating plate.
• The use of adaptors and/or extension leads is not recommended. If these items prove to be indispensable, only use adaptors and extension leads compliant with the safety standards in force.
• This machine is not intended to be put into operation using an external timer or a separate remote control system.
• Before using this machine place it on a smooth, dry, stable surface.

• Keep the machine and its power cable out of reach of children under the age of 8.

• Never pull the lead but disconnect the machine by holding the plug.
  Children must be supervised to ensure they do not play with the machine.

During Use

• This machine is not designed to be used by children unless they are older than 8 and they are supervised or instructed in the use of the machine by someone who is responsible for their safety.
• This machine may be used by people with reduced physical, sensory or mental capacities, but only after having given them the necessary information concerning the use of the machine, so that they are aware of the dangers that may be incurred.
• Do not leave the machine when it is working could be a source of danger.
• Only hold the blade by the shaft and the discs by the edge to avoid cutting yourself.
• Disconnect the machine before removing or changing any of the sharp parts.
• Wait until the blades stop completely before removing the lid.
• Never put food into the machine with bare hands. Always use the pusher.
• Check that the lid is properly closed before using the machine.
• The use of accessories not recommended by the manufacturer may cause danger or injuries.

Maintenance and cleaning

• Before cleaning ensure that the power cable for the machine is unplugged. Allow the machine to cool before cleaning.
• The power cable cannot be replaced. If the cable is damaged the machine should be discarded. However, this product is guaranteed by your distributor. For more details please refer to the guarantee conditions provided by your distributor.
• To protect yourself from the risk of electric shock, do not immerse any part of the machine in water or other liquids.
• Do not use chemical products, steel wool or abrasive cleaners to clean the outside of the machine. This risks damaging it.
• Cleaning and maintenance of the machine should not be carried out by children.

Non-compliant use

• Only use this machine for the purposes described in this manual.
• The manufacturer denies all responsibility in the event of non-compliant use.
• This machine is exclusively intended for do private dwellings. The use of this product in communal or professional premises such as rooms for breaks in offices or workshops, camping or hotel premises, does not represent compliant use as defined by the manufacturer.

b) Technical Data

Model ROB506BG
Power supply 220-240 V~50 Hz
Normal power 500 W
Bowl capacity 2000 ml
Dimensions mm (HxWxD) 385	x 240 x 180 mm
Net weight 6.5 kg

c) Environmental Protection

At the end of its life this product must not be discarded with household waste must be taken to a recycling centre or to your dealer. This makes it possible to avoid consequences resulting from inappropriate disposal that are harmful to health and the environment, and to recycle materials to save energy and significant resources.

A logo appears on the product reminding you not to discard it with household waste. For further information, contact your council offices or the shop where you bought this product.

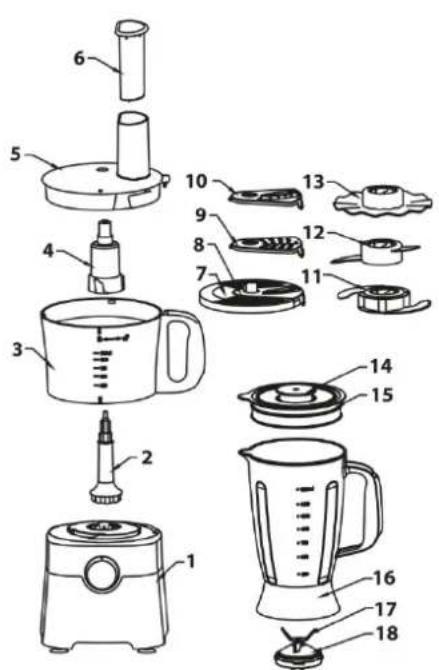

a) Description of the Food Processor

1. Motor unit
2. Drive shaft
3. Bowl
4. Disc support
5. Bowl lid
6. Pusher
7. Blade holder
8. Slicing blade
9. Coarse grating blade
10. Fine grating blade
11. Chopper/mincer blade
12. Dough kneader
13. Emulsifier
14. Blender measuring jar
15. Blender lid
16. Blender jar
17. Blender blade
18. Transmission head

On/Off switch

Pulse: To chop in brief pulses press the centre of the button as many times as you wish.

Start: ON

Stop: OFF

b) Before Using for the First Time

1. When unpacking the product, carefully handle the slicing blade and the slicing disc as they are very sharp.
2. Before using this machine for the first time clean the motor unit with a damp cloth.
3. Wash the bowls and blades in hot soapy water.
4. Dry all the parts carefully.

1. Feed tube
2. Bowl
3. Motor unit
4. Open
5. Close

a) Using the Chopper/Mincer

Assembly

• Place the bowl (3) on the motor unit (1) making sure that the parts are properly attached. Turn the bowl (3) clockwise making sure it locks in correctly.
• Insert the chopping blade (11) onto the shaft.
  Put the food to be chopped in the bowl (3). The maximum quantities are listed further on.

Operation

• Plug in the machine.
  Put the food into the feed tube slowly. Push the food down with the pusher (6).
• Turn the switch to "ON".
  Wait until the blade stops completely before removing the lid.
• Remove the blade gently and empty the bowl.
• Unplug the machine.

• Never allow the chopper to work for more than 2 minutes each time.
  After 2 minutes' operation allow the machine to cool for 5 minutes.

• This machine is not suitable for very hard foodstuffs such as coffee beans, ice cubes, sugar, rice, spices, etc.
  Before mincing meat remove the bones, tendons and nerves. Do not use the machine to chop or slice food such as tomatoes, lemons, dates, peaches or frozen products.

• Allow hot food to cool before putting it in the processor bowl.
  If you want to chop different foodstuffs start with the hardest.
• Stop the processor if you see food collecting on the sides of the bowl. Remove this food using a spatula.

b) Using the Grating and Slicing discs

Assembly

Place the bowl (3) on the motor unit (1) making sure that the parts are properly attached. Turn the bowl (3) clockwise making sure it locks in correctly.

Insert the disc support (4) and then put the grating (9 or 10) or slicing (8) disc on the support.

Operation

• Plug in the machine.
  Put the food into the feed tube slowly. Push the food down with the pusher (6).
• Turn the switch to "ON".
• Wait until the grating or slicing disc stops completely before removing the lid from the disc.
• Unplug the machine.

• Never allow the disc to work for more than 2 minutes each time. After 2 minutes' operation allow the machine to cool for 5 minutes.

c) Using the Emulsifier

Assembly

• Place the bowl (3) on the motor unit (1) making sure that the parts are properly attached. Turn the bowl clockwise making sure it locks in correctly.
• Insert the disc support (4) and then place the emulsifier (13) on the disc support.

Operation

• Plug in the machine.
  Put the food into the feed tube slowly. Push the food down with the pusher (6).
• Turn the switch to "ON".
  Wait until the emulsifier stops completely before removing the bowl from the disc.
• Unplug the machine.

d) Using the dough blade

Assembly

• Place the bowl (3) on the motor unit (1) making sure that the parts are properly attached. Turn the bowl clockwise making sure it locks in correctly.
• Insert the disc support (4) and then place the dough blade (12) on the disc support.

Operation

• Plug in the machine.
• Put the food into the feed tube slowly. Push the food down with the pusher (6).
• Turn the switch to "ON".
  Wait until the dough blade stops completely before removing the bowl from the disc.
• Unplug the machine.

e) Using the Blender

Assembly

• Place the blender jar (16) on the motor unit (1) making sure that the parts are properly attached. Turn the jar clockwise making sure it locks in correctly.

Operation

• Plug in the machine.
  Put the food in the blender jar (16).
• Turn the switch to "ON".
  Wait until the blender stops completely before removing the jar.
• Unplug the machine.

4) LOOKING AFTER AND CLEANING YOUR MACHINE

a) Cleaning the Machine

To avoid any danger:

• Unplug the machine before cleaning it.
• Never wash the motor unit in the dishwasher and never immerse it in water or rinse it under the tap.
• Dismantle the machine proceeding in the reverse order to Chapter
  Clean all the parts of the machine immediately after use to remove the food residues.
• Clean the motor unit with a damp cloth.
• Wash the detachable parts with a mixture of warm water and detergent. They can also be washed in the dishwasher.
• Do not use a scraper on the metal and plastic parts
• Do not fill the bowl with boiling water or place any of the parts in boiling water.

• Carotene may stain some parts of the food processor. This can be removed using cooking oil.

b) Storing your Machine

After cleaning the parts dry them with a clean cloth. Assemble the parts and keep the machine in a dry place. Clean all the parts after each use.

BRANDT FRANCE - Simplified Joint Stock Company with capital of 1,000,000 Euros 89/91 Boulevard Franklin Roosevelt - 92854 Rueil-Malmaison (France)
