AFDM1301 - Ice machine BESTRON - Free user manual and instructions

Brand	Bestron
Model	AFDM1301
Product type	Ice cream and sorbet maker
Power supply	230 V ~ 50 Hz
Power	150 W
Main functions	Fruit sorbets, frozen yogurt
Capacity	Approximately 1 liter (estimate)
Bowl material	Food-safe plastic
Lid material	Transparent plastic
Included accessories	Dispenser, mixer, tamper
Control type	On/off switch
Child safety	Not suitable for children without supervision
Cleaning	Removable parts dishwasher safe (recommended)
Motor unit maintenance	Damp cloth, do not immerse
Warranty	60 months (see conditions)
Country of origin	Not specified
Dimensions (L x W x H)	Approximately 20 x 25 x 30 cm (estimate)
Weight	Approximately 2 kg (estimate)
Color	White and gray (illustration)
Repairability	Spare parts available via after-sales service

Frequently Asked Questions - AFDM1301 BESTRON

What types of desserts can I make with the Bestron AFDM1301 ice cream maker?

You can prepare fruit sorbets using frozen fruits (bananas, strawberries, mangoes, etc.) as well as frozen yogurt desserts using frozen yogurt cubes. The appliance is ideal for creamy lactose-free ice cream.

Do I need to pre-freeze the ingredients before using them?

Yes, to achieve a frozen texture, the fruits or yogurt must be frozen for at least 24 hours before being put into the machine. Cut the fruits into small pieces before freezing.

How to assemble the machine for the first time?

Place the mixer in the direction of rotation, install the dispenser by turning to the left, then lock the mixing block. Insert the tamper into the feed tube. Do not plug in until fully assembled.

Can I wash the machine parts in the dishwasher?

The removable parts (mixer, dispenser, tamper) can be washed in warm soapy water. It is not recommended to put them in the dishwasher, as this could deform them. The motor unit must be cleaned with a damp cloth.

What to do if the machine does not start?

Check that the switch is in the 1 position and that the plug is properly connected. Also ensure that the bowl and lid are correctly locked, otherwise the safety prevents starting.

Can this machine grind nuts or bones?

No, the machine is designed only for soft fruits or frozen yogurts. Do not chop hard foods such as nuts, bones, horseradish, as this could damage the mechanism.

How long is the warranty?

Bestron offers a warranty of 60 months (5 years) from the date of purchase, covering defects in materials and workmanship. The warranty does not cover normal wear, accidental damage, or unauthorized repairs.

Can I use fresh fruits instead of frozen?

It is recommended to use frozen fruits to achieve the ideal texture. If you use fresh fruits, cut them into small pieces and freeze them for 24 hours before use for optimal results.

How to clean the motor unit?

Unplug the appliance and use a clean, damp cloth with a mild detergent. Never immerse the motor unit in water or any other liquid. Dry thoroughly after cleaning.

Where can I find after-sales service?

Bestron after-sales service is available in Belgium (NEW ETP BVBA) and France. Refer to the manual for exact contact details or contact your retailer. Never send the appliance without prior instructions.

USER MANUAL AFDM1301 BESTRON

Line drawing of a mechanical component with no visible text or symbols

Instruction manual Sorbet & Frozen Yoghurt Maker

_

| _

一

1

VEILIGHEIDSVOORSCHRIFTEN - Algemeen

figuur 3

Three-step diagram showing a mechanical or fluidic device with a cylindrical component being inserted, no text or symbols present.

R. Neyman

Quality control

RECEPTEN

Tony's Banana Business

• 2 bevroren bananen (in stukjes)
• Handvol chocoladebrokken
• 1/4 theelepel vanille-extract

R. Neyman

Qualitätskontrolle

REZEPTE

Tony's Banana Business

Figure

3

Figure 4

Frozen Yoghurt Dessert

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

Tony's Banana Business

SAFETY INSTRUCTIONS - General information

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  • Make sure that you always use an earthed wall socket to connect the appliance.
  • Always remove the plug from the socket when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
  • Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
  • Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - Use

• Never use the appliance outdoors.
- Place the appliance on a flat, stable surface where it cannot fall.
- Never allow the power cord to hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
- Never use the appliance in a humid room.
- Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
- Keep your fingers clear of all moving parts whilst the appliance is in operation.
- Do not switch on the appliance unless the accessories and the bowl are fitted properly.
• Always switch off the appliance before changing the accessories.
- Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
- Clean the appliance thoroughly after use (see 'Cleaning and maintenance').
- Never immerse the appliance, the plug or the power cord in water or other liquid.
• Always lift the device with both hands. Lift it by holding on to the the housing, never hold on to the head or tray.
- Do not grind hard food like nuts, bones, ginger roots, etc.
• To avoid jamming, do not use excessive force when pushing food through the device.

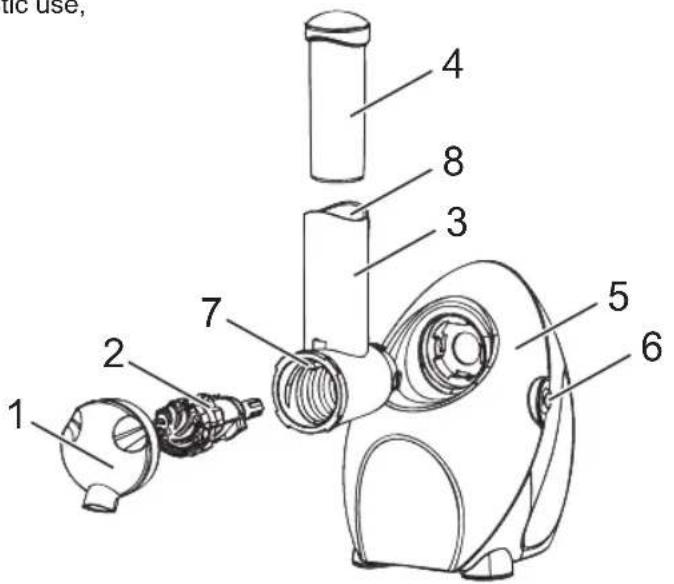

OPERATION - Parts

The appliance is intended only for domestic use, not for professional use.

1. Dispenser
2. Grinder
3. Filling tube
4. Presser
5. Base
6. On/Off-switch 0-1

Figure 1

OPERATION - Using for the first time

1. Remove the packaging.
2. Clean the device to remove any manufacturing residues (see "Cleaning and maintenance").

OPERATION - Assembling

- Make sure the device is placed on a stable, flat surface. Do not connect the appliance to a wall socket.

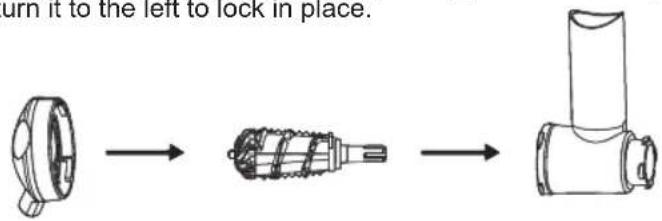

1. Place the grinder (2) in the filling tube (3). Place the dispenser at the front side of the filling tube and turn it to the left to lock in place.

Figure 2

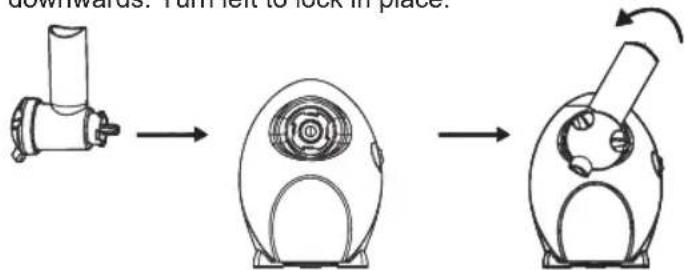

1. Place the axis of the of the grinder in the opening of the base (5), with the dispenser (1) facing downwards. Turn left to lock in place.

Figure 3

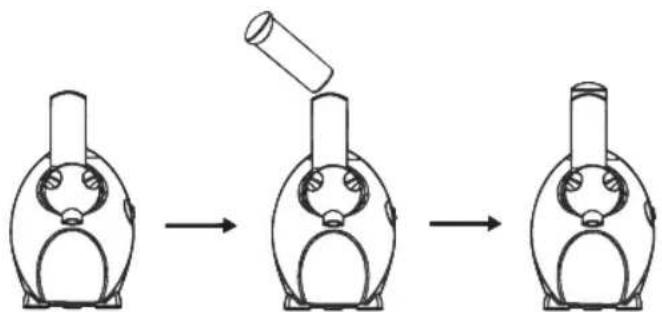

1. Place the presser in the filling tube.

Figure 4
The appliance is now ready for use.

OPERATION - Preparation

With this appliance you'll be able to make delicious fruit sorbets from frozen fruit. A tasty treat for your family, friends and yourself.

You can buy frozen fruit in your supermarket, like raspberries, strawberries, blackberries, peaches, etc. This frozen fruit lends itself perfectly for the preparation of your fruit sorbets. You may also choose to use fresh fruit though. In that case, you'll have to cut the fruit into small pieces, so they'll fit through the filling tube (8) of the appliance. Afterwards, place the fruit into your freezer for at least 24 hours.

Tip: The texture of bananas is extremely suitable to be used as primary ingredient. It is preferable to use bananas in all variations of your sorbet recipes.

Tip: Preferably use overripe fruit, fruit which may not look very appetizing anymore. These fruits retain the most flavour when frozen and will make you sorbet taste all the better for it!

Experiment with all kinds of fruit, like bananas, apples, pears, peaches, mangos, red fruit, oranges. etc. to get to the tastiest variations. You may also add pieces of chocolate, nuts or cookies. You can even add sugar to taste if wanted.

Tip: This appliance is suitable for people wo are lactose-intolerant. Enjoy the tastiest fruit sorbets without adding cream, milk or other lactoseproducts.

Frozen Yogurt Desserts

Surprise your family or friends with a delicious frozen yogurt dessert. Simply use yogurt as your main ingredient instead of bananas. Fill an icecube-tray with any yogurt-product and place the tray in your freezer for at least 24 hours. With the frozen cubes you'll be able to make a Frozen Yogurt dessert in a snap.

OPERATION - Use

Only use the presser supplied with the device to push ingredients into the device.

1. Put the plug into the socket.
2. Place a dish under the dispenser.
3. Push the on/off-switch into the "I" position. The device is now turned on.
4. Use the presser to push ingredients into the filling tube.
5. The dish will fill with your delicious dessert!

Bon appetit!

Tip: Follow each type of fruit with a serving of the main ingredient. That way you'll create an evenly tasting mixture for your dessert.

CLEANING AND MAINTENANCE

1. Take the plug from the wall socket.
2. Disassemble the device by following the steps described in the chapter "Assembling" in the opposite direction.

- Clean the device after each use.

If you are experiencing difficulty in removing the grinding disc, place the flat edge of a spoon at the edge between the grinding disc and the head. This way, you can tilt the grinding disc out of the head.

1. Clean the parts in warm water with soap.

2. Clean the housing with a clean cloth moistened with a disinfectant cleaner, and dry thoroughly.

- Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the device.

- Do not immerse the motor unit in water, or in other liquids.

TECHNICAL INFORMATION

Type: AFDM1301

Output: 150W

Power supply: 230V \~ 50 Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

- The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

- Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect. b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

R. Neyman
Quality control

RECEPTEN

Tony's Banana Business

2 frozen bananas (diced)

1 Hand full of chocolate chunks

1/4 teaspoon of vanilla-extract

Preparation: Add half of the diced banana, then the chocolate chunks and the vanilla-extract. Finally, add the second half of the diced banana.

Django's Mangos

1 bakje frozen strawberries,

2 frozen mangos (diced)

1/4 teaspoon vanilla-extract

Preparation: Add the strawberries first, then the vanilla-extract and finally the pieces of mango.

Orange Sunset

2 frozen bananas (diced)

1 orange, peeled and segmented

1/4 teaspoon of vanilla-extract

Preparation: Add half of the diced banana, then the vanilla-extract and then the orange segments. Finally, add the second half of the diced banana.

Peanutbutter Jelly Time

2 frozen bananas (diced)

3/4 cup frozen raspberries

1 teaspoon of peanutbutter

Preparation: Add half of the diced banana, then the peanutbutter. Add the second half of the diced banana. Finally add the raspeberries.

Very Berry

2 frozen bananas (diced)

1 tablespoon frozen raspberries

1 tablespoon frozen blueberries

1 Hand full of gedroogde cranberries

Preparation: Add half of the diced banana, then the raspberries, blueberries and dried cranberries. Finally, add the second half of the diced banana

Mom's Apple Pie

2 frozen bananas (diced)

5 dried apple slices

2 tablespoons apple sauce (unsweetened)

1/4 teaspoon of cinnamon

Preparation: Add half of the diced banana, then the dried apple slices, apple sauce, cinnamon and finally the second half of the diced banana.

Chocolate Raspberry Fields

2 frozen bananas (diced)

3/4 cup frozen raspberries dark chocolate chunks

Preparation: Add half of the diced banana. Add 3/4 cup frozen raspberries. Finally, add the second half of the diced banana. Sprinkle with chocolate chunks.

Berry shot

• 300ml bevroren yoghurt (in blokjes)

• 1 eetlepel bevroren frambozen

• 1 eetlepel bevroren bosbessen

• 1 handvol bevroren cranberries

_

| _

一

1

Technical line drawing of a mechanical component with no visible text or symbols
