SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Refer to the table below for an explanation of symbols which may be on your Samsung product.
| CAUTION
RISK OF ELECTRIC SHOCK. DO
NOT OPEN. |
| This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of
this product. |
| This symbol indicates that this product has
included important literature concerning
operation and maintenance. |
| Class II product: This symbol indicates
that a safety connection to electrical earth
(ground) is not required.
If this symbol is not present on a product
with a power cord, the product MUST have
a reliable connection to protective earth
(ground). |
| AC voltage: Rated voltage marked with
this symbol is AC voltage. |
| DC voltage: Rated voltage marked with
this symbol is DC voltage. |
| Caution. Consult Instructions for use:
This symbol instructs the user to consult
the user manual for further safety related
information. |
WARNING
- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
- Do not use liquid fumigators containing chemicals, such as mosquito repellent or air freshener, around the product. If steam comes in contact with the product surface or enters the product, it may cause stains or malfunction.
CAUTION
- TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT. FULLY INSERT.
- This apparatus shall always be connected to an AC outlet with a protective grounding connection.
- To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
- Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases, on the apparatus.
- To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.
PRECAUTIONS
- Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
- During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
- Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.
- Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.
- The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. CAUTION: Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.
01 CHECKING THE COMPONENTS
Soundbar Main Unit Soundbar Remote Control - Batteries - Subwoofer - Surround Speaker x2 (Left/Right, HW-Q935D model only) HW-Q935D: Power Cord X4 (Subwoofer, Surround Speaker, Soundbar)
HW-Q810D: Power Cord X2 (Subwoofer, Soundbar) HDMI Cable - Wall Mount Guide Holder - Screw X2 - Screw (M4 x L10) X2 - Bracket-Wall Mount X2 Rubber-Foot X4
NOTE
- To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care. The number of power cables may differ with the model.
02 PRODUCT OVERVIEW
Top Panel of the Soundbar
1
(Multi Function) Button
In standby mode, press the Multi Function button to turn on the Soundbar. Press the Multi Function button to change the input source.
2
(Mic On/Off) Button
Press the button to turn the microphone on or off.
When the microphone is off, the LED indicator will glow red.
To switch to BT PAIRING mode in BT mode, press and hold the Mic On/Off button on the top of the Soundbar for more than 5 seconds.
Bottom Panel of the Soundbar
1
POWER
Connect the Soundbar's AC power cable.
2
SERVICE
Connect a USB storage device to upgrade the product's software.
3
DIGITAL AUDIO IN (OPTICAL)
Connect to the digital (optical) output of an external device.
4
HDMI
Inputs digital video and audio signals simultaneously using an HDMI cable.
Connect to the HDMI output of an external device.
5
HDMI TO TV (eARC/ARC)
Connect to the HDMI jack on a TV.

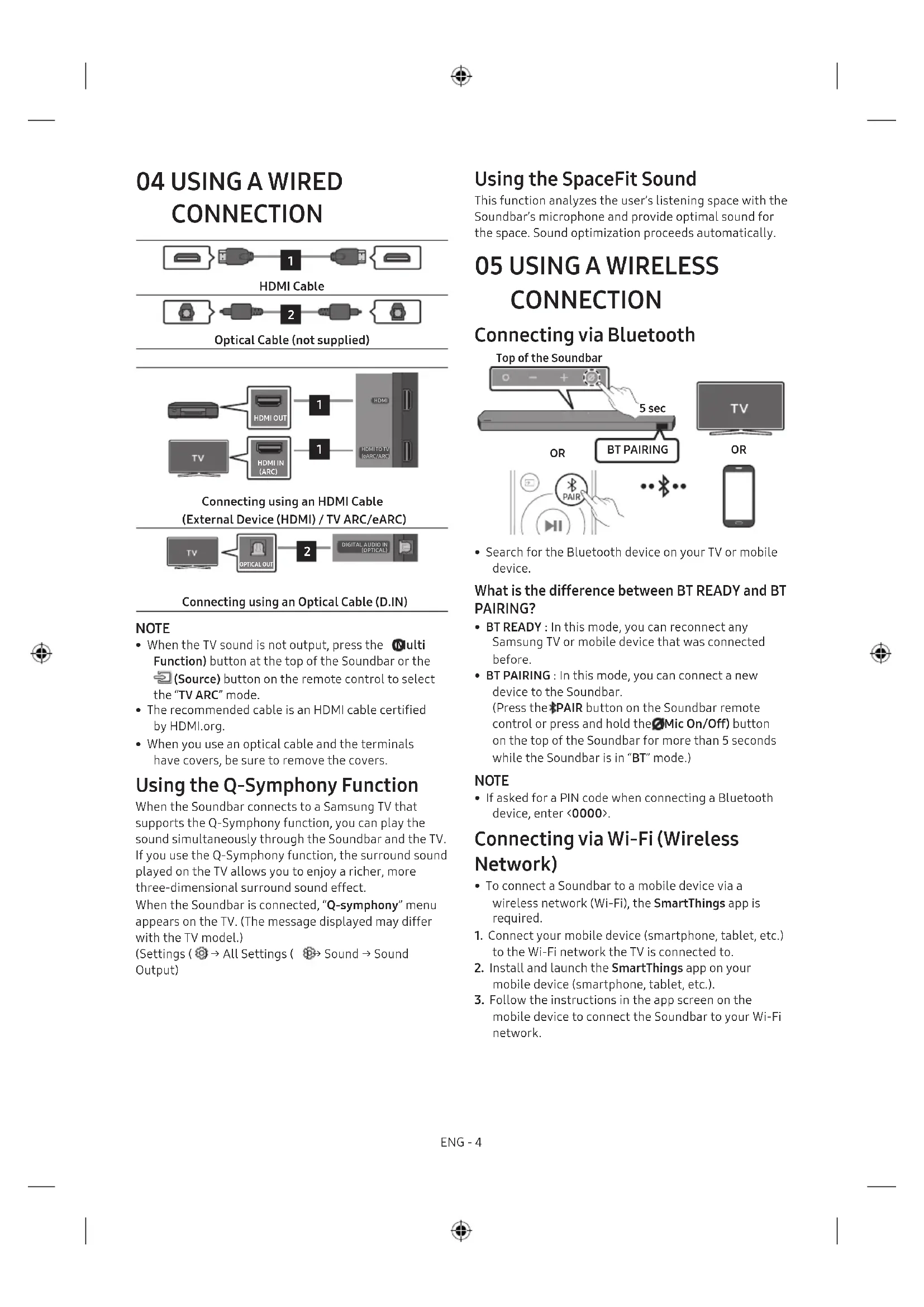

03 CONNECTING THE SOUNDBAR
Connecting the power and units
- The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar, Subwoofer, and Surround speakers.
04 USING A WIRED CONNECTION
Connecting using an Optical Cable (D.IN)
NOTE
- When the TV sound is not output, press the Multi Function button at the top of the Soundbar or the (Source) button on the remote control to select the "TV ARC" mode.
- The recommended cable is an HDMI cable certified by HDMI.org.
- When you use an optical cable and the terminals have covers, be sure to remove the covers.
Using the Q-Symphony Function
When the Soundbar connects to a Samsung TV that supports the Q-Symphony function, you can play the sound simultaneously through the Soundbar and the TV. If you use the Q-Symphony function, the surround sound played on the TV allows you to enjoy a richer, more three-dimensional surround sound effect. When the Soundbar is connected, "Q-symphony" menu appears on the TV. (The message displayed may differ with the TV model.)
(Settings → All Settings → Sound → Sound Output)
Using the SpaceFit Sound
This function analyzes the user's listening space with the Soundbar's microphone and provides optimal sound for the space. Sound optimization proceeds automatically.
05 USING A WIRELESS CONNECTION
Connecting via Bluetooth
- Search for the Bluetooth device on your TV or mobile device.
What is the difference between BT READY and BT PAIRING?
- BT READY: In this mode, you can reconnect any Samsung TV or mobile device that was connected before.
- BT PAIRING: In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the Soundbar remote control or press and hold the Mic On/Off button on the top of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)
NOTE
- If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
Connecting via Wi-Fi (Wireless Network)
- To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required.
- Connect your mobile device (smartphone, tablet, etc.) to the Wi-Fi network the TV is connected to.
- Install and launch the SmartThings app on your mobile device (smartphone, tablet, etc.).
- Follow the instructions in the app screen on the mobile device to connect the Soundbar to your Wi-Fi network.
06 TROUBLESHOOTING
Before seeking assistance, check the following.
Soundbar does not turn on.
- Check whether the power cord of the Soundbar is correctly inserted into the outlet.
When the subwoofer or surround sound speakers are not automatically connected
- Turn off the Soundbar main unit.
- Press and hold ID SET on the rear of the subwoofer and surround speakers for at least 5 seconds.
- The surround speakers may not be provided, depending on the model.
Subwoofer
Surround Speaker (HW-Q935D only)
- Press the Up button on the remote control for 5 seconds.
- Check if the LINK LED is solid blue (connection complete).
- The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Subwoofer, surround speakers.
Soundbar works erratically.
After removing the power cord, insert it again. Try again after initializing the product. - If there is no signal, the Soundbar automatically turns off after a certain period of time. Turn on the power.
Remote control does not work
- Point the remote directly at the soundbar.
- Replace the batteries with new ones.
The Soundbar indicator turns solid red.
The microphone is turned off.
Turn on the microphone.
Sound is not output from the soundbar.
- The volume of the Soundbar is too low or muted. Adjust the volume.
- When any external device (STB, Bluetooth device, mobile device, etc.) is connected, adjust the volume of the external device.
- For sound output of the TV, select Soundbar. (Samsung TV: Home → Menu → Settings → All Settings → Sound → Sound Output → Select Soundbar)
- Remove the cable from the Soundbar and then reconnect it.
Sound is not output from the subwoofer or the surround speakers.
- Check whether the LED on the rear of the Subwoofer and Surround Speakers lights in blue. Reconnect it when the blue LED blinks or the red LED lights.
If the TV is not connected via HDMI TO TV (eARC/ARC)
- Check whether the HDMI cable is correctly connected to the ARC terminal.
- Connection may not be possible due to the connected external device (set-top box, game console, etc.). Directly connect the Soundbar.
- HDMI-CEC may not be activated on the TV. Turn on the CEC on the TV menu. (Samsung TV: Home → Menu → Settings → All Settings → Connection → External Device Manager → Anynet+ (HDMI-CEC) ON)
Soundbar will not connect via Bluetooth.
- When connecting a new device, switch to "BT PAIRING" for connection. (Press the PAIR button on the remote control or press the Mic On/Off button on the body for at least 5 seconds.)
- Reconnect it after removing the Bluetooth speaker list on the device to connect. (Samsung TV: Home → Menu → Settings → All Settings → Sound → Sound Output → Bluetooth Speaker List)
Sound drops out when connected via Bluetooth.
- Some devices can cause radio interference if they are located too close to the Soundbar. e.g. microwaves, wireless routers, etc.
- If your device that is connected via Bluetooth moves too far away from the soundbar, it may cause the sound to drop out. Move the device closer to the soundbar.
- If a part of your body is in contact with the Bluetooth transceiver or the product is installed on metal furniture, the sound may drop out. Check the installation environment and conditions for use.
Soundbar will not connect to Wi-Fi.
- Make sure the wireless router is turned on and then reconnect the wireless router after rebooting.
- The soundbar will not connect if the wireless signal is too weak. Try moving the router closer to the soundbar, or eliminating any obstacles that are between the soundbar and the router, if possible.
The soundbar does not turn on automatically with the TV.
- When you turn off the Soundbar while watching TV, power synchronization with the TV is disabled. First turn off the TV.
07 IMPORTANT NOTES ABOUT SERVICE
- Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
- An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read). (b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).
- You will be informed of the administration fee amount before a technician visits.
08 SPECIFICATIONS AND GUIDE
| Model Name
HW-Q935D |
| Weight | Dimensions (W x H x D) |
| 5.4 kg | 1110.7 x 60.4 x 120.0 mm |
| Operating Temperature Range | Operating Humidity Range |
| +10 °C to +40 °C | 10 % to 80 %, non-condensing |
| Storage Temperature | Storage Humidity |
| -20 °C to +45 °C | 5 % to 95 %, non-condensing |
AMPLIFIER
Rated Output power
240W
Dolby 5.1ch / Dolby Digital Plus / Dolby TRUE HD /
Dolby ATMOS / DTS 5.1ch / DTS HD /
DTS-HD Master Audio / DTS:X / LPCM 8Ch
| Model Name
HW-Q810D |
| Weight | Dimensions (W x H x D) |
| 5.1 kg | 1110.7 x 60.4 x 120.0 mm |
| Operating Temperature Range | Operating Humidity Range |
| +10 °C to +40 °C | 10 % to 80 %, non-condensing |
| Storage Temperature | Storage Humidity |
| -20 °C to +45 °C | 5 % to 95 %, non-condensing |
| AMPLIFIER
Rated Output power
200 W |
| Supported play formats
Dolby 5.1ch / Dolby Digital Plus / Dolby TRUE HD /
Dolby ATMOS / DTS 5.1ch / DTS HD /
DTS-HD Master Audio / DTS:X / LPCM 8Ch |
| Subwoofer Name
PS-WQ930D |
| Weight | Dimensions (W x H x D) |
| 9.8 kg | 210.0 x 403.0 x 403.0 mm |
| AMPLIFIER
Rated Output power
160 W |
| Surround Speaker Name (HW-Q935D only)
PS-RQ930D (LEFT/RIGHT) |
| Weight | Dimensions (W x H x D) |
| 3.1 kg | 129.5 x 201.3 x 140.4 mm |
| AMPLIFIER
Rated Output power
140 W |
NOTE
Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. - Weight and dimensions are approximate. - The surround speakers are provided for specific models only. - For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Rear of the Soundbar Main Unit)
Precaution: The Soundbar will restart automatically if you turn on/turn off Wi-Fi.
Overall Standby Power Consumption (W) 6.0 W
Wi-Fi Port deactivation method
Press the CH LEVEL button on the remote control of the Soundbar for 30 seconds to turn Wi-Fi On / Off.
Bluetooth Port deactivation method
Press the TONE CONTROL button on the remote control of the Soundbar for 30 seconds to turn Bluetooth On / Off.
Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements.
The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the model name.
This equipment may be operated in all EU countries and in the UK.
The 5GHz WLAN(Wi-Fi or SRD) function of this equipment may only be operated indoors.
- WIRELESS DEVICE OUTPUT POWER RF max transmitter power
100mW at 2.4GHz-2.4835GHz 200mW at 5.15GHz-5.25GHz & 5.47GHz - 5.725GHz 100mW at 5.25GHz-5.35GHz 25mW at 5.725GHz-5.875GHz
[Correct disposal of batteries in this product]
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.
For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit: www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
SAFETY INFORMATION
SAFETY WARNINGS
DO NOT REMOVE THE COVER, AS THIS INCREASES THE RISK OF ELECTRIC SHOCK (OR ON THE BACK SIDE). THERE ARE NO INTERNAL PARTS THAT NEED SERVICING. SERVICING SHOULD BE PERFORMED BY QUALIFIED SERVICE PERSONNEL.
DIGITAL AUDIO IN (OPTICAL)
08 TECHNICAL SPECIFICATIONS AND GUIDE
Model name
HW-Q935D
Weight
5.4 kg
Dimensions (W x H x D)
1110.7 x 60.4 x 120.0 mm
03 CONNECT TO SOUNDBAR
02 PRODUCT OVERVIEW
DIGITAL AUDIO IN (OPTICAL)
Turn on the microphone.
07 IMPORTANT SERVICE NOTES
© 2024 Samsung Electronics Co., Ltd. All rights reserved.
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care Centre.
| Country/ Region | Samsung Service Centre | Web Site |
| UK 0333 | 000 0333 | www.samsung.com/uk/support |
| IRELAND (EIRE) | 0818 717100 | www.samsung.com/ie/support |
| GERMANY 06196 77 555 77 | www.samsung.com/de/support | |
| FRANCE 0148 63 00 00 | www.samsung.com/fr/support | |
| ITALIA 800-SAMSUNG (800.7267864) | www.samsung.com/it/support | |
| SPAIN 91175 0015 | www.samsung.com/es/support | |
| PORTUGAL 210 608 098 Chamada para a rede fixanacional Dias úteis das 9h às 20h | www.samsung.com/pt/support | |
| LUXEMBURG 261 03 710 | www.samsung.com/be_fr/support | |
| NETHERLANDS 088 90 90 100 | www.samsung.com/nl/support | |
| BELGIUM 02-201-24-18 | www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French) | |
| NORWAY 21629099 | www.samsung.com/no/support | |
| DENMARK 70 70 19 70 | www.samsung.com/dk/support | |
| FINLAND 030-622 75 15 | www.samsung.com/fi/support | |
| SWEDEN 0771-400 300 | www.samsung.com/se/support | |
| POLAND 801-172-678* (* (opłata wedtug taryfysoperadora) | http://www.samsung.com/pl/support/ | |
| HUNGARY 06805AMSUNG (0680-726-7864) | www.samsung.com/hu/support | |
| AUSTRIA 0800 72 67 864 (0800-SAMSUNG) | www.samsung.com/at/support | |
| SWITZERLAND 0800 726 786 | www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French) | |
| Country/ Region | Samsung Service Centre | Web Site |
| CZECH | 800 - SAMSUNG (800-726786) | www.samsung.com/cz/support |
| SLOVAKIA | 0800 - SAMSUNG (0800-726 786) | www.samsung.com/sk/support |
| CROATIA 07 | 72 726 786 | www.samsung.com/hr/support |
| BOSNIA 05 | 233 999 | www.samsung.com/ba/support |
| North Macedonia | 023 207 777 | www.samsung.com/mk/support |
| MONTENGRO | 020 405 888 | www.samsung.com/support |
| SLOVENIA | 080 697 267 (brezplačna stevilka) | www.samsung.com/si/support |
| SERBIA 01 | 1 321 6899 | www.samsung.com/rs/support |
| Kosovo 03 | 8 40 30 90 | www.samsung.com/support |
| ALBANIA 04 | 620 202 | www.samsung.com/al/support |
| BULGARIA | 0800 111 31 - Бразлaten за ветшик онлайнтopyrim*3000 - цента на садамп разговения слорд тарфага на моблийт онлайнтopyrim 09:00 до 18:00 - Ронделянок до РétбК | www.samsung.com/bg/support |
| ROMANIA | 0800872678 - Apel Gratisit *8000 - Apel tarifat in retea Program Call Center Luni - Vineri: 9 AM - 6 PM | www.samsung.com/ro/support |
| CYPRUS | 8009 4000 only from landline, toll free | www.samsung.com/gr/support |
| GREECE | 80111-SAMSUNG (80111 726 7864) from mobileandlandline (+30) 210 6897691 from mobile and land line |
| LITHUANIA 8 | -800-77777 | www.samsung.com/lt/support |
| LATvia 80 | 00-7267 | www.samsung.com/lv/support |
| ESTONIA 80 | -7267 | www.samsung.com/ee/support |
