Technical Features	UFESA Classic BP3442 blender with powerful 600W motor, 5 speeds, pulse function, and 1.5-liter plastic jar.
Usage	Ideal for making smoothies, soups, sauces, and other culinary preparations. Easy to use with an intuitive control panel.
Maintenance and Repair	Easy to disassemble for cleaning. Removable parts are dishwasher safe. Regularly check the condition of the blades and replace them if necessary.
Safety	Equipped with a safety system that prevents operation if the jar is not properly secured. Do not immerse the motor in water.
General Information	Lightweight and compact design, ideal for home use. 2-year warranty. Reasonable energy consumption.

Frequently Asked Questions - Classic BP3442 UFESA

How do I disassemble and clean the UFESA Classic BP3442 blender?

To disassemble the blender, unplug the device, remove the jar by turning it counterclockwise, then remove the blade. Wash all parts with warm soapy water, rinse, and let dry.

The blender won\'t turn on, what should I do?

Check if the device is properly plugged in and if the outlet is working. Make sure the jar is correctly positioned on the motor. If the problem persists, contact customer service.

How do I achieve a smooth consistency for smoothies?

For smooth smoothies, start by adding liquids first, then fruits and vegetables. Blend at high speed until the desired consistency is reached.

The blender makes a strange noise during use, what should I do?

A strange noise may indicate that the blade is stuck or the ingredients are too hard. Turn off the device, check the blade, and remove some ingredients if necessary.

Can I blend hot foods in the blender?

Yes, but be careful not to fill the jar too full to avoid splashes. It is recommended not to exceed 70°C to avoid damaging the blender.

How do I prevent the blender from vibrating too much during blending?

Make sure the blender is placed on a stable and flat surface. Do not overload the jar, as this can cause excessive vibrations.

What types of foods can I blend with the UFESA Classic BP3442 blender?

You can blend a variety of foods such as fruits, vegetables, nuts, seeds, and even ice cubes. Avoid blending very hard foods without cutting them first.

Is there a warranty for the UFESA Classic BP3442 blender?

Yes, the blender is generally covered by a 2-year warranty. Please refer to the user manual for more details on warranty conditions.

How do I adjust the speed of the blender?

The UFESA Classic BP3442 blender has several speed settings. Use the control knob to select the desired speed based on the ingredients you are blending.

What should I do if the blender jar is cracked?

Do not use the jar if it is cracked. Contact customer service to obtain a replacement jar.

USER MANUAL Classic BP3442 UFESA

ThreeUFesa-branded kitchen utensils shown in different colors and designs (no visible text or symbols on the devices themselves)

Diagram showing three stages of a washing machine: whisk, a micrometer, and a hand mixer with label C1.

FIG. 4

C2 ufesa

LE AGRADECEMOS QUE HAYA ELEGIDO UFESA Y ESPERAMOS QUE EL PRODUCTO LE SATISFAGA.

ATENCIÓN

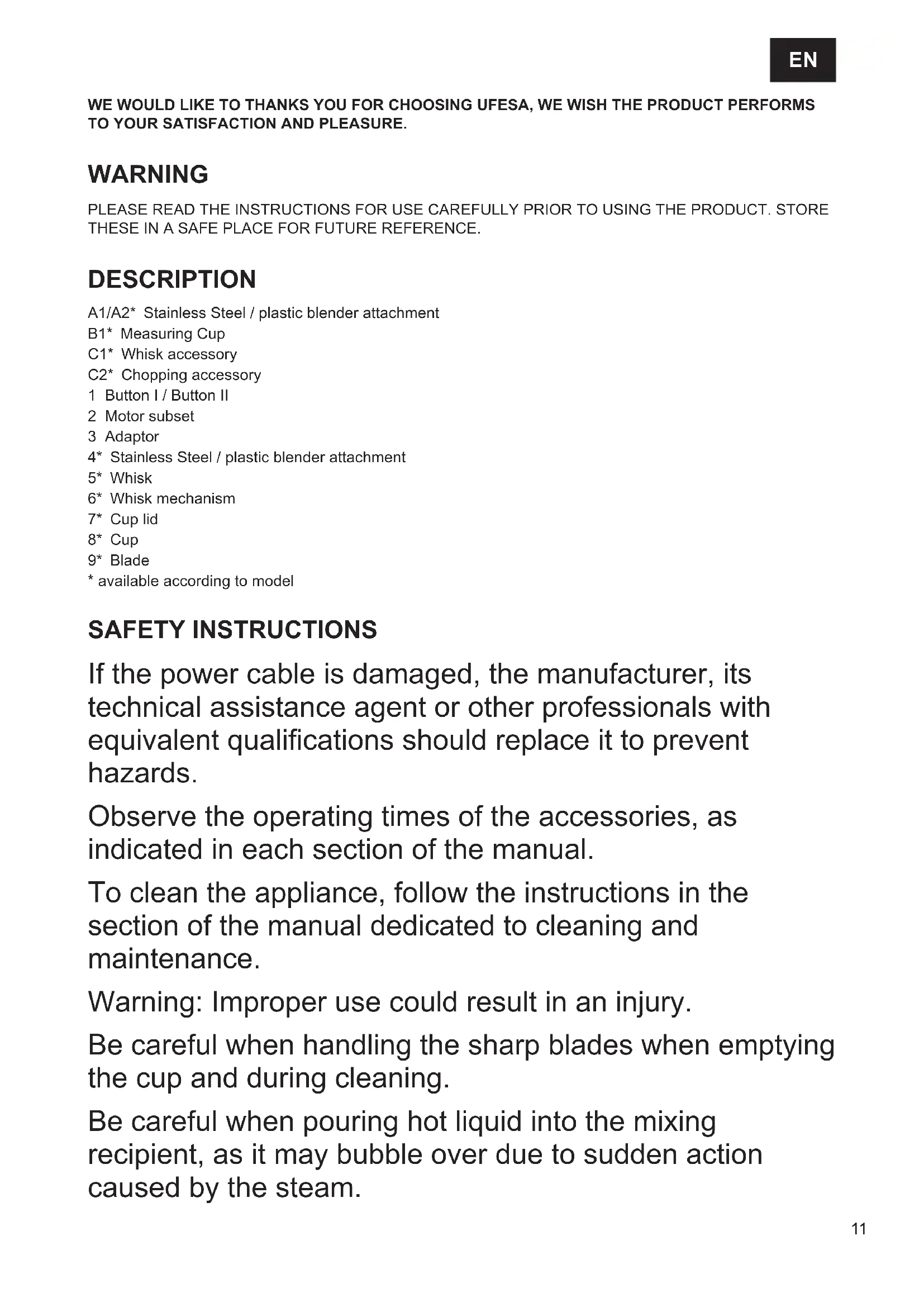

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

A1/A2* Stainless Steel / plastic blender attachment

B1* Measuring Cup

C1* Whisk accessory

C2* Chopping accessory

1 Button I / Button II

2 Motor subset

3 Adaptor

4* Stainless Steel / plastic blender attachment

5* Whisk

6* Whisk mechanism

7* Cup lid

8* Cup

9* Blade

* available according to model

SAFETY INSTRUCTIONS

If the power cable is damaged, the manufacturer, its technical assistance agent or other professionals with equivalent qualifications should replace it to prevent hazards.

Observe the operating times of the accessories, as indicated in each section of the manual.

To clean the appliance, follow the instructions in the section of the manual dedicated to cleaning and maintenance.

Warning: Improper use could result in an injury.

Be careful when handling the sharp blades when emptying the cup and during cleaning.

Be careful when pouring hot liquid into the mixing recipient, as it may bubble over due to sudden action caused by the steam.

EN

Always disconnect the blender from the base when it is not in use and before assembling, disassembling or cleaning it.

Turn off the appliance and disconnect it from the mains before changing any accessories or you have to touch parts which move during use.

This appliance should not be used by children. Keep the appliance and its cable out of the reach of children.

This appliance may be used by people with reduced physical, sensory and mental abilities or with a lack of experience, provided that they have been given supervision or suitable instructions regarding the use of a safe mode and are aware of the risks involved.

Children should not use it as a toy.

IMPORTANT INFORMATION

This appliance has been designed for domestic use and under no circumstances should it be used for commercial or industrial purposes. Any incorrect use or improper handling of the product will nullify and invalidate the guarantee.

Before connecting the product, check that the mains voltage is the same as that indicated on the product label.

The mains connection cable should not become entangled or be wrapped round the product while it is in use.

Do not use the appliance or connect it or disconnect it from the mains when your hands and/or feet are wet.

For an ideal mixing effect from the blade accessory, avoid using it without any food.

Do not pull on the connection cable to unplug it or to use it to carry the appliance.

Immediately disconnect the product from the mains in the event of detecting a failure or any damage and contact the authorised technical assistance service. Do not attempt to repair the appliance yourself, in order to prevent risks and hazards. Only qualified technical personnel from the brand's official technical assistance service may carry out repairs or other operations on the appliance.

B&B TRENDS, S.L. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTRUCTIONS FOR USE

• Make sure that all the product packaging has been removed. -
• Clean the parts which will come into contact with the food before using the product for the first time, as outlined in the cleaning section.
• Prepare the appliance in accordance with the function you wish to use:

USE

• Unwind the cable fully before plugging it in.
• Connect the appliance to the mains.
• Turn on the appliance using the on/off button.
• Select the desired function of the appliance.
• Select the desired speed.
• Start mixing the food you wish to process.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

• Stop the appliance by releasing the pressure on the on/off button.
• Disconnect the appliance from the mains.
• Put the cable back in the cable box.
• Clean the appliance.

ACCESSORIES: BLENDER ACCESSORY ATTACHMENT (FIG. 1)

• This accessory can be used to make sauces, soups, mayonnaise, milk shakes, baby food, etc.
• Connect the rod to the body of the motor and turn it in the direction indicated by the arrow (Fig. 1).
• Place the food to be prepared in the recipient and turn on the appliance. We suggest cutting the food into cubes no more than 15 mm in size.
• For additional cleaning, disconnect and extract the rod by turning it in the opposite direction indicated by the arrow (Fig. 1).

Do not use the appliance for more than one minute at a time. In the event of operating in cycles, allow the appliance to rest for a period of at least one minute between each cycle.

WHISK ACCESSORY (FIG. 3)

• This accessory can be used for whisking cream, egg whites, etc.
• Connect the whisk to the whisk mechanism unit of the motor by turning it in the direction indicated by the arrow (Fig. 3).
• Place the food in a large recipient and turn on the appliance. To achieve the best results, turn the whisk to the right.
• Remove the whisk accessory and release it from the mechanism connection (Fig. 3)
• Note 2: Pull the whisk to release it from the mechanism's mount.

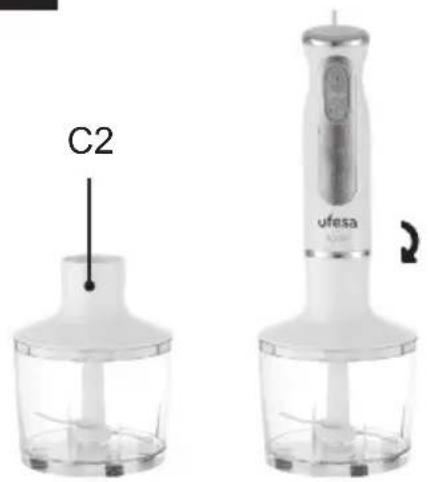

CHOPPING ACCESSORY (FIG. 4)

This accessory can be used to chop up vegetables, meat, etc.

- Place the food to be prepared into the recipient for it to be cut with the blades inside and close the lid tight.

We suggest cutting the food into the appropriate forms and sizes. E.g. cut meat into 2 cm x 2 cm x 6 cm strips, cut onions into 4 to 6 discs, etc.

• Place the adaptor into the motor unit by turning it in the direction indicated by the arrow.
• Attach the unit to the cover and turn on the appliance (be careful: do not turn on the appliance if the whole unit has not been properly installed and connected).
• Turn off the appliance when the food has reached the desired texture.
• Remove the unit from the lid and release the adaptor.

MAINTENANCE AND CLEANING

Unplug the power cable before cleaning.

Do not touch the blade.

Use a dry kitchen cloth to clean the product. It is strictly forbidden to rinse the main unit with water or immerse it in water.

Do not use metal or nylon brushes, abrasive household products, thinners or other similar cleaning products to clean the appliance as they can damage its surface structure.

Use a soft, dry cloth to remove any dirt from the power cable.

Cleaning requirements for each accessory.

Cleaning accessories	Washing Rinsing		Cleaning by immersion	Dishwasher Observations
Mixing blade					Do not immerse in water
Glass
Components for whisking egg whites					Do not immerse in water
Rod *
Chopper lid					Do not immerse in water
Chopper
Chopper blade

Table of recipes

Contents Time Speed Accessory
Soaked carrots: 240gWater: 360g	10” MAXIMUM Mixing blade
Cubes of Meat: 150g	10” MAXIMUM Chopper
Egg whites: 3 eggs	180”	MAXIMUM Whisk

ELIMINATION OF THE PRODUCT

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment centre.

NOUS TENONS À VOUS REMERCIER D'AVOIR CHOISI UFESA. NOUS ESPÉRONS QUE VOUS SEREZ PLEINEMENT SATISFAIT DE CE PRODUIT ET QU'IL RÉPONDRA À VOS ATTENTES.

ATTENTION

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT D'UTILISER LE PRODUIT. CONSERVEZ CE MANUEL D'UTILISATION DANS UN ENDROIT SÛR EN VUE DE CONSULTATION FUTURE.

DESCRIPTION

ACCESSOIRE POUR HACHER (FIG. 4)

SUPPRESSION DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product for the use for which it is intended for a period of three years. In the case of breakdown during the term of this warranty, users are entitled

to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.
