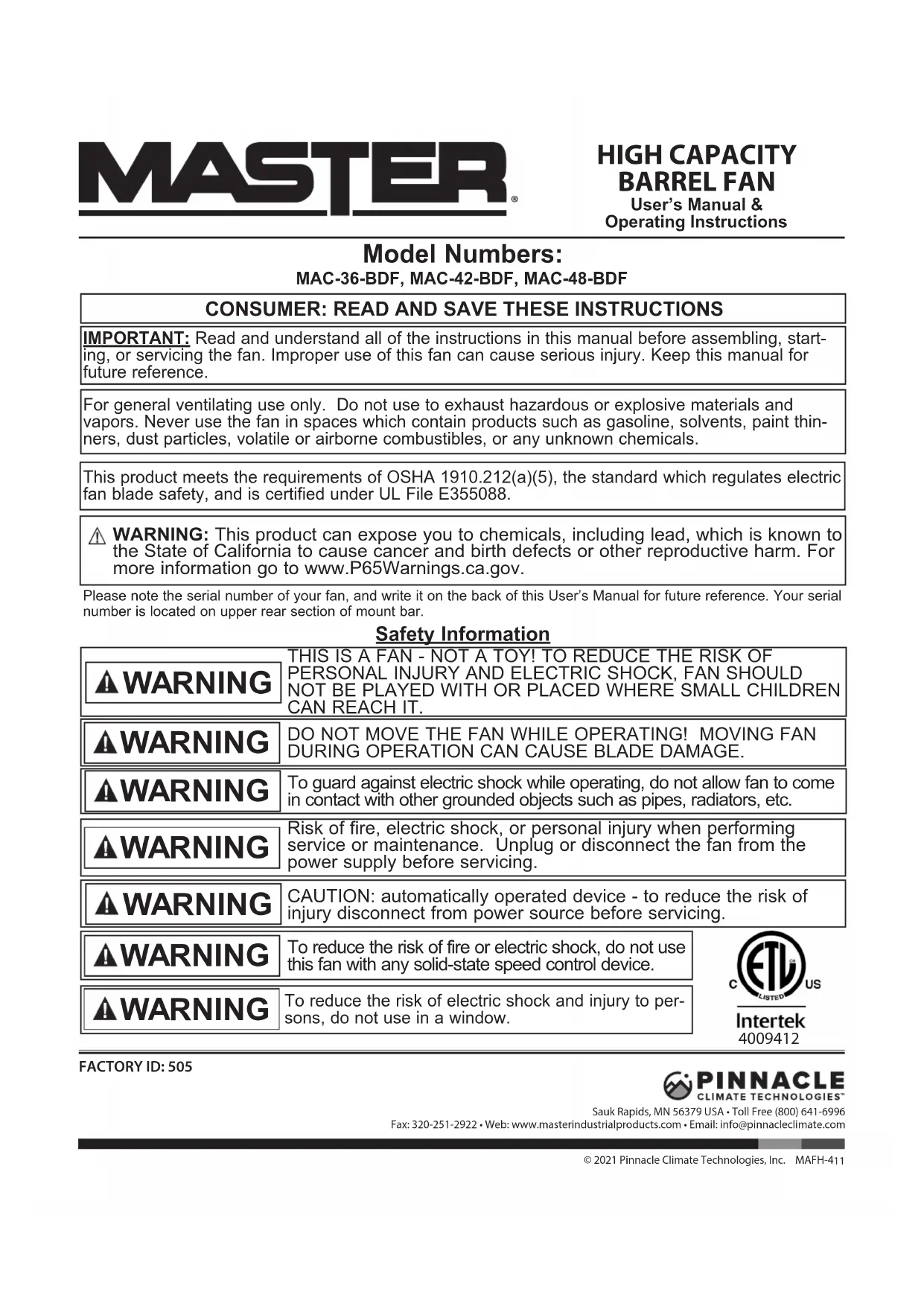

USER MANUAL MAC36BDF Master

This product meets the requirements of OSHA 1910.212(a)(5), the standard which regulates electric fan blade safety, and is certified under UL File E355088. Please note the serial number of your fan, and write it on the back of this User’s Manual for future reference. Your serial number is located on upper rear section of mount bar.

IMPORTANT: Read and understand all of the instructions in this manual before assembling, start- ing, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thin- ners, dust particles, volatile or airborne combustibles, or any unknown chemicals. Safety Information THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY AND ELECTRIC SHOCK, FAN SHOULD NOT BE PLAYED WITH OR PLACED WHERE SMALL CHILDREN CAN REACH IT. DO NOT MOVE THE FAN WHILE OPERATING! MOVING FAN DURING OPERATION CAN CAUSE BLADE DAMAGE. Risk of fire, electric shock, or personal injury when performing service or maintenance. Unplug or disconnect the fan from the power supply before servicing. CAUTION: automatically operated device - to reduce the risk of injury disconnect from power source before servicing. To guard against electric shock while operating, do not allow fan to come in contact with other grounded objects such as pipes, radiators, etc. WARNING WARNING WARNING WARNING WARNING To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. To reduce the risk of electric shock and injury to per-sons, do not use in a window. WARNING WARNING Sauk Rapids, MN 56379 USA • Toll Free (800) 641-6996Fax: 320-251-2922 • Web: www.masterindustrialproducts.com • Email: info@pinnacleclimate.com© 2021 Pinnacle Climate Technologies, Inc. MAFH-4 User’s Manual & Operating Instructions HIGH CAPACITY BARREL FAN

WARNING: This product can expose you to chemicals, including lead, which is known to

the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. 4009412FACTORY ID: 505NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE © 2021, Pinnacle Climate Technologies, Inc. High Capacity Barrel Fan User’s Manual Installation and Assembly Attaching The Wheels (Figure 1)

1. Slide wheel axle through wheel support

2. Slide one (1) wheel onto either side of axle.

3. Secure each wheel with one (1) cotter pin.

4. Locate fan in a safe, desired position on level

ground, and connect to approved power source.

Installation work and electrical wiring must be done by qualified per- son (s) in accordance with all applicable codes and regulations. When Servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be rein- stalled or remounted as previously installed before operating this fan. Use this fan only in the manner intended by the manufacturer. If you have any questions, contact Customer Service at 800-641-6996. - Before operating always check fan for loose or dam- aged parts. Inspect power cord for damage. Never use fan without safety guards attached. -Operate only on 120 volt 60 Hz (cycle) current with a minimum 15 amp circuit. - When used with an extension cord, use a UL listed, 14 AWG cord equipped with a receptacle to accept the three-prong grounded plug on the fan’s power cord and a 3-prong grounded plug for the power source. If extension cord is longer than 50 feet, consult with cord manufacturer for proper cord AWG rating. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged. To reduce the risk of electric shock, do not expose to water or rain. This unit is designed for indoor use only. WARNING Safety Information WARNING WARNING WARNING Operation NOTE: This fan is equipped with a 2-speed con- trol switch. TO START FAN:

1. Be sure the Power Switch is in the (OFF)

2. Connect to an approved power source.

3. Make sure area is clear from all obstructions.

4. Push the Power Switch to the LOW position

and allow to operate for 10 seconds.

5. Once 10 seconds have passed, you may now

push the Power Switch to the HIGH position. TO TURN OFF FAN:

1. To turn off the fan, simply return the Power

Switch to the middle (OFF) position. NOTE: For longer parts life, after 10 hours of continuous operation, turn fan off for 15 minutes to allow motor and fan belt to cool. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not run cord under carpeting. Do not cover cord with throw rugs , runner, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over. WARNING

OR WHILE CONNECTED TO A POWER SOURCE © 2021, Pinnacle Climate Technologies, Inc. High Capacity Barrel Fan User’s Manual Problem Possible Cause Corrective Action Fan does not operate

Inspect Power Cord for damage. Be sure unit is plugged in and turned on.

Have Power Switch replaced by a qualified professional acccording to code (Note: To prolong life of Power Switch, it is recom- mended that the fan is first operated in LOW for 5-10 seconds before switching to HIGH).

Capacitor is damaged. Have Capacitor replaced by a qualified professional according to code. Reduced Air Flow

1. Loose pulleys or fan blade

Tighten motor pulley screw.

2. Loose or worn belt

Capacitor is damaged. Have Capacitor replaced by a qualified professional according to code. Excess Noise (vibration, slapping, squealing)

1. Fan is not on level ground

Turn off fan, and relocate unit to smooth level surface.

2. Motor bolts are not secure

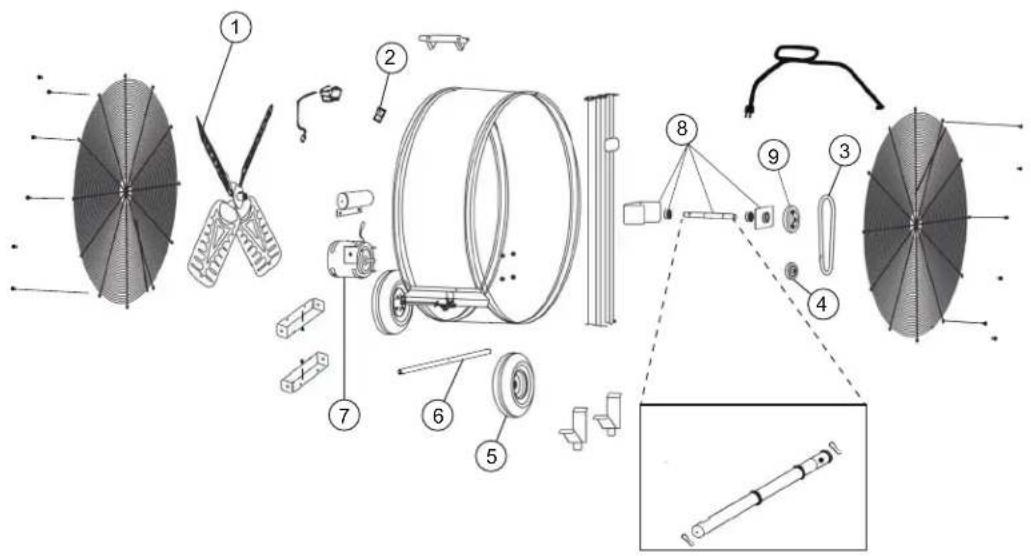

Tighten Motor Safeguard bolts and motor bolts. Troubleshooting Guide 3NEVER LEAVE A FAN UNATTENDED WHILE OPERATING OR WHILE CONNECTED TO A POWER SOURCE © 2021, Pinnacle Climate Technologies, Inc. High Capacity Barrel Fan User’s Manual Exploded View

ABUSE, MISUSE, ALTERATION, MISAPPLICATION, IMPROPER

WARRANTIES. PINNACLE CLIMATE TECHNOLOGIES, INC. DIS-

CLAIMS ALL WARRANTIES FOR PRODUCTS THAT ARE PUR- CHASED FROM SELLERS OTHER THAN AUTHORIZED RETAILERS OR DISTRIBUTORS. AFTER THE PERIOD OF THE ONE (1) YEAR LIMITED WARRANTY EXPIRES, PINNACLE CLIMATE TECHNOLOGIES, INC. DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,

INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR APPLICATION. FURTHER, PINNACLE CLIMATE TECHNOLOGIES, INC. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES. PINNACLE CLIMATE

PUNITIF, ACCESSOIRE OU FORTUIT. PINNACLE CLIMATE
