USER MANUAL MAC-48-BDF Master

IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown chemicals.

This product meets the requirements of OSHA 1910.212(a)(5), the standard which regulates electric fan blade safety, and is certified under UL File E355088.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference. Your serial number is located on upper rear section of mount bar.

Safety Information

THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY AND ELECTRIC SHOCK, FAN SHOULD NOT BE PLAYED WITH OR PLACED WHERE SMALL CHILDREN CAN REACH IT.

DO NOT MOVE THE FAN WHILE OPERATING! MOVING FAN DURING OPERATION CAN CAUSE BLADE DAMAGE.

To guard against electric shock while operating, do not allow fan to come in contact with other grounded objects such as pipes, radiators, etc.

Risk of fire, electric shock, or personal injury when performing service or maintenance. Unplug or disconnect the fan from the power supply before servicing.

CAUTION: automatically operated device - to reduce the risk of injury disconnect from power source before servicing.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

To reduce the risk of electric shock and injury to persons, do not use in a window.

Intertek 4009412

Safety Information

WARNING

To reduce the risk of electric shock, do not expose to water or rain. This unit is designed for indoor use only.

WARNING

Installation work and electrical wiring must be done by qualified person (s) in accordance with all applicable codes and regulations.

WARNING

When Servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be reinstalled or remounted as previously installed before operating this fan.

WARNING

Use this fan only in the manner intended by the manufacturer. If you have any questions, contact Customer Service at 800-641-6996.

• Before operating always check fan for loose or damaged parts. Inspect power cord for damage. Never use fan without safety guards attached.

-Operate only on 120 volt 60Hz (cycle) current with a minimum 15 amp circuit.

• When used with an extension cord, use a UL listed, 14 AWG cord equipped with a receptacle to accept the three-prong grounded plug on the fan's power cord and a 3-prong grounded plug for the power source. If extension cord is longer than 50 feet, consult with cord manufacturer for proper cord AWG rating. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged.

Operation

NOTE: This fan is equipped with a 2-speed control switch.

TO START FAN:

1. Be sure the Power Switch is in the (OFF) position.
2. Connect to an approved power source.
3. Make sure area is clear from all obstructions.
4. Push the Power Switch to the LOW position and allow to operate for 10 seconds.
5. Once 10 seconds have passed, you may now push the Power Switch to the HIGH position.

TO TURN OFF FAN:

1. To turn off the fan, simply return the Power Switch to the middle (OFF) position.

NOTE: For longer parts life, after 10 hours of continuous operation, turn fan off for 15 minutes to allow motor and fan belt to cool.

Installation and Assembly

Attaching The Wheels (Figure 1)

1. Slide wheel axle through wheel support frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure each wheel with one (1) cotter pin.

1.2.3.

Figure 1

1. Locate fan in a safe, desired position on level ground, and connect to approved power source.

WARNING

Do not operate any fan with a damaged cord or plug. Discard

fan or return to an authorized service facility for examination and/or repair. Do not run cord under carpeting. Do not cover cord with throw rugs, runner, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over.

Troubleshooting Guide

Problem Possible	Cause Corrective Action
Fan does not operate	1. No power	Inspect Power Cord for damage. Be sure unit is plugged in and turned on.
	2. Bad switch	Have Power Switch replaced by a qualified professional according to code (Note: To prolong life of Power Switch, it is recommended that the fan is first operated in LOW for 5-10 seconds before switching to HIGH).
	3. Motor is humming	Capacitor is damaged. Have Capacitor replaced by a qualified professional according to code.
Reduced Air Flow	1. Loose pulleys or fan blade	Tighten motor pulley screw.
	2. Loose or worn belt	Tighten belt
	3. Motor is humming	Capacitor is damaged. Have Capacitor replaced by a qualified professional according to code.
Excess Noise (vibration, slapping, squealing)	1. Fan is not on level ground	Turn off fan, and relocate unit to smooth level surface.
	2. Motor bolts are not secure	Tighten Motor Safeguard bolts and motor bolts.

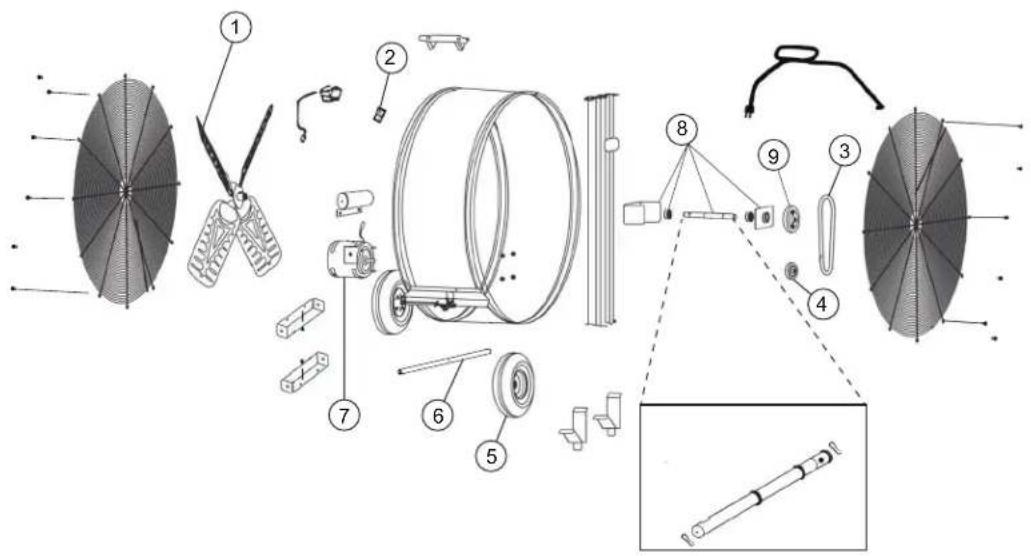

Exploded View

Replacement Parts

		Models:
Item #	Description MAC-36-BDF MAC-42-BDF	MAC-48-BDF
1	Fan Blade Assembly 24-110-0050 24-110-0060 24-110-0070
2	Power Switch 12-400-0040 12-400-0040 12-400-0040
3	Belt 26-110-0010 26-110-0010 26-110-0020
4	Motor Pulley 26-210-0010 26-210-0010 26-210-0020
5	Wheel 28-210-0010 38-210-0020 38-210-0020
6	Wheel Axle KT-016 KT-016 KT-016
7	Motor 12-100-0120 12-100-0130 12-100-0140
8	Fan Shaft Assembly:(1)shaft, (2) bearings, (2)e-clips, (2) washers, (1)shaft pin, (1) bearing housing	20-110-0010 20-110-0010 20-100-0020
9	Fan Pulley 26-210-0030 26-210-0030 26-210-0040

1 YEAR LIMITED WARRANTY

PINNACLE CLIMATE TECHNOLOGIES, INC. WARRANTY THIS PRODUCT TO THE ORIGINAL RETAIL PURCHASER ONLY, TO BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR FROM THE DATE OF INITIAL PURCHASE. THIS PRODUCT MUST BE PROPERLY INSTALLED, MAINTAINED AND OPERATED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED.

PINNACLE CLIMATE TECHNOLOGIES, INC. REQUIRES REASONABLE PROOF OF YOUR DATE OF PURCHASE FROM AN AUTHORIZED RETAILER OR DISTRIBUTOR. THEREFORE, YOU SHOULD KEEP YOUR SALES SLIP, INVOICE, OR CANCELLED CHECK FROM THE ORIGINAL PURCHASE. THIS LIMITED WARRANTY SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT OF PARTS, WHICH PROVE DEFECTIVE UNDER NORMAL USE AND SERVICE WITHIN THE WARRANTY PERIOD, AND WHICH PINNACLE CLIMATE TECHNOLOGIES, INC. SHALL DETERMINE AT ITS REASONABLE DISCRETION.

THIS WARRANTY DOES NOT APPLY TO PRODUCTS PURCHASED FOR RENTAL USE.

THIS LIMITED WARRANTY DOES NOT COVER REPLACEMENT OF BELTS OR TIGHTENING OF BELTS, OR ANY FAILURES OR OPERATING DIFFICULTIES DUE TO NORMAL WEAR AND TEAR, ACCIDENT, ABUSE, MISUSE, ALTERATION, MISAPPLICATION, IMPROPER INSTALLATION OR IMPROPER MAINTENANCE AND SERVICE BY YOU OR ANY THIRD PARTY. FAILURE TO PERFORM NORMAL AND ROUTINE MAINTENANCE ON THE FAN, SHIPPING DAMAGE, DAMAGE RELATED TO INSECTS, BIRDS, OR ANIMALS OF ANY KIND, AND DAMAGE DUE TO WEATHER CONDITIONS ARE ALSO NOT COVERED. IN ADDITION, THE LIMITED WARRANTY DOES NOT COVER DAMAGE TO THE FINISH, SUCH AS SCRATCHES, DENTS, DISCOLORATION, RUST OR OTHER WEATHER DAMAGE, AFTER PURCHASE.

ALL TRANSPORTATION COSTS FOR THE RETURN OF THE DAMAGED PRODUCT OR PARTS WILL BE THE RESPONSIBILITY OF THE PURCHASER. UPON RECEIPT OF DAMAGED ITEM, Pinnacle CLIMATE TECHNOLOGIES, INC. WILL EXAMINE THE ITEM AND DETERMINE IF DEFECTIVE.

PINNACLE CLIMATE TECHNOLOGIES, INC. WILL REPAIR OR REPLACE AND RETURN THE ITEM, FREIGHT PRE-PAID. IF Pinnacle CLIMATE TECHNOLOGIES, INC. FINDS THE ITEM TO BE IN NORMAL OPERATING CONDITION, OR NOT DEFECTIVE, THE ITEM WILL BE RETURNED FREIGHT COLLECT.

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Pinnacle CLIMATE TECHNOLOGIES, INC. DISCLAIMS ALL WARRANTYES FOR PRODUCTS THAT ARE PURCHASED FROM SELLERS OTHER THAN AUTHORIZED RETAILERS OR DISTRIBUTORS.

AFTER THE PERIOD OF THE ONE (1) YEAR LIMITED
WARRANTY EXPIRES, Pinnacle CLIMATE TECHNOLOGIES,
INC.DISCLAIMS ANY AND ALL IMPLIED WARRANTYES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTYES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
APPLICATION. FURTHER, Pinnacle CLIMATE TECHNOLOGIES,
INC. SHALL HAVE NO LIABILITY WHATSOEVER TO PURCHASER OR
ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle CLIMATE
TECHNOLOGIES, INC. ASSUMES NO RESPONSIBILITY FOR ANY
DEFECTS CAUSED BY THIRD PARTIES. THIS LIMITED WARRANTY
GIVES THE PURCHASER SPECIFIC LEGAL RIGHTS; A PURCHASER
MAY HAVE OTHER RIGHTS DEPENDING UPON WHERE HE OR SHE
LIVES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITA- TION OF SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON HOW LONG A WARRANTY LASTS, SO THE
ABOVE EXCLUSION AND LIMITATIONS MAY NOT APPLY TO YOU.

PINNACLE CLIMATE TECHNOLOGIES, INC. DOES NOT AUTHORIZE ANY PERSON OR COMPANY TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, USE, REMOVAL, RETURN, OR REPLACEMENT OF ITS EQUIPMENT, AND NO SUCH REPRESENTATIONS ARE BINDING ON PINNACLE CLIMATE TECHNOLOGIES, INC.

ALWAYS BE SURE TO SPECIFY MODEL NUMBER AND SERIAL NUMBER WHEN MAKING ANY CLAIM WITH PINNACLE CLIMATE TECHNOLOGIES, INC. FOR YOUR CONVENIENCE USE THE SPACE PROVIDED BELOW TO LIST THIS INFORMATION:

Model #:

Serial #:

Date of Purchase:

Numeros de modeles :

MAC-36-BDF, MAC-42-BDF, MAC-48-BDF
