Technical specifications	Master MAC30D fan, power 3000 W, air flow up to 3000 m\u00b3/h, 3 ventilation speeds, dimensions 600 x 600 x 300 mm.
Usage	Ideal for cooling workspaces, construction sites, or industrial premises. Can be used indoors and outdoors.
Maintenance and repair	Regularly check filters and ventilation grilles. Clean with a damp cloth. In case of failure, contact the authorized after-sales service.
Safety	Do not block ventilation grilles. Avoid exposure to water. Unplug the device before any maintenance intervention.
General information	2-year warranty, weight 15 kg, noise level 65 dB, 5-meter power cable.

Frequently Asked Questions - MAC30D Master

How can I assemble the Master MAC30D fan?

To assemble the Master MAC30D fan, follow the instructions provided in the user manual. Make sure to properly attach the fan blades and check that all screws are tightly secured.

The fan does not work, what should I do?

First, check that the fan is properly plugged into a working electrical outlet. Also ensure that the switch is in the 'ON' position. If the problem persists, contact after-sales service.

How do I clean the Master MAC30D fan?

Unplug the fan before cleaning it. Use a soft, damp cloth to wipe the blades and the casing. Do not immerse the fan in water and avoid harsh chemicals.

The fan is making noise, what should I do?

Abnormal noise may be caused by unbalanced blades or dirt accumulation. Make sure the blades are clean and properly installed. If the noise persists, contact customer service.

What is the power of the Master MAC30D fan?

The Master MAC30D fan has a power of 30 W, making it effective for use in medium-sized spaces.

Can I use the fan outdoors?

The Master MAC30D fan is designed for indoor use. Outdoor use may damage the motor and void the warranty.

How do I adjust the fan speed?

The Master MAC30D fan is equipped with a control knob that allows you to choose between several speeds. Simply turn the knob to adjust the speed according to your preference.

Where can I buy spare parts for the Master MAC30D?

Spare parts for the Master MAC30D can be purchased from our customer service or on our official website. Make sure to check the availability of parts.

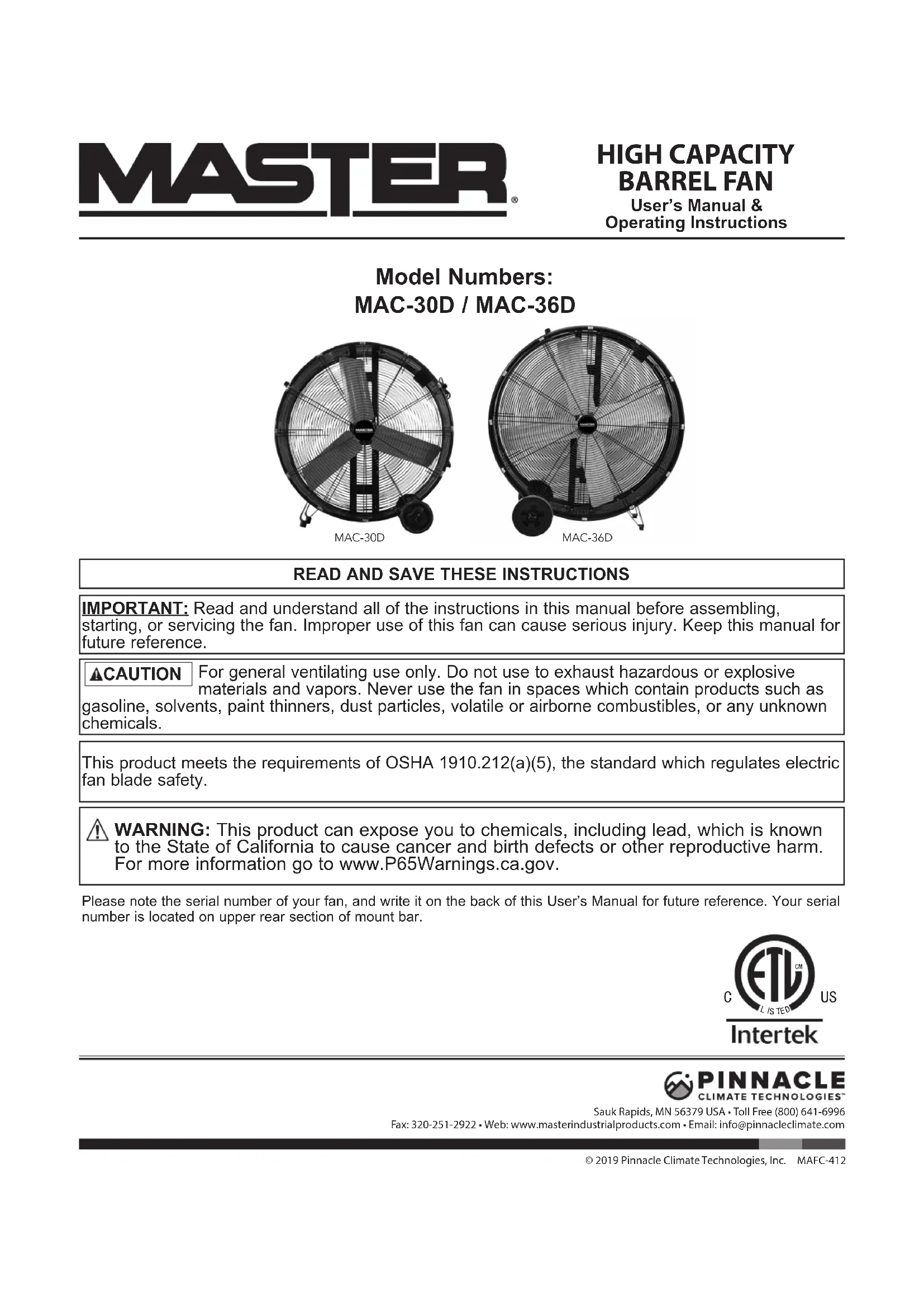

USER MANUAL MAC30D Master

Model Numbers: MAC-30D / MAC-36D

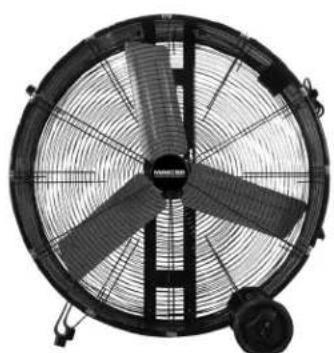

MAC-30D

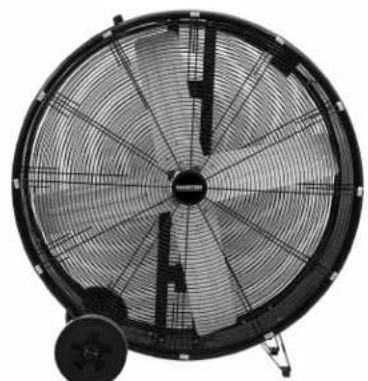

MAC-36D

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT: Read and understand all of the instructions in this manual before assembling, starting, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for future reference.

CAUTION For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thinners, dust particles, volatile or airborne combustibles, or any unknown chemicals.

This product meets the requirements of OSHA 1910.212(a)(5), the standard which regulates electric fan blade safety.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Please note the serial number of your fan, and write it on the back of this User's Manual for future reference. Your serial number is located on upper rear section of mount bar.

Intertek

Pinnacle

CLIMATE TECHNOLOGIES

Sauk Rapids, MN 56379 USA · Toll Free [phone]

Fax: [phone] • Web: www.masterindustrialproducts.com • Email: [e-mail]

Table of Contents

Safety Information 2

Assembly and Installation 3

Operation 3

Maintenance and Storage 4

Wiring Diagram 4

Troubleshooting 5

Exploded View. 6

Warranty. 7

Safety Information

IMPORTANT: READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY, SERVICE OR USE OF THIS FAN. FAILURE TO COMPLY WITH THESE INSTRUCTIONS COULD RESULT IN SERIOUS PERSONAL INJURY AND/OR PROPERTY DAMAGE.
WARNING THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF PERSONAL INJURY AND ELECTRIC SHOCK, FAN SHOULD NOT BE PLAYED WITH OR PLACED WHERE SMALL CHILDREN CAN REACH IT.
DO NOT MOVE THE FAN WHILE OPERATING! MOVING FAN DURING OPERATION CAN CAUSE BLADE DAMAGE.
WARNING To guard against electric shock while operating, do not allow fan to come in contact with other grounded objects such as pipes, radiators, etc.
WARNING Risk of fire, electric shock, or personal injury when performing service or maintenance. Unplug or disconnect the fan from the power supply before servicing.
WARNING CAUTION Automatically Operated Device-To Reduce The Risk Of Injury Disconnect From Power Source Before Servicing.
WARNING To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.
W A R N I N G To Reduce The Risk Of Electric Shock And Injury To Persons, Do Not Use In A Window.
WARNING To Reduce The Risk Of Electric Shock, Do Not Expose To Water Or Rain. This unit is designed for indoor use only.
WARNING Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and regulations.
WARNING When servicing or replacing a component requires the removal or disconnection of a safety device, the safety device is to be reinstalled or remounted as previously installed before operating this fan.
WARNING Use this fan only in the manner intended by the manufacturer. If you have any questions, contact Customer Service at 800-641-6996.
- Before operating always check fan for loose or damaged parts. Inspect power cord for damage. Never use fan without safety guards attached.
- Operate only on 120 volt 60Hz (cycle) current with a minimum 15 amp circuit.
- When used with an extension cord, use a UL listed, 14 AWG cord equipped with a receptacle to accept the three-prong grounded plug on the fan's power cord and a 3-prong grounded plug for the power source. If extension cord is longer than 50 feet, consult with cord manufacturer for proper cord AWG rating. Always keep power cord and extension cords away from heat, oil, and sharp edges. Inspect cords periodically and replace if damaged.

Assembly and Installation

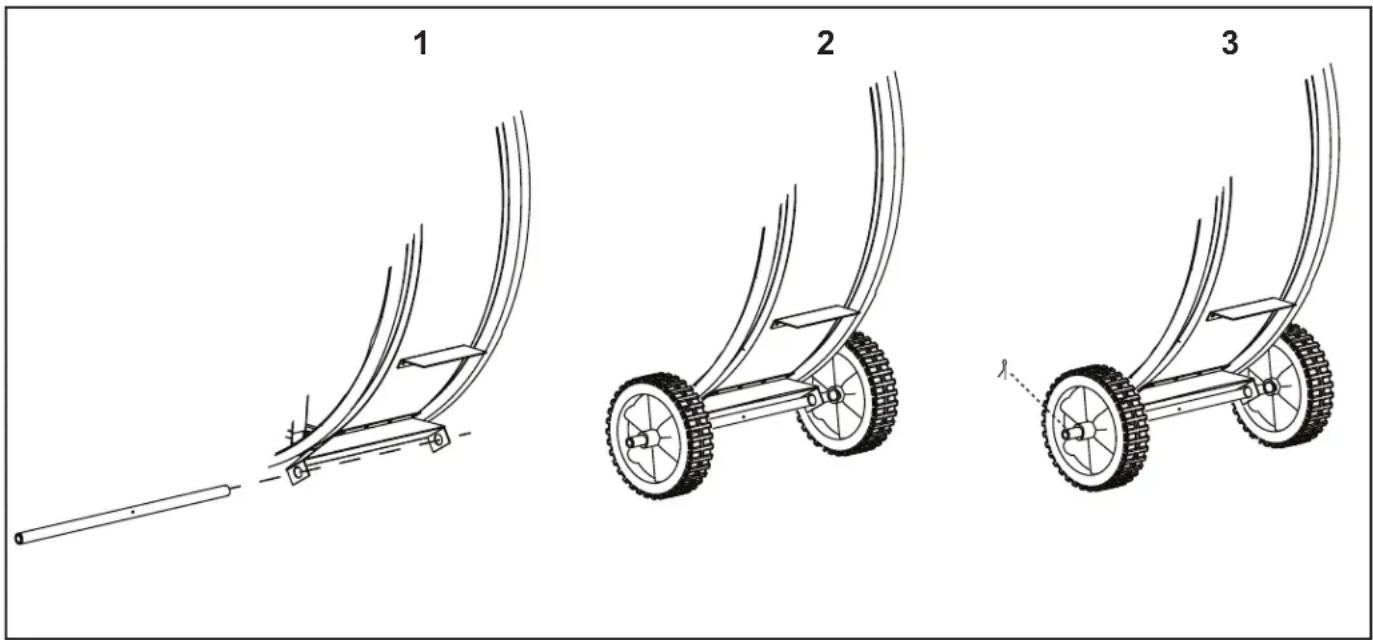

Attaching The Wheels (see Figure 1)

1. Slide wheel axle through wheel support frame.

2. Slide one (1) wheel onto either side of axle.

3. Secure each wheel with one (1) cotter pin.

Figure 1

1. Locate fan in safe, desired position on level ground, and connect to approved power source.

Operation

NOTE: This fan is equipped with a 2-speed control switch.

To start fan:

1. Be sure the Power Switch is in the (OFF) position.
2. Connect to an approved power source.
3. Make sure area is clear from all obstructions.
4. Push the Power Switch to the LOW position and allow to operate for 10 seconds.
5. Once 10 seconds have passed, you may now push the Power Switch to the HIGH position.

To turn off fan:

1. To turn off the fan, simply return the Power Switch to the middle (OFF) position.

NOTE: For longer parts life, after 10 hours of continuous operation, turn fan off for 15 minutes to allow motor and fan belt to cool.

Maintenance and Storage

1. Inspect your fan before each use. Check all wires and extension cords, following the procedure outlined on Page 2 (Safety Information).

2. After use, always be sure the fan's Power Switch is in the OFF position before unplugging. Use the cord wrap to keep cord off the ground when transporting fan.

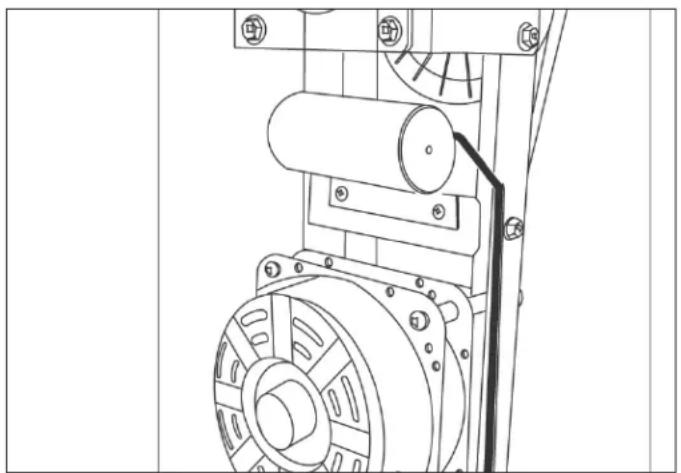

Figure 2: Capacitor Assembly

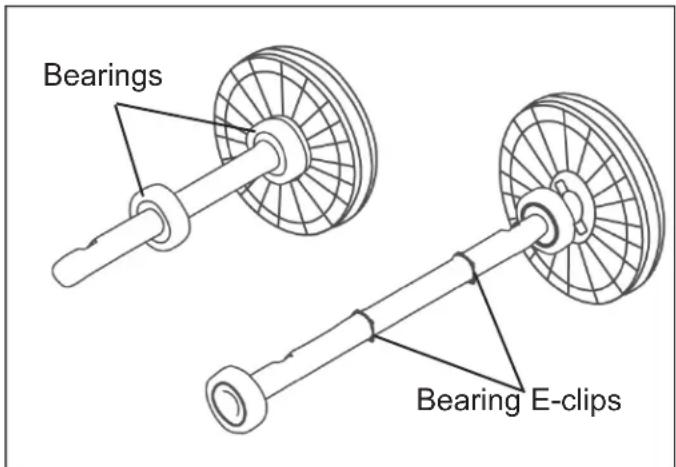

Figure 3: Fan Shaft Assembly

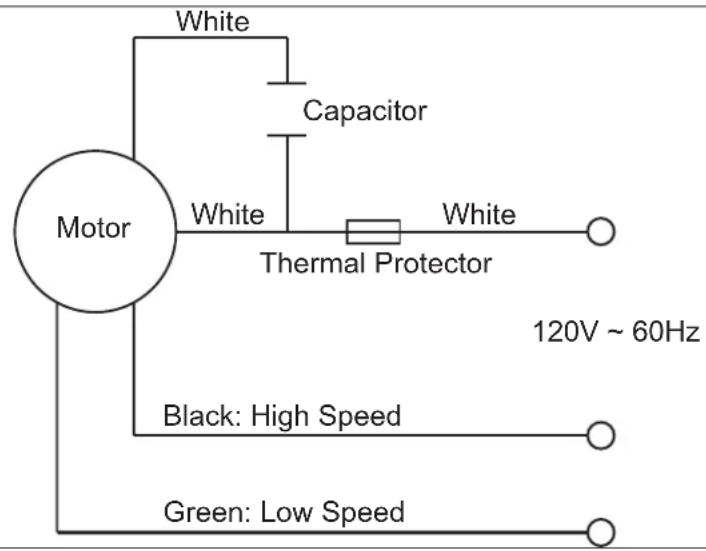

Wiring Diagram

NOTE: Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and regulations.

Troubleshooting Guide
Problem Possible	Cause Corrective Action
Fan does not operate	1. No power	Inspect Power Cord for damage. Be sure unit is plugged in and turned on.
	2. Bad switch	Have Power Switch replaced by a qualified professional according to code (Note: To prolong life of the Power Switch, it is recommended that the fan is first operated in LOW for 5-10 seconds before switching to HIGH).
Reduced Air Flow 1. Loose	pulleys or fan blade	Tighten motor pulley Hex Screw.
Excess Noise (vibration, slapping, squealing)	1. Fan is not on level ground	Turn off fan, and relocate unit to smooth level surface.
	2. Motor bolts are not secure	Tighten Motor Safeguard bolts and 4 motor bolts.

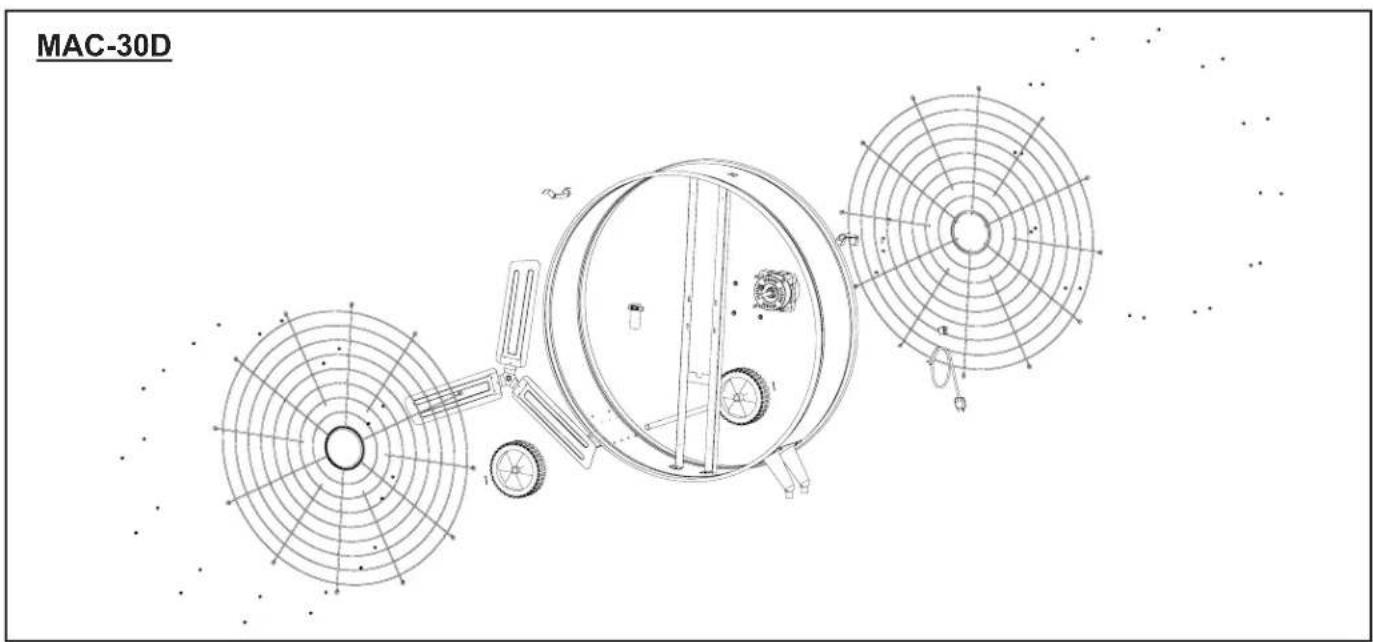

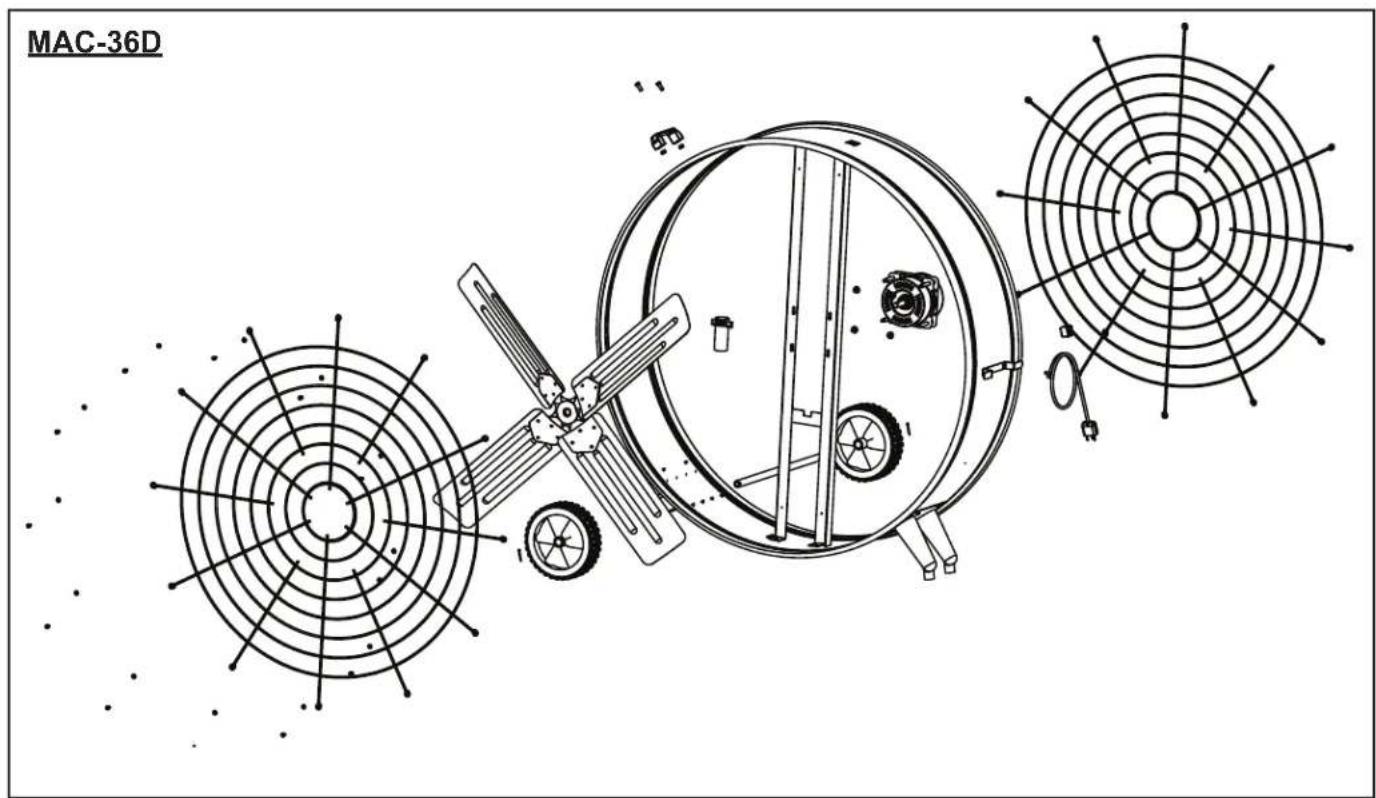

Exploded View

Pinnacle Climate Technologies, Inc. reserves the right to make any changes in materials, specifications, prices or design without notice. Pinnacle Climate Technologies, Inc. may also discontinue items at any time.

1 YEAR LIMITED WARRANTY

PINNACLE CLIMATE TECHNOLOGIES, INC. WARRANTY THIS PRODUCT TO THE ORIGINAL RETAIL PURCHASER ONLY, TO BE FREE FROM DEFECTS IN MATERIAL AND WORKMANSHIP FOR A PERIOD OF ONE (1) YEAR FROM THE DATE OF INITIAL PURCHASE. THIS PRODUCT MUST BE PROPERLY INSTALLED, MAINTAINED AND OPERATED IN ACCORDANCE WITH THE INSTRUCTIONS PROVIDED.

PINNACLE CLIMATE TECHNOLOGIES, INC. REQUIRES REASONABLE PROOF OF YOUR DATE OF PURCHASE FROM AN AUTHORIZED RETAILER OR DISTRIBUTOR. THEREFORE, YOU SHOULD KEEP YOUR SALES SLIP, INVOICE, OR CANCELLED CHECK FROM THE ORIGINAL PURCHASE. THIS LIMITED WARRANTY SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT OF PARTS, WHICH PROVE DEFECTIVE UNDER NORMAL USE AND SERVICE WITHIN THE WARRANTY PERIOD, AND WHICH PINNACLE CLIMATE TECHNOLOGIES, INC. SHALL DETERMINE AT ITS REASONABLE DISCRETION.

THIS WARRANTY DOES NOT APPLY TO PRODUCTS PURCHASED FOR RENTAL USE.

THIS LIMITED WARRANTY DOES NOT COVER
REPLACEMENT OF BELTS OR TIGHTENING OF BELTS, OR ANY
FAILURES OR OPERATING DIFFICULTIES DUE TO NORMAL WEAR
AND TEAR, ACCIDENT, ABUSE, MISUSE, ALTERATION,
MISAPPLICATION, IMPROPER INSTALLATION OR IMPROPER
MAINTENANCE AND SERVICE BY YOU OR ANY THIRD PARTY.
FAILURE TO PERFORM NORMAL AND ROUTINE MAINTENANCE ON
THE FAN, SHIPPING DAMAGE, DAMAGE RELATED TO INSECTS,
BIRDS, OR ANIMALS OF ANY KIND, AND DAMAGE DUE TO
WEATHER CONDITIONS ARE ALSO NOT COVERED. IN ADDITION,
THE LIMITED WARRANTY DOES NOT COVER DAMAGE TO THE
FINISH, SUCH AS SCRATCHES, DENTS, DISCOLORATION, RUST OR
OTHER WEATHER DAMAGE, AFTER PURCHASE.
ALL TRANSPORTATION COSTS FOR THE RETURN OF THE DAMA
GED PRODUCT OR PARTS WILL BE THE RESPONSIBILITY OF
THE PURCHASER. UPON RECEIPT OF DAMAGED ITEM, PINKACLE
CLIMATE TECHNOLOGIES, INC. WILL EXAMINE THE ITEM AND
DETERMINE IF DEFECTIVE.

PINNACLE CLIMATE TECHNOLOGIES, INC. WILL REPAIR OR REPLACE AND RETURN THE ITEM, FREIGHT PRE-PAID. IF PINNACLE CLIMATE TECHNOLOGIES, INC. FINDS THE ITEM TO BE IN NORMAL OPERATING CONDITION, OR NOT DEFECTIVE, THE ITEM WILL BE RETURNED FREIGHT COLLECT.

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Pinnacle CLIMATE TECHNOLOGIES, INC. DISCLAIMS ALL WARRANTYES FOR PRODUCTS THAT ARE PURCHASED FROM SELLERS OTHER THAN AUTHORIZED RETAILERS OR DISTRIBUTORS.

AFTER THE PERIOD OF THE ONE (1) YEAR LIMITED
WARRANTY EXPIRES, Pinnacle CLIMATE
TECHNOLOGIES, INC. DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTYES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR APPLICATION. FURTHER,
Pinnacle CLIMATE TECHNOLOGIES, INC. SHALL HAVE NO
LIABILITY WHATSOEVER TO PURCHASER OR ANY THIRD
PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES. Pinnacle
CLIMATE TECHNOLOGIES, INC. ASSUMES NO
RESPONSIBILITY FOR ANY DEFECTS CAUSED BY THIRD
PARTIES. THIS LIMITED WARRANTY GIVES THE
PURCHASER SPECIFIC LEGAL RIGHTS; A PURCHASER MAY
HAVE OTHER RIGHTS DEPENDING UPON WHERE HE OR
SHE LIVES. SOME STATES DO NOT ALLOW THE EXCLU SION OR LIMITATION OF SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON HOW
LONG A WARRANTY LASTS, SO THE ABOVE EXCLUSION
AND LIMITATIONS MAY NOT APPLY TO YOU.

PINNACLE CLIMATE TECHNOLOGIES, INC. DOES NOT AUTHITIZE ANY PERSON OR COMPANY TO ASSUME FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, USE, REMOVAL, RETURN, OR REPLACEMENT OF ITS EQUIPMENT, AND NO SUCH REPRESENTATIONS ARE BINDING ON PINNACLE CLIMATE TECHNOLOGIES, INC.

ALWAYS BE SURE TO SPECIFY MODEL NUMBER AND SERIAL NUMBER WHEN MAKING ANY CLAIM WITH PINNACLE CLIMATE TECHNOLOGIES, INC. FOR YOUR CONVENIENCE USE THE SPACE PROVIDED BELOW TO LIST THIS INFORMATION:

Model #:

Serial #:

Date of Purchase:
