USER MANUAL 562003 Intellinet

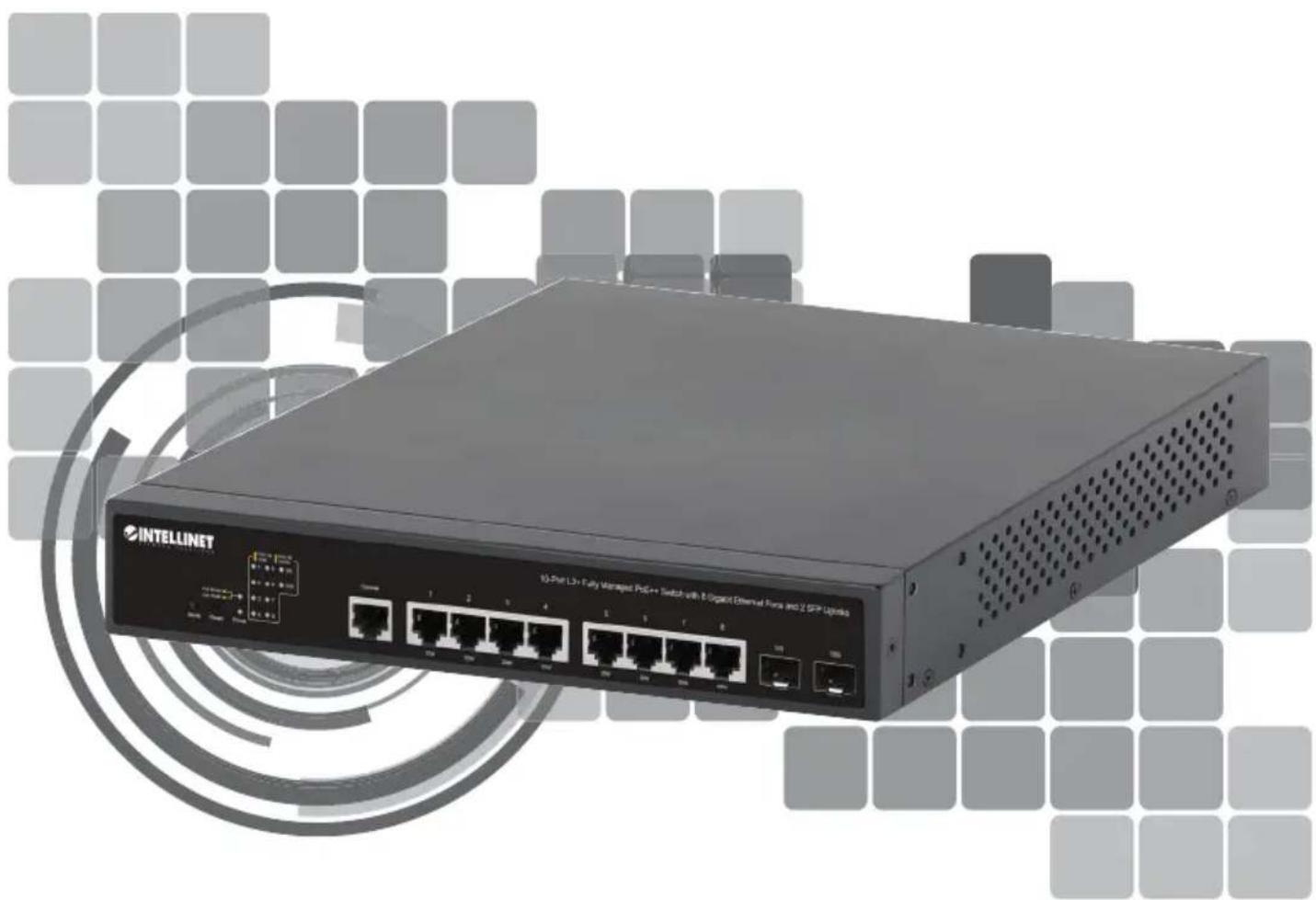

10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks Instructions Model 562003 (IPS-10GM02-242W)

Important: Read before use. • Importante: Leer antes de usar.

For additional benefits:

Scan to register your product warranty

or go to: register.intellinet-network.com/r/562003

This guide presents the basic steps to set up and operate this device.

For the user manual and specifications, visit intellinet-network.com. Register your product at register.intellinet-network.com/r/562003 or scan the QR code on the cover.

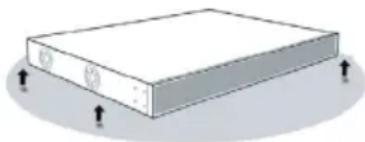

Placement

Prior to use, it is recommended that the switch be placed/positioned:

• on a level surface that can support the weight of the switch (and any other items that need to be considered);
  with a minimum of 25mm (approx. 1^ ) of clearance on the top and sides for adequate ventilation;
• away from sources of electrical noise: radios, transmitters, broadband amplifiers, etc.;
• where it cannot be affected by excessive moisture;
• within 100m (approx. 328^ ) of network devices (RJ45) it's to be connected to.

The switch includes brackets and screws for optional rack mounting.

1 Disconnect any cables from the switch.
2 Position a bracket over the mounting holes on one side of the switch and secure it in place with screws.
3 Repeat Step 2 on the other side of the switch.
4 Position the switch in the rack and screw the brackets to the rack.
5 Reconnect any cables.

Chassis Ground Column

Located on the side of the power supply connector, a grounding terminal connector is used to provide proper grounding for your switch. It should be wired to an object that provides earth ground.

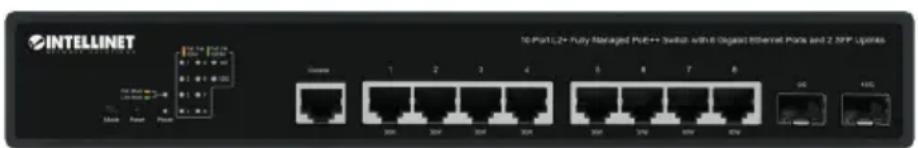

Connections

• All ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc.
• Cat5e/6/6a/8.x UTP/STP cables provide optimal performance; if a status LED doesn't indicate a link or activity, check the corresponding device for proper setup and operation.
• Use the included power cable to connect the receptacle on the back of the switch to a power outlet.
• Ports 1 - 8 can provide power to a connected powered device (PoE++ output up to 90 watts on ports 7 and 8; PoE+ output up to 30 watts on ports 1 through 6); all powered devices should comply with IEEE 802.3bt/at/af.

LED Color Status Operation
PWR Green	On Unit is receiving power.
	Off Check connection.
Link/Act/Speed 1-8	10/100M:Orange1000M:Green	On Valid port connection.
		Flashing Data is transmitted/received
		Off No link established.
PoE 1-8	Green On The connected powered device (PD) is receiving power.
	Orange Off No PD device is linked.
9S-10S(SFP)	Green	On Valid port connection.
		Flashing Data is transmitted/received
		Off No link established.

• NOTE: Press the Mode button to alternate between Link or PoE Status.

Basic Web-Based Browser Management

1 Open your Web browser.
2 Enter http:// and the IP address of the switch in the Address field. The default management IP address is 192.168.2.1.
3 Press Enter to display the login screen. In theUsername field, enter admin; in the Password field, enter the serial number on the bottom of the switch. Click OK.
